Cogged V-Belt Overview

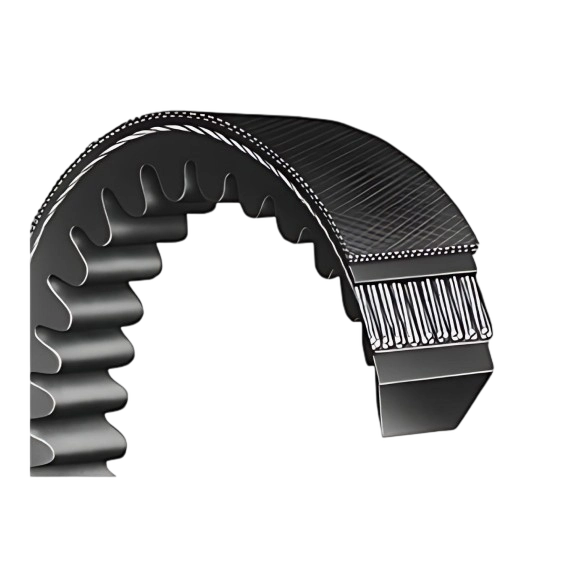

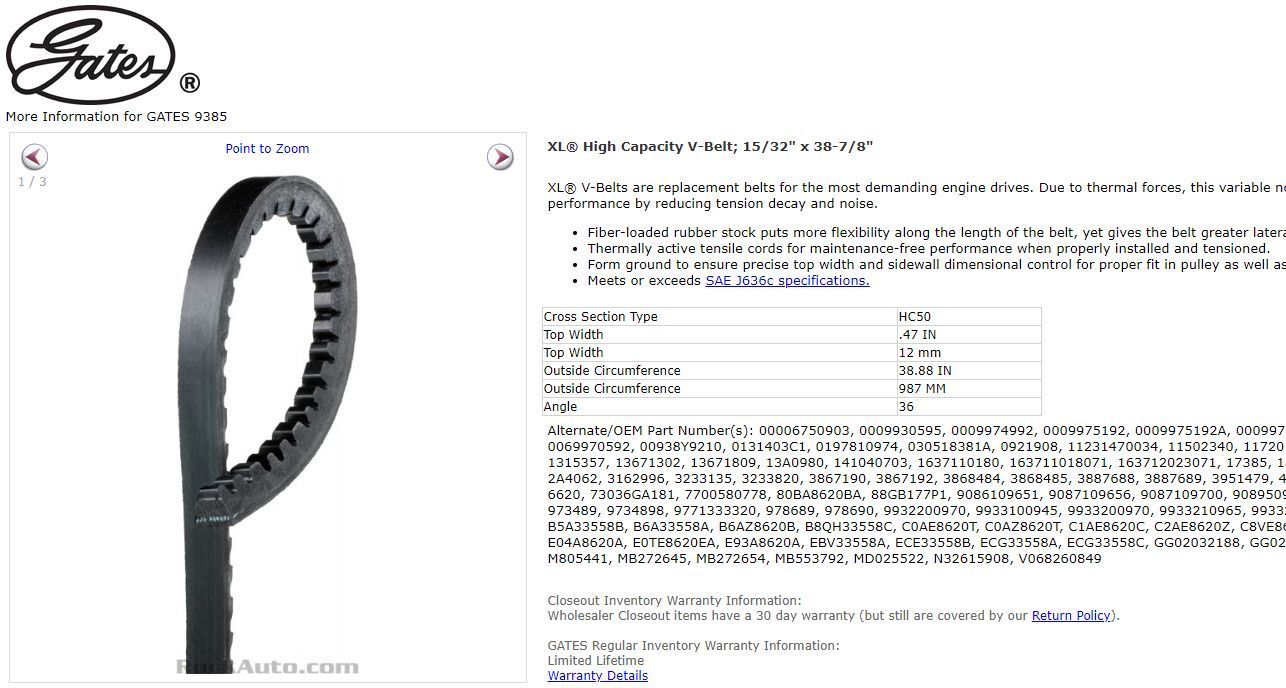

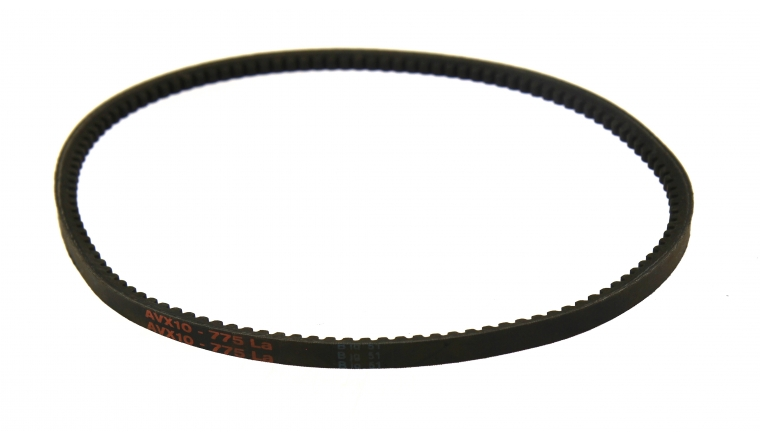

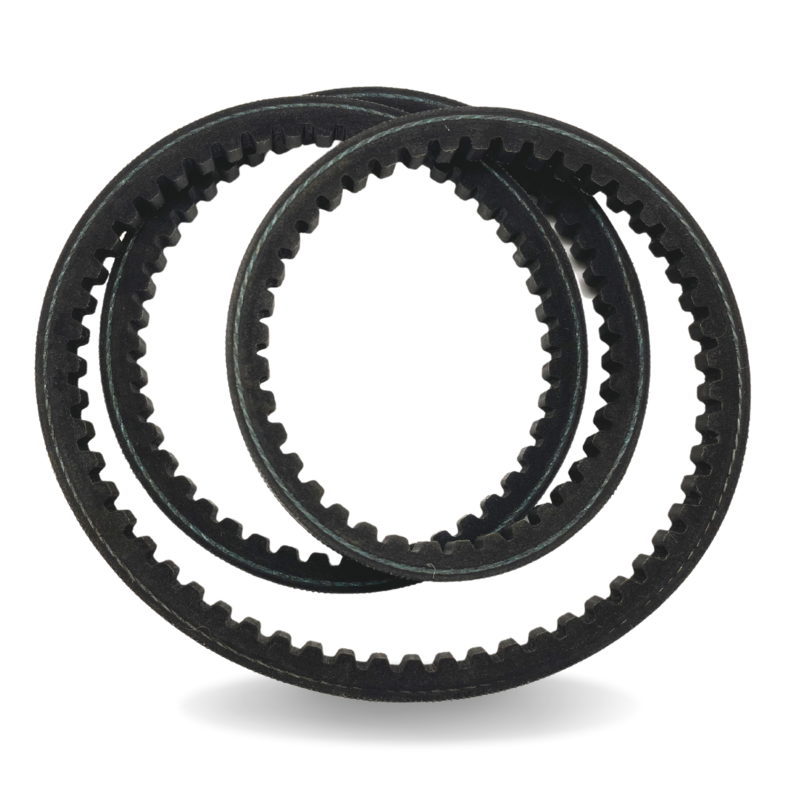

A cogged V-belt is a type of power transmission belt distinguished by notches or "cogs" on its inner surface. These cogs allow the belt to flex more easily, especially when wrapping around smaller diameter pulleys, which reduces bending resistance and improves heat dissipation compared to standard smooth V-belts.
Key Features and Advantages
- Flexibility: The notched design increases the belt’s flexibility, enabling it to operate efficiently on smaller pulley diameters without excessive heat buildup or premature wear.
- Higher Efficiency: Cogged V-belts typically offer about 2% higher efficiency than standard wrapped V-belts due to reduced bending resistance and slippage.
- Improved Grip: The cogs increase the contact area with the pulley, enhancing traction and reducing the risk of slipping, especially under higher loads or speeds.
- Enhanced Heat Dissipation: The notches help dissipate heat generated during operation, which prolongs belt life and maintains performance.
- Longer Lifespan: Running cooler and with less internal stress, cogged V-belts generally last longer than their smooth counterparts.
- Interchangeability: Cogged V-belts can often be used on the same pulleys as standard V-belts, making them a convenient upgrade for existing systems.
Typical Applications
Cogged V-belts are favored in scenarios where:
- High-speed or high-torque transmission is required.
- Space is limited, necessitating the use of smaller pulleys.
- Equipment is subject to heavy, dynamic, or shock loads.
- Enhanced efficiency and reduced maintenance are priorities.
Common applications include:
- High-speed industrial machinery
- Serpentine belt systems
- Heavy-duty equipment
- Systems with small-diameter pulleys
Comparison: Cogged vs. Smooth V-Belts
| Feature | Cogged V-Belt | Smooth V-Belt |
|---|
| Flexibility | Higher (better for small pulleys) | Lower |
| Efficiency | ~2% higher | Standard |
| Heat Dissipation | Superior | Moderate |
| Lifespan | Longer | Shorter under heavy loads |
| Traction | Better grip, less slippage | Standard |
| Noise | Slightly higher (in some cases) | Quieter |
| Cost | Slightly higher | More economical |
| Application Range | High-speed, high-torque, small pulleys | General/light-duty |
Technical Notes

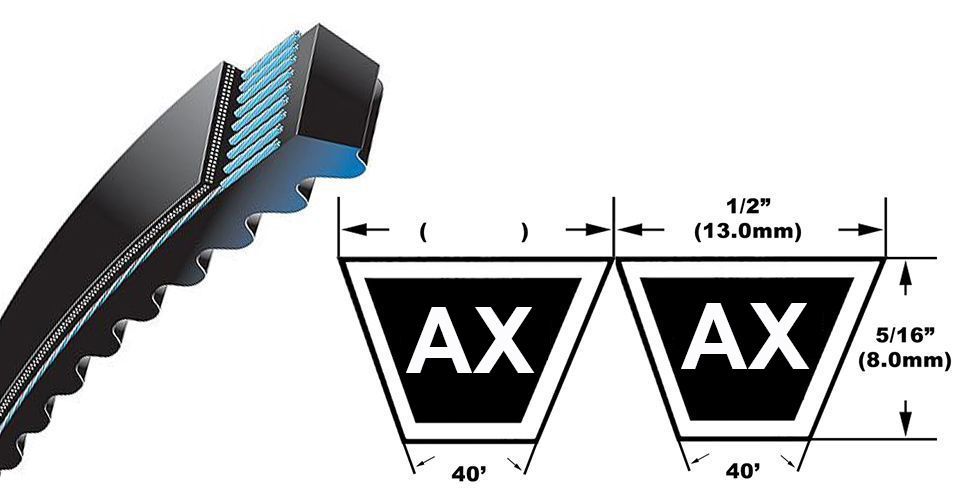

- Cogged V-belts are available in various classical and narrow profiles, with sizes standardized under DIN and ISO specifications.
- They offer good resistance to dust, abrasion, ozone, sunlight, and mineral oil, and are often antistatic.
- Operating temperature ranges typically span from -40°C to +70°C, with some models rated for up to +90°C.
Summary
Cogged V-belts are a robust, efficient upgrade over standard V-belts, particularly suited for demanding industrial environments where efficiency, flexibility, and longevity are critical. Their notched design allows for better performance in compact, high-speed, or high-load applications, making them a preferred choice for modern power transmission systems.
