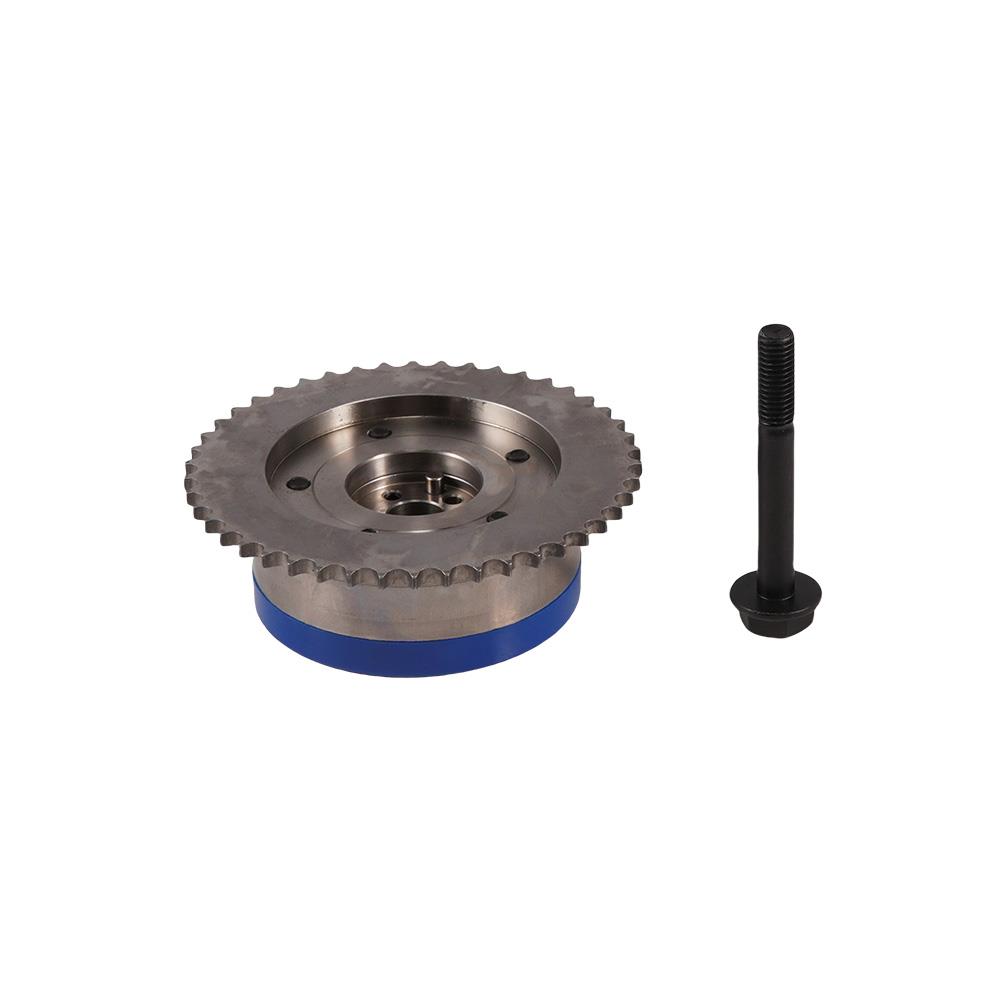

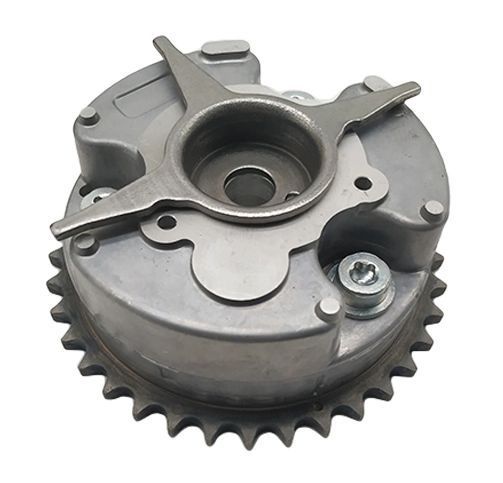

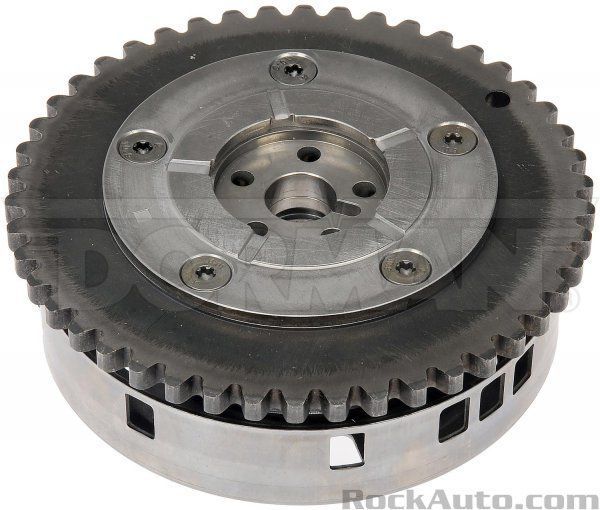

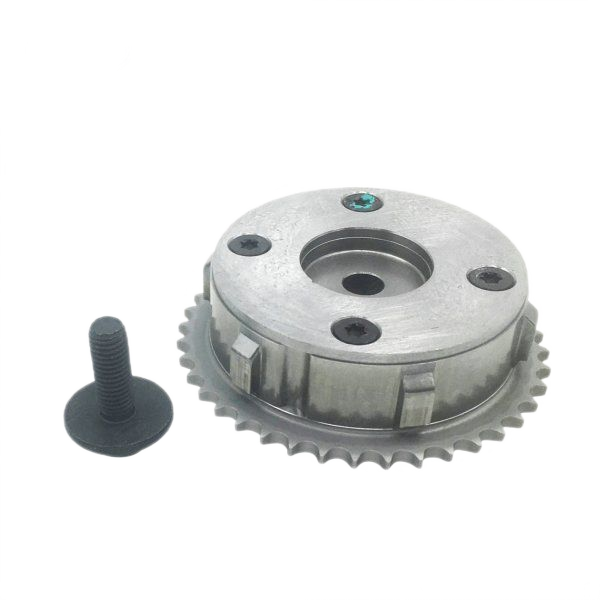

What is a Camshaft Phaser?
A camshaft phaser is a part of the variable valve timing (VVT) system in many modern internal combustion engines. It adjusts the camshaft's position relative to the crankshaft, which helps control when the engine's valves open and close. This adjustment is believed to optimize engine performance, fuel efficiency, and reduce emissions under different driving conditions.
How Does It Work?
The phaser uses hydraulic pressure, controlled by the engine's electronic control unit (ECU), to advance or retard the camshaft timing. This means it can change how long the valves stay open, which is thought to improve how the engine runs based on whether you're accelerating, cruising, or towing.
Common Issues
Research suggests that failing camshaft phasers can cause symptoms like the check engine light turning on, poor engine performance, rattling noises (especially at startup), reduced fuel efficiency, and difficulty starting the engine. It appears that Ford vehicles, particularly trucks and SUVs, are known for these issues, with diagnostic trouble codes like P0011, P0012, P0016, and P0017 often linked to phaser problems.
Introduction to Camshaft Phasers
A camshaft phaser is a critical component within the variable valve timing (VVT) system, commonly found in modern internal combustion engines. Its primary function is to adjust the position of the camshaft relative to the crankshaft, thereby influencing the timing of the engine's intake and exhaust valves. This adjustment is believed to enhance engine performance, improve fuel economy, and reduce harmful emissions, adapting to varying driving conditions such as acceleration, cruising, or towing.
The VVT system, of which the camshaft phaser is a central part, is designed to provide flexibility in engine operation. By altering valve timing, it can optimize power delivery when needed or prioritize fuel efficiency during steady driving. This technology is prevalent in late-model vehicles, with manufacturers like Ford, Chrysler, and BMW implementing their proprietary versions, such as Ford's Twin Independent Variable Cam Timing (Ti-VCT) or BMW's VANOS.
Technical Operation and Mechanics

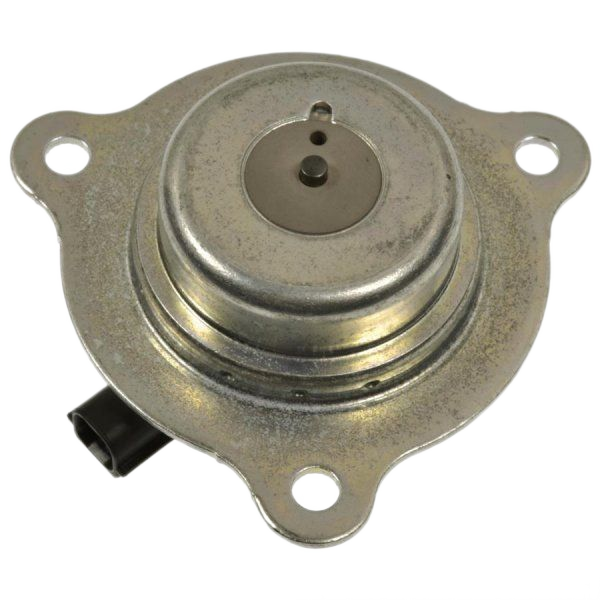

The camshaft phaser operates using hydraulic pressure, which is regulated by the engine's electronic control unit (ECU). The ECU continuously monitors parameters such as engine RPM, load, and temperature to determine the optimal valve timing. When a change is required, it activates the camshaft phaser actuator, which uses oil pressure to modify the camshaft's position.

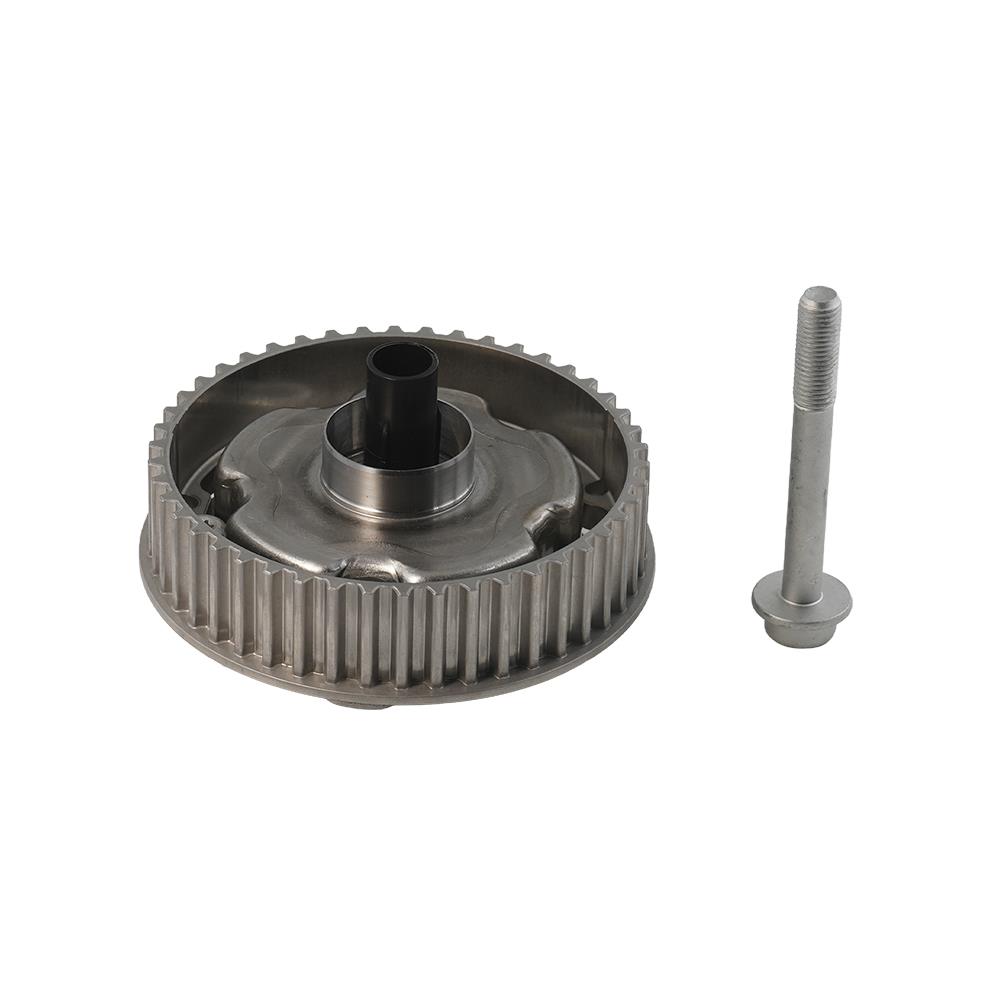

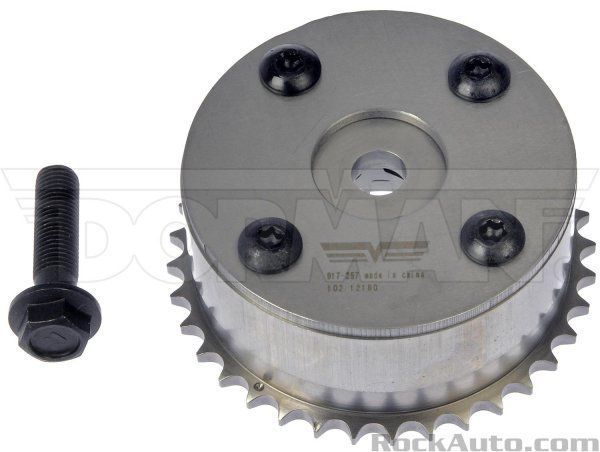

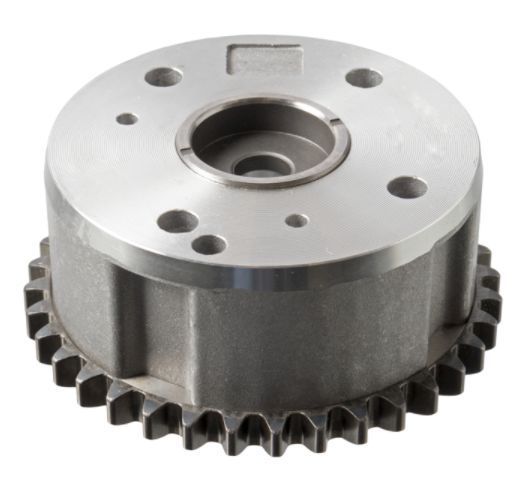

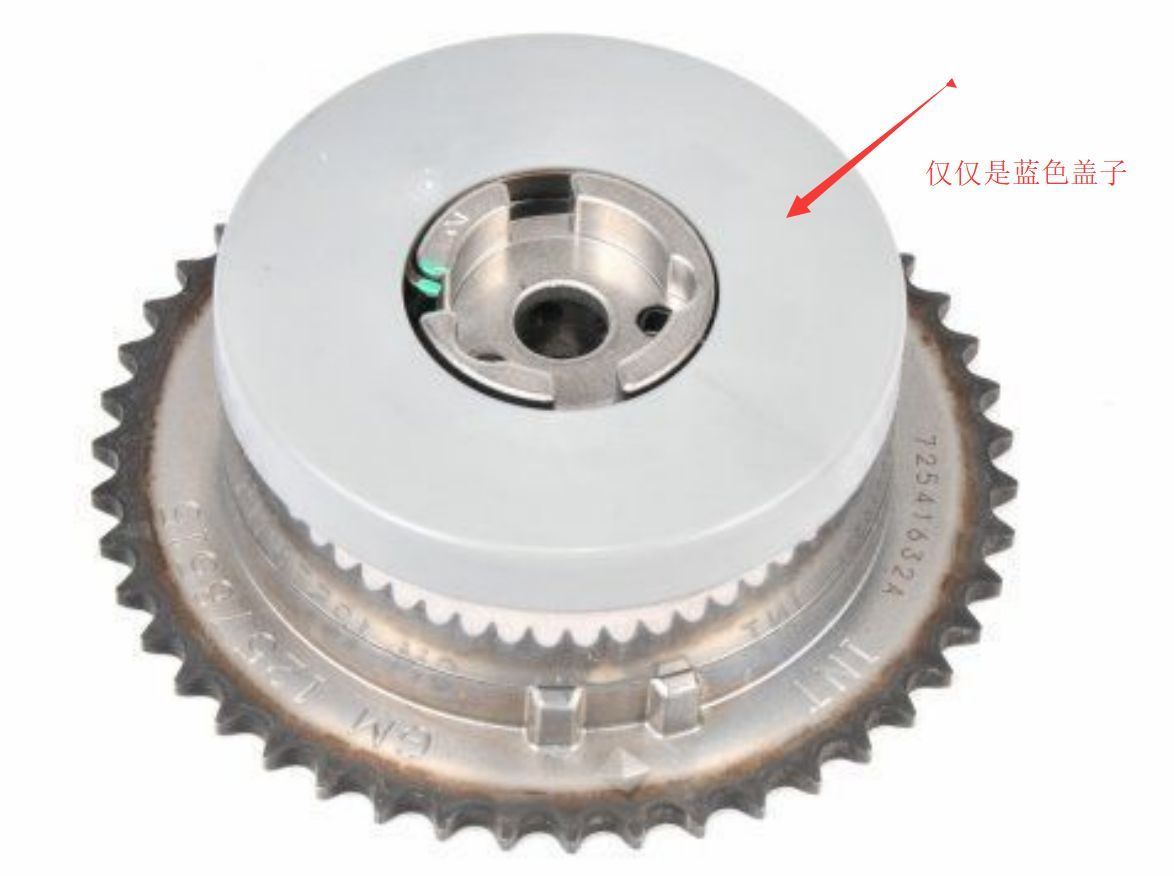

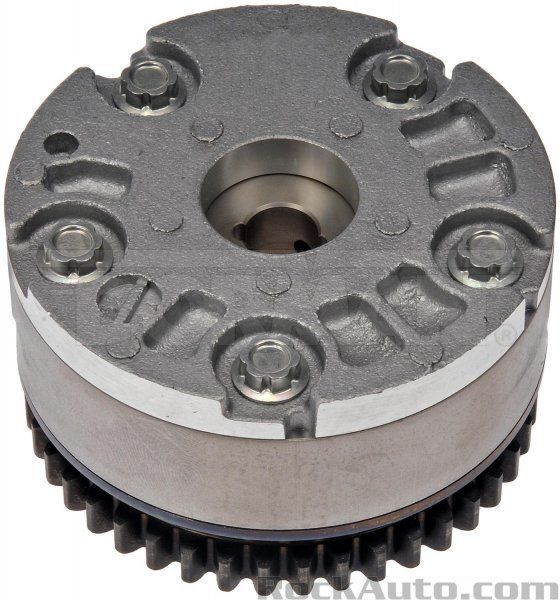

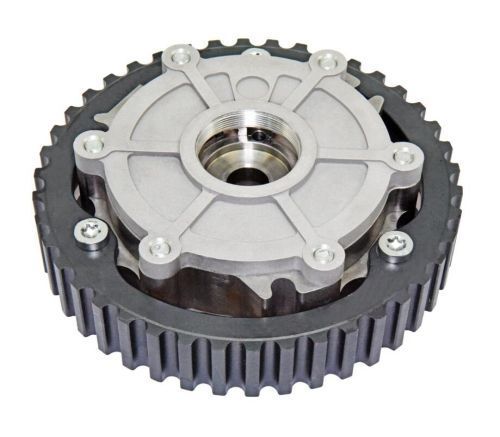

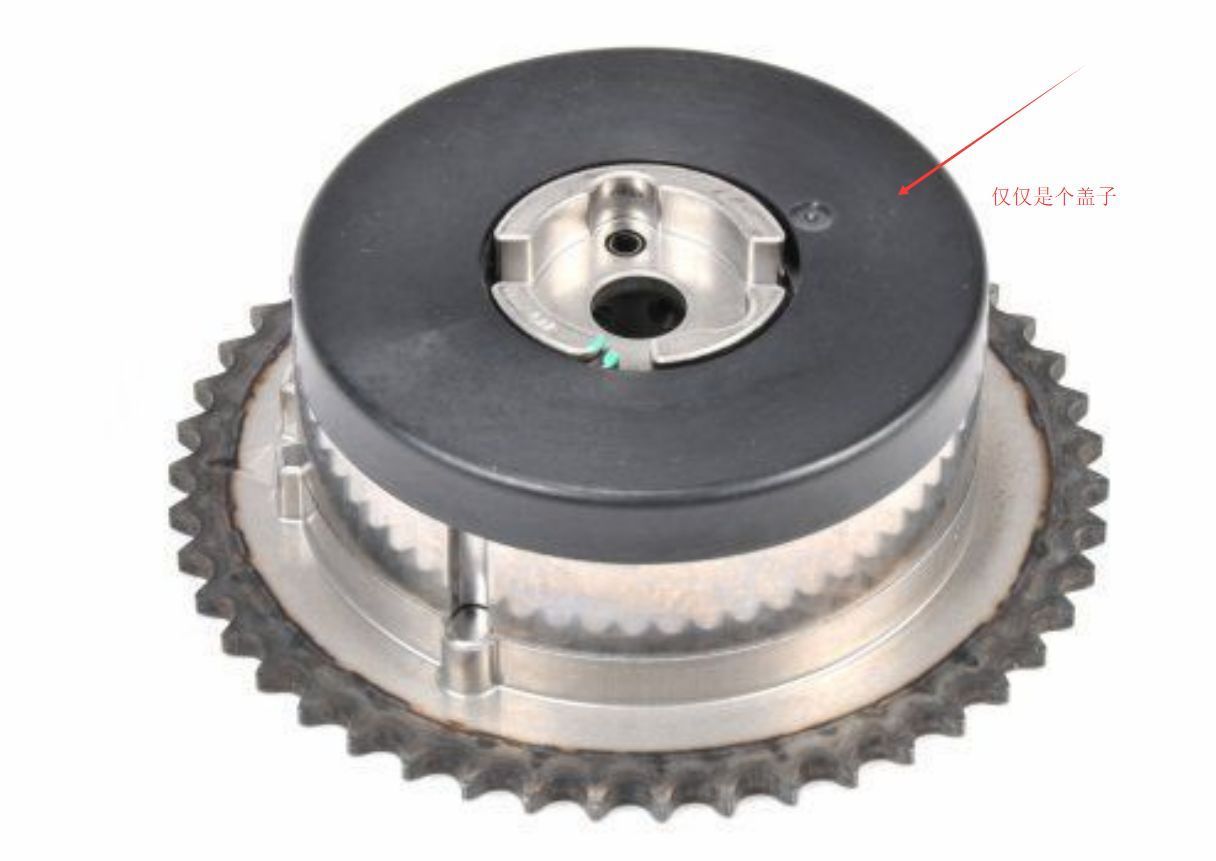

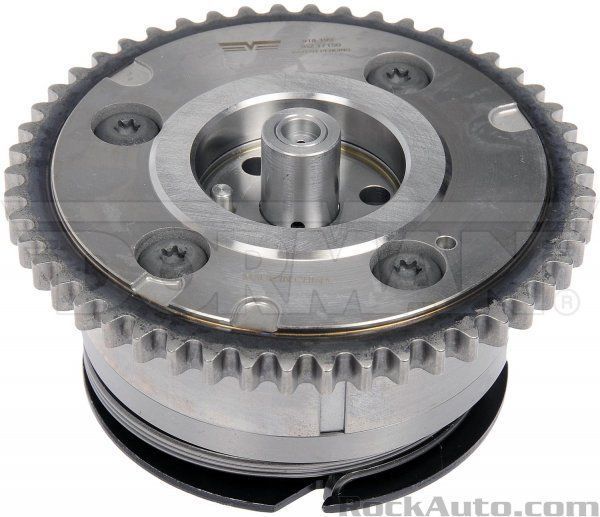

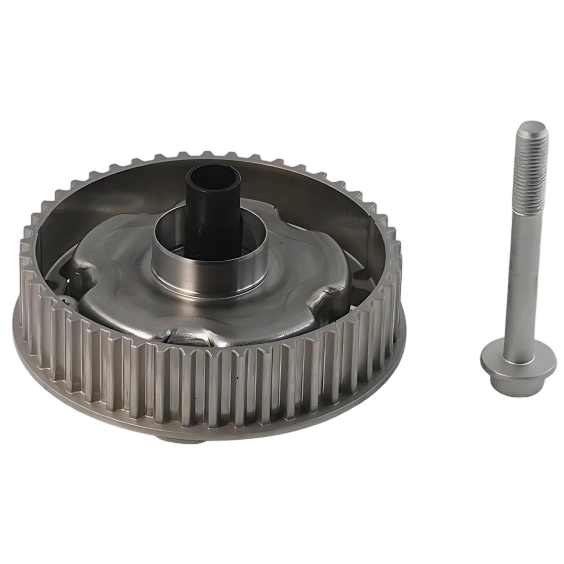

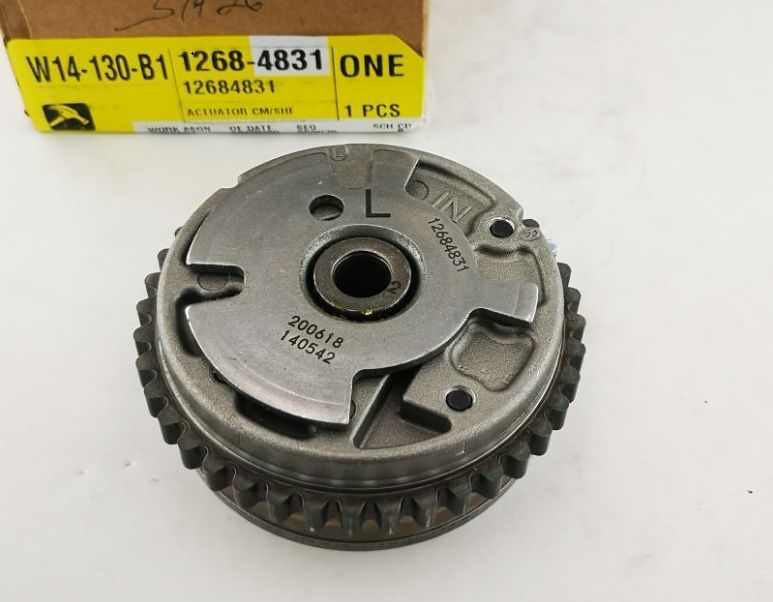

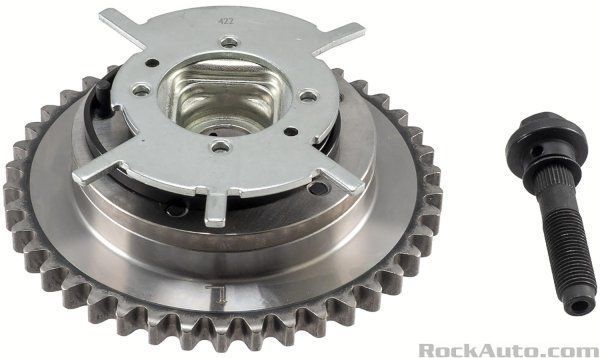

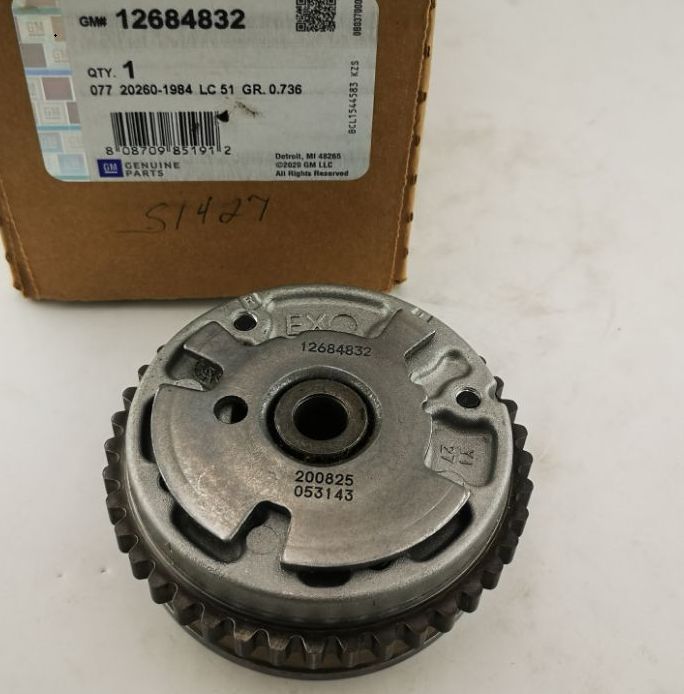

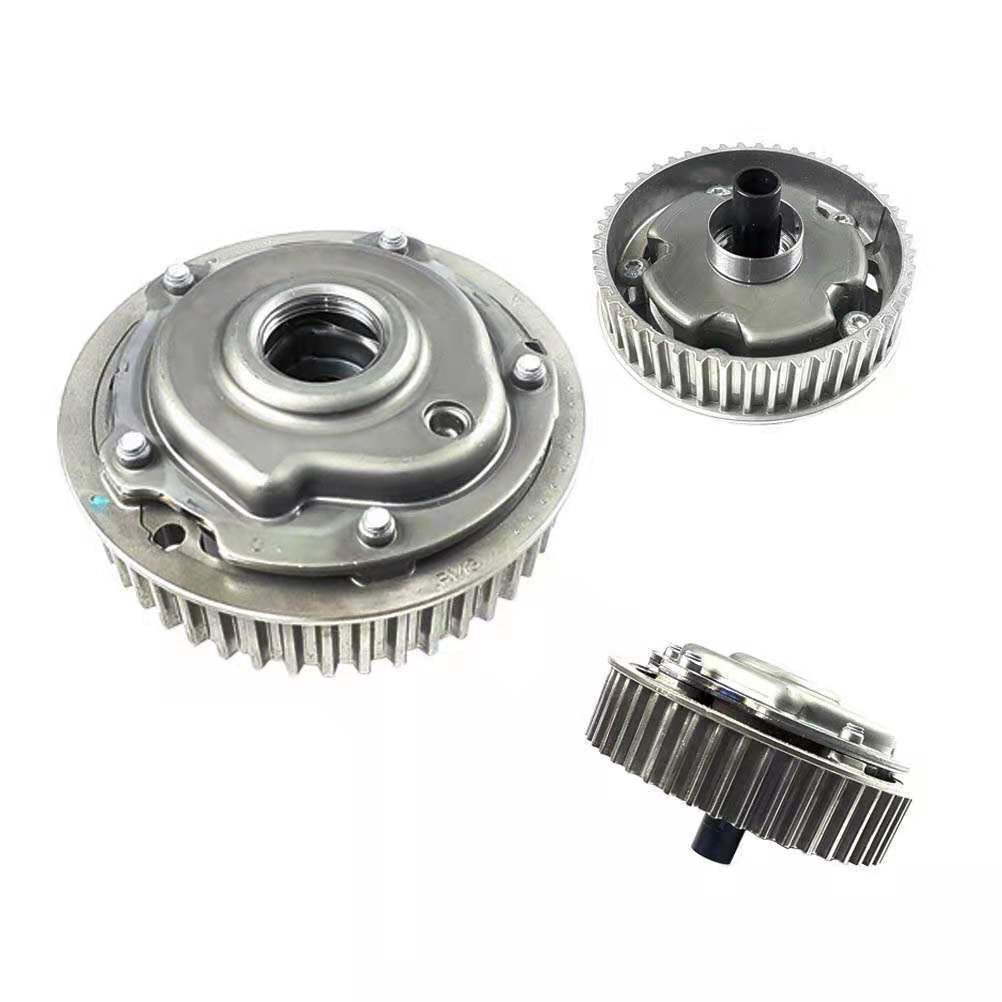

Internally, the phaser consists of a rotor connected to the camshaft via a dowel pin and a phaser body bolted to the cam sprocket. These components can move independently, typically up to 20° (equivalent to 40 crankshaft degrees), through a series of chambers. There are eight chambers inside the phaser: four on side "A" and four on side "B". One group is pressurized while the others are vented, allowing the rotor to advance or retard relative to the phaser body. Oil seals in the rotor grooves ensure tight chamber separation, and vented oil drains back through the camshaft, bearing ports, and oil control valve into the front timing cover.
A lock pin, spring-loaded and located at about the 9 o'clock position on the rotor, engages during low oil pressure conditions, such as engine cranking, to lock the rotor and phaser body together. This prevents noise and wear, with locked positions typically at full retard for the intake cam and full advance for the exhaust cam, especially in engines like the 2.4L Chrysler, where a spring on the exhaust camshaft assists in reaching the full advance position, defaulting to no valve overlap.
The possible cam travel is determined by comparing crankshaft position (CKP) and camshaft position (CMP) sensor patterns, with up to 48 crankshaft degrees of movement possible, depending on the engine design.
Common Issues and Symptoms
Camshaft phasers, while beneficial, are a frequent point of failure in many modern engines, particularly noted in vehicles like Ford's gas-powered full-size trucks and SUVs, as well as Chrysler and Ram models. The following table summarizes common issues and their symptoms:
| Issue | Symptoms |
|---|
| Insufficient oil pressure | Rattling or knocking noise at startup, especially in cold conditions |
| Wear and tear | Poor engine performance, reduced acceleration, and decreased fuel efficiency |
| Stuck phaser | Engine misfires, rough idling, and difficulty starting |
| Diagnostic trouble codes (DTCs) | Check engine light with codes like P0011, P0012, P0016, P0017 |
These symptoms often trigger the check engine light, with the powertrain control module (PCM) detecting issues through camshaft position sensors. For instance, a worn phaser may fail to position the camshaft correctly, leading to retarded or advanced timing, which can cause performance issues. The rattle at startup is particularly common and is attributed to the lack of oil pressure initially, causing the phaser's keeper pin to wear out, allowing internal lobes to slap together.
Manufacturer-Specific Insights
Different manufacturers use proprietary names for their VVT systems, reflecting unique engineering approaches. For example:
- Ford refers to its system as Twin Independent Variable Cam Timing (Ti-VCT).
- BMW uses VANOS (Variable Nockenwellensteuerung, or Camshaft Timing Control).
- Mitsubishi employs MIVEC (Mitsubishi Innovative Valve Timing Electronic Control).
- Honda utilizes VTEC (Variable Valve Timing and Lift Electronic Control).
These systems, while similar in function, may have design differences that affect reliability and maintenance needs.
Diagnosis and Repair

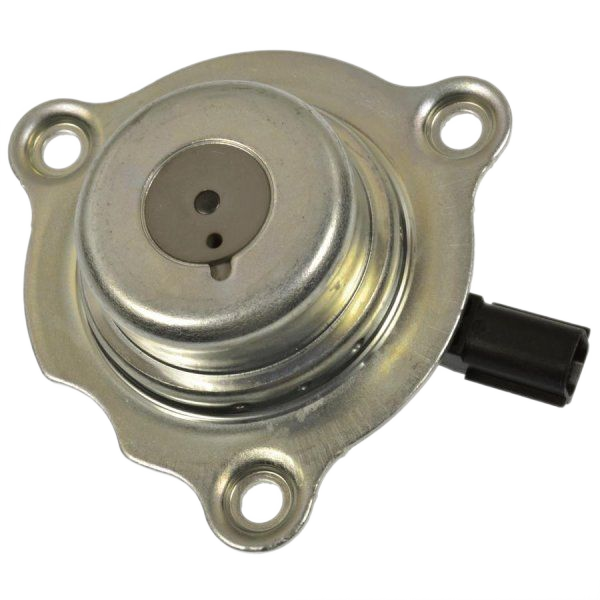

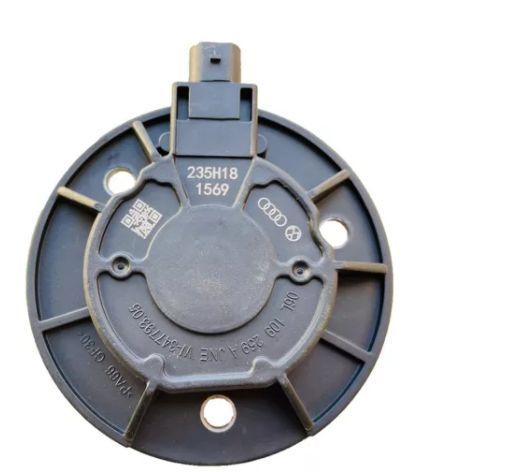

Diagnosing cam phaser issues typically involves using an OBD-II scanner to identify diagnostic trouble codes (DTCs) such as P0011 (Camshaft Position - Timing Over-Advanced or System Performance) or P0012 (Camshaft Position - Timing Over-Retarded). An oil pressure test is also crucial, as cam phasers rely on adequate oil pressure to function correctly. If the screen on the VVT solenoid breaks, it can exacerbate issues, leading to recommendations for replacing both the solenoid and phasers during repair, especially when the timing chain must be removed.
Repair costs for cam phaser replacement can range from $800 to $2,500, depending on the vehicle and labor rates. For DIY enthusiasts, replacing cam phasers requires mechanical knowledge and tools, including aligning the new phasers with the camshaft, securing them with proper torque, and reconnecting the timing chain. Professional assistance is recommended for complex cases to avoid further engine damage.
