What is an ATV Drive Belt?
An ATV drive belt is a component found in the Continuously Variable Transmission (CVT) system of All-Terrain Vehicles (ATVs) and Utility Task Vehicles (UTVs) with automatic transmissions. It is typically a black rubber belt with grooves, located between the primary drive clutch and the driven clutch, and it transfers power from the engine to the transmission, enabling the vehicle to move.
Definition and Function

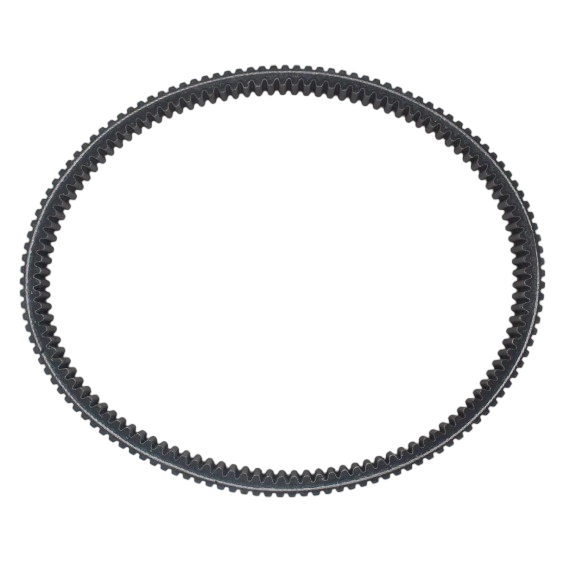

An ATV drive belt is a critical component of the Continuously Variable Transmission (CVT) system, which is standard in ATVs and UTVs with automatic transmissions. It is typically described as a black rubber belt, oblong in shape, with deep grooves along the inside and outside edges, and slightly tapered edges for fit. The belt is located behind the crankcase cover, positioned between the primary drive clutch and the driven clutch. Its primary function is to transfer power from the engine to the transmission, ensuring the vehicle can move efficiently. When the crankshaft turns, it activates the primary drive clutch, which squeezes the drive belt, facilitating power delivery. This setup allows the engine to maintain optimal revolutions per minute (RPM) under varying loads, whether navigating trails, climbing steep inclines, or towing heavy loads.
The evidence leans toward the drive belt being essential for performance, as it directly influences acceleration, throttle response, and overall power delivery. A well-functioning belt ensures the CVT system operates smoothly, adapting to different riding conditions without significant power loss.
Types of Drive Belts
There are several types of ATV drive belts, each designed for specific use cases and riding styles:

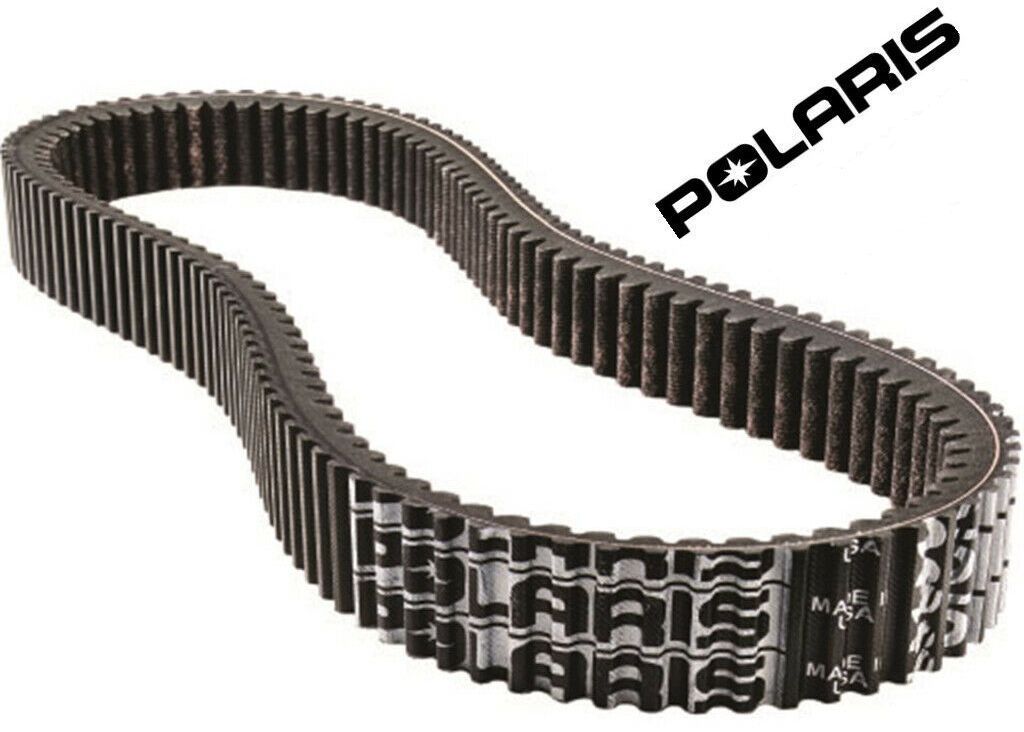

- Original CVT Belts: These are supplied with most ATVs and are intended for recreational and casual use. They tend to wear out faster under aggressive riding conditions, making them less suitable for heavy-duty applications.
- Aftermarket CVT Belts: Designed to exceed original specifications, these belts use high-performance compounds and are suitable for harder riding and challenging environments. They improve lifespan and performance compared to OEM belts.

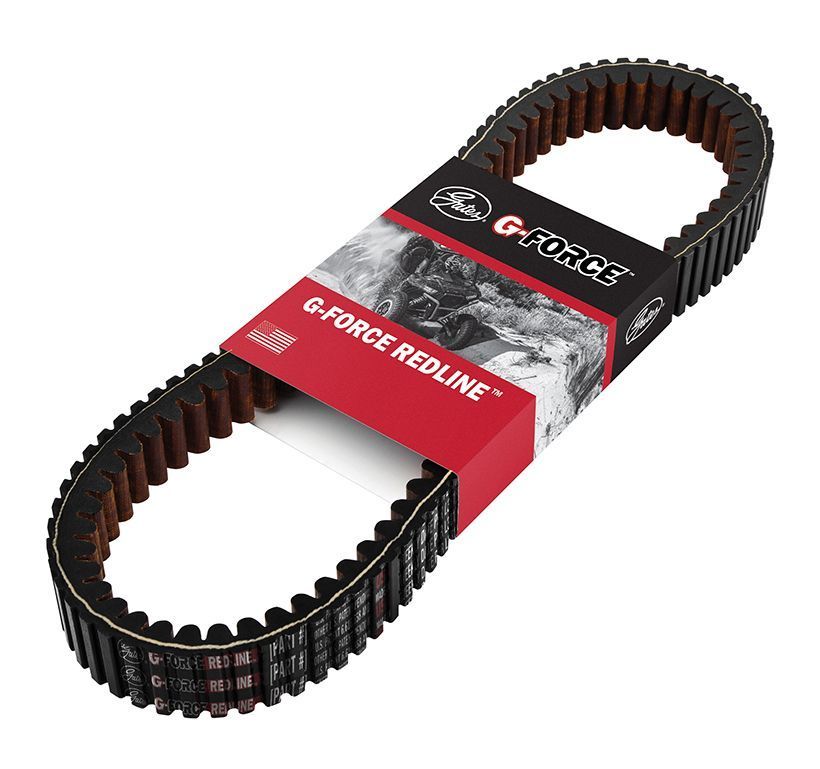

- Heavy-Duty CVT Drive Belts: Labeled for increased heat resistance and flexibility, these are made from fiber blends and Aramid compounds, with improved cog designs for better grip. They are recommended for modified ATVs, such as those with bigger tires, lift kits, or engine upgrades, offering enhanced durability under load.
- Extreme-Duty CVT Drive Belts: These are more expensive, featuring heat-resistant fibers and high-tensile cordage, designed for competitive off-roading, rock crawling, and tough conditions like bogs. They require a proper break-in period, typically the first 20 miles at low gear and revs, to ensure longevity.
Choosing the right belt depends on the rider's style and vehicle modifications. For example, heavy-duty and extreme-duty belts are ideal for pushing limits on trails or mudding, while original belts suffice for casual riding. Factors like material (e.g., Aramid-fiber reinforcement), cog design, and running temperature are crucial considerations, as they impact throttle response and heat management.
Maintenance and Replacement
Regular inspection and maintenance are essential to prevent breakdowns and maintain performance. The drive belt should be inspected at regular intervals for signs of wear, such as uneven or excessive wear, frayed edges, or sheared cogs. Other indicators include feeling the belt slip while riding or noticing issues with the clutch. Factors affecting belt longevity include the brand, driving style, heavy hauling, and faulty installation.
It is advisable to carry a spare drive belt while riding, ensuring it is stored according to the manufacturer’s instructions. When replacing the belt, measure its width at the widest point with a Vernier caliper and discard it if below the manufacturer’s minimum specification. The replacement process involves stabilizing the ATV, putting the transmission in neutral, cleaning surfaces, and removing the outer cover fasteners with a socket wrench. Note the belt direction before removal, and install the new belt in the same direction, ensuring readable markings are visible.
During replacement, inspect and maintain the drive and driven pulley assemblies, checking center-to-center distance, alignment, and offset. Measure belt deflection after installation, compressing the belt and laying a straightedge across the pulleys to compare with manufacturer specifications, adjusting with shims if needed. Cautions include ensuring the correct belt size for operation and avoiding stretching or twisting during installation.
Table: Comparison of Drive Belt Types
| Type | Intended Use | Key Features | Durability Notes |
|---|
| Original CVT Belts | Casual, recreational riding | Standard compounds, OEM fit | Wears faster with aggressive riding |
| Aftermarket CVT Belts | Harder riding, challenging environments | High-performance compounds, improved lifespan | Better than OEM, suitable for modified ATVs |
| Heavy-Duty CVT Belts | Modified ATVs, heavy loads | Aramid compounds, improved cog design for grip | Heat-resistant, flexible, ideal for trails |
| Extreme-Duty CVT Belts | Competitive off-roading, tough conditions | Heat-resistant fibers, high-tensile cordage | Requires break-in, designed for extreme abuse |
This table summarizes the types, intended uses, key features, and durability notes, aiding riders in selecting the appropriate belt based on their needs.
Conclusion
In summary, the ATV drive belt is a vital component that ensures power transfer and performance in CVT systems. With various types available, from original to extreme-duty, riders can choose based on their riding style and vehicle modifications. Regular maintenance, including inspections and timely replacements, is crucial to prevent performance degradation and breakdowns, ensuring a safe and enjoyable riding experience.
