Engine timing systems are the cornerstone of internal combustion engines, ensuring valves, pistons, and spark plugs operate in perfect synchronization. This intricate coordination is crucial for optimizing power, efficiency, and emissions while safeguarding engine reliability and longevity.
The timing system manages the precise sequence of events during the combustion cycle, from air and fuel intake to exhaust gas expulsion, balancing high performance, fuel economy, and environmental compliance.
Fundamentals of Engine Timing
Engine timing revolves around the synchronization of components to maintain efficient operation. At its core, it manages:
· Cam Timing: Governs the mechanical interaction of pistons, valves, and the crankshaft, ensuring smooth movement and preventing collisions.
· Ignition Timing: Controls when the spark plugs ignite the compressed air-fuel mixture, ensuring optimal combustion. Timing is measured in degrees of crankshaft rotation relative to piston positions, such as top dead center (TDC).
Proper engine timing is crucial to avoid issues like reduced performance, poor fuel efficiency, and increased emissions. Timing discrepancies, even by a few degrees, can lead to severe consequences, including engine damage.
The Four-Stroke Combustion Cycle
Modern internal combustion engines follow a four-stroke cycle:
1. Intake Stroke: The piston moves down, creating a vacuum that draws the air-fuel mixture into the cylinder through the open intake valve.
2. Compression Stroke: The intake valve closes, and the piston moves up, compressing the mixture. Before the piston reaches TDC, the spark plug ignites the mixture.
3. Power Stroke: Combustion pushes the piston down, transferring power to the crankshaft.
4. Exhaust Stroke: The piston moves up again as the exhaust valve opens, expelling burnt gases.
Each step relies on precise timing of camshaft and ignition events for optimal performance.
Types of Timing Systems

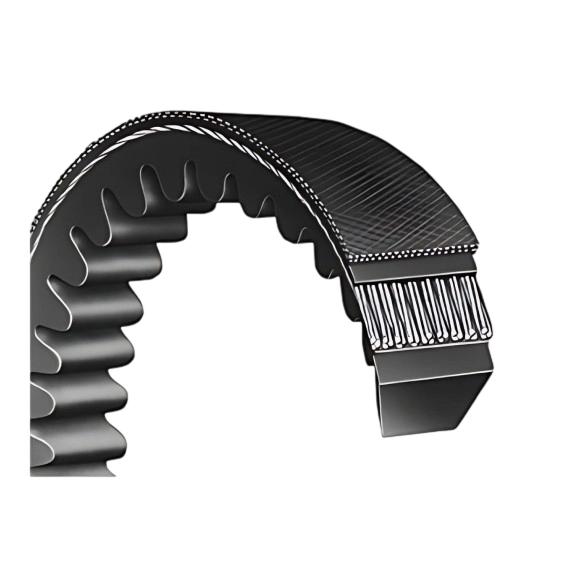

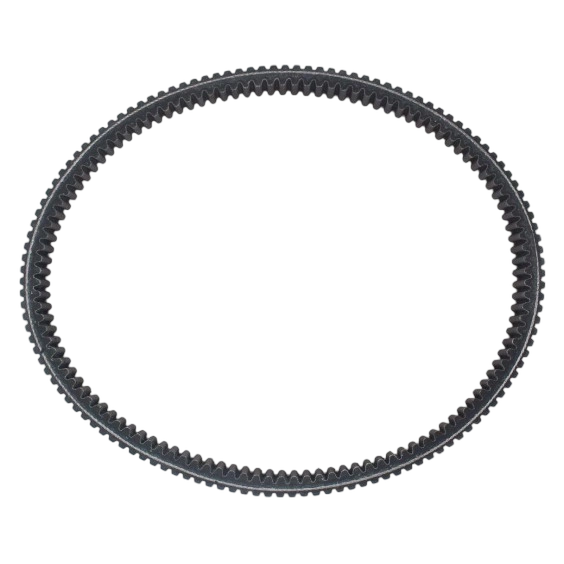

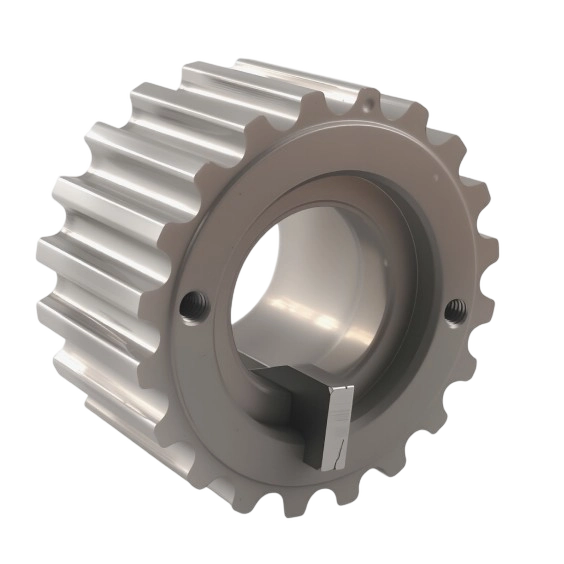

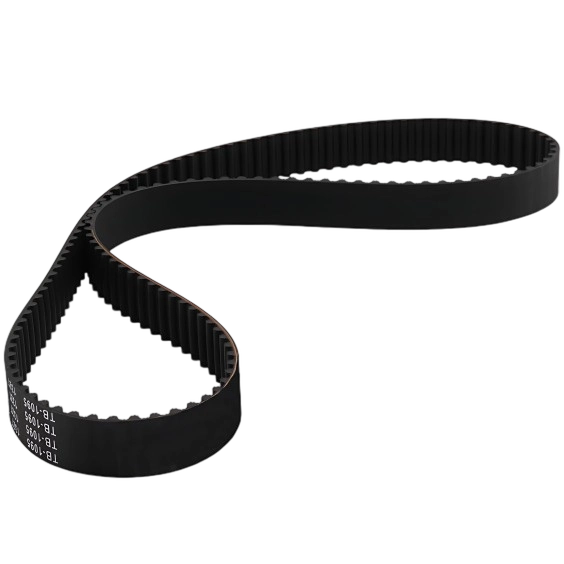

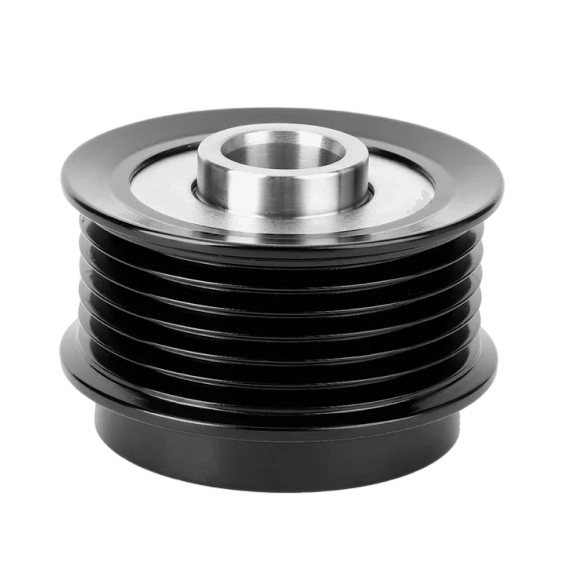

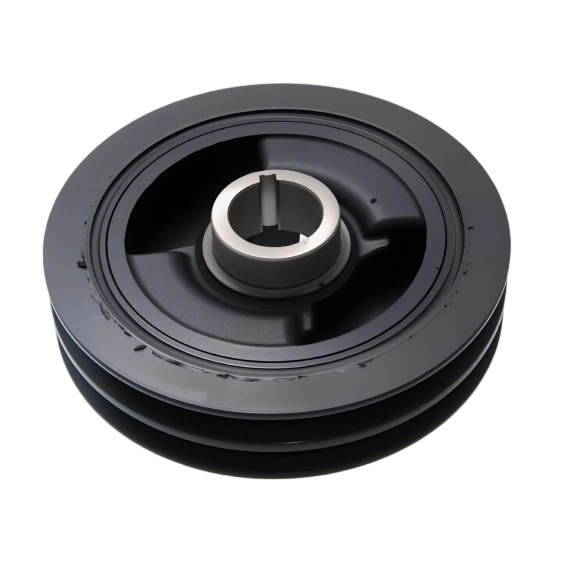

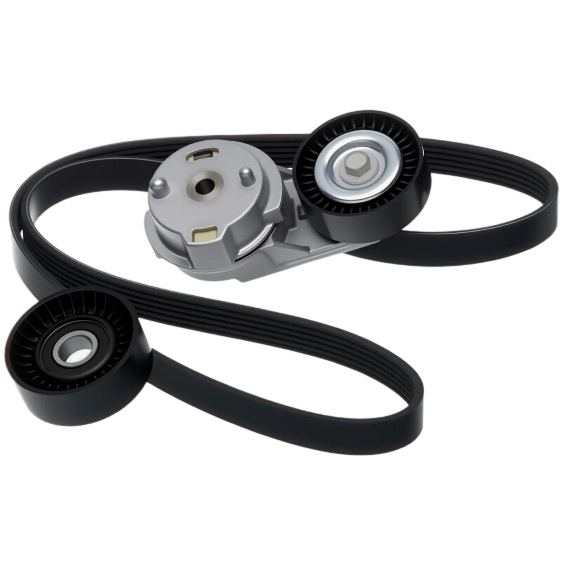

Belt-Driven Timing Systems
· Advantages: Lightweight, quiet, cost-effective, and resistant to chemicals. Provides up to 98% mechanical efficiency.
· Disadvantages: Shorter lifespan (60,000–100,000 miles) compared to chains, and prone to sudden failure in interference engines, risking catastrophic damage.

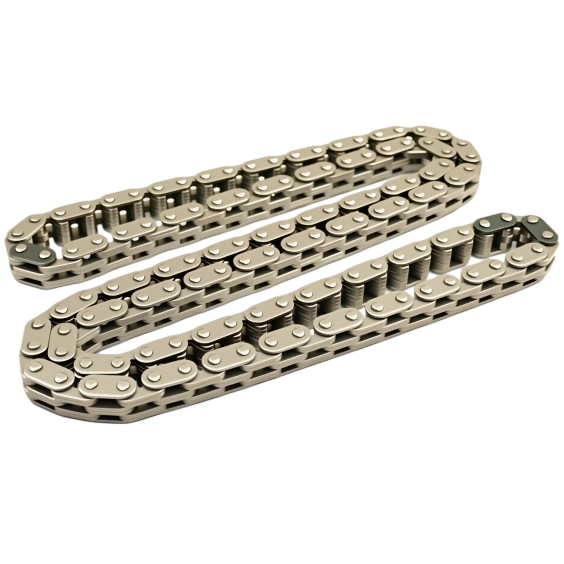

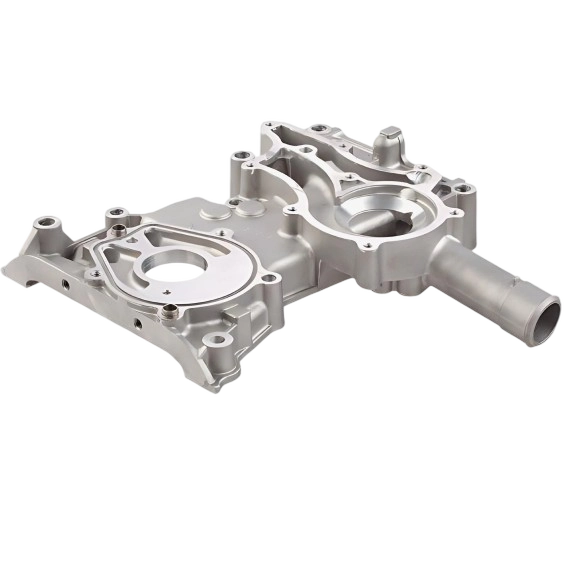

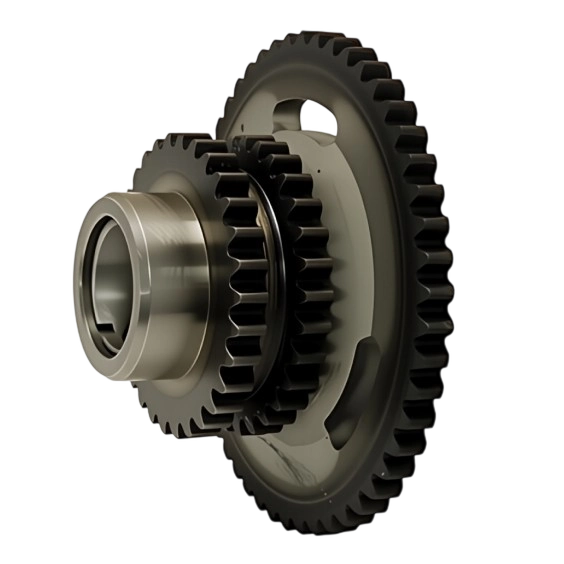

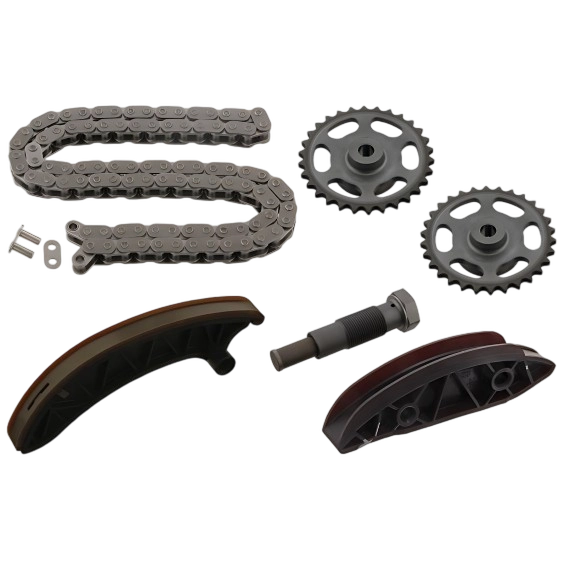

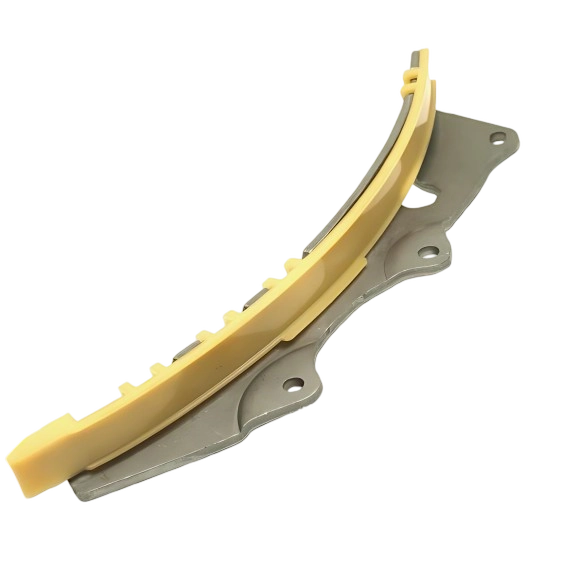

Chain-Driven Timing Systems
· Advantages: Durable, long-lasting (100,000–200,000 miles), and better suited for high-performance or high-torque engines.
· Disadvantages: Noisier and more expensive to repair or replace. Requires proper lubrication to avoid stretching and wear.

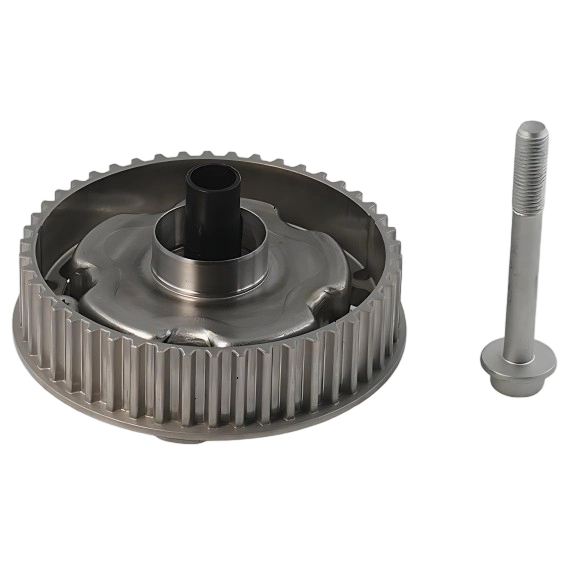

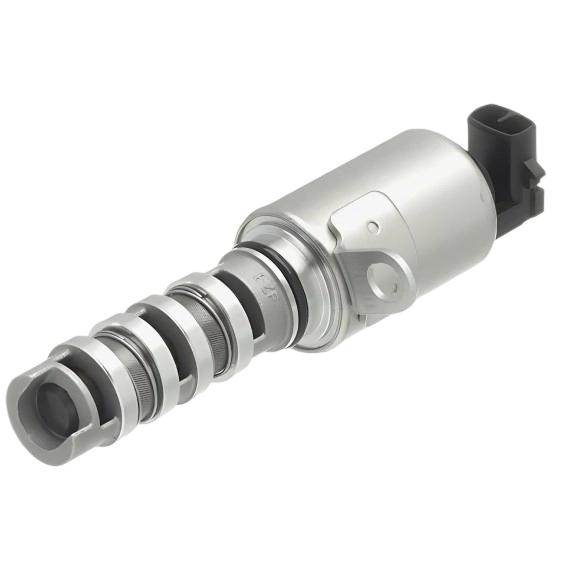

Variable Valve Timing (VVT) Systems
VVT dynamically adjusts valve timing based on engine load and speed, optimizing performance across all RPM ranges. Benefits include:
· Increased power and torque.
· Enhanced fuel efficiency (1–6% improvement).
· Reduced emissions.
Major implementations include Toyota’s VVT-i, Honda’s VTEC, and BMW’s Valvetronic. Modern systems use electronic control units (ECUs) for continuous timing adjustments.
Importance of Precision in Timing
Timing accuracy ensures:
· Optimal Combustion: Maximizing power output while reducing fuel consumption and emissions.
· Engine Durability: Preventing misfires, valve-piston collisions, and overheating.
· Smooth Performance: Supporting modern high-speed engine demands.
Imprecise timing can disrupt the combustion cycle, leading to symptoms like rough idling, power loss, increased emissions, and potential engine failure.
Maintenance and Troubleshooting
Regular maintenance is essential to prevent costly repairs and ensure system longevity.
Inspection and Replacement Intervals
· Timing Belts: Replace every 60,000–100,000 miles.
· Timing Chains: Inspect after 100,000 miles; replace if worn or stretched.

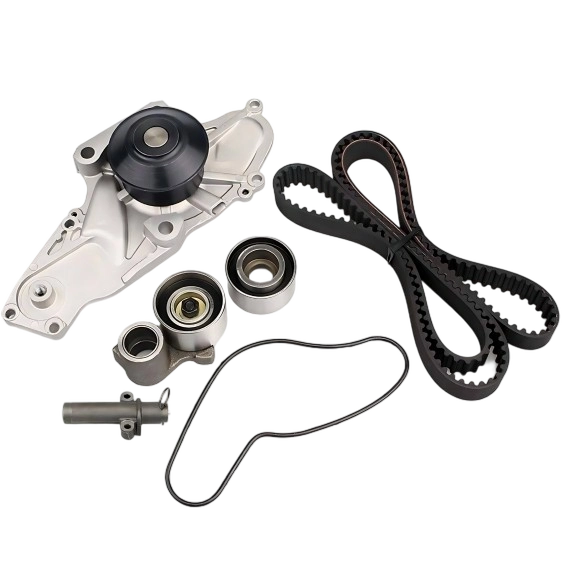

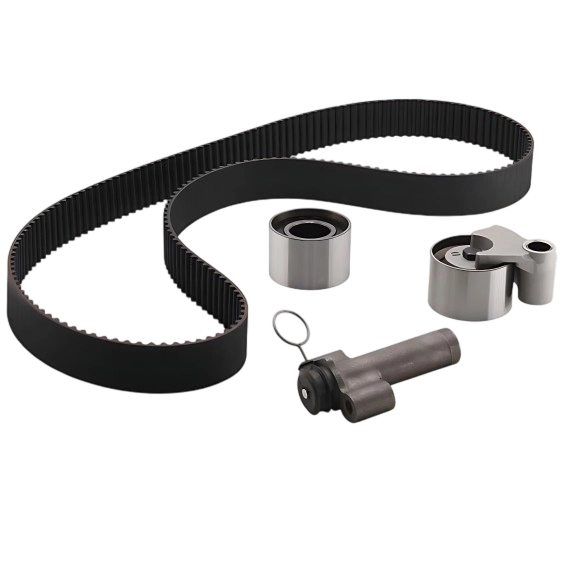

· Replace related components like tensioners, pulleys, and water pumps during maintenance.
Signs of Timing System Issues
· Rattling or clanking noises.
· Difficulty starting the engine.
· Reduced performance or misfires.
· Increased fuel consumption and emissions.
· Metal shavings in the oil (for chain systems).
Modern vehicles often provide warning lights or diagnostic trouble codes when timing issues arise. Addressing these symptoms promptly can prevent catastrophic failures.
Consequences of Failure
Timing system failure can result in significant damage, especially in interference engines, where pistons and valves occupy the same space at different times. A broken belt or misaligned chain can cause bent valves, damaged pistons, and engine destruction, requiring expensive repairs.
Advancements in Timing Systems
Engine timing systems have evolved to address modern demands for performance, fuel efficiency, and emissions reduction. Key advancements include:

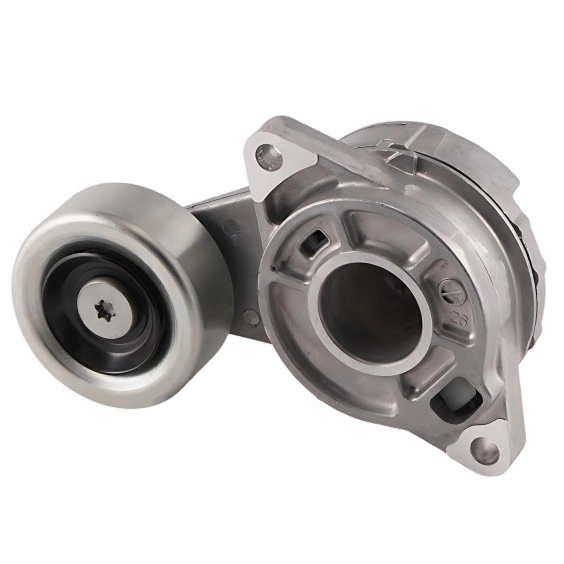

· Automatic Belt Tensioners: Ensure consistent tension, eliminating manual adjustments.
· Variable Valve Timing: Enhances flexibility across RPM ranges.
· Electronic Diagnostics: Improves troubleshooting and performance monitoring.
· Camless Systems: Pioneering innovations for future combustion engines.
These advancements not only improve engine efficiency but also extend system lifespan and reduce maintenance requirements.
Conclusion
Engine timing systems are fundamental to the performance, efficiency, and reliability of internal combustion engines. Whether belt-driven, chain-driven, or equipped with advanced VVT or camless technologies, these systems reflect decades of engineering ingenuity.
As the automotive industry transitions to electrification and hybrid powertrains, the principles of precision and synchronization established by timing systems will remain integral. Maintaining these systems ensures not only optimal engine performance but also a glimpse into the ongoing innovation shaping the future of transportation.
