Thermostat Housing

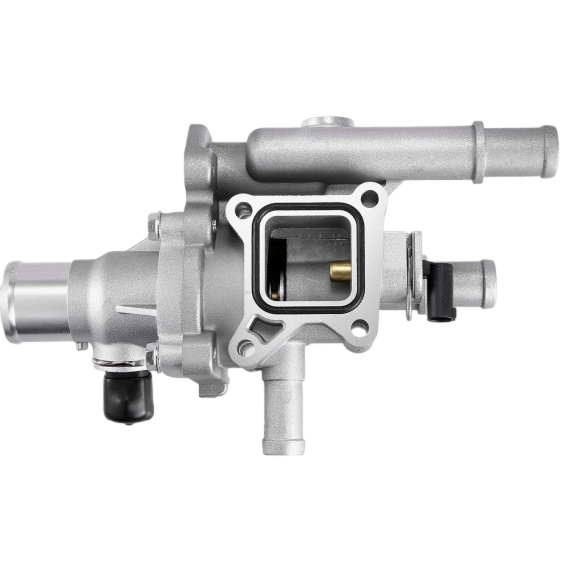

What is a Thermostat Housing?

A thermostat housing is a part found in many internal combustion engines, especially in cars. It holds the thermostat, which controls the flow of coolant to keep the engine at the right temperature and prevent overheating. It’s usually on the engine block or cylinder head, with hoses connecting it to the radiator for coolant circulation.

Where is it Located?

The housing is generally found on the engine block or cylinder head, sitting between the engine and radiator to manage coolant flow effectively.

Materials and Manufacturing

It can be made from materials like aluminum, steel, or plastic. Early versions were mostly metal, but plastic is now common for cost and ease, though it can crack under heat. Sand casting is a frequent manufacturing method, suitable for low to medium production runs.

Definition and Primary Function

A thermostat housing is a critical component in internal combustion engines, primarily used in automotive applications. It serves as the coolant outlet, housing the thermostat, which regulates the flow of engine coolant to maintain optimal operating temperatures. The thermostat delays coolant circulation until the engine warms up, typically opening at around 180°F. This regulation is essential to prevent engine overheating, a common issue that can lead to significant mechanical failure. The housing protects the thermostat from physical damage and coolant leaks, ensuring efficient thermal management.

In many engines, the thermostat housing is located on either the cylinder block or intake manifold, with coolant flowing through it into the radiator for cooling. This positioning allows it to act as a bridge between the engine and the cooling system, facilitating the continuous circulation necessary for temperature control.

Location and Connectivity

The thermostat housing is typically situated on the engine block or cylinder head, connected by hoses on one side to the engine and on the other to the radiator. This placement is crucial for its function, as it sits at a key junction in the coolant system.

Materials and Durability

Thermostat housings are manufactured from a range of materials, reflecting advancements in engineering and cost considerations. Early models were predominantly made of metal, such as cast iron or steel, for durability. However, modern designs often use aluminum and plastic for easier manufacturing and cost reduction. Plastic housings are lighter and cheaper but can be prone to cracking due to heat exposure or over-tightening during installation. Steel and aluminum, preferred by some manufacturers like The Federal Group for high strength, are used in more robust applications, particularly in heavy-duty vehicles.

The choice of material impacts not only cost but also longevity and performance under thermal stress. For example, aluminum offers a good balance of strength and weight, while plastic, though economical, requires careful handling to avoid thermal degradation.

Common Issues and Maintenance

Thermostat housings can face issues such as cracking, especially in plastic models, due to thermal expansion or improper installation. Maintenance guides, recommend ensuring the engine is cooled down before working on the housing to avoid burns and to catch leaking coolant, which can be hazardous to pets and children. Replacement is often straightforward, though difficulty can vary by vehicle, requiring reference to service manuals for specific models.

Detailed Port Configurations

In specific models, such as the Jeep Patriot, thermostat housings can have multiple ports, each serving distinct functions. For example, a forum discussion (Jeep Patriot Forums) details a housing with six ports, including connections for comfort heating, engine coolant flow, and radiator links, with one oddly-shaped port feeding hot coolant from the cylinder head. Such configurations highlight the complexity in some designs, requiring detailed understanding for maintenance or upgrades.

Table: Summary of Thermostat Housing Characteristics
