What is a Car Thermostat Assembly?

A car thermostat assembly is a part of the engine's cooling system that helps keep the engine at the right temperature. It includes the thermostat valve, which opens and closes to control coolant flow, and the housing that holds it in place, often with a gasket to prevent leaks.

How Does It Work?

When the engine is cold, the thermostat stays closed, letting the engine warm up quickly by restricting coolant flow to the radiator. Once the engine reaches the right temperature (usually 195°F to 220°F), the thermostat opens, allowing coolant to circulate and prevent overheating. This is typically done with a wax pellet that expands and contracts with temperature changes.

Why Is It Important?

It's crucial for engine performance, fuel efficiency, and reducing emissions, especially during warm-up. If it fails, it can cause overheating or poor performance, so regular checks are key.

Definition and Functionality

A car thermostat assembly is a device that senses the engine's temperature and regulates the flow of coolant between the engine and the radiator to maintain the engine at its optimal operating temperature, typically around 195 to 220 degrees Fahrenheit (90 to 104 degrees Celsius). The assembly includes the thermostat valve, which acts as a temperature-controlled valve, and the housing that contains it, often with a gasket to ensure a proper seal. Its primary role is to ensure efficient engine operation by preventing the engine from running too hot or too cold, which can affect performance, fuel economy, and emissions.

The thermostat assembly is typically located near the water pump on the cylinder head, connected to the top radiator hose, though in some cars, it may be near the bottom hose. This positioning allows it to control coolant flow effectively, ensuring the engine reaches and maintains its ideal temperature range.

How It Works

The operation of a car thermostat assembly is typically facilitated by a wax-based mechanism. Inside the thermostat valve, there is a wax pellet that expands when heated and contracts when cooled. This expansion and contraction operate a valve that controls the flow of coolant. When the engine is cold, the wax is solid, keeping the valve closed and restricting coolant flow to the radiator, allowing the engine to warm up quickly. As the engine warms up, the wax melts and expands, opening the valve to permit coolant to circulate through the radiator, dissipating excess heat and preventing overheating. This process is crucial for maintaining the engine within its ideal temperature range, ensuring efficient combustion and reduced emissions.

The thermostat assembly's operation can be described in two main phases:

  1. Cold Engine Phase: The thermostat remains closed, blocking coolant flow to the radiator, which helps the engine reach its optimal temperature faster. This is important for reducing engine wear, deposits, and emissions during warm-up.
  2. Warm Engine Phase: Once the engine reaches the desired temperature, the thermostat opens, allowing coolant to flow through the radiator to dissipate heat, preventing overheating and maintaining efficiency.

This mechanism is mechanical and does not rely on electronic control, car thermostats are typically mechanical, using a wax pellet to open and close based on temperature.

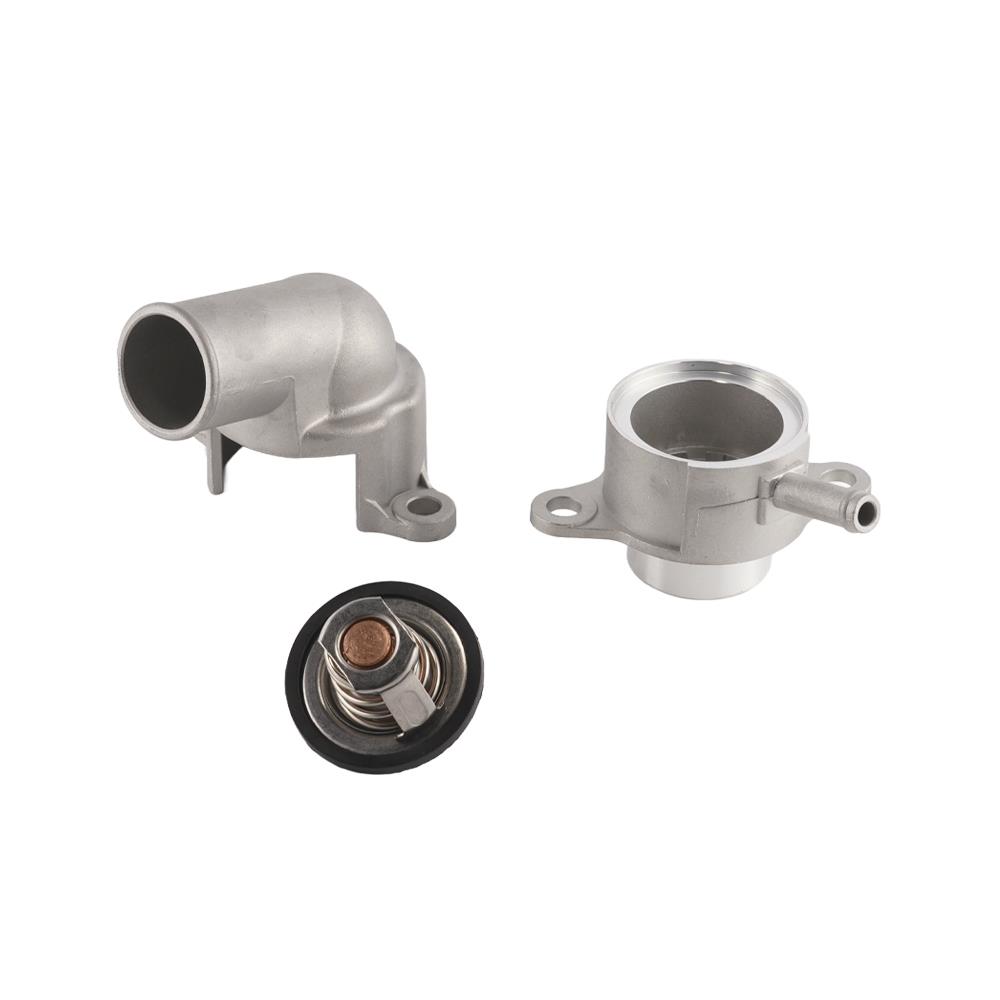

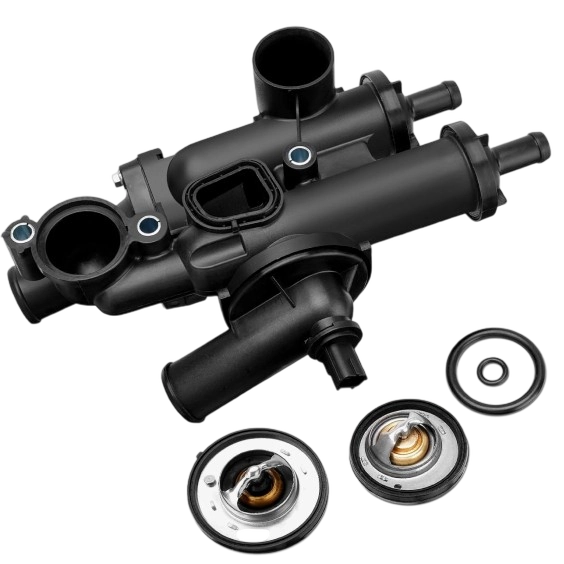

Main Components of a Thermostat Assembly

  1. Thermostat Body/Shell: The outer casing that houses all internal components, provides structural support, and connects the assembly to the engine and cooling system.
  2. Main Valve (Primary Valve): Controls the flow of coolant to the radiator. It opens and closes in response to temperature changes, directing coolant as needed.
  3. Bypass Valve (Secondary Valve): Allows coolant to circulate within the engine (bypassing the radiator) when the engine is cold, helping it warm up faster. As the engine heats up, this valve closes.
  4. Charge Cylinder (Wax Element): Contains a special wax that expands as it melts at a specific temperature (usually around 80°C). The expansion pushes a rod that operates the valves.
  5. Spring: Ensures the main valve returns to the closed position when the engine cools down. A secondary spring may assist in the movement of the rod and valves.
  6. Seal/Sealing Ring: Prevents coolant from leaking at the interface between the thermostat and the engine or housing.
  7. Air Bleed (not always present): Allows trapped air to escape from the cooling system, which is important for proper operation.
  8. Temperature Sensor (in some models): Monitors coolant temperature and may provide data to the engine control unit for more precise regulation.
  9. Thermostat Housing: The enclosure that mounts the thermostat assembly to the engine, often made from metal or high-strength plastic. It channels coolant flow and protects internal components.

Importance and Benefits

The thermostat assembly's role is critical for engine health and efficiency. By facilitating rapid warm-up, it reduces engine wear, deposits, and emissions, improving fuel economy. Maintaining optimal engine temperature ensures efficient combustion, which is essential for performance, especially under varying driving conditions like idling or heavy loads. It also prevents overheating, which can lead to severe engine damage, reduced performance, and increased fuel consumption.

The thermostat assembly's ability to regulate temperature is particularly important in modern engines designed to run at specific temperature ranges, ensuring longevity and efficiency. For example, it helps maintain the engine at temperatures where the combustion process is optimal, typically around 80-92 degrees Celsius, enhancing engine power and fuel efficiency.
