What Are Car Engine Radiator Fans?
Car engine radiator fans are devices that help regulate the engine's temperature by pulling or pushing air through the radiator. They are crucial for cooling the engine, especially when the vehicle is not moving fast enough to create natural airflow, such as in traffic or when idling.
How Do They Work?
These fans activate when the engine temperature exceeds a certain threshold, often controlled by a thermostat or sensor. They circulate air through the radiator to dissipate heat from the engine coolant, preventing overheating and potential damage.
Why Are They Important?
Radiator fans are vital for maintaining engine health, improving efficiency, and preventing costly repairs. They ensure the engine operates at optimal temperatures, especially in hot weather or heavy traffic.
Definition and Functionality

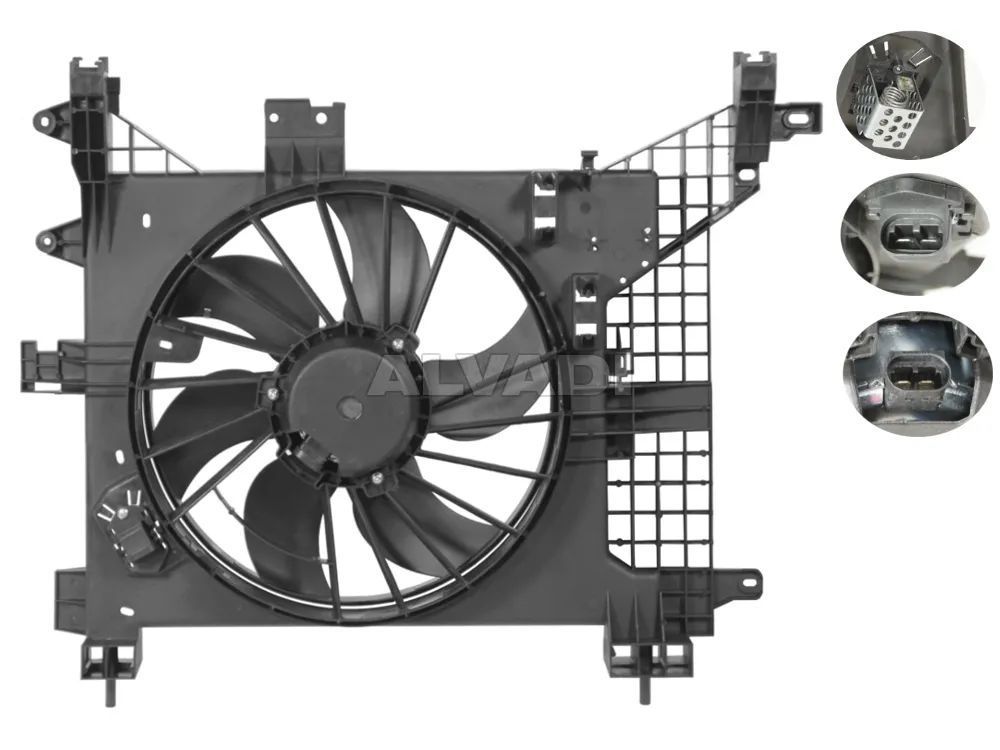

A car engine radiator fan is a device located in front of or behind the radiator, tasked with pulling or pushing cooling air through the radiator core. This process is crucial for transferring heat away from the engine coolant, preventing the engine from reaching dangerous temperatures. The fan is particularly important when the vehicle is stationary or moving at low speeds, as there is insufficient natural airflow from the vehicle's motion to cool the radiator effectively. The fan typically activates when the engine temperature exceeds a certain threshold, controlled by a thermostat, temperature sensor, or, in older vehicles, a mechanical fan clutch.
The cooling fan is an integral part of the vehicle's cooling system, which also includes the radiator, coolant, water pump, and thermostat. By distributing liquid and gas coolant throughout the engine, the fan helps prevent internal temperatures from reaching levels that could damage engine components, reduce performance, or increase fuel consumption.
Types of Radiator Fans
Radiator fans come in several types, each with specific characteristics suited to different vehicle needs:
- Push Fans: Mounted in front of the radiator, these fans push air through the core. They are less efficient due to limited airflow but are suitable for vehicles with constrained space.
- Pull Fans: Positioned behind the radiator, these fans pull air through the core, offering better efficiency and are ideal for vehicles with sufficient space behind the radiator.
- Electric Fans: Powered by an electric motor, these are controlled by a thermostatic switch, manual switch, or computerized temperature monitoring. They are more efficient, provide precise temperature control, and are standard in most modern vehicles. Electric fans turn on and off as needed, improving energy efficiency compared to continuous operation.
- Mechanical Fans: Driven by the engine's crankshaft via a fan clutch, these are found in older vehicles. They operate continuously, which can reduce efficiency, especially at higher engine speeds when cooling is less necessary.
- Flex Fans: A hybrid type, these fans have blades that flatten at higher engine RPMs to reduce drag, making them popular for high-performance vehicles where engine speeds vary significantly.
The choice between these types depends on the vehicle's design, age, and cooling requirements. Electric fans are increasingly common due to their efficiency and compatibility with modern engine management systems, while mechanical fans are more prevalent in classic or older vehicles.
Compatibility and Installation
Radiator fans are designed to fit specific vehicle makes and models, and compatibility is crucial for effective operation. When replacing or upgrading a fan, ensure it matches the vehicle's specifications, including size, voltage, and mounting location. Electric fans typically require a connection to the vehicle's electrical system, often controlled by a relay and fuse, while mechanical fans are driven directly by the engine's crankshaft, requiring no additional electrical integration.
Installation can vary in complexity. Electric fans often use a simple mounting system, sometimes with a fan shroud to direct airflow, and can be retrofitted to older vehicles for improved cooling. Mechanical fans, being part of the engine's accessory drive, require alignment with the crankshaft pulley and fan clutch, often necessitating professional installation. For upgrades, aftermarket options like aluminum radiators can improve heat dissipation, especially for vehicles prone to overheating.
Effectiveness and Scientific Backing
The effectiveness of radiator fans is well-supported by their role in the cooling system. Research indicates that they significantly enhance heat dissipation, particularly in conditions where natural airflow is limited, such as in traffic or extreme heat. The use of electric fans, with their ability to turn on and off as needed, has been shown to improve energy efficiency compared to mechanical fans, which operate continuously and can consume engine power unnecessarily.
For instance, electric cooling fans are an improvement over engine-driven fans, as they activate only when needed, reducing drag and improving fuel economy. Similarly, electric fans, running off computerized temperature monitoring, are more efficient than manual fans operated by pulleys and a thermo fan clutch.
Importance and Practical Considerations
Radiator fans are critical for maintaining engine health and preventing overheating, which can lead to severe damage, reduced performance, and increased fuel consumption. They are especially important in hot climates, heavy traffic, or when towing, where engine loads are higher, and natural cooling is insufficient. The fan shroud, often included with aftermarket fans, directs airflow through the radiator, ensuring effective cooling and preventing hot air recirculation.
Key practical considerations include:
- Noise Levels: While most fans are designed to be quiet, mechanical fans can produce noise at higher engine speeds, and electric fans may emit a humming sound when operating, which could be noticeable in quiet conditions.
- Cost and Value: Replacement fans range in price depending on type and brand, with electric fans typically costing more due to their complexity. prices starting around £25 for basic models and higher for branded units like Spal Automotive known for reliability up to 500whp.
- Best Use Cases: Radiator fans are most beneficial in vehicles with small radiators, older cooling systems, or those frequently operating in high-temperature conditions. Modern vehicles with advanced cooling systems may rely less on fans due to efficient radiator designs, but they remain essential for backup cooling.
Common Failures and Warning Signs
Radiator fans can fail due to various reasons, and recognizing the signs is crucial for timely repairs:
Cracked or displaced fan blades, which can reduce airflow and cause imbalance.Low coolant level, which increases the load on the fan as the radiator struggles to cool.Bad bearings, leading to wobbling or noise during operation.Electric fan relay problems or temperature sensor issues, preventing the fan from activating.Broken thermo fan clutch (in mechanical fans), causing continuous operation or failure to engage.Cracked or loose radiator connections, indicating potential stress on the cooling system.Elevated engine temperature, shown by the temperature gauge climbing higher than normal, especially at low speeds or when idling.Radiator leaks, which can reduce coolant levels and increase the fan's workload.Clicking noise when the fan is running, often due to debris caught in the blades or a cracked blade, which can affect performance.Comparative Analysis: Electric vs. Mechanical Fans
To provide a clearer comparison, consider the following table detailing key differences:
| Feature | Electric Fans | Mechanical Fans |
|---|
| Power Source | Electric motor, controlled by thermostat/sensor | Engine crankshaft, via fan clutch |
| Efficiency | High, turns on/off as needed, energy-efficient | Lower, operates continuously, consumes engine power |
| Noise | Generally quiet, may hum when operating | Can be noisy at higher engine speeds |
| Installation | Easier, often retrofittable, requires electrical | More complex, integrated with engine, professional fit |
| Best For | Modern vehicles, precise temperature control | Older vehicles, simpler systems |
| Cost | Higher, due to electronics and motor | Lower, simpler design |
This table aids in decision-making, particularly for those considering upgrades or replacements.
