What is an Oil Cooler?
An oil cooler is a device in a car's engine system that helps keep the engine oil at the right temperature by removing excess heat. It works like a small radiator, using tubes and fins to cool the oil as it circulates.
How Does It Work?
The engine oil, which gets hot from the engine's moving parts, flows through the oil cooler. The cooler uses air or the car's coolant to absorb and dissipate this heat, lowering the oil's temperature before it returns to the engine. This process helps maintain the oil at an optimal temperature, typically between 230 and 260 degrees Fahrenheit, ensuring it stays effective for lubrication.
Why Is It Important?
Oil coolers are crucial for preventing engine overheating, especially in vehicles that tow, race, or operate under heavy loads. By keeping the oil cool, they help extend the engine's life, reduce wear on parts, and maintain performance, preventing potential damage from oil breakdown at high temperatures.
Definition and Functionality
An oil cooler is a device that removes excess heat from the engine oil through a heat exchanger, functioning similarly to a radiator. It is typically a radiator-like component with tubes and fins for good airflow, designed to maintain the oil at a consistent and optimal temperature, usually between 230 and 260 degrees Fahrenheit. The oil cooler is integrated into the engine's lubrication system, cooling parts such as the engine and transmission, and is essential for maintaining low lube oil temperature to retard oxidation and ensure proper lubrication.

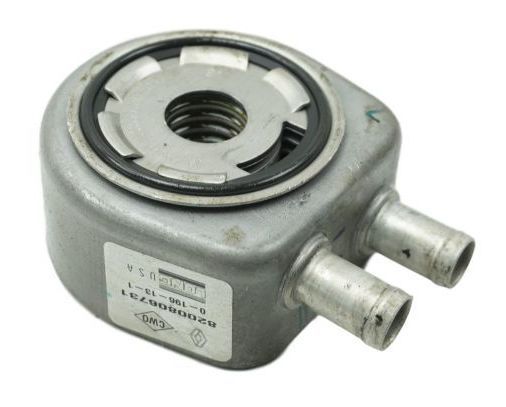

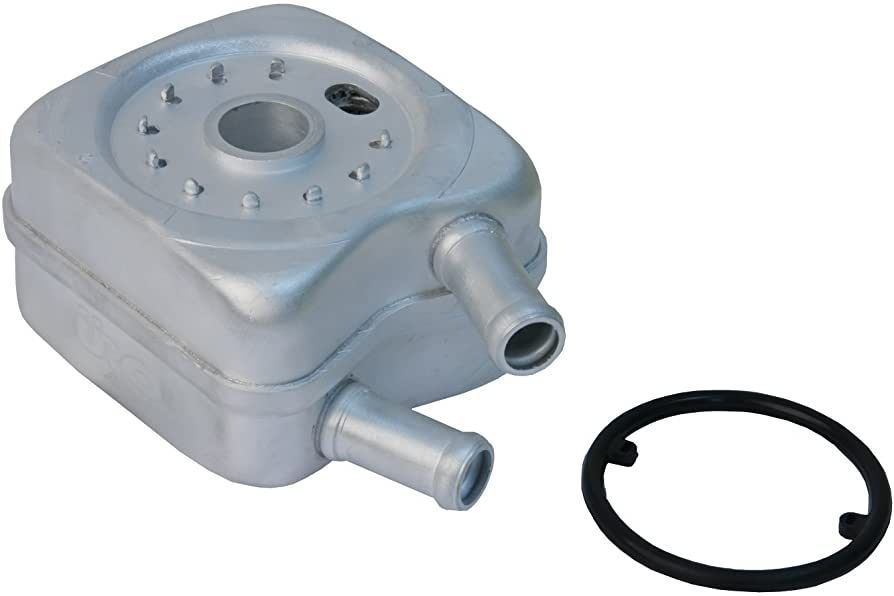

The oil cooler can be either oil-to-air, using ambient air to cool the oil, or oil-to-water, using the engine's coolant. Oil-to-air coolers are often mounted in front of or behind the radiator to maximize airflow, while oil-to-water coolers use a heat exchanger to transfer heat to the coolant system. This dual approach ensures flexibility in cooling methods, catering to different vehicle designs and operating conditions.
How It Works
The operation of an oil cooler involves circulating hot engine oil through the heat exchanger. For oil-to-air coolers, air flows through small metal fins, cooling the oil as it passes through, often facilitated by the vehicle's cooling fan and positioned for maximum exposure, such as behind the grille. Some systems use a "sandwich" adapter between the oil filter and engine block to integrate the cooler, with thermostatic control to disable oil flow until it reaches a specific temperature, ensuring efficient operation.

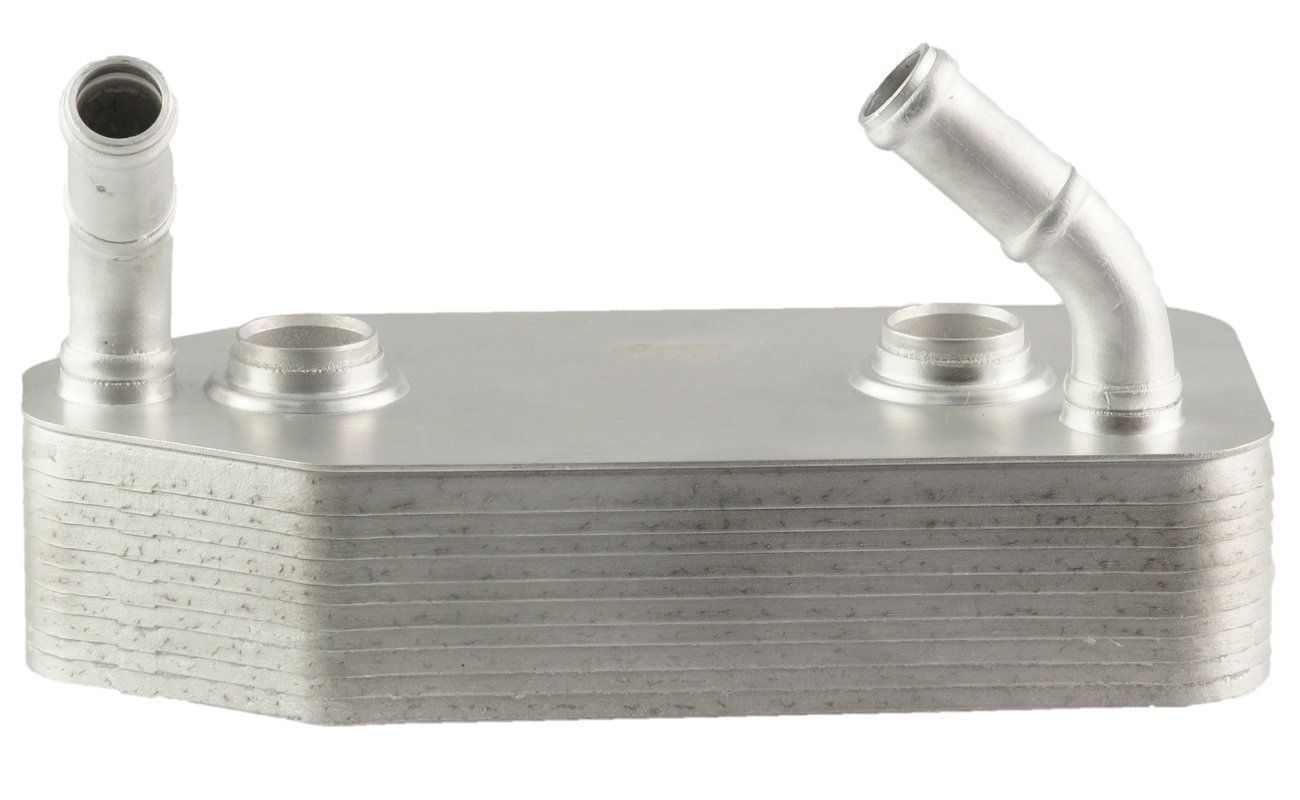

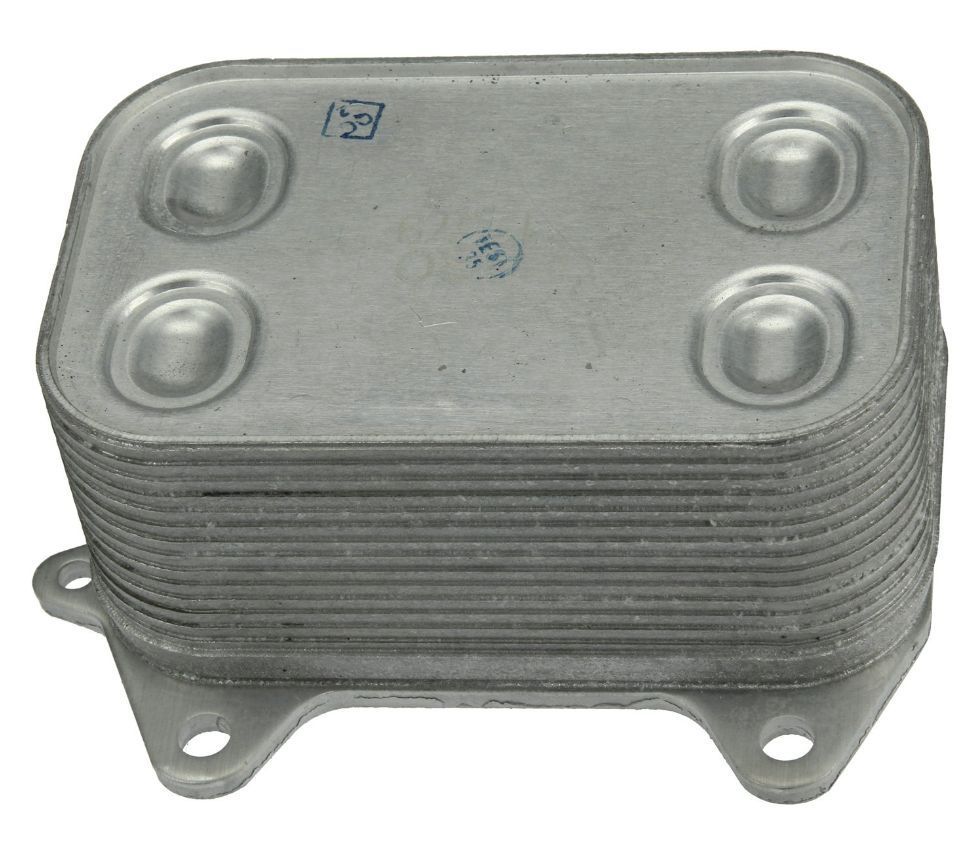

For oil-to-water coolers, the oil passes through a heat exchanger where coolant draws heat away, maintaining the oil within the optimal temperature range. Technical designs include single-pass parallel flow, two-pass water/one-pass oil flow with baffles, and plate-type coolers with vacuum brazing for internal cleanliness, ensuring effective heat dissipation. The system often includes automatic bypass and temperature control mechanisms to regulate oil flow and prevent excessive pressure drops, with heat dissipation capacities around 2 MW per cooler in industrial applications.
Types and Compatibility
Oil coolers come in various types, each suited to different vehicle needs:
- Oil-to-Air Coolers: Use ambient air, typically mounted near the radiator for maximum airflow, common in high-performance and heavy-duty vehicles.
- Oil-to-Water Coolers: Use engine coolant, integrated into the cooling system, often found in modern passenger cars and trucks with OEM installations.
- Integrated Coolers: Built into the engine, common in circulation systems, while external coolers are separate units for additional cooling capacity.
Compatibility depends on the vehicle's design, with oil coolers necessary for diesel engines and automatic transmissions due to higher temperature ranges, and often optional for regular passenger cars unless used for towing or high-performance scenarios.
Importance and Benefits
The primary importance of oil coolers lies in preventing engine overheating, especially under severe conditions like towing uphill, racing, or heavy-duty operations. By maintaining oil temperature, they prevent oxidation, ensure proper lubrication, and avoid precipitation of oxidation products, which can clog systems. This is crucial for extending engine life, reducing wear on components, and maintaining optimal performance, particularly in high-performance engines, heavy-duty vehicles, and those operating in hot climates or under extreme loads.
Oil coolers also enhance fuel efficiency, especially with fuel-oil heat exchangers (FOHE) that heat fuel for combustion, improving engine efficiency. They reduce strain on the drivetrain, prevent oil breakdown at high temperatures, and can extend oil change intervals, making them vital for vehicles frequently subjected to demanding conditions.
Common Problems and Warning Signs
Common issues include:
- Leaks: Cracks or holes can cause oil or coolant leaks, leading to reduced cooling efficiency and potential engine damage.
- Blockages: Precipitation of oxidation products on cooler tubes can block flow, especially if excessively cooled.
- Overheating: Failure to maintain oil temperature can result in engine overheating, particularly under heavy loads, with warning signs like elevated engine temperature gauges or steam from under the hood.
- Coolant Contamination: Coolant leaking into oil can reduce lubrication, a serious issue if not caught early.
Warning signs include finding oil or coolant puddles under the car, dashboard warnings, or unusual engine noises, necessitating prompt inspection and repair to avoid costly damage.
Comparative Analysis: Oil-to-Air vs. Oil-to-Water Coolers
To provide a clearer comparison, consider the following table detailing key differences:
| Feature | Oil-to-Air Coolers | Oil-to-Water Coolers |
|---|
| Cooling Medium | Ambient air, uses airflow | Engine coolant, uses heat exchanger |
| Placement | Typically in front of radiator | Integrated into cooling system |
| Efficiency | Depends on airflow, effective at high speeds | Consistent, effective under all conditions |
| Installation | May require space, can block radiator airflow | Easier integration, less space concern |
| Best For | High-performance, heavy-duty vehicles | Modern passenger cars, OEM installations |
| Maintenance | Prone to blockages from debris | Risk of coolant leaks into oil |
This table aids in decision-making, particularly for those considering upgrades or replacements based on vehicle use.
Conclusion
Oil coolers are essential for regulating engine oil temperature, preventing overheating, and extending engine life, particularly in high-performance and heavy-duty vehicles. They use heat exchangers cooled by air or coolant, typically located near the radiator for maximum efficiency. Their effectiveness depends on vehicle design, operating conditions, and maintenance. For best results, ensure regular checks for leaks, monitor oil temperature, and consider professional installation for complex setups. Potential owners should review technical specifications and user feedback to assess suitability, especially for vehicles in demanding conditions, while being aware of the ongoing debate about cooling methods compared to water systems.
