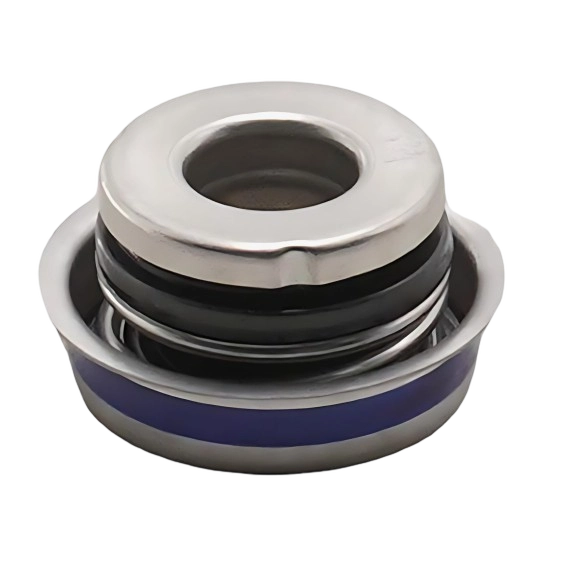

Mechanical Seals

What Are Mechanical Seals in an Engine Cooling System?

Mechanical seals in an engine cooling system are likely components used in the water pump to stop coolant from leaking out. The water pump circulates coolant to keep the engine cool, and the mechanical seal ensures no coolant escapes where the pump's spinning shaft meets the stationary part. It seems to work by having two flat surfaces—one that stays still and one that spins—pressed together to create a seal, handling the pressure and friction from the rotation.

Why Are They Important?

If the seal fails, coolant can leak, leading to low levels, engine overheating, and possibly severe damage like warped cylinder heads. Proper maintenance, such as regular coolant checks and timely replacement, is key to avoiding these issues.

Signs of Problems

Look out for coolant puddles under the car, engine overheating, or unusual noises from the pump, which might mean the seal needs attention.

Overview and Primary Function

Mechanical seals in an engine cooling system are specialized devices used primarily within the water pump to prevent coolant from leaking. The water pump is a vital part of the cooling system, responsible for circulating coolant through the engine to regulate its temperature and prevent overheating. The mechanical seal is located where the pump's rotating shaft passes through the stationary pump housing, ensuring that coolant does not escape while allowing the shaft to rotate freely. This is crucial for maintaining the efficiency and longevity of the cooling system, as failure can lead to coolant loss, engine overheating, and potential damage to components like cylinder heads or engine blocks.
Mechanical seals prevent leakage by containing the pressure of the pumping process and withstanding the friction caused by the shaft's rotation, leading to reliable operation, less wasted product, and cost savings. They are essential for ensuring the engine operates within safe temperature limits, particularly under the harsh conditions of automotive applications, including risk of coolant contamination by abrasive particles and vapor phase issues reducing cooling and lubrication.

Detailed Functions

The mechanical seal's role extends beyond simple leakage prevention. It consists of two flat, polished faces—one stationary (attached to the pump housing) and one rotating (attached to the shaft)—pressed together with axial force, often provided by springs or bellows, to create a tight seal. This design must withstand the pressure of the coolant system and the friction generated by the shaft's rotation, ensuring the coolant circulates effectively through the engine and radiator. Secondary seals, such as O-rings, are used to block other potential leak paths around the primary seal faces, enhancing the seal's integrity.

In the context of engine cooling, the seal ensures that the coolant, often a mixture of water and antifreeze, does not leak out, maintaining system pressure and preventing air ingress, which could lead to cavitation and further damage. The seal also helps in maintaining the pump's efficiency, minimizing power consumption, and ensuring quiet operation.

Types of Mechanical Seals in Water Pumps

There are several types of mechanical seals used in water pumps, each designed for specific applications within the engine cooling system:

1. Single Mechanical Seals: Used in most standard applications, these seals have one set of sealing faces and are common in typical automotive water pumps. They are cost-effective but may not be suitable for high-pressure or hazardous conditions.
2. Double Mechanical Seals: Used in high-pressure or hazardous fluid applications, these have two sets of sealing faces with a buffer fluid between them, providing additional safety and reliability, as noted in the same source. They are less common in standard vehicles but may be found in high-performance or industrial applications.
3. Cartridge Seals: Pre-assembled units that simplify installation and reduce the risk of errors, commonly used for ease of maintenance in automotive applications. They are ideal for minimizing downtime and ensuring proper alignment.

Other classifications include balanced seals, unbalanced seals, and hard-faced seals (made of materials like silicon carbide or tungsten carbide for harsh conditions). The choice depends on the vehicle's cooling system requirements, such as operating temperature, pressure, and coolant type.

Components of a Mechanical Seal

A typical mechanical seal in a water pump consists of the following key components:

1. Rotating Primary Face: Moves with the shaft, typically made of materials like carbon graphite for softer applications or silicon carbide for harder, abrasive conditions, suitable for coolant with potential contaminants.
2. Stationary Primary Face: Mounted to the pump housing, often made of harder materials like ceramic alumina for durability against the rotating face.
3. Mechanical Loading Devices: Include single spring, multiple springs, wave springs, or metal bellows, providing the axial force to keep faces pressed together, ensuring seal integrity under varying pressures.
4. Static and/or Dynamic Secondary Seals: Such as O-rings or elastomeric bellows, strategically located to complete the seal assembly, preventing leakage around the primary faces, crucial for maintaining coolant containment.
5. Drive Mechanisms: Components like set screws or drive pins ensure the rotating face moves with the shaft, maintaining alignment and preventing slippage.

Common Problems with Mechanical Seals in Water Pumps

Mechanical seals in water pumps can fail for several reasons, leading to leaks, downtime, and increased maintenance costs. From the search results, common issues include:

1. Wear and Tear: Mechanical seals can become worn out due to constant friction and movement during operation. This can cause the seal to fail, leading to coolant leaks.
2. Improper Installation: Incorrect installation, such as misalignment or not following manufacturer instructions, is a leading cause of failure, leading to premature wear and leakage. Cartridge seals can help mitigate this by being pre-assembled, protecting faces from contamination.
3. Contamination: Abrasive or foreign particles in the coolant can cause rapid wear of the seal faces, reducing their effectiveness. This is particularly relevant in engines where coolant may contain debris.
4. Dry Running: Operating the pump without sufficient coolant causes the seal faces to overheat and wear out quickly, potentially disintegrating within seconds due to thermal shock. This is a common issue if the cooling system runs low on coolant.
5. Excessive Heat: High temperatures, often from engine operation or inadequate cooling, can cause elastomers to swell or melt, restricting seal effectiveness and leading to leakage.
6. Cavitation: The formation and collapse of air bubbles in the coolant can physically damage the seal, causing a noisy, "gravel-like" sound during operation. This is common in centrifugal pumps, which water pumps often are.
7. Misalignment and Shaft Deflection: Uneven shaft movement due to misalignment or deflection can cause the seal faces to lose contact, leading to leaks. This can be exacerbated by engine vibrations or improper installation.

The consequences of failure are severe, with coolant supply being cut off, leading to engine overheating and potential irreparable damage.

Maintenance and Longevity

Maintaining mechanical seals in water pumps involves several practices to ensure longevity. Regular checks of coolant levels and condition, ensuring the driving belt is tight and free of wear, and flushing the cooling system to replace coolant are essential. Inspecting the seal for signs of wear, such as cracks or leaks, and using the recommended coolant type are also crucial. Flushing the system to remove debris, monitoring for vibration, and avoiding dry running can prevent many common failures.

Mechanical seals are often the first component to fail in pump systems, accounting for significant downtime and repair costs. Therefore, teams must install and maintain seals properly, and for failure analysis, consulting a seal manufacturer can help isolate root causes, with some offering complimentary analysis. Replacement is typically recommended during routine water pump maintenance, often around 60,000–90,000 miles, depending on the vehicle, as inferred from related discussions on pump longevity.

Comparative Analysis of Seal Types

To illustrate the differences, consider the following table comparing single, double, and cartridge mechanical seals based on key attributes:

This table highlights the trade-offs, with single seals being cost-effective but less robust, double seals offering safety for critical applications, and cartridge seals providing ease of use but at a higher initial cost.

Conclusion

Mechanical seals are indispensable for the water pump in a car's engine cooling system, ensuring coolant containment and preventing leaks that could lead to overheating and engine damage. Their functions extend beyond sealing to include maintaining system pressure and withstanding friction, with types like single, double, and cartridge seals catering to different needs. Common problems like wear, improper installation, and contamination necessitate proper selection, installation, and maintenance.
