What is a Fan Clutch?
A fan clutch is a device in a car's cooling system that manages the engine cooling fan, engaging it when the engine needs cooling and disengaging it to save power.
How Does It Work?
It uses a silicone-based fluid to create friction, engaging the fan when the engine is hot and disengaging it when cool, controlled by temperature, speed, or electronics.
Why Is It Important?
It helps prevent engine overheating, improves fuel efficiency by reducing unnecessary fan operation, and is crucial for older vehicles with mechanical cooling systems.
Definition and Functionality

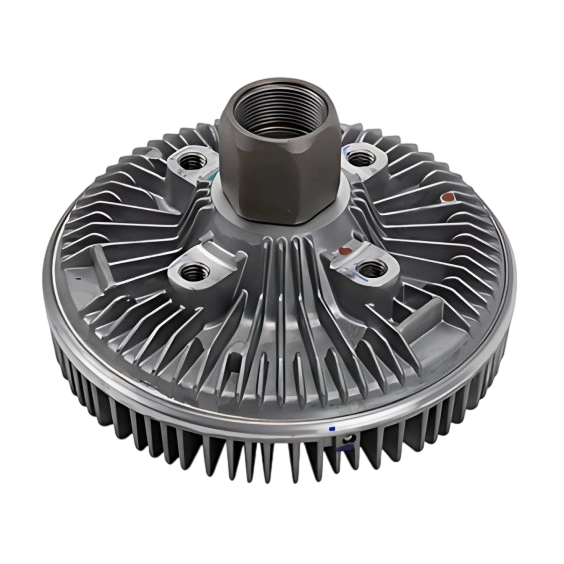

A fan clutch is a device that connects the engine's cooling fan to the engine's belt-driven pulley system. Its primary function is to engage the fan when the engine needs additional cooling and disengage it when cooling is not required, thereby saving engine power and improving fuel efficiency. The fan clutch typically mounts on the water pump or another belt-driven pulley and is connected to the fan blades. It uses a silicone-based fluid to create friction between the drive plate and the housing, which engages or disengages the fan as needed.
The fan clutch operates based on either temperature (thermal), engine speed (non-thermal), or electronic control. When the engine is cool or at normal operating temperature, the fan clutch allows the fan to spin loosely or disengage, reducing drag on the engine. As the engine temperature rises, the fan clutch engages the fan to increase airflow through the radiator, helping to dissipate heat and prevent overheating. This balance is crucial for maintaining engine performance and longevity, especially under varying driving conditions.
How It Works
The operation of a fan clutch depends on its type, as outlined below:
- Non-Thermal Fan Clutches: These are RPM-dependent, meaning they engage the fan at low engine speeds to provide cooling and disengage as engine speed increases, reducing power loss. Centrifugal force pushes fluid against valves to control engagement, with the fan typically disengaging above 2,500 to 3,000 RPM.
- Thermal Fan Clutches: These use a bi-metallic spring to sense engine temperature. When the engine is cool, the fan is disengaged. As the temperature rises, the spring activates a valve that releases silicone fluid into the working area, creating friction and engaging the fan. Different duty levels (standard, heavy, severe) determine how much the fan spins relative to the water pump speed, with heavy and severe duty providing 80-90% speed for better cooling.
- Electronic Fan Clutches: These are controlled by the vehicle's computer (PCM) and can engage or disengage based on various inputs, such as engine temperature, vehicle speed, or air conditioning use, offering precise control.
The fan clutch is crucial for maintaining a balance between cooling efficiency and power conservation. When the engine is under heavy load, idling, or in hot conditions, the fan clutch ensures the fan spins at the appropriate speed to prevent overheating. At higher speeds, when airflow through the radiator is sufficient, the fan clutch disengages the fan to save energy.
Importance in the Cooling System
The fan clutch plays a vital role in the overall cooling system, which includes the radiator, water pump, thermostat, and coolant. Its ability to regulate fan operation ensures:
- Engine Temperature Control: Prevents overheating by engaging the fan when needed, especially at low speeds or in traffic.
- Fuel Efficiency: Disengages the fan when cooling is unnecessary, reducing engine load and improving fuel economy.
- Engine Longevity: Protects the engine from heat-related damage by maintaining optimal operating temperatures, crucial for preventing costly repairs.
In vehicles with mechanical fans, the fan clutch is particularly important because it allows the fan to operate independently of the engine's speed, unlike older systems where the fan was directly driven by the engine.
Types of Fan Clutches
Fan clutches come in three main types, each suited to different vehicle designs and needs:
- Non-Thermal (RPM-Dependent): Engages at low RPM and disengages as RPM increases, less common but used in niche setups.
- Thermal (Temperature-Dependent): Engages based on engine temperature, using a bi-metallic spring and silicone fluid, common in older vehicles, trucks, and SUVs.
- Electronic: Controlled by the vehicle's computer for precise operation, found in some modern applications.
Thermal fan clutches are the most prevalent in older vehicles, while electronic fan clutches are increasingly used in modern cars for better control. Non-thermal clutches are less common but may be found in specific high-performance or older setups.
Common Problems and Warning Signs
Fan clutches are subject to wear and tear, leading to several common issues:
- Overheating: A failing fan clutch may not engage the fan properly, causing the engine to overheat, especially at idle or low speeds.
- Check Engine Light: In vehicles with electronic fan clutches, the PCM can detect issues and illuminate the check engine light (e.g., P0526 code).
- Poor Fuel Economy: A stuck-engaged fan clutch can increase engine load, reducing fuel efficiency.
- Unusual Noises: A failing fan clutch may produce grinding, whining, or other unusual sounds.
- Fan Not Spinning Freely: When the engine is off, the fan should spin freely and stop after about 1-1.5 revolutions. If it doesn't, the clutch may be seized or failing.
Warning signs include:
- Engine temperature gauge rising higher than normal, especially at idle.
- Steam or coolant leaks from under the hood.
- Dashboard warnings, such as the check engine light.
- Excessive noise from the front of the engine.
If any of these issues are present, immediate inspection and repair are recommended to avoid engine damage, which could be costly and affect vehicle reliability.
Comparative Analysis: Fan Clutch Types
To provide a clearer comparison, consider the following table detailing key differences between fan clutch types:
| Feature | Non-Thermal (RPM-Dependent) | Thermal (Temperature-Dependent) | Electronic |
|---|
| Control Mechanism | Centrifugal force | Bi-metallic spring and fluid | Vehicle computer |
| Engagement | Engages at low RPM | Engages at high temperature | Based on multiple inputs |
| Disengagement | Disengages at high RPM | Disengages at low temperature | Disengages when not needed |
| Efficiency | Good for high-speed driving | Best for temperature control | Most precise and efficient |
| Common Use | Less common, niche setups | Older vehicles, trucks, SUVs | Modern vehicles |
This table helps in understanding the strengths and applications of each type, aiding vehicle owners in identifying the right clutch for their needs.
Conclusion
A fan clutch is a critical component in many vehicles' cooling systems, particularly older models, responsible for engaging and disengaging the engine cooling fan based on temperature and speed. It ensures optimal engine temperature, prevents overheating, and improves fuel efficiency by reducing unnecessary fan operation. Common types include non-thermal, thermal, and electronic, each suited to different vehicle designs and needs. Regular maintenance, such as checking for leaks, ensuring proper fan operation, and replacing worn clutches, is essential to prevent engine damage. While many modern vehicles use electric fans, understanding fan clutches remains important for older vehicles or those with mechanical cooling systems, especially given the ongoing debate about efficiency compared to electric alternatives.
