The engine cooling system plays a crucial role in modern vehicles, regulating temperature to ensure optimal performance and prevent catastrophic damage. Without effective cooling, the extreme heat generated during combustion—which can reach 2000°C—would quickly destroy engine components and lead to complete failure.
Fundamentals of Engine Cooling
Internal combustion engines convert only about 40% of fuel energy into mechanical power, with the remainder released as heat. This inefficiency necessitates robust cooling solutions to maintain engine integrity. The cooling system must precisely balance temperature regulation—keeping the engine hot enough for efficiency yet cool enough to prevent damage.
The primary functions of engine cooling systems include:
Removing excess heat from the combustion chamber and engine components
Maintaining the engine at its optimal operating temperature (typically around 90°C)
Enabling quick warm-up in cold conditions to reduce wear and emissions
Providing heat for the vehicle's cabin climate control system
Protecting engine components from thermal stress and premature failure
Modern engines predominantly use liquid-based cooling systems, though some smaller engines still utilize air cooling for simplicity and reduced weight.
Types of Engine Cooling Systems
1. Air-Cooled Systems
Air-cooled engines rely on atmospheric air flowing directly across engine components to dissipate heat. These systems are characterized by:
Lightweight, simple design with fewer components
No risk of coolant leaks or freezing
Typically used in smaller engines, some motorcycles, and specialized applications
Often feature fins on the engine block and cylinder heads to increase surface area for heat dissipation
However, air cooling provides less consistent temperature control compared to liquid systems and becomes less effective as engine power increases.
2. Liquid-Cooled Systems
Liquid cooling is the dominant technology in modern automotive applications, offering superior temperature regulation through a circulating coolant medium. These systems:
Use a water-antifreeze mixture to absorb and transfer heat
Provide more uniform cooling across engine components
Allow for precise temperature control through thermostat operation
Can manage significantly higher heat loads than air-cooled systems
Liquid cooling systems are more complex and heavier than air-cooled alternatives but deliver superior performance, especially in high-output engines.
How the Cooling System Works
The engine cooling system operates through a continuous cycle that regulates engine temperature:

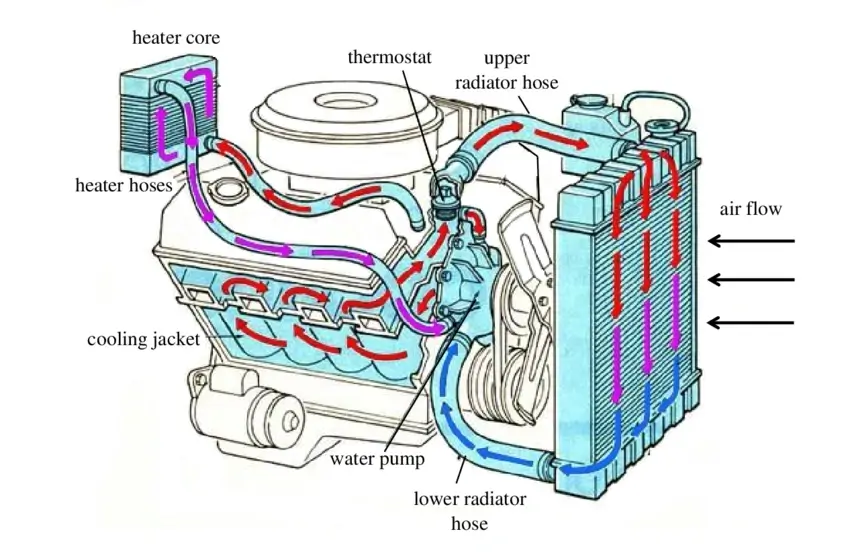

1. The Cooling Cycle
As the engine runs, coolant circulates through passages in the engine block and cylinder head (the cooling jacket), absorbing heat from combustion
The water pump continuously circulates this coolant, drawing cooled fluid from the radiator and pushing it through the engine
When the engine is cold, the thermostat remains closed, restricting flow to the radiator and allowing the engine to warm up quickly by recirculating coolant within the engine
Once the coolant reaches the thermostat's calibrated temperature, it begins to open, allowing hot coolant to flow to the radiator
In the radiator, heat transfers from the coolant to the ambient air, assisted by airflow from vehicle movement and the cooling fan
The cooled coolant returns to the engine to continue the cycle
This continuous process maintains the engine at its optimal operating temperature, balancing efficiency and component protection.
2. Temperature Regulation
The cooling system is designed to bring the engine up to operating temperature quickly and then maintain it consistently:
· Cold engines operate less efficiently and experience more wear
· The thermostat delays coolant flow to the radiator until proper temperature is reached
· Temperature sensors provide feedback to the engine control module (ECM) to adjust cooling system operation
· In modern vehicles, the ECM controls electric fan operation based on coolant temperature and other factors
3. Maintenance and Common Issues
Proper maintenance of the cooling system is essential for engine longevity and reliability:
Common Problems
· Radiator leaks or clogging due to corrosion or debris
· Water pump failure from bearing damage or seal leaks
· Thermostat malfunction (stuck open causing slow warm-up or stuck closed causing overheating)
· Cooling fan issues from electrical failures or clutch problems
· Hose deterioration leading to coolant leaks
· Head gasket failure allowing coolant to mix with oil or combustion gases
4. Maintenance Recommendations
· Regular inspection of coolant level and condition
· Periodic coolant flushing and replacement according to manufacturer specifications
· Inspection of hoses for cracks, bulges, or hardening
· Testing of the thermostat and pressure cap functionality
· Monitoring for leaks or unusual temperature fluctuations
· Keeping the radiator and cooling passages clean and free of obstructions
Conclusion
The engine cooling system represents a critical subsystem in modern vehicles, directly affecting performance, efficiency, and longevity. Through the coordinated operation of its components, the cooling system maintains optimal engine temperature across varying operating conditions and environmental factors.
As vehicle technology continues to evolve, cooling systems are becoming more sophisticated with the integration of electronic controls, variable-speed pumps, and advanced coolant formulations. These developments aim to further improve engine efficiency, reduce emissions, and enhance overall vehicle performance while maintaining the fundamental principles of heat management.
