Piston Rings

What Are Piston Rings?

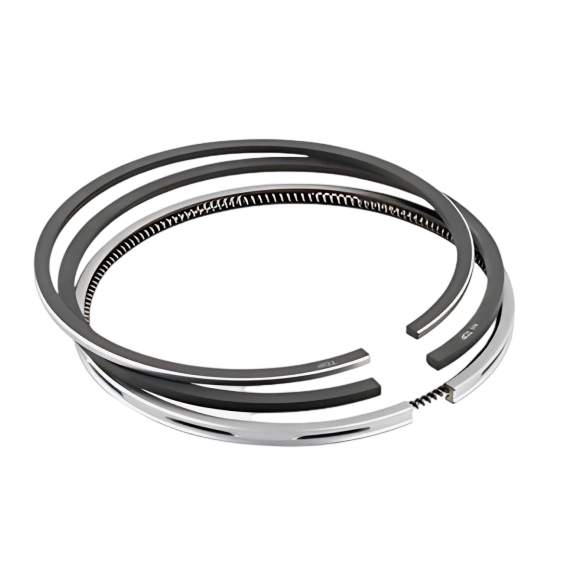

Piston rings are split rings that fit into grooves on the outer perimeter of a piston in an internal combustion engine. They play a critical role in ensuring the engine operates efficiently by performing several key functions.

Functions

1. They seal the combustion chamber to prevent gas leakage, ensuring proper compression.
2. They help transfer heat from the piston to the cylinder wall, preventing overheating.
3. They control oil by regulating the film on cylinder walls, ensuring lubrication and preventing excess oil from burning.

Types and Materials

1. Compression Rings: Located at the top, they seal the combustion chamber, typically one or two per piston.
2. Wiper or Intermediate Rings: Between compression and oil rings, they provide additional sealing and help control oil.
3. Oil Control Rings: At the bottom, they manage oil by scraping excess back to the sump.
4. Research suggests they are usually made from cast iron or steel, with possible coatings like chromium or molybdenum.

Overview and Definition

Piston rings are metallic split rings that fit into grooves on the outer diameter of a piston, forming an integral part of internal combustion engines, steam engines, and other reciprocating machinery. They are essential for maintaining the seal between the piston and the cylinder wall, ensuring efficient engine operation under high temperatures and pressures. The primary purpose is to seal the combustion chamber, prevent gas leakage, and manage oil distribution, with additional roles in heat transfer and lubrication.

Piston rings operate under extreme conditions, with combustion chamber pressures reaching up to 20 MPa and surface temperatures exceeding 450°C. This necessitates materials and designs that can withstand such harsh environments while maintaining efficiency and longevity.

Functions in Engine Operation

Piston rings perform several critical functions in engine operation, as outlined below:

1. Sealing the Combustion Chamber: They seal the gap between the piston and the cylinder wall, preventing high-pressure combustion gases from escaping into the crankcase. This ensures proper compression during the compression stroke and maximizes power output during the power stroke. Insufficient sealing can lead to blow-by, where combustion gases enter the crankcase, reducing engine efficiency and increasing emissions.
2. Heat Transfer: Piston rings facilitate the transfer of heat from the piston to the cylinder wall, which is then dissipated by the engine's cooling system. Approximately 70% of the heat from the piston head is transmitted through the rings, preventing overheating and thermal damage to the piston.
3. Oil Control and Lubrication:They regulate the oil film on the cylinder walls, ensuring adequate lubrication to reduce friction and wear between the piston and cylinder.Oil control rings scrape excess oil from the cylinder walls back to the oil sump, preventing oil from entering the combustion chamber and being burned, which could lead to increased emissions and reduced efficiency.Proper oil control is vital; too much oil can cause blue smoke from burned oil, while too little can lead to engine seizure.

Types of Piston Rings

Piston rings are classified based on their function and position, with three primary types identified:

1. Compression Rings: Located at the top of the piston, closest to the combustion chamber. Their main function is to seal the combustion chamber and prevent gas leakage during the compression and power strokes. Typically, there are one or two compression rings per piston, with the top ring being the primary seal. Designs may include barrel-faced (curved outer surface for better sealing) or taper-faced (angled for oil distribution) profiles. They also contribute to heat transfer, with the top compression ring transferring about 70% of the combustion heat to the cylinder wall.
2. Wiper Rings (or Intermediate Rings):Positioned between the compression rings and the oil control ring. They provide additional sealing to support the compression rings and help wipe excess oil from the cylinder walls. Also known as Napier rings in some contexts, they assist in oil control by scraping oil during the downstroke, reducing the load on the oil control ring.Their role is particularly important in engines with high oil consumption, providing a finishing role in combustion sealing and oil scraping.
3. Oil Control Rings (or Oil Scraper Rings):Located at the bottom of the piston, closest to the crankcase. Their primary role is to manage the oil film on the cylinder walls by scraping excess oil back to the oil sump. They prevent oil from being consumed in the combustion process, which could lead to increased emissions and reduced engine efficiency.Designs often include two thin rails with a spring or expander for added pressure, ensuring effective oil control. They contribute significantly to engine friction, with their high inherent pressure ensuring proper oil regulation.

The number of rings per piston varies by engine type:

1. Four-stroke petrol engines typically use three rings per cylinder: two compression rings and one oil control ring.
2. Two-stroke engines may use two rings: one compression and one wiper ring.
3. Diesel engines, due to higher cylinder pressures, may use more rings, with configurations including multiple compression and oil control rings.

Practical Considerations and Maintenance

Ensuring piston rings operate efficiently involves regular maintenance, such as checking for wear, ensuring proper ring gap, and monitoring oil levels for lubrication. Common issues include:

1. Ring Wear: Excessive wear can lead to loss of sealing, increased blow-by, and reduced compression.
2. Oil Consumption: Worn oil control rings can allow excess oil into the combustion chamber, causing blue smoke and increased emissions.
3. Ring Sticking: Carbon deposits can cause rings to stick, reducing their effectiveness and leading to poor engine performance.

Maintenance practices include regular oil changes, using high-quality oils, and periodic engine inspections to check ring condition. Proper installation is crucial, with correct ring gap and orientation ensuring optimal performance.

Engine-Specific Variations

The configuration of piston rings varies by engine type and application:

1. Marine Engines: Large two-stroke marine engines may use compression and wiper rings, with additional rings for high-pressure environments.
2. Automotive Engines: Four-stroke petrol engines typically use three rings, while diesel engines may use four or more for higher pressures.
3. Racing Engines: High-performance engines may use forged steel rings with advanced coatings for enhanced durability and reduced friction.
