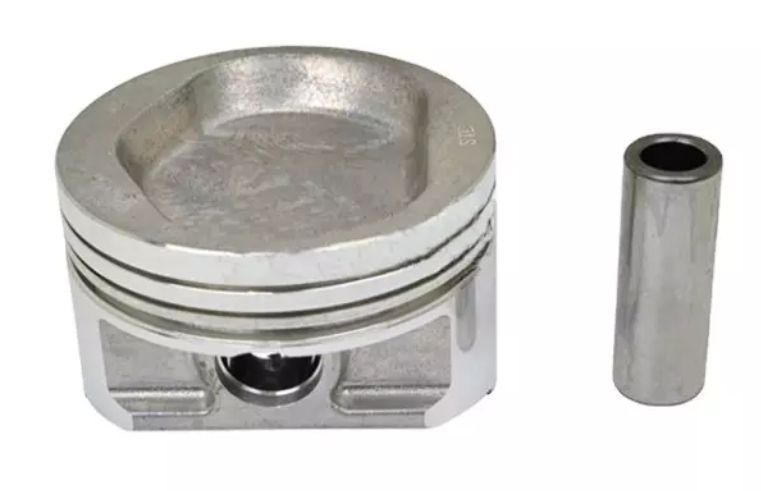

What is an Engine Piston?
An engine piston is a crucial part of internal combustion engines, such as those in cars and motorcycles. It moves up and down within a cylinder, transferring the force from expanding combustion gases to the crankshaft, which ultimately powers the vehicle. Pistons are typically made from lightweight materials like aluminum alloys to handle high temperatures and pressures.
Function and Importance
The piston’s main job is to convert the energy from combustion into mechanical motion. During the power stroke, the expanding gases push the piston downward, and this linear motion is turned into rotational motion by the crankshaft. Pistons also play roles in intake, compression, and exhaust processes in a four-stroke engine cycle.
Types and Materials
There are different types of pistons, including trunk pistons for early engines, crosshead pistons for large diesel engines, slipper pistons for high-speed applications, and deflector pistons for two-stroke engines. These are usually made from cast or forged aluminum for durability and heat resistance.
Overview and Definition
An engine piston is a cylindrical component integral to internal combustion engines, reciprocating pumps, gas compressors, hydraulic cylinders, and pneumatic cylinders. It is the moving part contained within a cylinder, made gas-tight by piston rings, and is essential for transferring force from expanding gases to the crankshaft in engines, or from the crankshaft to the piston in pumps for compressing fluids. In some engine designs, pistons also function as valves by covering and uncovering ports, controlling gas flow.
The piston's role in internal combustion engines is particularly critical, where it operates under extreme conditions, with combustion chamber pressures reaching up to 20 MPa and surface temperatures exceeding 450°C. This necessitates materials and designs that can withstand such harsh environments while maintaining efficiency and longevity.
Function in Engine Operation
In a typical four-stroke internal combustion engine, the piston facilitates the following processes:
- Intake: The piston moves downward, drawing in the air-fuel mixture through an open intake valve.
- Compression: The piston moves upward, compressing the mixture, increasing pressure and temperature for efficient combustion.
- Combustion (Power Stroke): The spark plug ignites the compressed mixture, and the resulting expansion of gases pushes the piston downward, transferring force to the crankshaft via the connecting rod.
- Exhaust: The piston moves upward again, expelling the burned gases through the open exhaust valve.
This cycle repeats, with the piston's movement converting linear motion into rotational motion, ultimately driving the vehicle's wheels through the powertrain. The piston's ability to handle high pressures and temperatures is vital, with cooling mechanisms like oil flow (at least 80% of injector oil flow) ensuring thermal management.
Types of Engine Pistons
Pistons vary by design and application, each tailored to specific engine types and operational needs. The following table summarizes the main types:
| Type | Description | Typical Use |
|---|
| Trunk Pistons | Long relative to diameter, act as both piston and crosshead, with oil ring groove below gudgeon pin. | Early internal combustion engines. |
| Crosshead Pistons | Feature a piston rod extending to a smaller piston for mechanical guidance, reducing friction by half. | Large, slow-speed diesel engines. |
| Slipper Pistons | Reduced size and weight, minimizing reciprocating mass, with halved skirt area reducing friction. | High-speed petrol engines. |
| Deflector Pistons | Have a raised rib on the crown to direct gas flow, improving scavenging. | Two-stroke engines with crankcase compression. |
Materials and Design Features
Pistons are predominantly made from aluminum alloys, chosen for their lightweight nature, excellent thermal conductivity, and structural integrity. The use of cast or forged aluminum is common, with racing pistons often forged for enhanced strength and fatigue life. Historically, early pistons were made from cast iron, but advancements led to specialized alloys like Y alloy and Hiduminium, designed for high-temperature resistance.
Design features include:
- Ovality and Profile Taper: Pistons are not perfectly round; they have a larger diameter near the bottom skirt than at the crown to accommodate thermal expansion and ensure proper fit.
- Clearance: Proper clearance is critical; insufficient clearance can cause the piston to seize, while excessive clearance leads to loss of compression and increased noise. Aluminum's thermal expansion requires precise engineering to maintain free movement.
Pistons must also manage thermal conductivity, with the ability to conduct and transfer heat being essential for preventing overheating and maintaining engine efficiency.

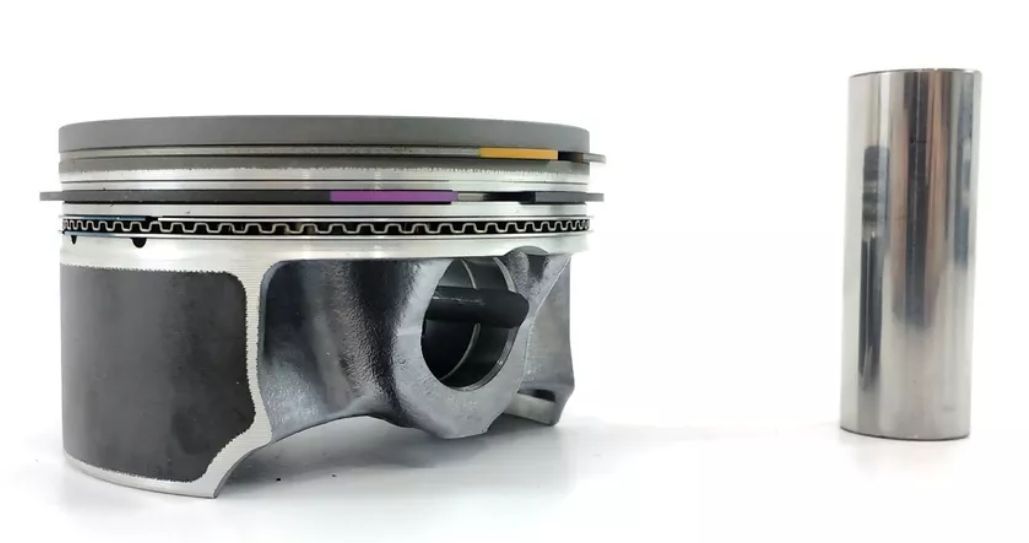

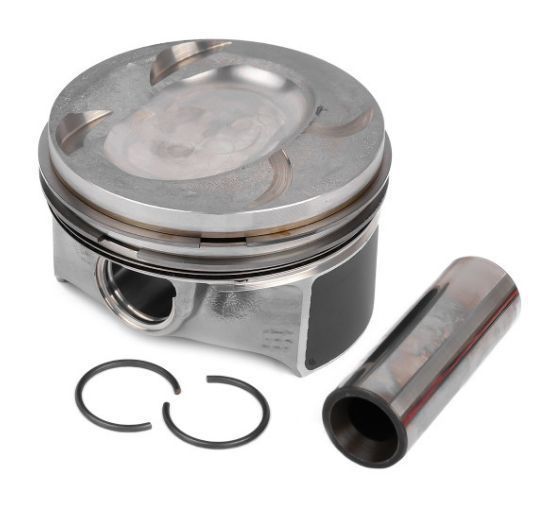

Detailed Components and Functions
The piston comprises several key components, each with specific roles. The following table details these components, their descriptions, functions, materials, and specific notes:
| Component | Description | Function | Material | Specific Details |
|---|
| Piston Head | Top surface closest to cylinder head | Subjected to forces and heat during combustion | Cast aluminum alloy | - |
| Piston Pin Bore | Through hole perpendicular to piston travel | Receives piston pin | - | - |
| Piston Pin | Hollow shaft | Connects small end of connecting rod to piston | - | - |
| Piston Skirt | Portion closest to crankshaft | Aligns piston in cylinder bore, some have profiles for mass reduction and crankshaft clearance | - | - |
| Ring Groove | Recessed area around piston perimeter | Retains piston ring | - | - |
| Ring Lands | Two parallel surfaces of ring groove | Function as sealing surface for piston ring | - | - |
| Piston Ring (General) | Expandable split ring | Seals combustion chamber, conducts heat to cylinder wall, returns oil to crankcase | Cast iron | Retains shape under heat/load, size/config varies by engine design/cylinder material |
| Compression Ring | Located closest to piston head | Seals combustion chamber, prevents leakage during combustion, transfers 70% combustion heat | Cast iron | Taper-faced (1° taper angle) or barrel-faced for oil distribution, mild wiping action to prevent oil entry |
| Wiper Ring | Located between compression and oil ring, tapered face | Further seals combustion chamber, wipes cylinder wall clean of excess oil | Cast iron | Taper angle toward oil reservoir, incorrect installation causes excessive oil consumption |
| Oil Ring | Located closest to crankcase, includes two thin rails, holes/slots | Wipes excess oil from cylinder wall, returns to oil reservoir | Cast iron | Highest inherent pressure, some use spring expander or three-piece (two rails, expander) for added pressure |
Piston rings are crucial for sealing the combustion chamber, preventing gas leakage, and managing oil. They operate under inherent pressure (from internal spring force) and applied pressure (from combustion gases), with designs varying by engine type and cylinder material.

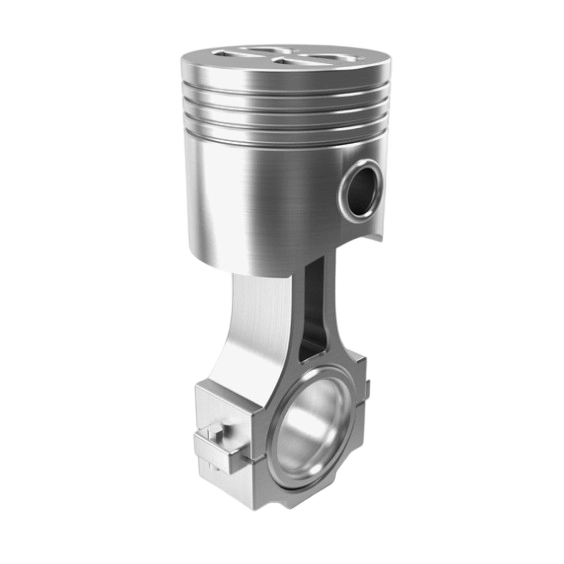

How a Piston Works in an Engine
The piston operates through a series of strokes in the engine cycle:
- Intake Stroke: The piston moves down, drawing in an air-fuel mixture (in petrol engines) or air (in diesel engines) into the combustion chamber.
- Compression Stroke: The piston moves up, compressing the mixture for more efficient combustion.
- Power Stroke: A spark (in petrol engines) or heat from compression (in diesel engines) ignites the mixture, causing an explosion that forces the piston down, generating power.
- Exhaust Stroke: The piston moves up again, expelling burnt gases through the exhaust valve or port.
This four-stroke cycle repeats rapidly, with each piston in a multi-cylinder engine firing in a specific order for smooth operation.
