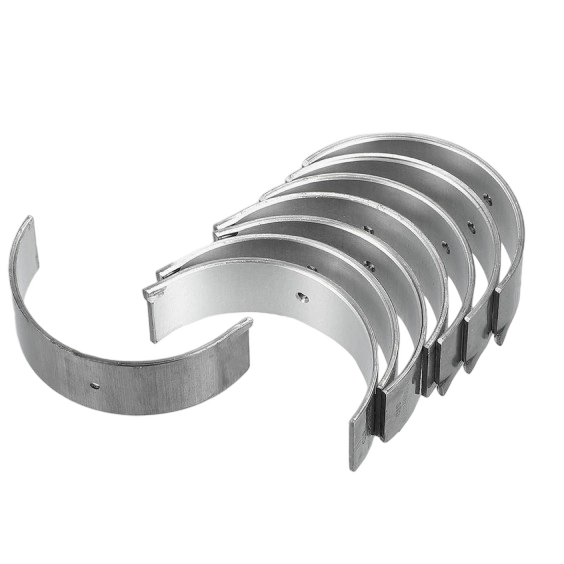

What Are Engine Bearings?
Engine bearings are essential components in internal combustion engines, supporting the rotation of moving parts such as the crankshaft and connecting rods. They minimize friction and wear between these rotating parts and the engine's stationary components, ensuring smooth operation and longevity.
Types of Engine Bearings
There are several key types of engine bearings, each serving a specific function:
- Main Bearings: Support the crankshaft within the engine block, allowing it to rotate smoothly.
- Rod Bearings: Located in the connecting rods, these connect the rods to the crankshaft, enabling motion transfer from the pistons.
- Camshaft Bearings: Support the camshaft, which controls the opening and closing of the engine's valves.
Engine bearings are typically made from materials designed to withstand high loads and provide good lubricity. Common options include:
- Bi-metal bearings, often made of aluminum with silicon for added hardness, suitable for production engines.
- Tri-metal bearings, featuring a copper-lead layer with a babbitt overlay, used in high-performance and racing applications for their higher load capacity.
Importance and Application
Research suggests that proper selection and maintenance of engine bearings are crucial for engine performance and durability. The choice of bearing type can vary depending on the engine's application, such as automotive, marine, or high-performance racing, with materials and designs tailored to specific load and speed requirements.
Introduction
Engine bearings are fundamental components in internal combustion engines, playing a pivotal role in supporting and facilitating the rotation of critical moving parts such as the crankshaft, connecting rods, and camshaft. Their primary function is to reduce friction and wear between these rotating elements and the engine's stationary components, ensuring smooth operation, longevity, and efficiency.
Definition and Function
Engine bearings are typically plain bearings, consisting of a smooth surface against which the rotating journal (the part of the shaft that rotates within the bearing) slides. They are designed to maintain a thin film of engine oil between the bearing and the journal, which is critical for reducing friction. If this oil film breaks down, metal-to-metal contact can occur, leading to bearing failure, which can severely impact engine performance. The bearings must be precisely fitted; if too tight, they may overheat, and if too loose, they can cause knocking or other mechanical issues, highlighting their importance in engine design and maintenance.
Types of Engine Bearings
The survey identifies several key types of engine bearings, each with specific roles within the engine:
- Main Bearings: These are located in the engine block and support the crankshaft, allowing it to rotate smoothly. The number of main bearings varies by engine, often determined by load factors and maximum speed, with most engines having at least two at each end of the crankshaft. Additional bearings may be placed along the crankshaft, sometimes one per crank pin, especially in high-RPM designs like modern diesel and petrol engines.
- Rod Bearings: Found in the connecting rods, these bearings connect the rods to the crankshaft, enabling the transfer of motion from the pistons to the crankshaft. They are crucial for converting the linear motion of the pistons into rotational motion, a fundamental aspect of engine operation.
- Camshaft Bearings: These support the camshaft, which controls the timing of the engine's valves, ensuring proper intake and exhaust cycles. While less discussed in some sources, they are essential for valve train operation and are mentioned in various automotive engineering contexts.
Applications and Performance Considerations
Engine bearings are found across various engine types, with automotive applications being the most common focus. They are crucial in vehicles, supporting components like wheel hubs, steering columns, and gearboxes. Plain bearings in suspension systems and engine connecting rod bushings. For high-performance engines, bearing selection, fit, and installation can make or break performance, with considerations like oil clearances and bearing crush being critical. For instance, oil clearances recommended are .002" for 20W/5W-20 oils, increasing to .0035" for 50W/20W-50 racing oils, reflecting the need for tailored solutions based on engine demands.
Bearing failures often result from contamination or oil film breakdown, with race conditions potentially reducing the oil film to half a micron, underscoring the importance of maintenance and proper lubrication. Eccentricity also varies, with stock bearings ranging from .0002" to .0008", and performance bearings from .0006" to .0012", affecting how bearings handle load and speed.
