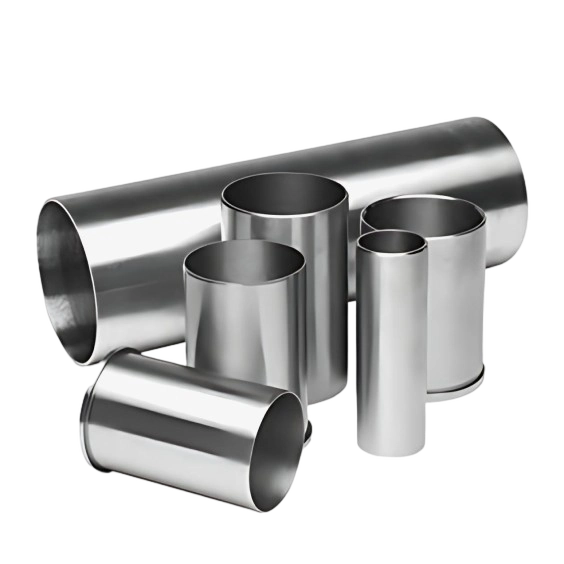

What is a Cylinder Sleeve?
A cylinder sleeve, or liner, is probably a cylindrical part inserted into an engine block, creating the space where the piston moves. It seems to offer a tough surface that can handle the engine's heat and friction, especially important in engines with aluminum blocks, which might deform under stress.
Purposes and Benefits
The evidence leans toward cylinder sleeves being used to fix worn or damaged cylinder walls, restore the original size after enlarging, and strengthen the engine for better performance. They also appear to be replaceable, making repairs easier without replacing the whole engine block.
Types and Materials
It seems there are two main types: dry sleeves, which don't touch the coolant and rely on the engine block for cooling, and wet sleeves, which contact coolant for better heat dissipation. Materials like gray cast iron or ductile iron are likely used for their durability, with some high-performance options in aluminum or steel.
Definition and Role in Engines
A cylinder sleeve is a cylindrical component fitted into the engine block to form the cylinder bore, where the piston operates. It is a critical part of internal combustion engines, providing a smooth and durable surface for the piston to slide against. This is particularly vital in engines with aluminum alloy blocks, as aluminum may deform or wear under high temperatures and friction, necessitating the use of cylinder liners to maintain engine integrity.
Functions and Purposes
Cylinder sleeves serve multiple essential functions. They form the sliding surface, requiring high burn resistance, low self-friction, and low friction with the piston ring to minimize lubricating oil consumption. They also conduct heat, reducing friction between the valve and cylinder head, and maintain airtightness to prevent gas leaks under high pressure and temperature conditions.
Beyond these, cylinder sleeves are used for practical purposes such as repairing worn or damaged cylinder bores, restoring the cylinder to its original size after overboring, and strengthening the block to handle higher cylinder pressures, especially in high-performance applications. This is particularly relevant for aluminum blocks, which are increasingly common due to their lightweight properties. Additionally, they allow for honing to accommodate different ring types, enhancing engine performance. The replaceable nature of cylinder sleeves facilitates easier engine repairs and upgrades, avoiding the need to replace the entire engine block.
Types of Cylinder Sleeves
Cylinder sleeves are categorized into two main types based on their interaction with the engine's cooling system: dry and wet.
- Dry Cylinder Liners: These are characterized by a more basic, thinner design and do not come into direct contact with the coolant. They rely on the engine block for cooling, achieving this through a very close fit within the jacket in the cylinder block wall. Their primary function is to withstand high temperatures and protect the piston interior from impurities.
- Wet Cylinder Liners: These interact directly with the coolant, hence the name, and are typically thicker than dry liners. They protect the piston and help disperse heat and impurities, with some designs featuring tiny openings for enhanced heat dissipation. This interaction with coolant makes them effective for engines requiring more robust cooling.
The choice between dry and wet liners depends on the engine design and cooling requirements, with wet liners being more common in applications needing efficient heat management.
Materials and Durability
Cylinder sleeves are typically constructed from materials chosen for their wear resistance and durability under high-stress conditions. Common materials include:
- Gray Cast Iron: Known for its excellent wear resistance and cost-effectiveness, often used in standard applications.
- Ductile Iron: Offers higher tensile strength (up to 100,000 psi compared to 30,000 psi for gray cast iron), making it suitable for high-performance engines.
- Experimental Materials: In high-performance contexts, materials like aluminum liners, steel liners, compacted graphite iron, and even titanium liners are being explored for their potential to enhance performance and durability.
The choice of material is critical, especially for truck and bus engines, which demand long life under high pressure and temperature.
Comparative Analysis of Dry vs. Wet Cylinder Liners
To further illustrate the differences, the following table summarizes key aspects:
| Aspect | Dry Cylinder Liners | Wet Cylinder Liners |
|---|
| Design | More basic, thinner design | Interact with coolant, some with tiny openings |
| Function | Withstand high temperatures, protect piston interior from impurities due to close fit within jacket | Protect piston, help disperse heat and impurities |
| Thickness | Usually comparatively thinner | Thicker compared to dry liners |
| Cooling | No direct interaction with coolant | Interact with coolant for cooling |
| Additional Features | - | Some fitted with tiny openings for heat dispersal
|
