What is a Connecting Rod?
A connecting rod, often called a 'con rod', is a mechanical part that connects the piston to the crankshaft in piston engines. It plays a vital role in converting the piston's up-and-down (linear) motion into the crankshaft's circular (rotational) motion, which is essential for powering vehicles and machinery.
Applications
Connecting rods are widely used in internal combustion engines, such as those in cars and trucks, and in steam locomotives, where they transfer motion from pistons to driving wheels. Recent developments also explore their use in electric vehicles for improved performance.
Definition and Function
A connecting rod, also known as a 'con rod', is defined as a mechanical component that links the piston to the crankshaft in piston engines. Its primary function is to convert the reciprocating (linear) motion of the piston into the rotational motion of the crankshaft, enabling the engine to generate power. This process is crucial for transmitting compressive and tensile forces from the piston, allowing pivoting at the piston end and rotation at the shaft end. This conversion is fundamental in internal combustion engines, where it facilitates the operation of vehicles by transferring energy to the wheels, and in steam locomotives, where it connects pistons to driving wheels.
Applications in Engines
Connecting rods are integral to various engine types. In automotive internal combustion engines, they are essential for transforming the piston's motion into crankshaft rotation, driving the vehicle's wheels. Minimizing vehicle vibrations and enhancing handling by reducing stress on the suspension. In steam locomotives, connecting rods transfer power from the pistons to the coupling rods, which then drive the wheels.
Construction and Design

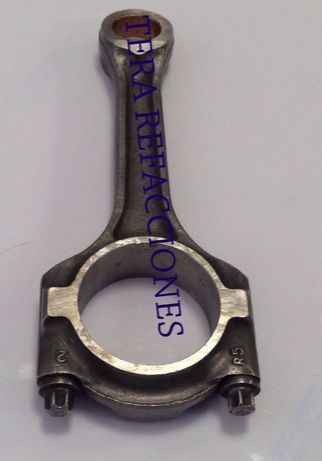

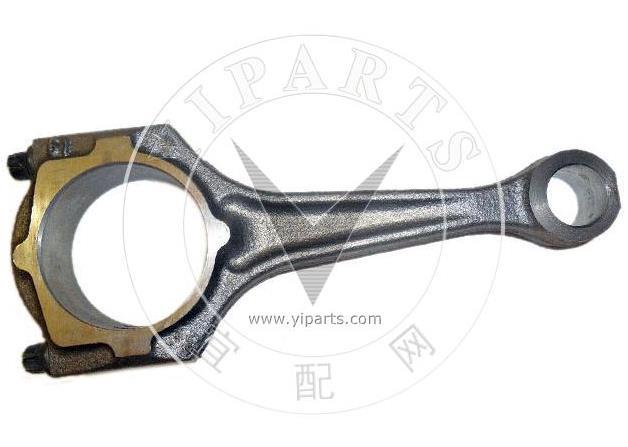

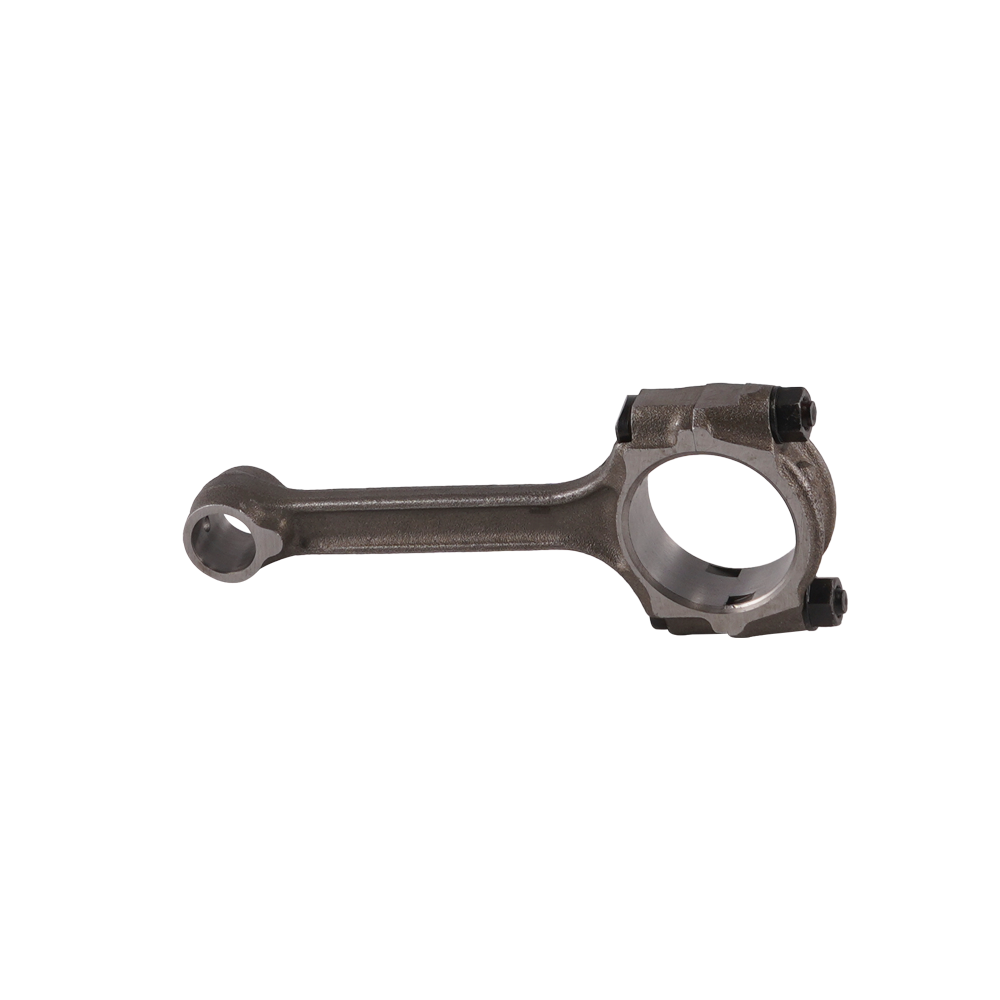

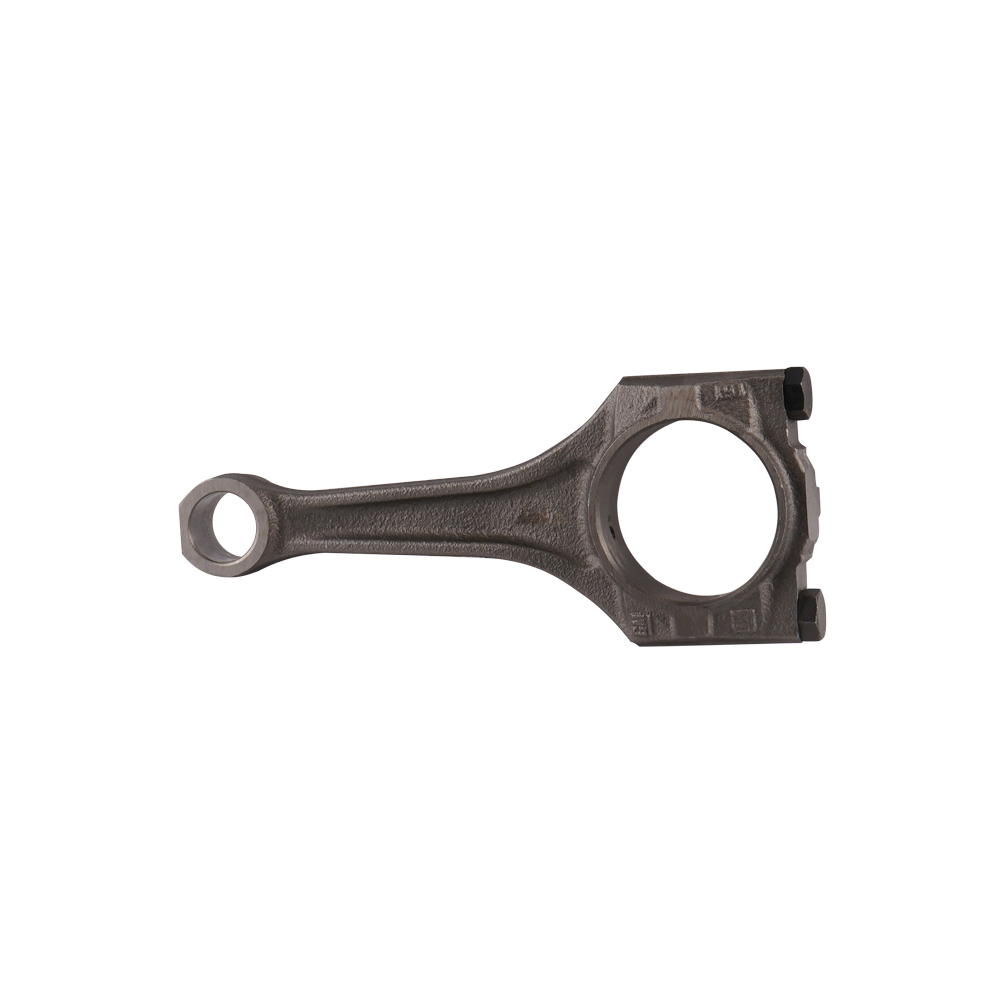

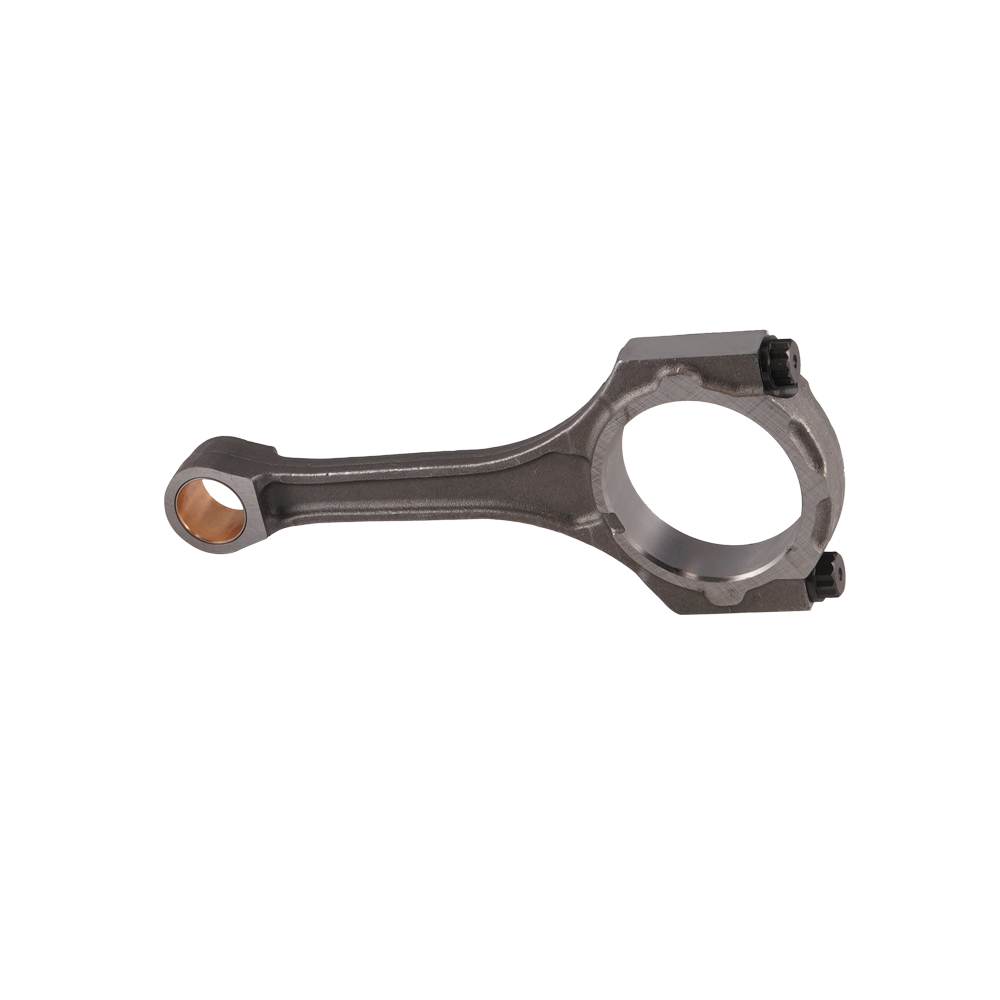

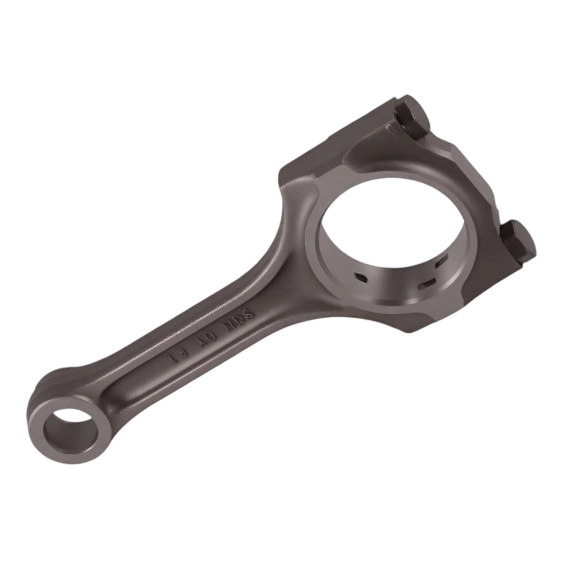

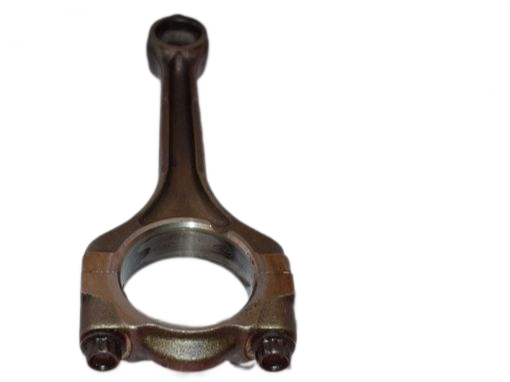

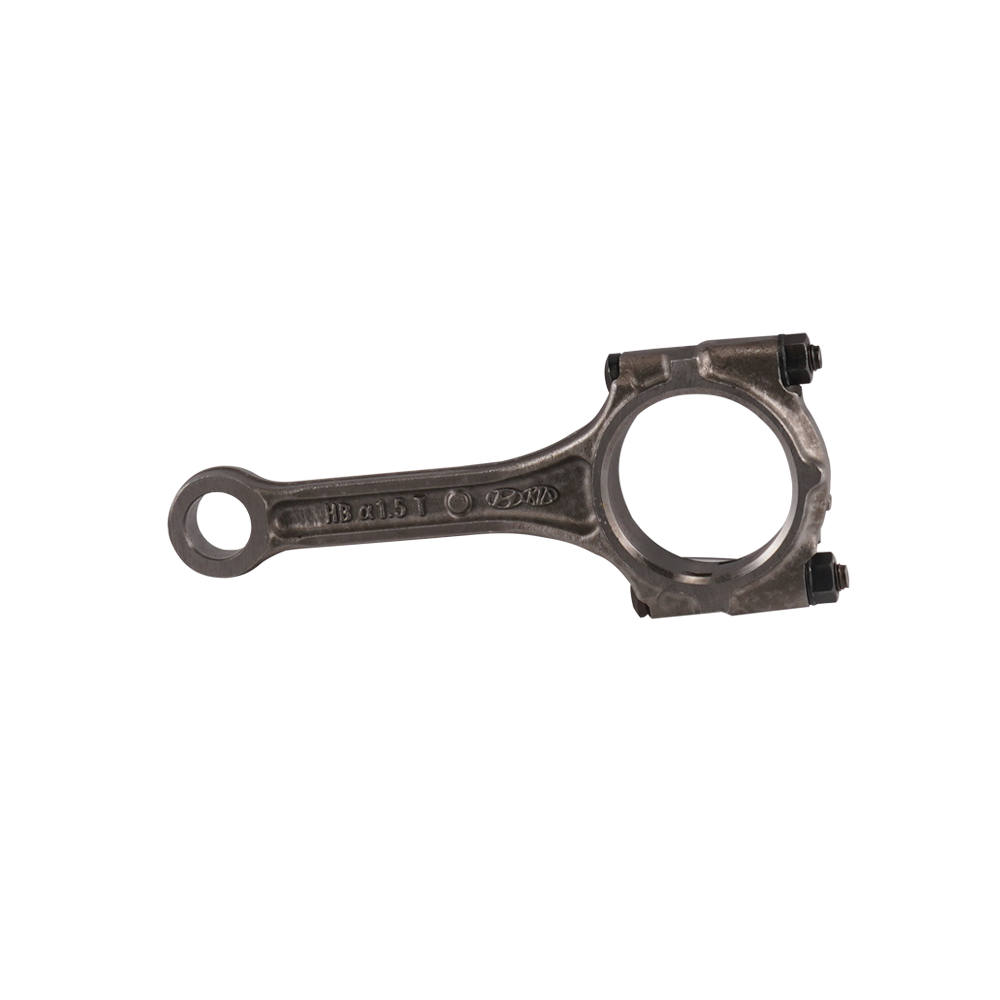

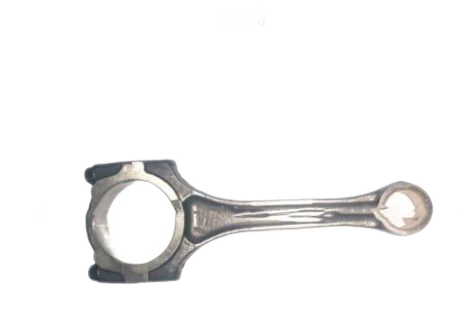

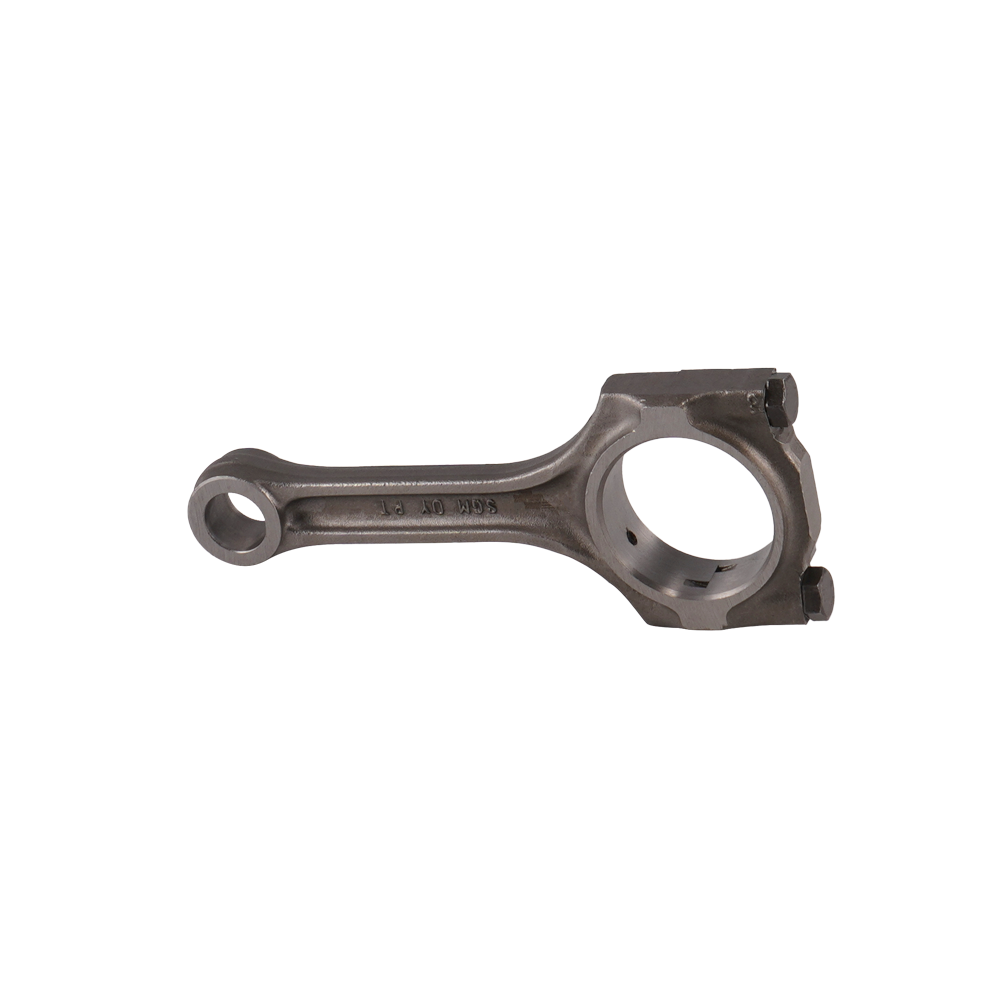

The construction of connecting rods involves several critical parts, including the shank (main body), small end (piston side), and big end (crankshaft side), often with bearing inserts for smooth operation. The shank's cross-section can be rectangular, tubular, or circular, depending on the design, with I-beam and H-beam configurations being common for their strength-to-weight ratios. the small end connects via a piston pin, while the big end attaches to the crankpin with a bearing cap secured by bolts. In locomotives, articulated rods and master rods are used, with bronze bushings for knucklepin and piston-pin bearings.
Types of Connecting Rods
Connecting rods vary by design and application, with common types including:
- I-Beam: Resembles an "I" in cross-section, offering a balance of strength and weight, suitable for standard engines.
- H-Beam: Resembles an "H", designed for high-power, low-speed engines like those with turbochargers, providing greater strength-to-weight ratios.
- Two-Piece: Gaining traction for performance benefits, reducing piston rock and increasing torque.
These types cater to different needs, from regular vehicle use to high-performance racing applications, with materials and manufacturing processes tailored accordingly.
Materials Used
Connecting rods are constructed from materials chosen for strength, durability, and weight, including:
- Steel Alloys: Common in forged rods, such as 42CrMo4 or 300M alloy, offering high strength for performance engines.
- Aluminum Alloys: Used for lightweight designs, improving fuel efficiency, particularly in modern engines.
- Titanium: Employed in high-performance vehicles for its strength and lightness, ideal for racing, as noted in the same source.
Comparative Analysis of Connecting Rod Types
To illustrate the diversity in connecting rod designs, the following table compares key types based on their characteristics:
| Type | Cross-Section | Strength | Weight | Typical Use |
|---|
| I-Beam | "I" Shape | Moderate to High | Moderate | Standard engines, regular vehicles |
| H-Beam | "H" Shape | High | Light | High-power, low-speed engines |
| Two-Piece | Split Design | High | Light to Moderate | Performance, racing, EVs
|
