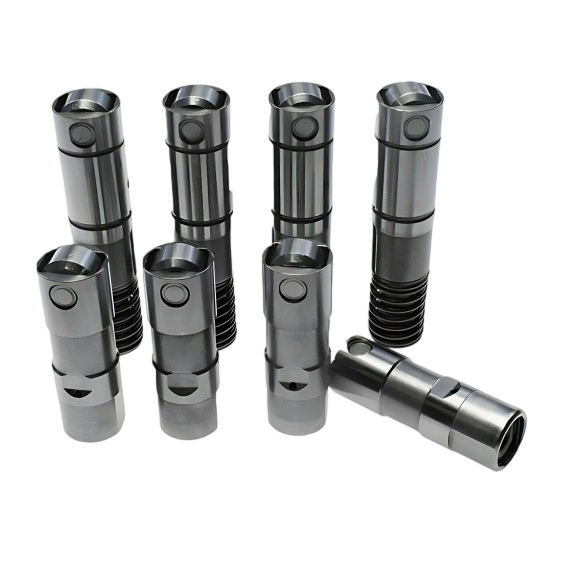

What is a Valve Lifter?
A valve lifter, also known as a tappet, is a part in internal combustion engines, particularly in pushrod engines, that converts the camshaft's rotational motion into linear motion. This action helps open and close the engine's valves, which control the intake and exhaust of gases in the cylinders. It's essential for the engine to run smoothly and efficiently.
Types of Valve Lifters
There are several types of valve lifters, each suited for different engine designs:
- Solid Lifters: Simple and require manual adjustment to maintain valve clearance.
- Hydraulic Lifters: Use oil pressure to automatically adjust, reducing noise and the need for manual tuning.
- Roller Lifters: Feature a roller to reduce friction, often used in high-performance engines.
Definition and Function
A valve lifter is defined as a mechanism that converts the rotational motion of the camshaft into linear motion to activate the engine's valves, facilitating the opening and closing of intake and exhaust valves at precise intervals. This process is critical for managing the flow of air and fuel into the cylinders and expelling exhaust gases, directly impacting engine performance, efficiency, and longevity. The evidence leans toward valve lifters being essential for maintaining optimal engine operation, with their role extending to reducing valve lash and minimizing operational noise.
Historical Context
The concept of valve lifters dates back to the earliest internal combustion engines, notably with "flathead" designs where valves were positioned within the engine block. Early lifters, also called tappets due to their characteristic clattering, directly actuated valves by riding on cam lobes. This simple design, while effective, was less efficient for high-performance applications, paving the way for modern advancements.
Types of Valve Lifters
Valve lifters vary by design, each catering to specific engine requirements. The following table summarizes the principal types:
| Type | Description | Advantages | Applications |
|---|
| Solid Lifters | Hollow bucket design, hard-faced bottom, requires manual adjustment for clearance | Durable, simple design | Older engines, performance tuning |
| Hydraulic Lifters | Use oil pressure for zero lash, spring-loaded plunger, one-way check valve | Quieter operation, no manual adjustment | Modern engines, common since 1950s |
| Roller Lifters | Feature a wheel at the bottom to reduce friction, often with linkage bars | Reduced wear, higher performance | High-rev engines, modern pushrod |
Hydraulic lifters, first developed in the 1930s and widely adopted by the 1950s, are noted for maintaining zero valve clearance, enhancing engine life and reducing noise. Roller lifters, with their friction-reducing design, are increasingly used in high-performance applications, while solid lifters remain relevant for engines requiring manual tuning.
Operational Mechanics
The mechanics of valve lifters involve precise interaction with the camshaft. For instance, hydraulic lifters fill with oil during operation, providing hydraulic resistance to eliminate lash, ensuring smooth valve operation. The contact area between lifters and cam lobes experiences high pressure, up to 200,000 to 300,000 PSI, necessitating adequate hardness and lubrication. This interaction is critical, with designs like slightly convex bottoms on flat tappet lifters promoting rotation to reduce wear.
Maintenance and Installation
Proper maintenance is crucial, with lubrication issues noted due to reduced ZDDP levels in modern motor oils, affecting wear protection for flat tappet cams. Recommendations include using break-in oils with higher ZDDP or additives. Installation notes emphasize replacing both cam and lifters if worn, with break-in procedures at 1,500 to 2,000 RPM for 20 minutes to ensure longevity, especially for hydraulic lifters requiring precise plunger height matching to avoid needing longer or shorter pushrods.
