Rocker Arm

What is a Rocker Arm?

A rocker arm is a part in car engines that helps control the opening and closing of valves. It works like a lever, taking motion from the camshaft (or pushrod in some engines) and pushing the valves to let air and fuel in or exhaust out. This is essential for the engine to run smoothly and efficiently.

There are different types, like those for overhead valve (OHV) engines, where it uses a pushrod, and overhead cam (OHC) engines, where it might work directly with the cam. Materials like stamped steel, aluminum, or cast iron are used, depending on whether it’s for everyday driving or high-performance racing.

How Does It Work?

The rocker arm acts as a lever with a pivot point, or fulcrum. In OHV engines, the camshaft moves a pushrod, which then pushes one end of the rocker arm. This causes the other end to press down on the valve, opening it. In OHC engines, the camshaft might directly push the rocker arm to open the valve.

The “rocker ratio” is important—it’s how much the valve lift is increased compared to the camshaft’s movement, typically ranging from 1.5:1 to 1.8:1. This can affect engine performance, especially at high speeds.

Definition and Core Function

A rocker arm is defined as a mechanical linkage within the engine’s valvetrain, primarily responsible for transferring motion to open and close the intake and exhaust valves. In overhead valve (OHV) engines, it typically converts the linear motion of a pushrod, driven by the camshaft located in the engine block, into the rotational motion needed to operate the valves. The camshaft, positioned below the cylinder banks, pushes the pushrod upwards, which in turn presses on one side of the rocker arm. This causes the rocker arm to pivot on a fulcrum, typically located at the top of the cylinder head, and depress the valve stem to open the valve.

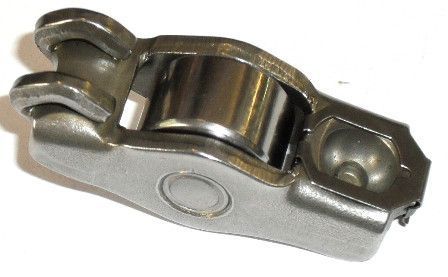

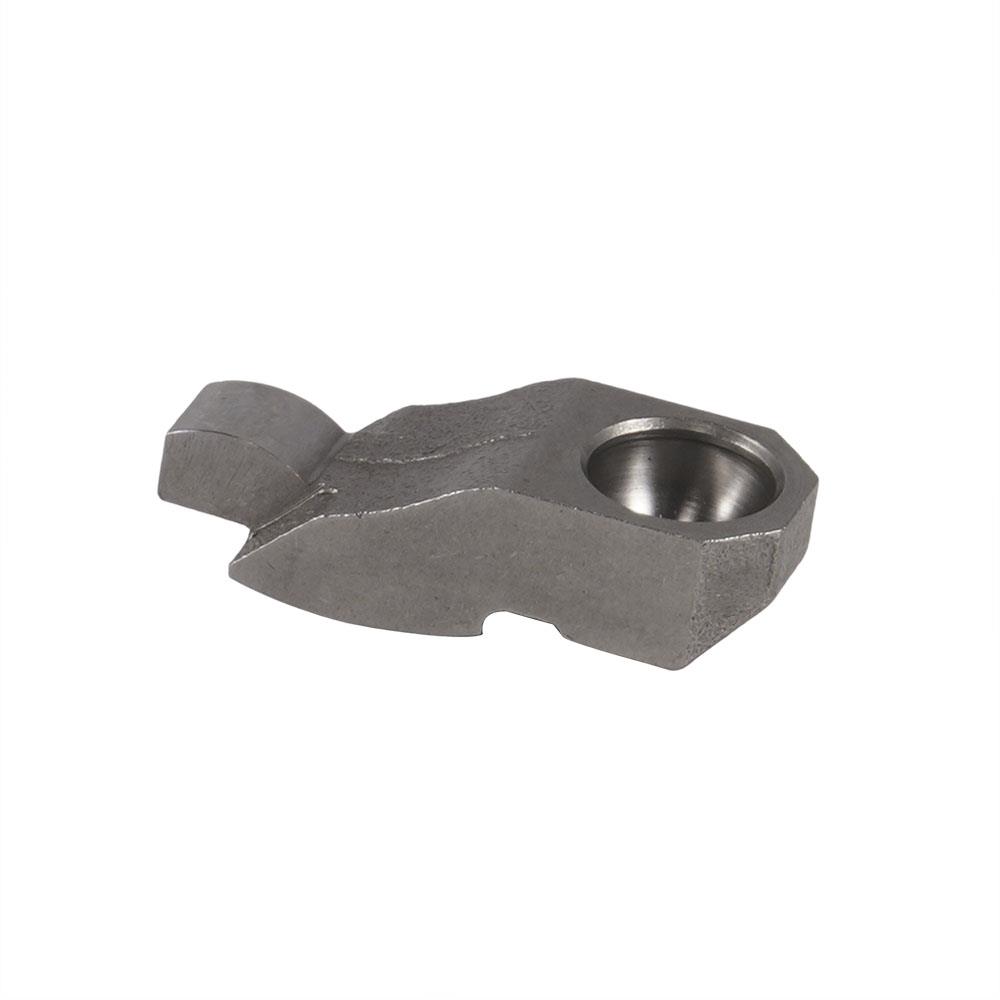

In contrast, overhead cam (OHC) engines may employ rocker arms differently, such as short rocker arms known as finger followers. Here, the cam lobe directly pushes downward on the back of the rocker arm, with one end anchored and pivoting on a roller bearing, while the opposite end bears on the valve stem. This configuration allows for efficient valve operation without the need for pushrods, common in modern engine designs.

The primary function, regardless of engine type, is to ensure precise timing and movement of the valves, facilitating the intake of air and fuel and the expulsion of exhaust gases, which are critical for combustion and engine performance.

Materials and Construction

Rocker arms are constructed from various materials, each chosen based on the engine’s operational demands and performance requirements. Traditional designs often use stamped steel, which is cost-effective and durable, suitable for standard production engines. For higher-revving applications, aluminum is preferred due to its lightweight properties, reducing inertia and allowing for faster valve operation. Cast iron, particularly ductile iron, is commonly used in diesel truck engines for its strength under high loads.

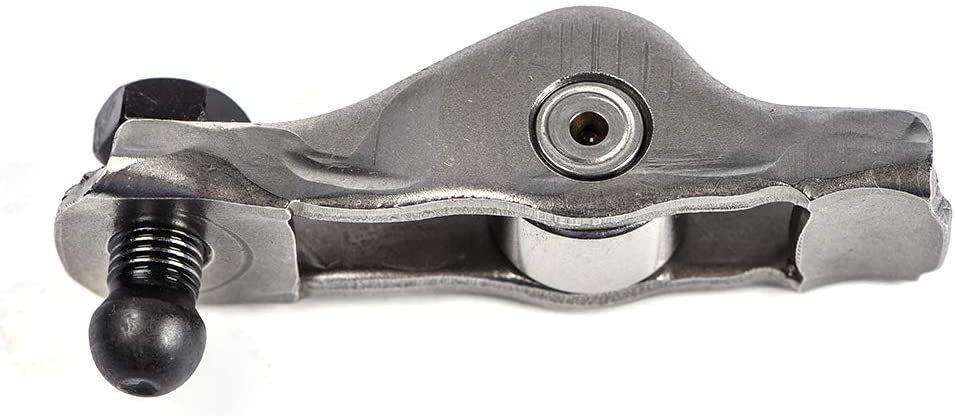

Modern advancements have introduced enhancements such as roller rockers, which incorporate needle bearings or bearing balls at the contact points to reduce friction and wear. This is particularly beneficial in high-performance and racing engines, where reduced friction can prevent “bell-mouthing” of valve guides and allow for higher RPMs and loads. The choice of material and design, such as forged steel for severe-duty applications, impacts the rocker arm’s ability to handle valve spring pressures, with steel capable of withstanding up to 950 pounds or more.

Types and Variations

Rocker arms vary significantly based on engine design, with distinct types for OHV and OHC configurations. In OHV engines, the classic design is the center-pivoted rocker arm, which uses a fulcrum in the middle to transfer pushrod motion to the valve. For OHC engines, variations include center pivot rocker arms and end pivot finger followers. Finger followers, for instance, are anchored at one end and pivot on a roller bearing, offering a compact design for direct cam lobe interaction.

Additional variations include stud-mounted rockers, common in many American V8 engines, and shaft-mounted rockers, seen in designs like the Chrysler 440, which offer less adjustability for lash but are robust for high-performance applications. High-performance designs, such as those from Crane, feature cutouts to accommodate larger valve springs, preventing binding and enhancing durability.

Rocker Ratio and Performance Implications

The rocker ratio is a critical parameter, defined as the ratio of the distance from the pivot point to the valve contact point divided by the distance from the pivot point to the pushrod or camshaft contact point. This ratio determines how much the valve lift is amplified relative to the camshaft lift. For example, a 1.5:1 ratio means that for every inch of cam lift, the valve lift increases by 1.5 inches. Current automotive designs typically favor ratios between 1.5:1 and 1.8:1, with historical ratios as low as 1:1 in pre-1950s engines.

Increasing the rocker ratio can enhance valve lift, potentially improving airflow and engine power, but it also accelerates valve and spring movement, which may lead to valve float in engines with weaker springs. The practical impact depends on the engine’s head airflow, with performance gains more pronounced in high-revving applications. Proper pushrod length is crucial to minimize arc travel, ensuring consistent ratio application throughout the lift curve.

Practical Applications and Considerations

Rocker arms are essential for maintaining engine efficiency, with their design influencing factors like volumetric efficiency, timing stability, and power output. For instance, lightweight aluminum rockers reduce engine weight, while forged steel options offer superior durability for severe-duty, high-RPM performance. The choice between materials and designs, such as roller tips or needle-bearing fulcrums, is often dictated by the application, whether for street use, drag racing, or commercial vehicles.
The evolution of rocker arm design, aided by computer-aided design and modeling, has enabled faster development to meet racer demands. This continuous improvement ensures that rocker arms remain relevant in modern engine technology, balancing weight, stiffness, and durability.

Comparative Analysis of Materials and Types

To illustrate the diversity in rocker arm construction and application, the following table summarizes key aspects based on the analyzed sources:

This table encapsulates the core attributes, providing a quick reference for understanding rocker arm variations and their implications.
