Oil Pump

What's oil pump?

An oil pump is a mechanical component, most commonly found in internal combustion engines, that circulates engine oil under pressure. This process lubricates essential parts like bearings, pistons, and camshafts, reducing friction and wear while also helping to cool the engine by dissipating heat.

Types and Functions

There are several types of oil pumps, including gear pumps, trochoid (gerotor) pumps, and vane pumps, each suited to different engine designs. Beyond engines, oil pumps are used in industrial settings to transfer oil, such as in the oil and gas industry for moving crude oil or lubricants.

Introduction to Oil Pumps

An oil pump is fundamentally a mechanical device designed to circulate oil, most notably in internal combustion engines, where it plays a critical role in maintaining engine health. The primary function is to pressurize and distribute engine oil to moving components such as bearings, pistons, and camshafts, ensuring lubrication to reduce friction and wear, and aiding in cooling by dissipating heat. This is essential for preventing engine failure, as inadequate lubrication can lead to significant damage.

Beyond automotive applications, oil pumps are also utilized in industrial contexts, such as transferring oil in the oil and gas industry, where they facilitate the movement of crude oil from storage to pipelines or during extraction processes. The term "oil pump" predominantly refers to engine components in common usage, but its application extends to various industrial scenarios, which will be detailed further.

Detailed Definition and Engine Context

In the context of internal combustion engines, the oil pump is typically located inside the engine, often driven by the crankshaft. It draws oil from the oil pan (sump) and forces it through a network of oil galleries to reach critical components. It is a pump that sends lubricating oil under pressure to the bearings and other lubricated surfaces of an engine, emphasizing its role in engine lubrication systems.

The oil pump's operation is synchronized with engine speed, ensuring consistent oil flow. It includes components like an impeller for creating a vacuum, a drive gear for pressurizing oil, and a relief valve to regulate pressure, preventing damage from excessive pressure, especially during cold start-ups when oil viscosity is higher.

Types of Oil Pumps

Oil pumps vary by design and application, with several types identified in research:

• Gear Pumps: These use interlocking gears to displace oil, commonly found in engines due to their efficiency and reliability. They can be external or internal gear pumps, with external ones using two spur gears and internal ones using a shaft-driven gear, suitable for clean, high-viscosity fluids.

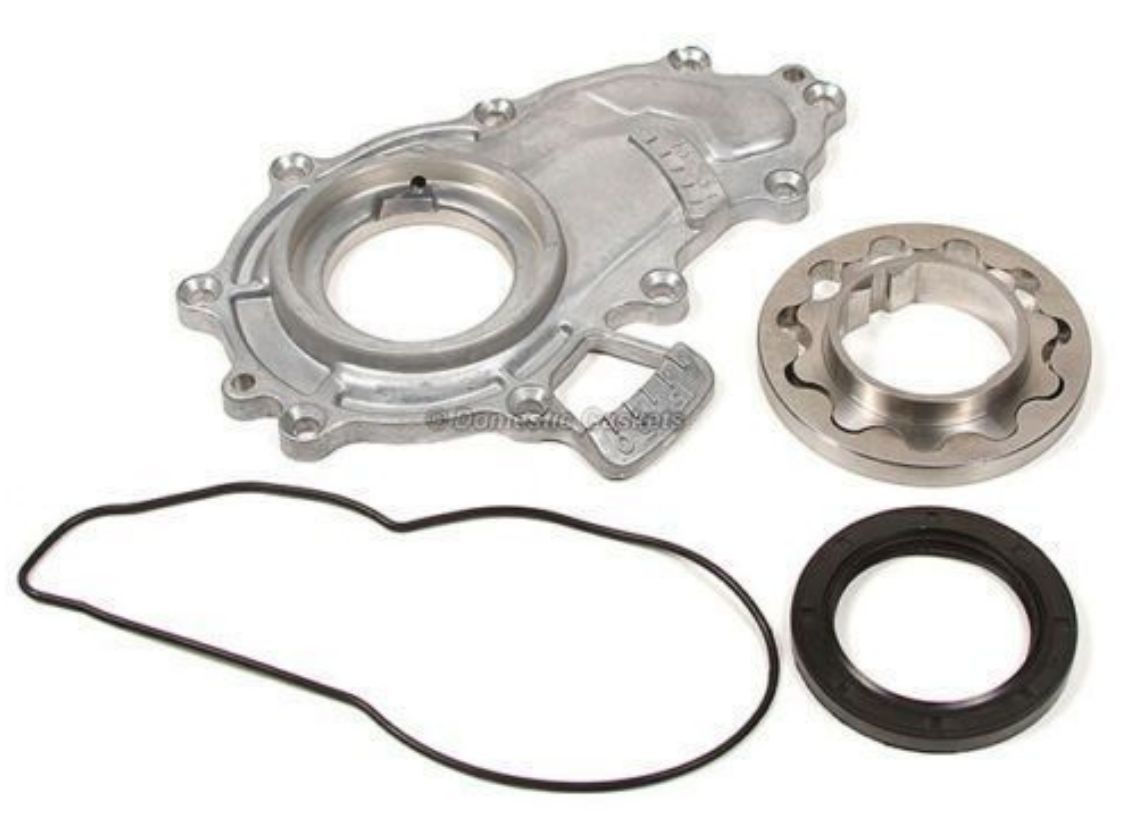

• Trochoid (Gerotor) Pumps: These feature an inner gear with one less lobe than the outer rotor, mounted off-center to create a pumping action. They are prevalent in modern engines for their compact design and high-pressure capability.
• Vane Pumps: Utilizing vanes that slide in and out of a rotor, these are less common but used in some engine designs for their smooth operation.
• Plunger Pumps: More common in industrial settings, these use reciprocating motion for constant flow, often seen in oil and gas operations for high-pressure applications.
• Centrifugal Pumps: Predominantly used in the oil and gas industry for transferring low-viscosity fluids with high flow rates, they rely on centrifugal force for fluid movement.

The choice of pump type depends on factors like engine size, oil viscosity, and required flow rate. For instance, high-performance engines may use lower viscosity oils (e.g., 0W-20 vs. 5W-30) to reduce pump power needs.

Functions and Operational Details

The primary function of an engine oil pump is to ensure adequate lubrication and cooling. It generates pressure, typically around 30-45 psi under normal operating conditions, though it can reach higher pressures during cold start-ups due to thicker oil. Pressure relief valves are crucial, dumping excess pressure back to the sump if it exceeds preset limits, preventing seal blowouts or other damage.

In industrial applications, oil pumps transfer fluids like crude oil or lubricants, often requiring robust designs for high-viscosity fluids or long-distance delivery. For example, gear pumps are noted for their use in chemical transfer and high-viscosity fluid handling, with relief valves preventing pressure buildup.

Comparative Analysis of Pump Types

To illustrate the diversity, here is a table summarizing key characteristics of common oil pump types:

This table highlights the suitability of each type for specific applications, aiding in selection based on operational needs.

Challenges and Considerations

High oil pressure can lead to issues like blown seals, particularly on cold start-ups, often due to design flaws like small relief ports. Low oil pressure, caused by worn pumps, bearings, or blockages, can also pose risks, with wear reducing flow by significant percentages (e.g., 20% pressure loss with .001-inch bearing wear). Debris clogging oil pickup screens, reducing effective area by 44% with a .005-inch coating, is another concern.

In industrial settings, selecting the right pump involves considering fluid viscosity, flow rate, and maintenance needs, with centrifugal pumps preferred for low-viscosity, high-flow scenarios, and plunger pumps for constant flow under pressure.
