Engine Valve

Definition and Function

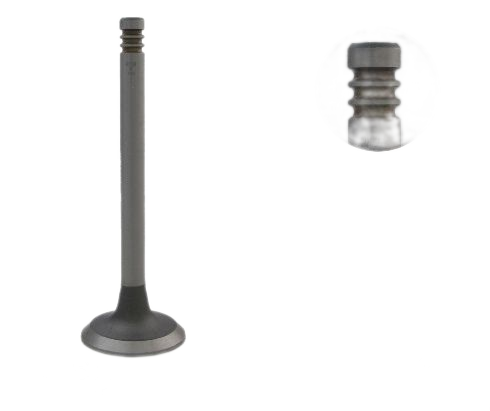

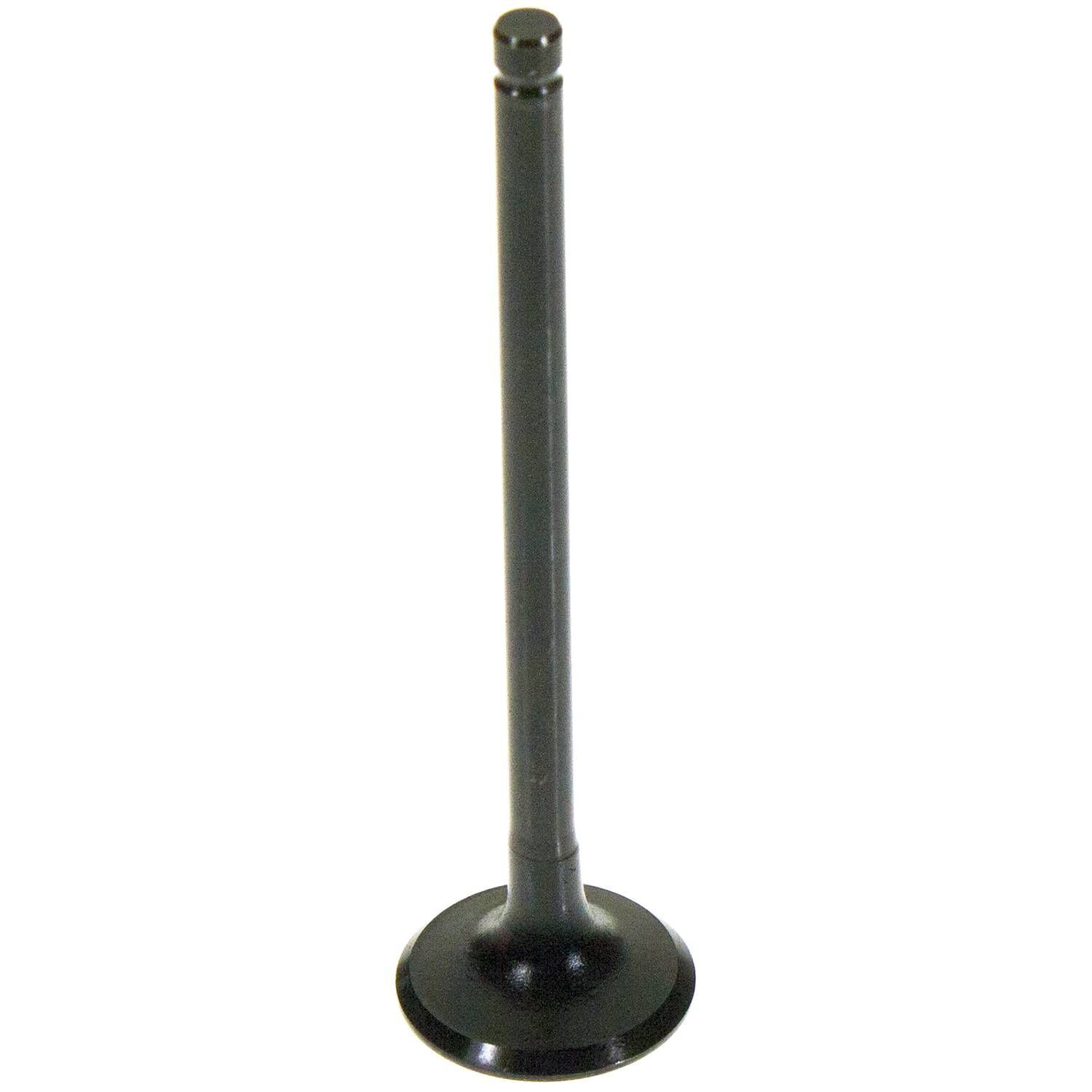

An engine valve is a mechanical part in internal combustion engines that manages the flow of air and fuel into the cylinders and the release of exhaust gases. Intake valves allow the air-fuel mixture to enter, while exhaust valves let out the spent gases after combustion, ensuring the engine runs efficiently.

Types and Operation

There are primarily two types: intake and exhaust valves. These are typically operated by a camshaft, which works in sync with the crankshaft to open and close the valves at the right moments, crucial for the engine's four-stroke cycle: intake, compression, power, and exhaust.

Definition and Core Function

Engine valves are critical mechanical components designed to control the flow of fluids or gases into and out of the combustion chambers (cylinders) during engine operation. They function similarly to other types of valves by either blocking or allowing flow, but are uniquely engineered to interface with engine components such as rocker arms, camshafts, and lifters for precise timing and sequencing. The primary function includes:

1. Intake Valves: These open to allow the air-fuel mixture (or air alone in direct-injected engines) into the cylinders before compression and ignition, facilitating the intake stroke of the four-stroke cycle.
2. Exhaust Valves: These open to expel the spent exhaust gases after combustion, enabling the exhaust stroke.

This operation is synchronized by the camshaft and crankshaft via a timing chain, belt, or gears, ensuring the engine's efficiency across various speeds.

Types of Engine Valves

Engine valves come in several types, each suited for specific applications and performance requirements:

1. Monometallic Valves: Made from a single material, offering high heat resistance and good anti-friction properties, ideal for standard engine conditions.
2. Bimetallic Valves: Comprise a friction-welded head (often austenitic steel for heat resistance) and stem (martensitic steel for strength), balancing thermal and mechanical demands.
3. Hollow Valves: Often sodium-filled to enhance heat dissipation, these are preferred in high-performance engines where thermal management is critical.
4. Sleeve Valves: A historical design using a tube between the cylinder wall and piston, controlled by the camshaft, once common in aviation but less prevalent today.

The choice of valve type depends on the engine's design, fuel type (gasoline, diesel, etc.), and performance needs, with modern engines typically using poppet valves for their reliability and efficiency.

Materials and Specifications

The materials used for engine valves are selected based on the operating environment, particularly temperature and wear resistance:

1. Intake Valves: Commonly made from chrome, nickel, or tungsten steel, suitable for moderate temperatures.
2. Exhaust Valves: Require heat-resistant materials like nichrome, silicon-chromium, or cobalt-chromium to withstand high temperatures.
3. Reinforcements and Coatings: Stellite (cobalt-chromium) is used for wear resistance, while coatings such as chromium plating, phosphate plating, nitride coating, and swirl finishing enhance durability and corrosion resistance.

Key specifications include:

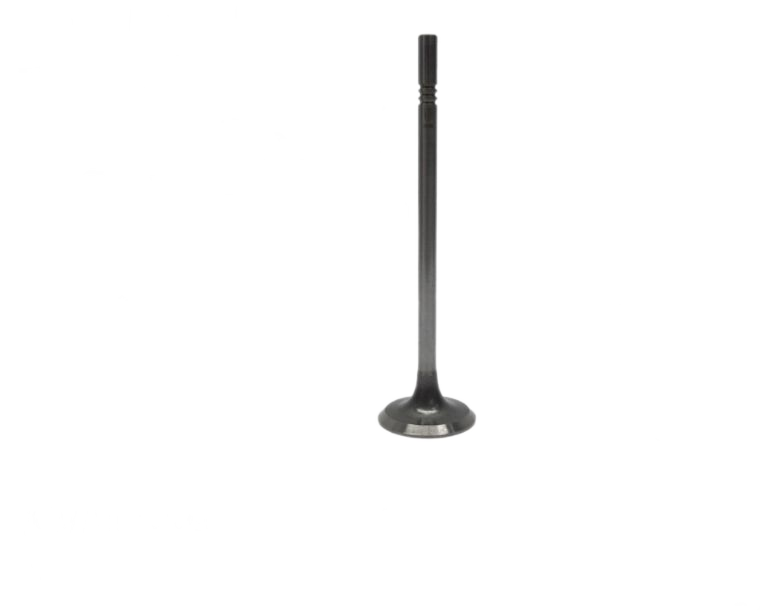

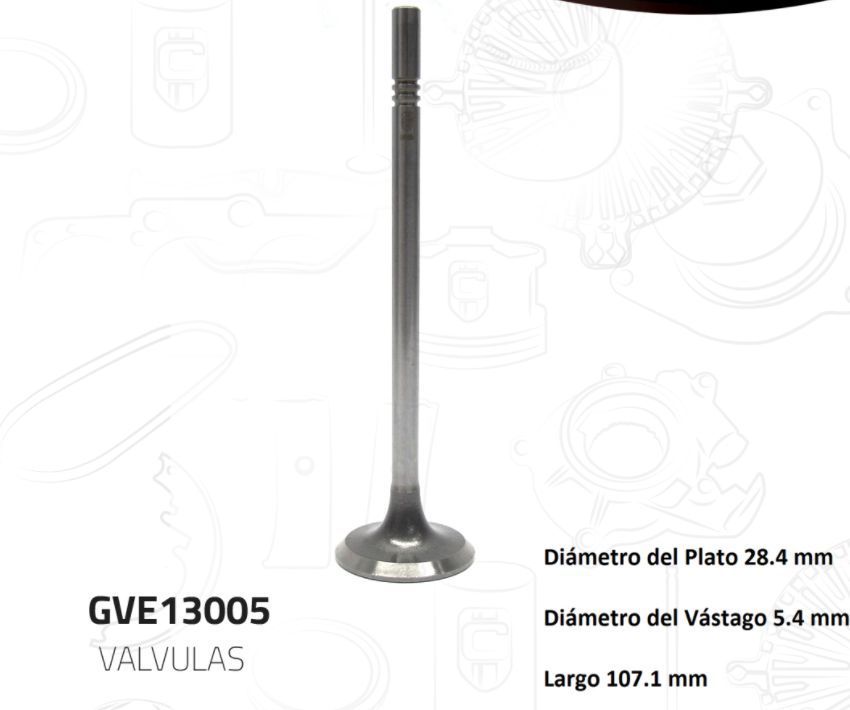

1. Stem Diameter: Must match valve guides for smooth operation and alignment.
2. Stem Length: Affects interaction with the valve train, influencing overall performance.
3. Seat Angle: Typically ranges from 20° to 60°, ensuring a proper seal with the cylinder head.

These specifications ensure the valves can handle the mechanical and thermal stresses of engine operation, with materials like stainless steel, titanium, and heat-resistant superalloys often employed for advanced applications.

Operational Mechanisms

The operation of engine valves is controlled by the camshaft, which converts rotational motion into linear valve movement through pear-shaped lobes (cams). There are two primary designs:

1. Overhead Valve (OHV) System: The camshaft is located in the engine block, using tappets, pushrods, and rocker arms to open the valves against spring pressure. This design, while simpler, has more moving parts, limiting engine speed and efficiency due to increased inertia and potential for wear.
2. Overhead Cam (OHC) System: The camshaft is positioned in the cylinder head, directly acting on bucket tappets or short levers (fingers) for valve operation. This design reduces parts count, enhances efficiency, and allows for higher engine speeds, producing more power. Long chains in OHC systems may "whip," but this is mitigated by intermediate sprockets and tensioned shorter chains.

Valve clearance, or the pre-set gap between the valve stem and rocker arm/cam, is crucial for accommodating thermal expansion. Incorrect clearance can lead to performance issues:

1. Too large: Valves open late and close early, reducing power and increasing noise.
2. Too small: Valves may not close properly, losing compression.

Some engines feature self-adjusting hydraulic tappets, operated by engine oil pressure, to maintain optimal clearance automatically.

Valve Count and Performance

The number of valves per cylinder varies by engine design:

1. Small engines, like those in lawnmowers, may have 2 valves (one intake, one exhaust).
2. Most vehicles with 4-, 6-, or 8-cylinder engines typically have 4 valves per cylinder (two intake, two exhaust) for improved airflow.
3. High-performance engines may use 5 valves per cylinder to further enhance airflow and efficiency.

This configuration impacts the engine's breathing capability, directly affecting power output and fuel efficiency.

Comparative Analysis: OHV vs. OHC

To better understand the operational differences, consider the following table comparing OHV and OHC systems:

This comparison highlights why OHC systems are prevalent in modern vehicles, offering better performance and reliability.
