Definition and Role

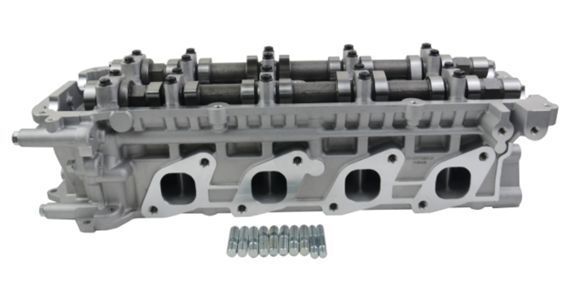

The cylinder head is a key component in an internal combustion engine, positioned above the cylinders to seal the combustion chamber. It ensures a controlled environment for fuel combustion, crucial for engine operation.
Functions
It houses essential components like intake and exhaust passages, valves, and spark plugs, managing air and fuel flow. In water-cooled engines, it also includes coolant passages to regulate temperature, preventing overheating.
Materials and Design
Typically made of aluminum for cars due to better heat dissipation, it may use cast iron for trucks. Its design varies, affecting engine performance, and it’s critical for maintaining efficiency.
Definition and Basic Structure

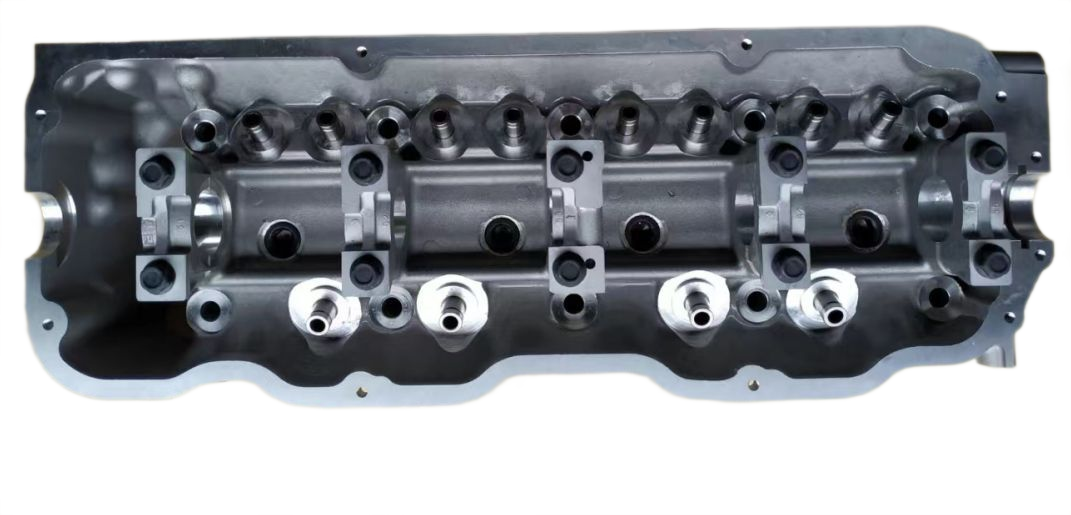

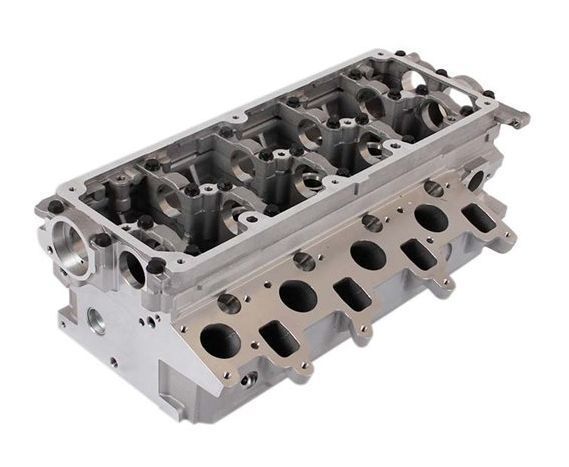

A cylinder head is a fundamental component in piston engines, positioned above the cylinders to form the roof of the combustion chamber. It seals the top of the cylinder, creating a controlled space where combustion occurs. The design varies significantly by engine type:
- In sidevalve engines, it is a simple metal plate, primarily containing spark plugs and possibly heat dissipation fins.

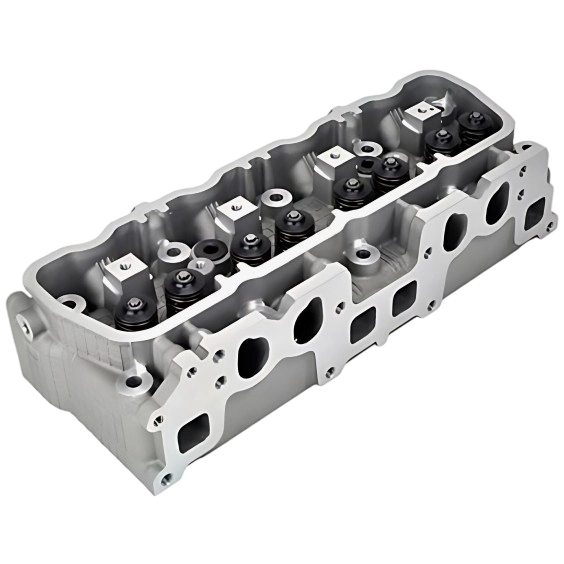

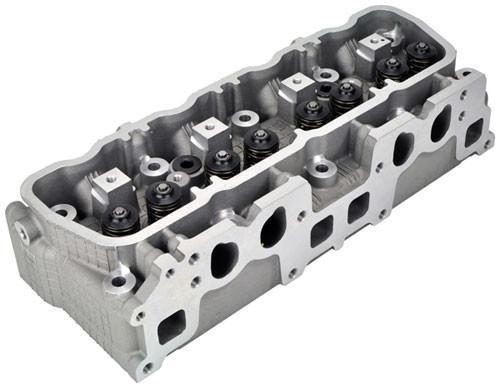

- In modern overhead valve (OHV) and overhead camshaft (OHC) engines, it is a more complex metal block, incorporating inlet and exhaust passages, coolant passages, valvetrain components, and fuel injectors.
This complexity is evident in most contemporary engines with a "straight" (inline) layout, which typically use a single cylinder head for all cylinders. Engines with a "V" or "flat" layout often use two cylinder heads, one per cylinder bank, though narrow-angle V engines like the Volkswagen VR5 and VR6 may use a single head spanning both banks.
For radial engines and motorcycles, the cylinder head is often integrated with the cylinder in a monobloc form, referred to as barrels, which simplifies construction but may affect maintenance. In large diesel engines for industrial, marine, or heavy traction purposes, individual cylinder heads per cylinder are common, reducing repair costs by allowing replacement of a single failed head rather than a larger unit.
Functions and Operational Role
The cylinder head performs several critical functions, essential for engine operation:
- Sealing the Combustion Chamber: It forms the upper boundary of the combustion chamber, ensuring a sealed environment for efficient combustion. This is vital for maintaining pressure and preventing leaks.

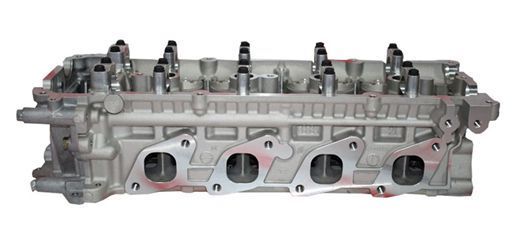

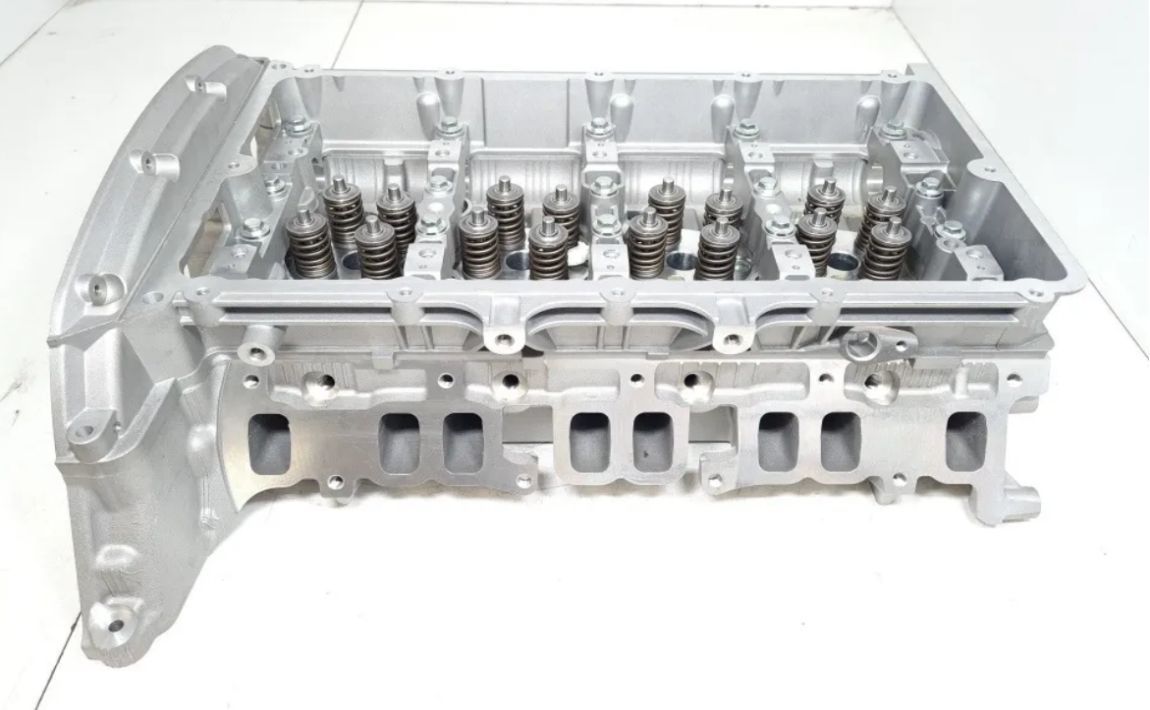

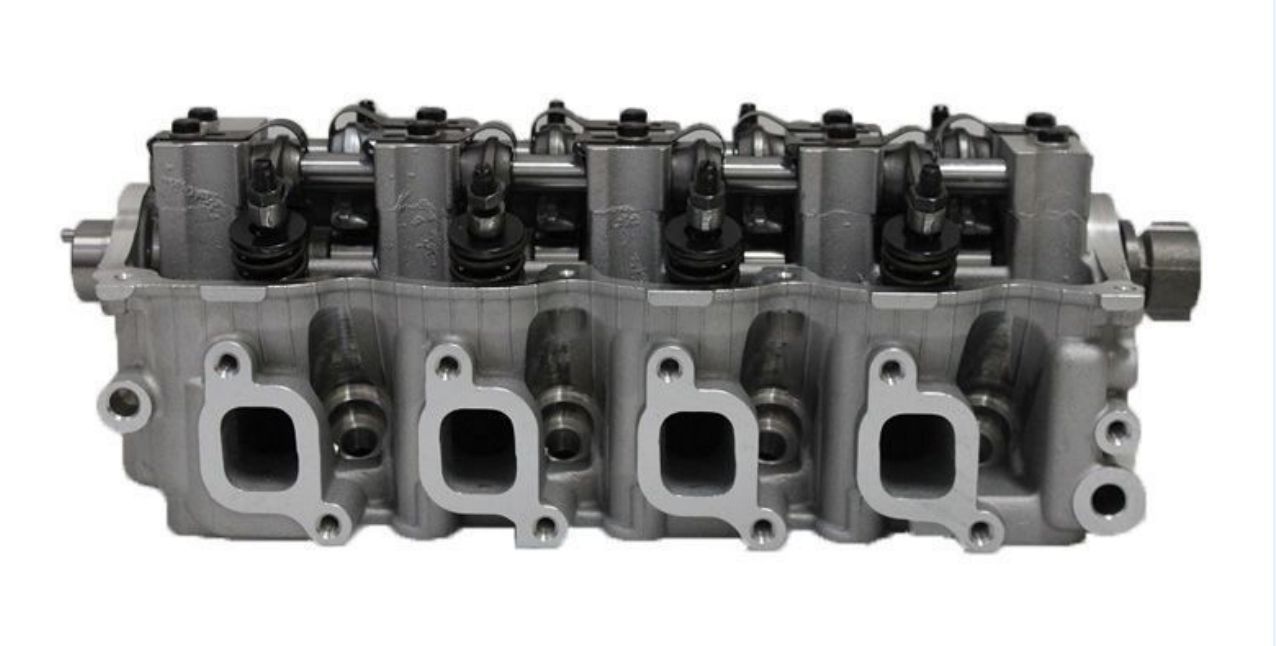

- Housing Engine Components: It contains intake ports that deliver the air-fuel mixture from the intake manifold to the combustion chamber and exhaust ports that route combustion waste gases to the exhaust manifold. It also houses valves (intake and exhaust), which open and close to control gas flow, typically with intakes offset fore-and-aft from exhausts for optimal performance. Spark plugs, necessary for ignition in petrol engines, and fuel injectors in modern engines, are also located here.
- Cooling: In water-cooled engines, which include most modern designs, the cylinder head contains ducts and passages for coolant (a mixture of water, antifreeze, and anticorrosion agent) to flow. This transfers excess heat to the radiator, preventing overheating and potential engine damage. The coolant is fed from the crankcase through the cylinder-head gasket into the head, ensuring thermal regulation under high operating temperatures.

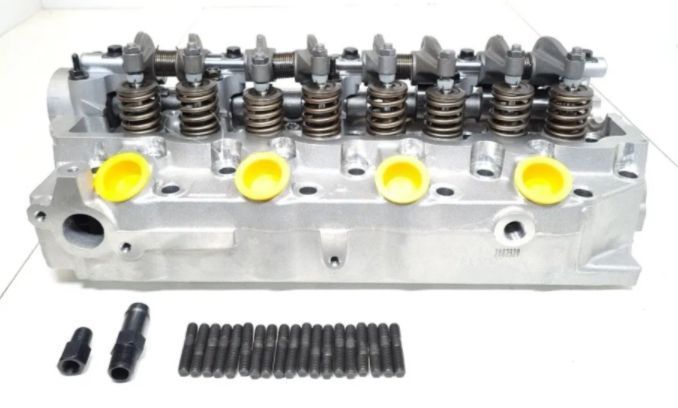

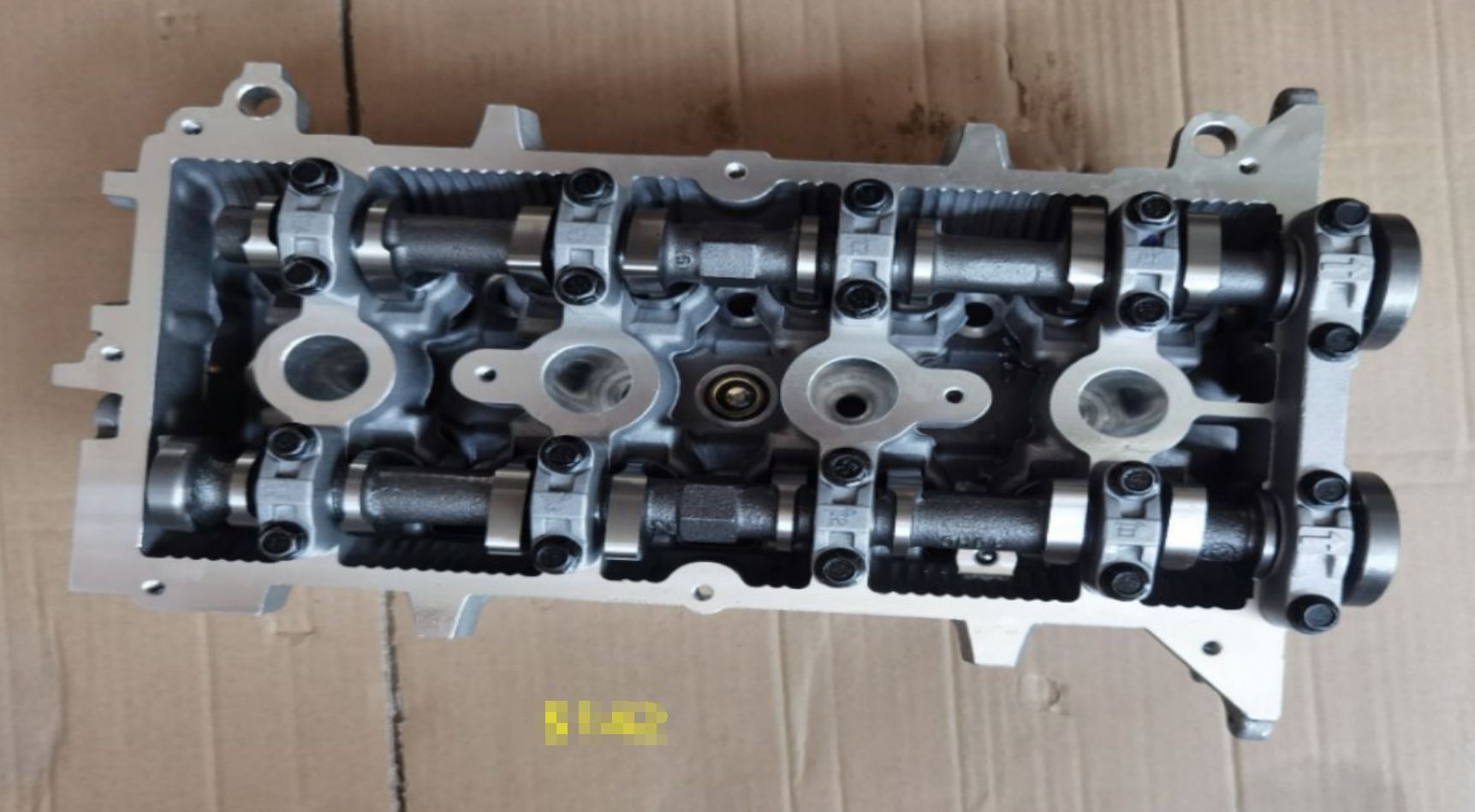

- Supporting Valvetrain Components: Depending on the engine design, the cylinder head may house parts of the valvetrain, such as camshafts, pushrods, rocker arms, and tappets. This is particularly true for OHV and OHC engines, where the head serves as a framework for the gas-exchange valves and associated mechanisms.
These functions highlight the cylinder head's role as a multifunctional component, managing both mechanical and thermal aspects of engine operation. It is subjected to extreme pressures and temperatures, making its integrity crucial for engine performance and longevity.
Materials and Manufacturing
The choice of material for cylinder heads depends on the engine's application and performance requirements:

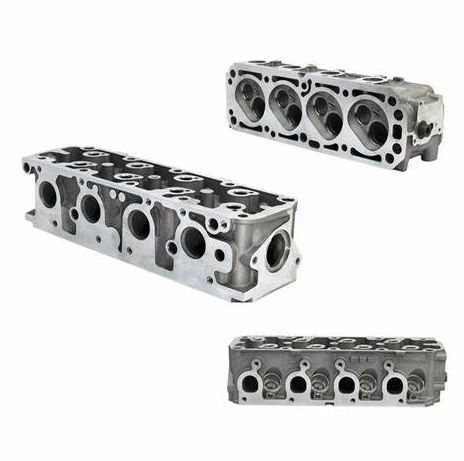

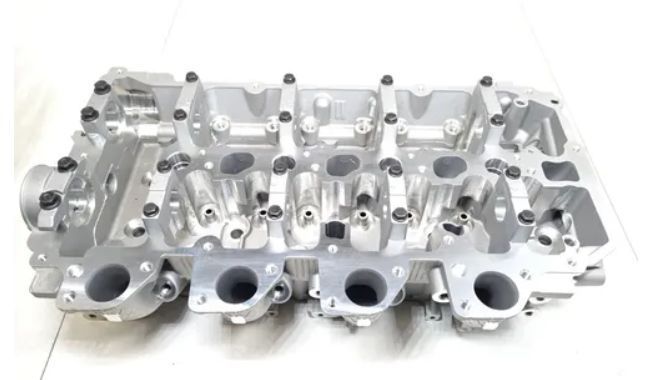

- Aluminum: Predominantly used in car engines (both petrol and diesel) due to its superior heat dissipation and lower weight. For instance, the JIS-AC4B Al-Si-Cu alloy, with 8.0% silicon and 3.0% copper, offers tensile strength of 111–176 MPa as-cast and 218–299 MPa after T6 heat treatment, with a hardness of 75 HB. T7 heat treatment is used for dimensional stability, enhancing durability under thermal stress.

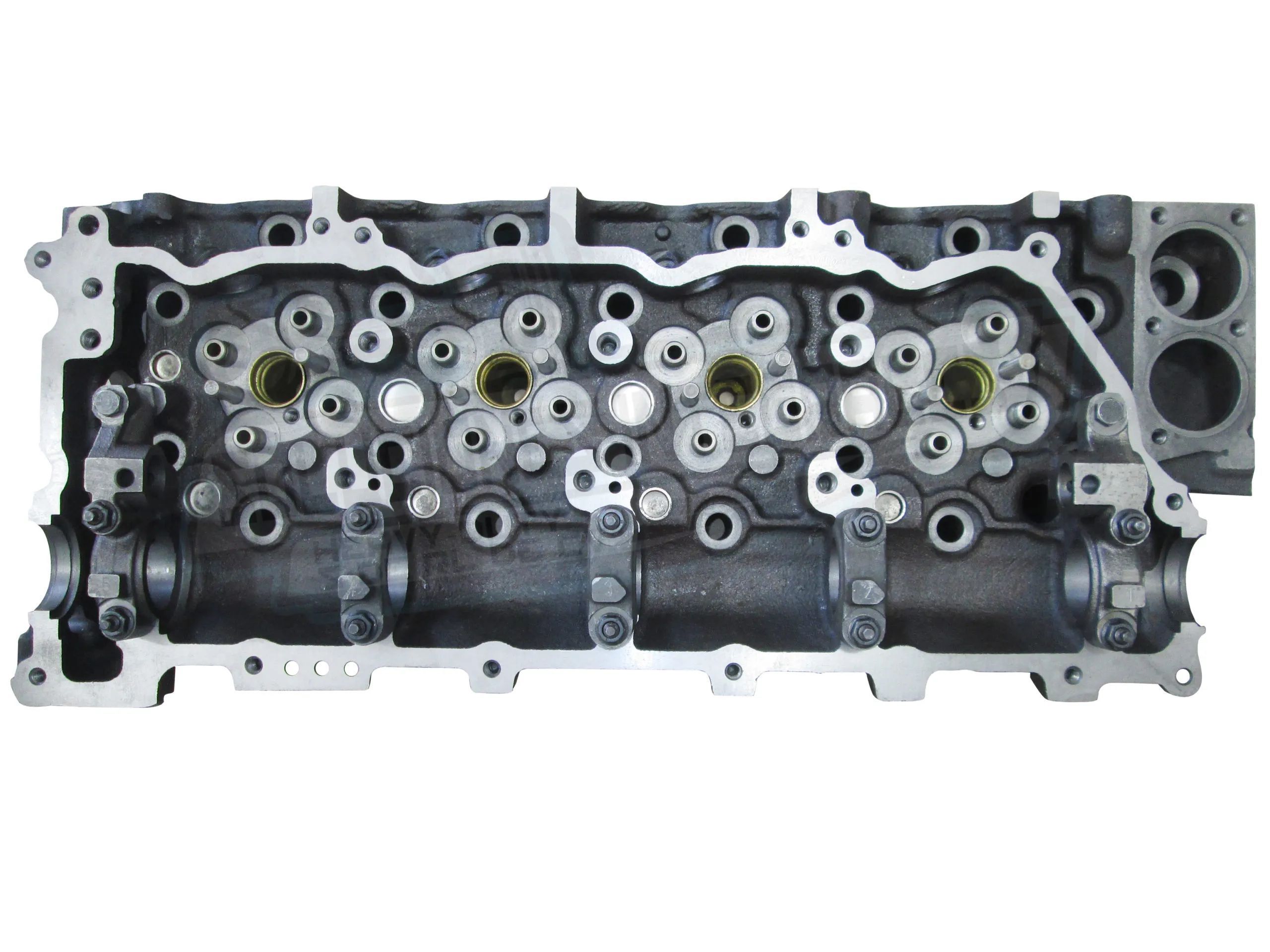

- Cast Iron: Commonly used in water-cooled diesel truck engines and large industrial applications for its high strength and stiffness. Nodular cast iron, for example, is noted for overhaul intervals exceeding 18,000 hours on heavy fuel oil, with valve lifetimes up to 40,000 hours, reflecting its robustness for heavy-duty use.
Manufacturing involves casting processes, typically gravity or low-pressure casting, due to the fragile sand cores used for complex internal passages. High-pressure casting is avoided to prevent damage. The choice of material and manufacturing method directly impacts the cylinder head's ability to withstand thermomechanical cyclic loadings, a critical factor in its durability.
Design Variations and Performance Impact

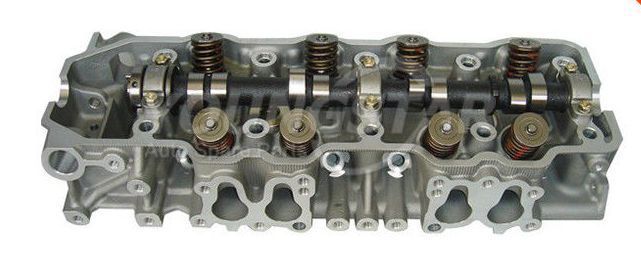

Cylinder head design significantly influences engine characteristics and performance. Key design parameters include:
- Number of valves per cylinder, with some designs featuring five valves per combustion dome for enhanced airflow.
- Valve diameter, port flow discharge coefficient, and swirl ratio, which affect combustion efficiency and power output.
- Wall thickness, cooling efficiency, fire deck temperature control, and cylinder head gasket design, all critical for thermal management and sealing.
- Benchmarking metrics such as port diameter to length ratio, port length to cylinder bore ratio, and the number of head bolts, which ensure structural integrity under load.

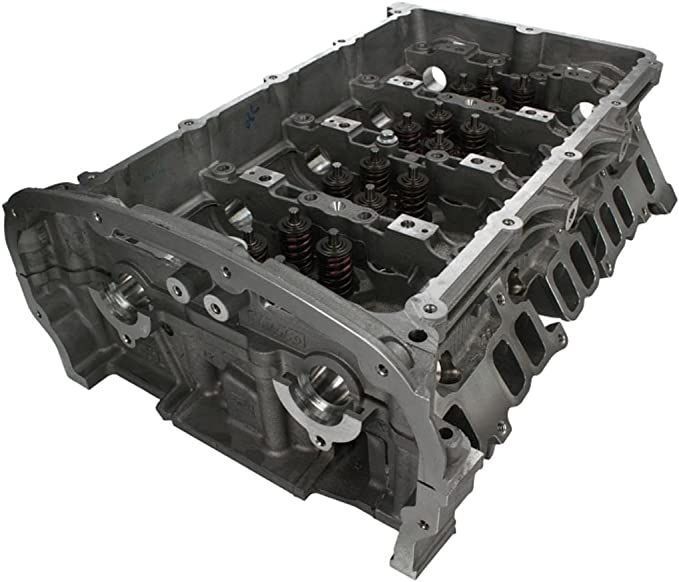

In trucks and large industrial engines, individual cylinder heads are preferred for better sealing force distribution and easier maintenance, allowing replacement of a single failed head without affecting others. This modular approach is cost-effective for repairs, as seen in engines designed for heavy equipment, locomotives, and marine applications. In contrast, car engines typically use a single cylinder head for all cylinders, simplifying construction but requiring more comprehensive repairs if damaged.
The construction design, often produced via low-pressure, chilled-casting procedures, essentially influences operating characteristics. Modern engines are predominantly water-cooled, with coolant comprising water, antifreeze, and anticorrosion agents, fed through the cylinder-head gasket to manage thermal stress effectively.
Practical Implications and Maintenance
The cylinder head's importance cannot be overstated, as it is exposed to extreme conditions, including high pressures and temperatures. It must retain its shape and form to seal the cylinder block via the head gasket, a critical interface that prevents leaks of gas, oil, and coolant. The head gasket, often made of steel, rubber, or silicone, is essential for maintaining engine integrity, with seven types of media leakage possible if compromised.
Damage to the cylinder head, such as cracks or warping, can lead to significant engine issues:
- Overheating: If coolant passages are blocked or damaged, the engine may overheat, potentially causing catastrophic failure.
- Power Loss and Poor Fuel Economy: A warped head can disrupt combustion efficiency, reducing power output and increasing fuel consumption.
- Engine Failure: Cracks, often initiated by thermomechanical fatigue, can lead to leaks, pressure loss, and eventual engine breakdown. For example, a failure case involved a crack after 434 hours of off-road cycles and 125 hours of thermal cycles, attributed to high stress from bolt assembly, casting pores, and cyclic loadings, with bolt tightening torque at 20 Nm and twisting at 120°, and flatness within 56 μm (below the 100 μm specification).

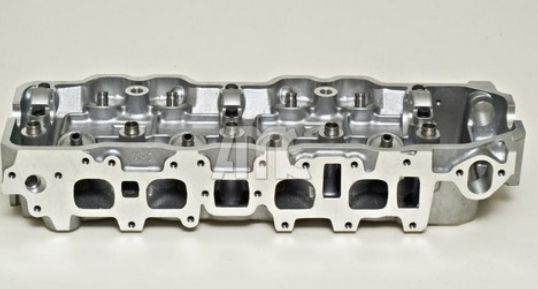

Regular inspection is recommended to identify symptoms like excessive white smoke from the tailpipe (indicating leaking valve stem seals) or fizzy antifreeze in the radiator (signaling a malfunction). Built-up pressure in the cooling system, causing coolant blowout and overheating, is another clear indicator of a faulty cylinder head. Remanufactured cylinder heads, rebuilt with serviceable parts and pressure-tested for leaks, offer a cost-effective solution for repairs, often including new valve seats, three-angle valve cuts, and resurfacing, ensuring durability and performance.
Despite its critical role, the cylinder head experiences less wear and tear compared to other engine parts, making replacement relatively rare. However, quality is paramount due to the high pressures and temperatures it endures, and technical faults can compromise the entire engine's operation. For instance, in performance tuning or racing applications, cylinder heads may be modified for increased airflow or optimized combustion, but such modifications require precise engineering to avoid failure under extreme conditions.
