Camshaft

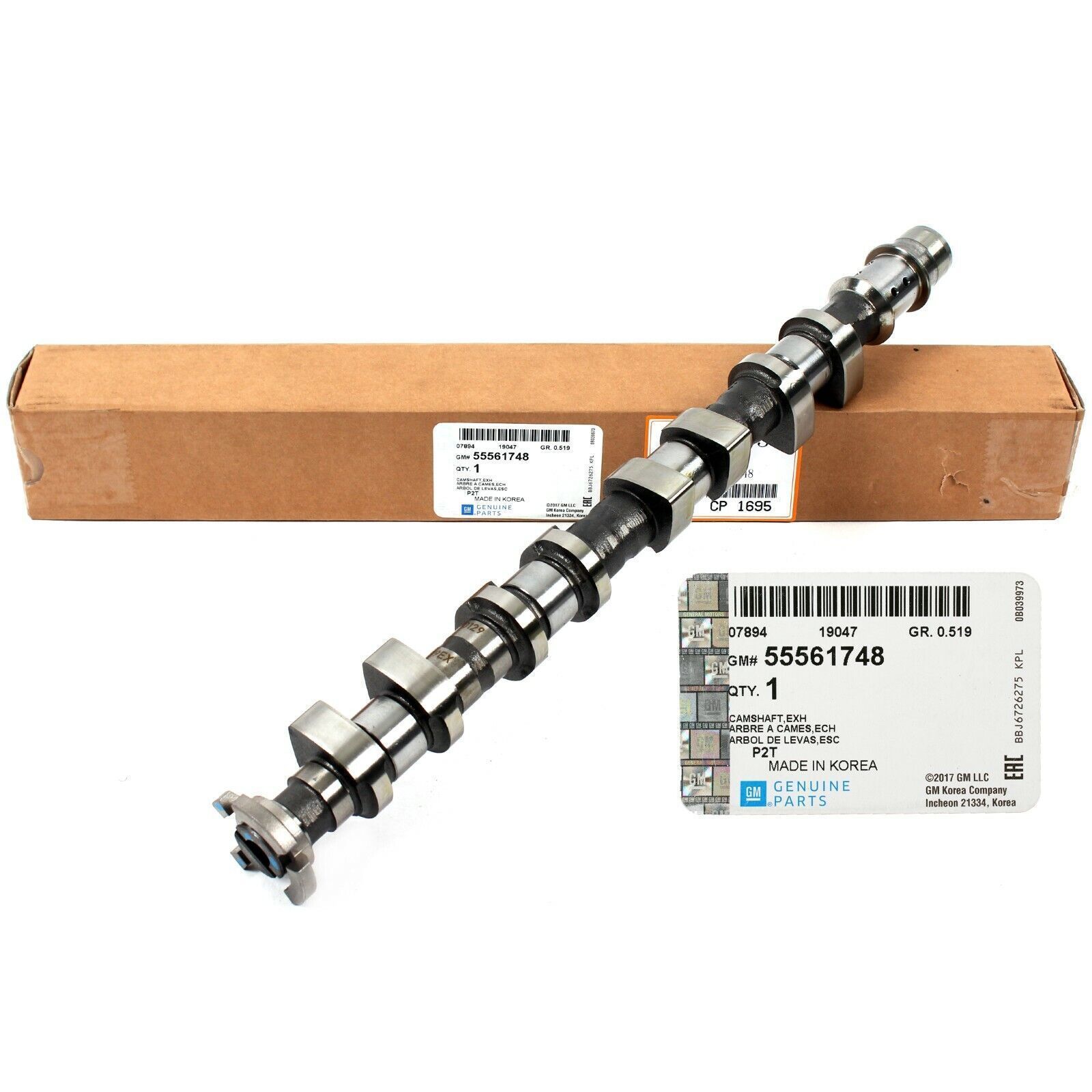

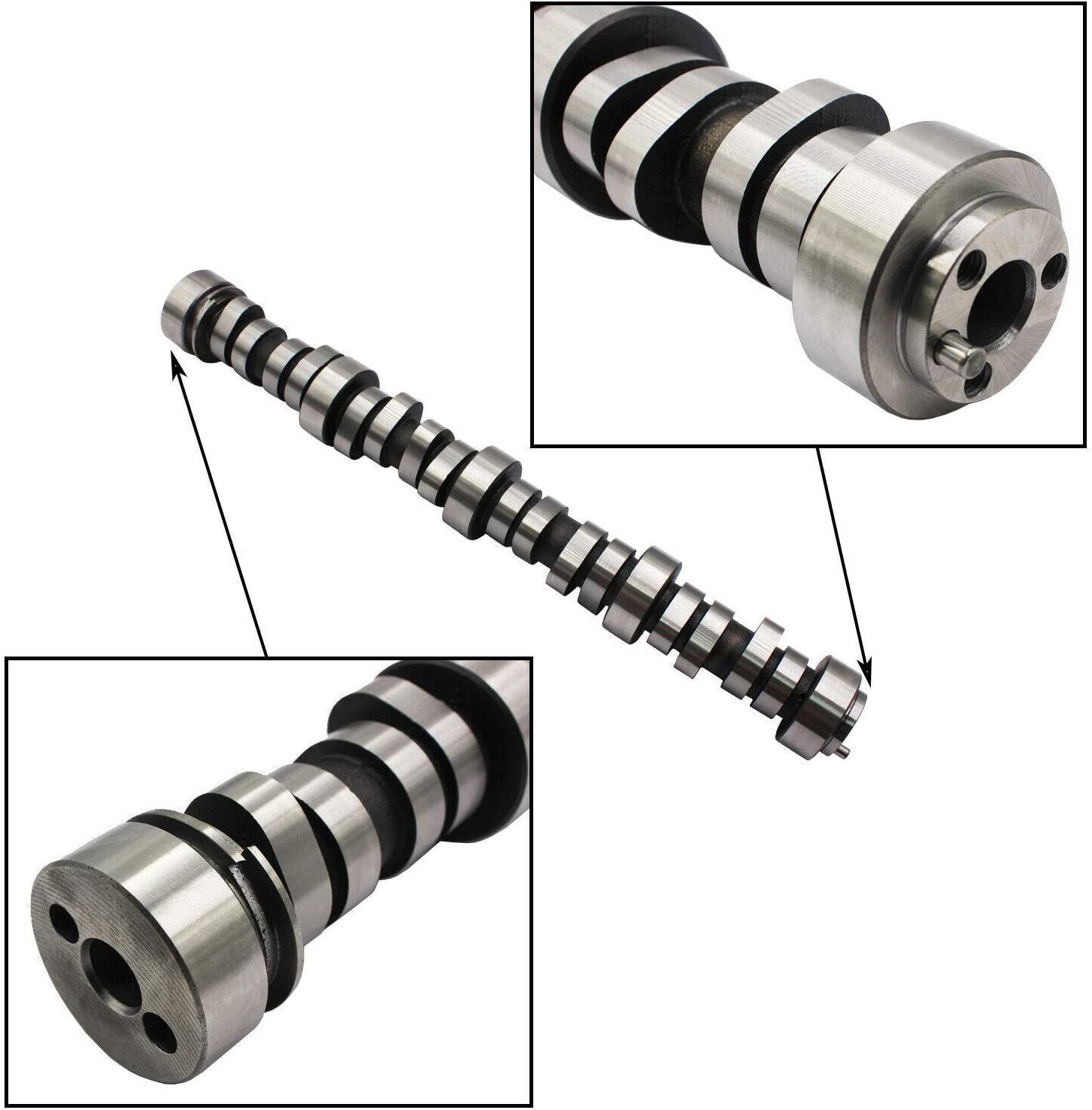

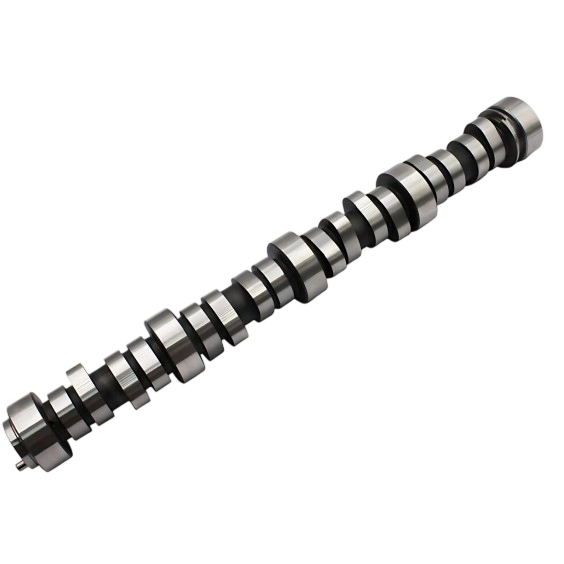

What is a Camshaft?

A camshaft is a component in internal combustion engines, appearing as a shaft with lobes that push against valves to open and close them at the right times. This process, known as valve timing, is crucial for letting air and fuel in and exhaust out, which helps the engine run smoothly and efficiently.

How Does It Work?

It seems likely that as the camshaft rotates, its lobes act on the valves (or parts like lifters) to control when they open and close, syncing with the engine’s cycles. The shape and size of these lobes can affect how the engine performs at different speeds, making it essential for both everyday driving and high-performance applications.

Types and Configurations

There are different setups, such as Single Overhead Cam (SOHC) with one cam per cylinder head, or Dual Overhead Cam (DOHC) with two, often used for better power in high-performance engines. Pushrod engines, where the camshaft is lower in the block, are also common, especially in older or larger engines.

Introduction to Camshafts

A camshaft is a critical mechanical component in internal combustion engines, designed to convert rotational motion into linear motion to control the operation of intake and exhaust valves. This function is essential for regulating the flow of air-fuel mixture into the combustion chamber and the expulsion of exhaust gases, directly impacting engine performance, efficiency, and power output. The camshaft’s role has been fundamental since the early days of engine design, with its principles tracing back to medieval mechanical devices.

Research suggests that the camshaft’s design, including the shape and positioning of its lobes, significantly influences valve timing, duration, and lift, which are key factors in engine behavior at various speeds. For instance, at low RPMs (10-20), the camshaft ensures efficient operation for idle and slow speeds, while at high RPMs (around 4,000), it must handle rapid valve cycles, opening and closing valves up to 33 times per second, necessitating longer valve open durations and higher lifts for adequate air-fuel momentum.

Functional Mechanics and Operation

The camshaft operates by rotating, driven by the crankshaft via a timing belt, chain, or gears, ensuring synchronization with the engine’s four-stroke cycle (intake, compression, power, exhaust). As it rotates, the cam lobes—oval-shaped bulges along the shaft—press against valve lifters, pushrods, or directly against valves in overhead cam setups, causing them to open. When the lobe moves away, spring pressure closes the valve, completing the cycle. This precise timing is crucial for engine efficiency, as it ensures the valves open and close at optimal moments relative to piston movement.

The shape of the cam lobes is a critical design element, affecting valve lift (how far the valve opens), duration (how long it stays open), and timing (when it opens and closes). For example, performance camshafts, such as those used in racing, often have aggressive lobe profiles for higher lifts and longer durations, suitable for high-RPM operation, while standard camshafts prioritize efficiency at lower speeds.

Types and Configurations

Camshafts come in various configurations, tailored to engine design and performance needs:

• Single Overhead Cam (SOHC): Features one camshaft per cylinder head, common in inline four or six-cylinder engines, and in V-engines, there may be two cams (one per bank). This setup is simpler and often used in economy-focused engines.
• Dual Overhead Cam (DOHC): Includes two camshafts per cylinder head, one for intake valves and one for exhaust, often supporting four or more valves per cylinder. This configuration, seen in high-performance engines, enhances airflow and power, with examples like modern sports cars using DOHC for better top-end performance.
• Pushrod (Overhead Valve, OHV): The camshaft is located in the engine block, below the cylinders, and uses pushrods and rocker arms to actuate valves. This design, common in older or larger engines (e.g., American V8s), is less suited for high speeds due to added mass and inertia but is durable and cost-effective.

The choice between these configurations impacts engine complexity, weight, and performance. For instance, DOHC engines, while more efficient and powerful, add weight and cost due to additional components, such as timing chains or belts, which can be more complex to maintain compared to pushrod setups.

Practical Considerations and Maintenance

Camshafts, typically made from hardened steel or cast iron, are designed for durability but require maintenance, especially in high-performance or high-mileage applications. Signs of a failing camshaft include a check engine light, rough idle, slow acceleration, stalling, reduced gas mileage, or failure to start. Regular inspection and, in some cases, replacement of camshafts and related components (e.g., lifters, timing chains) are necessary, particularly for flat tappet camshafts, which may wear over time due to friction. Roller camshafts, with bearings on lobes, reduce wear and are increasingly common in modern engines.

In diesel engines, camshafts serve the same function but often have shorter durations due to high compression needs, affecting their design compared to gasoline engines. For aircraft engines, such as Continental models, camshafts are noted for reliability if the plane is flown frequently, with placement at the bottom of the engine.

Comparative Analysis of Camshaft Arrangements

To illustrate the differences, here’s a table summarizing key configurations:

This table highlights the trade-offs, with DOHC offering superior performance but at increased complexity, while pushrod designs remain relevant for specific applications.
