Heater Control Valve

What is a Heater Control Valve?

The heater control valve is a part in your car’s heating system that manages how much hot coolant goes to the heater core, which warms the air for the cabin.

Function and Location

It controls the cabin temperature by opening or closing to let hot coolant flow through the heater core. You’ll usually find it near the heater core’s inlet hose, often by the firewall, but check your car’s manual for the exact spot as it can differ.

Common Issues and Symptoms

If it sticks open, you might get too much heat; if closed, no heat. Leaks or cracks, especially in plastic valves, can cause coolant loss, leading to engine overheating. Signs include no heat, heat that won’t turn off, inconsistent heat, a hot temperature gauge, low coolant, or visible coolant leaks.

Overview and Definition

The heater control valve, sometimes referred to as the hot water valve, is a critical component of a vehicle’s heating, ventilation, and air conditioning (HVAC) system. Its primary function is to regulate the flow of hot engine coolant to the heater core, which is responsible for warming the air that is blown into the cabin. This valve is particularly common in older vehicle models, though its presence varies by design, with many modern vehicles opting for alternative systems like blend doors for temperature control.

Function and Operation

The heater control valve controls the rate at which coolant flows through the heater core, thereby determining the amount of heat produced for the cabin. When the valve is open, warm engine coolant passes through the heater core, allowing hot air to be generated from the vehicle’s vents. When closed, it blocks coolant flow, preventing heat from being produced, which is useful during warmer months or when cooling is needed.

The valve can be operated in several ways, depending on the vehicle’s design:

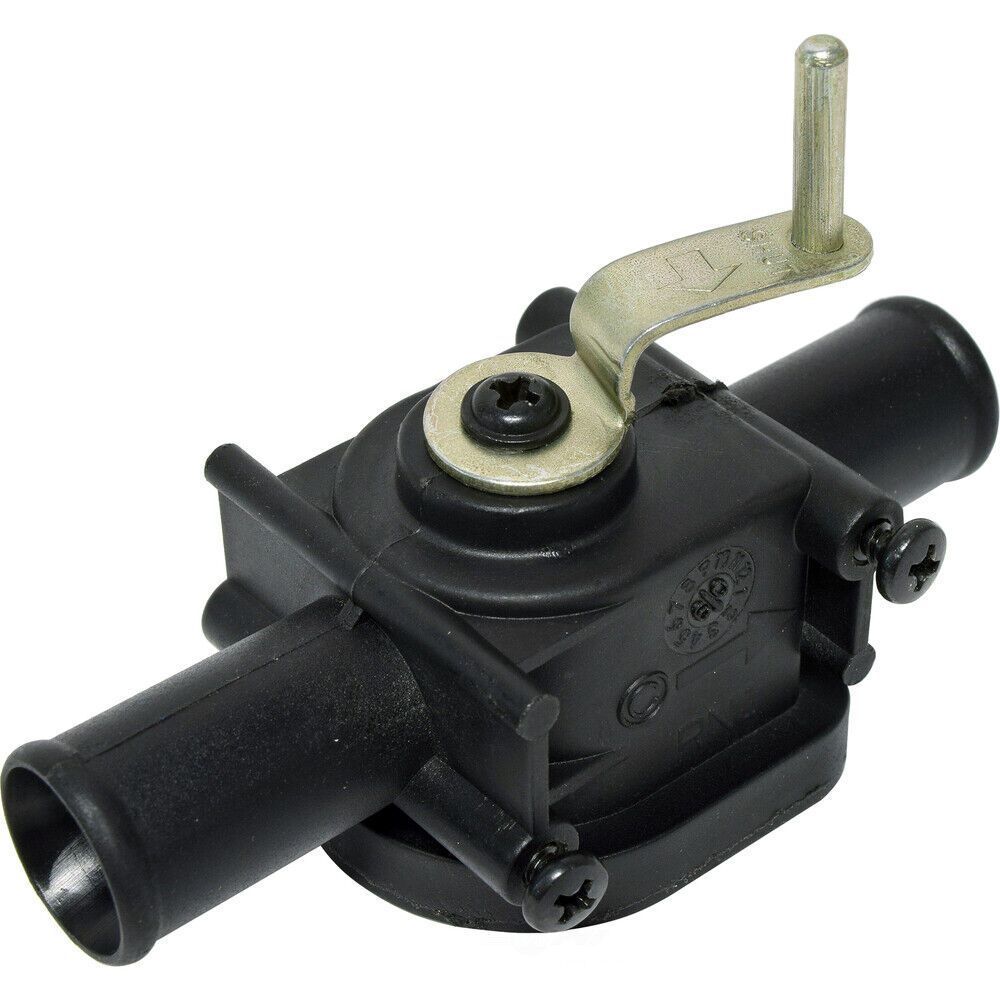

1. Manual Operation: Controlled via a cable connected to the dashboard temperature controls, often seen in older models. This push-pull cable system allows the driver to physically adjust the valve’s position.

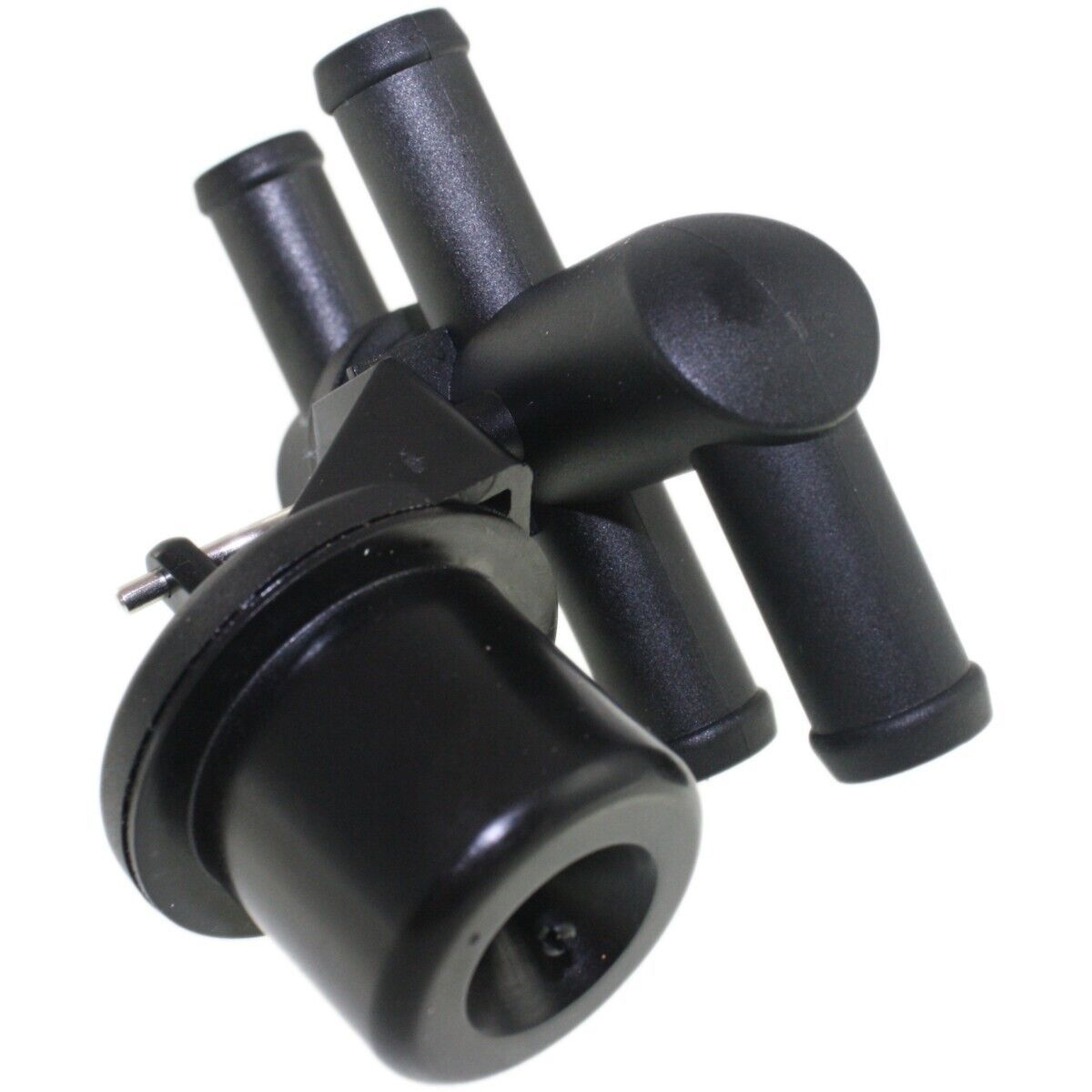

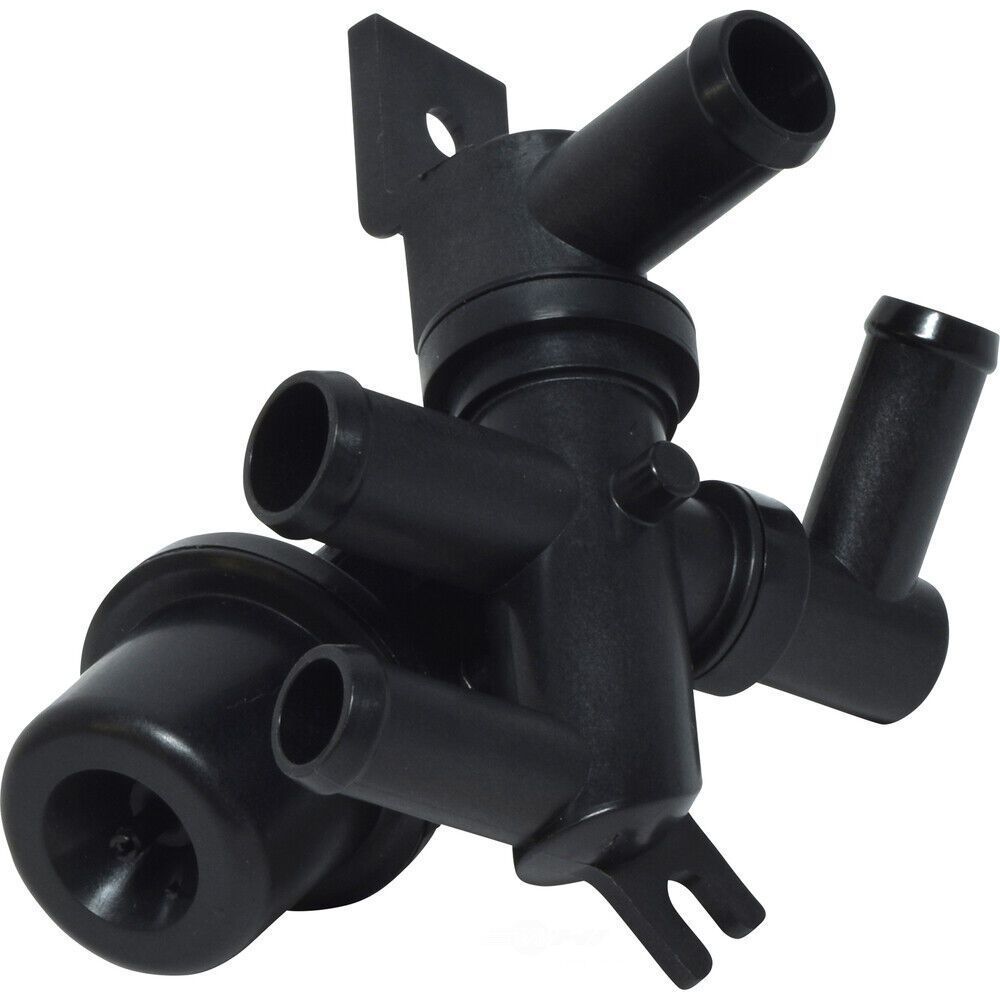

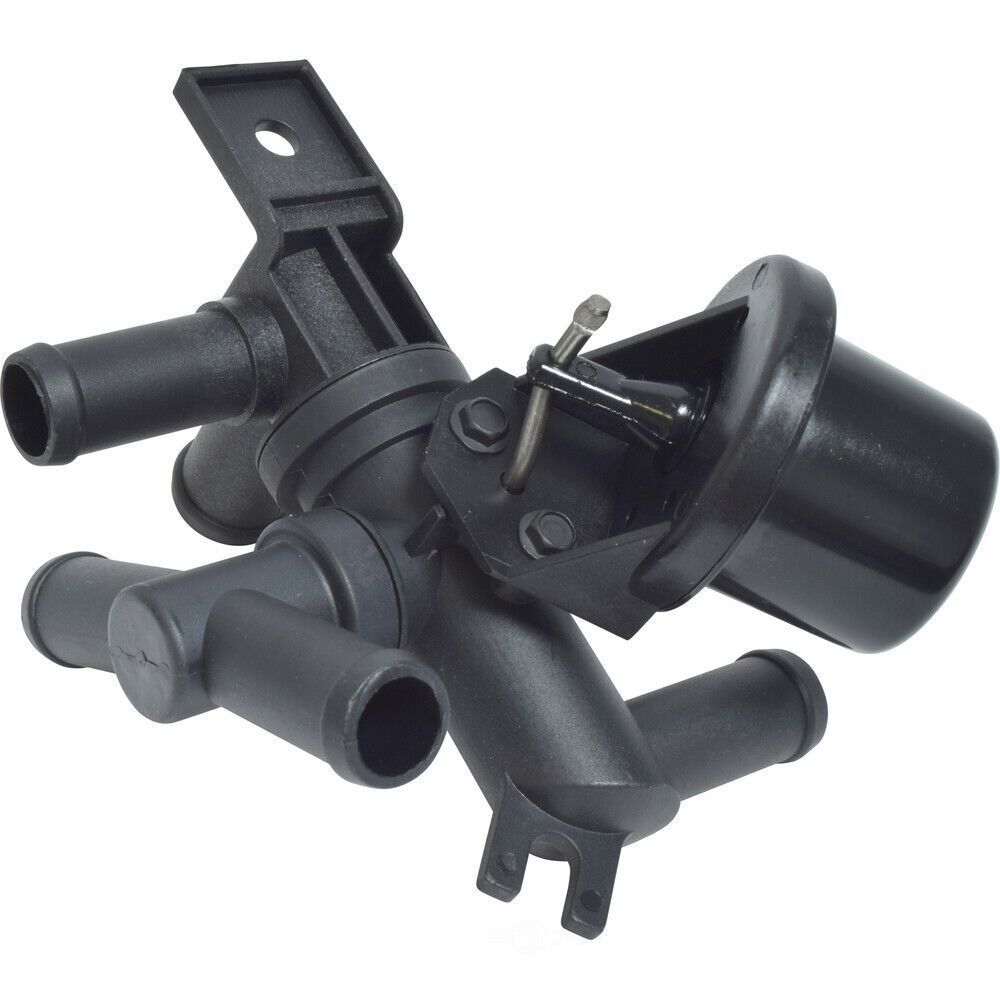

2. Vacuum Operation: Uses engine vacuum to move the valve in response to the driver’s temperature selection, common in vehicles with vacuum-controlled HVAC systems.

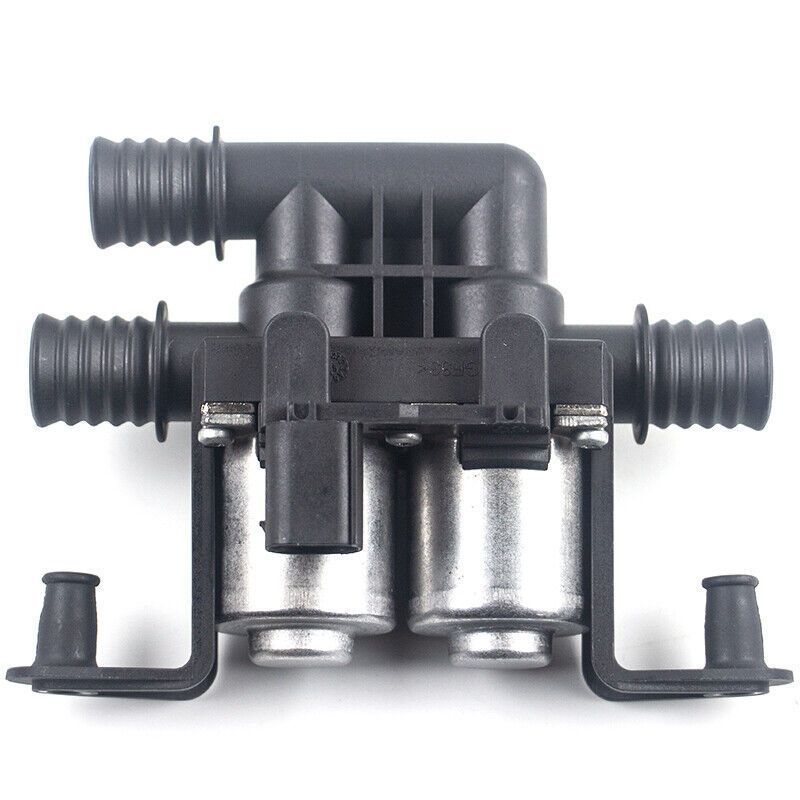

3. Electronic Operation: In modern vehicles, the valve may be controlled by an electronic solenoid or motor, often integrated with the vehicle’s computer system for automatic temperature control. Once a temperature is selected, the computer adjusts the valve to maintain a constant cabin temperature.

Additionally, the valve plays a role in summer operation, particularly in vehicles with manual climate controls. It shuts off the flow of hot coolant to the heater core when using the air conditioning (AC), preventing the cold AC air from passing through a hot heater core, which would reduce cooling efficiency. This dual role highlights its importance in both heating and cooling operations.

Common Issues and Symptoms

The heater control valve is prone to several common problems, especially as it ages:

1. Stuck Open or Closed: If the valve gets stuck open, the heater may produce excessive heat or fail to turn off, leading to an uncomfortably warm cabin. If stuck closed, there will be no heat at all, leaving the cabin cold.
2. Leaks and Cracks: Plastic valves, common in modern vehicles, are susceptible to cracking or developing leaks over time. This can lead to coolant loss, which poses a risk of engine overheating and potential expensive engine damage.
3. Inconsistent Heat Output: The heat may fluctuate without any changes to the temperature controls, indicating a malfunctioning valve, which can affect passenger comfort and visibility, especially in cold weather.

Symptoms of a Bad Heater Control Valve:

1. No Heat Coming Out: The heater fails to produce warm air, leaving the cabin cold.
2. Heat Always On and Cannot Be Turned Down: The heater is stuck on maximum, making the cabin uncomfortably hot.
3. Heat Output Changes with No Changes in the Heat Setting: Inconsistent heat output, which can be frustrating and affect comfort.
4. Temperature Gauge Reads Hot: Engine overheating indicated, often due to coolant loss from a leaking valve.
5. Low Coolant Level: Decreased coolant levels, which can be checked by inspecting the coolant reservoir.
6. Coolant Leak: Visible signs of coolant around the valve area, such as drops, drip marks, or deposits.

Driving with a malfunctioning heater control valve can present major issues, including problems keeping windows clear, affecting visibility, and difficulty controlling the cabin temperature, whether too hot or too cold. Many issues stem from coolant leaks, which can exacerbate engine overheating risks.

Note on Blend Door Systems

It’s worth noting that not all vehicles have a heater control valve. Many modern models use a blend door system instead, which is a motorized door-like component that separates the heating and AC systems. The blend door opens and moves to balance the amount of warm and cool air that travels out of the air vents based on the input from the heat/AC control knob. With a blend door system, the heat is always on, even when just using the AC, so a heater control valve is not necessary. This design allows for more precise temperature control and is common in vehicles with automatic climate control systems.
