Engines are remarkable devices that convert various forms of energy into mechanical power, enabling movement and operation of countless machines and vehicles that define our modern world. From the earliest steam engines to today's advanced electric motors and high-performance combustion systems, the evolution of engines represents one of humanity's most significant technological journeys.
What’s the Engine?
An engine is fundamentally a device designed to convert one form of energy into another, with the primary purpose of transforming various energy sources into mechanical energy. This conversion principle underpins virtually all engines, though the specific mechanisms and energy sources may differ dramatically. In the context of vehicles and machinery, engines produce the power necessary to create motion, whether that's turning wheels, driving pistons, or rotating turbines.
Internal combustion engines (ICEs), which dominate transportation today, operate by burning fuel with an oxidizer (typically air) within a combustion chamber. The expansion of high-temperature and high-pressure gases produced during combustion applies direct force to components like pistons, turbine blades, or rotors, generating mechanical power. This process effectively transforms chemical energy stored in fuel into kinetic energy that propels vehicles or powers machinery.

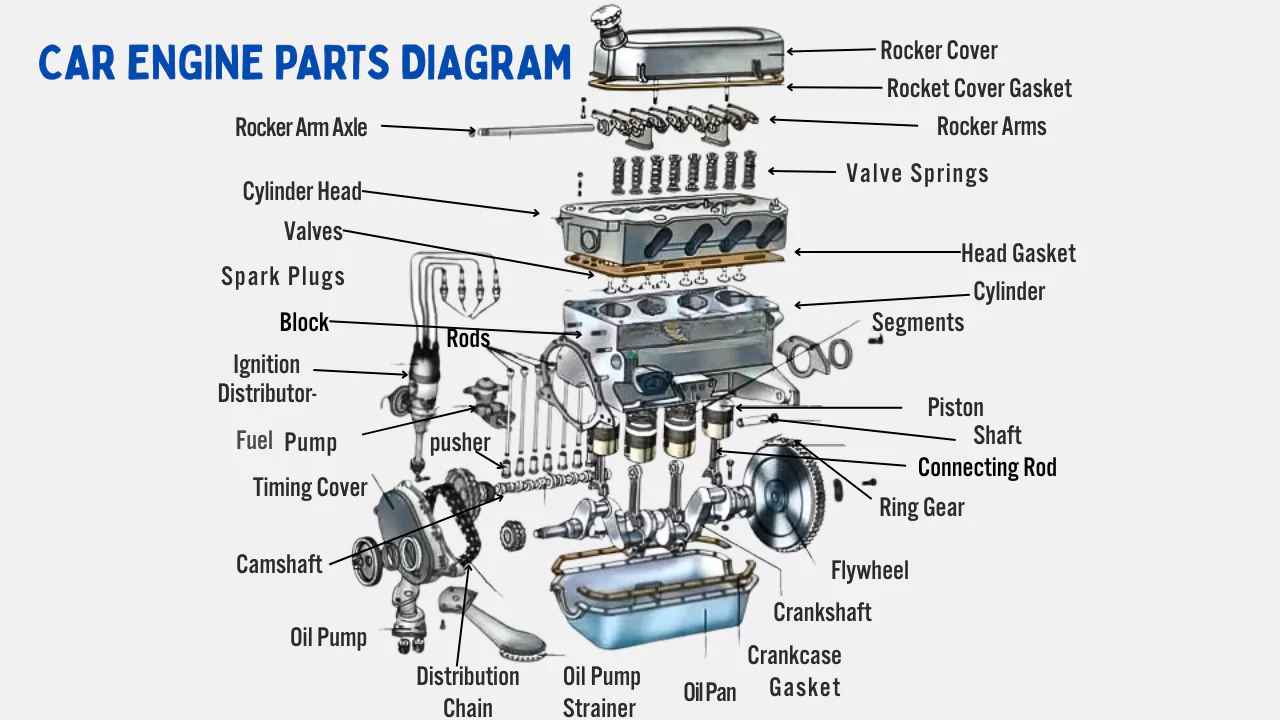

Engine Parts
The specific design and components of an engine vary significantly depending on its type and application. However, most engines share certain fundamental elements that enable energy conversion. In combustion engines, these typically include:
A combustion chamber where fuel is burned

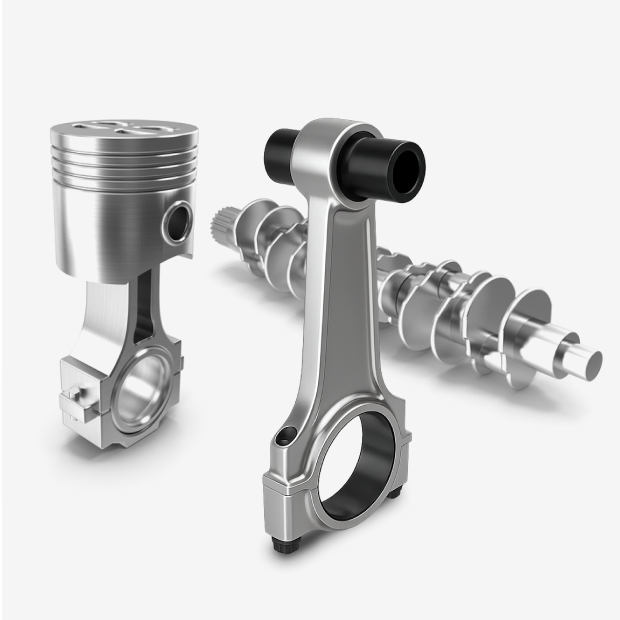

Components that convert combustion pressure into mechanical motion (pistons, turbines, etc.)

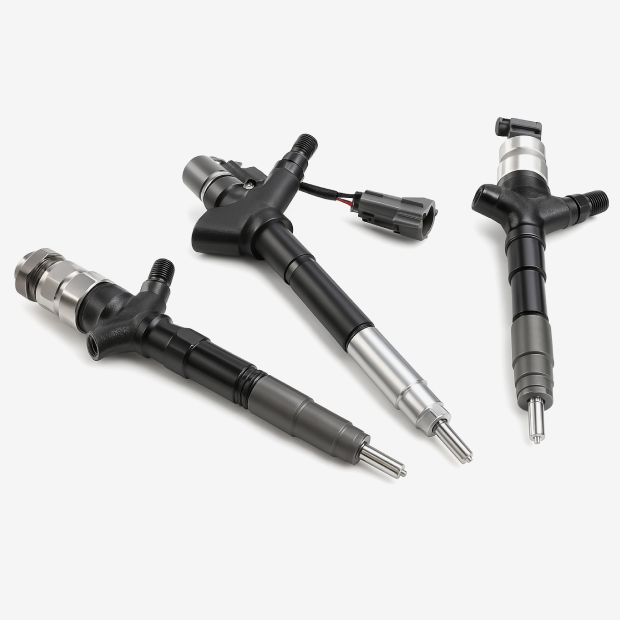

Systems to introduce fuel and air

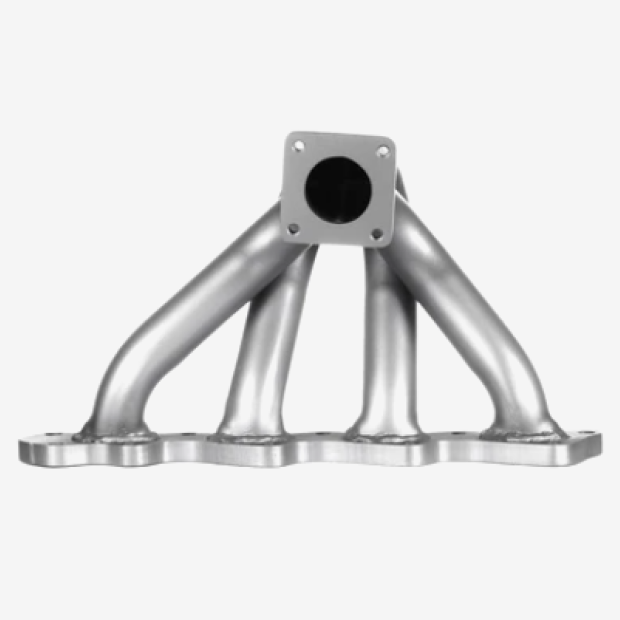

Exhaust systems to remove combustion products

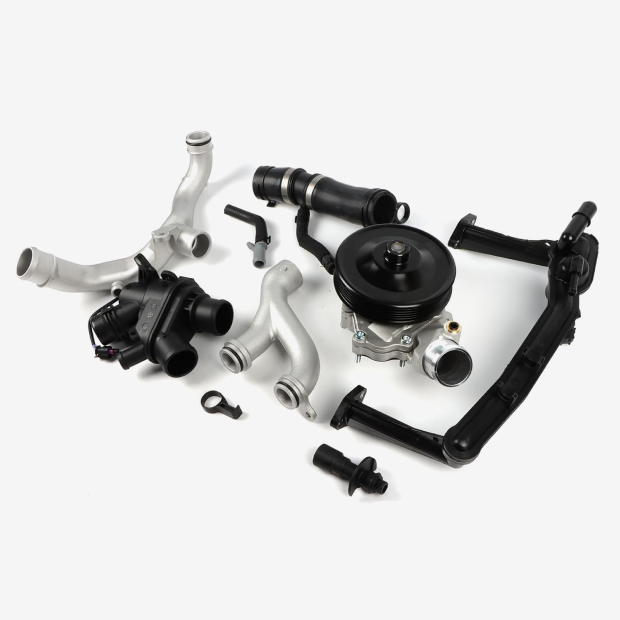

Cooling systems to manage operating temperatures
Major Types of Engines and Their Configurations
Engines have evolved into numerous specialized designs optimized for different applications, efficiency requirements, and power outputs.
Internal Combustion Engines
The most common engine type in transportation for the past century has been the internal combustion engine. These engines are categorized by their combustion cycle (two-stroke vs. four-stroke), ignition method (spark ignition vs. compression ignition), and cylinder arrangement.
Internal combustion engines can be classified by their cylinder configurations, which significantly affect their performance characteristics, size, and vibration profiles. Major configurations include:

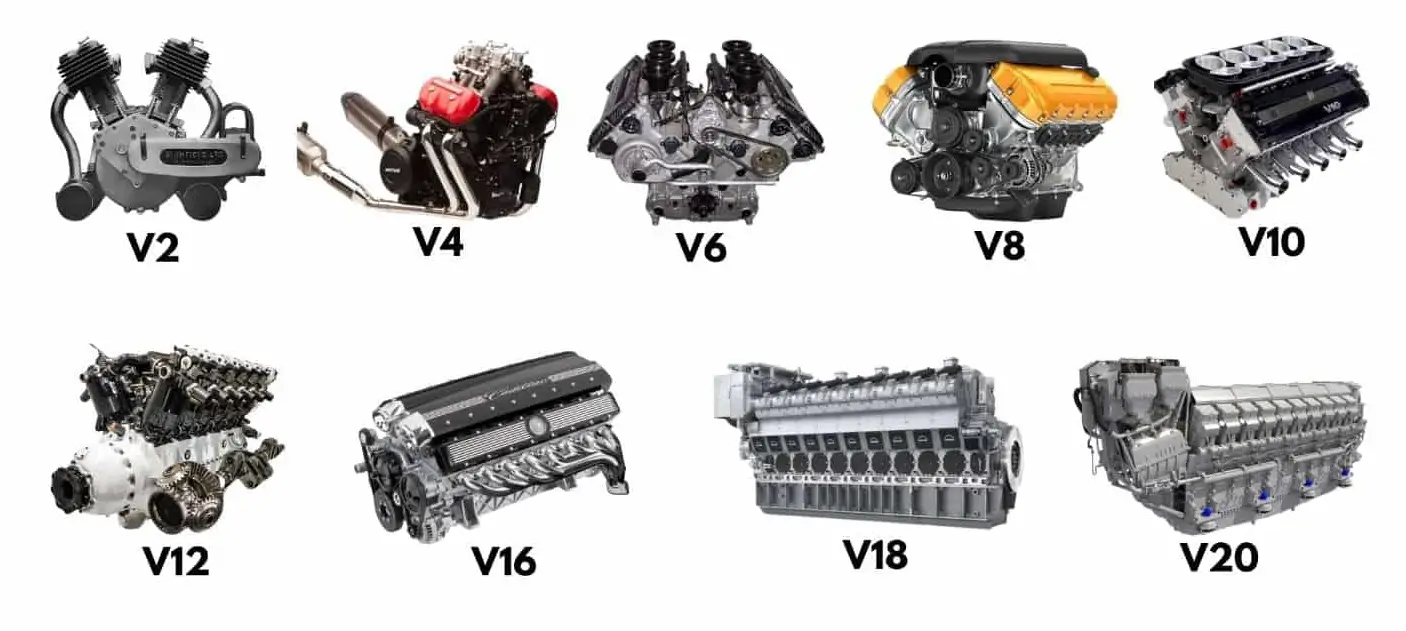

1. V engines - cylinders aligned in two separate planes or banks, forming a "V" when viewed along the crankshaft axis. Common variants include V6, V8, V10, and V12 configurations.
2. Flat engines (horizontally-opposed) - cylinders arranged in two banks on either side of a single crankshaft. Boxer engines are a subtype where opposing pistons move in and out in tandem.
3. W engines - cylinders arranged in a configuration resembling the letter W, essentially combining multiple V configurations.
4. Inline or straight engines - all cylinders arranged in a single line. These include the VR5 and VR6 designs that use a very narrow V angle allowing a single cylinder head, technically making them a variant called "shortened inline engines".
The internal combustion engine was revolutionized when the German engineer Nicolaus Otto designed the first modern version in 1876. These engines typically operate through either a two-stroke or four-stroke cycle, with variants including six-stroke piston engines and the Wankel rotary engine.
Continuous Combustion Engines
A second class of internal combustion engines employ continuous rather than intermittent combustion. This category includes:
Gas turbines
Jet engines
Most rocket engines
These engines operate on the same fundamental principle of internal combustion but maintain a continuous combustion process rather than the cyclical combustion found in piston engines.
Important parameters and indicators of an engine:
Power: Determines the vehicle's maximum speed. Higher power generally translates to greater speed potential.
Units: kilowatts (kW) or horsepower (hp).
Applications of High Power:
High-performance sports cars (e.g., supercars) require powerful engines to achieve extreme speeds. For example, the Bugatti Chiron delivers over 1,100 kW.
Torque: Torque refers to the rotational force generated by the engine, determining acceleration performance.
Units: Newton meters (Nm).
Low-RPM Torque: Essential for off-road vehicles and trucks, providing strong low-speed traction and pulling power.
High-RPM Torque: Performance cars often achieve peak torque in mid-to-high RPM ranges for rapid acceleration.
Fuel Efficiency: Measures energy consumption. Fuel efficiency measures how effectively an engine uses fuel, impacting both operating costs and environmental impact.
Units: liters per 100 kilometers (L/100km) or miles per gallon (mpg).
Influencing Factors: Engine technology (direct injection, turbocharging, etc.).
Vehicle weight and aerodynamic drag.
Driving habits (e.g., aggressive acceleration or idling increases fuel consumption).
Efficiency-Enhancing Technologies: Start-stop systems. Small-displacement turbocharged engines. 48V mild hybrid systems.
Displacement: Refers to the total volume of the engine cylinders, typically expressed in liters (L) or cubic centimeters (cc) (e.g., 2.0L or 2000cc).
Displacement vs. Performance:
Small Displacement: Often paired with turbocharging to boost efficiency and power while reducing fuel consumption (e.g., 1.0L turbocharged engines).
Large Displacement: Delivers high power and torque, commonly found in sports cars and large SUVs (e.g., 5.0L V8 engines).
Trends:
Downsizing: Smaller turbocharged engines dominate due to stricter emissions regulations and efficiency demands.
Electrification: Hybrid and electric technologies are gradually replacing large-displacement combustion engines.
Interrelationships Between Parameters
Power vs. Torque:
Torque determines acceleration, while power dictates top speed. The relationship is defined by:
P=T×ω
where P = power, T = torque, and ω = angular velocity (RPM).
Fuel Efficiency vs. Displacement:
Larger displacement typically increases fuel consumption, though modern technologies (e.g., turbocharging) mitigate this.
Rise of Electric Propulsion
Perhaps the most significant recent development in engine technology has been the widespread adoption of electric motors for vehicle propulsion. Electric motors offer several advantages over combustion engines:
Instant torque delivery for quick acceleration
Higher efficiency in converting energy to motion
Simpler mechanical design with fewer moving parts
Zero direct emissions during operation
Electric vehicle powertrains consist of several integrated components, including the motor itself (with stator and rotor), electronic power controllers, conversion systems, and specialized transmissions. These systems work together to deliver smooth, efficient operation with considerably less mechanical complexity than combustion engines.
Hybrid Technologies
Hybrid vehicles combine combustion engines with electric motors, leveraging the strengths of both technologies. These systems can provide the long range and quick refueling capabilities of combustion engines along with the efficiency and performance benefits of electric motors. Modern hybrid powertrains use sophisticated control systems to optimize the operation of both power sources based on driving conditions.
