What is a Universal Joint?

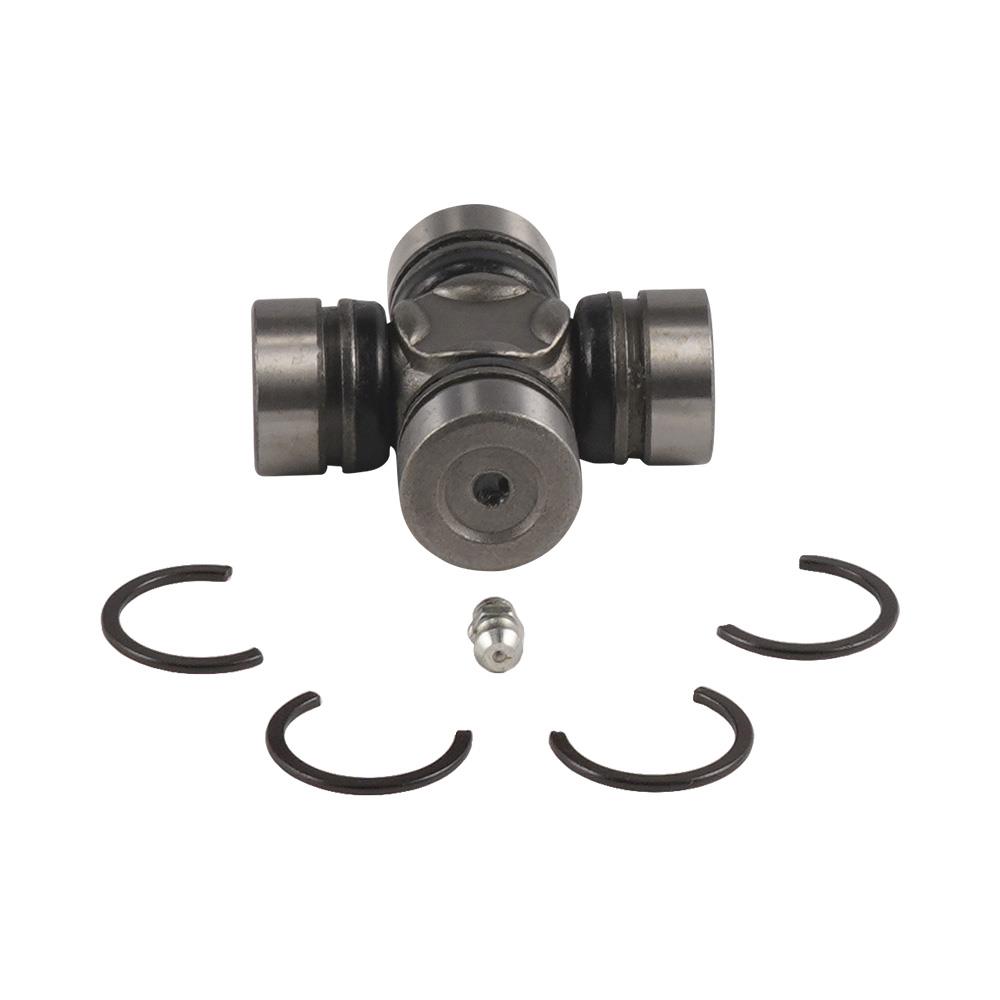

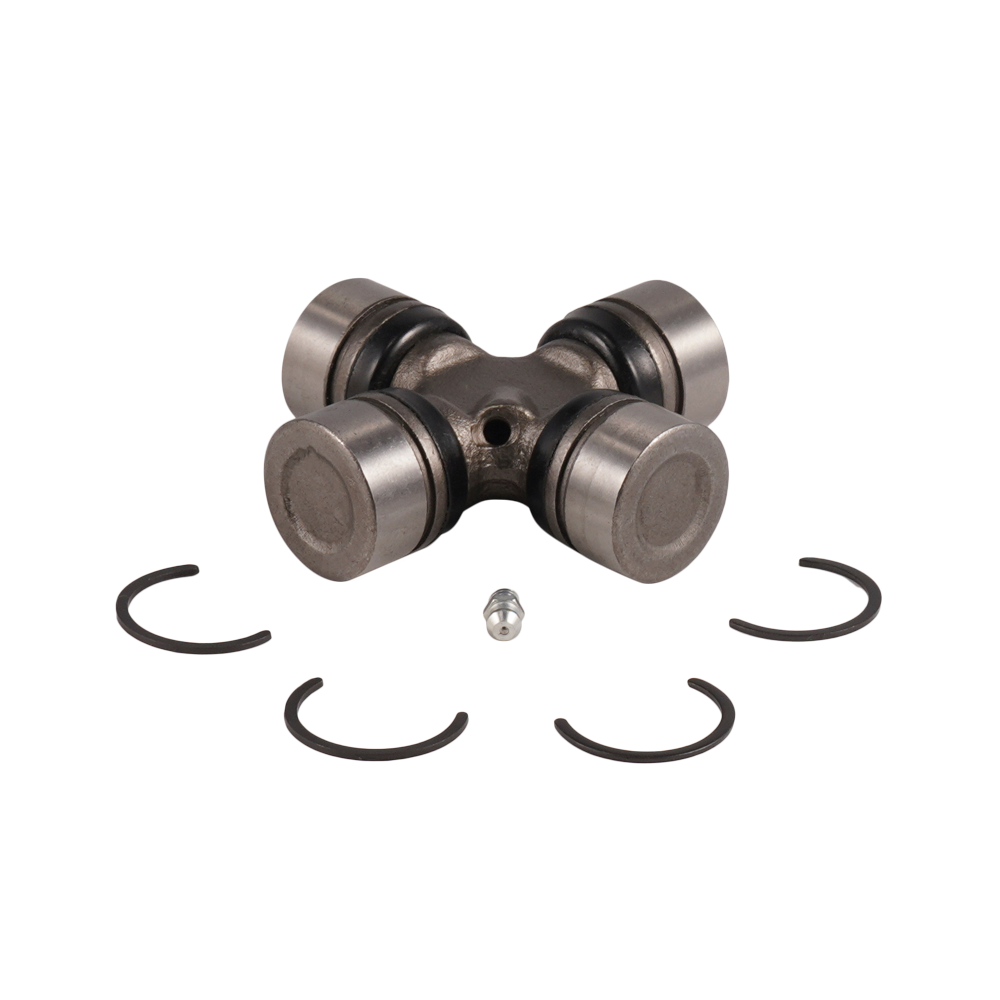

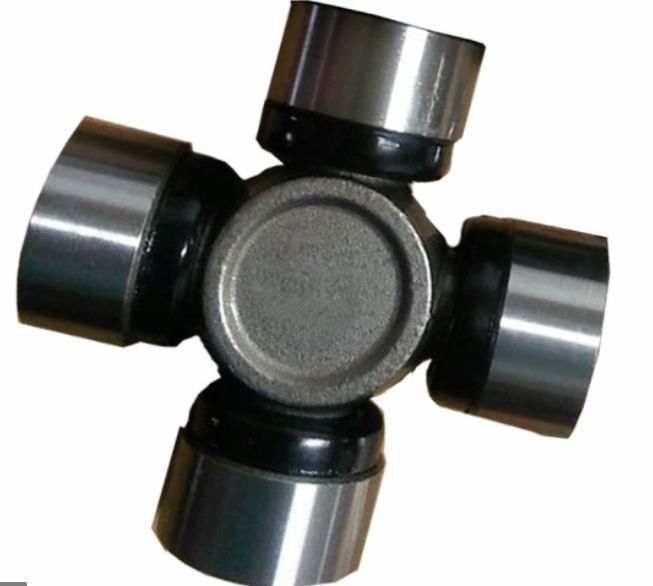

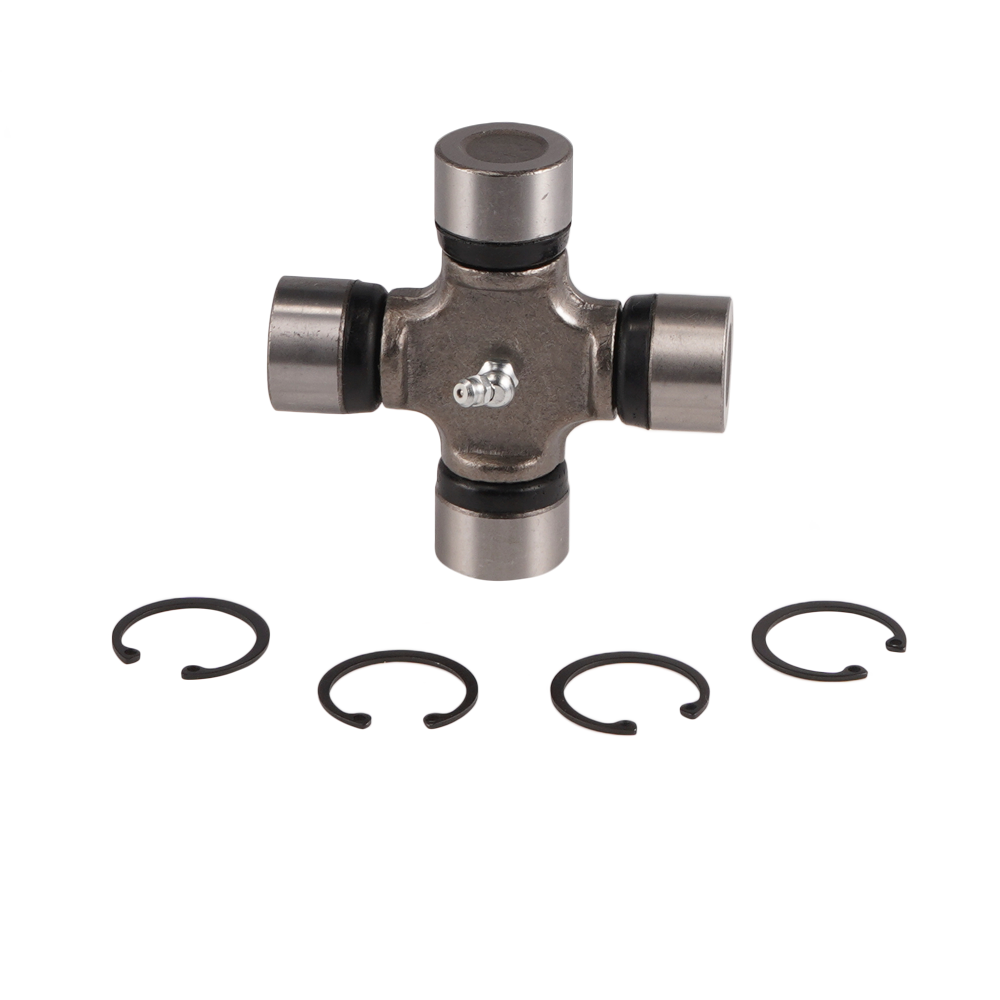

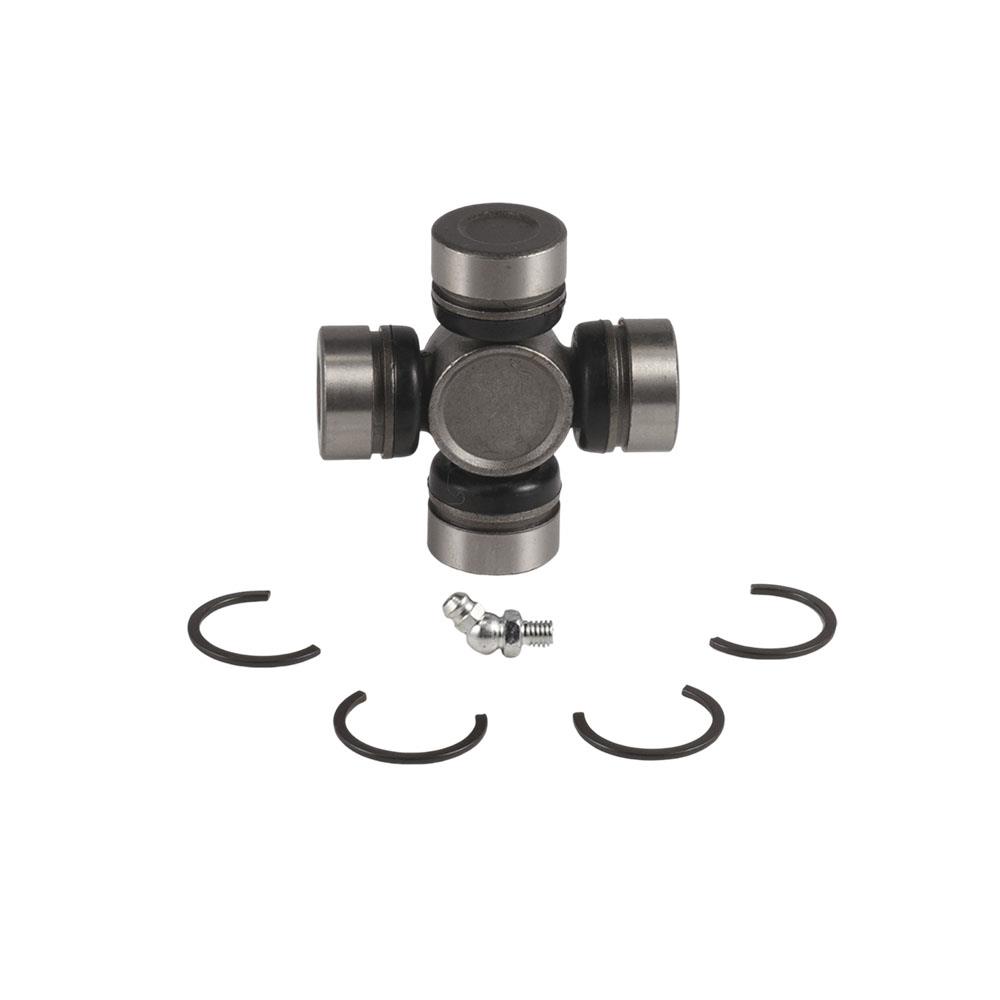

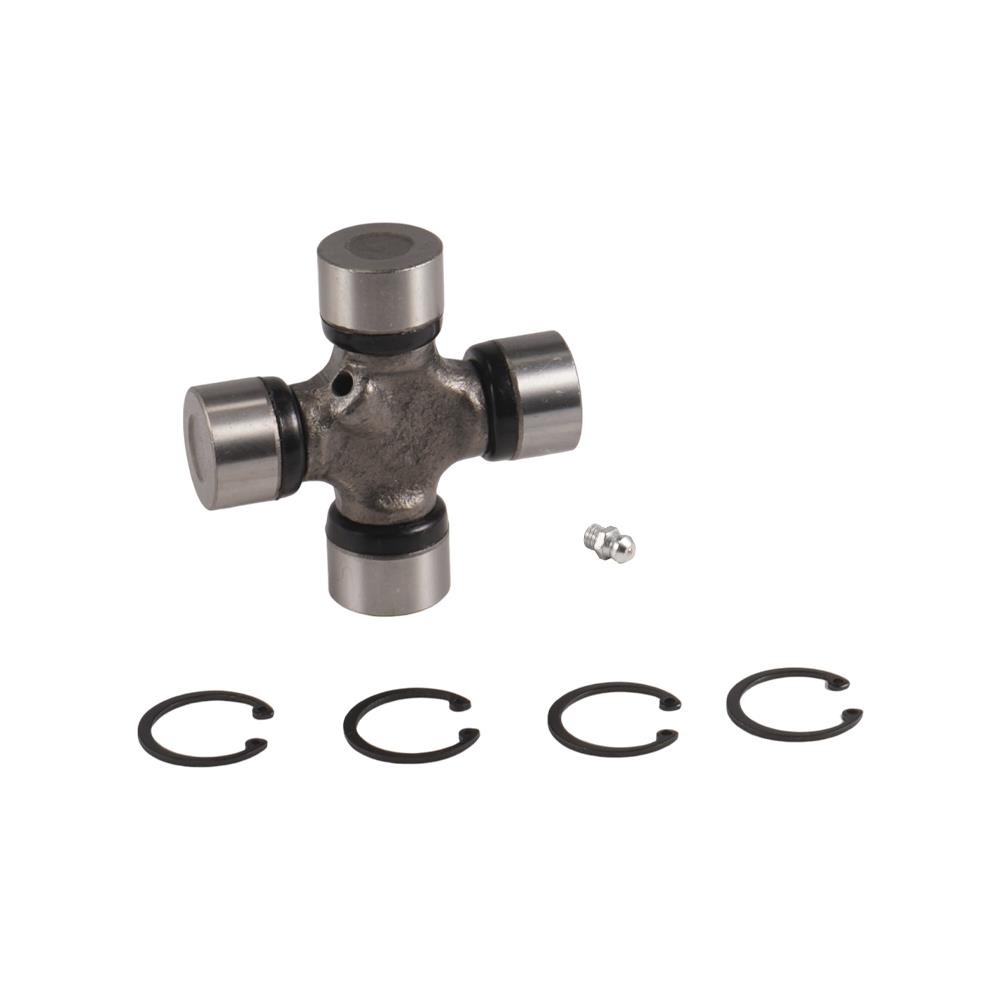

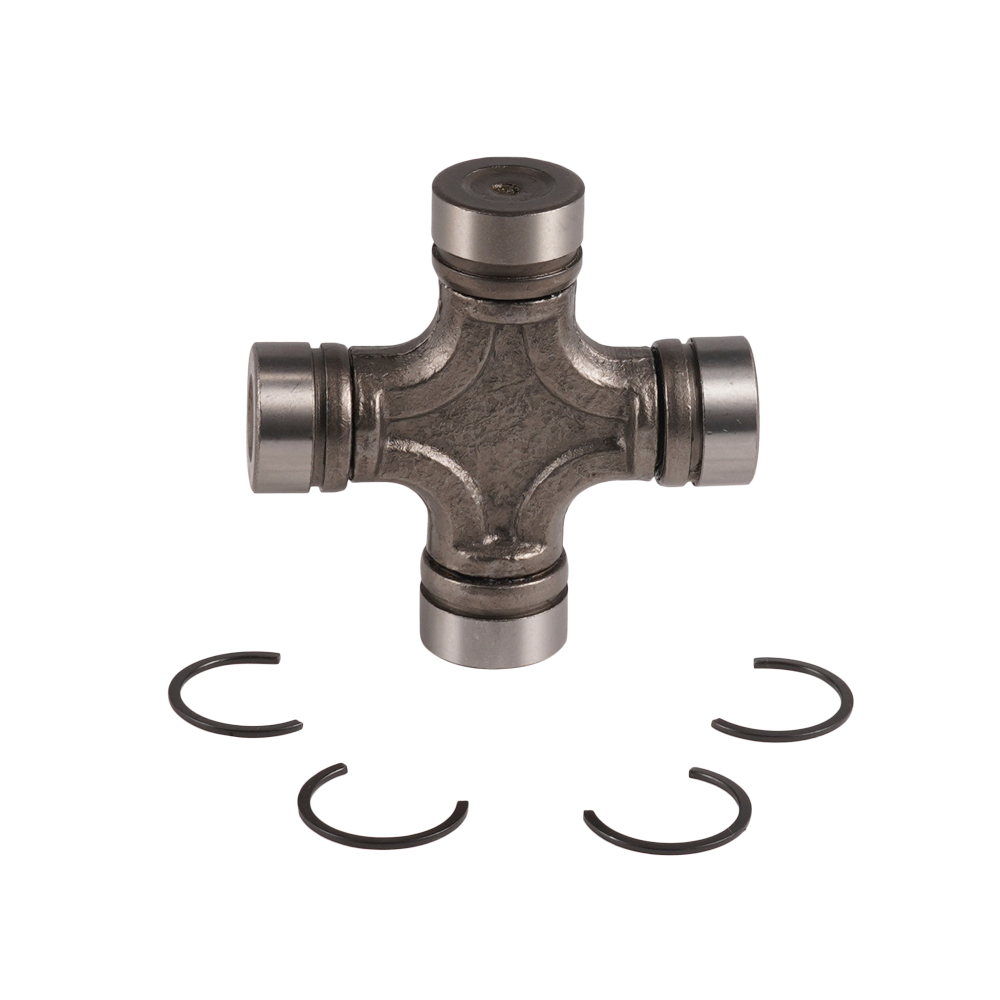

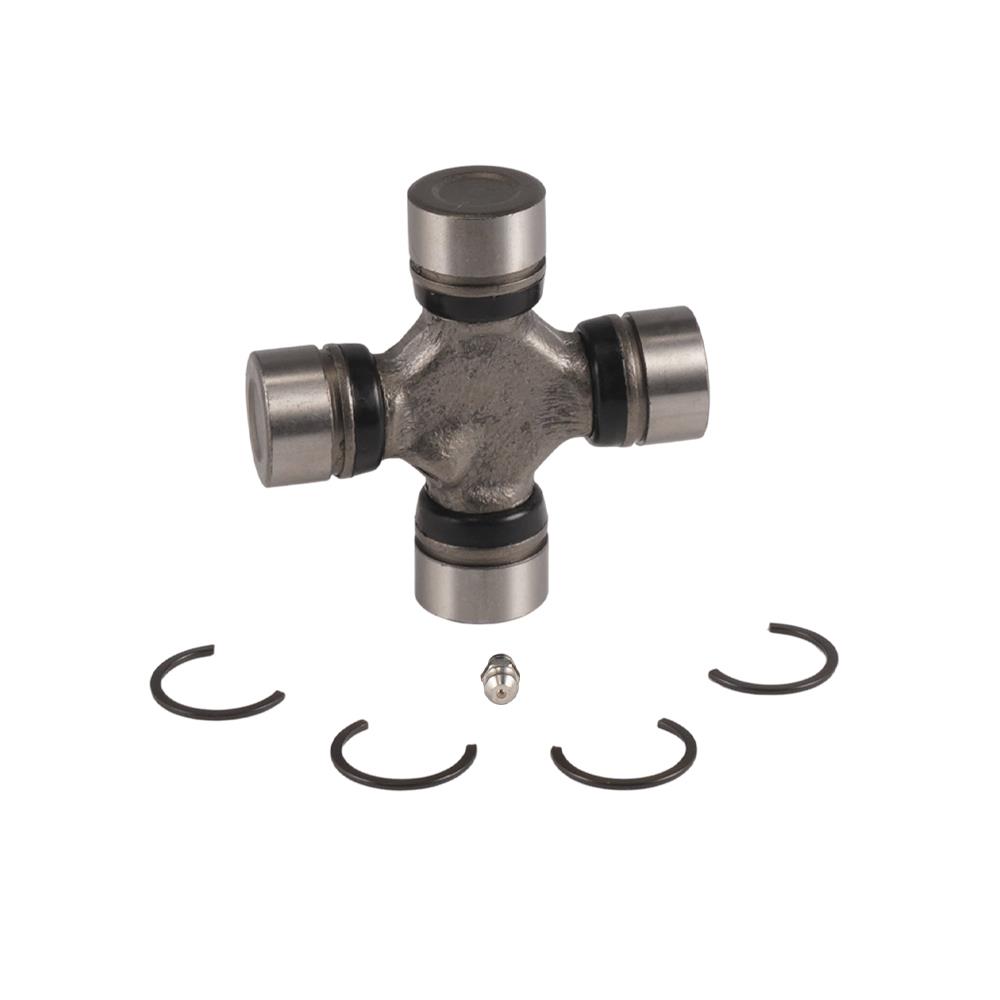

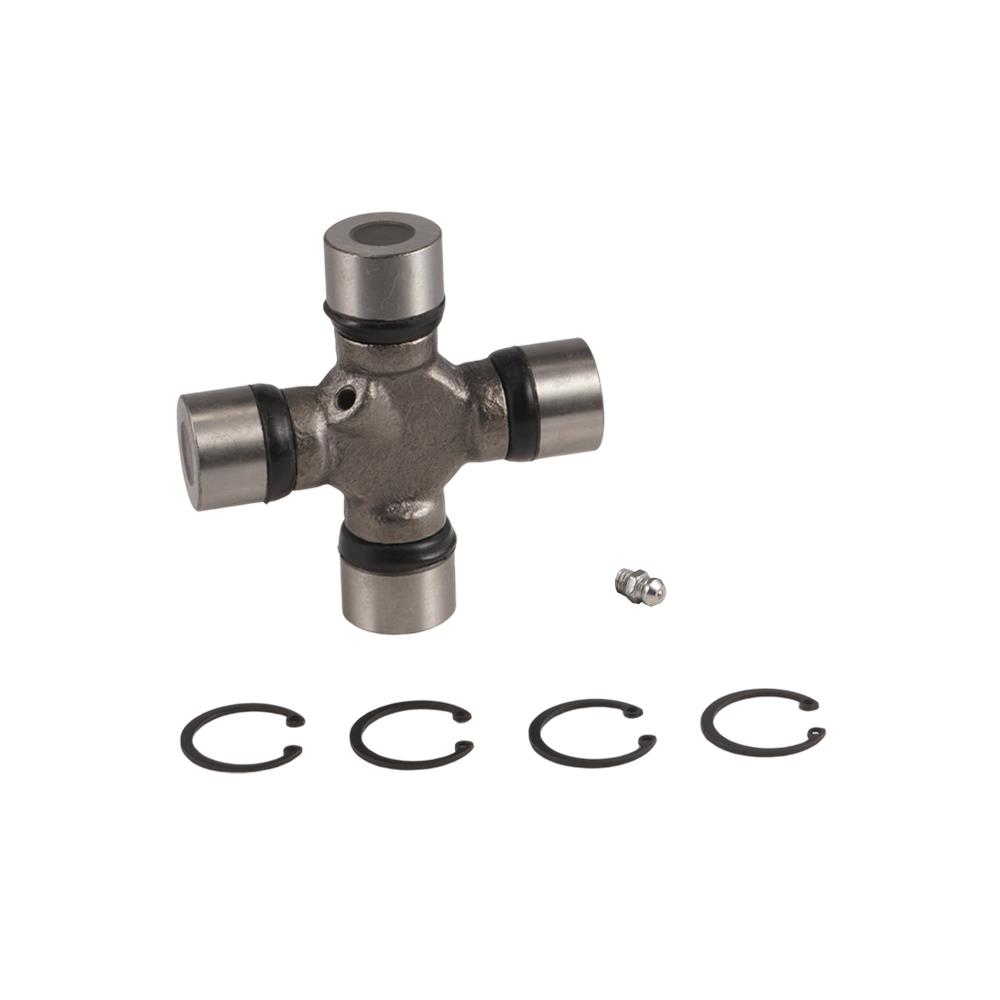

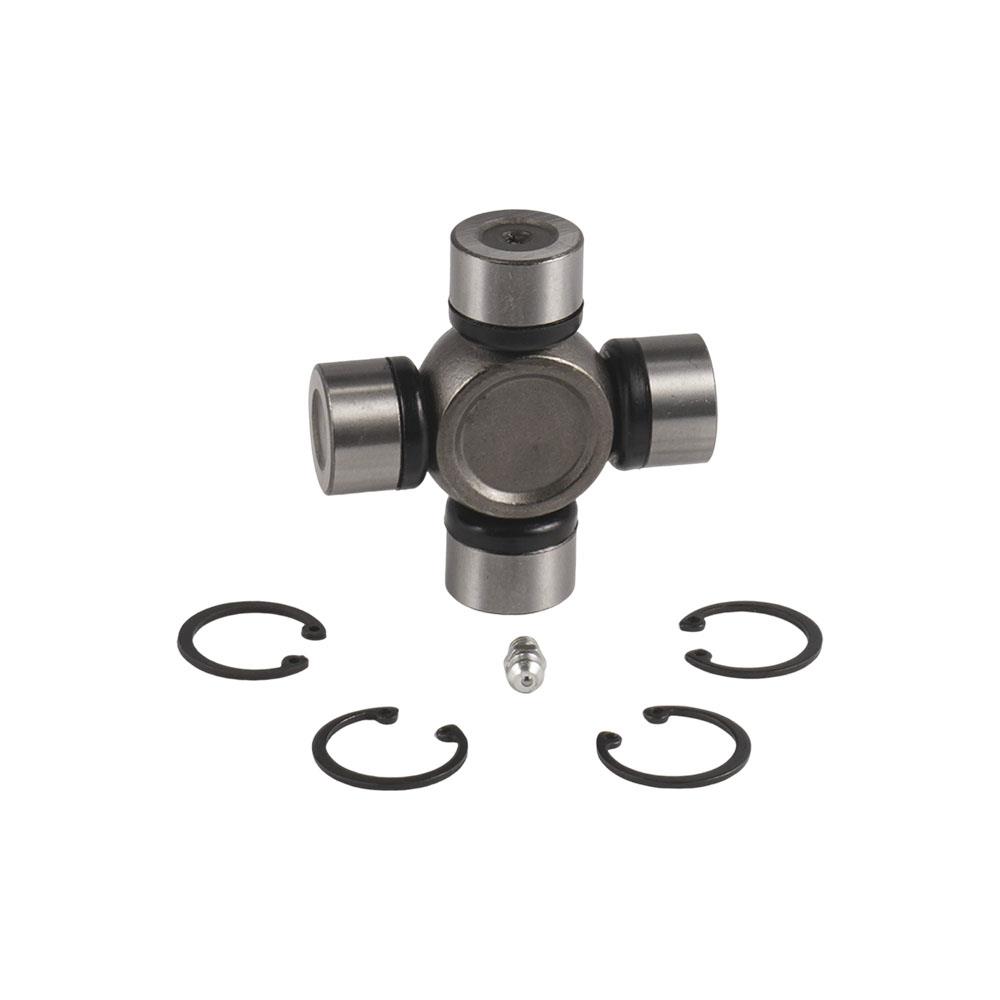

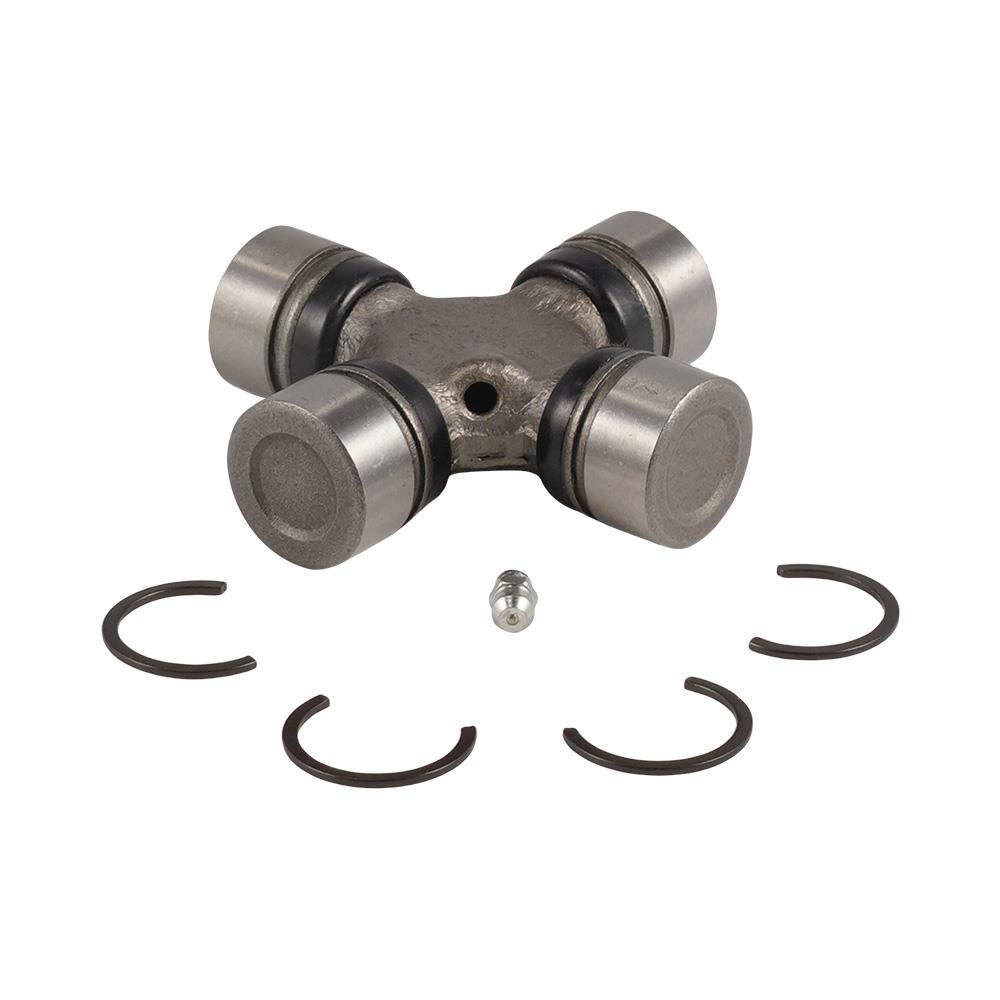

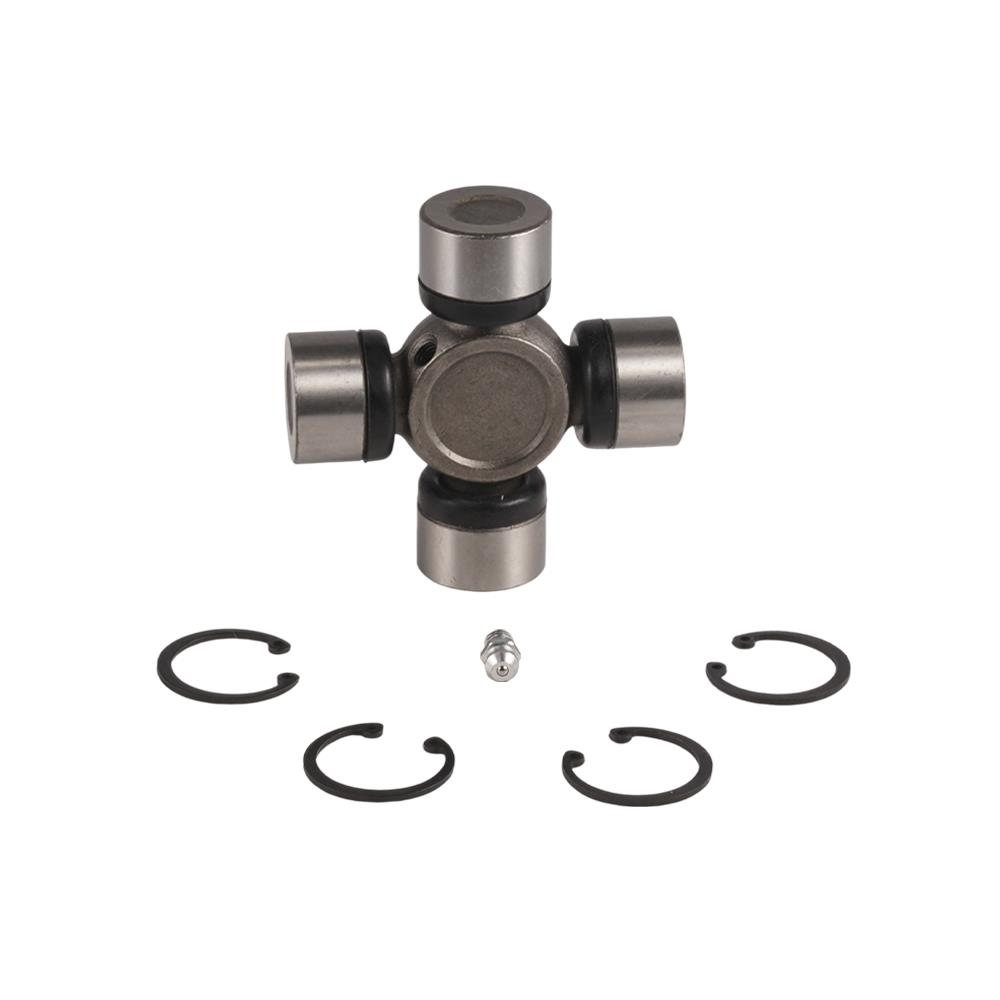

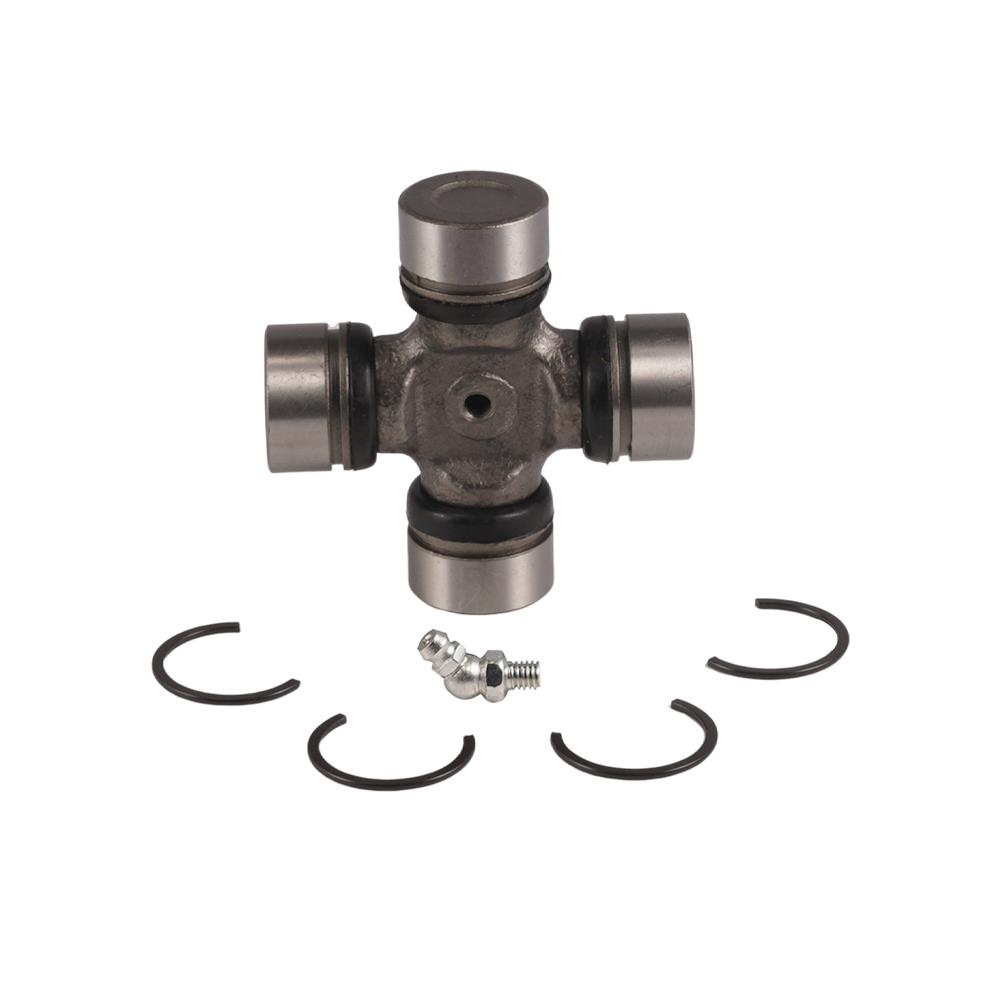

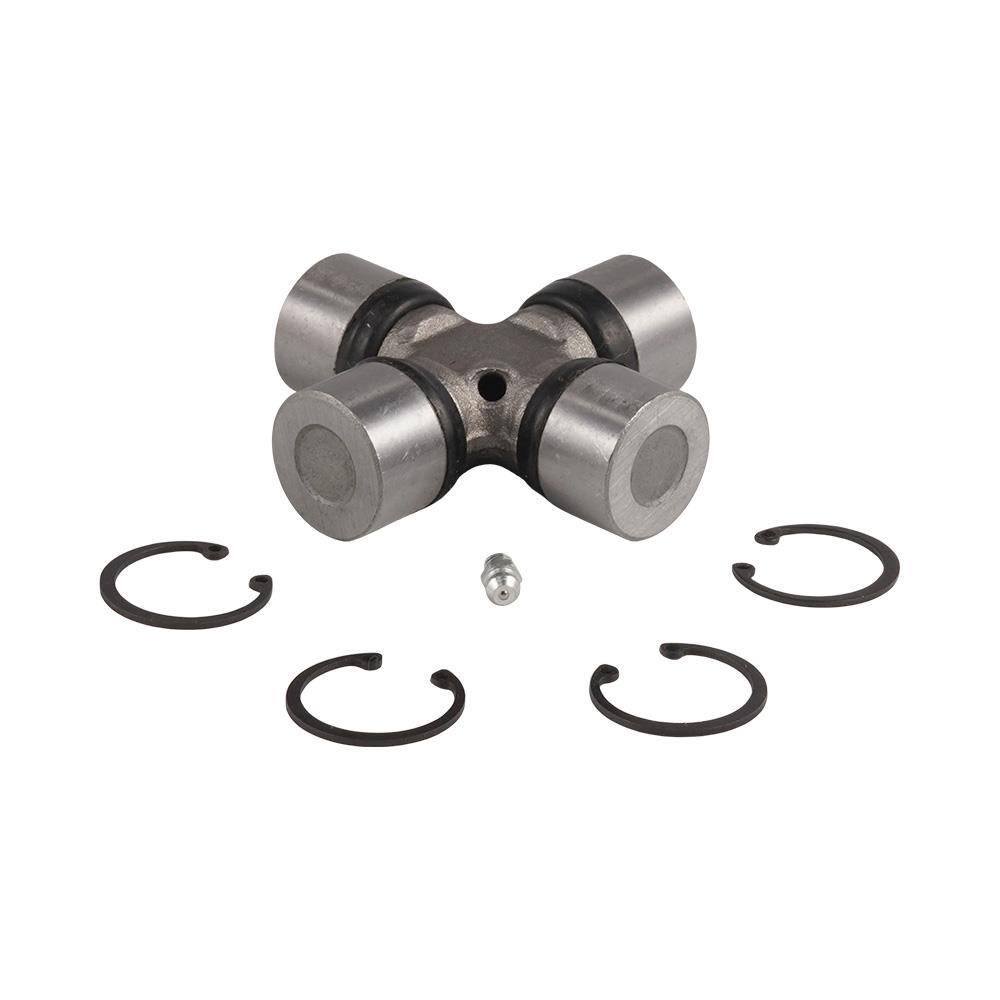

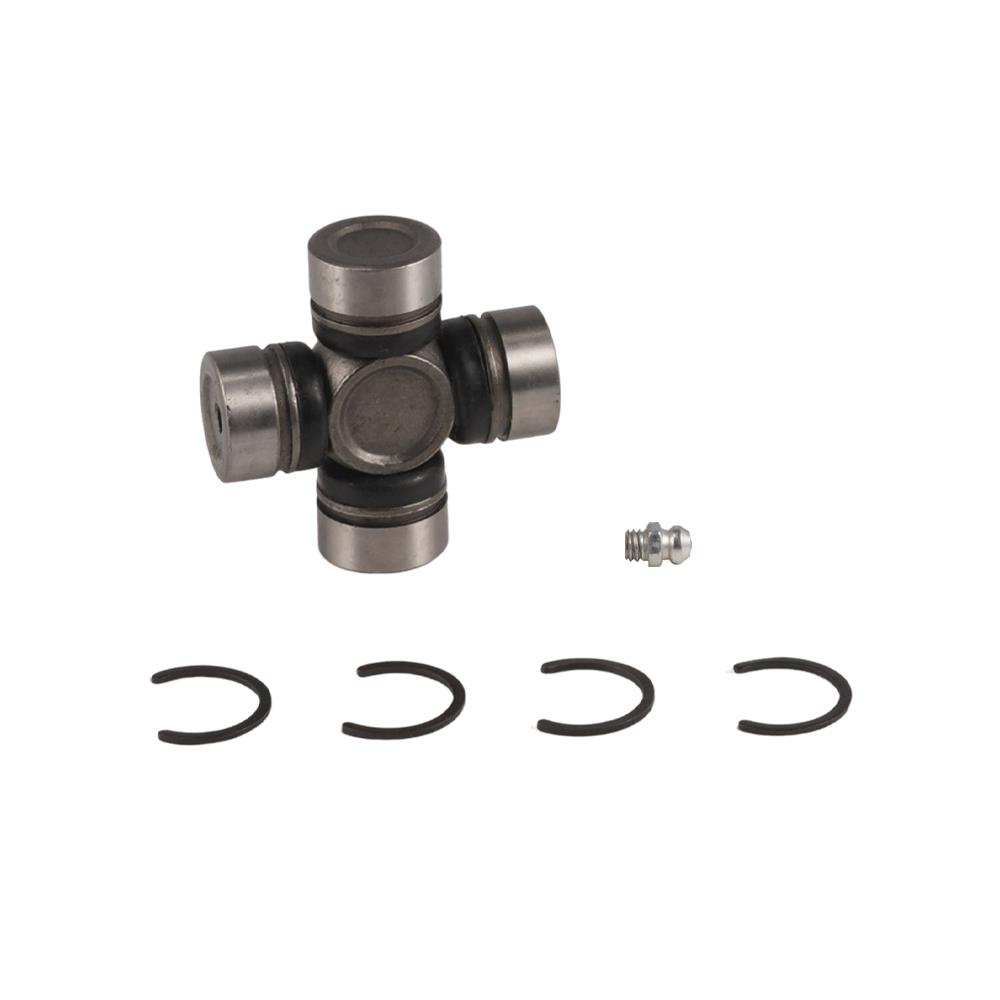

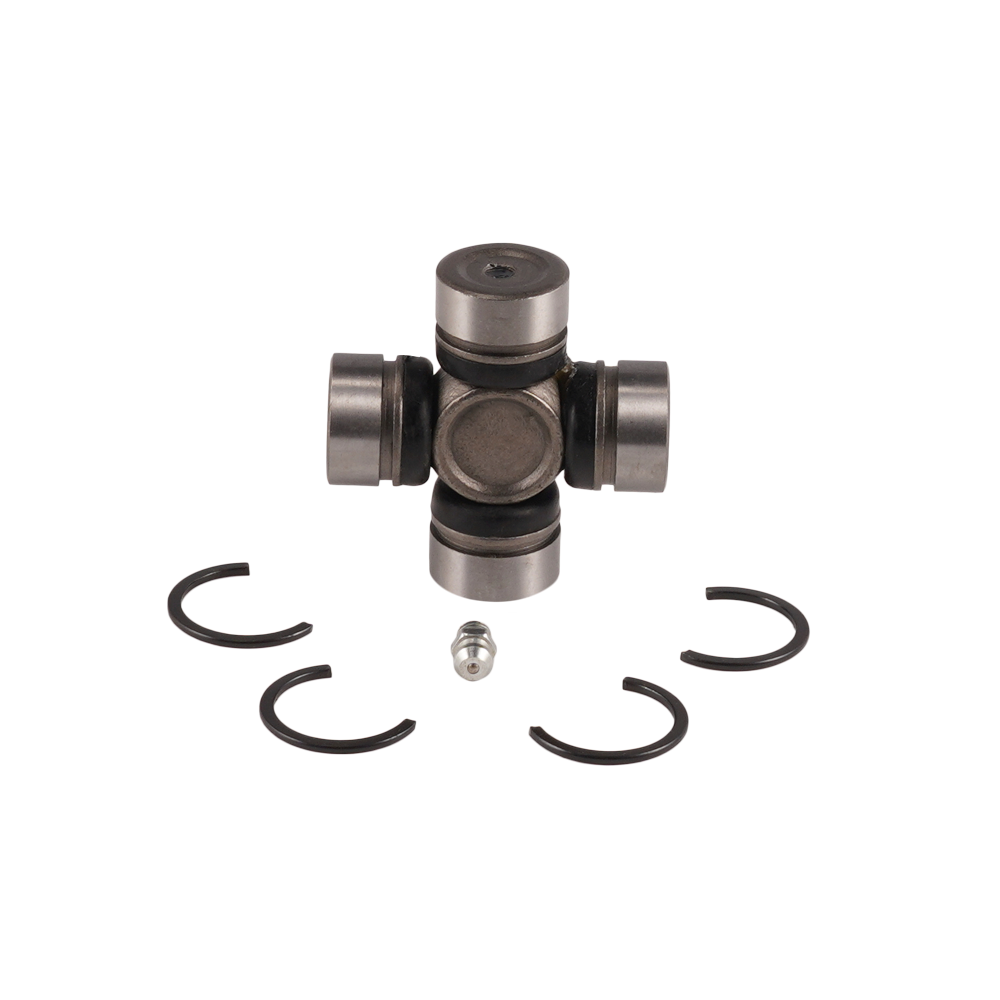

A universal joint, also called a U-joint, is a part that links two shafts, letting them spin and move power even if they’re at an angle, like in many cars with rear-wheel drive. It has a cross-shaped piece with hinges that help it flex, making it useful for vehicles going over bumps.
How It Works
It works by letting the shafts move up and down with the car’s suspension while still sending power. Unlike CV joints, it doesn’t keep a steady speed, which can cause some shaking or uneven motion, especially at big angles.
Common Uses
You’ll find them in rear-wheel-drive, four-wheel-drive, and all-wheel-drive cars, usually in the driveshaft connecting the transmission to the wheels. They’re also used in farm equipment and industrial machines where shafts need to move at angles.
Signs of Trouble
If it’s wearing out, you might hear clunking or squeaking noises, feel the car shake, or see grease leaking. These can happen if it’s old, not greased enough, or misaligned, and it’s best to fix them quickly to avoid bigger problems.
Keeping It Working
Check it regularly, grease it if it needs it (about every 20,000 to 40,000 miles), make sure it’s installed right, and use good-quality parts, especially if you’ve modified your car. This can help it last a long time, often over 100,000 miles.
Definition and Historical Context
A universal joint, or U-joint, is a mechanical coupling that connects two rigid shafts whose axes are inclined to each other, commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. This design allows the joint to handle angular misalignment, making it essential for applications where shafts are not in a straight line. Historically, universal joints have been known by various names, including Cardan joint (after Gerolamo Cardano, a 16th-century polymath), Hooke joint (after Robert Hooke, a 17th-century scientist), Spicer joint (after Clarence W. Spicer and the Spicer Manufacturing Company), and Hardy Spicer joint, reflecting their long-standing use and evolution.
The concept dates back to ancient times, with early uses in mechanisms like Greek ballistae, and later in 19th-century inventions such as Edmund Morewood’s 1844 metal coating machine (U.S. Patent 3,746), Ephraim Shay’s 1881 locomotive (U.S. Patent 242,992), Charles Amidon’s 1884 bit-brace (U.S. Patent 298,542), and Beauchamp Tower’s c. 1885 spherical steam engine. These historical applications highlight the versatility and enduring relevance of universal joints.
Common Applications and Types
Universal joints are predominantly used in automotive applications, particularly in rear-wheel-drive (RWD), four-wheel-drive (4WD), and all-wheel-drive (AWD) vehicles. They are typically found in the driveshaft, connecting the transmission to the differential or transfer case, allowing the driveshaft to move up and down with the suspension while transmitting power. This is crucial for handling bumps, potholes, and uneven terrain.
Beyond automotive, universal joints are used in farm equipment, heavy machinery, and industrial systems where shafts need to transmit motion at varying angles. There are several types, including:

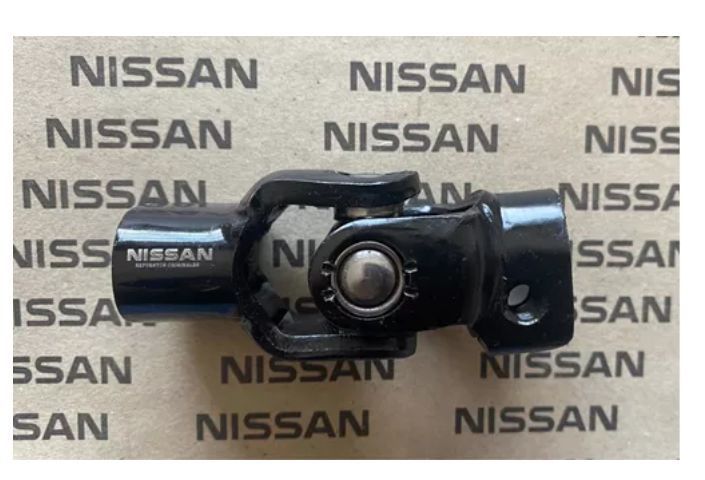

- Single Universal Joints: Suitable for angles up to 35°, commonly used in steering systems and driveshafts.
- Double Universal Joints: Can handle angles up to 70°, often used in more complex applications to reduce vibration.

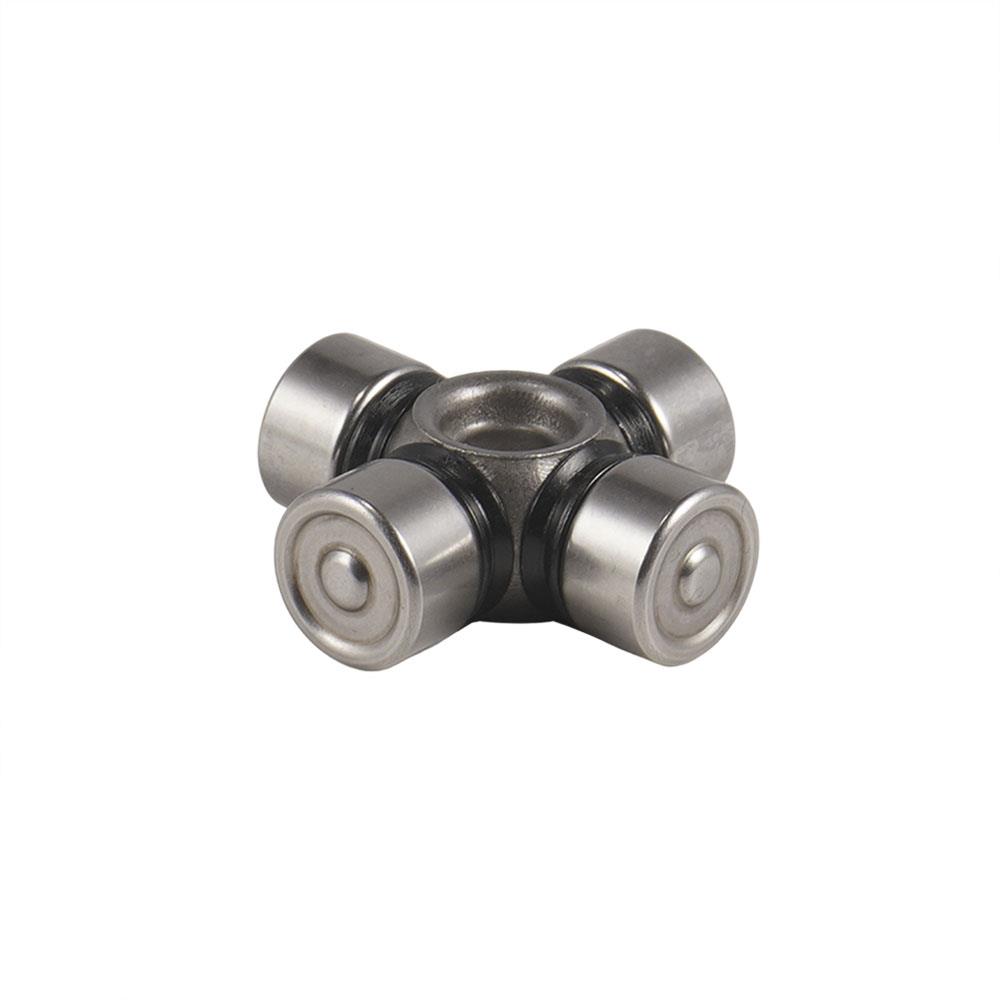

- Needle-Bearing Joints: Offer reduced friction and are pre-lubricated for high-speed operation.
- Pin and Block Joints: Used in industrial applications, requiring lubrication to prevent overheating and wear.
These types cater to different needs, such as high articulation angles for steering or reduced friction for high-speed industrial applications.
Differences from CV Joints
A key distinction is that universal joints are not constant-velocity joints, unlike CV joints, which maintain a steady speed regardless of the angle. This difference arises from the variable output speed in universal joints, as described by the angular velocity equation, leading to potential vibrations and wear. CV joints, commonly used in front-wheel-drive (FWD) vehicles, are designed for smoother operation, especially with frequent steering and suspension changes. In contrast, universal joints are simpler and more suited for RWD and 4WD systems, where the driveshaft needs to handle significant vertical movement. A double Cardan joint configuration (two U-joints 90° out of phase) can act as a CV joint if the input and output shafts are at equal angles with the intermediate shaft, but this is a specialized setup.
Symptoms of Failure and Common Issues
Universal joints can fail over time, and recognizing the symptoms is crucial for timely maintenance. The following table summarizes common symptoms, their descriptions, and potential causes:
| Symptom | Description | Potential Causes |
|---|
| Squeaking Noise | High-pitched sound, especially at low speeds or during turns. | Lack of lubrication, dry bearings. |
| Clunking Sound When Shifting | Loud clunk or clank when shifting from drive to reverse or vice versa. | Worn U-joint, misalignment, or backlash. |
| Vibrations While Driving | Shaking or vibrating, particularly at higher speeds. | Worn U-joint, driveshaft imbalance, or misalignment. |
| Grease or Fluid Leakage | Visible grease or transmission fluid around the U-joint area. | Damaged boot, seal failure, or corrosion. |
| Difficulty Shifting Gears | Trouble engaging gears, often with clunking noises. | Worn inner U-joint, excessive wear. |
Common causes of failure include lack of maintenance, such as not greasing greaseable U-joints, corrosion from environmental exposure, misalignment due to improper installation or vehicle modifications (e.g., larger tires, lift kits), and overloading from high horsepower or heavy loads. For example, Mechanicbase notes that U-joints should be greased every 20,000 to 40,000 miles, and failure to do so can lead to binding and wear.
