Steering Knuckle

What is a Steering Knuckle?

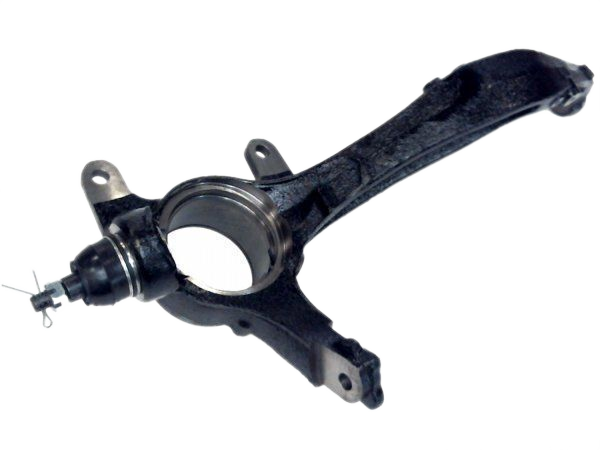

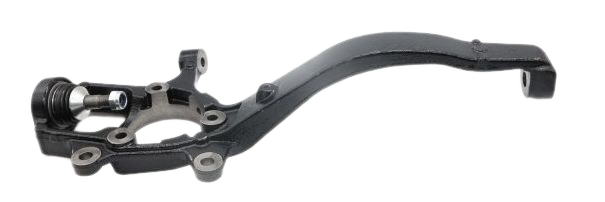

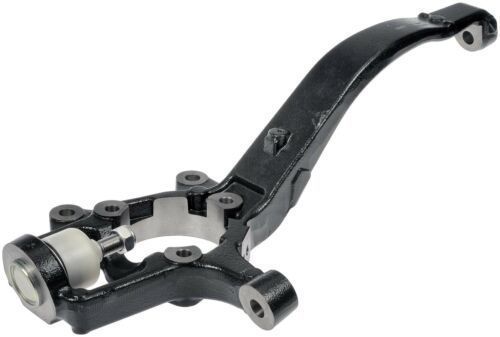

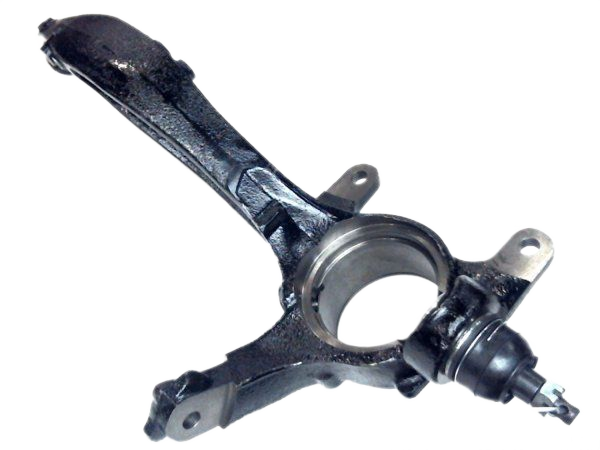

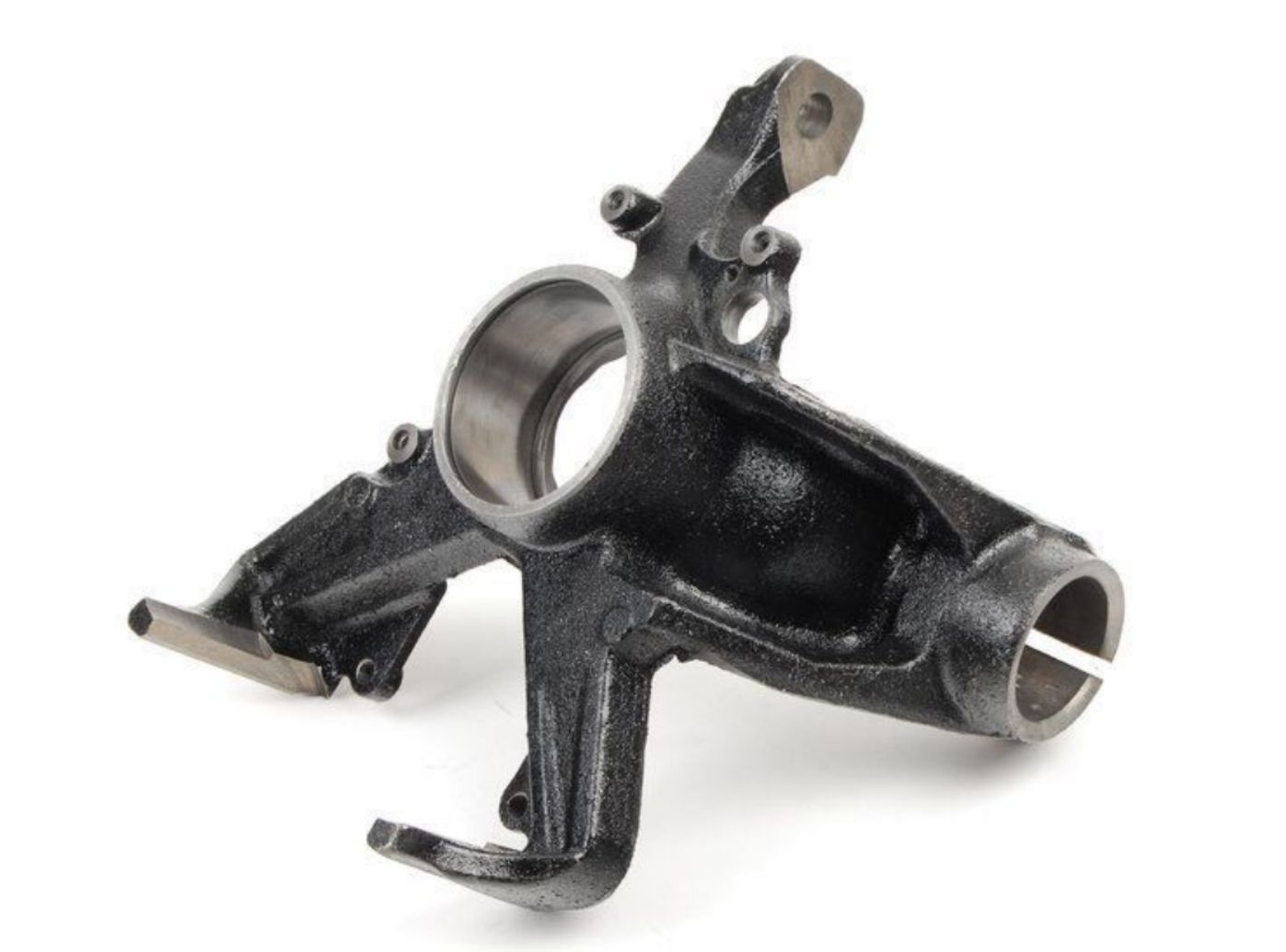

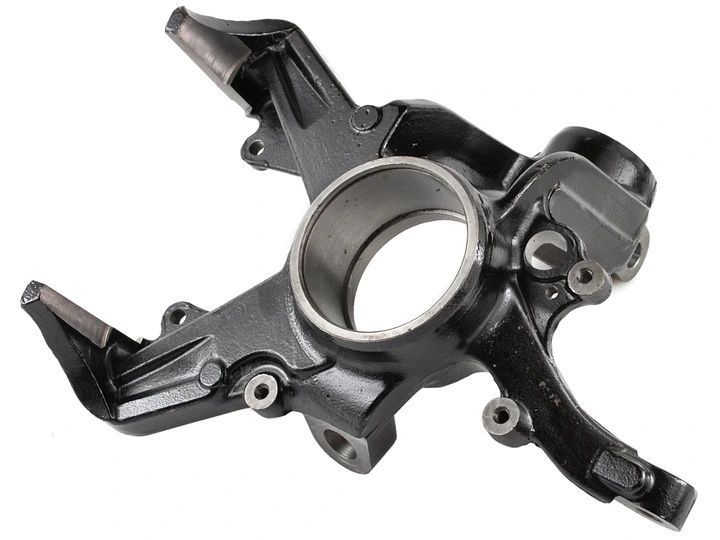

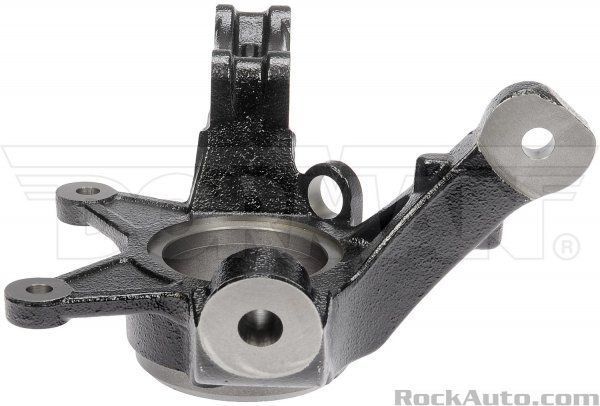

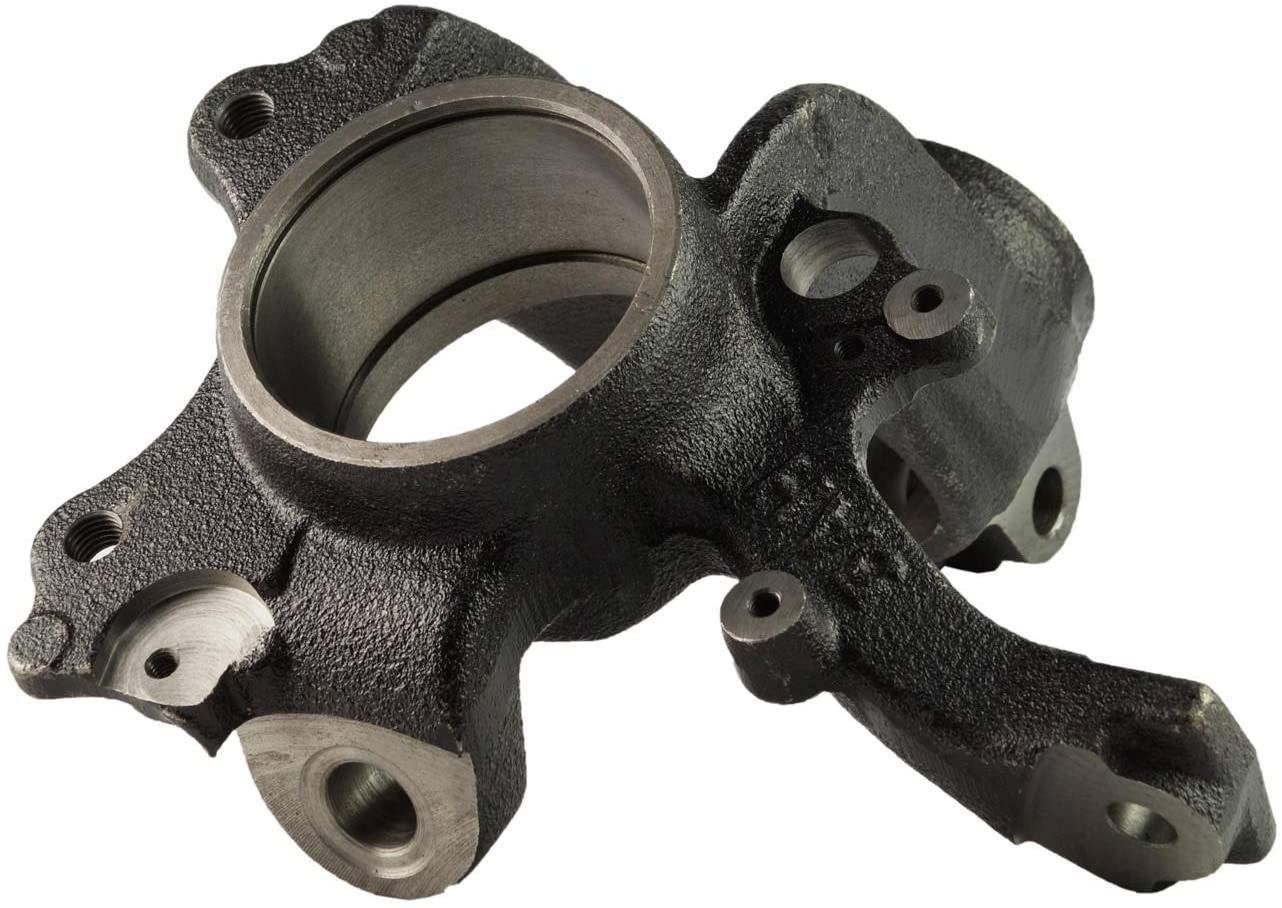

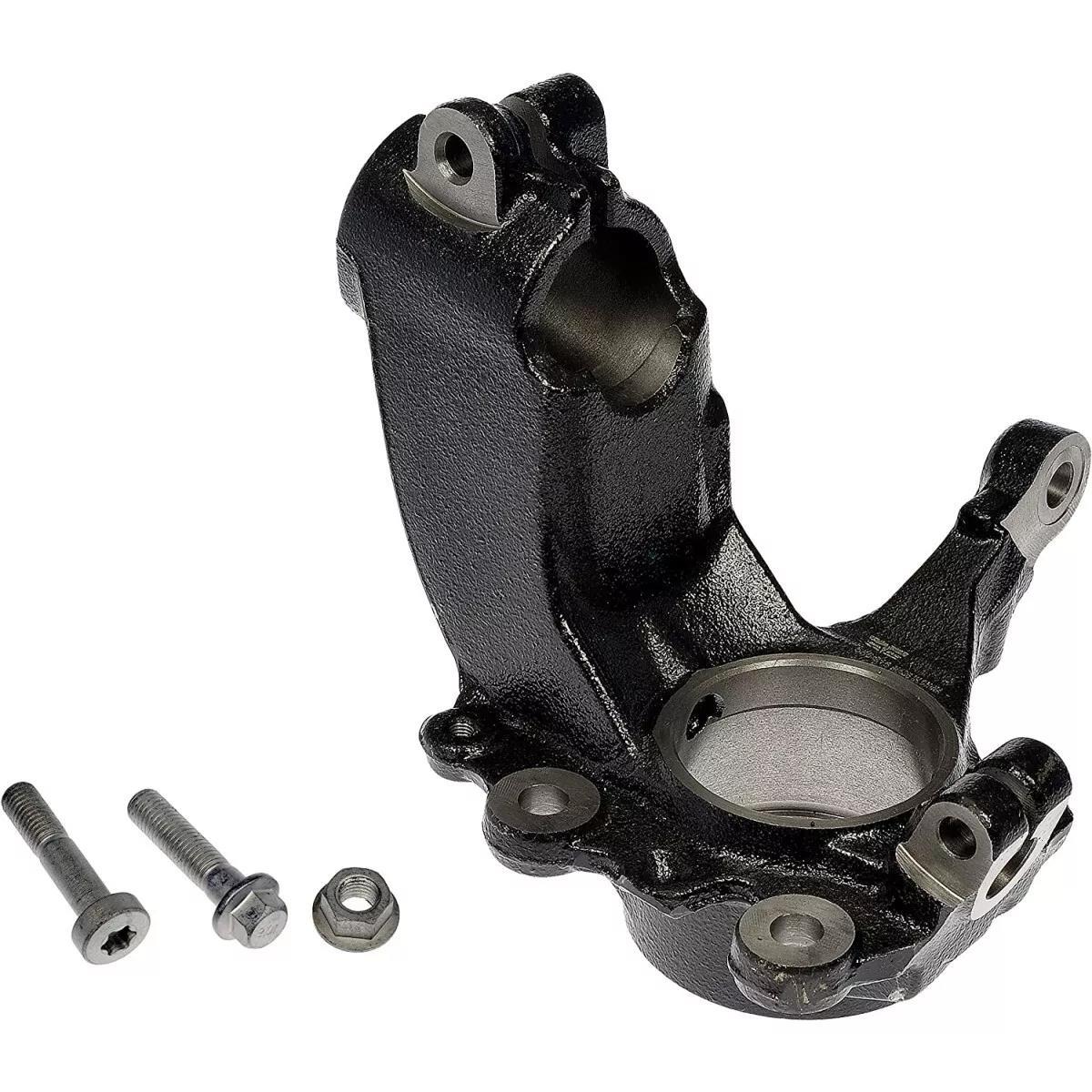

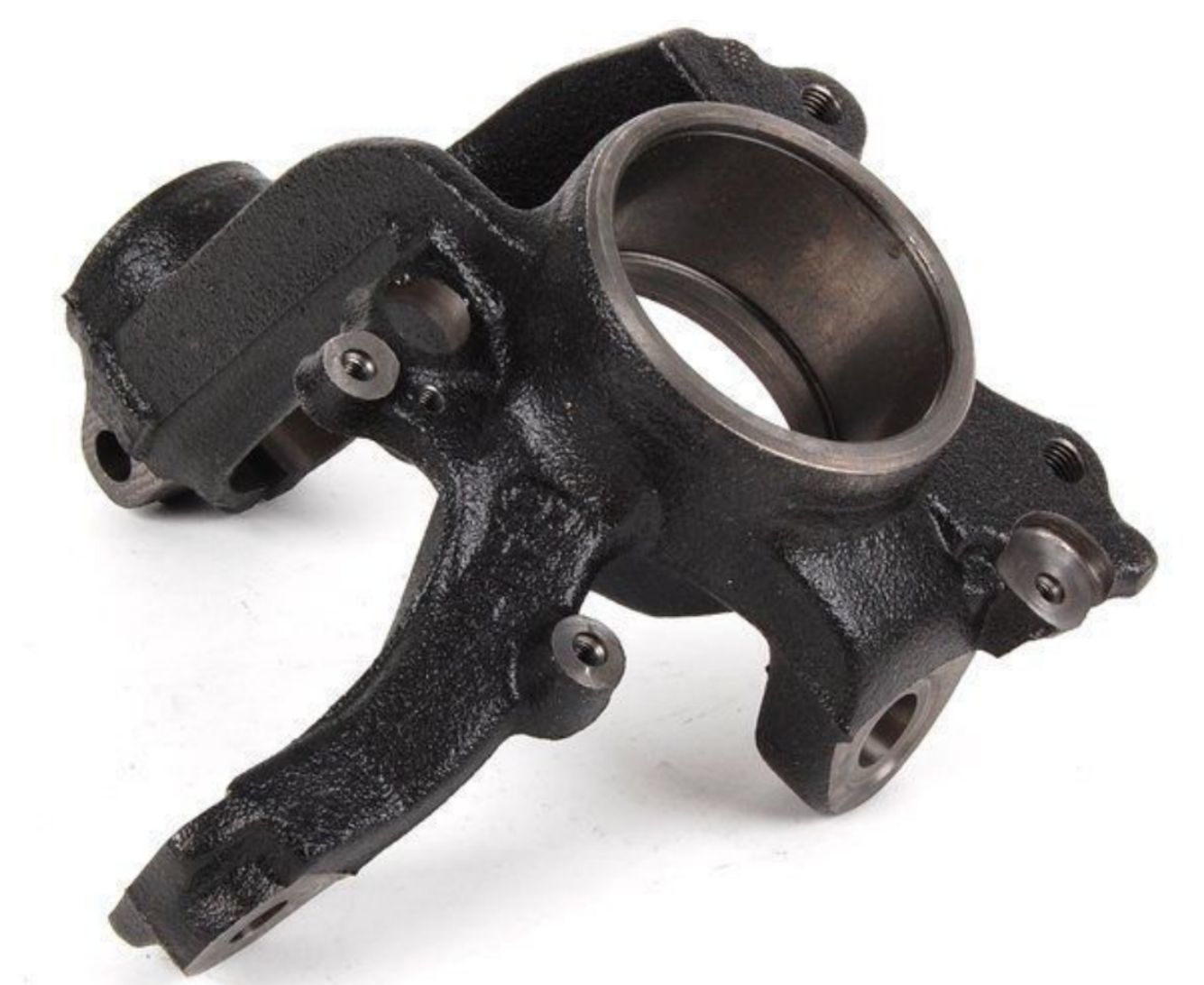

A steering knuckle, also known as an upright, is a critical component in your car's steering and suspension system. It connects the wheel hub (where the wheel attaches) to the suspension and steering parts, allowing the wheel to turn when you steer. Think of it as the pivot point that lets your car change direction while keeping the wheel stable.

Function and Importance

The steering knuckle holds the wheel and tire in place, letting them rotate smoothly while you drive. It also mounts the disc brake caliper, which is essential for braking. This part is vital for safe driving, as it ensures your car can turn, stop, and stay stable. If damaged, it can affect how your car handles, potentially leading to safety issues like loss of control.

Common Issues

While steering knuckles are designed to last, they can get damaged by crashes, hitting potholes, or even corrosion. Signs of trouble include a tilted wheel, squealing when turning, or the car pulling to one side. If this happens, it might need replacement to keep your car safe and aligned.

Detailed Survey Note on Steering Knuckles

This note provides an in-depth exploration of steering knuckles, expanding on the key points and functions discussed earlier. It aims to offer a comprehensive understanding for those interested in automotive mechanics, vehicle maintenance, or simply curious about how cars work. The information is drawn from a variety of reliable sources, including automotive websites, engineering resources, and manufacturer insights, ensuring a thorough and accurate overview.

Definition and Role in the Vehicle

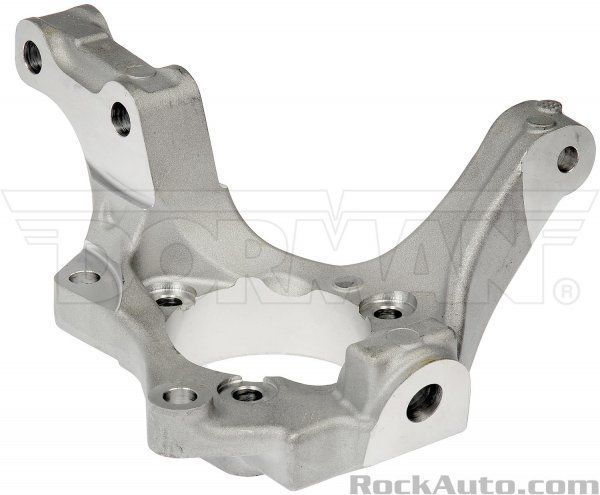

A steering knuckle, often referred to as an upright, is a fundamental component of a vehicle's steering and suspension system. It is typically a robust piece of steel or, in modern vehicles, aluminum, designed to withstand significant stress. The steering knuckle serves as the connection point between the wheel hub (or spindle) and the suspension and steering components. This connection is crucial, as it allows the wheel to rotate while being held in a stable plane of motion by the suspension system.

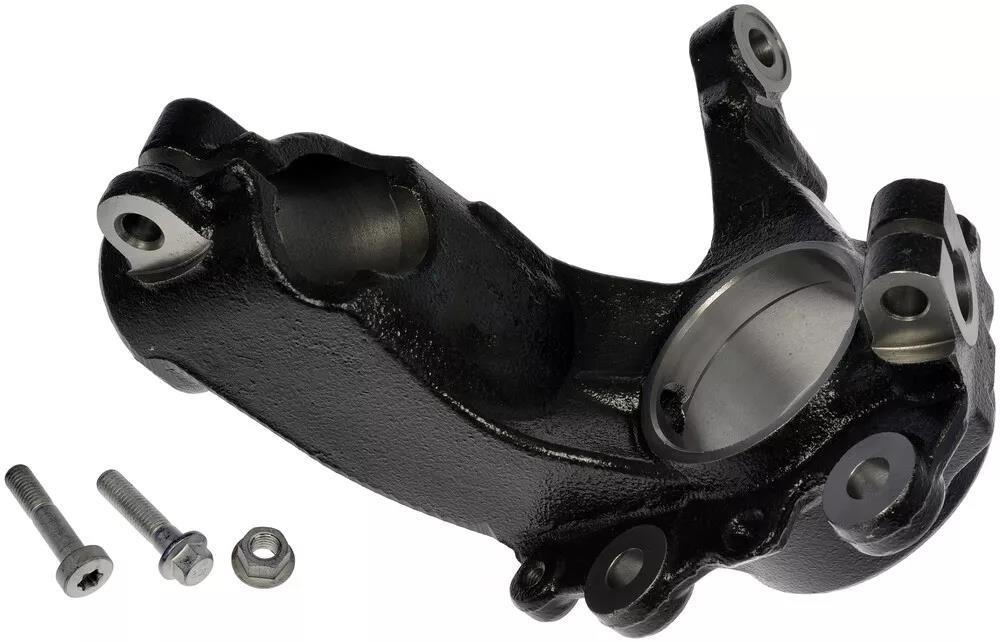

The wheel and tire assembly attach to the hub or spindle of the knuckle, where the tire rotates. In a double-wishbone suspension, for example, the knuckle is attached to the upper and lower control arms, providing stability and support. The steering mechanism connects to an arm on the knuckle, enabling the wheel to turn left or right when the steering wheel is moved.

There are two main types of steering knuckles based on their application:

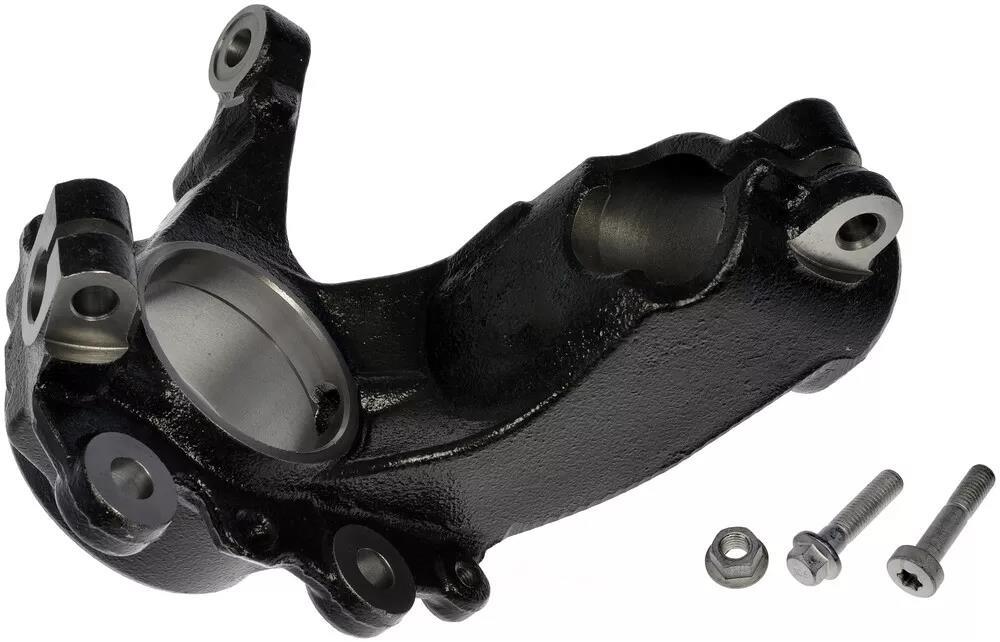

1. With Hub: Common in drive suspensions (e.g., front-wheel-drive vehicles), where the hub accommodates the bearings and shaft of the drive mechanism. The wheel assembly rotates as dictated by the drive shaft (or half-shaft) and does not rotate freely unless disengaged from the transaxle or differential.

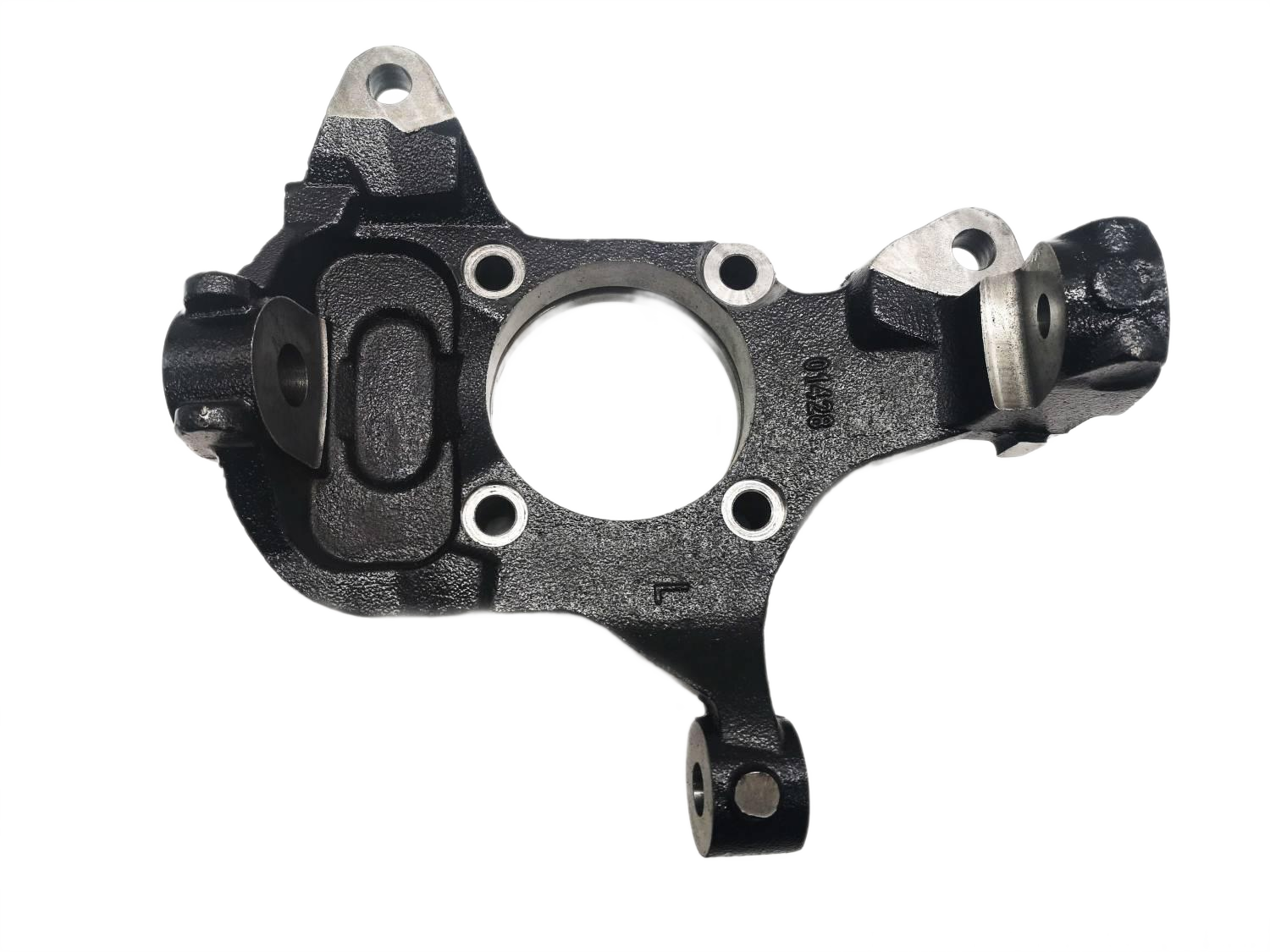

2. With Spindle: Typical in non-drive suspensions, where the spindle supports the inner and outer wheel bearings, and the brake drum or rotor is attached. The wheel and tire rotate freely on the spindle shaft.

This distinction is important, as it affects how the knuckle interacts with other components like the CV axle or brake system, depending on whether the vehicle is front-wheel-drive, rear-wheel-drive, or all-wheel-drive.

Function and Operational Mechanics

The primary function of the steering knuckle is to enable the vehicle to change direction by facilitating wheel turning. It achieves this through several key mechanisms:

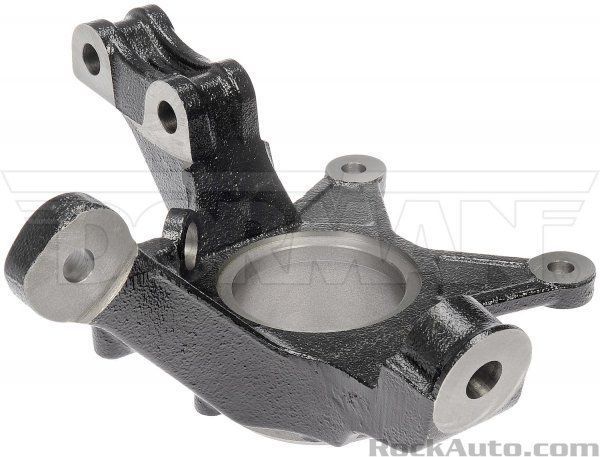

1. Connection to Suspension: The top and bottom arms of the steering knuckle attach to the suspension system via pivots called ball joints. These ball joints allow the knuckle to pivot left or right, enabling the wheel to turn while maintaining a vertical position. This is essential for maintaining stability during cornering or uneven road conditions.
2. Connection to Steering System: A lateral arm on the steering knuckle connects to the tie rod, which is part of the steering linkage. When you turn the steering wheel, the tie rod either pushes or pulls the lateral arm, causing the knuckle (and thus the wheel) to rotate. This mechanism translates your steering input into directional change.
3. Support for Wheel Rotation: The steering knuckle holds the wheel hub or spindle, ensuring the wheel and tire can rotate smoothly. This is critical for maintaining forward motion and ensuring the vehicle can travel in a straight line or turn as needed.
4. Mounting Point for Brakes: In vehicles with disc brakes, the disc brake caliper mounts directly to the steering knuckle. This integration is vital for braking performance, as it ensures the brake pads can apply pressure to the rotor to slow or stop the vehicle.

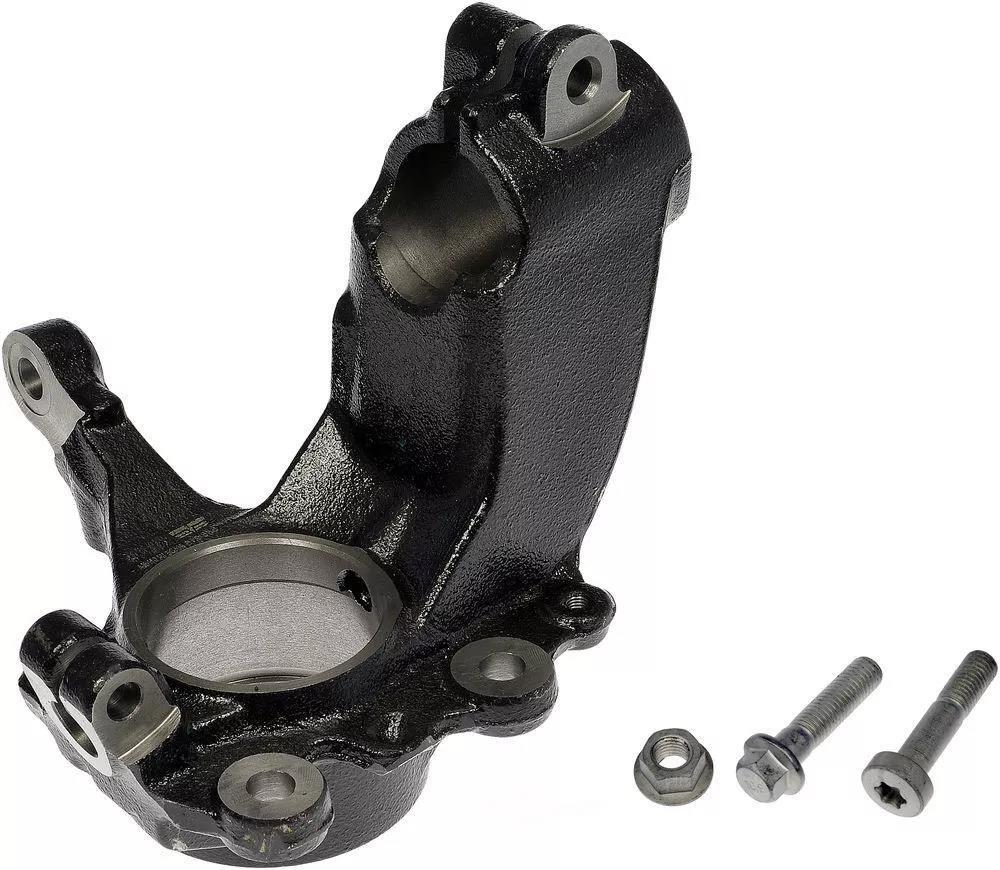

In driven suspensions (where the wheel is also powered, such as in front-wheel-drive cars), the steering knuckle must also accommodate the drive mechanism. Here, the hub includes mounting studs for the wheel and tire, as well as the brake assembly, and rotates as per the drive shaft's movement. This dual role of steering and driving makes the knuckle particularly critical in such configurations, as it must handle both steering inputs and power transmission.

Importance and Safety Implications

The steering knuckle is not just a mechanical link; it is a cornerstone of vehicle safety and performance. Its importance can be broken down into several key areas:

1. Enabling Steering: Without a functional steering knuckle, the vehicle cannot turn, as it is the pivot point that translates steering wheel movement into wheel rotation. This is fundamental for directional control, especially at high speeds or during emergency maneuvers.
2. Maintaining Stability: By connecting to the suspension via ball joints, the steering knuckle ensures the wheel remains stable and aligned, even on rough roads. This stability is crucial for maintaining traction and preventing skids or loss of control.
3. Supporting Braking: The mounting of the disc brake caliper on the knuckle means it plays a direct role in braking performance. A damaged knuckle can affect brake alignment, potentially leading to reduced braking efficiency or uneven wear on brake components.
4. Durability and Longevity: Under normal conditions, steering knuckles are designed to last the vehicle's lifetime. They are built to withstand significant forces, including the weight of the vehicle, cornering loads, and braking forces. However, their durability depends on proper maintenance and avoiding excessive stress.

Despite their robustness, steering knuckles can fail, and when they do, the consequences can be severe. Damage can lead to alignment issues, causing the steering wheel to appear crooked, the vehicle to wander while traveling straight, or steering to feel binded. Uneven tire wear is another common outcome, as misalignment can cause one side of the tire to wear faster than the other. In extreme cases, a broken knuckle can lead to ball joint failure, potentially causing the wheel to detach, which poses a significant safety risk and could result in loss of control.

Common Issues and Symptoms of Damage

While steering knuckles are designed for longevity, they are not immune to damage. Several factors can compromise their integrity, each with distinct symptoms and implications:

1. Damage from Crashes or Collisions: Accidents can bend or deform the knuckle, altering the suspension geometry. This can result in a crooked steering wheel, wandering steering feel (where the car drifts without input), steering bind (difficulty turning), and abnormal tire wear. Such damage often requires professional inspection and likely replacement.
2. Damage from Road Hazards: Striking a curb, pothole, or other road obstacle with significant force can also damage the knuckle. The impact can change the suspension geometry, leading to the same issues as collision damage, including alignment problems and poor handling.
3. Failed CV Axle or Wheel Bearing: If grinding noises from a failed CV axle or wheel bearing are ignored, the excessive vibration or load can deform the wheel-bearing bore in the knuckle. This deformation can render the knuckle unusable, necessitating replacement. Early detection through regular maintenance can prevent this issue.

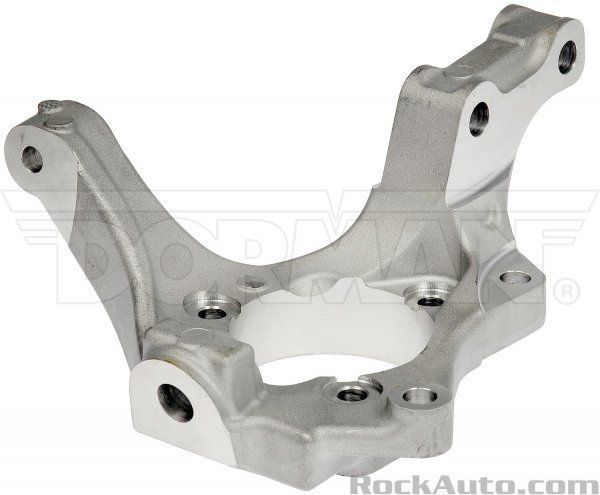

4. Overtightening: Modern vehicles often use aluminum or alloy knuckles, which are softer than traditional steel. Overtightening ball joints or tie-rod ends can damage the tapered bore, compromising the knuckle's integrity and requiring replacement. This is a common issue during repairs or DIY maintenance, highlighting the need for proper torque specifications.
5. Corrosion: Over time, corrosion can affect areas around the pinch bolt, axle nut, or snap ring, making fastener removal difficult. In severe cases, this corrosion can necessitate replacing the entire knuckle, especially if the fasteners cannot be removed without further damaging the component.

Symptoms of a damaged steering knuckle include:

• One wheel appearing more tilted than the other, indicating misalignment.
• Squealing or grinding noises when turning, often due to worn or damaged components connected to the knuckle.
• The vehicle pulling to one side, suggesting an alignment issue caused by a bent knuckle.
• A crooked steering wheel, even when driving straight, which can affect driver confidence and safety.
• Worse cornering performance in one direction, as the damaged knuckle may not pivot smoothly or maintain proper alignment during turns.

These symptoms underscore the importance of regular vehicle inspections, especially after accidents or encounters with road hazards. Annual alignment checks, as recommended by some sources, can help detect issues early and prevent more significant problems.
