What is a Steering Knuckle Assembly?
A steering knuckle assembly is a key part of your car's front suspension and steering system. It links the wheel hub (where the wheel attaches) to the suspension and steering parts, letting you turn the wheel while keeping it stable and supporting the car's weight. It usually includes the knuckle itself, wheel bearings, hub, and sometimes the brake caliper mounts.
Importance
This assembly is vital for steering, as it lets the wheel pivot left or right when you turn the steering wheel. It also supports the wheel, helps with weight distribution, and ensures smooth rotation, often integrating with the brake system for safety.
Common Symptoms of Failure
If it's failing, you might notice:
- The car pulls to one side or the steering wheel shakes.
- Squealing noises when turning.
- One wheel looks more tilted than the other.
- The steering wheel is crooked when driving straight.
- Poor cornering, especially in one direction.
- Vibrations, uneven tire wear, or visible rust.
- In severe cases, a broken knuckle, which is dangerous.
Definition and Historical Context
A steering knuckle assembly is defined as a robust steel component located behind each front wheel, connecting the wheel hub (or spindle) to the suspension and steering systems. It allows the wheel to turn left and right while supporting the vehicle's weight and maintaining stability. The assembly typically includes the steering knuckle itself, wheel bearings, hub, and sometimes the brake caliper mounting points. Historically, steering knuckles have been integral to automotive design since the early days of front-wheel-drive and independent suspension systems, evolving to meet modern safety and performance standards.
The term " Steering Knuckle" is also known as a wheel carrier or upright, emphasizing its role in both steering and suspension. In a drive suspension, the knuckle has a hub into which the bearings and shaft of the drive mechanism are affixed. This design is common in front-wheel-drive vehicles, where the knuckle must accommodate both steering and power transmission.
Components and Function
The steering knuckle assembly comprises several key parts:

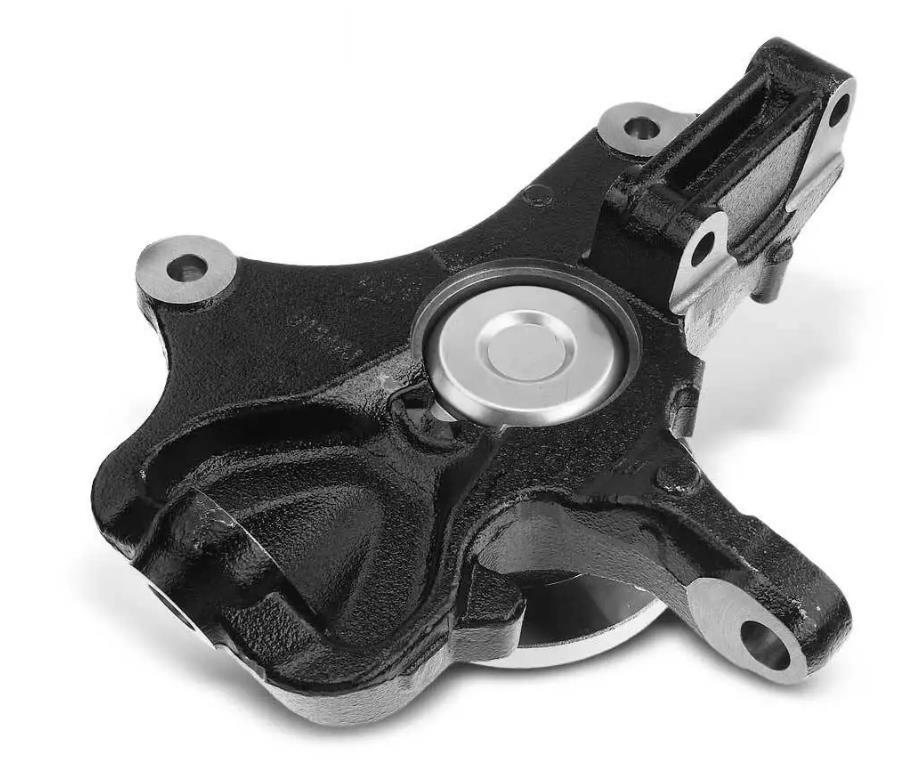

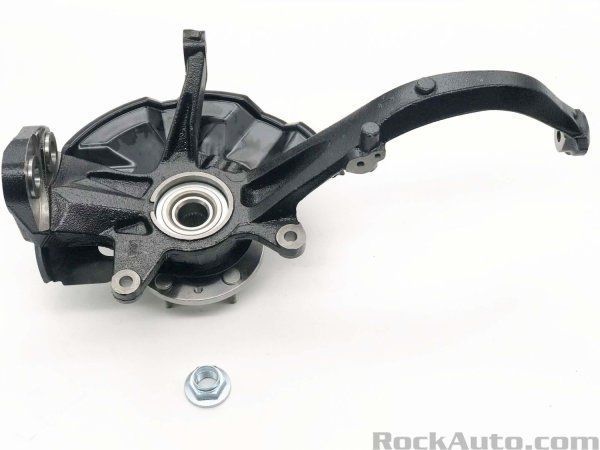

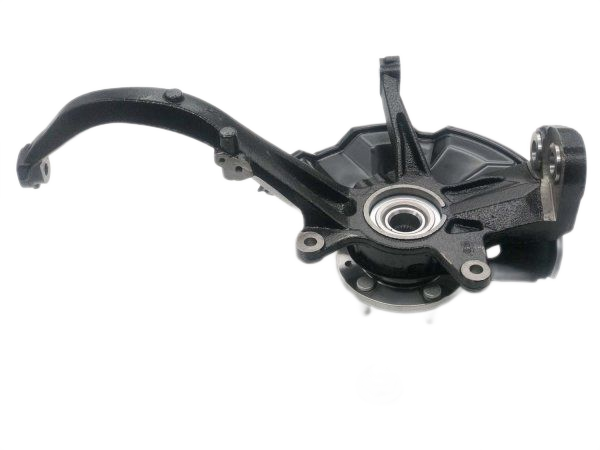

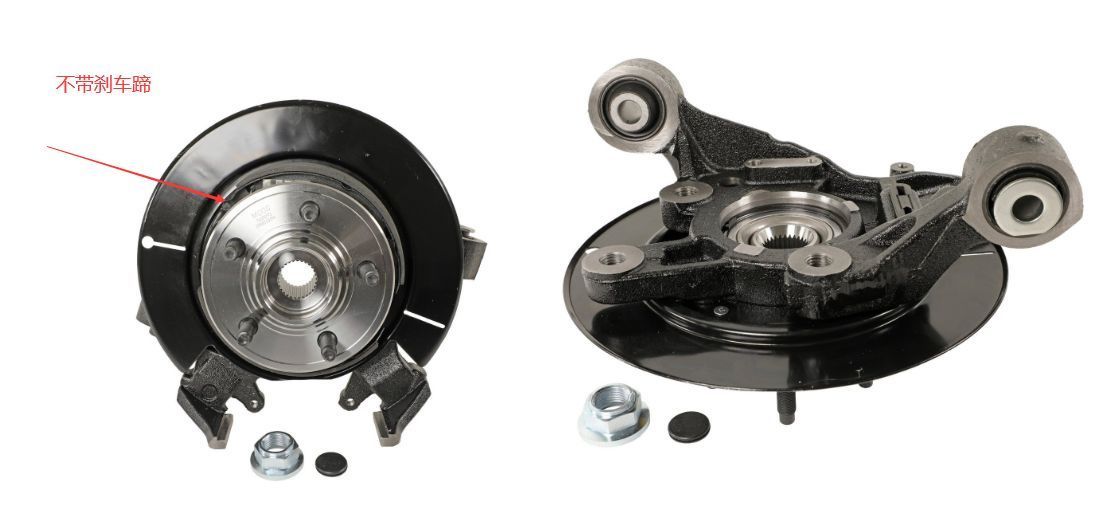

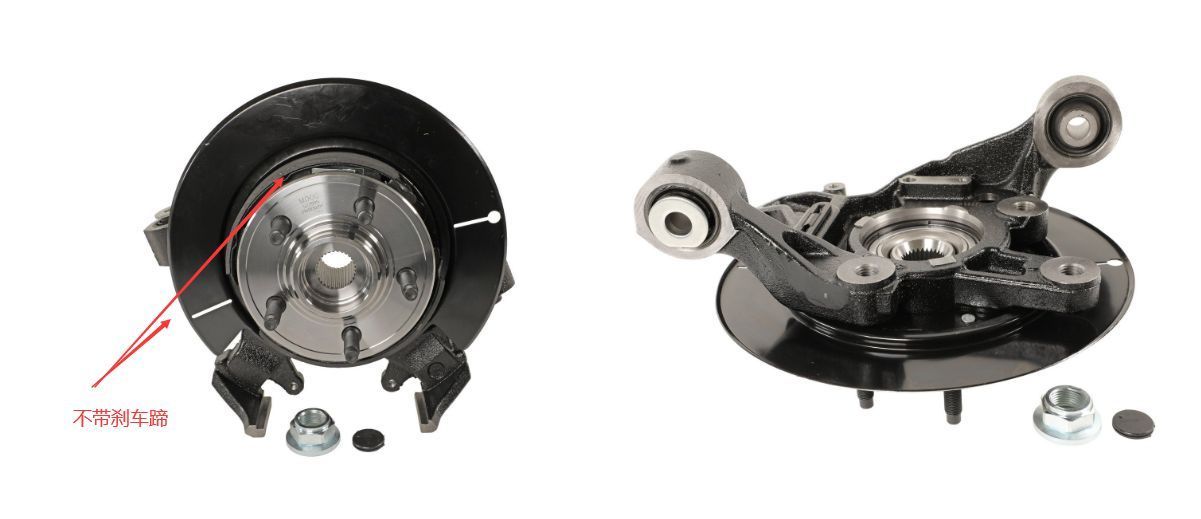

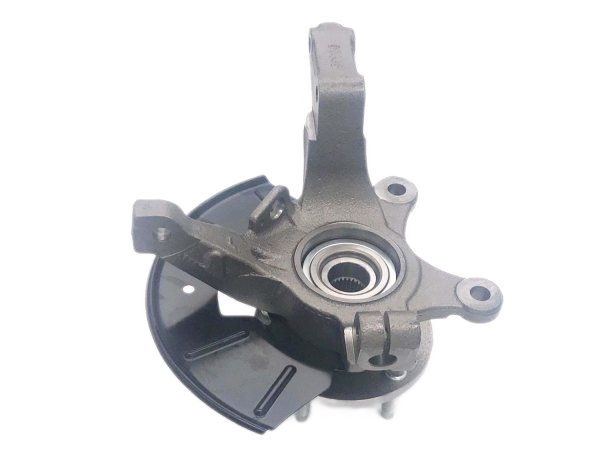

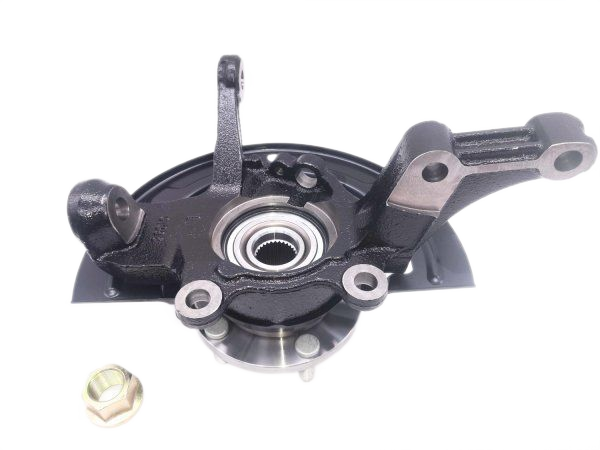

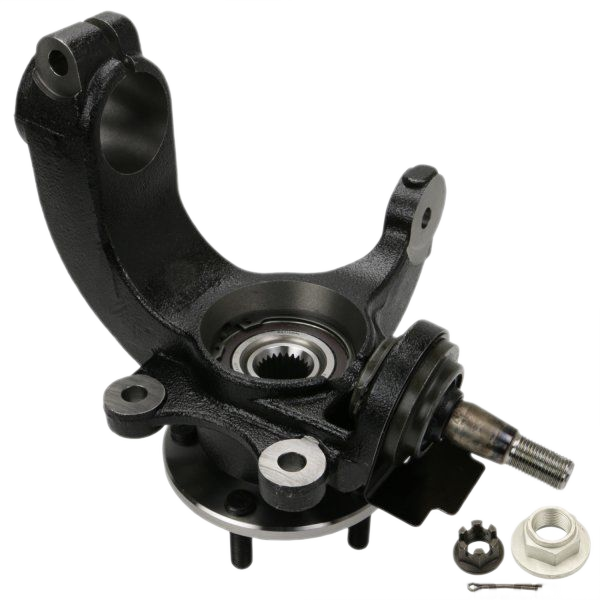

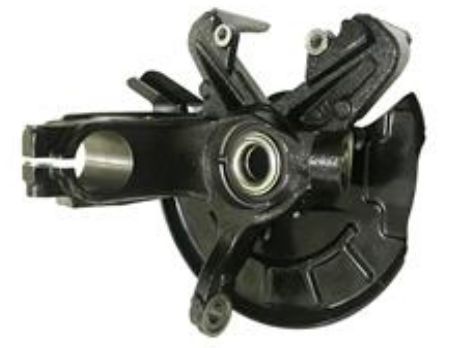

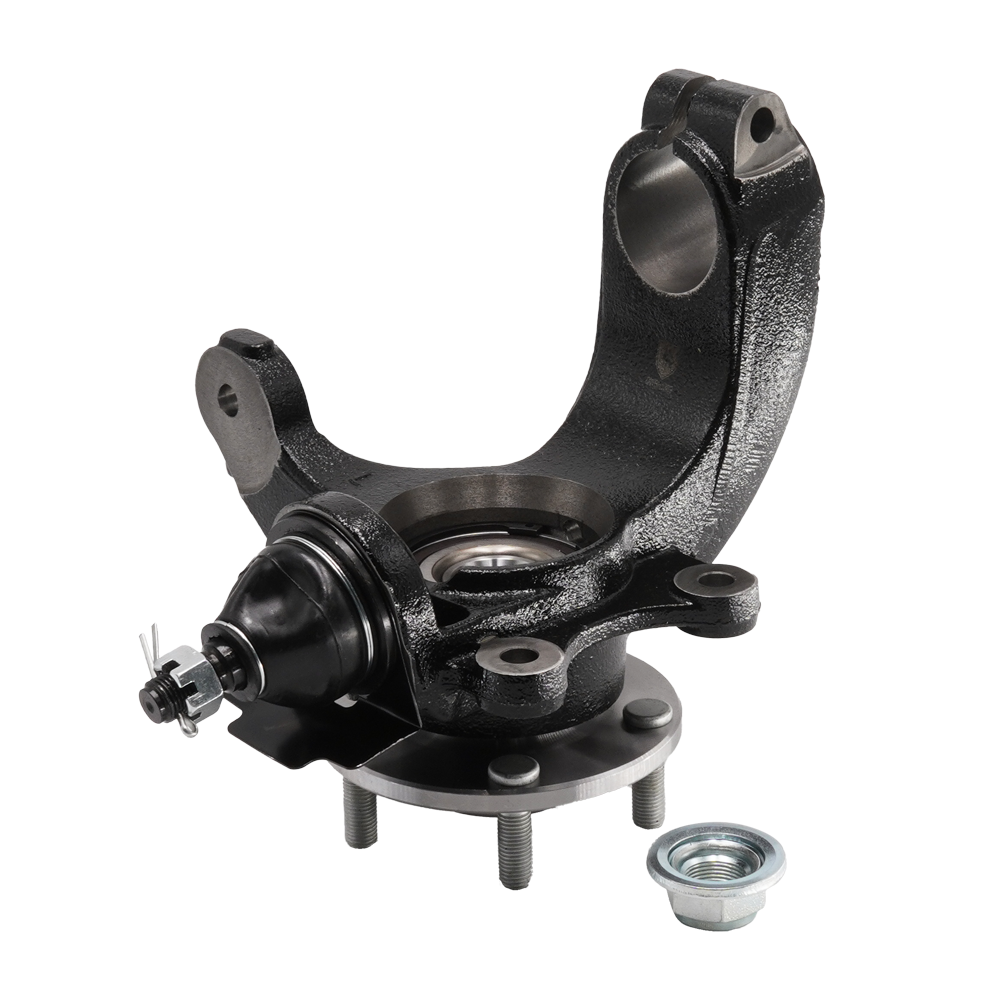

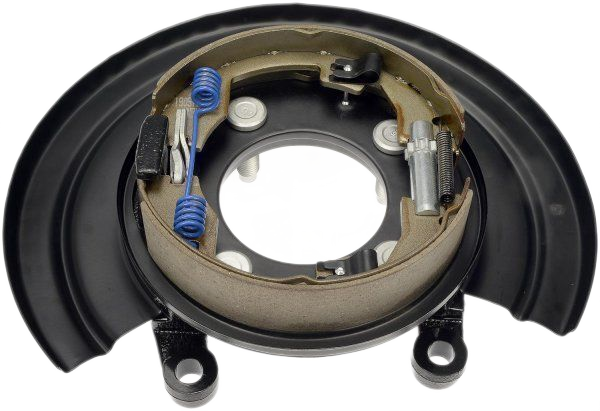

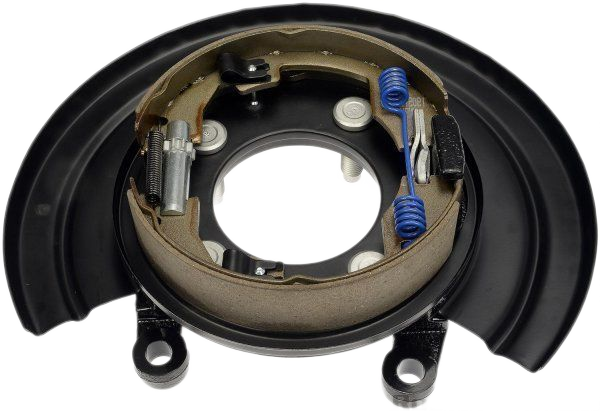

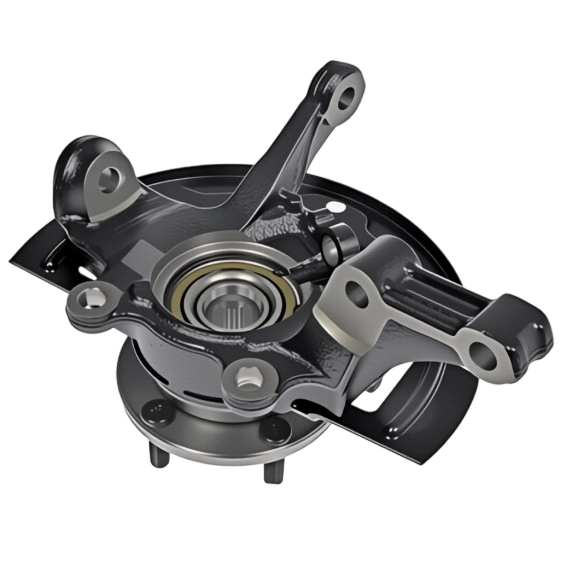

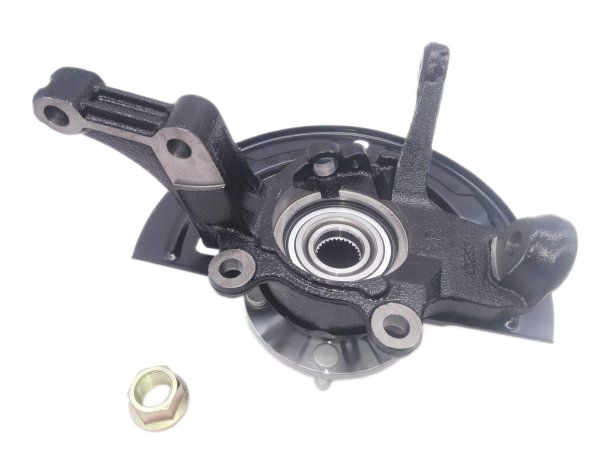

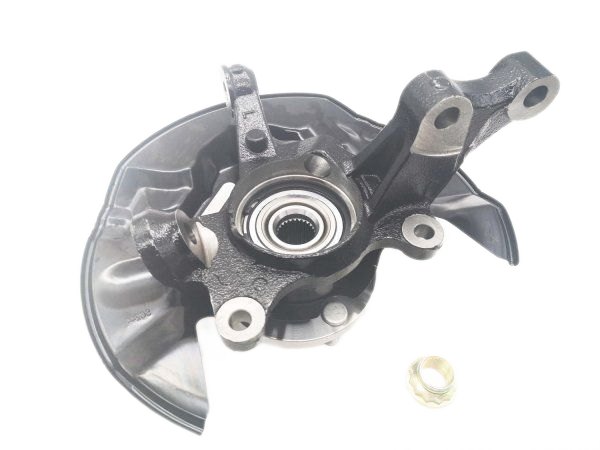

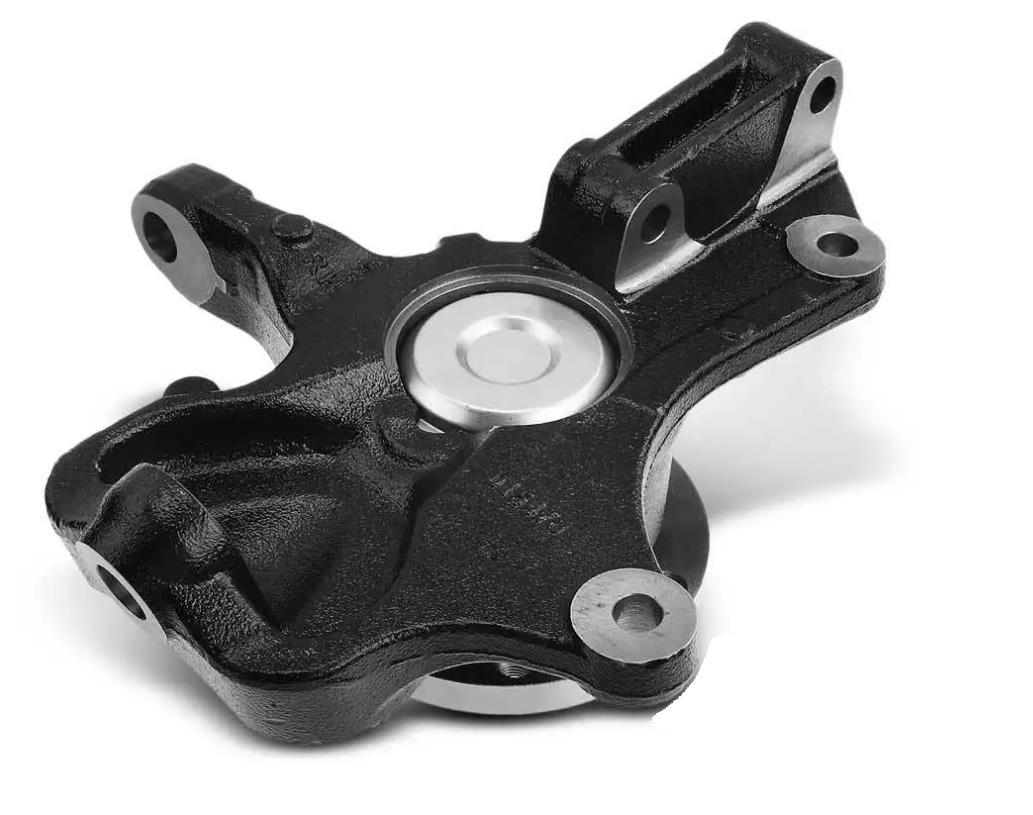

- Steering Knuckle: The main body, a chunky piece of steel with protruding arms, connects to the suspension via ball joints and to the steering system via a tie rod.
- Wheel Hub or Spindle: The center point where the wheel and tire assembly attach, allowing rotation.
- Wheel Bearings: Enable smooth rotation of the hub, supporting the vehicle's weight and reducing friction.

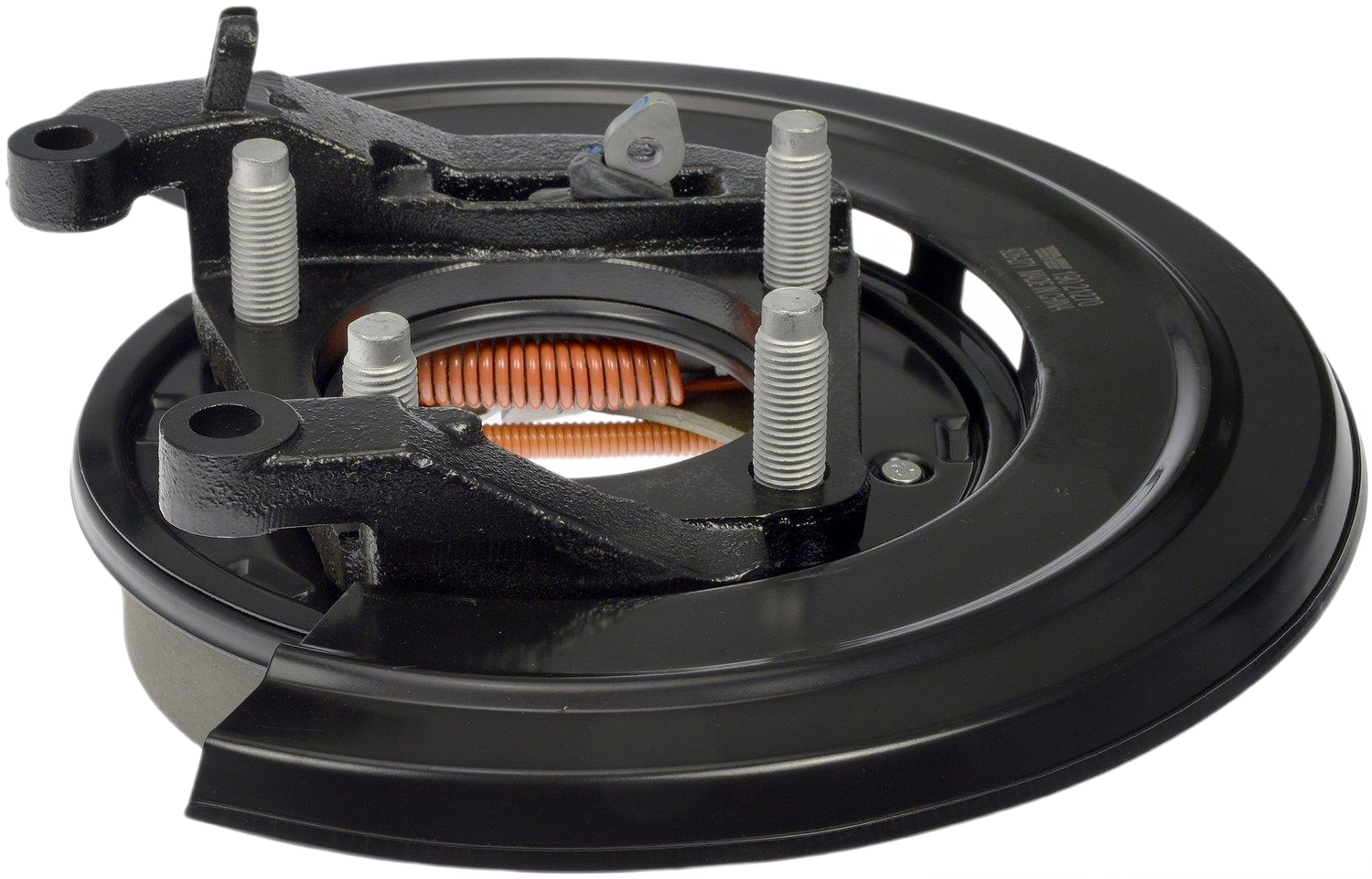

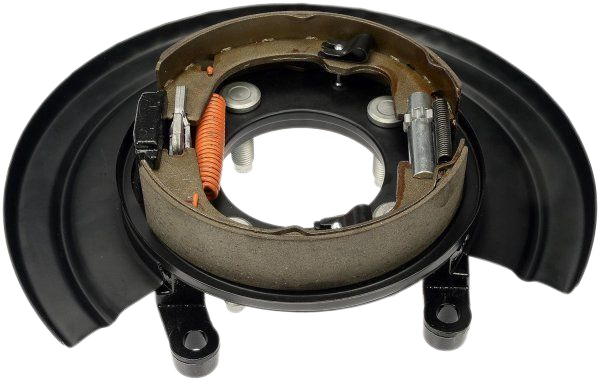

- Brake Caliper Mounts: In many vehicles, the disc brake caliper bolts to the knuckle, integrating braking with steering and suspension.
The function of the steering knuckle assembly is multifaceted:
- Steering: It pivots on ball joints, allowing the wheel to turn left or right via the tie rod, which connects to the steering mechanism.
- Suspension Support: It attaches to the upper and lower control arms (e.g., in a double-wishbone suspension), maintaining wheel alignment and absorbing road shocks.
- Weight Distribution: It supports the vehicle's weight, ensuring stability during cornering and braking.
- Integration with Brakes: It houses the brake caliper, ensuring effective braking performance.
Common Applications and Types
Steering knuckle assemblies are predominantly found in the front suspension of vehicles, particularly those with independent front suspension systems, such as front-wheel-drive (FWD), all-wheel-drive (AWD), and some rear-wheel-drive (RWD) vehicles with independent setups. They are essential for vehicles requiring precise steering and handling, such as passenger cars, SUVs, and light trucks.
Types vary by design, including:

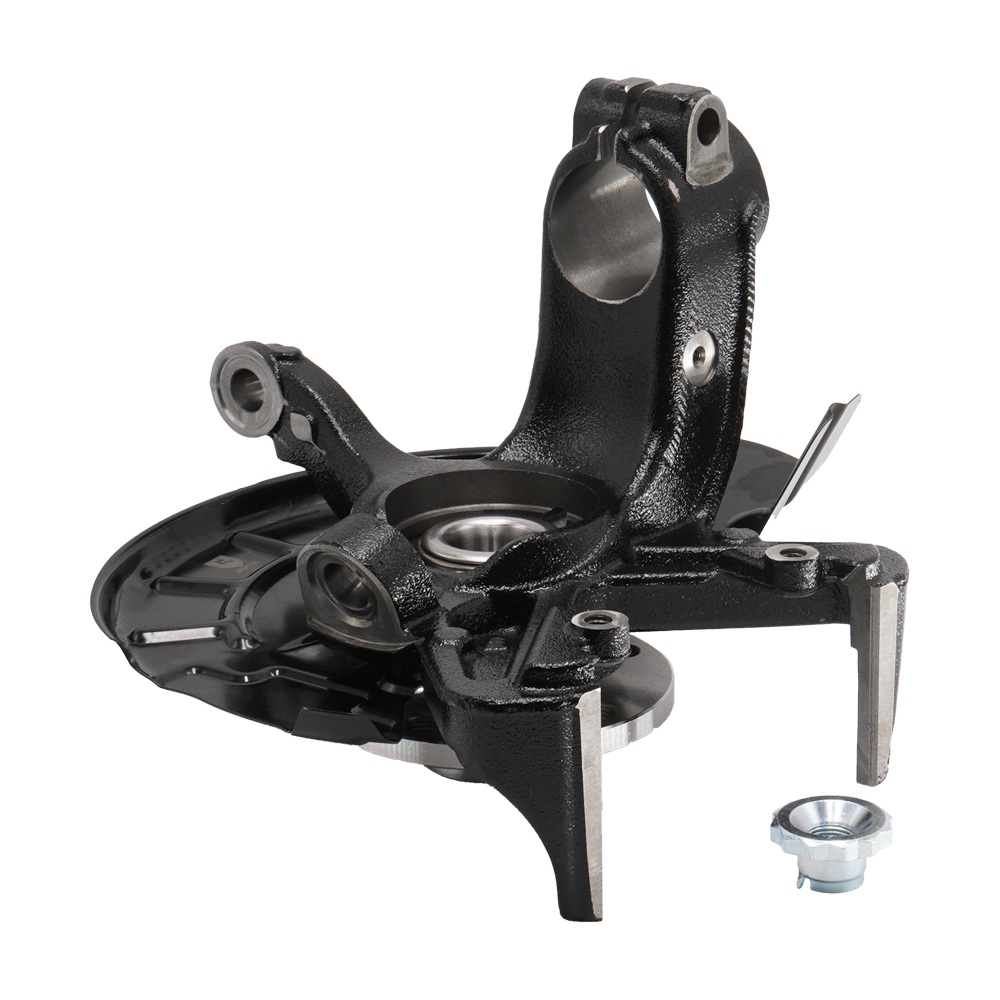

- Standard Knuckles: Found in most passenger vehicles, with integrated hub and bearing assemblies.
- Heavy-Duty Knuckles: Used in trucks and off-road vehicles, often with reinforced materials for increased load capacity.

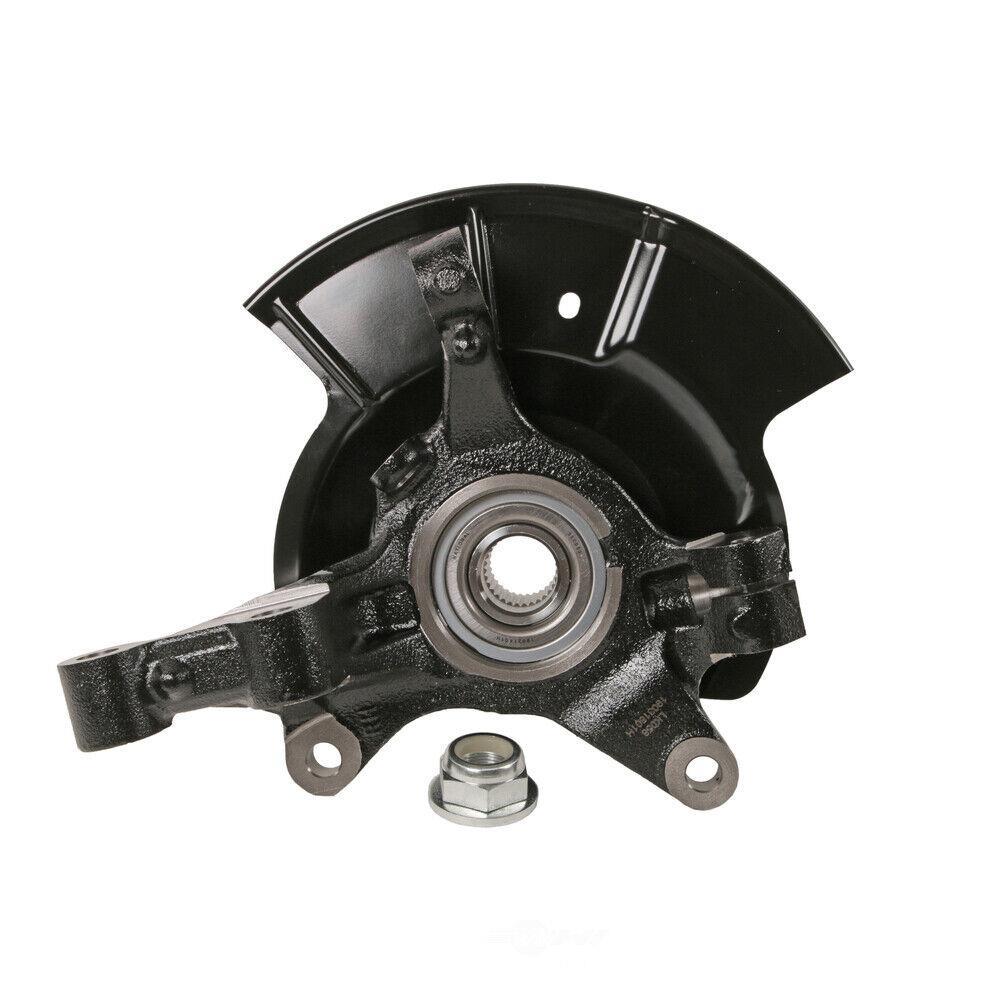

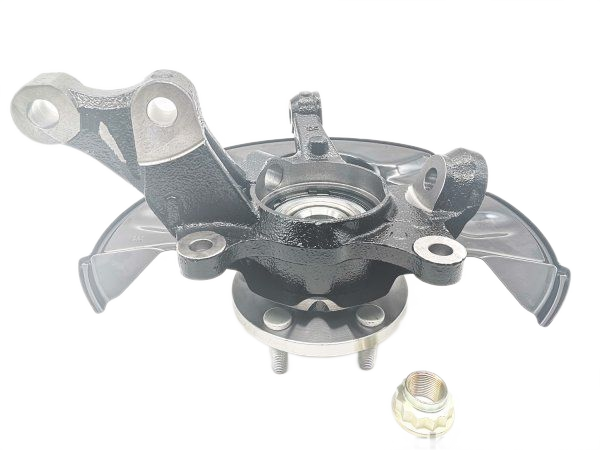

- Pre-Assembled Assemblies: Including all necessary components for easier replacement.
The steering knuckle assembly is located at the front of the vehicle, containing the hub, spindle, bearings, and steering arm, crucial for turning and shock absorption.
Symptoms of Failure and Common Issues
A failing steering knuckle assembly can lead to several noticeable issues, which are important to recognize for timely maintenance. The following table summarizes common symptoms, their descriptions, and potential causes:
| Symptom | Description | Potential Causes |
|---|
| Handling Issues | Vehicle pulls to one side, steering wheel shakes, or fails to return to center. | Bent or cracked knuckle, misalignment. |
| Squealing Noise When Turning | High-pitched noise during turns. | Worn bearings, damaged knuckle. |
| Visual Tilt | One front wheel appears more tilted than the other. | Bent knuckle, impact damage. |
| Steering Wheel Misalignment | Crooked steering wheel when driving straight. | Misaligned knuckle, suspension issues. |
| Poor Cornering | Vehicle corners worse in one direction. | Damaged knuckle, uneven wear. |
| Vibrations | Excessive play when wheel is jacked up. | Worn bearings, loose knuckle. |
| Uneven Tire Wear | Tires wear unevenly due to misalignment. | Bent knuckle, alignment issues. |
| Rust or Corrosion | Visible rust weakening the knuckle. | Environmental exposure, age. |
| Broken Knuckle | Complete failure, severe safety hazard. | Severe impact, corrosion, wear.
|
