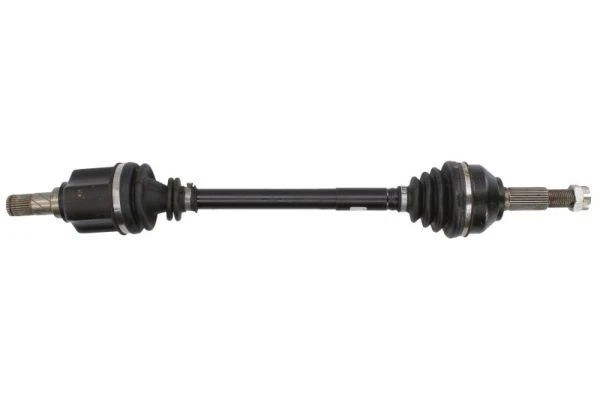

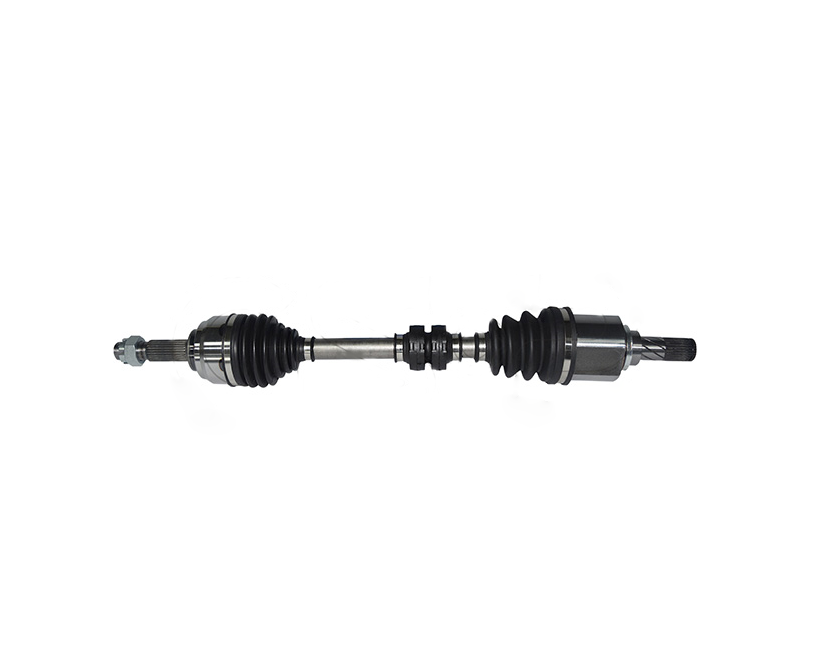

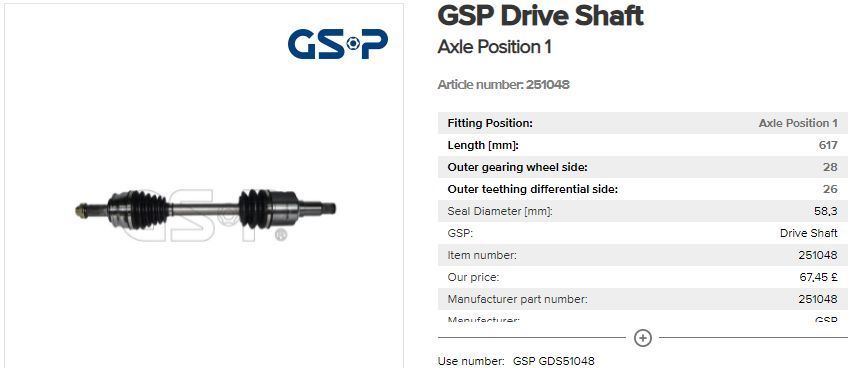

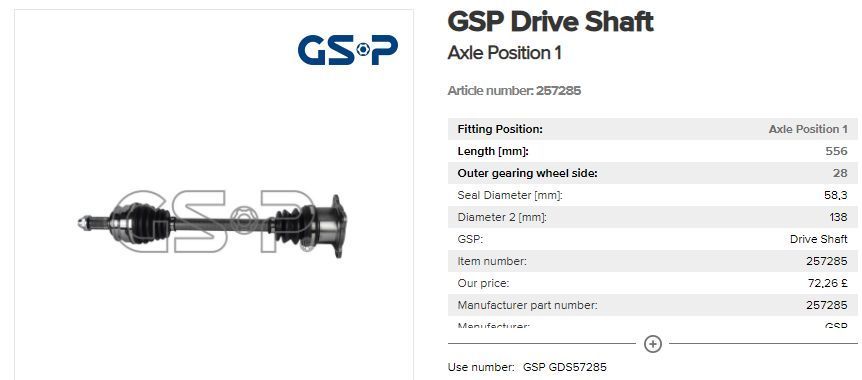

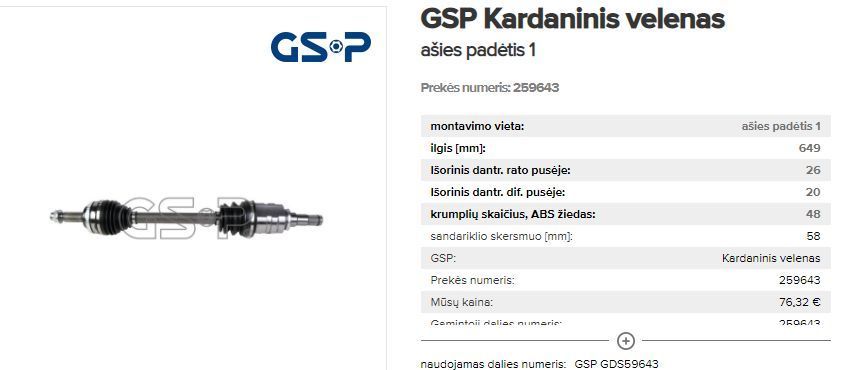

What is a CV Axle Shaft Assembly?

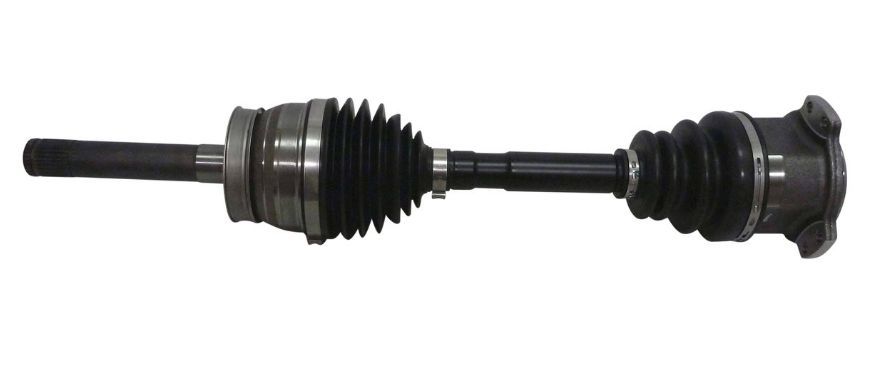

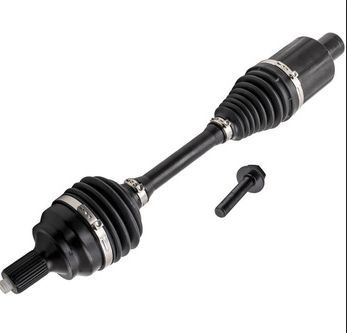

A CV axle shaft assembly, also called a half-shaft, is a part that links the transmission to the wheel hubs in many vehicles, especially those with front-wheel drive. It sends power from the engine to the wheels while letting them turn and move up and down with the suspension.

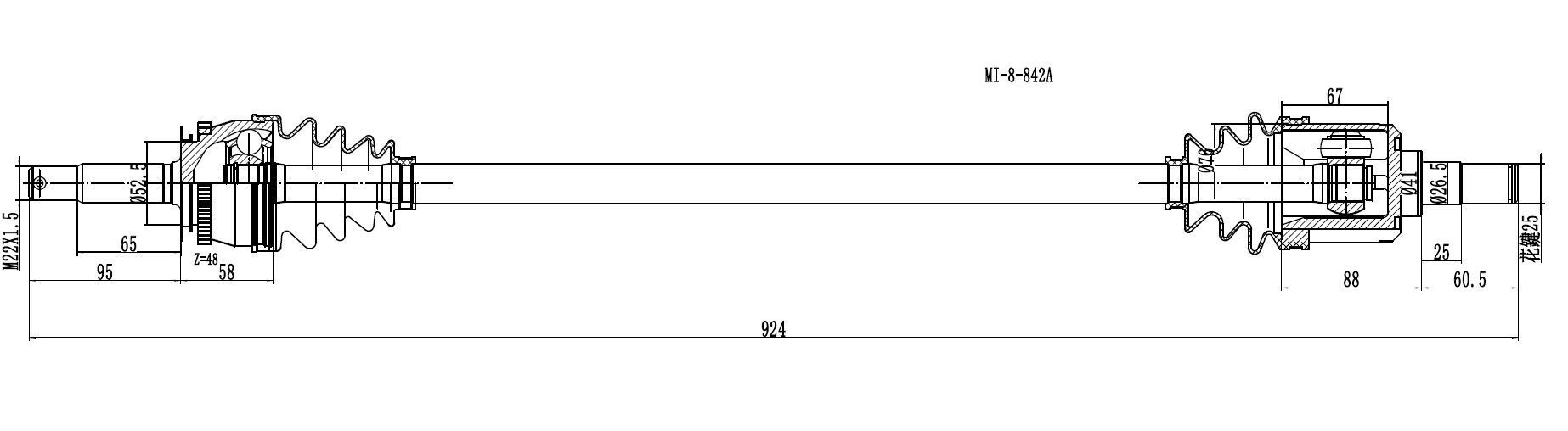

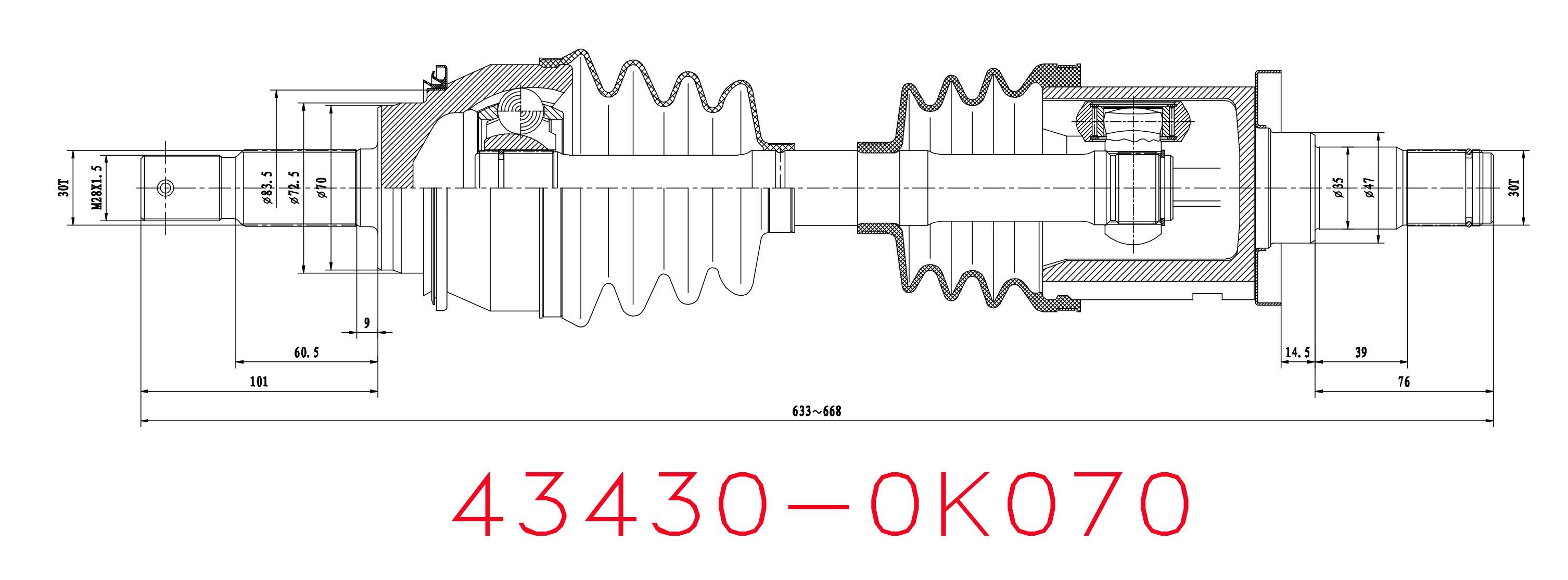

Components
It has a main shaft, inner and outer CV joints for flexibility, rubber boots to protect the joints, and grease to keep everything lubricated.
Common Issues
If the boots tear, grease can leak out, letting dirt in and wearing down the joints. You might hear clicking when turning or feel vibrations while driving.
Introduction
CV axle shaft assemblies, also known as half-shafts or drive shafts in certain contexts, are critical components in modern vehicles, particularly those with front-wheel drive (FWD), all-wheel drive (AWD), or some rear-wheel drive (RWD) systems with independent suspension. They facilitate the transmission of power from the engine to the wheels while accommodating the dynamic movements of the vehicle's suspension and steering.
Definition and Historical Context
A CV axle shaft assembly is defined as a drivetrain component that connects the transmission (or transaxle) to the wheel hubs, transferring rotational force to the drive wheels. It consists of an axle shaft, inner and outer constant-velocity (CV) joints, protective boots, and grease. The CV joints allow the axle to flex and rotate at varying angles without binding or losing power, maintaining a constant velocity, which is essential for smooth operation, especially in FWD vehicles where the wheels must handle both driving and steering. The term "CV axle" specifically refers to this assembly with CV joints, distinguishing it from a drive shaft, which is more commonly used in RWD vehicles for a single shaft connecting the transmission to the differential.
Historically, CV joints have been used in early front-wheel drive vehicles, such as the 1926 Tracta, 1931 DKW F1, and 1932 Adler Trumpf, which employed Tracta joints. Today, they are standard in modern FWD and AWD vehicles, and increasingly in RWD cars with independent rear suspension, highlighting their evolution and importance in automotive engineering.
Components and Function

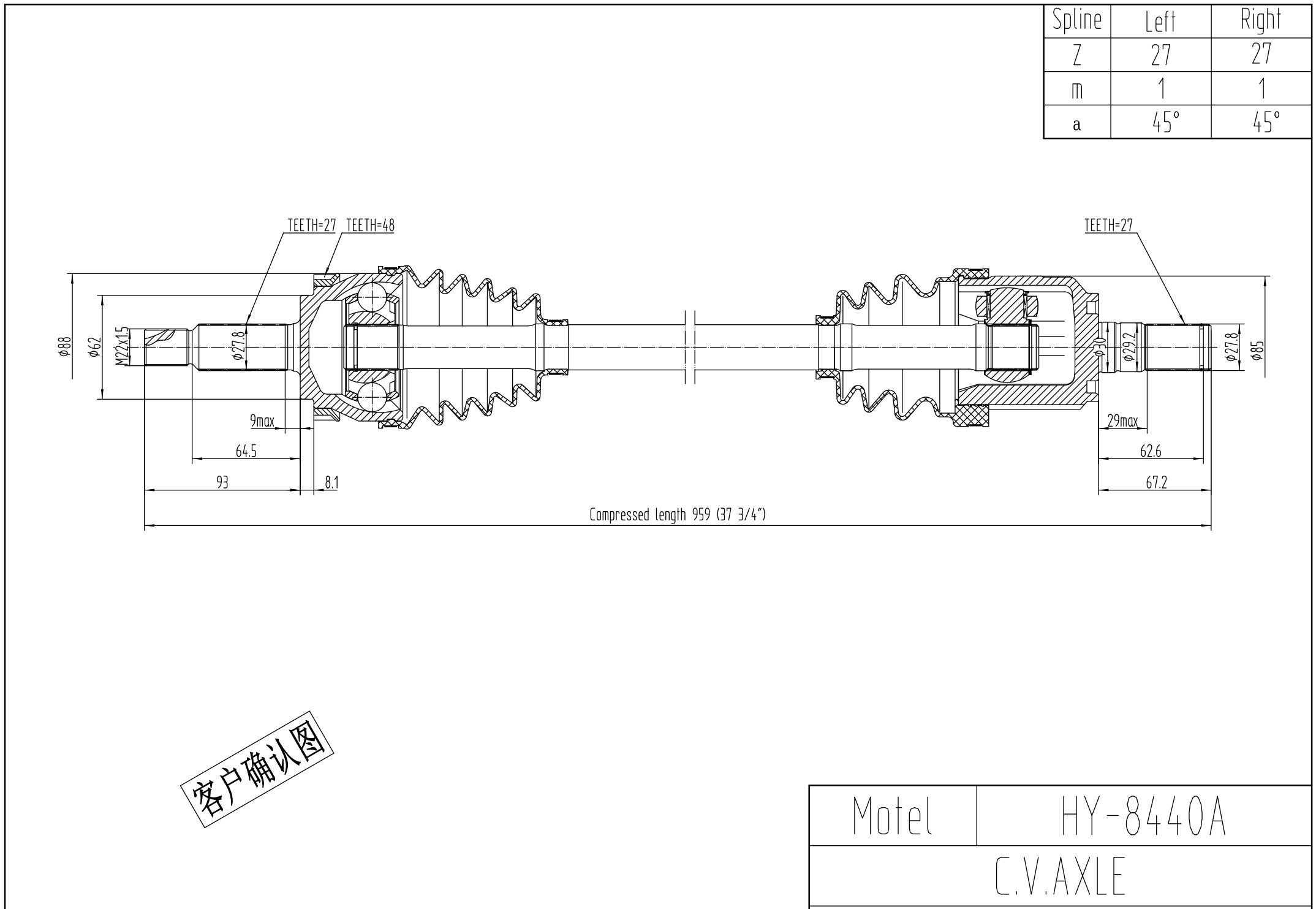

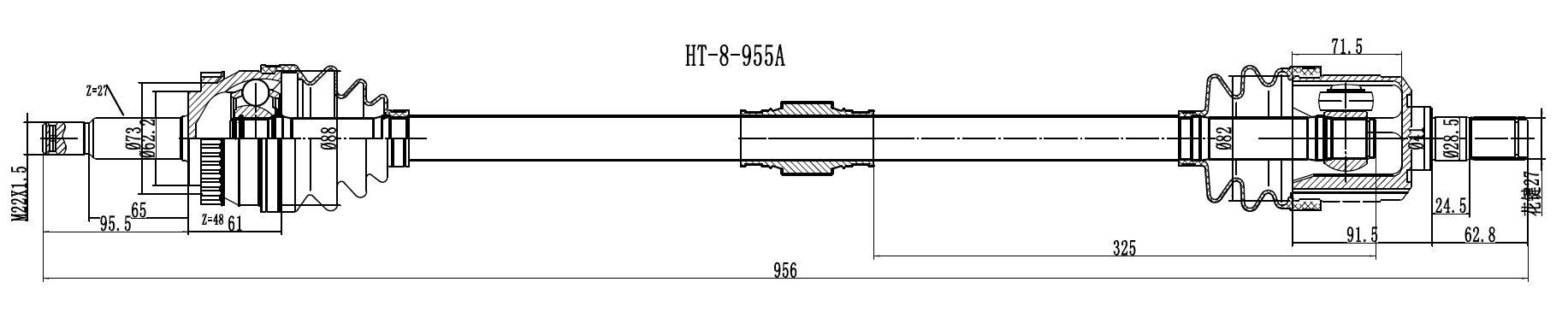

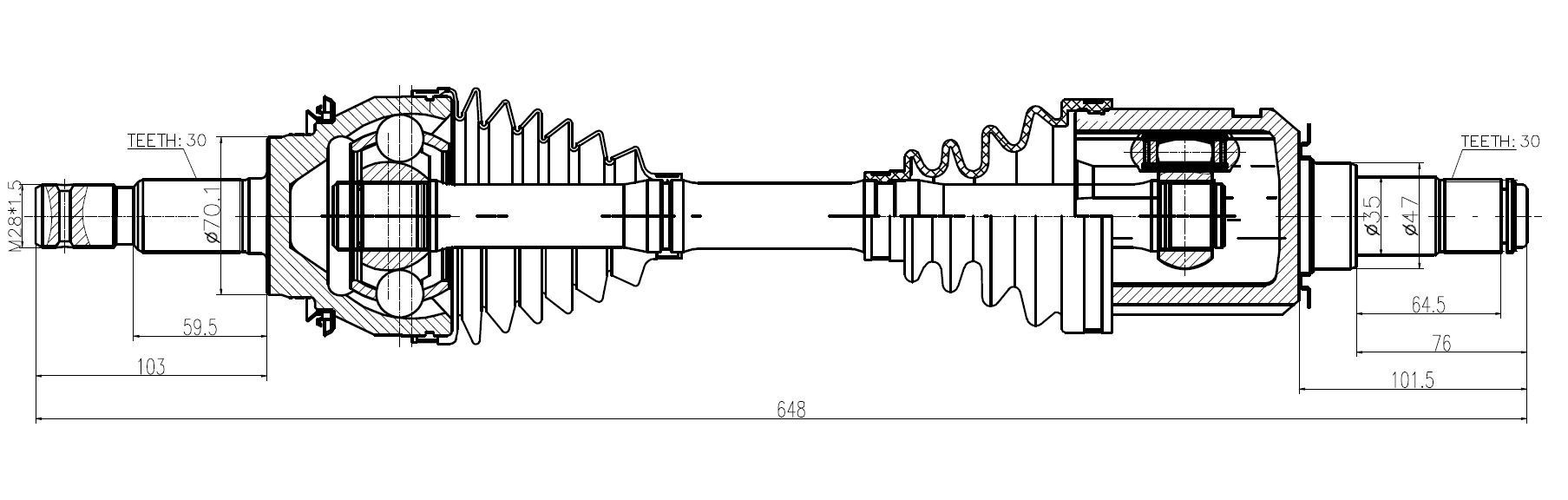

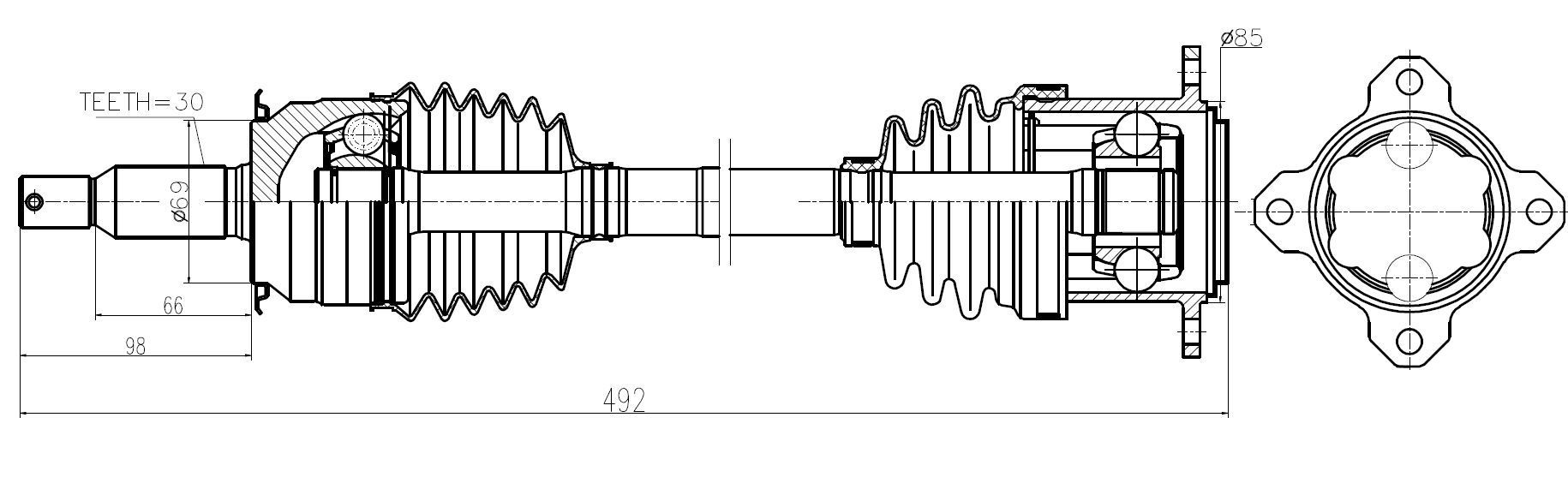

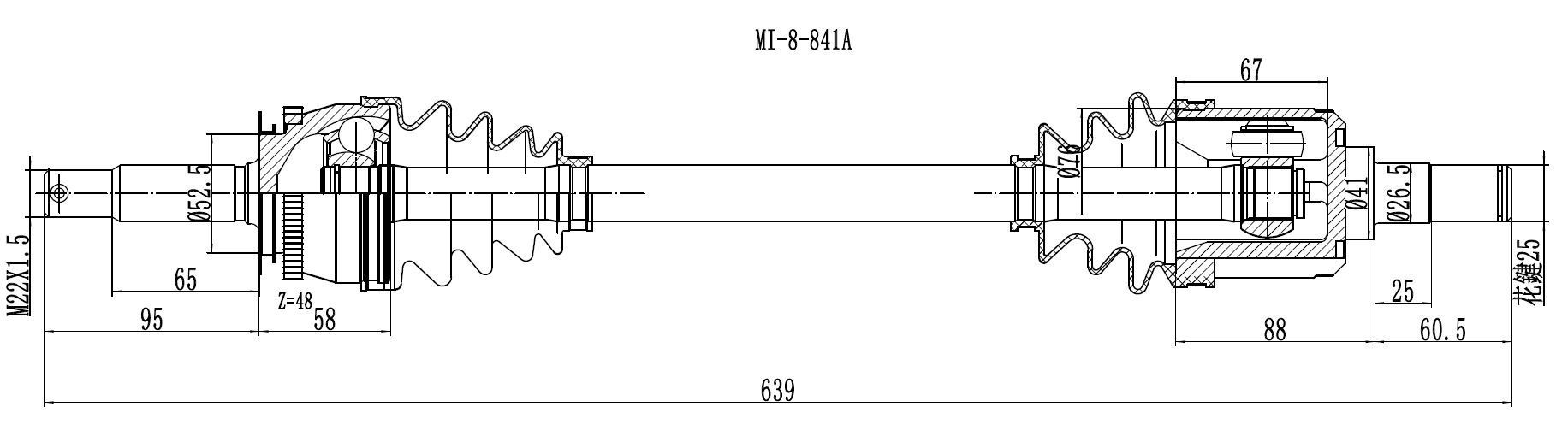

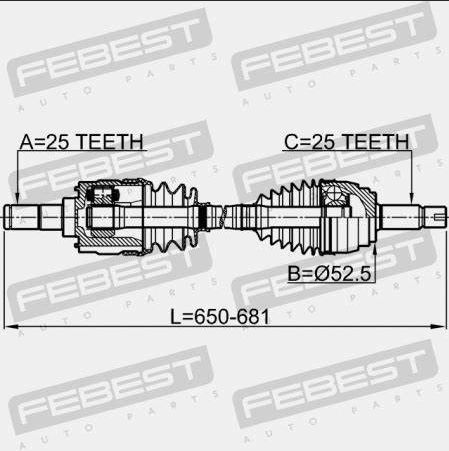

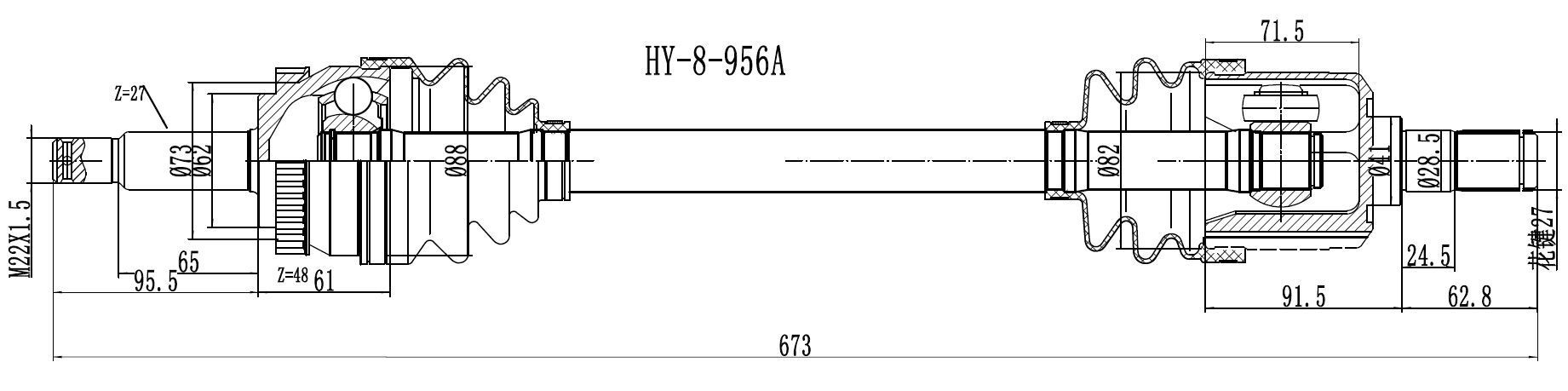

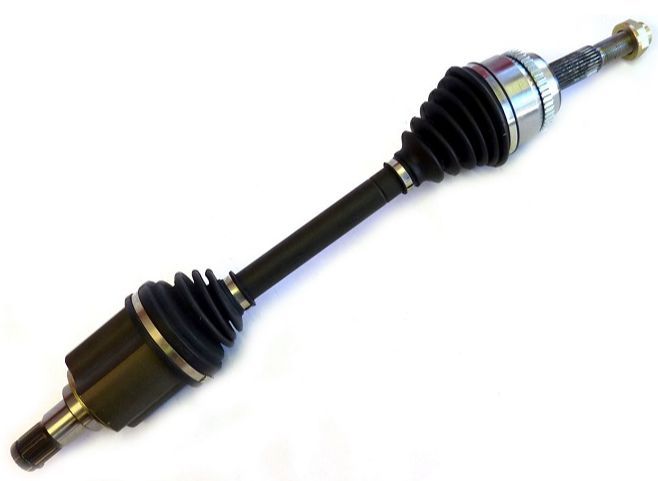

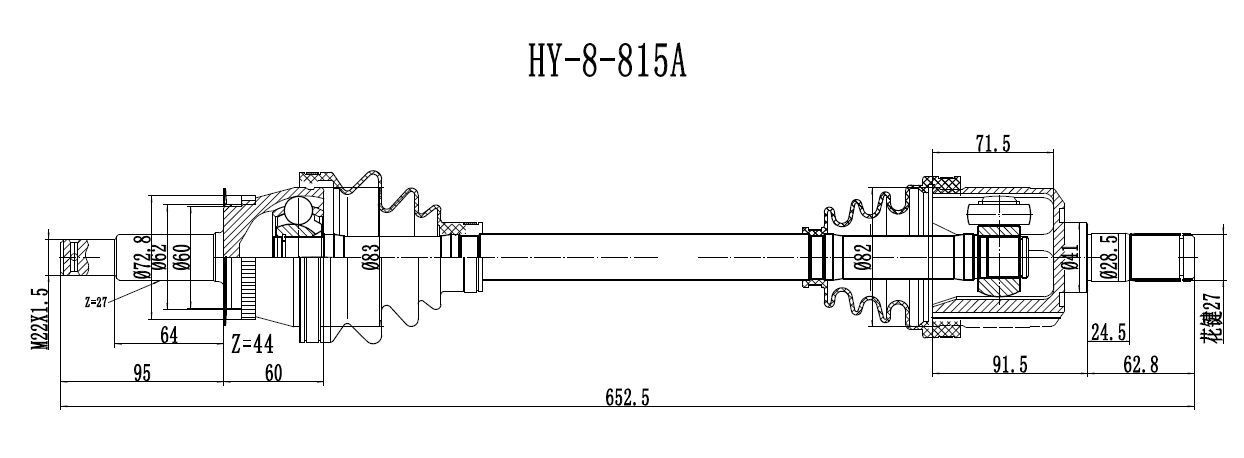

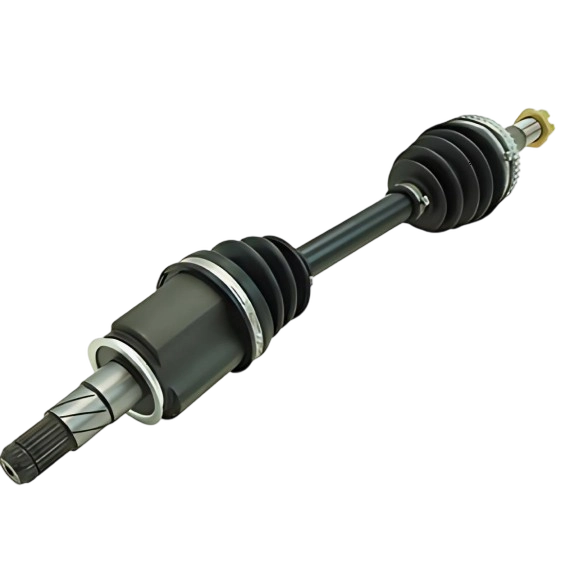

The CV axle shaft assembly typically includes the following components:
- Axle Shaft: The main shaft that transmits torque from the transmission to the wheel hub, often splined at both ends to fit into the CV joints and wheel hub.
- Inner and Outer CV Joints: These are specialized joints that allow the axle to flex and rotate at different angles. Common types include:
- CV Boots: Rubber or thermoplastic covers that protect the CV joints from dirt, moisture, and other contaminants while retaining the lubricating grease, often filled with molybdenum disulfide grease for high-temperature and pressure resistance. In harsh environments, metal or kevlar protection may be used.
- Grease: A specialized lubricant that ensures the CV joints operate smoothly and are protected from wear, with high-quality grease designed to withstand extreme conditions.
The function of the CV axle shaft assembly is to transfer power from the vehicle's transmission to the wheels while accommodating changes in wheel position and suspension movement without causing power loss or mechanical binding. In FWD vehicles, it enables the wheels to turn for steering and move up and down with the suspension, maintaining a constant velocity to reduce vibrations and ensure smooth power delivery.
Common Applications and Types
CV axle shaft assemblies are predominantly used in FWD vehicles, where they connect the transaxle to the wheel hubs, and in AWD vehicles, which may have up to four CV axles (two for the front and two for the rear). Some RWD vehicles with independent rear suspension also use CV axles, particularly at the half-shaft ends. The design varies by vehicle, with different CV joint types suited to specific applications:
- Rzeppa Joints: Common for outboard ends, accommodating large angle changes during steering.
- Tripod Joints: Common for inboard ends, providing plunge travel for suspension movement.
- Double Cardan Joints: Used in rugged four-wheel drive vehicles for high articulation angles or impulsive torque loads, though less common in standard CV axles.
TrakMotive - Automotive CV Axles, points that CV axles are designed to work at varying angles and constant rotational speeds without friction and play, found in vehicles equipped with independent suspension systems.
Differences from Other Drivetrain Components
It's worth clarifying the terminology, as terms like "drive axle," "drive shaft," "CV shaft," and "half-shaft" are often used interchangeably. A CV axle specifically refers to the assembly with CV joints, commonly used in FWD and AWD vehicles. In contrast:
- Drive Shaft: Typically refers to a single shaft in RWD vehicles, connecting the transmission to the differential, often with universal joints rather than CV joints.
- Half-Shaft: Another term for CV axles in FWD vehicles, as they are one of two shafts (one for each wheel) that make up the full drive shaft assembly.
- Drive Axle: Can refer to the entire assembly, including the axle and differential, but is sometimes used synonymously with CV axle in FWD contexts.Motor Vehicle Maintenance & Repair Stack Exchange - CV Axle vs Drive Axle , noted that "drive shaft" is usually for RWD cars with one shaft, while "half-shaft" is for FWD versions, and some object to calling these "axles" as they consider axles load-bearing parts.
Symptoms of Failure and Common Issues
CV axle shaft assemblies can fail over time, and recognizing the symptoms is crucial for timely maintenance. The following table summarizes common symptoms, their descriptions, and potential causes:
| Symptom | Description | Potential Causes |
|---|
| Clicking or Popping Noise When Turning | Loud clicking, especially during sharp turns or acceleration. | Worn outer CV joint, torn boot, lack of grease. |
| Vibrations While Driving | Shaking or vibration, particularly during acceleration. | Worn inner CV joint, misalignment, or imbalance. |
| Grease Leakage | Visible grease on tire edge, drive shaft, or underside components near the boot. | Torn or cracked CV boot, seal failure. |
| Clunking or Grinding Noise | Loud clunk or grind, especially when shifting gears or accelerating. | Severe wear of CV joint, contamination. |
The most common problem is cracked or loose CV boots, most often affecting the outer CV joint. Without the boot to hold the grease in and dirt out, the joint will lose its lubrication and wear out over time. Driving on an axle with a torn boot for too long can wear out the joint, making a CV axle replacement necessary. the rubber boot is the most common part to fail, leaving a telltale sign of leaking grease.
