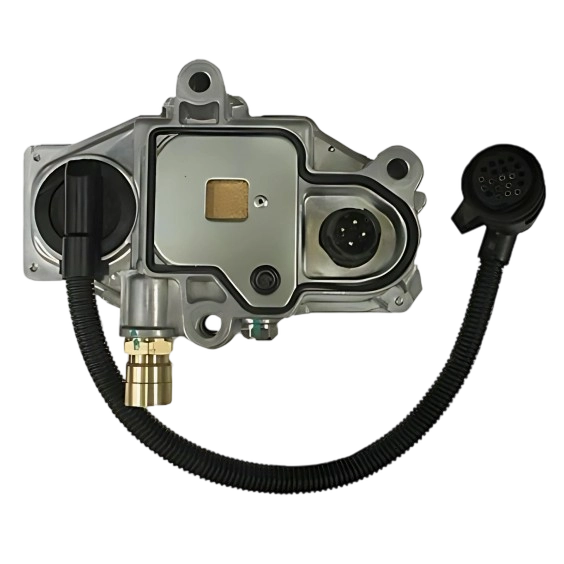

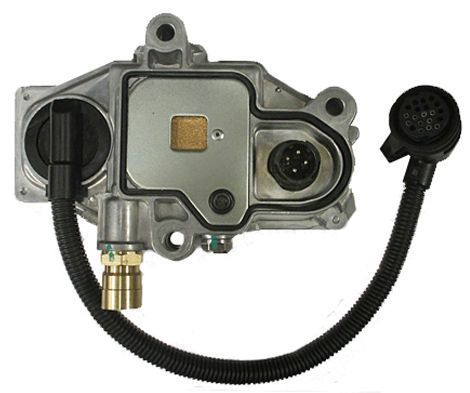

What Are Solenoid Valves in Vehicles?

Solenoid valves are electromechanical devices that regulate the flow of fluids, such as fuel, oil, coolant, and brake fluid, in various vehicle systems. They use an electromagnetic coil to control a plunger, which opens or closes the valve to manage fluid flow, ensuring efficient and safe operation.

How Do They Work?

When electricity passes through the solenoid coil, it creates a magnetic field that moves a plunger, either opening or closing the valve. This action controls fluid flow, with types like normally closed (closed when off, opens when powered) or normally open (open when off, closes when powered) suited for different needs.

Common Applications

Research suggests solenoid valves are used in:

1. Fuel Injection: Controlling fuel delivery for efficient combustion.
2. Transmission: Managing hydraulic pressure for smooth gear shifts.
3. Brakes: Modulating pressure in anti-lock braking systems (ABS).
4. Emission Control: Regulating exhaust gases to reduce emissions.
5. Cooling and Suspension: Adjusting fluid flow for temperature control and ride comfort.

These valves enhance vehicle performance, safety, and efficiency, with recent advancements focusing on compact, energy-efficient designs.

Introduction to Solenoid Valves in Vehicles

Solenoid valves are electromechanical devices designed to control the flow of fluids (liquids or gases) automatically in vehicles. They consist of a solenoid, which is an electromagnet, and a valve body, working together to regulate flow by opening or closing the valve. Research indicates they are among the most frequently used control elements in automotive fluidics, offering fast switching, high reliability, and long service life.

In vehicles, solenoid valves are critical for managing fluids in systems like fuel injection, transmission control, braking, and emission management, ensuring optimal performance, safety, and efficiency. The automotive industry has seen a significant increase in their use, with 93% of new vehicles in Europe adopting hydraulic clutch systems, many of which rely on solenoid valves.

Detailed Function and Operation

The operation of a solenoid valve in vehicles relies on the principle of electromagnetism. When an electrical current passes through the solenoid coil, it generates a magnetic field. This field attracts a ferromagnetic core, often called a plunger or armature, which moves linearly within the valve body. The movement of the plunger either opens or closes the valve orifice, controlling the flow of the fluid. For example, in a normally closed (NC) valve, the valve is closed when de-energized and opens when energized, while a normally open (NO) valve is open when de-energized and closes when energized.

The valve's actuation can be direct-acting, where the solenoid directly moves the plunger to open or close the valve, suitable for low-pressure applications like fuel injection. In piloted solenoid valves, the solenoid controls a pilot valve, which uses the fluid's pressure to operate the main valve, making them efficient for high-pressure scenarios like transmission control.

Types of Solenoid Valves in Vehicles

Solenoid valves in vehicles vary based on their design and function, with key types including:

1. Direct-Acting Solenoid Valves: Operate solely by the solenoid's electromagnetic force, without relying on fluid pressure. They can open or close even with no pressure difference, ideal for low-flow, low-pressure applications like fuel delivery systems.
2. Piloted Solenoid Valves: Use fluid pressure to assist in opening and closing the main valve, suitable for high-pressure applications like transmission fluid control. They are more efficient for larger flows.
3. Two-Way Valves: Have one inlet and one outlet, used for on/off control, such as shutting off fuel flow in fuel injection systems.
4. Three-Way or Multi-Way Valves: Have multiple ports for diverting or mixing flows, commonly used in complex systems like transmission fluid management and emission control.

These types are distinguished by their mode of actuation (direct-acting, internally piloted, externally piloted) and the number of flow paths ("ways").

Applications of Solenoid Valves in Vehicles

Solenoid valves are used across various vehicle systems, with specific applications including:

1. Fuel Injection Systems: They control the amount of fuel delivered to the engine cylinders, ensuring precise fuel-air mixture for combustion.
2. Transmission Systems: In automatic transmissions, solenoid valves control the hydraulic pressure that operates the clutches and bands, allowing for smooth gear shifts.
3. Emission Control Systems: Solenoid valves manage the flow of exhaust gases and air in systems like the Evaporative Emission Control (EVAP) system, helping to reduce vehicle emissions.
4. Cooling Systems: They might be used to control coolant flow in some vehicle cooling systems, ensuring optimal engine temperature.
5. Brake Systems: In anti-lock braking systems (ABS), solenoid valves control the pressure in the brake lines to prevent wheel lockup during braking, as part of electro-hydraulic brake systems.
6. Suspension Systems: In advanced suspension setups, solenoid valves adjust hydraulic or pneumatic pressure to adapt to road conditions, enhancing ride comfort and handling, as seen in luxury cars and off-road vehicles.
7. Steering Systems: In electro-hydraulic power steering, solenoid valves help regulate hydraulic pressure for easier steering, especially at low speeds, as part of systems from manufacturers like Bosch and ZF Friedrichshafen.

Additional applications include air suspension control, turbocharger boost control, radiator fan control, transmission cooler line bypass, and fuel tank evaporative emission control.

Common Issues with Solenoid Valves in Vehicles

While solenoid valves are reliable, they can experience issues over time, affecting vehicle performance:

1. Leakage: Caused by worn seals, damaged components, or improper installation, leading to fluid loss and reduced efficiency.
2. Failure to Open or Close: Due to electrical issues (e.g., burnt coil, incorrect voltage), mechanical problems (e.g., stuck plunger due to debris or corrosion), or insufficient pressure differential for pilot-operated valves.
3. Overheating: Continuous operation or high current draw can cause the solenoid coil to overheat, leading to failure, often due to incorrect voltage or poor cooling.
4. Sticking: Valves can stick open or closed due to debris, corrosion, or worn parts, preventing proper operation.
5. Slow Response Time: Indicates potential problems with the solenoid's electrical circuit, mechanical wear, or insufficient power supply, affecting system responsiveness.
6. Noisy Operation: Unusual noises may suggest internal damage, debris, or wear, affecting system reliability.

Comparative Analysis of Applications and Issues

To summarize the key aspects, the following table outlines the common applications and issues of solenoid valves in vehicles, based on the research:

This table highlights the versatility and potential challenges of solenoid valves in vehicles, emphasizing the need for regular maintenance.

Conclusion

Solenoid valves are indispensable in modern vehicles, controlling fluid flow across critical systems to ensure performance, safety, and efficiency. From fuel injection to transmission control, their role is pivotal in both traditional and emerging vehicle architectures, including electric and autonomous vehicles.
