What is a Concentric Slave Cylinder?
A Concentric Slave Cylinder (CSC) is likely a key part of a vehicle's hydraulic clutch system, helping with smooth gear shifting. It seems to be a single unit that combines the functions of a slave cylinder and a release bearing, mounted inside the bell housing around the gearbox input shaft.
How Does It Work?
Research suggests that when you press the clutch pedal, hydraulic pressure from the master cylinder moves the CSC to disengage the clutch, allowing you to shift gears. It likely reduces pedal effort and eliminates the need for a separate clutch fork, making the system more efficient.
Common Issues
Symptoms like the clutch not releasing, hydraulic leaks, or difficulty shifting gears, often due to wear or system failures. It seems likely that these issues require replacing the CSC along with the master cylinder and clutch kit.
Introduction to Concentric Slave Cylinders

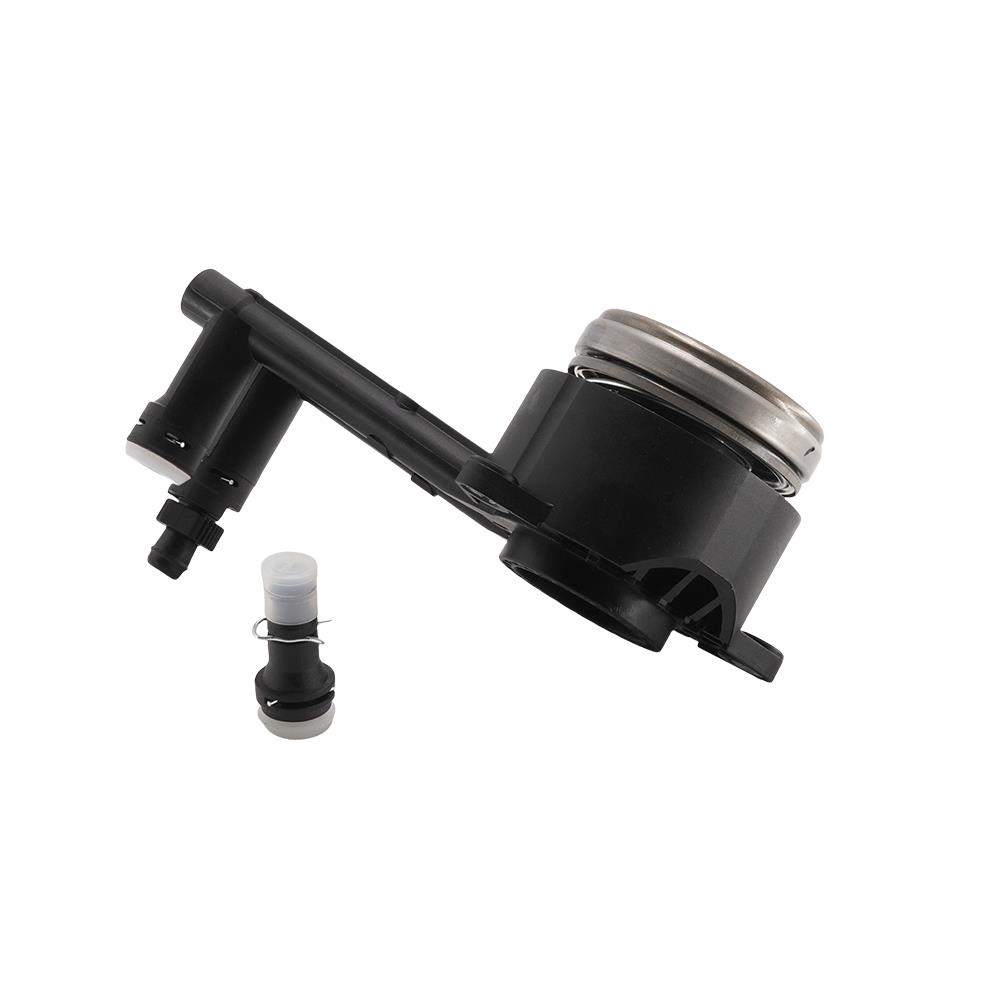

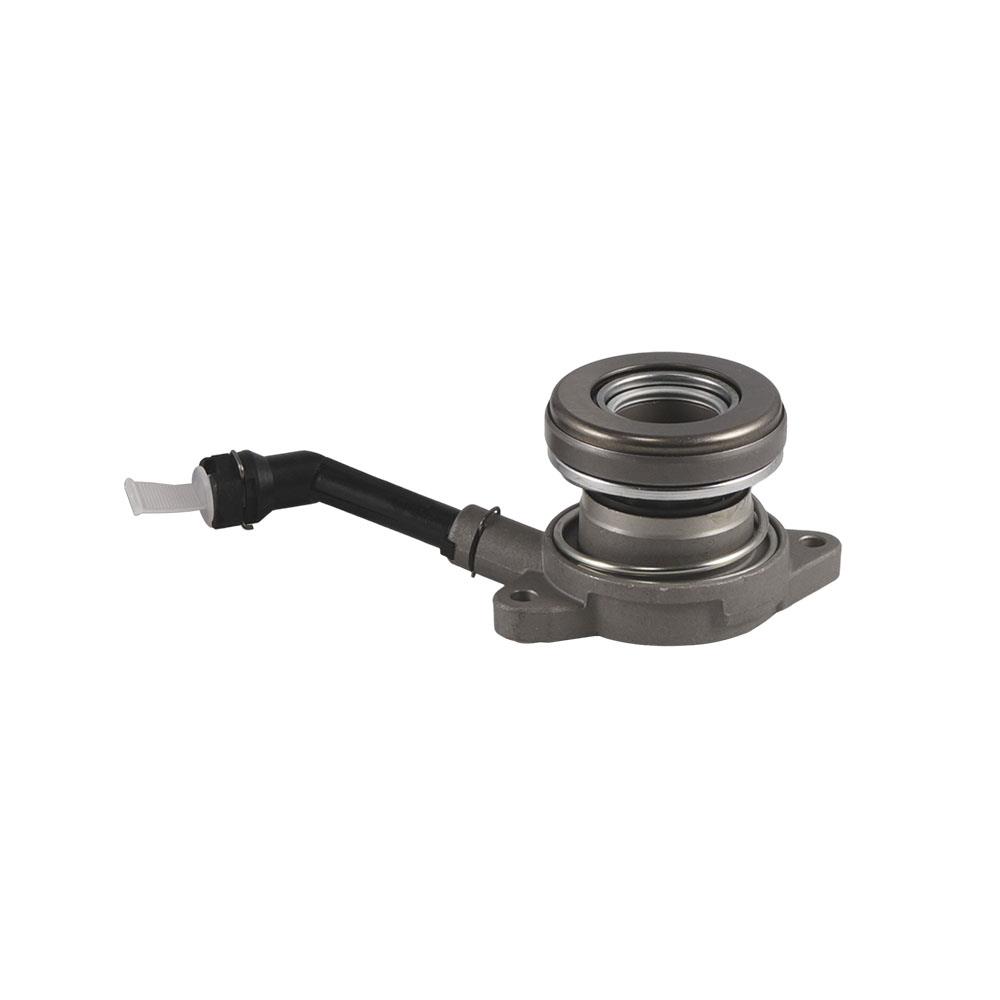

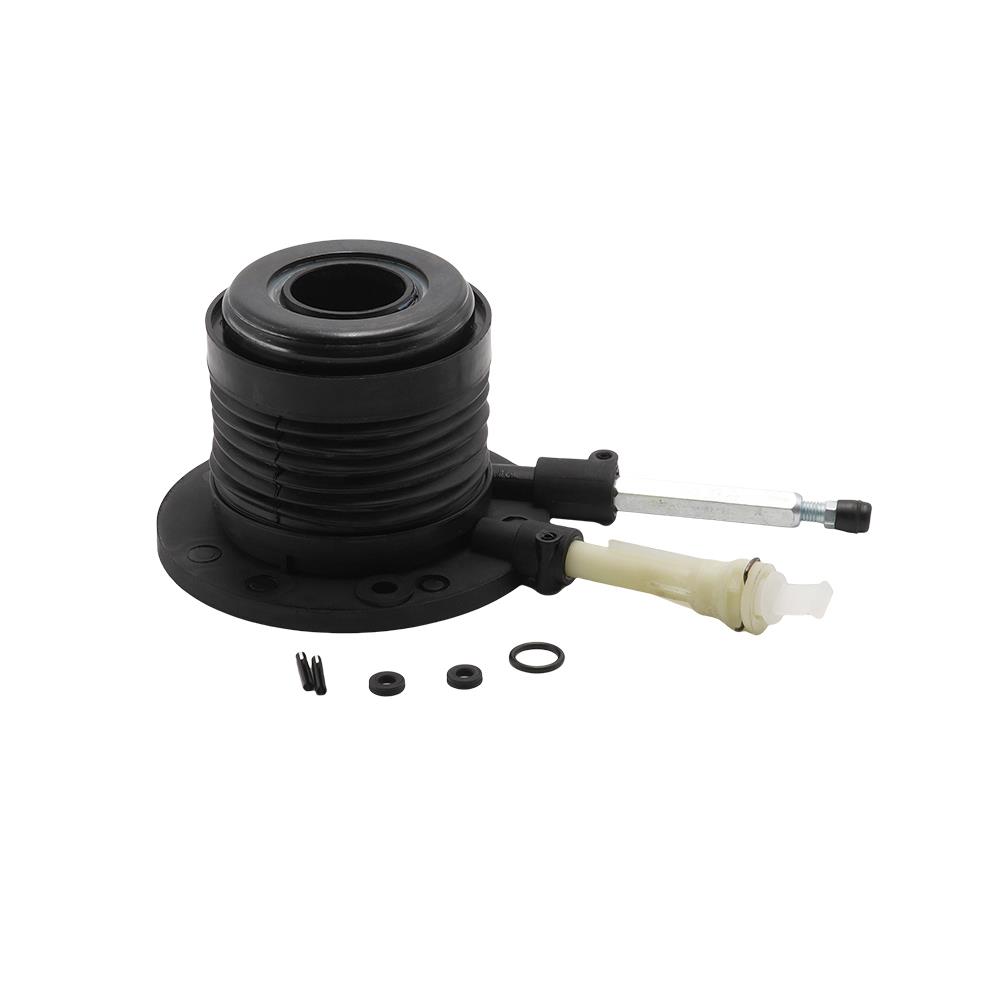

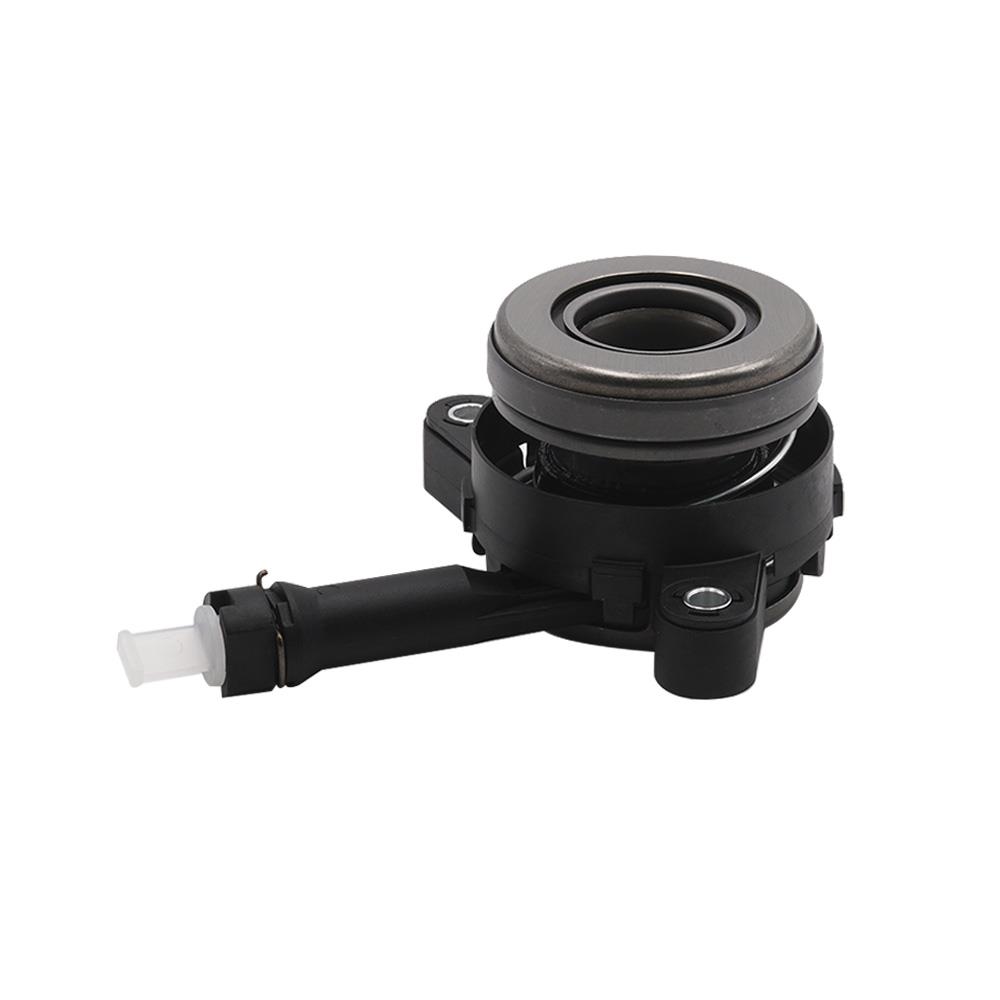

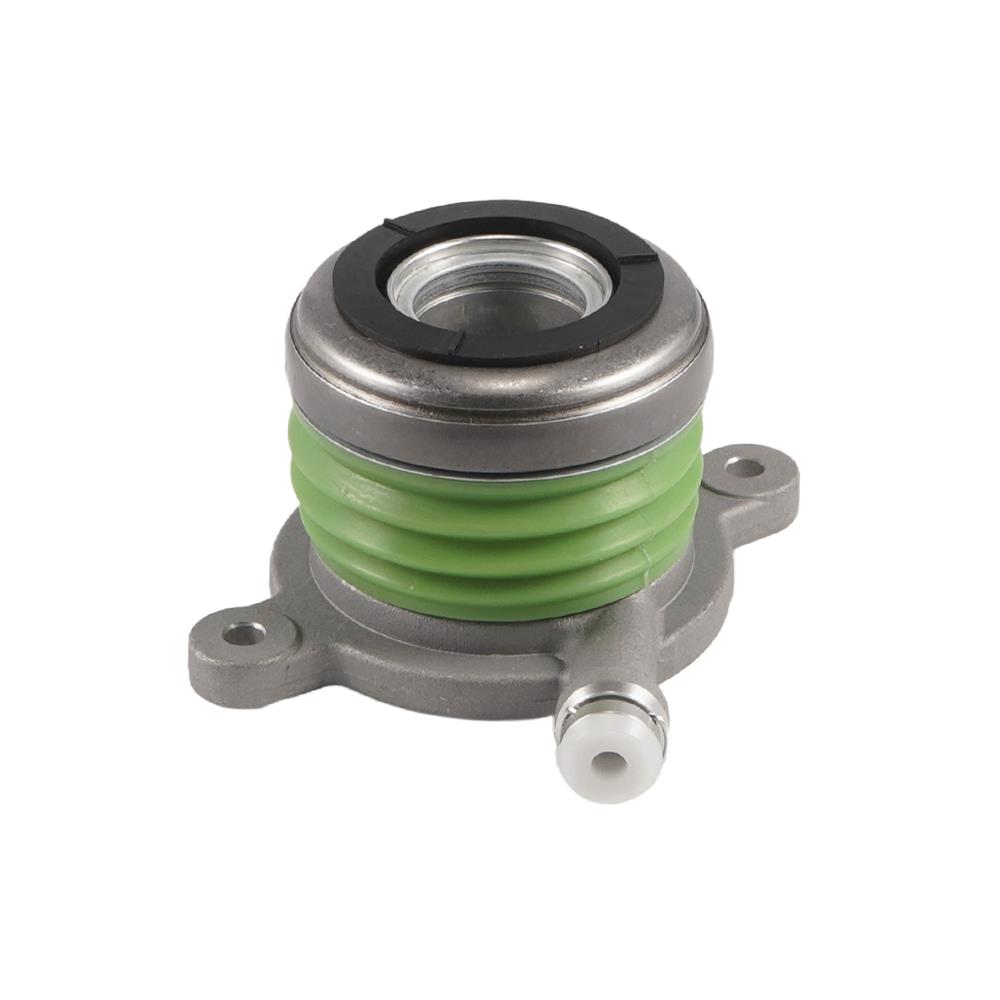

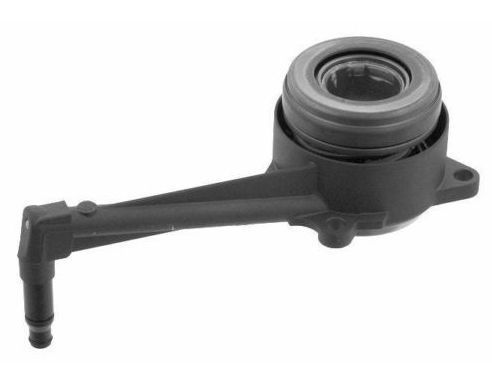

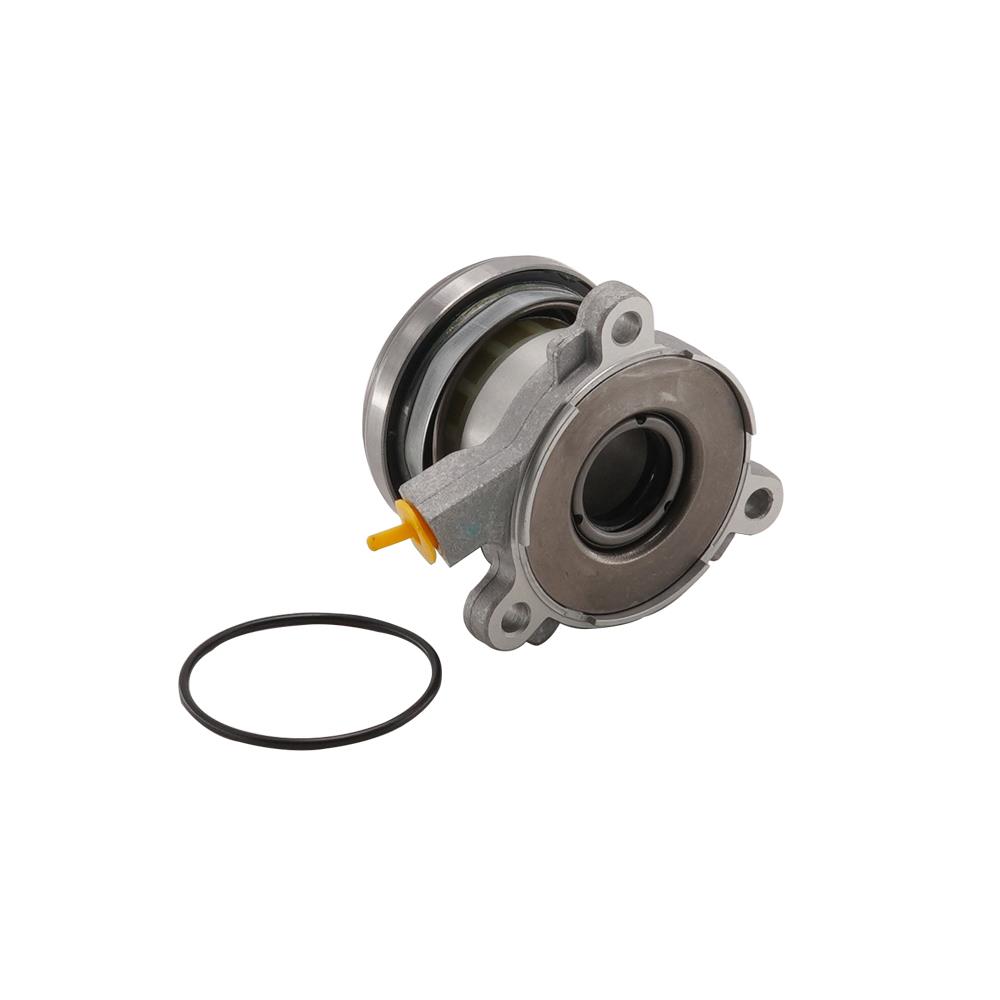

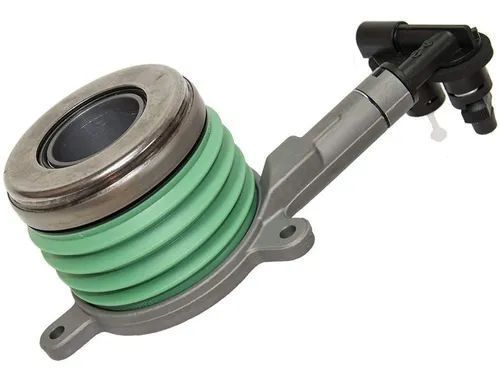

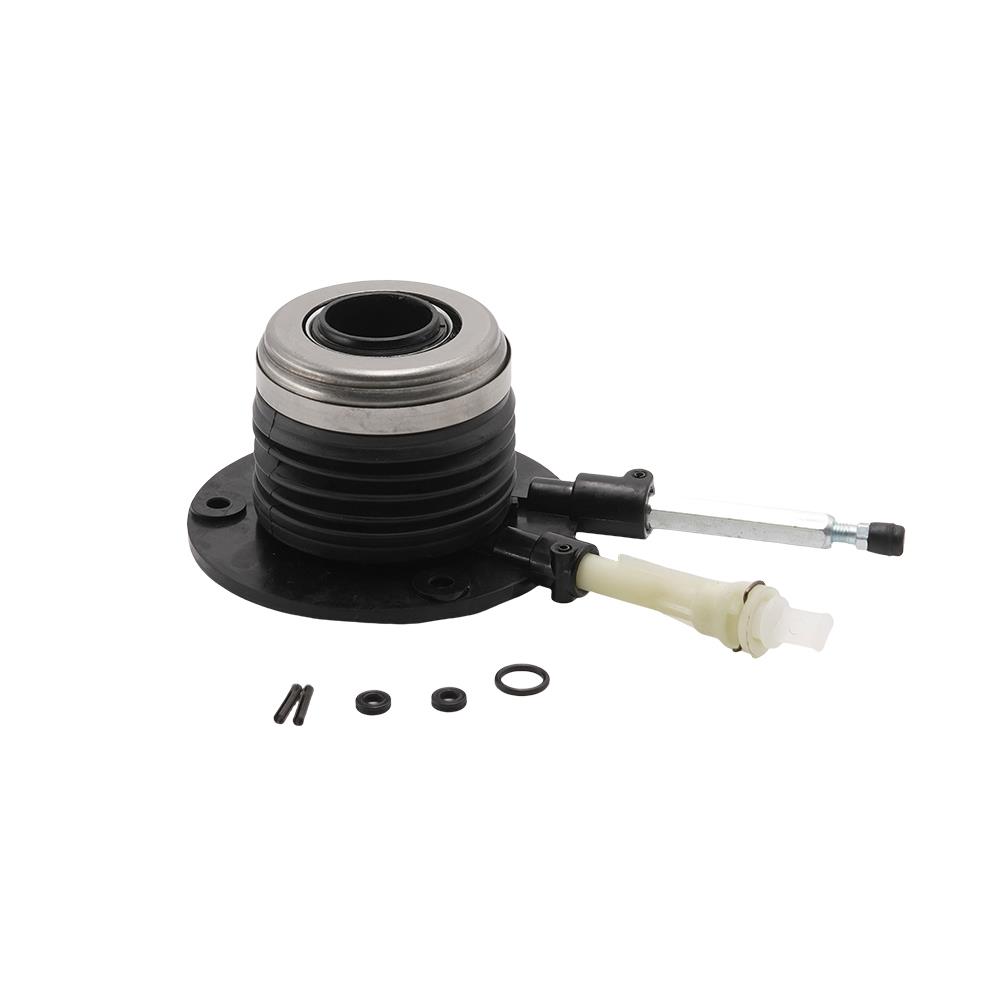

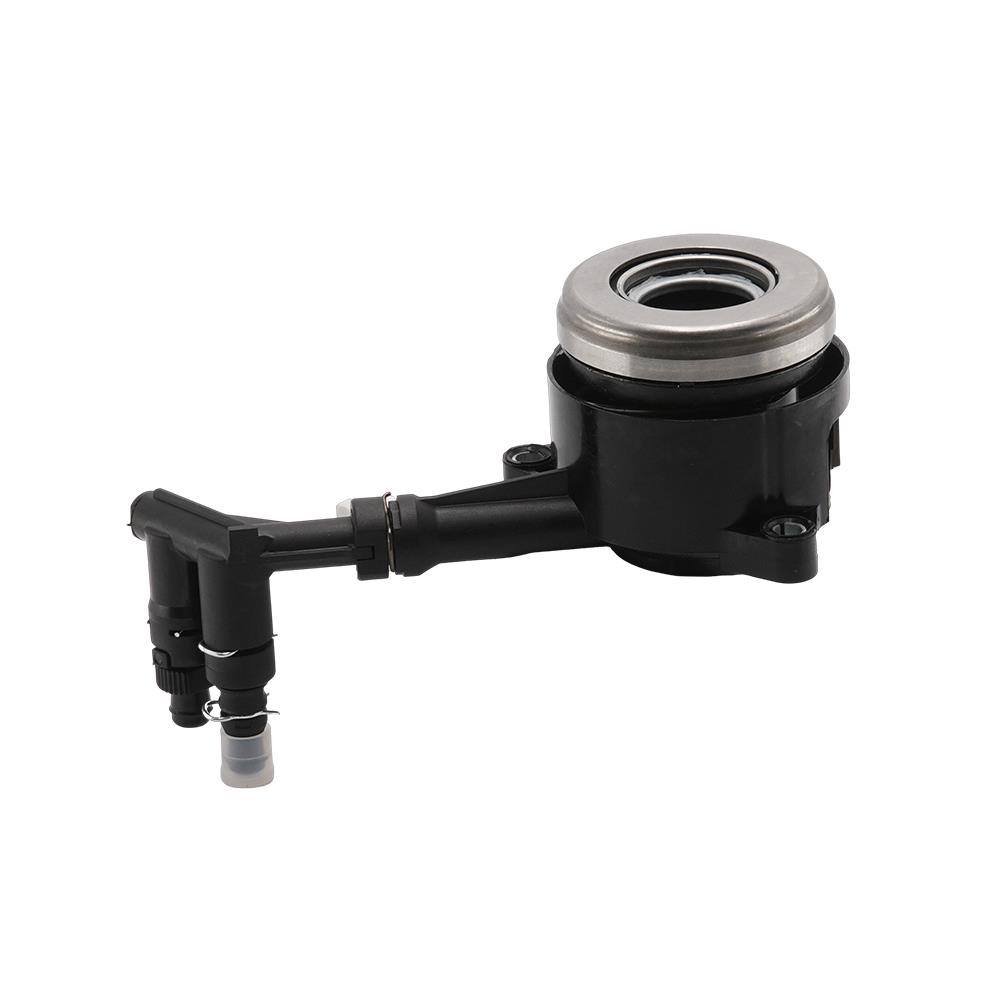

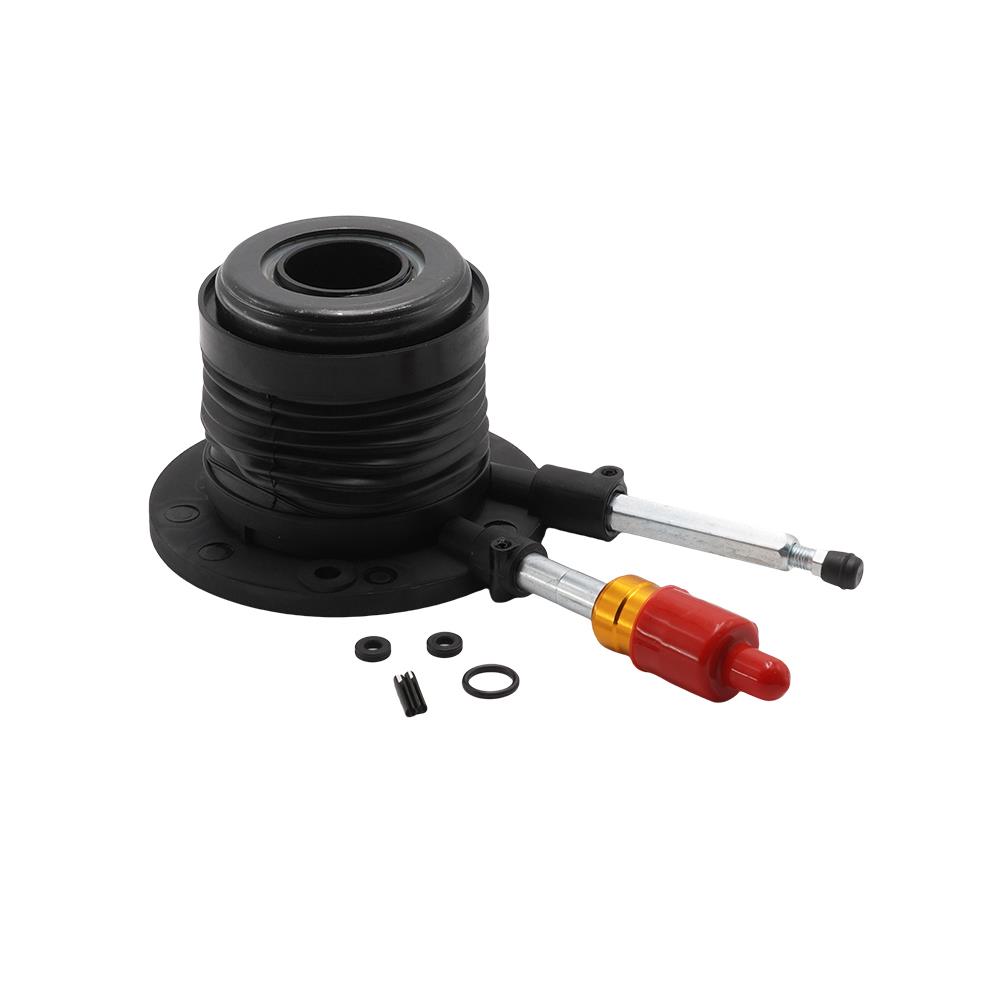

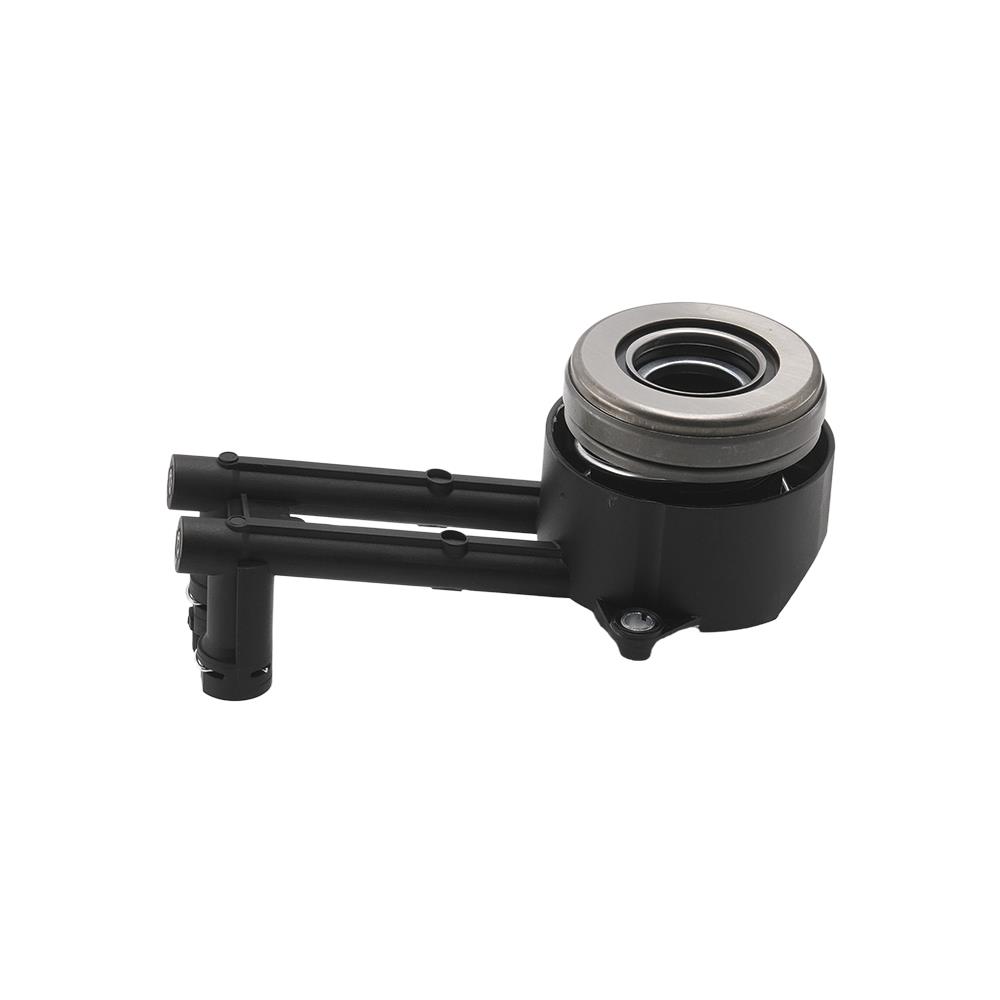

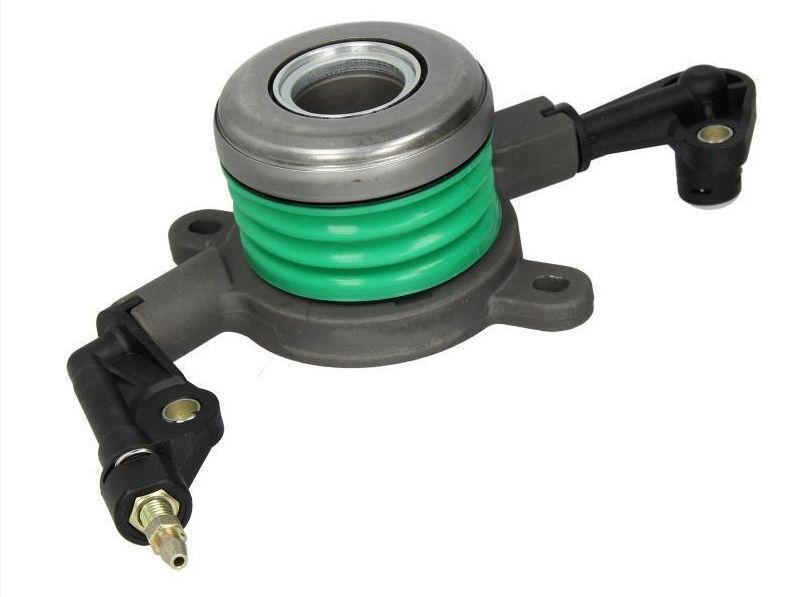

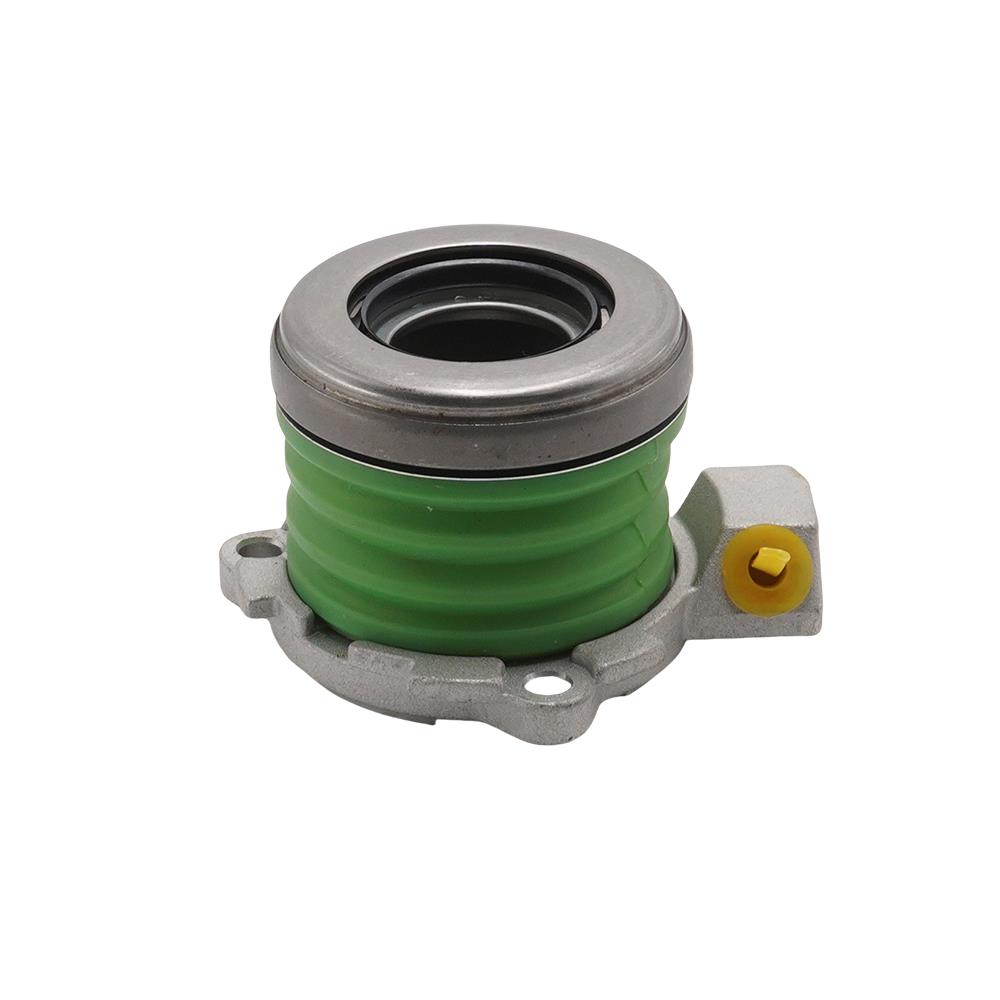

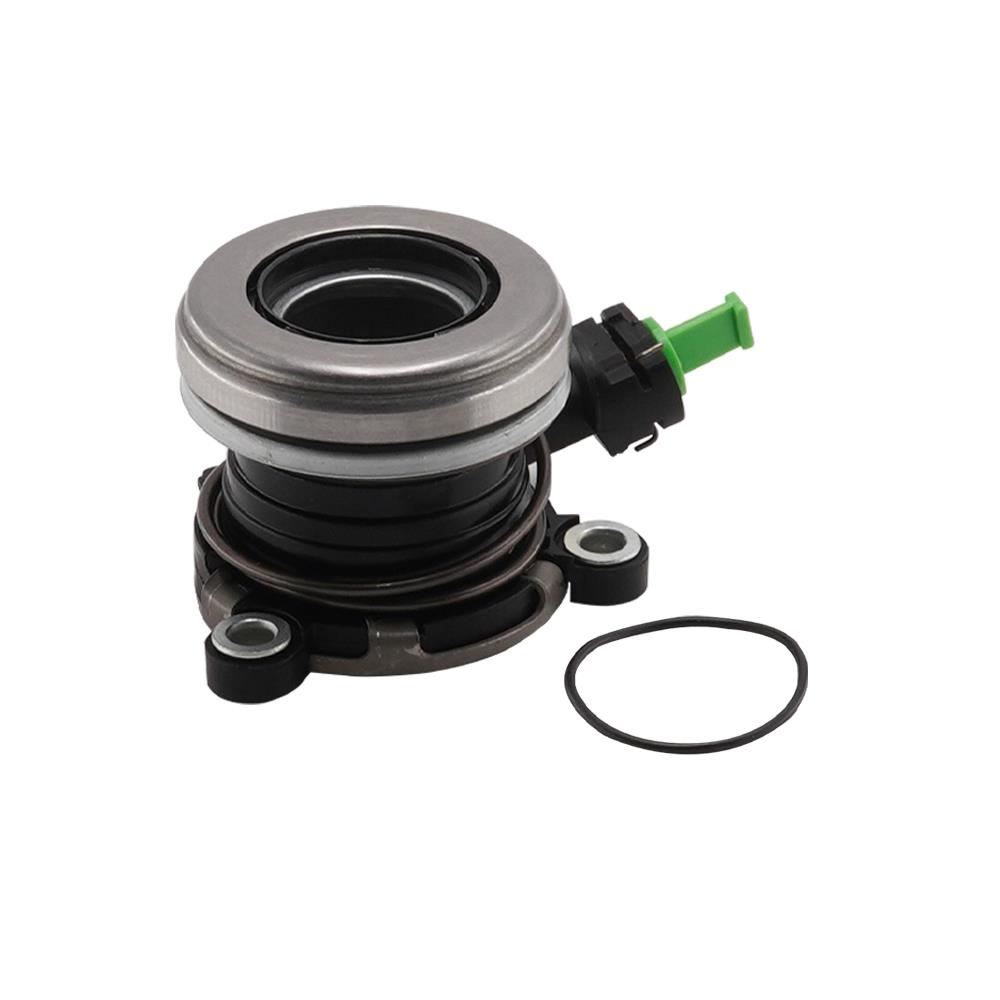

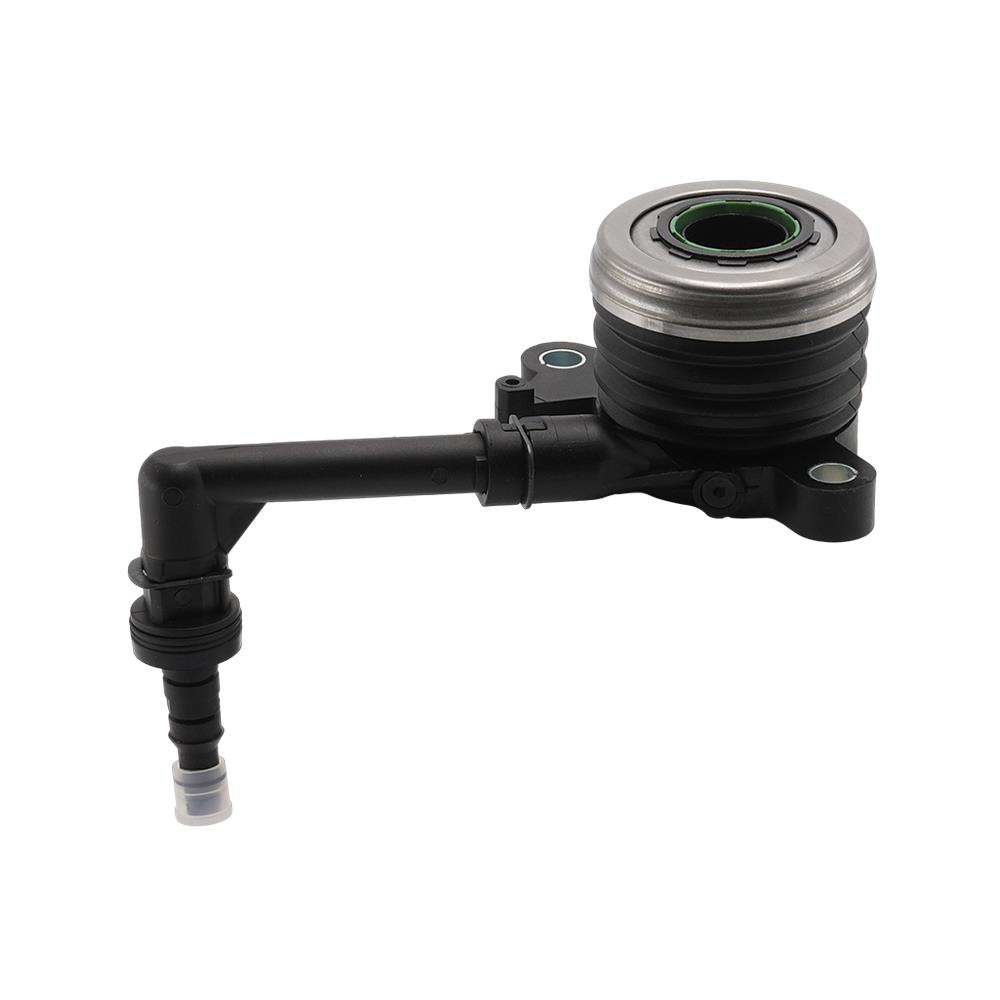

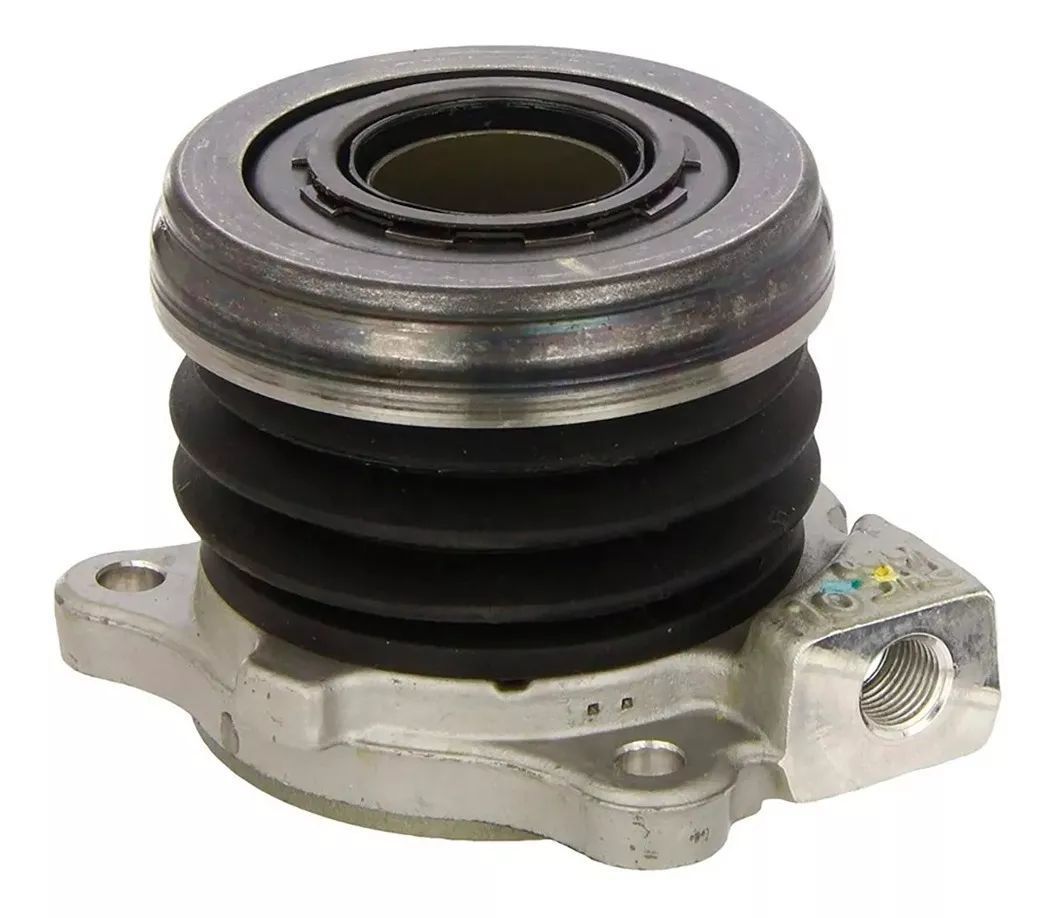

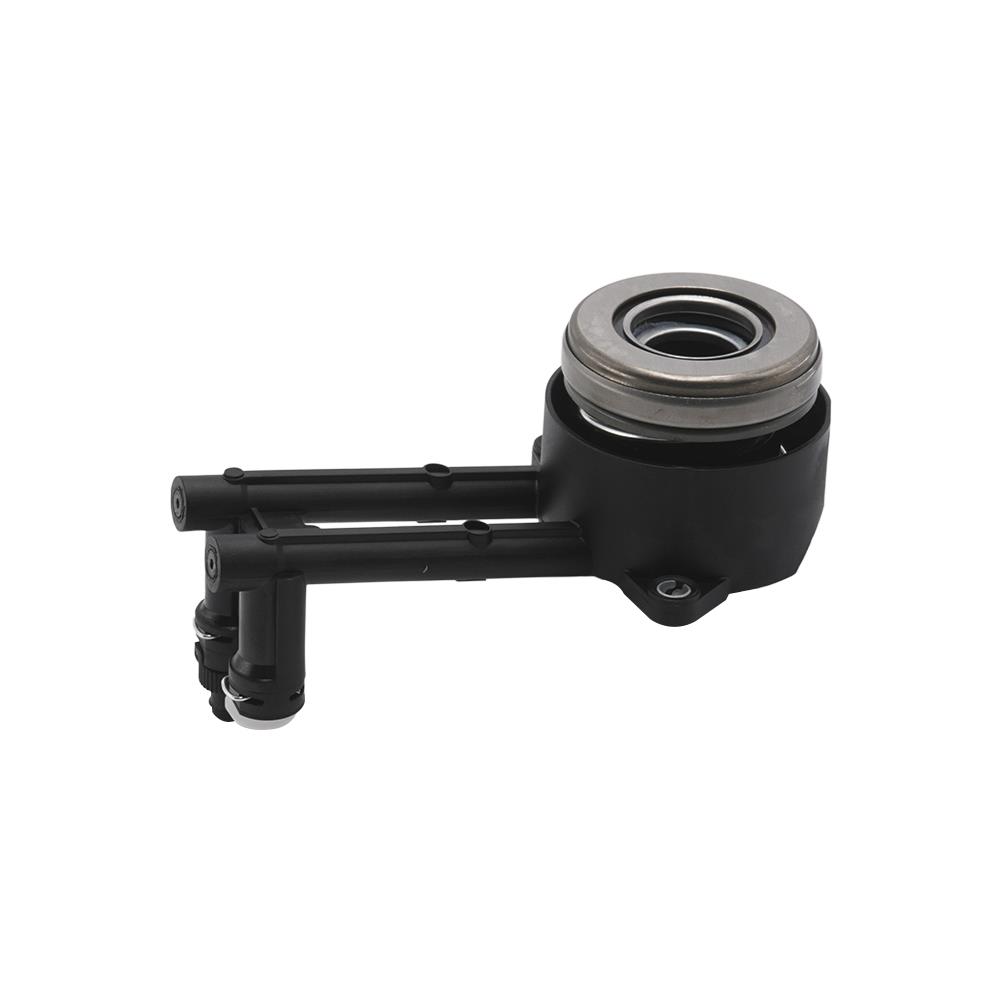

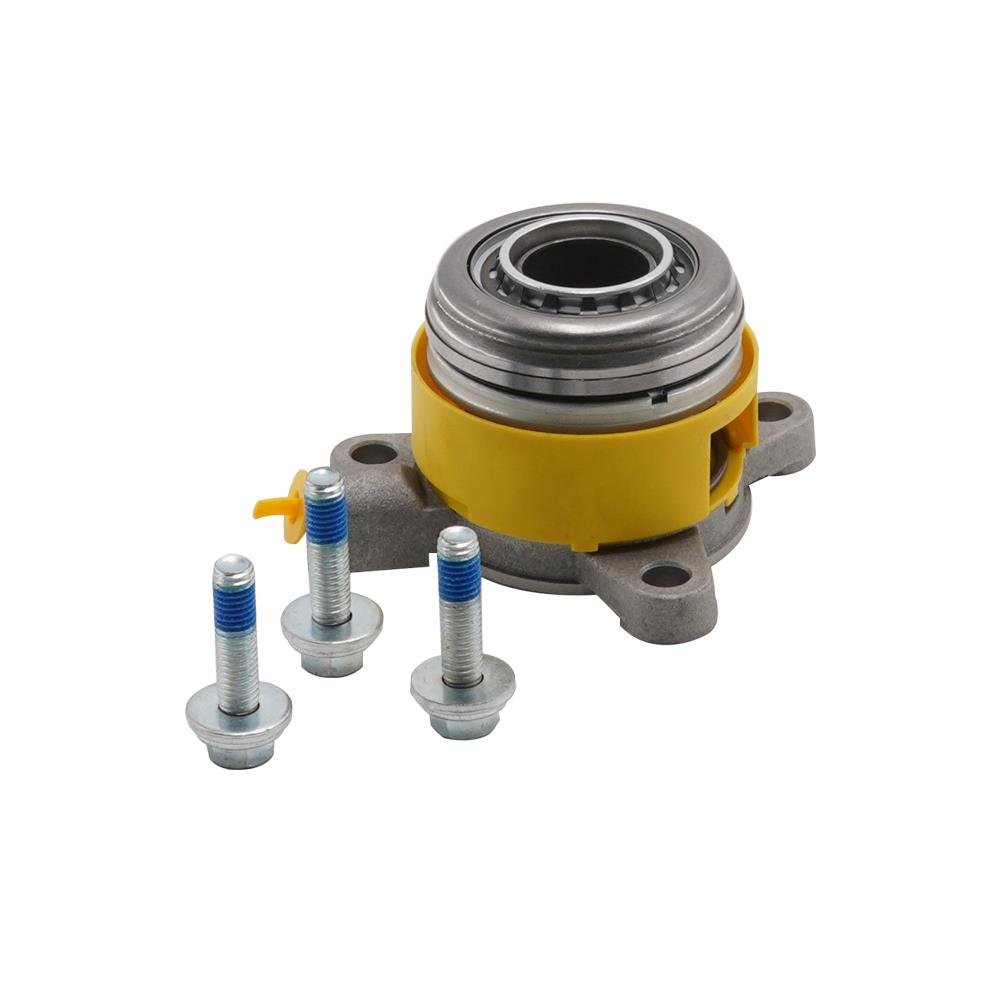

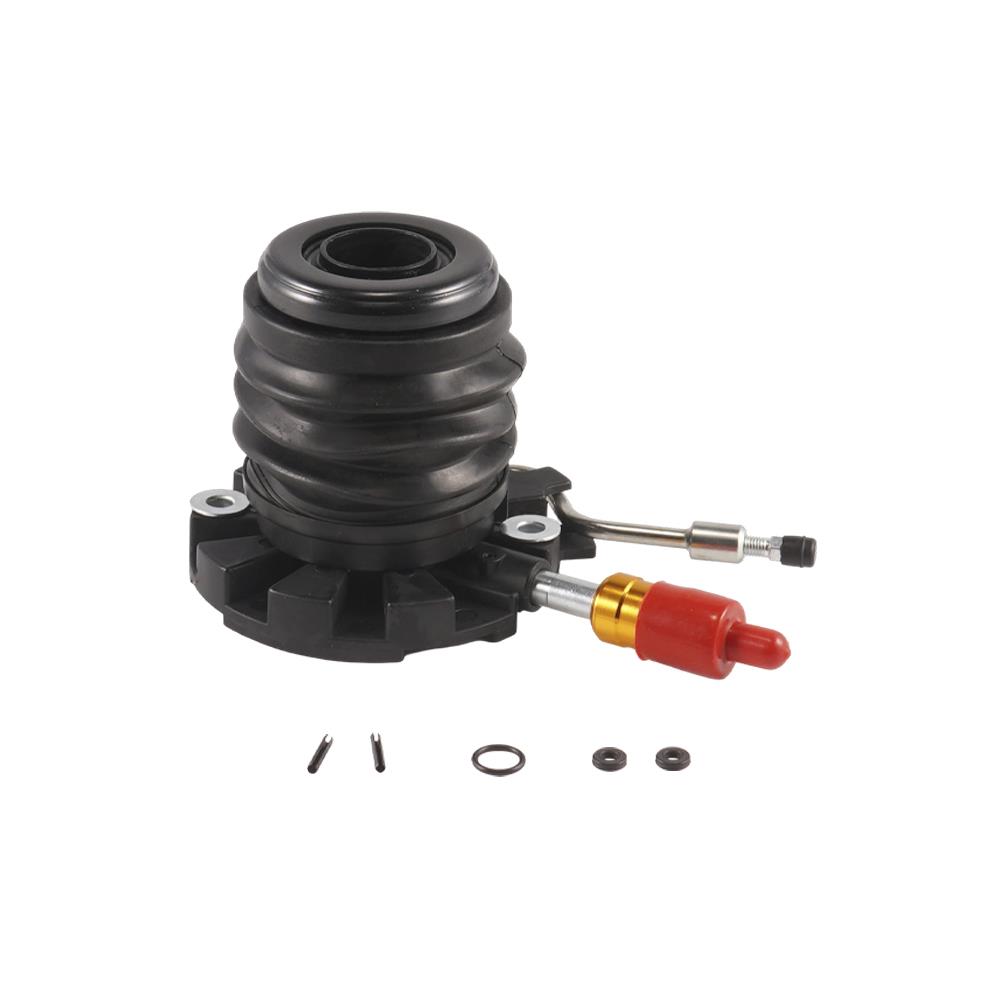

The Concentric Slave Cylinder, also known as a CSC, is a critical component in the clutch system of vehicles equipped with hydraulic clutch setups. It is a hydraulic cylinder integrated with a release bearing, designed to disengage the clutch when the clutch pedal is pressed. Unlike traditional clutch systems that use a separate clutch fork and release bearing, the CSC combines these functions into a single unit. It is mounted concentrically around the gearbox input shaft inside the bell housing, which simplifies the system by eliminating external components like the clutch fork and related hardware.
Detailed Function
The CSC operates as part of a hydraulic clutch system, connected to the clutch master cylinder (CMC) via a hydraulic hose. When the driver depresses the clutch pedal, hydraulic pressure is transmitted through the hose to the CSC. This pressure moves the CSC inward, pressing against the clutch cover diaphragm spring to disengage the clutch disc from the flywheel, interrupting the power flow and allowing smooth gear shifts. Upon releasing the pedal, the CSC facilitates re-engagement by transmitting the engine's driving force back to the transmission input shaft, enabling the vehicle to move.
The CSC's design includes an integrated release bearing, which ensures smooth disengagement and re-engagement. Some designs include a large coil spring to maintain constant contact between the bearing face and the diaphragm spring fingers, ensuring no "lost travel" is required before the clutch pressure plate begins to disengage. This feature enhances precision and reduces pedal effort compared to traditional systems. The CSC is mounted concentrically to the gearbox input shaft, reducing the number of components, facilitating assembly, and eliminating deformations in the fork and release bearing, which can occur in older designs.
Common Issues and Symptoms
Research suggests that CSCs can experience several common issues, which may affect vehicle performance and safety. Symptoms include:
- Clutch Will Not Release: Indicates a potential failure in the hydraulic system, requiring replacement of the CSC, master cylinder, and clutch kit.
- Hydraulic System Leaking: Suggests CSC failure, necessitating replacement of the CSC, master cylinder, and clutch kit.
- Hydraulic System Will Not Bleed Properly: Points to a CSC or system issue, requiring new CSC, master cylinder, and clutch kit installation.
- Release Bearing Failure: The bearing within the CSC may fail prematurely due to constant contact with the pressure plate diaphragm spring.
- Improper Clutch Release: Can lead to clutch slippage, damaging friction material and causing transmission issues like notchy, draggy shifts, blocked shifts, or gear clash.
- Difficulty in Gear Shifting: Often accompanied by unusual noises, a soft or depressed clutch pedal, or leaks in the hydraulic system.
Specific causes identified include wear and tear, hydraulic fluid contamination, and improper installation or adjustment. If hydraulic fluid contaminates the clutch, the entire assembly must be replaced. These issues, if unaddressed, can lead to gearbox failure and serious damage to the drive system.
Comparative Analysis of Function and Issues
To summarize the key aspects, the following table outlines the function and common issues, based on the research:
| Aspect | Details |
|---|
| Function | Hydraulic cylinder with integrated release bearing, disengages clutch when pedal is pressed; reduces pedal effort, eliminates clutch fork, ensures precise release. |
| Common Symptoms | Clutch not releasing, hydraulic leaks, bleeding issues, release bearing failure, difficulty shifting, clutch slippage, notchy shifts. |
| Causes of Failure | Wear, hydraulic fluid contamination, improper installation, adjustment errors, constant bearing contact, manufacturing differences. |
| Specific Adjustment | Optimum distance 160-220 thousandths (average 190); may require shims for aftermarket or performance setups. |
This table highlights the interplay between function and potential failure modes, emphasizing the importance of maintenance and proper adjustment.
