What is a Clutch Slave Cylinder?
The clutch slave cylinder is likely a component in manual transmission vehicles, working with the clutch master cylinder to disengage the clutch when you press the pedal, making gear shifting smoother.
How Does It Work?
It seems to use hydraulic pressure from the master cylinder to move the clutch fork or directly disengage the clutch, interrupting the engine's power to allow gear changes.
Common Issues
Problems like fluid leaks, a spongy pedal feel, or the clutch not disengaging fully, often due to worn seals or air in the system, typically requiring maintenance or replacement.
Introduction to Clutch Slave Cylinders
The clutch slave cylinder is a critical component in the hydraulic clutch system of vehicles equipped with manual transmissions. It works in tandem with the clutch master cylinder to enable smooth gear shifting by disengaging and re-engaging the clutch. This hydraulic system has become increasingly common, with research indicating that 93% of new vehicles in Europe now use hydraulic clutch systems, reflecting their efficiency and design advantages.
Detailed Function and Operation
The clutch slave cylinder is part of the hydraulic system that operates the clutch. When the driver presses the clutch pedal, the clutch master cylinder (located near the pedal, often on the bulkhead next to the brake master cylinder) generates hydraulic pressure, which is transmitted through a hydraulic line to the slave cylinder. The slave cylinder then uses this pressure to move the clutch fork or directly disengage the clutch, depending on the design. This action interrupts the power flow from the engine to the transmission, allowing the driver to shift gears. Upon releasing the pedal, the system allows the clutch to re-engage, transmitting power back to the transmission input shaft.
There are two main types of clutch slave cylinders:

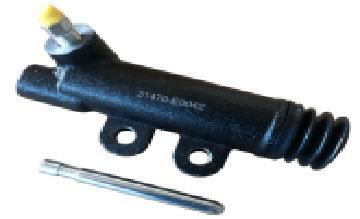

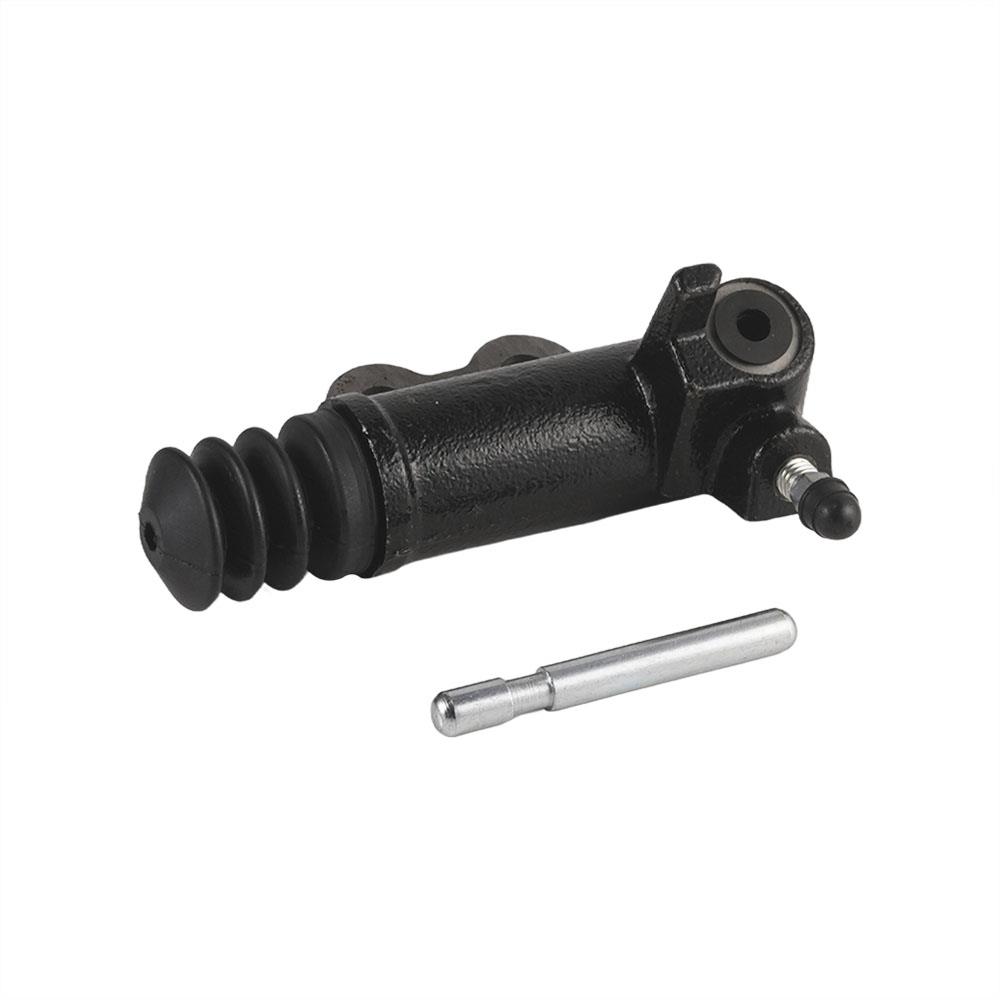

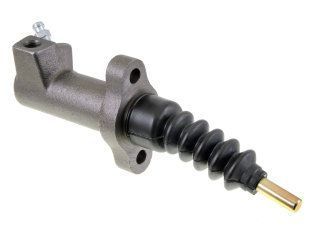

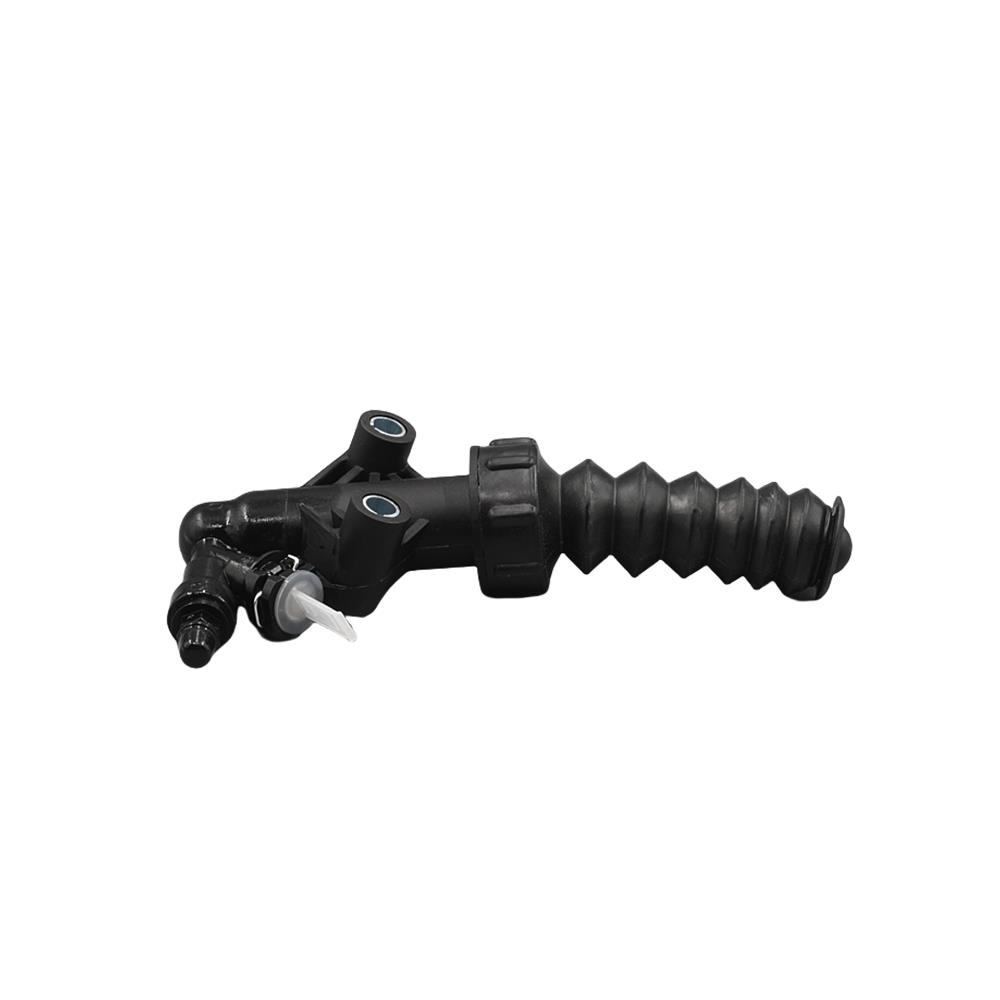

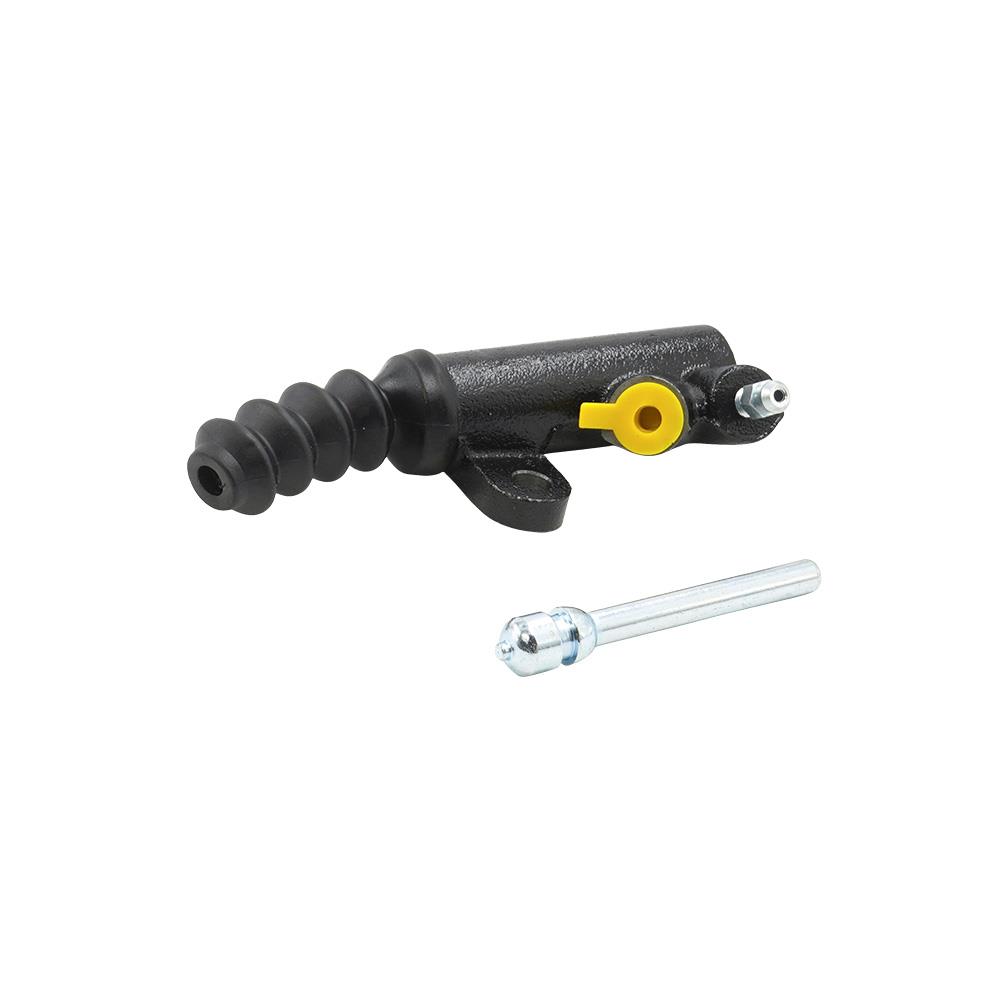

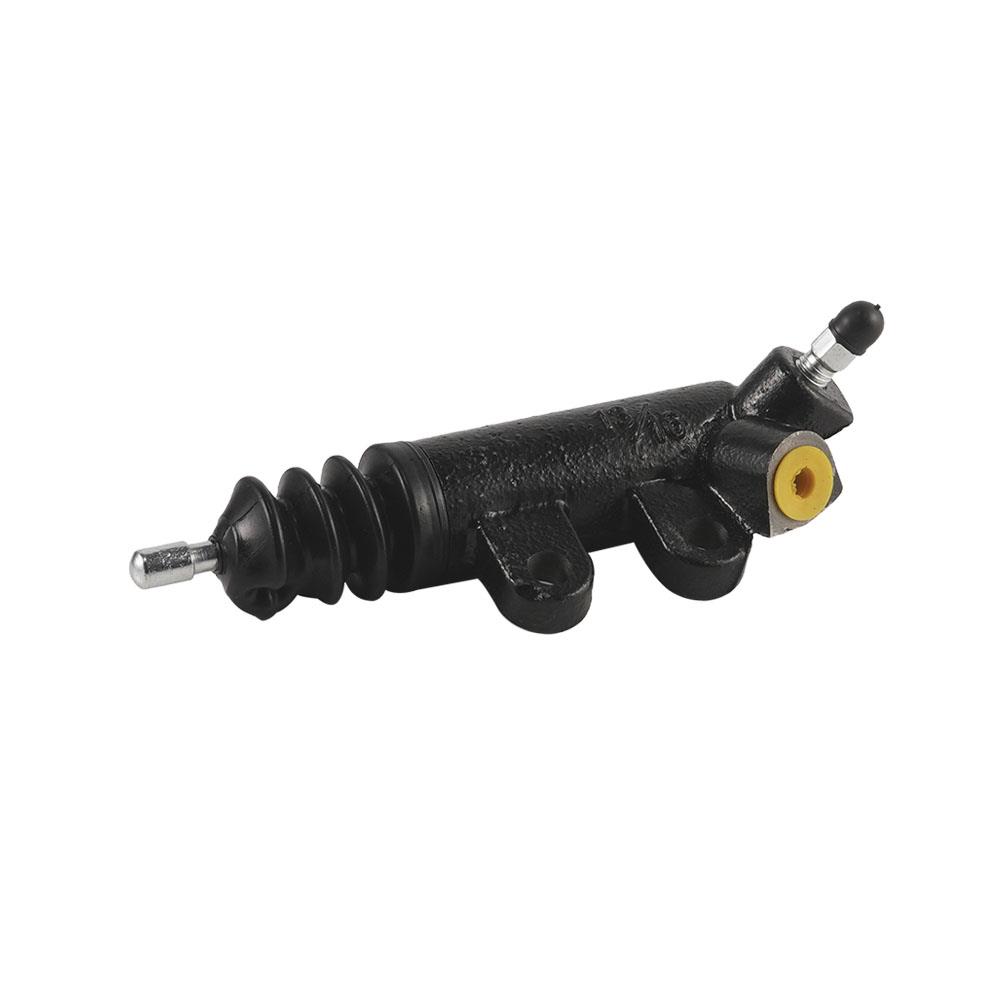

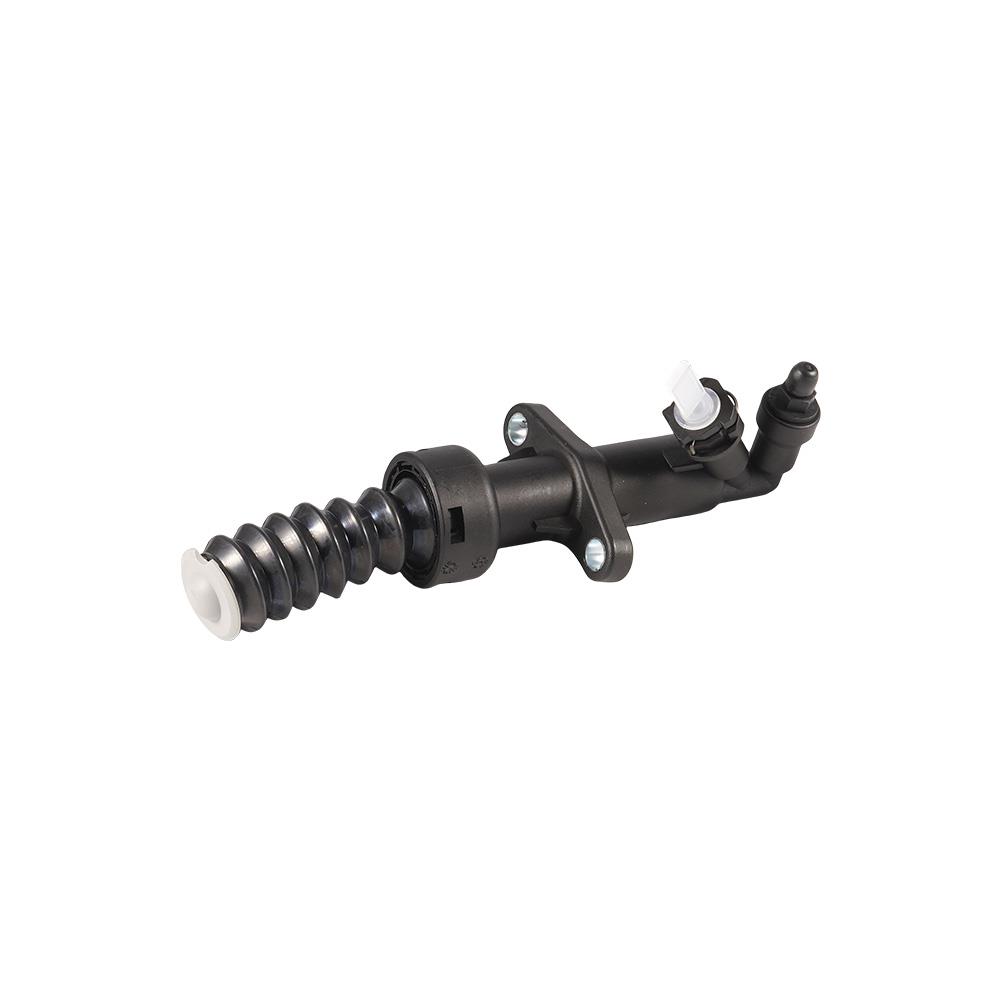

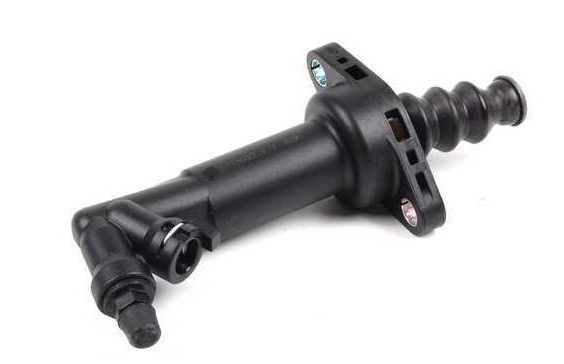

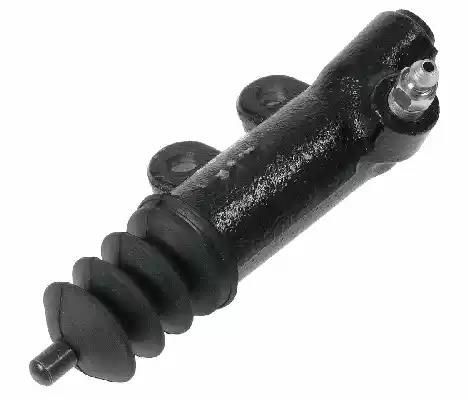

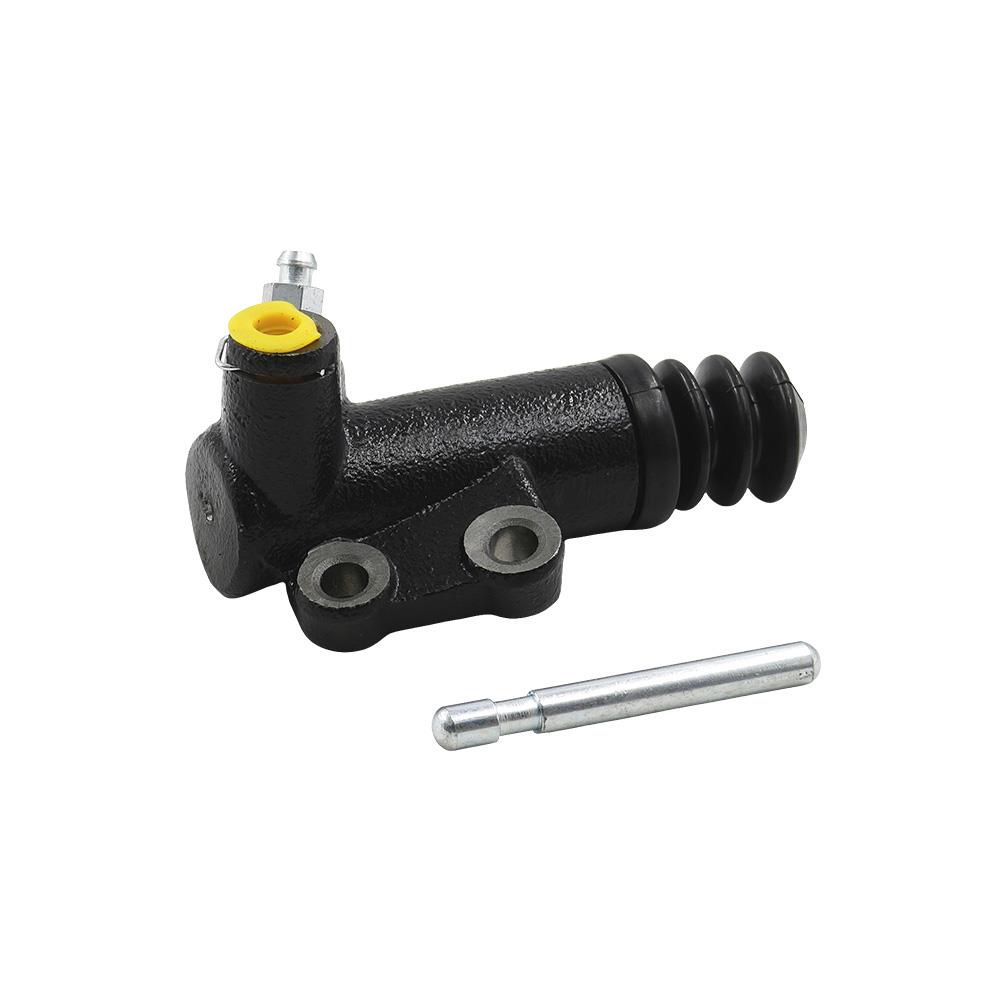

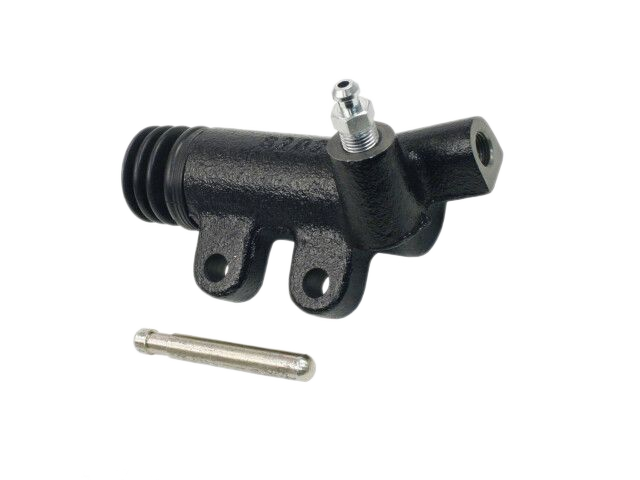

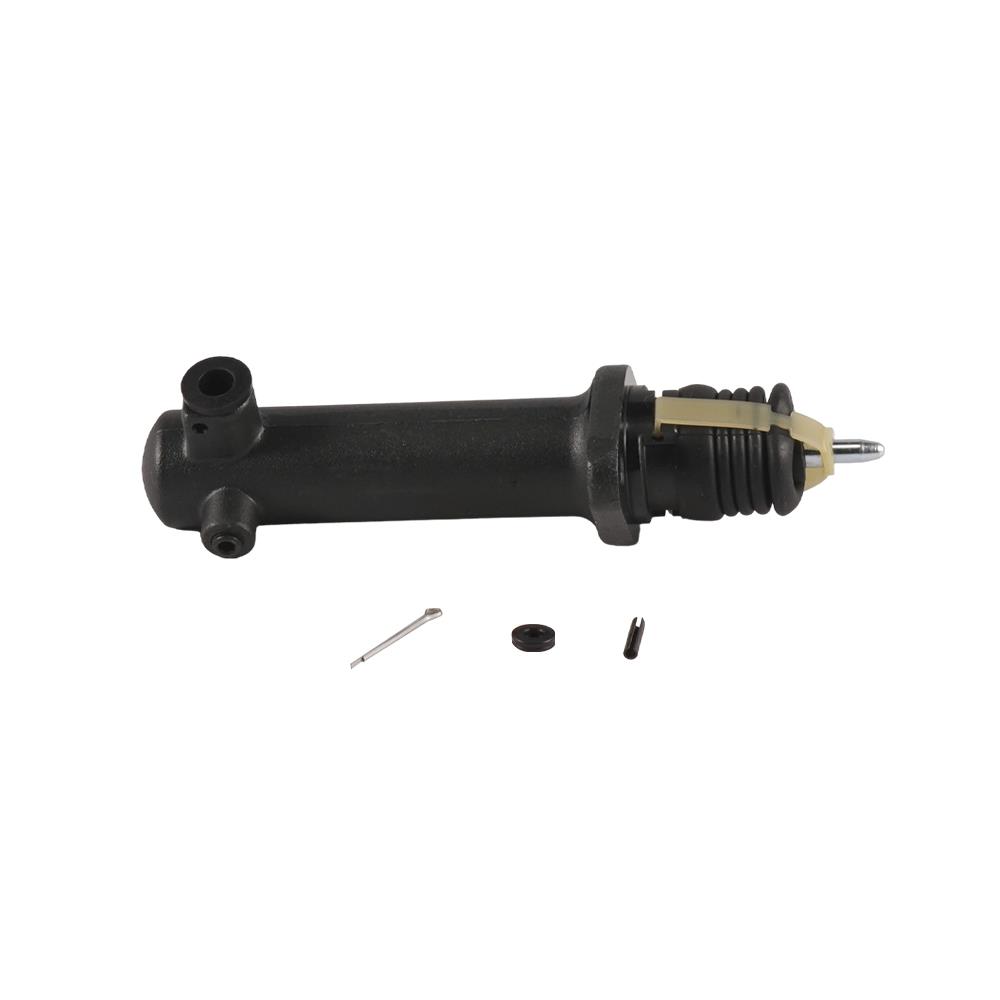

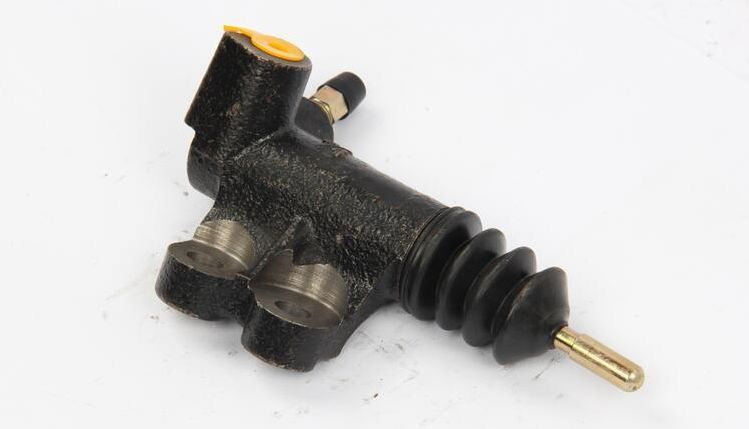

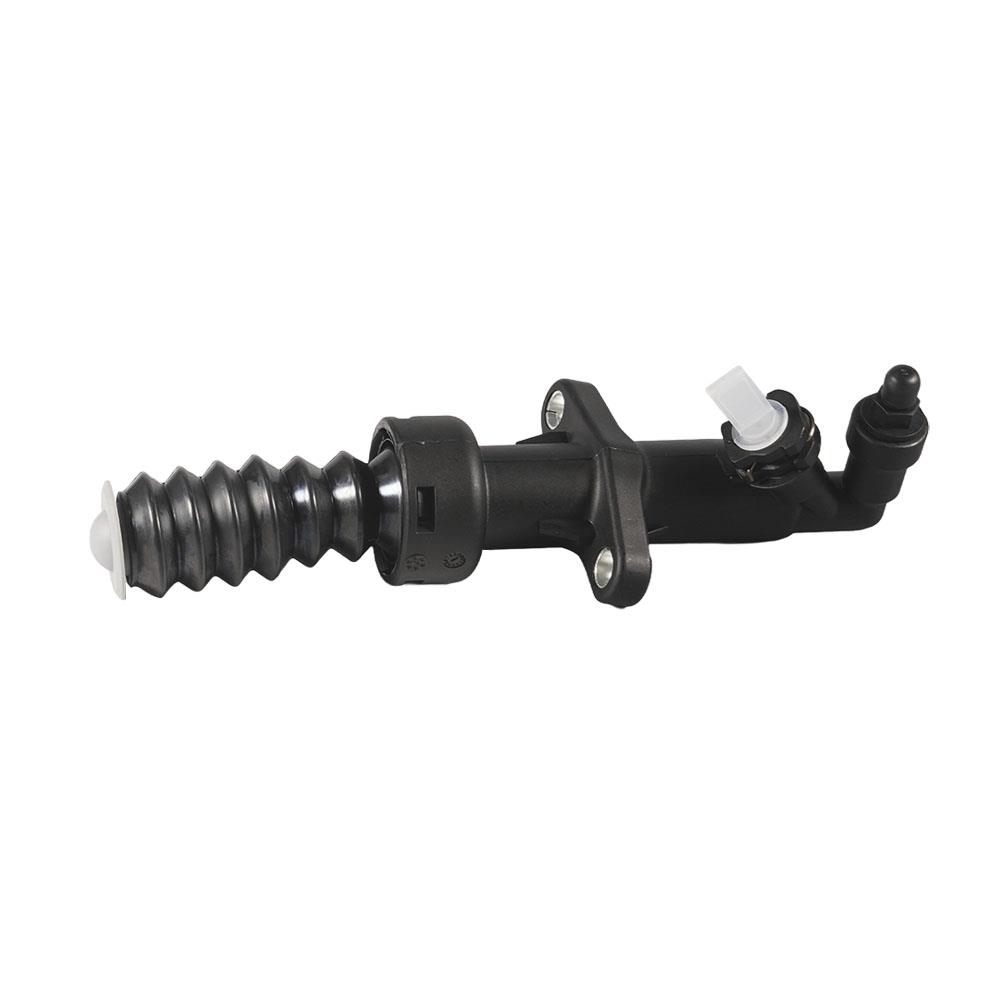

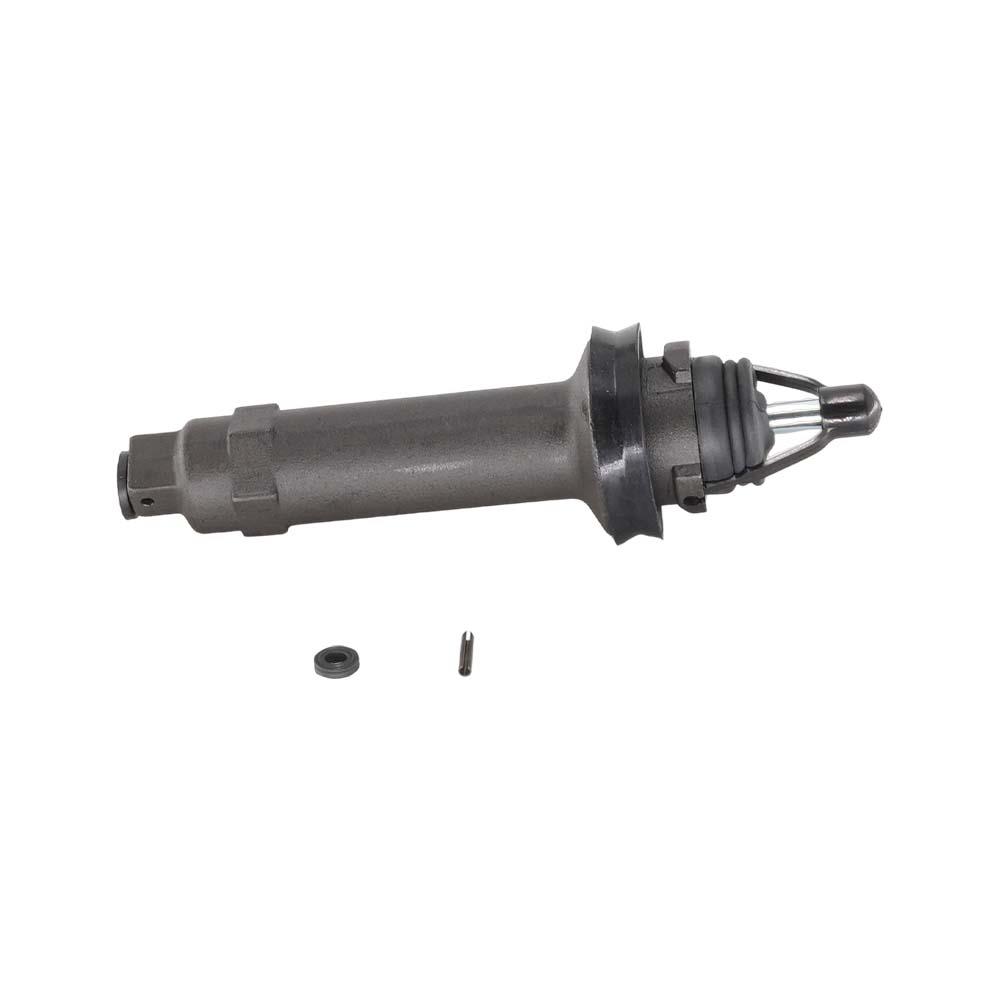

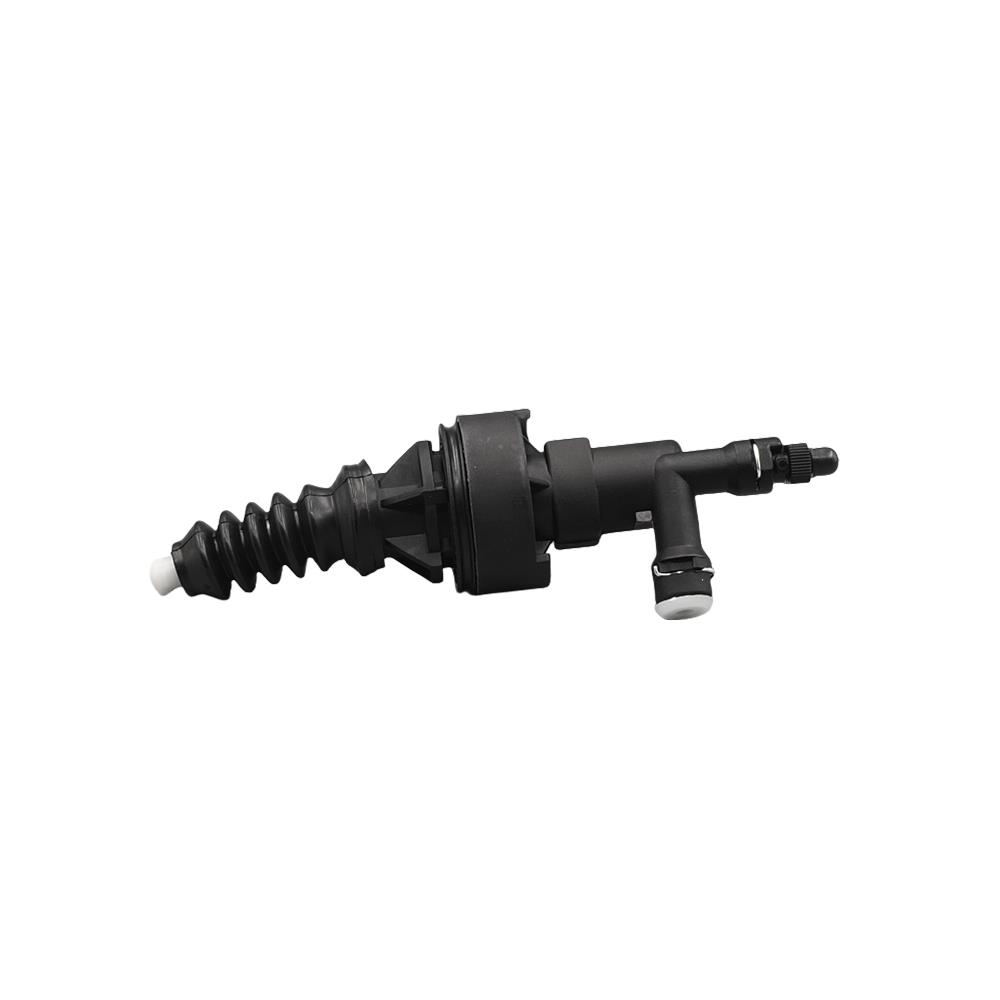

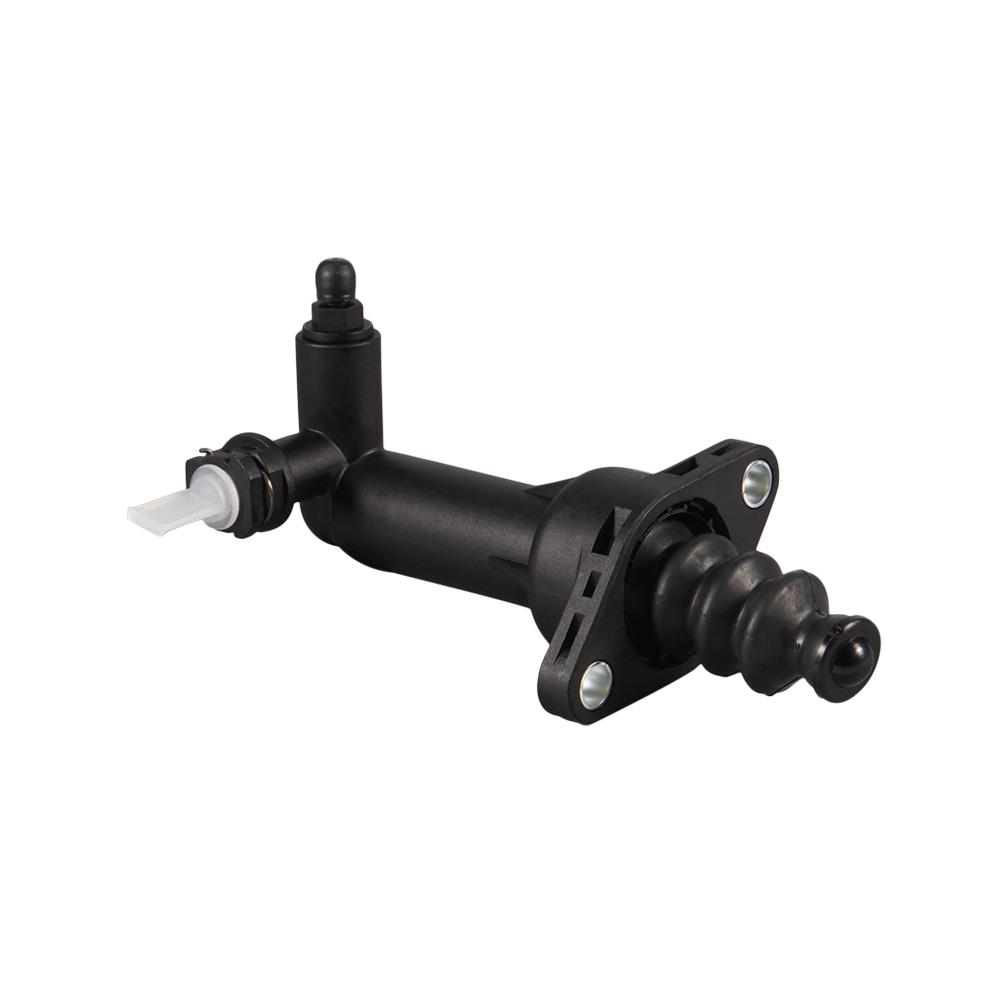

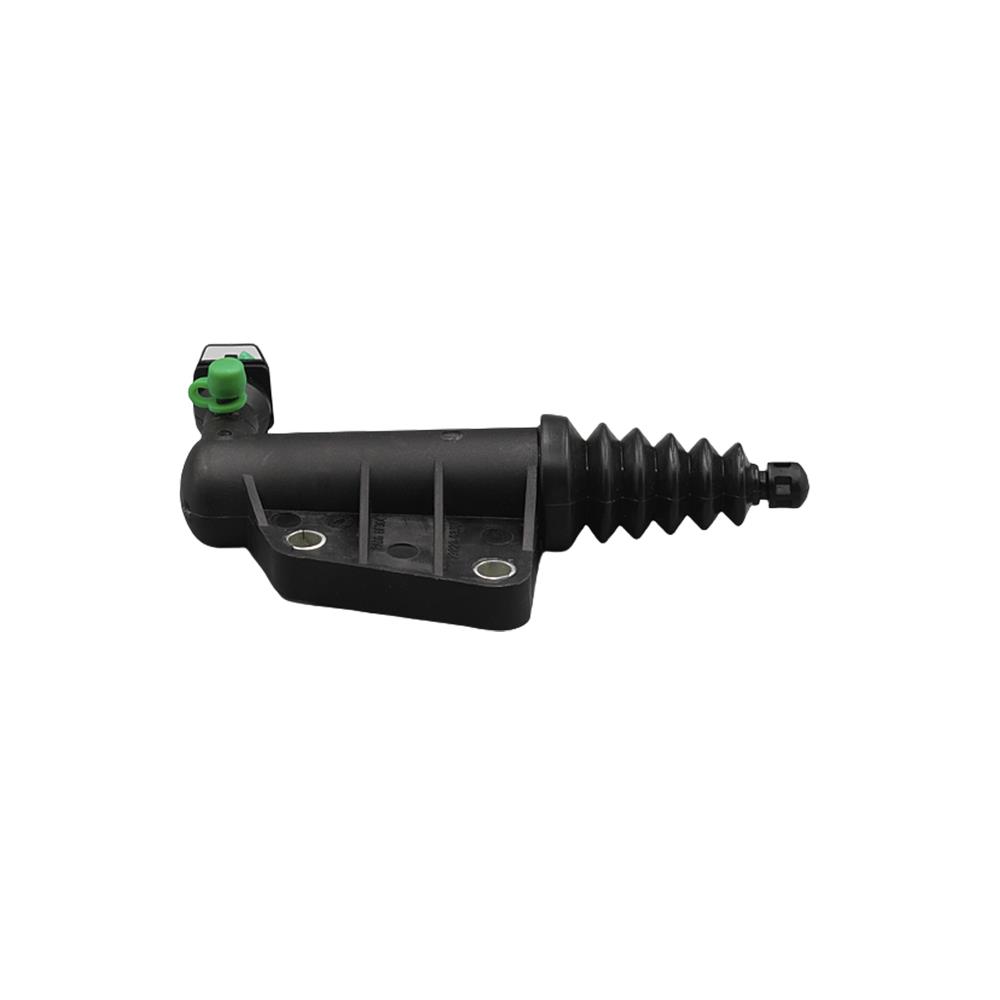

- External Slave Cylinder: Mounted outside the transmission housing, it connects to the clutch fork to disengage the clutch. This type is common in semi-hydraulic systems and is accessible for maintenance.
- Concentric Slave Cylinder (CSC): Integrated with the release bearing, it is mounted inside the transmission housing (bell housing) and directly contacts the clutch cover diaphragm. This design eliminates the need for a separate clutch fork, reducing the number of components and simplifying the system. Over 131 million vehicles are equipped with CSCs, with manufacturers offering parts for models such as Fiat 500, Ford Fiesta, Hyundai Sonata, and Volkswagen Transporter.
The slave cylinder's design includes seals, a piston, and a hydraulic connection, ensuring that hydraulic fluid (usually brake fluid, DOT 3 type) is effectively transmitted. Some systems share the fluid reservoir with the brake master cylinder, while others have a dedicated reservoir, ensuring a constant supply of fluid to avoid air entry, which can cause a spongy pedal feel.
Advantages of Hydraulic Clutch Systems
Hydraulic clutch systems, which include the slave cylinder, offer several advantages:
- Space Efficiency: They eliminate the need for a straight cable line between the pedal and clutch lever, saving space and improving layout flexibility.
- Reliability: Hydraulic systems are less prone to mechanical wear compared to cable systems, enhancing long-term reliability.
- Driver Comfort: They provide optimal and constant pedal effort, reducing fatigue during operation.
- Weight Reduction: Modern designs can reduce weight by up to 70% compared to standard systems, making them ideal for Original Equipment (OE) projects and improving fuel efficiency.
Common Issues and Symptoms
Research suggests that clutch slave cylinders can experience several common issues, which may affect vehicle performance and safety. Below is a detailed breakdown of symptoms and their causes:
| Symptom | Description |
|---|
| Soft or Spongy Clutch Pedal | The pedal feels less resistant, sinks to the floor, or resets slowly, often due to air in the system or low fluid levels. |
| Difficulty Shifting Gears | The clutch may not fully disengage, causing notchy, draggy, or blocked shifts, potentially leading to transmission damage. |
| Fluid Leaks | Hydraulic fluid (brake fluid) may leak from the slave cylinder, visible as puddles under the vehicle, leading to low fluid levels. |
| Clutch Slippage | The clutch may not fully engage or disengage, resulting in loss of power or higher engine revs without speed gain. |
| Unusual Noises | Grinding, squeaking, or clunking sounds may occur, especially when shifting gears or pressing the clutch pedal. |
| Low Brake Fluid | Since the clutch and brake systems often share a fluid reservoir, a failing slave cylinder can cause low brake fluid levels, affecting brake performance. |
Causes of Failure:
- Wear and Tear: Seals and moving parts degrade over time due to repeated use, especially under high heat and load.
- Contaminated Fluid: Dirt or moisture in the hydraulic fluid can damage the cylinder surfaces, leading to leaks or poor pressure regulation.
- Improper Bleeding: Air bubbles in the system can cause a spongy pedal feel and reduce hydraulic efficiency.
- Overuse of Clutch: Riding the clutch or frequent slipping can overheat components, accelerating wear.
- Manufacturing Defects: Poor materials or quality control can lead to early failure, such as cracked housings or faulty seals.
- Corrosion: Moisture in the brake fluid, which is hygroscopic, can cause corrosion in the cylinder bores, affecting performance.
- Broken Seals: Worn or damaged rubber seals can lead to fluid leaks, reducing hydraulic pressure.
These issues, if unaddressed, can lead to clutch slippage, transmission failure, and serious safety concerns, necessitating timely maintenance or replacement.
Comparative Analysis of Types
To summarize the key differences between external slave cylinders and concentric slave cylinders, the following table outlines their characteristics:
| Aspect | External Slave Cylinder | Concentric Slave Cylinder (CSC) |
|---|
| Location | Mounted outside the transmission housing, connected to clutch fork. | Mounted inside the bell housing, integrated with release bearing. |
| Design | Separate from release bearing, uses clutch fork for disengagement. | Combines release bearing, eliminates clutch fork, simplifies system. |
| Weight | Heavier, traditional design (up to 1,700g with related components). | Lighter, up to 70% weight reduction (around 400g with system). |
| Maintenance Access | Easier access for inspection and replacement. | May require transmission removal, increasing labor costs. |
| Common in Systems | Semi-hydraulic clutch systems. | Fully-hydraulic clutch systems, increasingly common in modern vehicles. |
This table highlights the trade-offs between the two types, with CSCs offering efficiency and weight savings but potentially higher replacement complexity.
