Clutch Release Bearing Guide Tube

Not Found
products 5

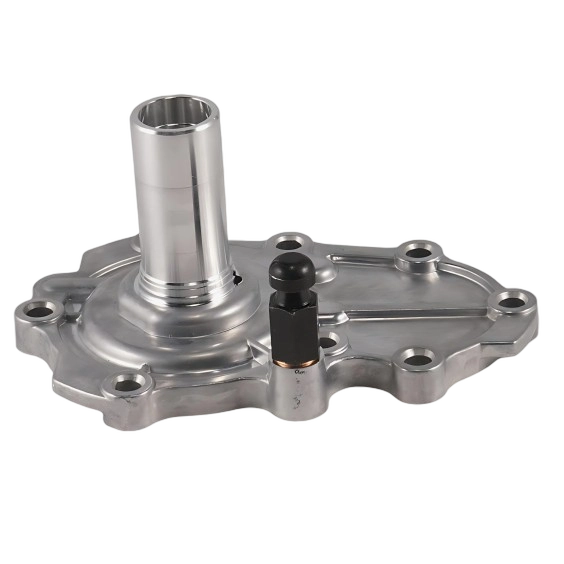

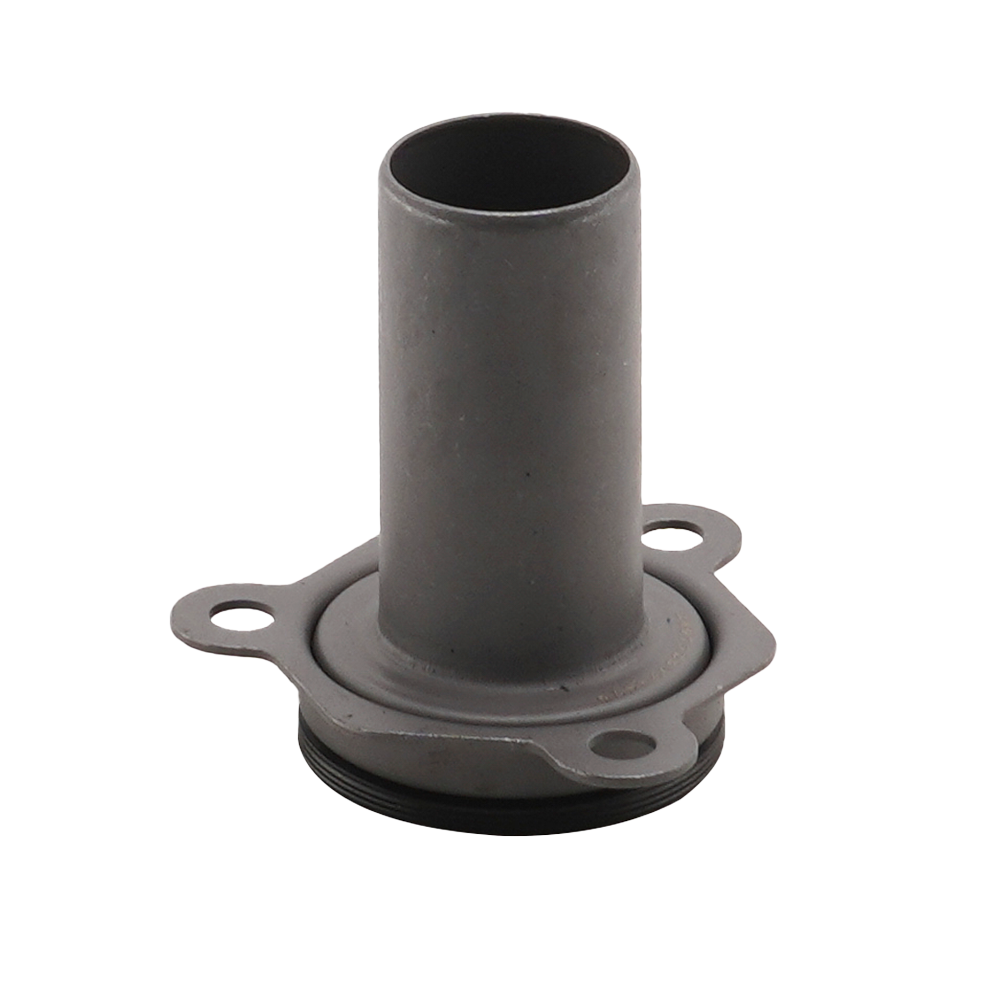

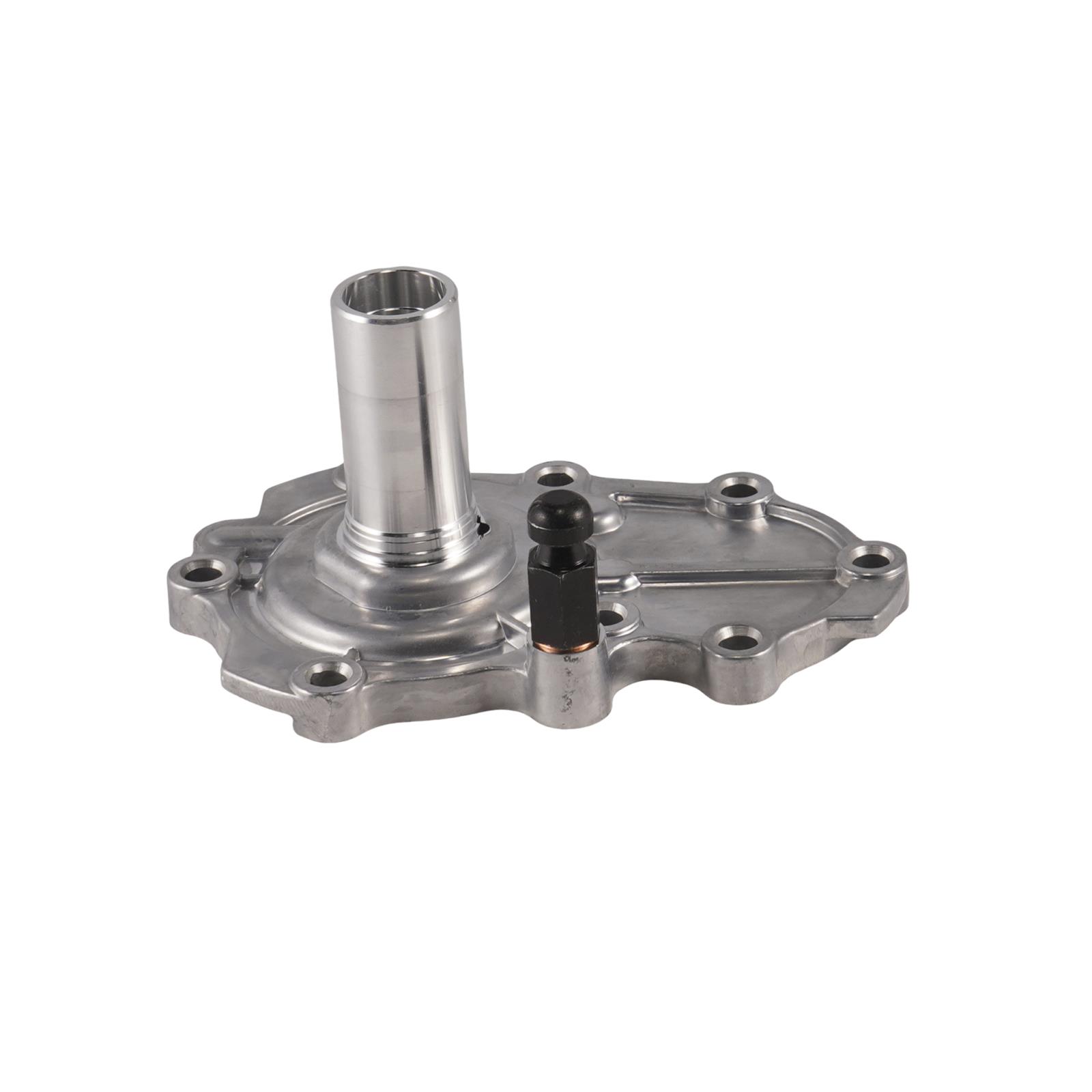

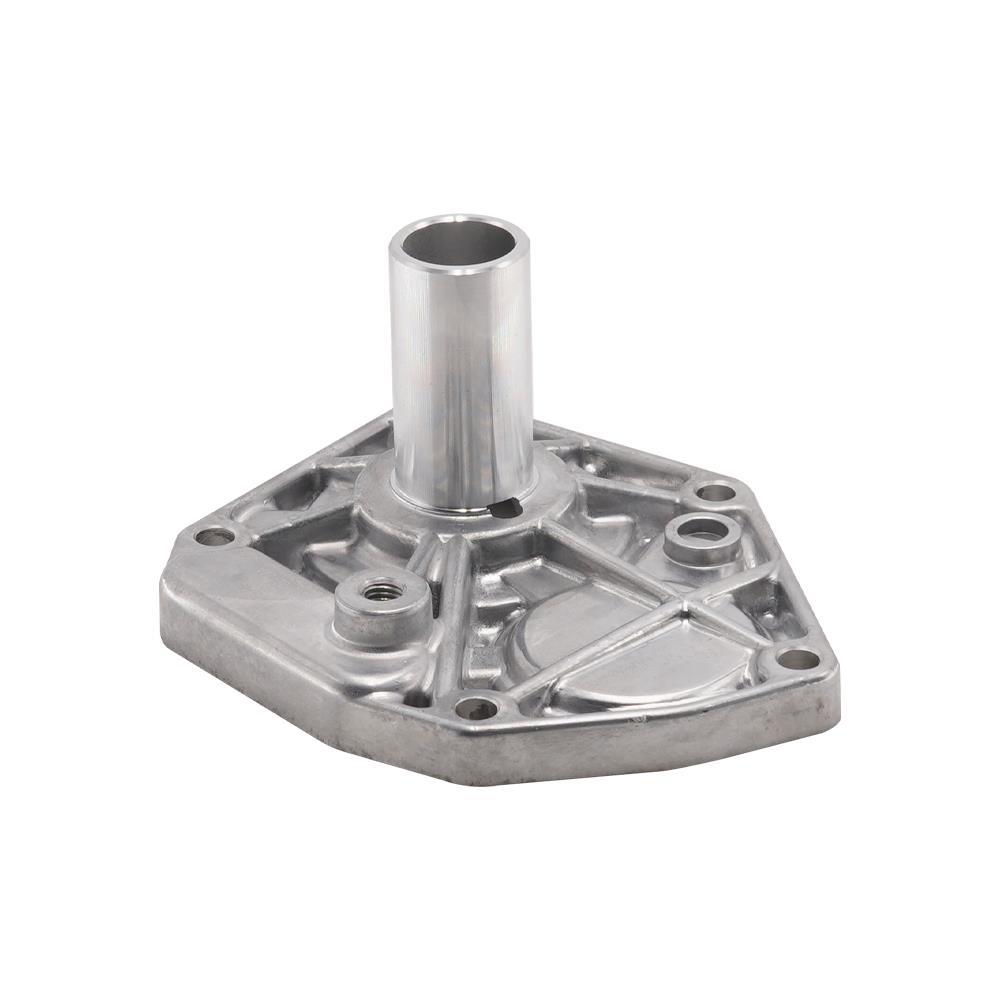

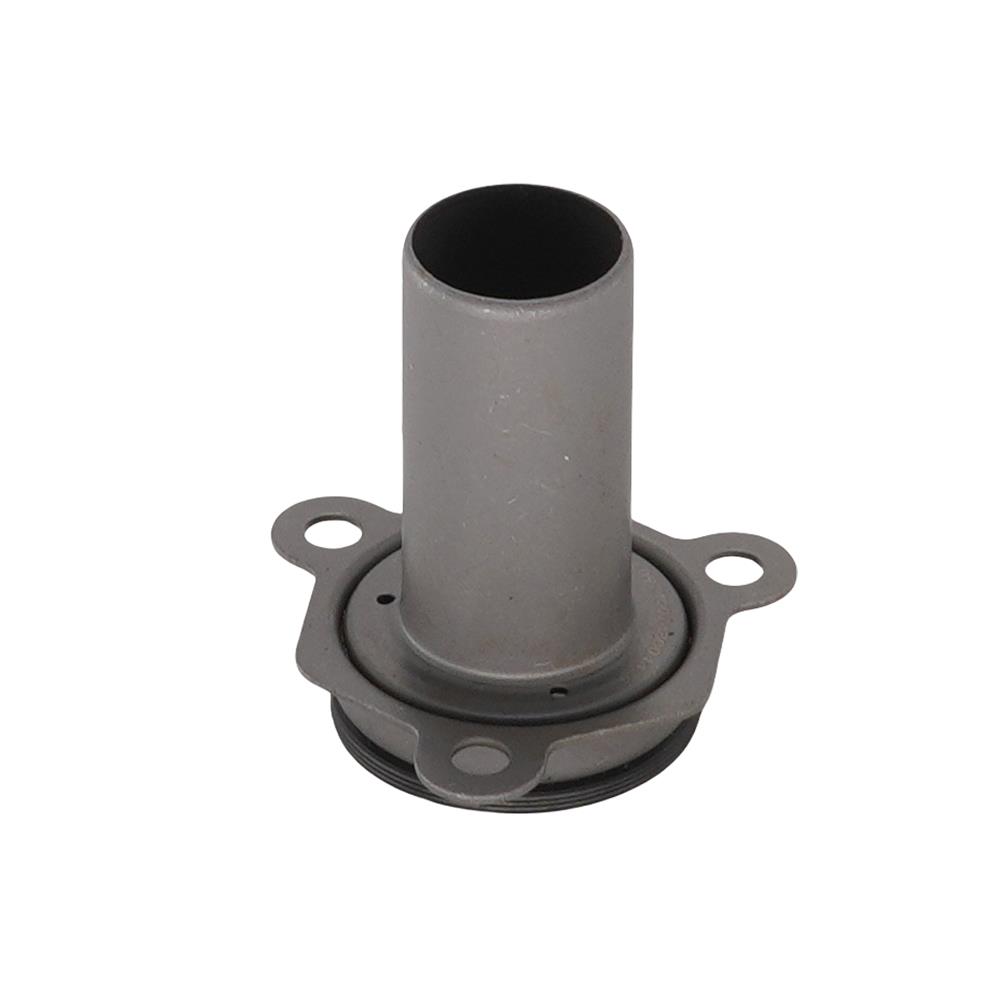

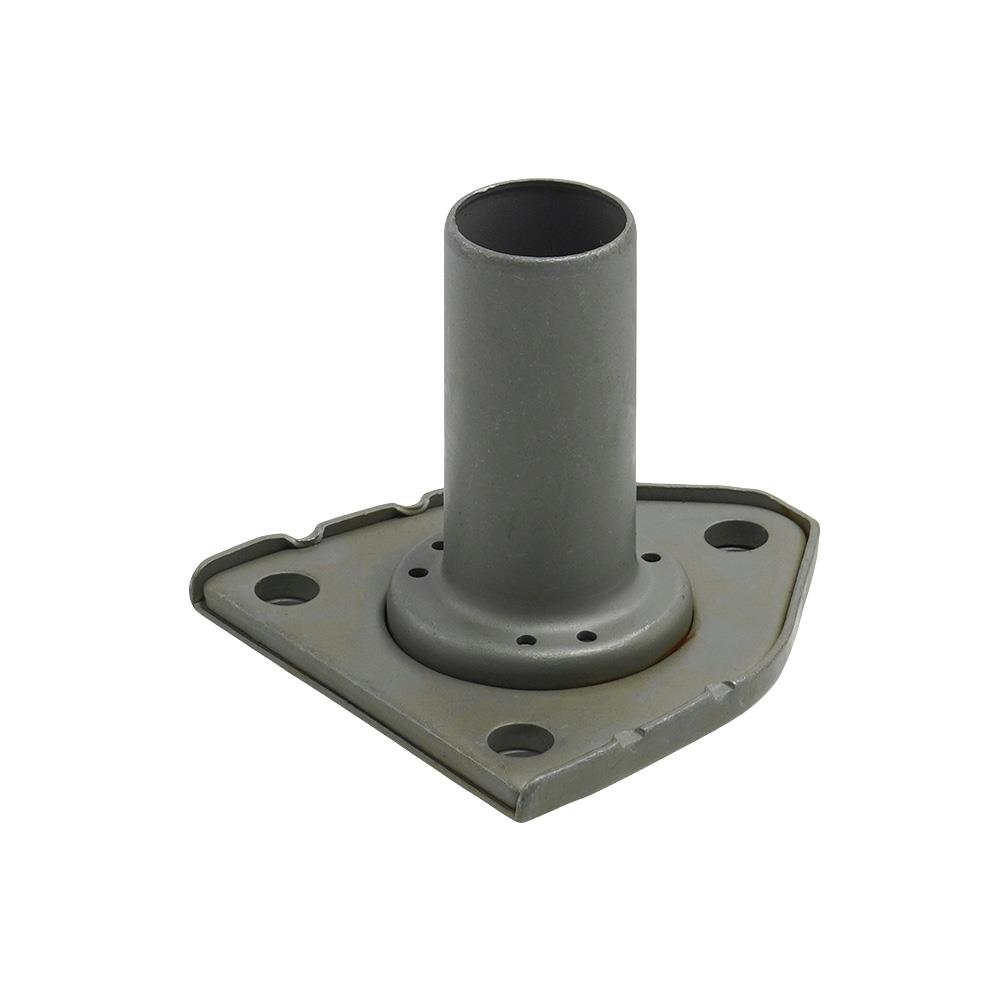

What is the Clutch Release Bearing Guide Tube?

The clutch release bearing guide tube is likely a hollow tube or sleeve in manual transmission vehicles. It fits over the input shaft to guide the clutch release bearing, ensuring it moves smoothly and stays aligned during clutch engagement and disengagement.

How Does It Work?

It helps the release bearing move along the input shaft, preventing misalignment and protecting the shaft from wear, especially in vehicles without centering rings.

Common Issues

Symptoms like difficulty shifting gears, grinding noises, clutch slippage, and vibrations, often due to wear or misalignment, typically requiring replacement during clutch maintenance.

Introduction to Clutch Release Bearing Guide Tube

The clutch release bearing guide tube is a critical component in the clutch system of vehicles equipped with manual transmissions. It is a hollow tube or sleeve that fits over the input shaft of the transmission, designed to guide the movement of the clutch release bearing (also known as the throw-out bearing). This guide tube ensures that the release bearing moves smoothly and remains properly aligned as it engages and disengages the clutch during gear shifts, facilitating efficient power transfer from the engine to the transmission.

Detailed Function and Operation

The clutch release bearing guide tube plays a pivotal role in the clutch system's operation, particularly in ensuring the proper functioning of the release bearing. When the driver presses the clutch pedal, the clutch fork moves the release bearing toward the pressure plate to disengage the clutch. The guide tube ensures that the release bearing moves in a straight, controlled path along the input shaft, preventing wobbling or misalignment that could lead to uneven wear or operational issues.

  1. Alignment and Stability: The guide tube is especially crucial in vehicles where traditional centering rings are absent, such as in late-model cars with independent rear suspension (IRS) systems. For example, in '71-on IRS models, the guide tube helps keep the clutch release bearing in line, compensating for the lack of centering mechanisms.
  2. Protection of Input Shaft: In vehicles where the input shaft is prone to wear (e.g., due to design limitations where the shaft cannot be easily separated from the gearbox), the guide tube acts as a protective sleeve. It reduces friction and wear on the input shaft by creating a smooth surface for the release bearing to slide on. The guide tube is designed as a sleeve to slide over the nose cone, avoiding the need for a complete front assembly replacement of the gearbox in models with prone input shaft wear.
  3. Integration with Clutch System: The guide tube is typically located inside the transmission bell housing, surrounding the input shaft. It works in conjunction with the clutch release bearing, clutch fork, and pressure plate to ensure smooth clutch engagement and disengagement. This integration is vital for maintaining the efficiency of the clutch system, especially under high load and heat conditions.

Common Issues and Symptoms

While the guide tube is a relatively simple component, it can experience wear or failure, leading to problems with the clutch system. Below is a detailed breakdown of common issues and their symptoms, presented in a table for clarity:

SymptomDescriptionPotential Causes
Difficulty Shifting GearsNotchy, draggy, or blocked gear shifts; clutch may not fully disengage.Worn or damaged guide tube causing misalignment of the release bearing.
Unusual NoisesGrinding, whining, or rattling sounds when pressing the clutch pedal or shifting gears.Damaged guide tube allowing the release bearing to wobble or misalign.
Clutch SlippageEngine revs increase without a corresponding increase in vehicle speed.Guide tube wear preventing proper clutch disengagement.
Vibration or ShakingFelt through the clutch pedal or vehicle during gear changes.Misaligned release bearing due to a faulty guide tube.
Clutch DragClutch partially engages even when the pedal is fully depressed.Guide tube wear or misalignment affecting clutch operation.


Specific Causes of Failure:

  • Wear and Tear: Over time, the guide tube can wear out, especially if the input shaft is already showing signs of wear. This can lead to uneven surfaces or cracks, causing the release bearing to operate improperly, failure to replace the guide tube can cause incorrect clutch operation or clutch/bearing failure.
  • Misalignment: If the guide tube is not properly installed or becomes bent, it can fail to keep the release bearing aligned, leading to clutch system issues.
  • Lack of Maintenance: The guide tube is often overlooked during clutch replacements, but it should always be inspected and replaced if worn, as it directly impacts the performance and longevity of the clutch system.
