Clutch Master Cylinder

What is a Clutch Master Cylinder?

The clutch master cylinder is likely a component in vehicles with manual transmissions, converting the force from pressing the clutch pedal into hydraulic pressure. This pressure helps disengage the clutch, making it easier to shift gears.

How Does It Work?

It push hydraulic fluid to a slave cylinder, which then moves to disengage the clutch from the flywheel. This process interrupts the engine's power, allowing smooth gear changes.

Common Issues

Problems like fluid leaks, a spongy pedal feel, or the clutch not disengaging fully, often due to worn seals or air in the system, requiring maintenance or replacement.

Introduction to Clutch Master Cylinders

The clutch master cylinder, often abbreviated as CMC, is a critical component in the hydraulic clutch system of vehicles equipped with manual transmissions. It is responsible for converting the mechanical force applied to the clutch pedal into hydraulic pressure, which is then transmitted through the system to disengage the clutch, facilitating smooth gear shifts. This hydraulic system has become increasingly common, with research indicating that 93% of new vehicles in Europe now use hydraulic clutch systems, reflecting their efficiency and design advantages.

Detailed Function and Operation

The CMC is typically located directly behind the clutch pedal, often on the bulkhead next to the brake master cylinder, on the right when looking from the front of the car. It operates as a hydraulic pump, connected to a reservoir that supplies hydraulic fluid, usually brake fluid (DOT 3 type). When the driver presses the clutch pedal, the CMC pushes this fluid through a hose to the slave cylinder (or concentric slave cylinder in some designs). This fluid pressure moves the slave cylinder, which in turn presses against the clutch cover diaphragm spring, disengaging the clutch disc from the flywheel and interrupting the power flow from the engine to the transmission. Upon releasing the pedal, the system allows the clutch to re-engage, transmitting power back to the transmission input shaft.

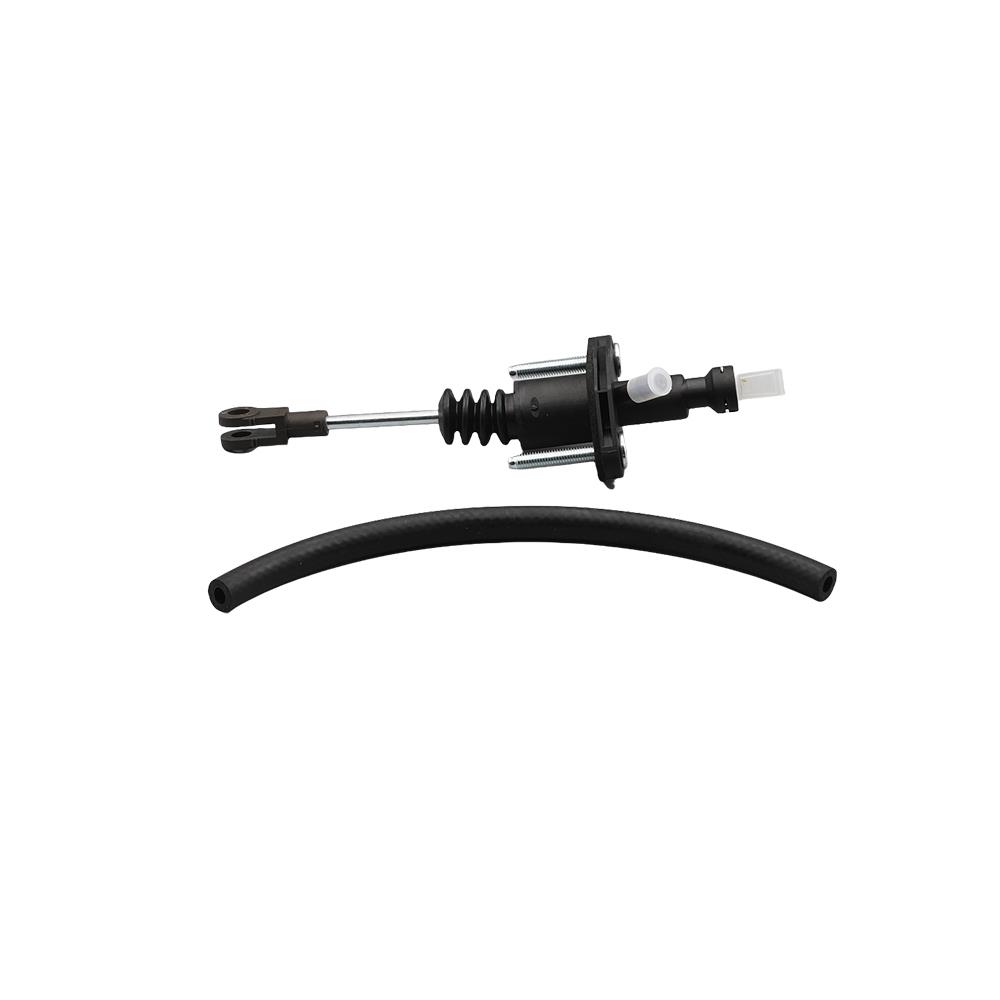

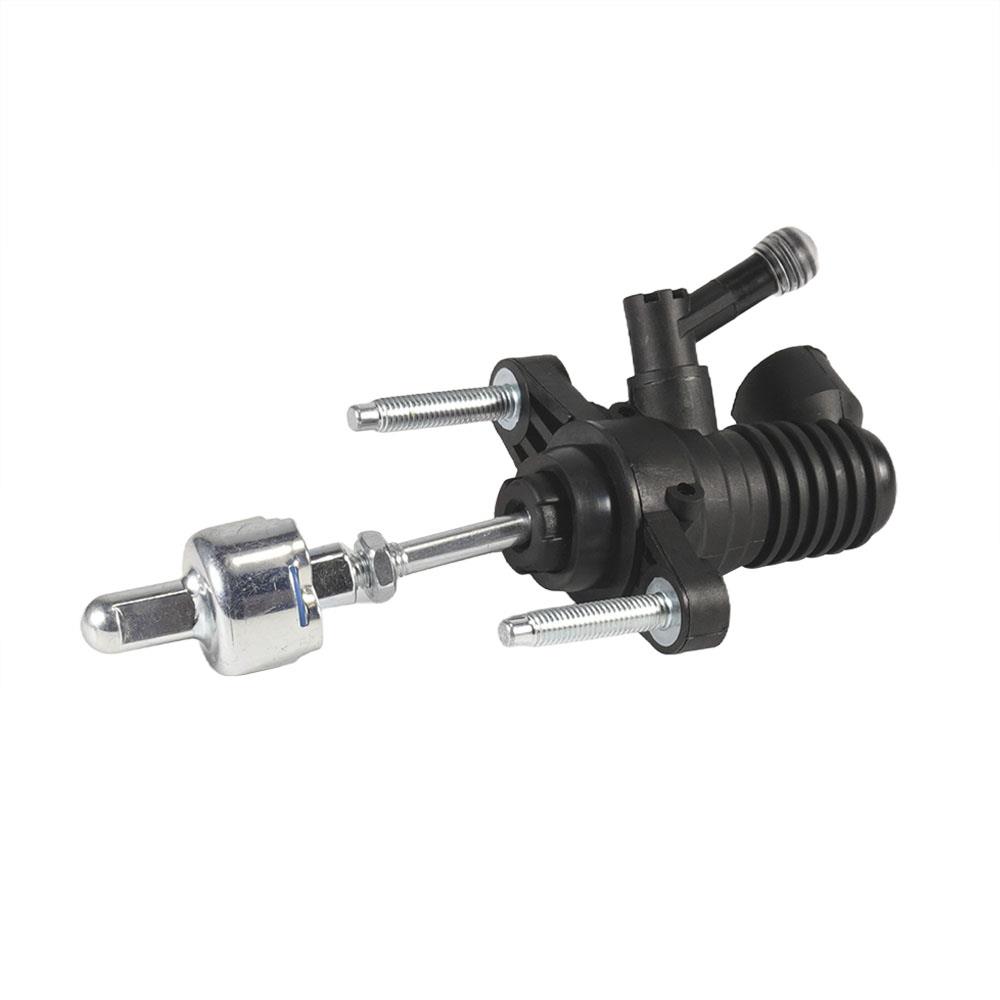

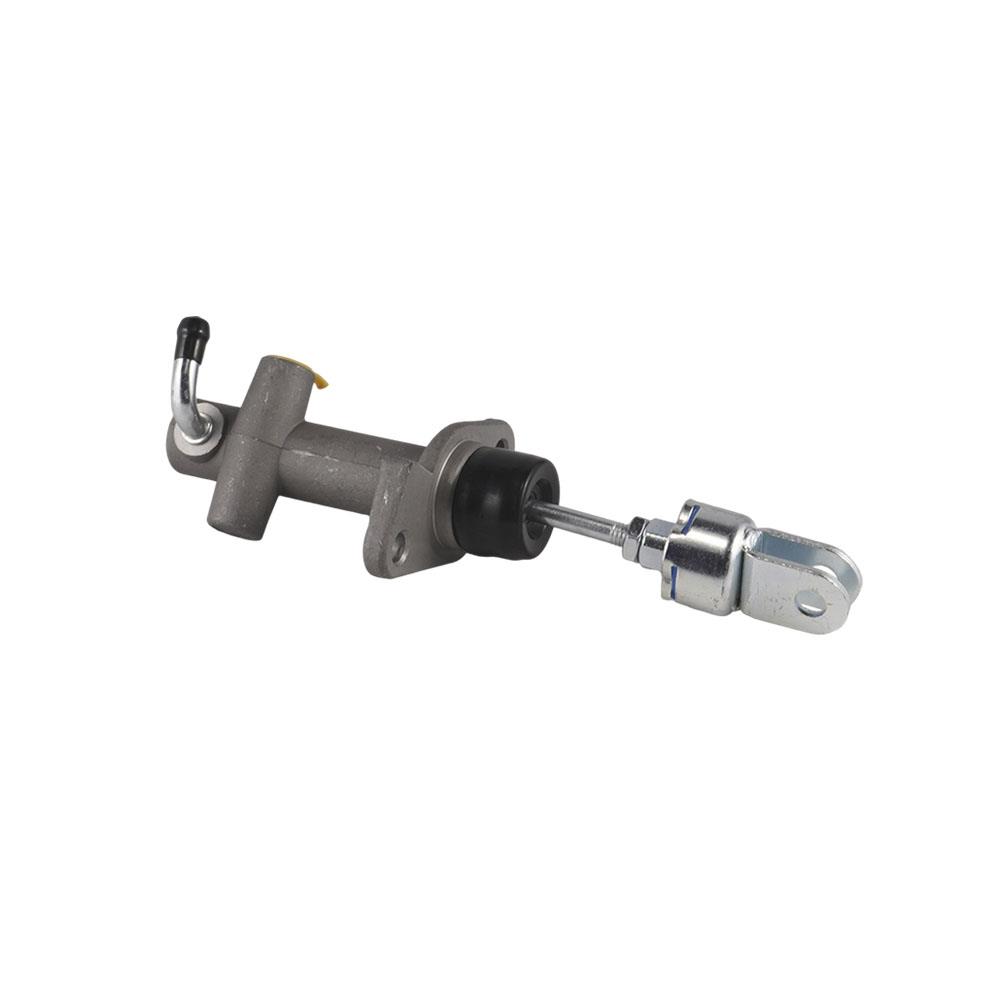

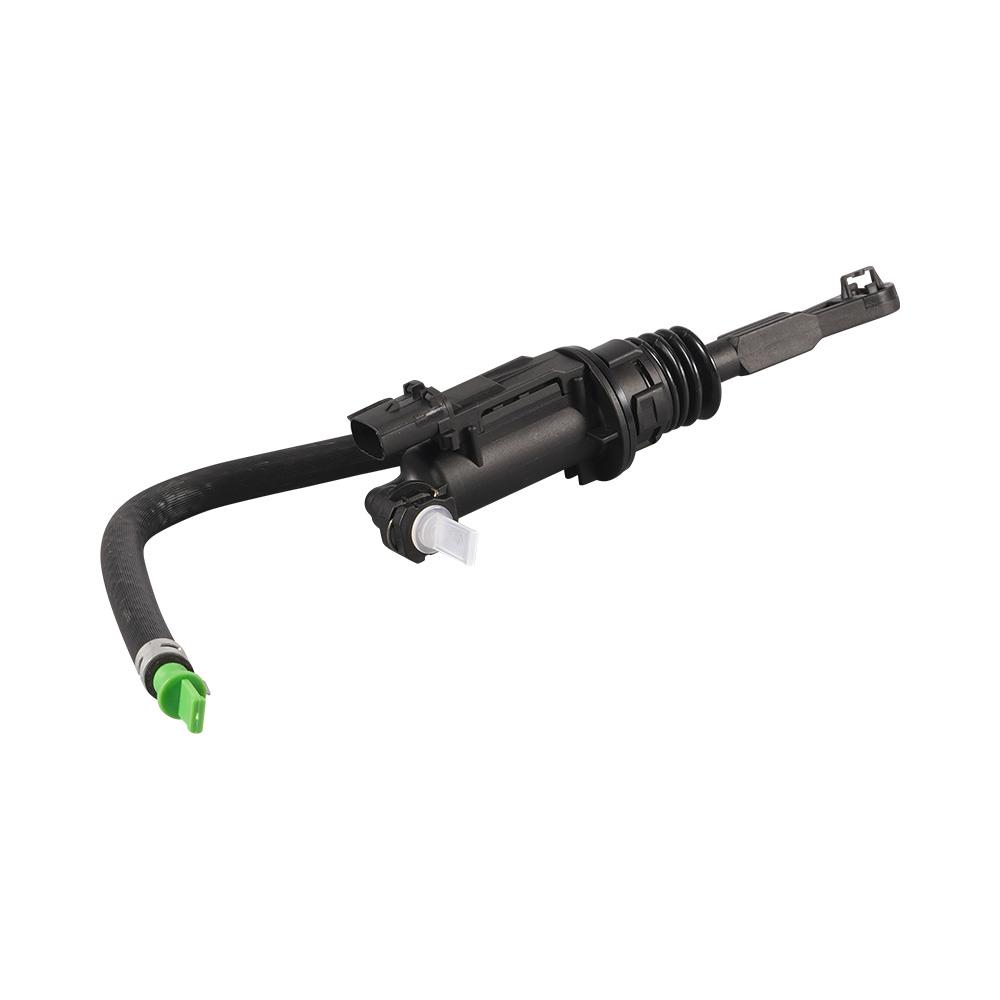

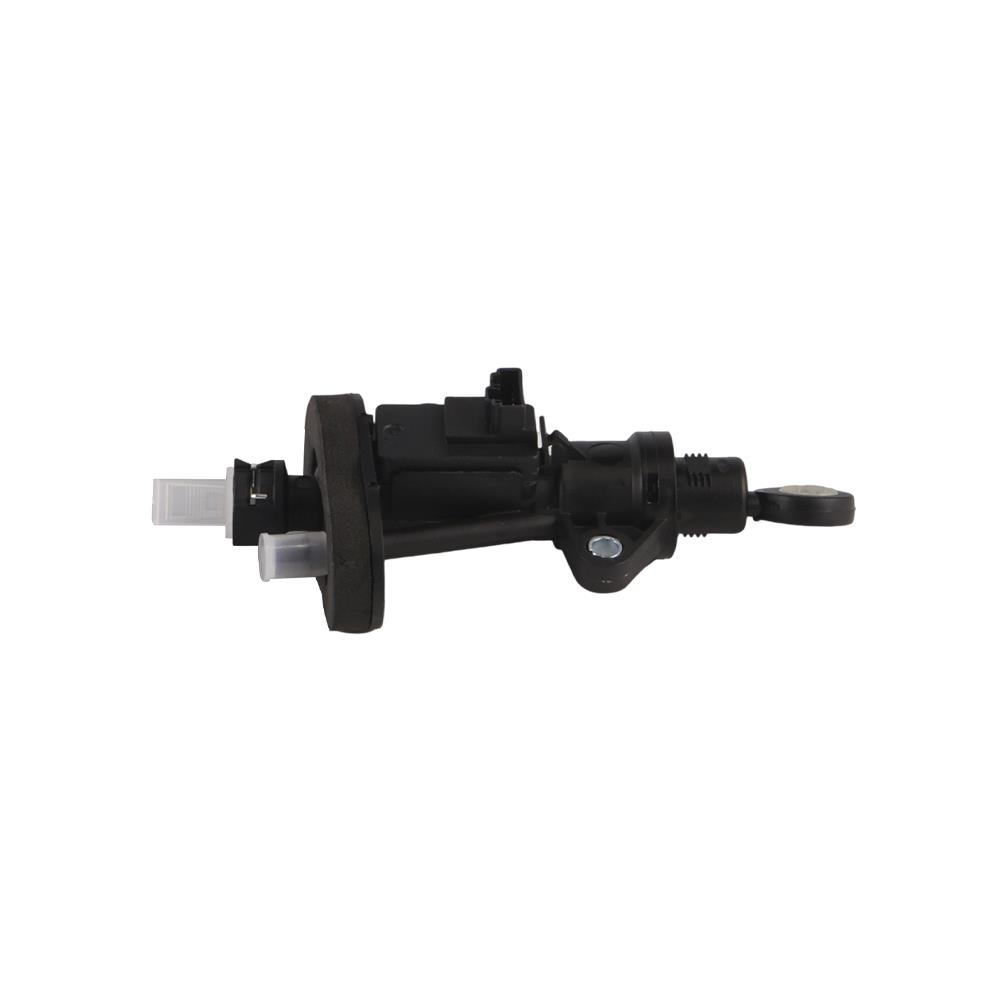

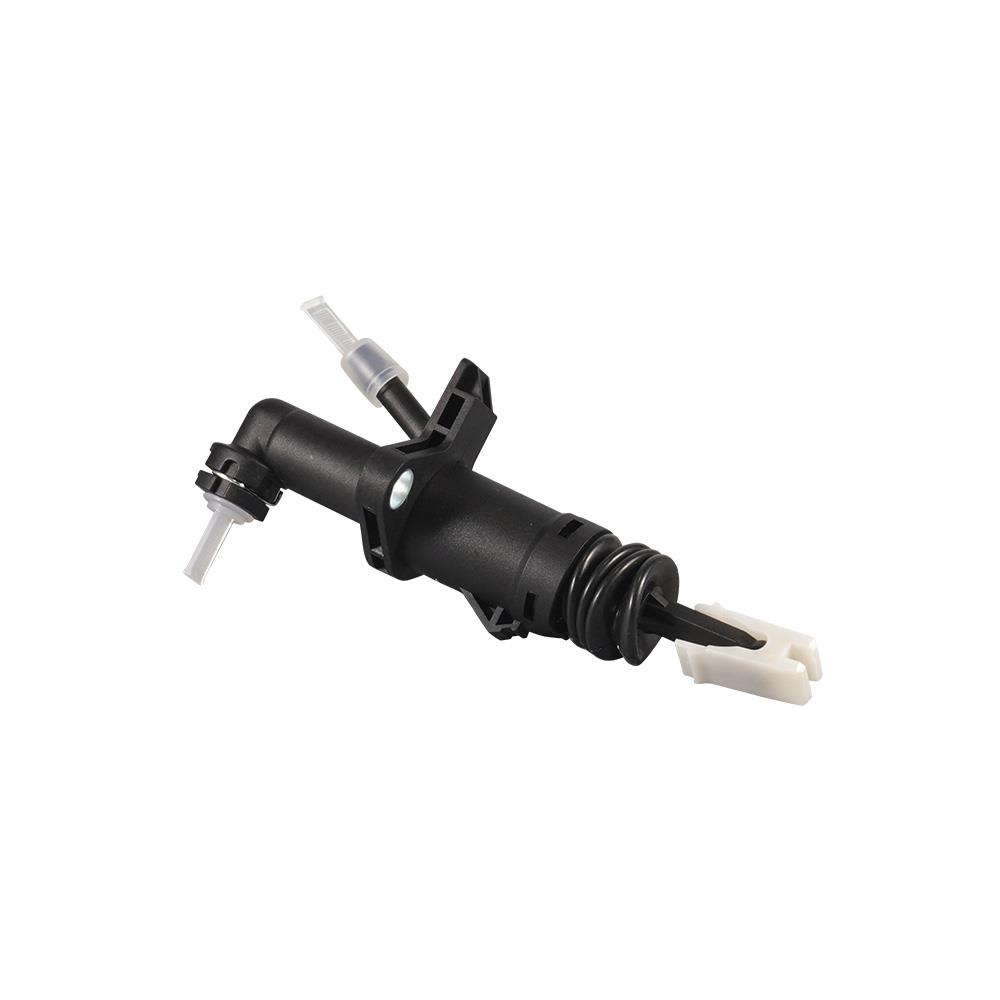

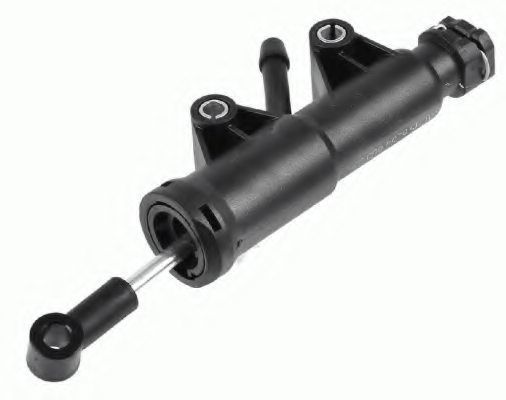

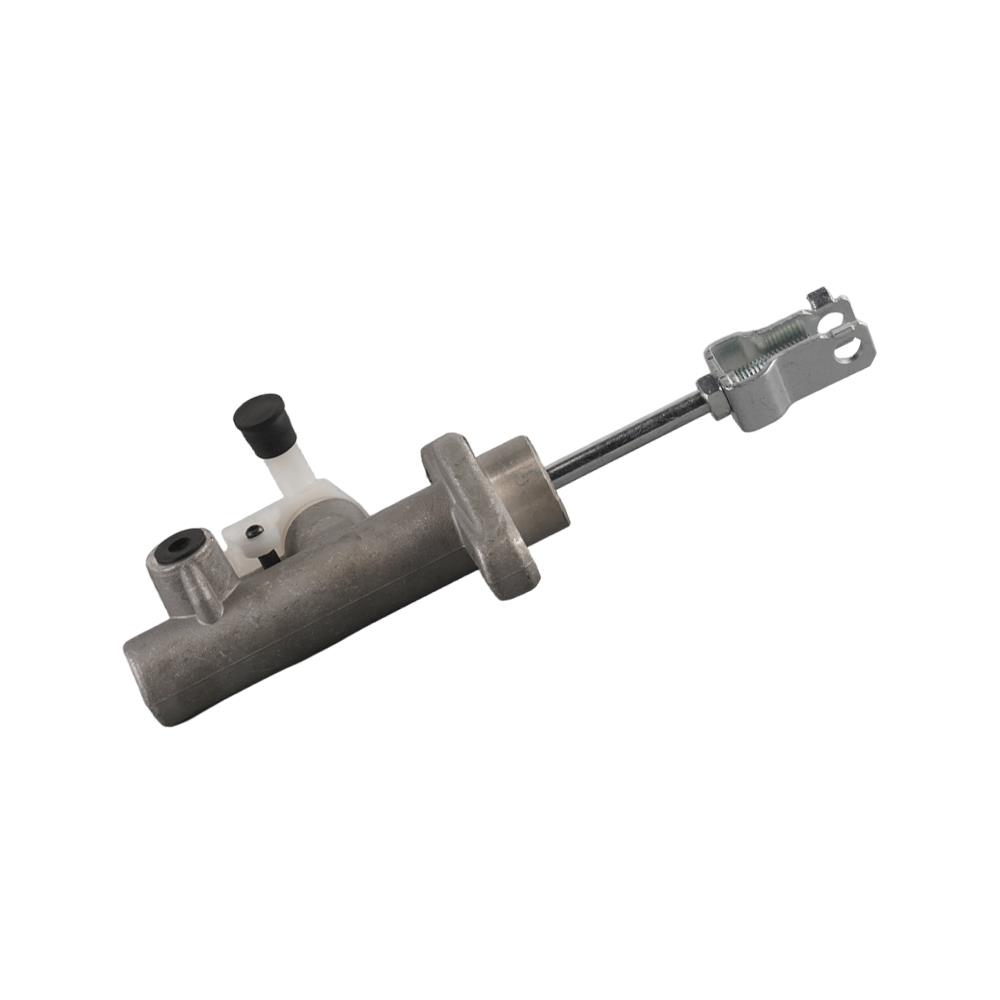

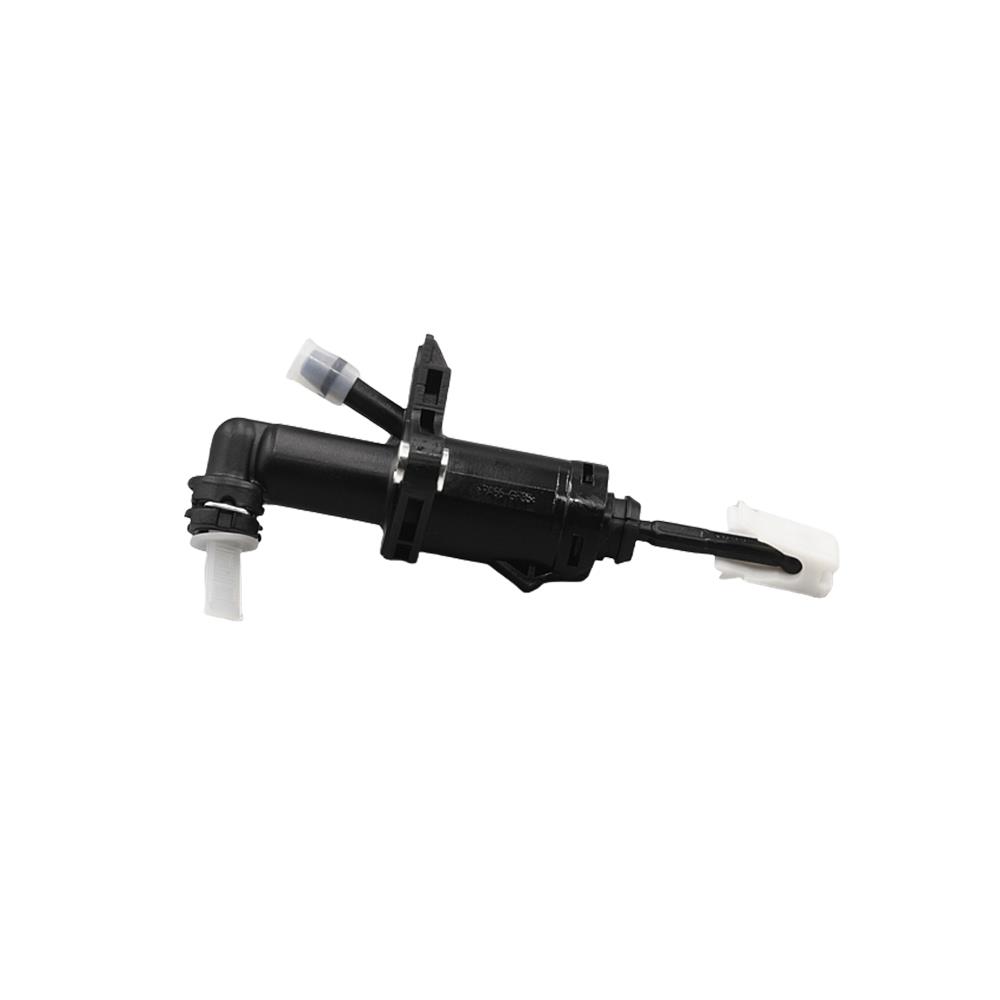

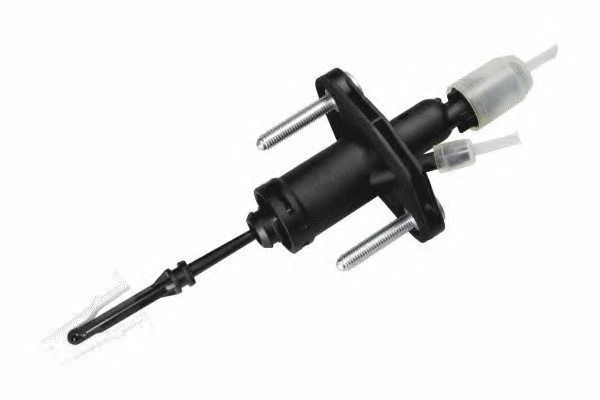

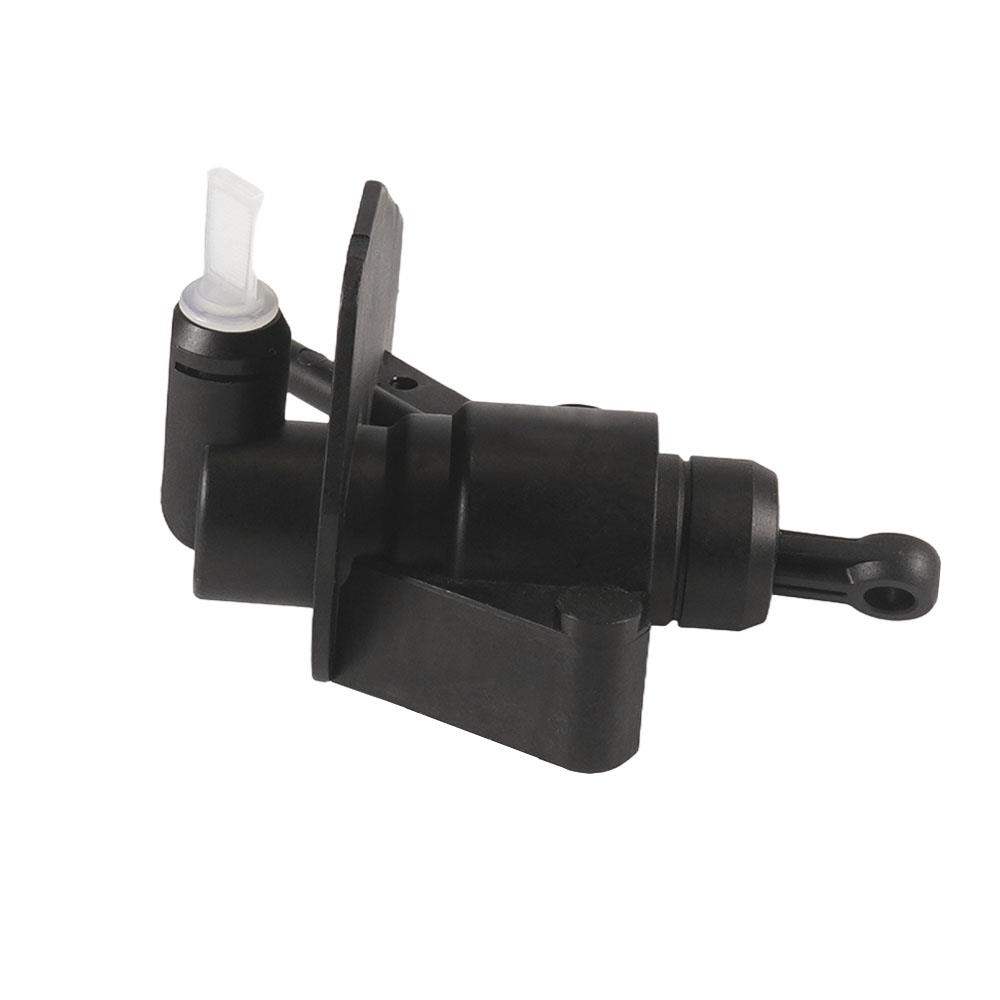

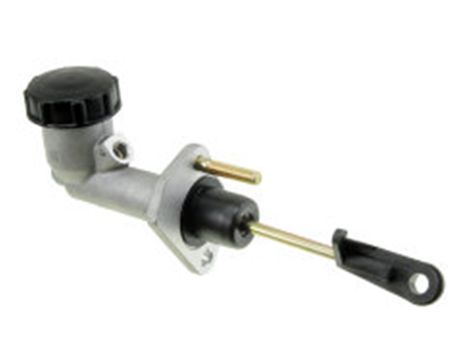

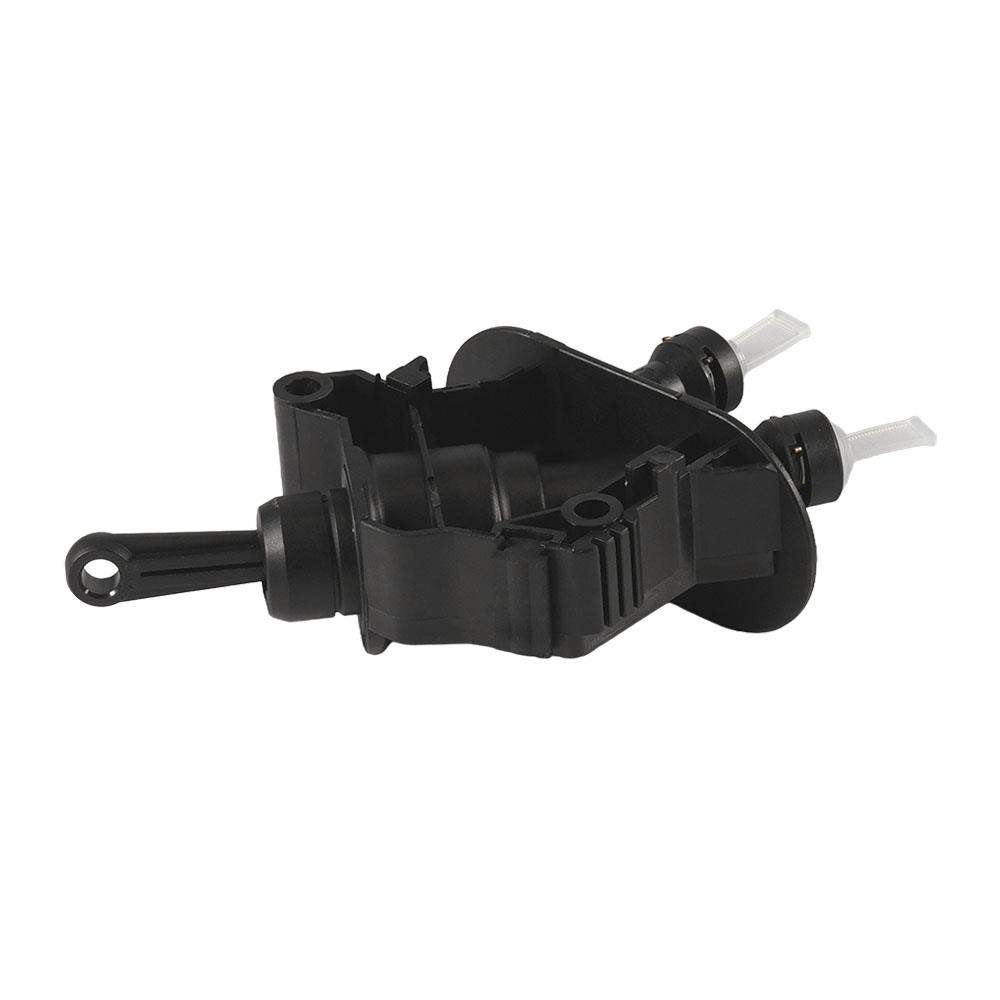

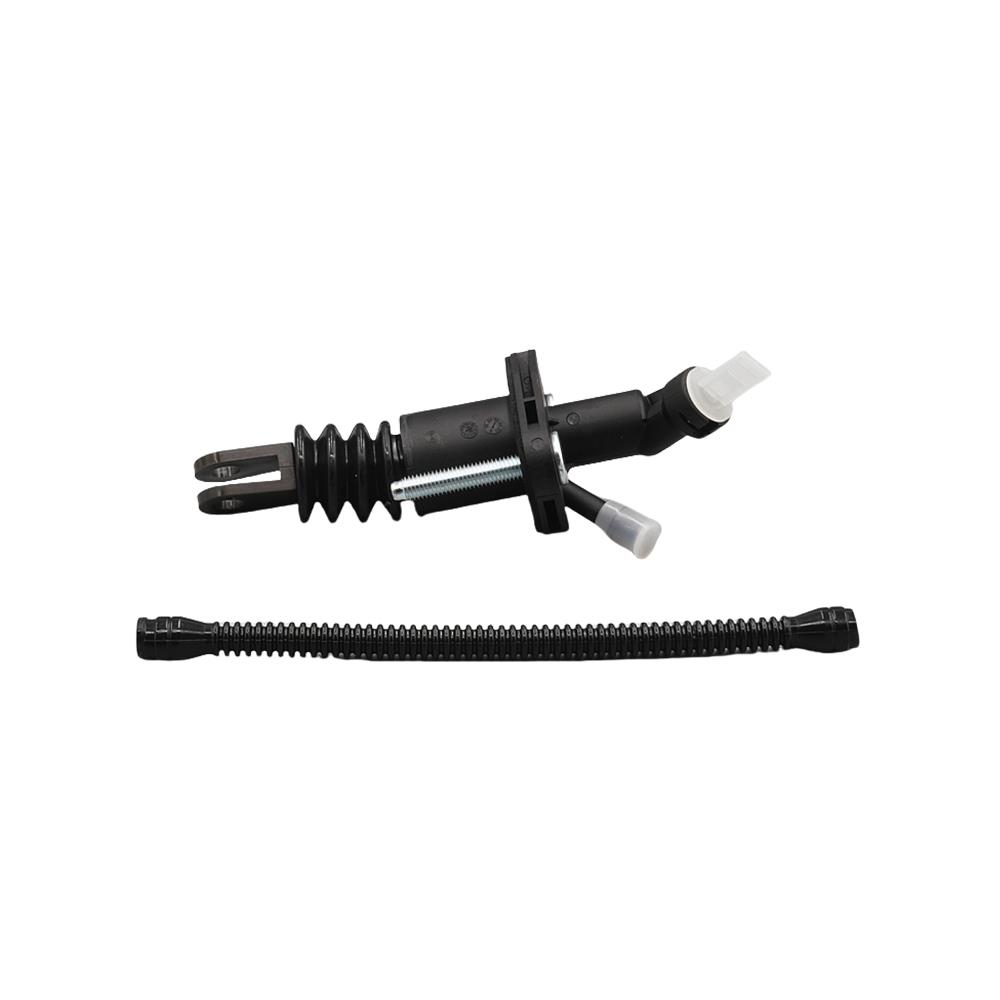

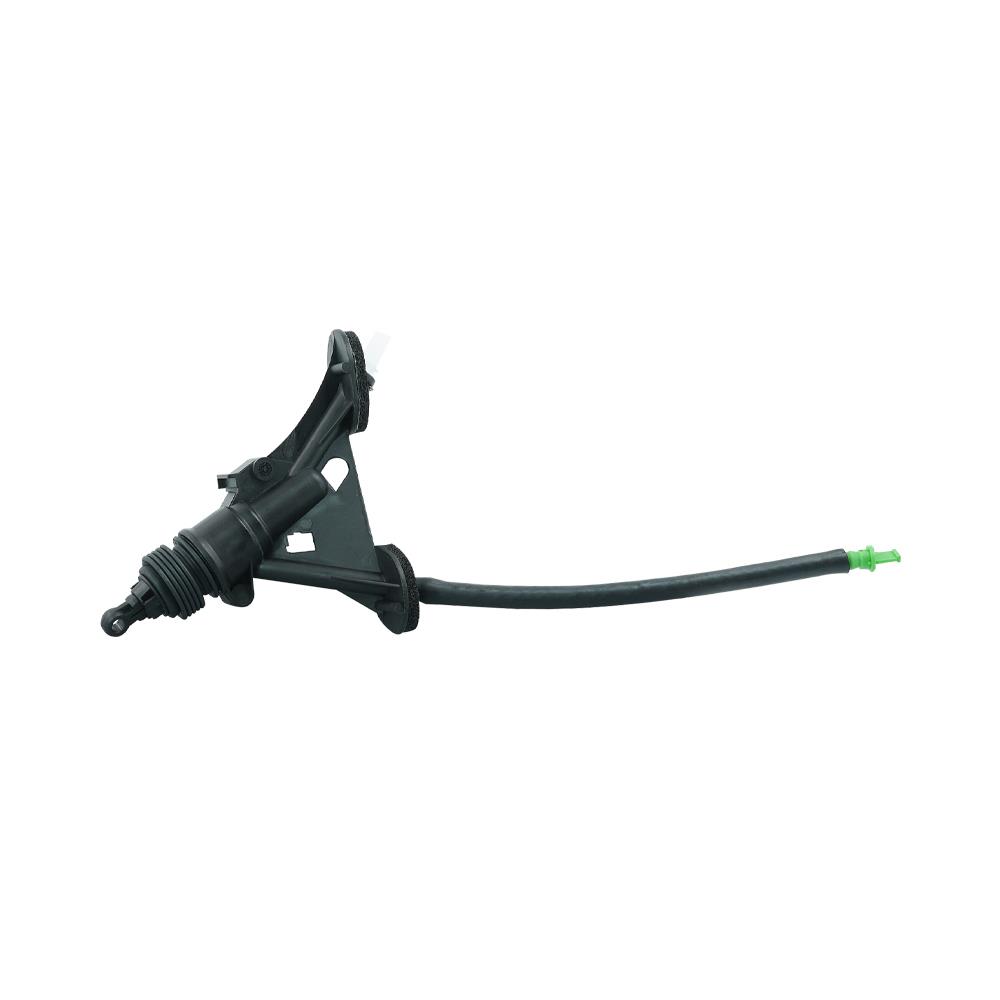

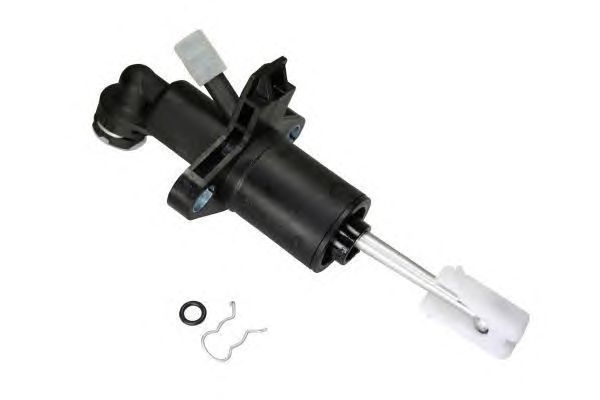

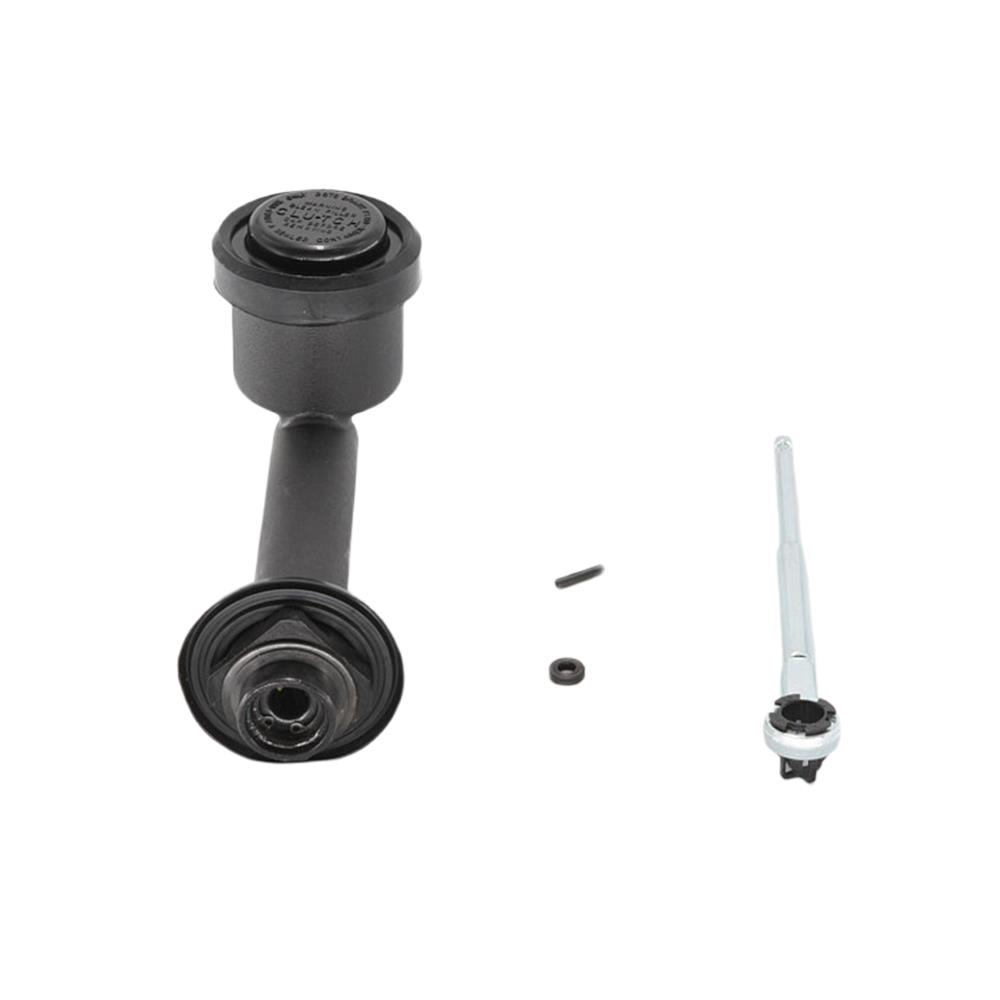

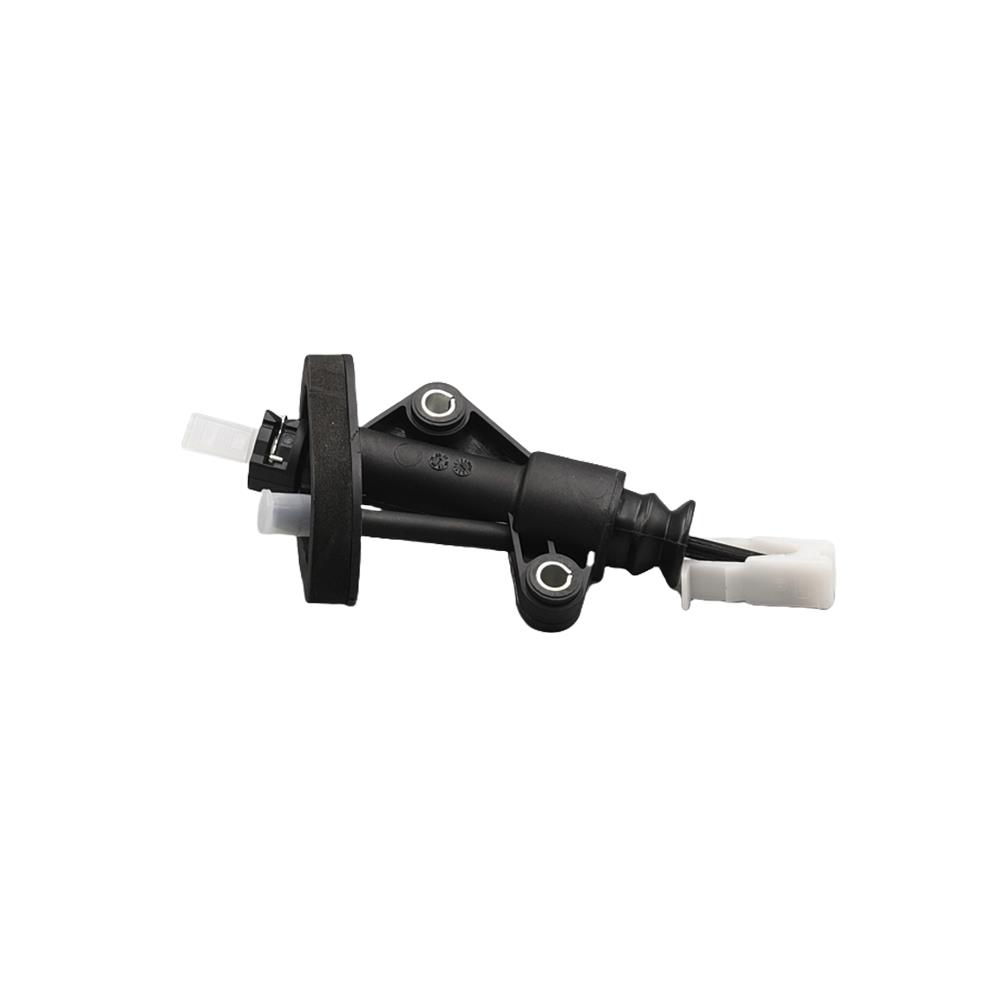

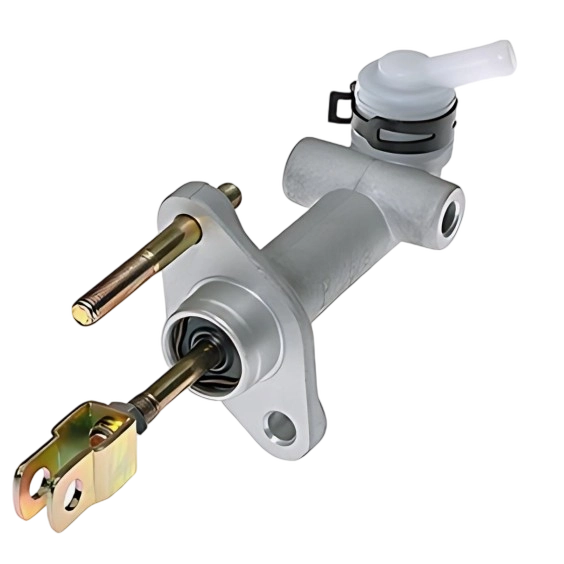

The CMC's design includes several key components: a body (made of aluminium or plastic for weight reduction), a piston (anodized aluminium for durability), primary and secondary seals to prevent leaks, a push rod connected to the clutch pedal, and low- and high-pressure nozzles for fluid flow. Some designs share the reservoir with the brake master cylinder, while others have a dedicated reservoir, ensuring a constant supply of fluid to avoid air entry, which can cause a spongy pedal feel.

Technical Specifications and Variations

Clutch master cylinders come in different types, primarily categorized by their internal mechanism: seal over port systems and center-feed type systems. The seal over port system uses a push rod attached to the clutch pedal to produce piston movement, with seals passing over a port to allow fluid flow to and from the reservoir. Center-feed systems, on the other hand, have a different fluid flow arrangement, but both types generate hydraulic pressure to operate the clutch.

Modern advancements include new generation CMCs with integrated sensors for electronic functions such as hand brake, cruise control, and start & stop systems. These sensors, as small as 15mm, are used in vehicles like the Peugeot 308, Fiat Ducato, Opel Corsa, Nissan Qashqai, and Renault Clio, enhancing vehicle integration and functionality. Manufacturers like Valeo emphasize weight reduction, with the CMC and related hydraulic components weighing around 400 grams, a 75% reduction from older designs, improving durability and reducing pedal effort.

Advantages of Hydraulic Clutch Systems

Hydraulic clutch systems, driven by the CMC, offer several advantages:

1. Space Efficiency: They eliminate the need for a straight cable line between the pedal and clutch lever, saving space and improving layout flexibility.
2. Reliability: Hydraulic systems are less prone to mechanical wear compared to cable systems, enhancing long-term reliability.
3. Driver Comfort: They provide optimal and constant pedal effort, reducing fatigue during operation.
4. Weight Reduction: Modern designs can reduce weight by up to 70% compared to standard systems, making them ideal for Original Equipment (OE) projects and improving fuel efficiency.

Common Issues and Symptoms

Research suggests that clutch master cylinders can experience several common issues, which may affect vehicle performance and safety. Symptoms include:

1. Fluid Leaks: Worn or ill-fitting seals can cause hydraulic fluid to leak, leading to insufficient pressure and incomplete clutch disengagement.
2. Spongy Pedal Feel: Air in the hydraulic system can result in a spongy clutch pedal, making it harder to engage or disengage the clutch.
3. Clutch Not Disengaging Fully: This can be due to low fluid levels, leaks, or air in the system, causing difficulty in shifting gears.
4. Difficulty Shifting Gears: Insufficient hydraulic pressure can make gear shifts notchy, draggy, or blocked, potentially leading to transmission damage.

Specific causes identified include:

1. Wear and tear of seals and piston, leading to leaks.
2. Corrosion in the cylinder bores due to hygroscopic hydraulic fluid absorbing moisture from the atmosphere.
3. Improper installation or adjustment, which can affect system pressure.

These issues, if unaddressed, can lead to clutch slippage, transmission failure, and serious safety concerns, necessitating timely maintenance or replacement.

Comparative Analysis of Function and Issues

To summarize the key aspects, the following table outlines the function and common issues, based on the research:

This table highlights the interplay between function and potential failure modes, emphasizing the importance of maintenance.
