What is the Clutch Master and Slave Cylinder Assembly?

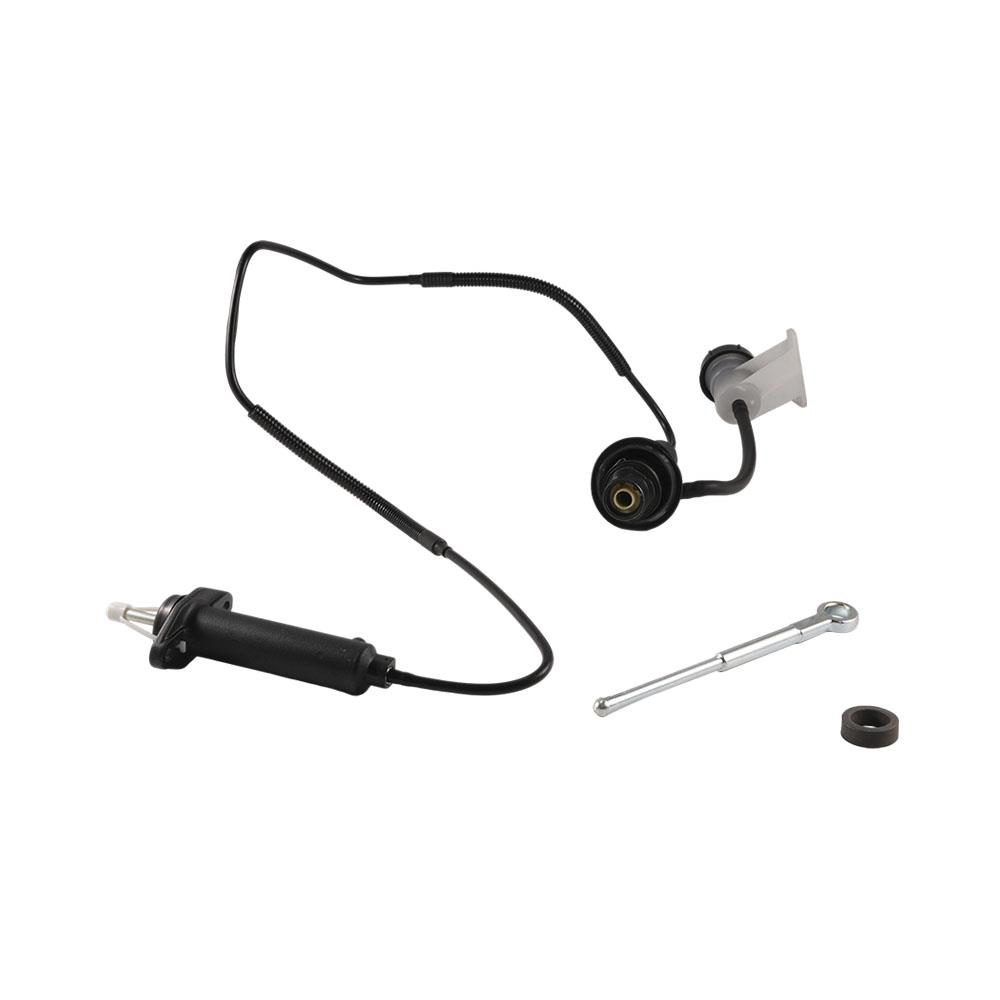

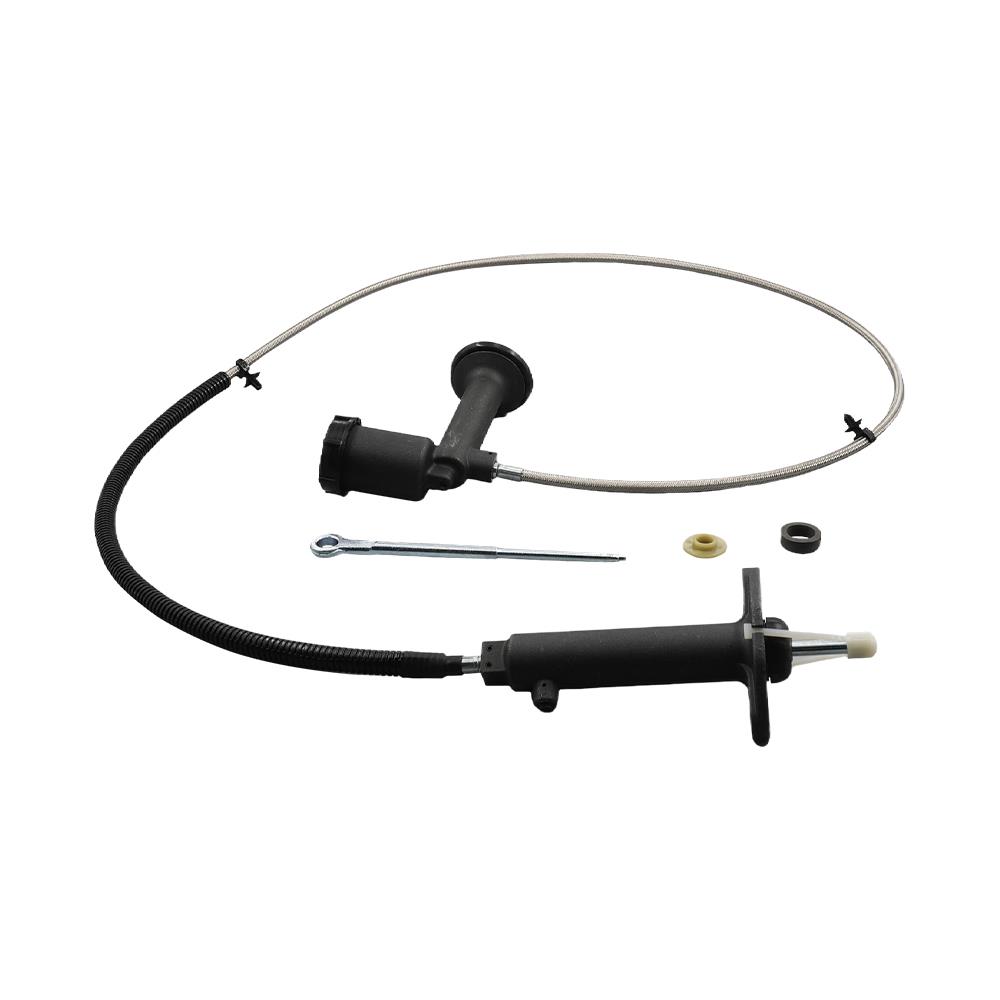

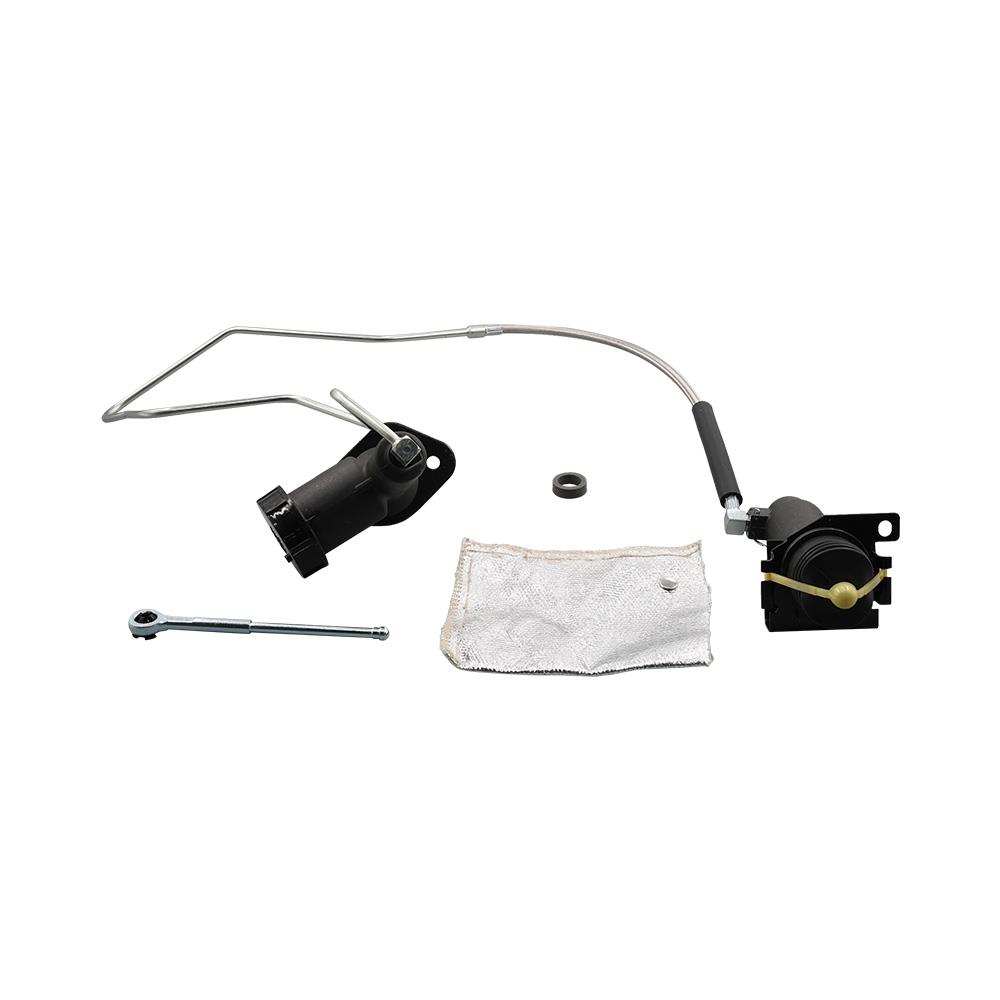

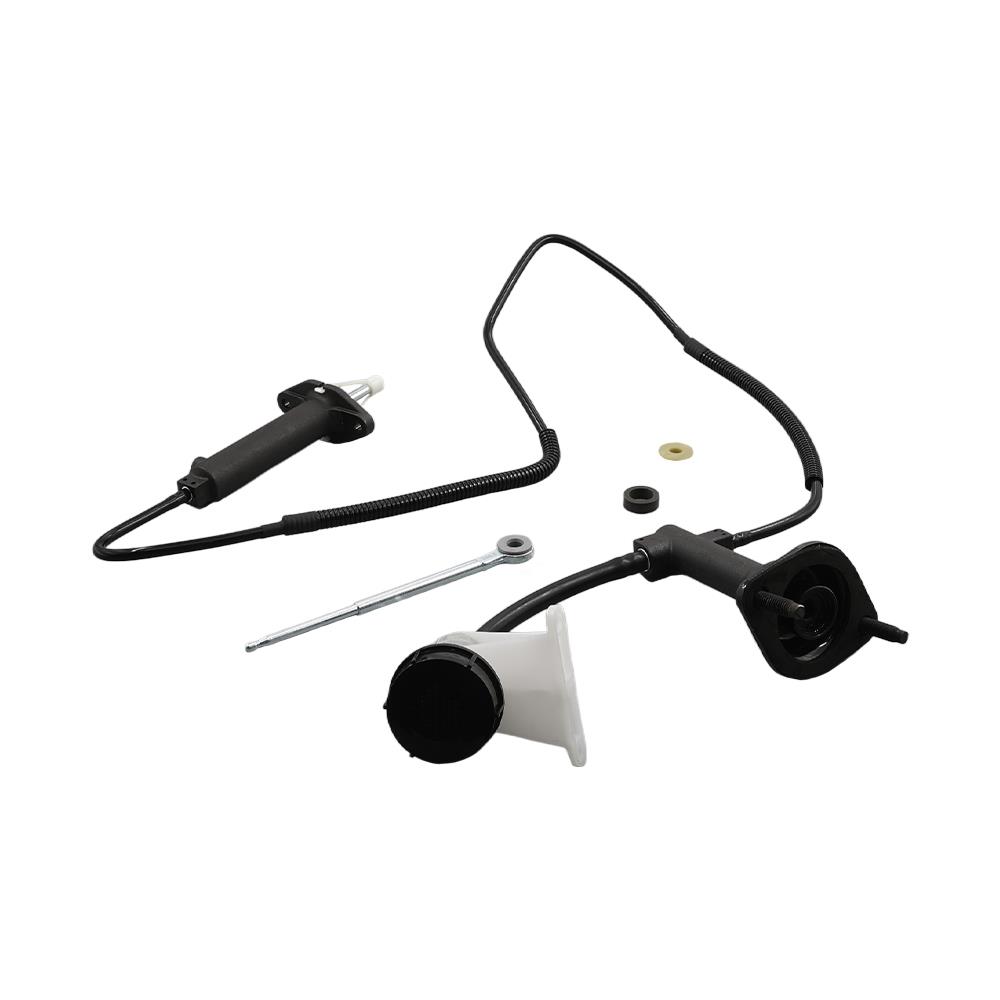

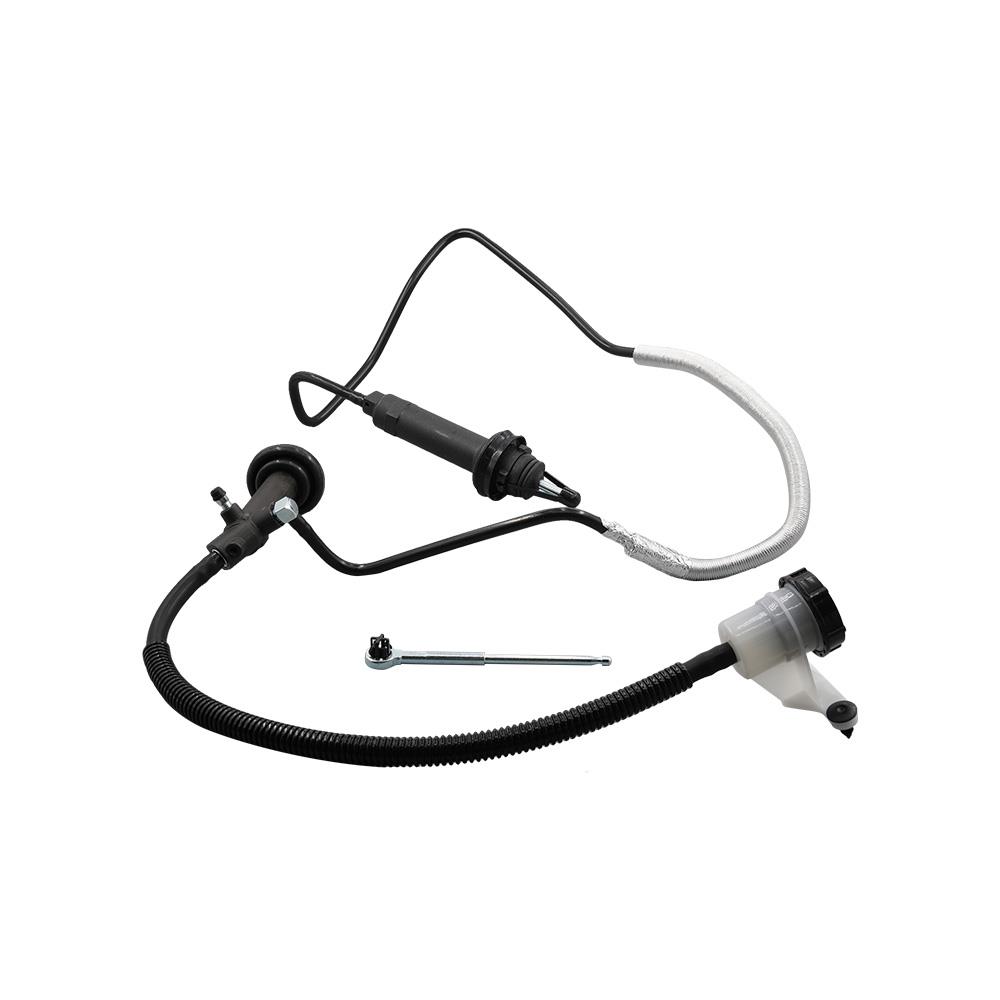

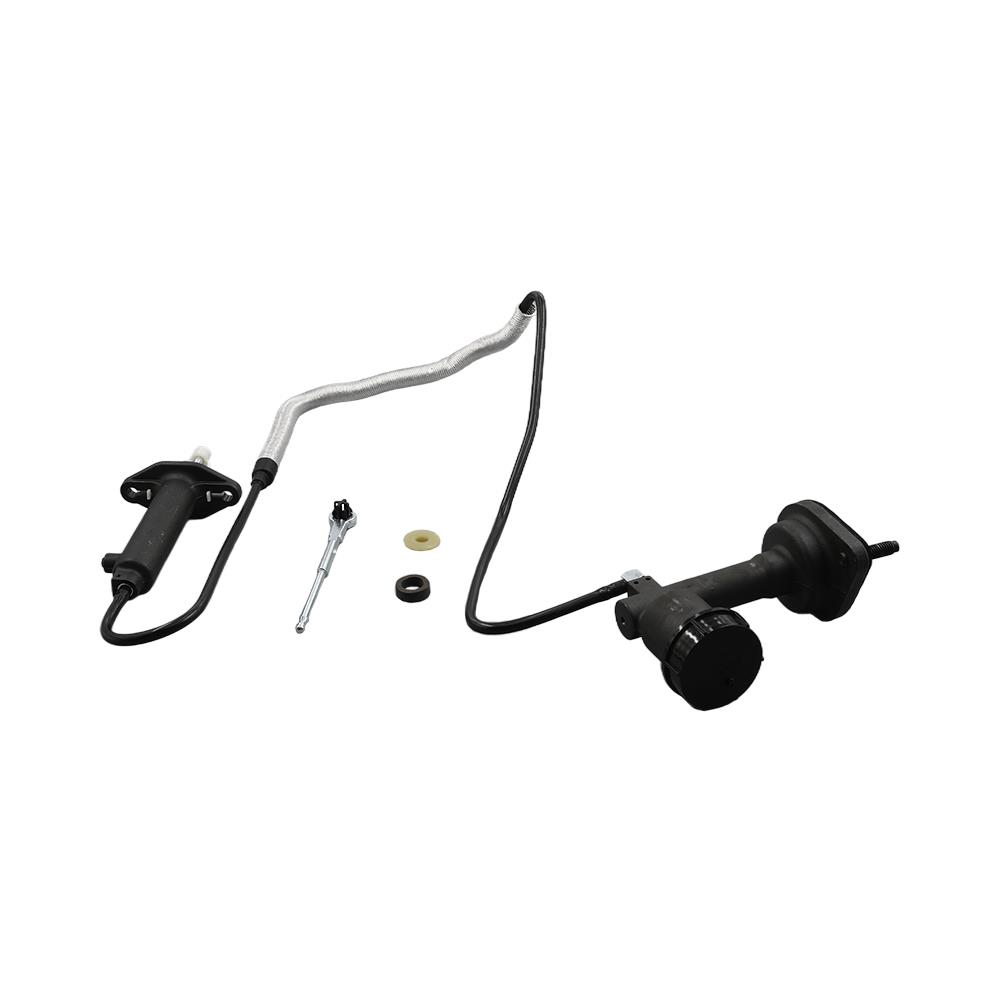

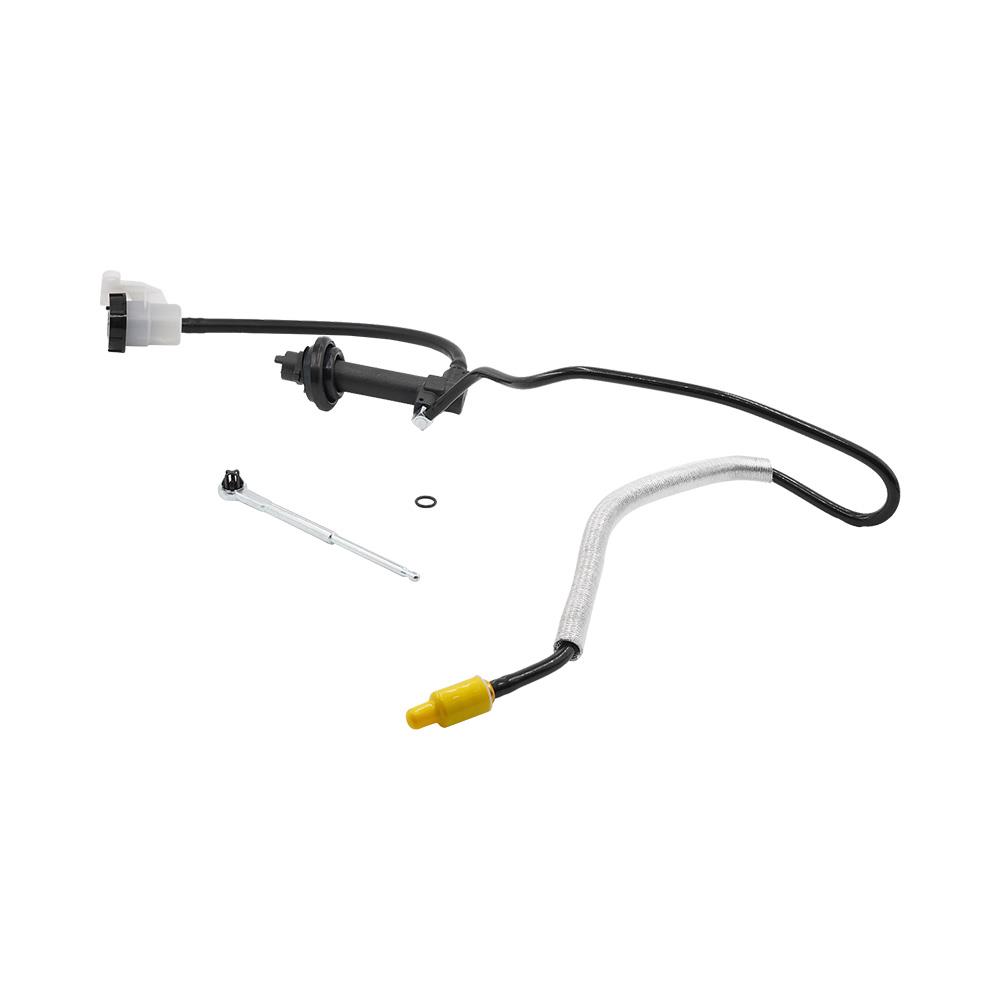

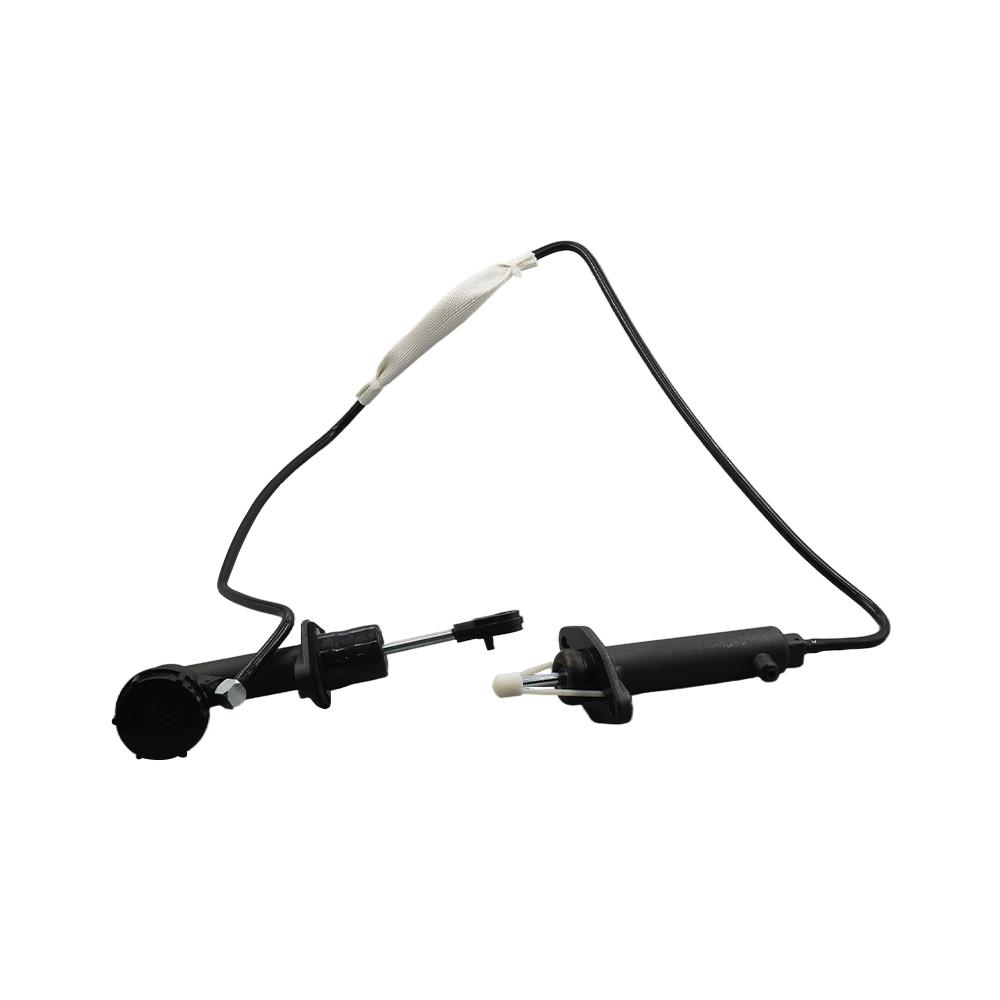

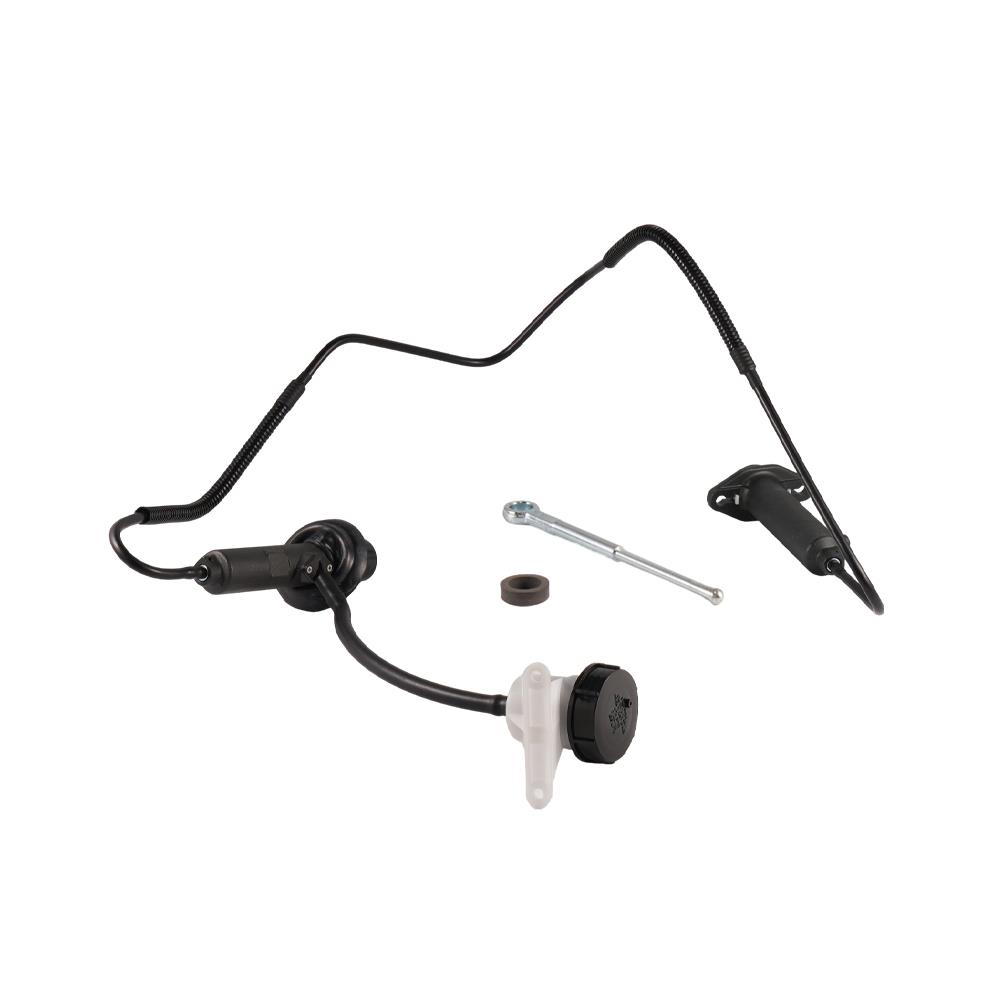

The clutch master and slave cylinder assembly is likely the combined system in manual transmission vehicles that uses hydraulic pressure to disengage the clutch, making gear shifting easier. It includes the master cylinder, which is activated by the clutch pedal, and the slave cylinder, which moves to disengage the clutch.
How Does It Work?
Research suggests that when you press the clutch pedal, the master cylinder generates hydraulic pressure, sending fluid through a line to the slave cylinder. The slave cylinder then moves the clutch fork or directly disengages the clutch, interrupting engine power for smooth gear changes.
Common Issues
Problems like fluid leaks, a spongy pedal feel, or the clutch not disengaging fully, often due to worn seals or air in the system. These issues typically require replacing the entire assembly, especially during clutch servicing.
Introduction to Clutch Master and Slave Cylinder Assembly
The clutch master and slave cylinder assembly is a critical component of the hydraulic clutch system in vehicles equipped with manual transmissions. It works together to enable smooth gear shifting by disengaging and re-engaging the clutch through hydraulic pressure. This hydraulic system has become increasingly common, with research indicating that 93% of new vehicles in Europe now use hydraulic clutch systems, reflecting their efficiency and design advantages.
Detailed Function and Operation
The assembly consists of two main components:

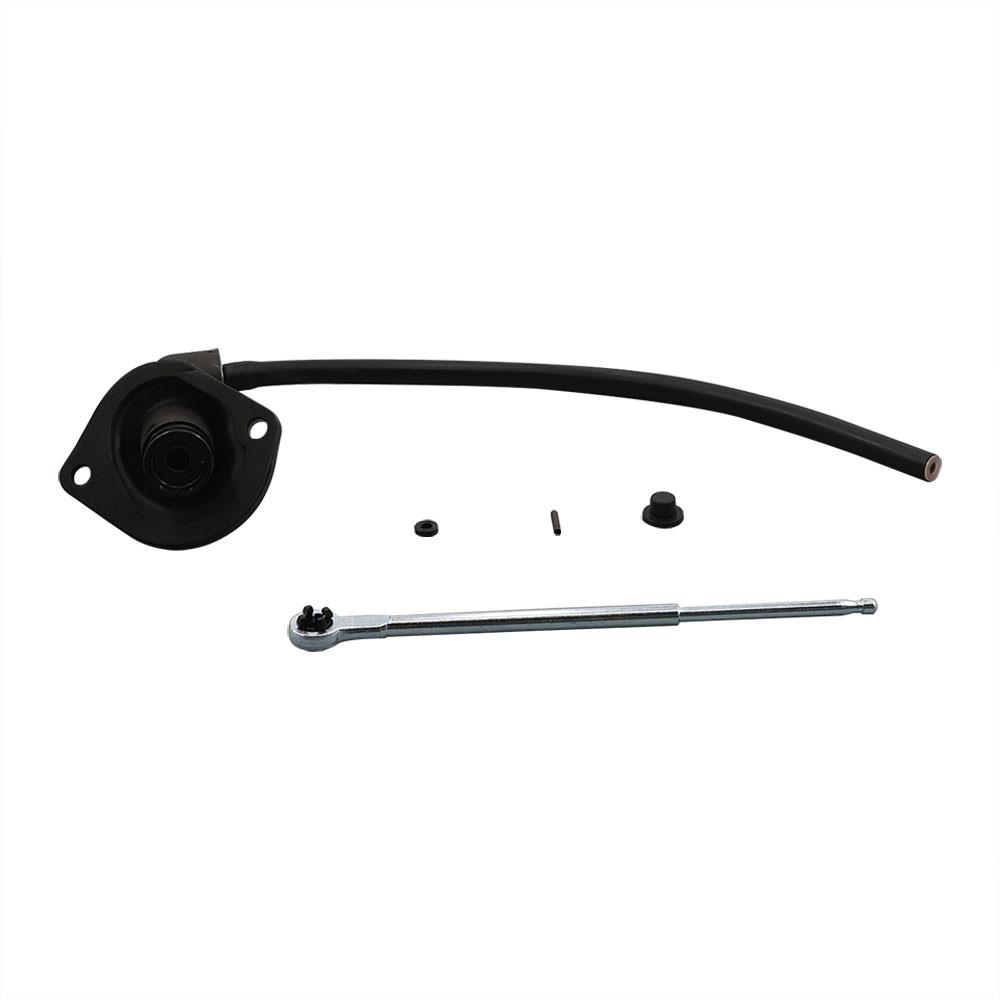

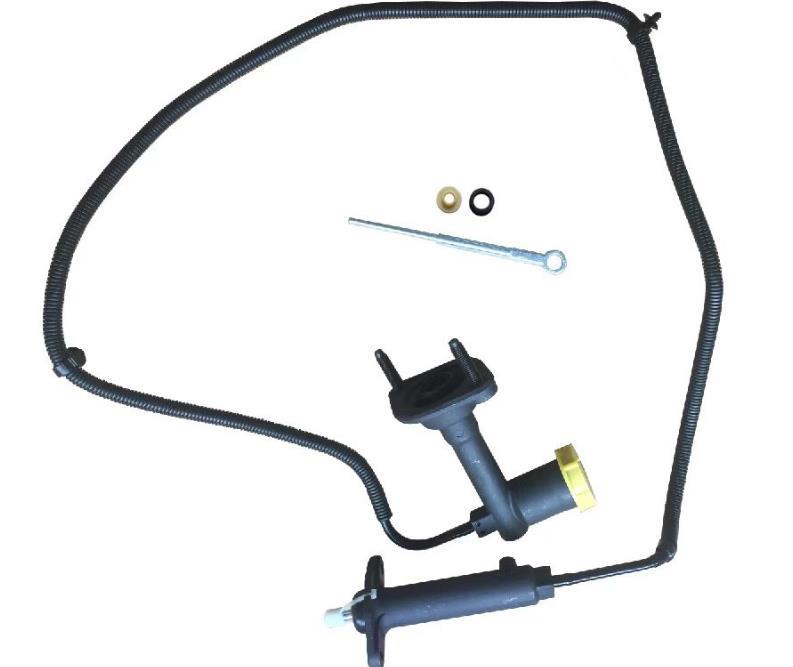

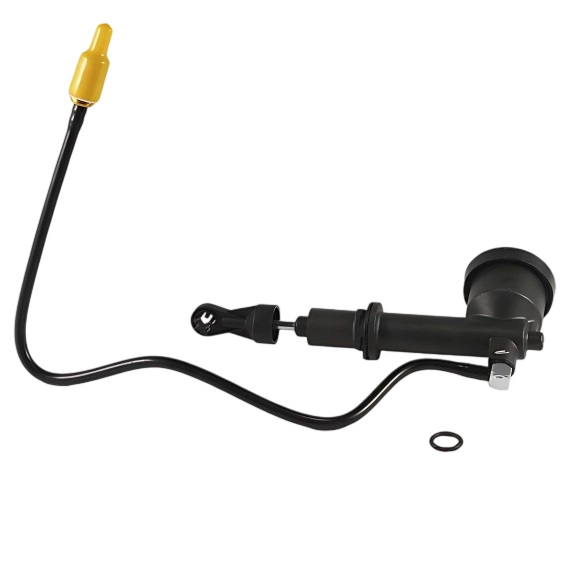

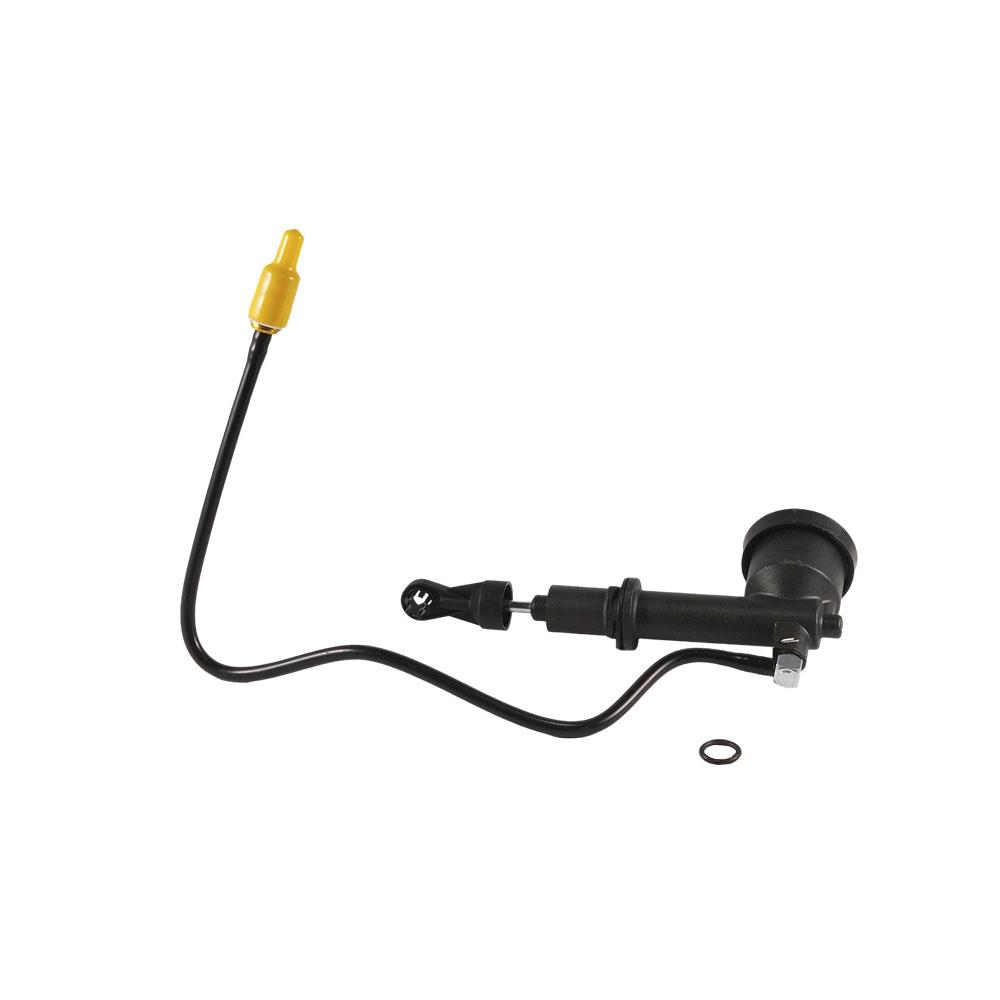

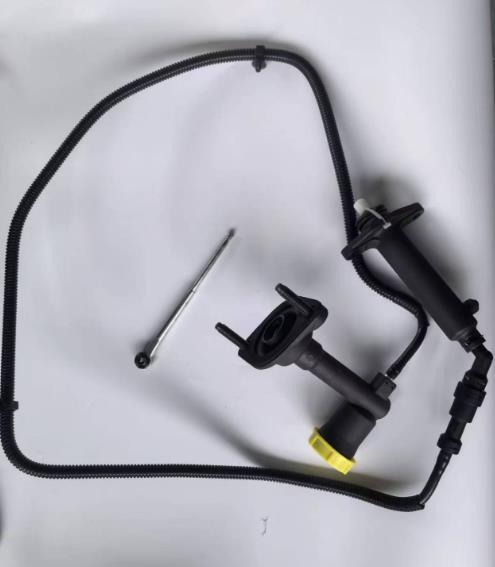

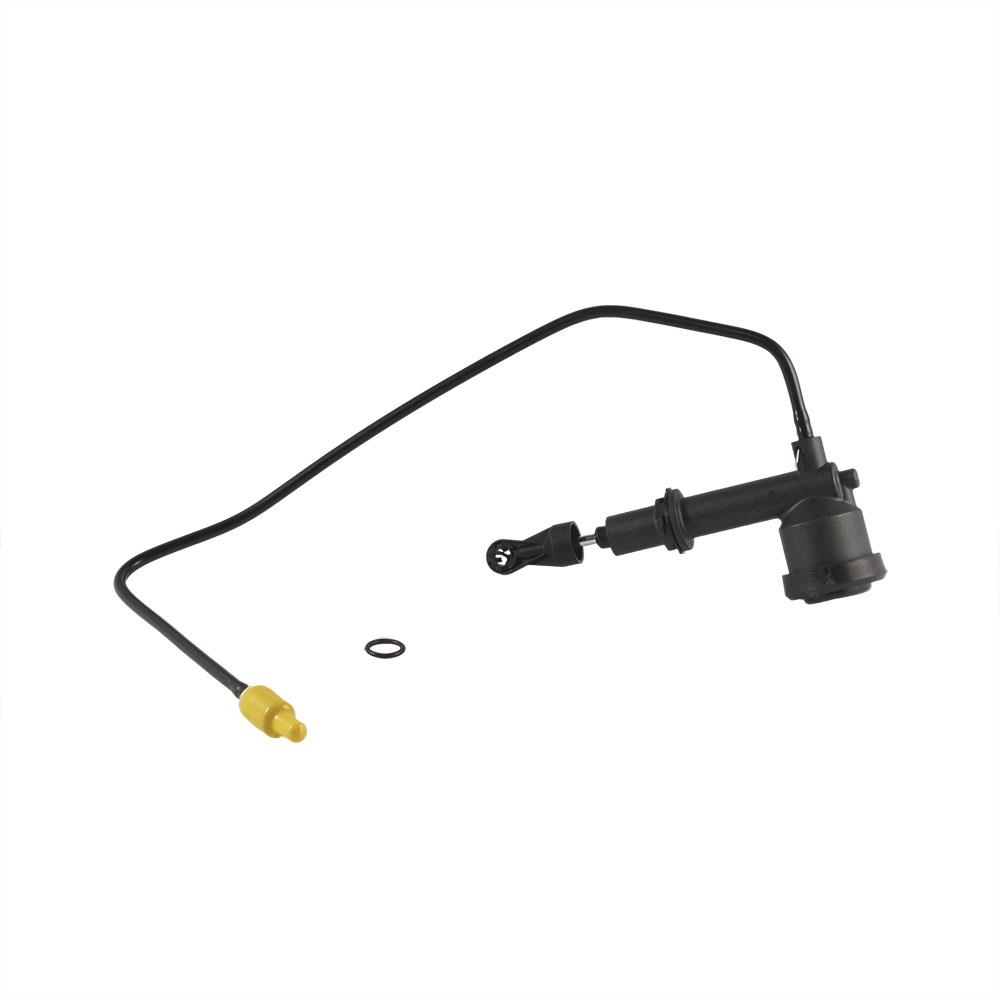

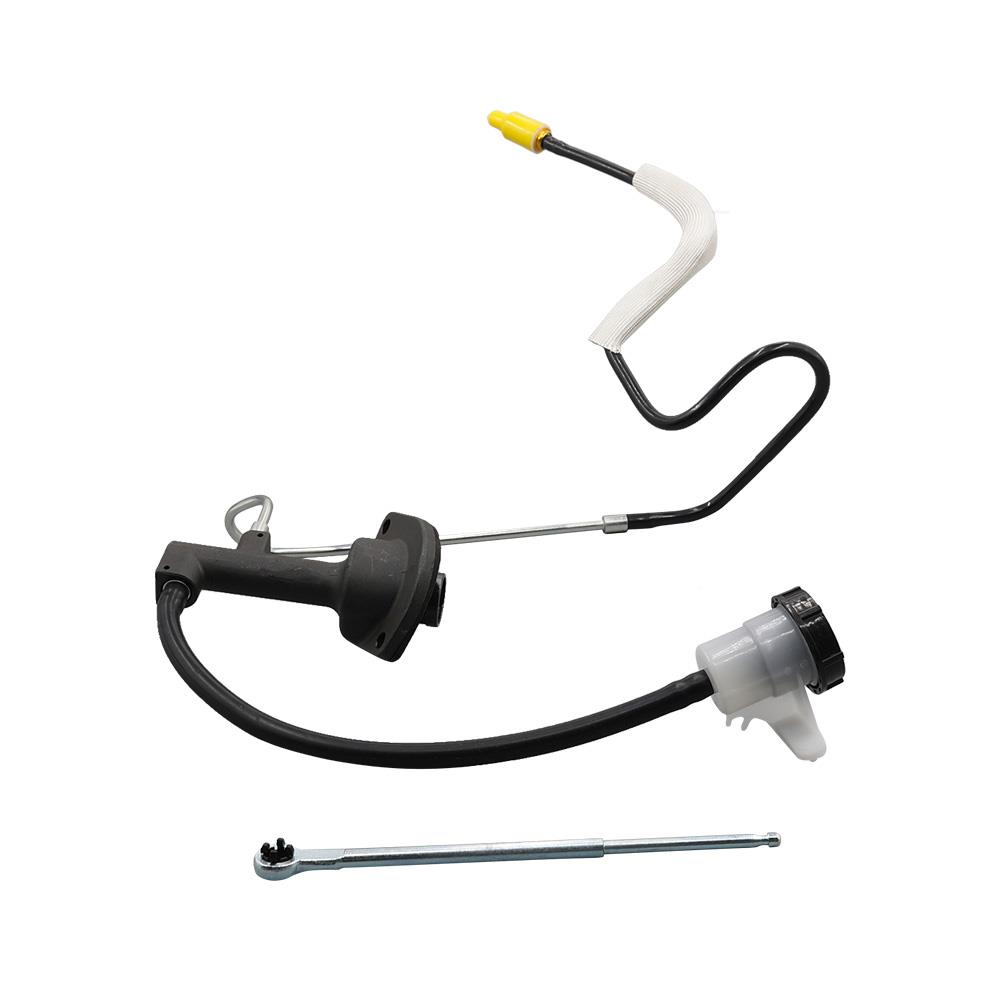

- Clutch Master Cylinder: Located near the clutch pedal (often on the bulkhead next to the brake master cylinder, on the right when looking from the front of the car), the master cylinder converts the mechanical force applied to the clutch pedal into hydraulic pressure. It is typically connected to a reservoir that supplies hydraulic fluid, usually brake fluid (DOT 3 type). When the driver presses the clutch pedal, the master cylinder pushes this fluid through a hydraulic line to the slave cylinder.

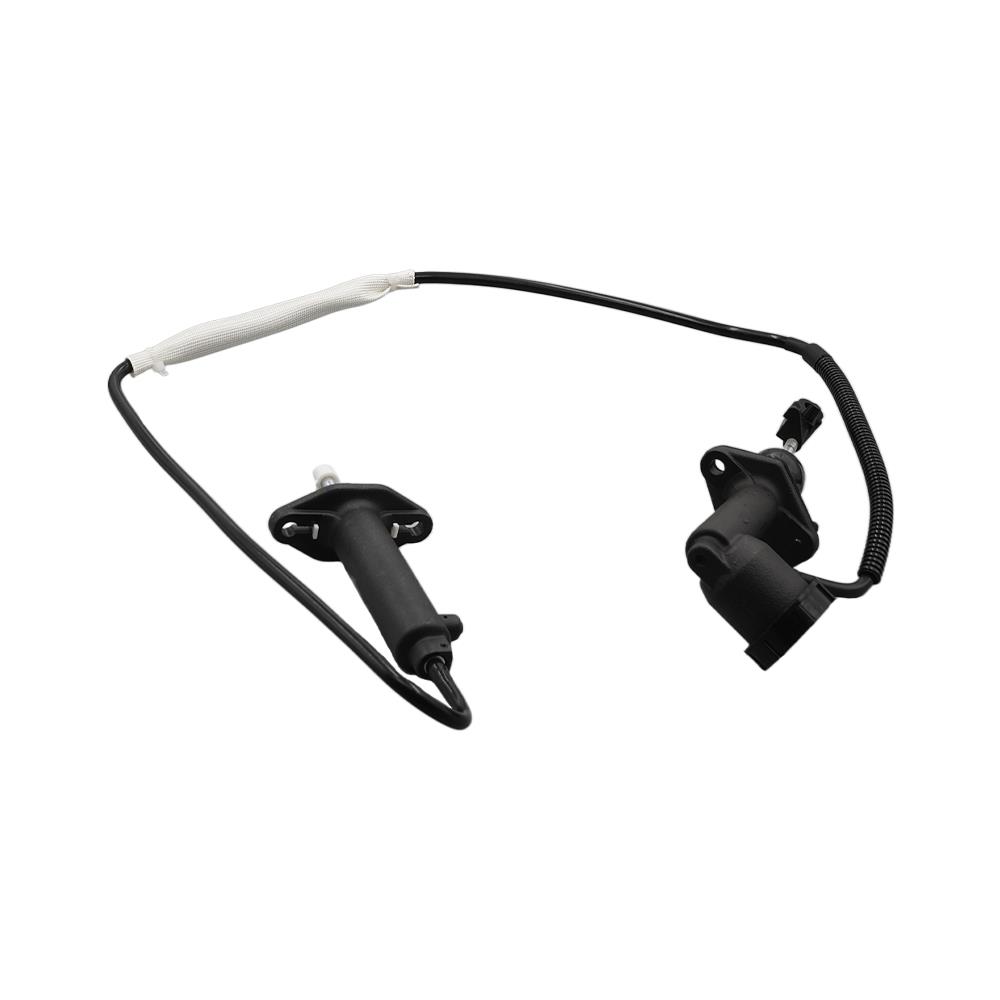

- Clutch Slave Cylinder: The slave cylinder, which can be either external (mounted outside the transmission housing) or concentric (integrated with the release bearing inside the bell housing), uses the hydraulic pressure to disengage the clutch. In traditional systems with an external slave cylinder, it moves the clutch fork to press against the clutch cover diaphragm spring, disengaging the clutch disc from the flywheel. In concentric slave cylinder (CSC) systems, it directly contacts the clutch cover diaphragm to achieve the same effect, eliminating the need for a separate clutch fork. Over 131 million vehicles are equipped with CSCs, with manufacturers like Valeo offering parts for models such as Fiat 500, Ford Fiesta, Hyundai Sonata, and Volkswagen Transporter.

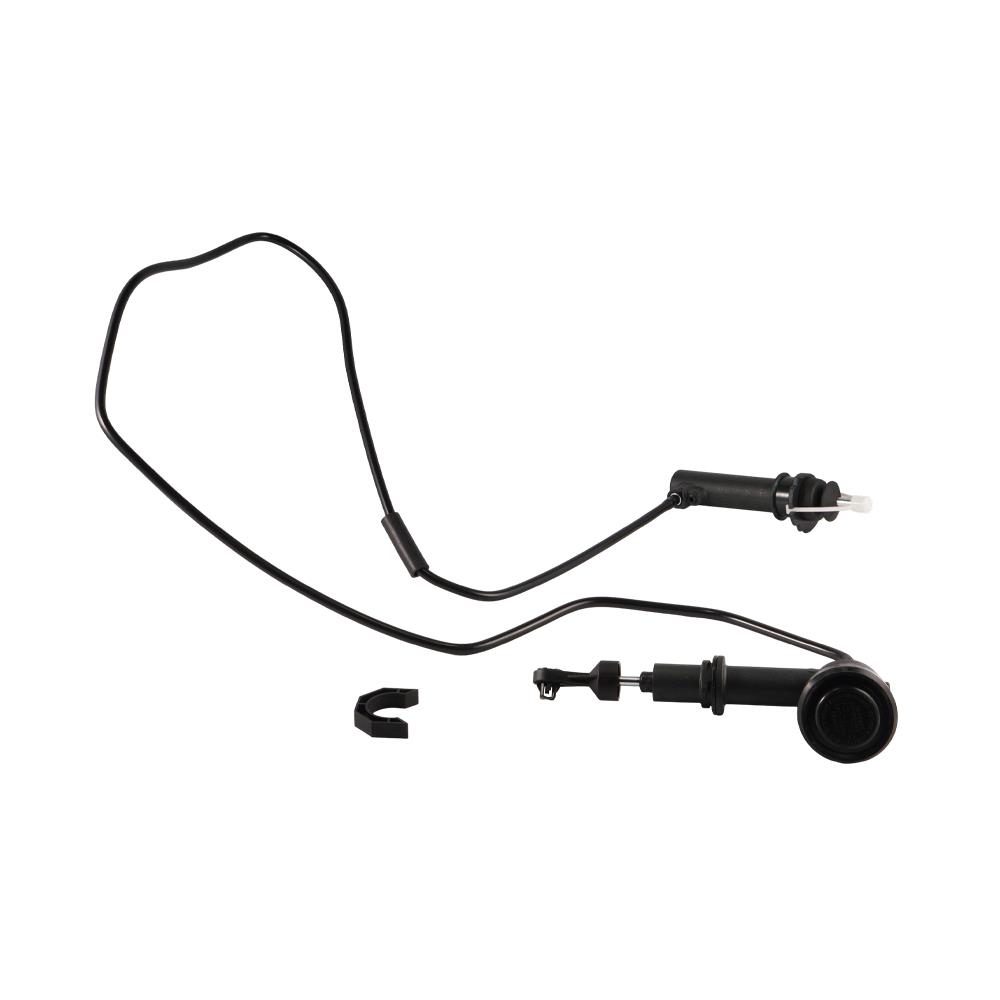

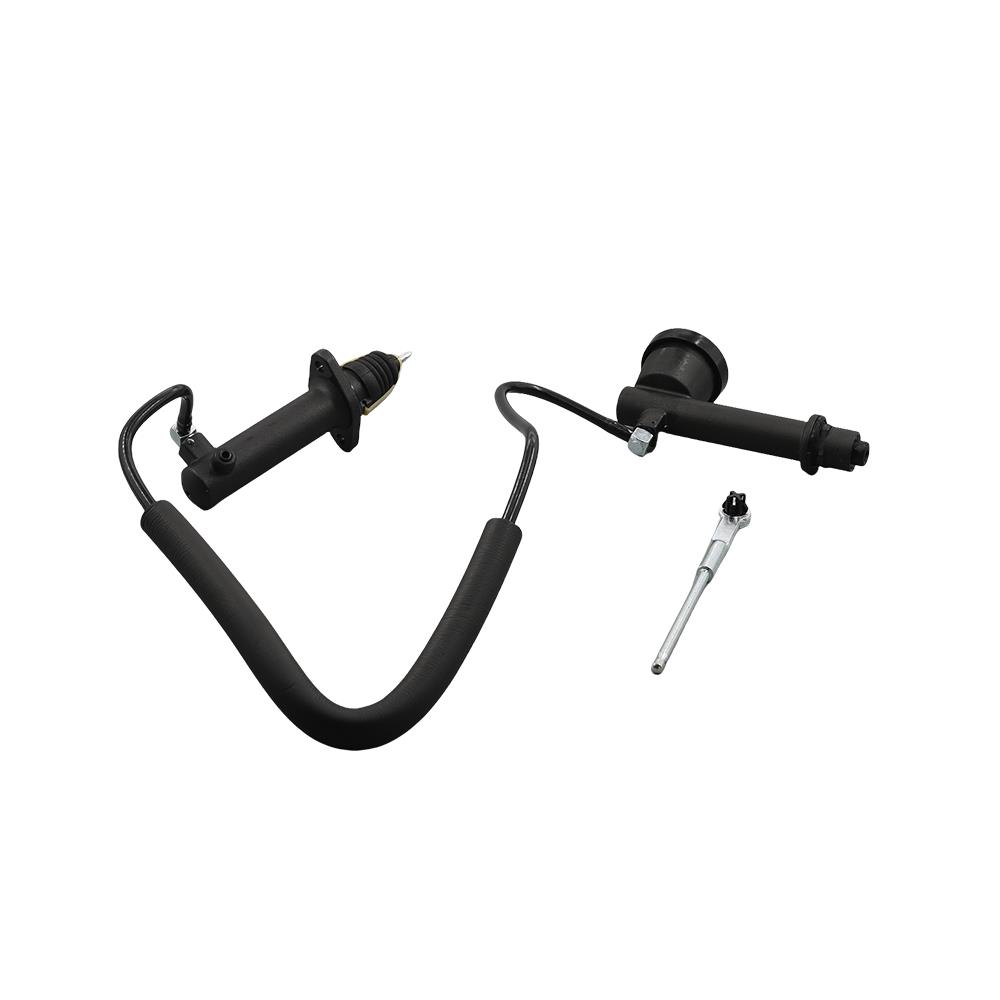

The hydraulic line connects the master and slave cylinders, ensuring that the pressure generated by the master cylinder is efficiently transferred to the slave cylinder. When the driver presses the clutch pedal, the master cylinder generates hydraulic pressure, which moves the slave cylinder to disengage the clutch, interrupting the power flow from the engine to the transmission. This allows for smooth gear shifts. Upon releasing the pedal, the system allows the clutch to re-engage, transmitting power back to the transmission input shaft.

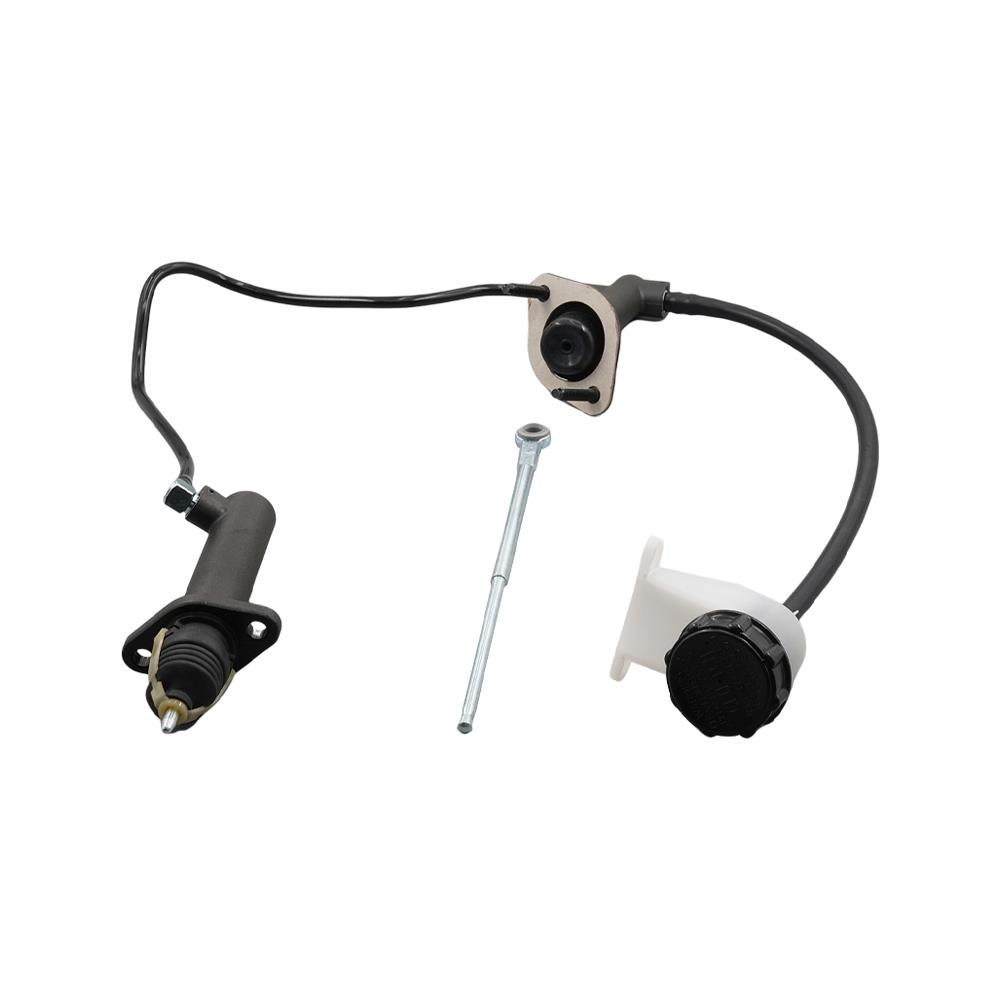

The assembly's design includes several key components: the master cylinder body (made of aluminium or plastic for weight reduction), a piston (anodized aluminium for durability), primary and secondary seals to prevent leaks, a push rod connected to the clutch pedal, and low- and high-pressure nozzles for fluid flow. Some designs share the reservoir with the brake master cylinder, while others have a dedicated reservoir, ensuring a constant supply of fluid to avoid air entry, which can cause a spongy pedal feel.
Advantages of Hydraulic Clutch Systems
Hydraulic clutch systems, driven by the master and slave cylinder assembly, offer several advantages:
- Space Efficiency: They eliminate the need for a straight cable line between the pedal and clutch lever, saving space and improving layout flexibility.
- Reliability: Hydraulic systems are less prone to mechanical wear compared to cable systems, enhancing long-term reliability.
- Driver Comfort: They provide optimal and constant pedal effort, reducing fatigue during operation.
- Weight Reduction: Modern designs can reduce weight by up to 70% compared to standard systems, making them ideal for Original Equipment (OE) projects and improving fuel efficiency.
Common Issues and Symptoms
Research suggests that the clutch master and slave cylinder assembly can experience several common issues, which may affect vehicle performance and safety. Below is a detailed breakdown of symptoms and their causes, presented in a table for clarity:
| Symptom | Description | Potential Causes |
|---|
| Soft or Spongy Clutch Pedal | The pedal feels less resistant, sinks to the floor, or resets slowly. | Air in the system, low fluid levels, worn seals. |
| Difficulty Shifting Gears | The clutch may not fully disengage, causing notchy, draggy, or blocked shifts. | Insufficient hydraulic pressure, worn components, leaks. |
| Fluid Leaks | Hydraulic fluid (brake fluid) may leak from the cylinders, visible as puddles. | Worn seals, cracked housings, corrosion in cylinder bores. |
| Clutch Slippage | The clutch may not fully engage or disengage, leading to power loss. | Low fluid levels, air in system, worn clutch components. |
| Unusual Noises | Grinding, squeaking, or clunking sounds while shifting or pressing the pedal. | Improper disengagement, worn bearings, or seals. |
| Low Brake Fluid | Since the clutch and brake systems often share a reservoir, fluid levels drop. | Leaks in the assembly, affecting brake performance. |
Specific Causes of Failure:
- Wear and Tear: Seals and moving parts degrade over time due to repeated use, especially under high heat and load.
- Contaminated Fluid: Dirt or moisture in the hydraulic fluid can damage the cylinder surfaces, leading to leaks or poor pressure regulation.
- Improper Bleeding: Air bubbles in the system can cause a spongy pedal feel and reduce hydraulic efficiency.
- Overuse of Clutch: Riding the clutch or frequent slipping can overheat components, accelerating wear.
- Manufacturing Defects: Poor materials or quality control can lead to early failure, such as cracked housings or faulty seals.
- Corrosion: Moisture in the brake fluid, which is hygroscopic, can cause corrosion in the cylinder bores, affecting performance.
These issues, if unaddressed, can lead to clutch slippage, transmission failure, and serious safety concerns, necessitating timely maintenance or replacement.
Comparative Analysis of Types
To summarize the key differences between assemblies with external slave cylinders and those with concentric slave cylinders, the following table outlines their characteristics:
| Aspect | Assembly with External Slave Cylinder | Assembly with Concentric Slave Cylinder (CSC) |
|---|
| Location | Master cylinder near pedal, slave cylinder outside transmission housing, connected to clutch fork. | Master cylinder near pedal, slave cylinder inside bell housing, integrated with release bearing. |
| Design | Separate master and slave cylinders, uses clutch fork for disengagement. | Master cylinder with CSC, eliminates clutch fork, simplifies system. |
| Weight | Heavier, traditional design (up to 1,700g with related components). | Lighter, up to 70% weight reduction (around 400g with system). |
| Maintenance Access | Easier access for inspection and replacement of slave cylinder. | May require transmission removal for CSC replacement, increasing labor costs. |
| Common in Systems | Semi-hydraulic clutch systems. | Fully-hydraulic clutch systems, increasingly common in modern vehicles. |
This table highlights the trade-offs between the two types, with CSC assemblies offering efficiency and weight savings but potentially higher replacement complexity.
