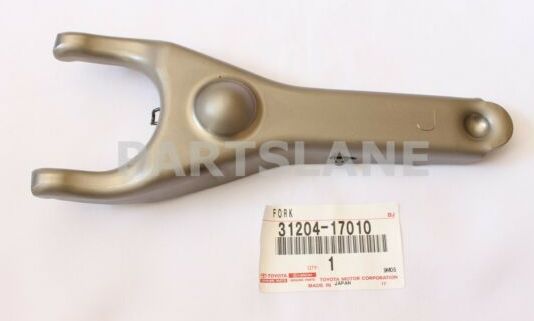

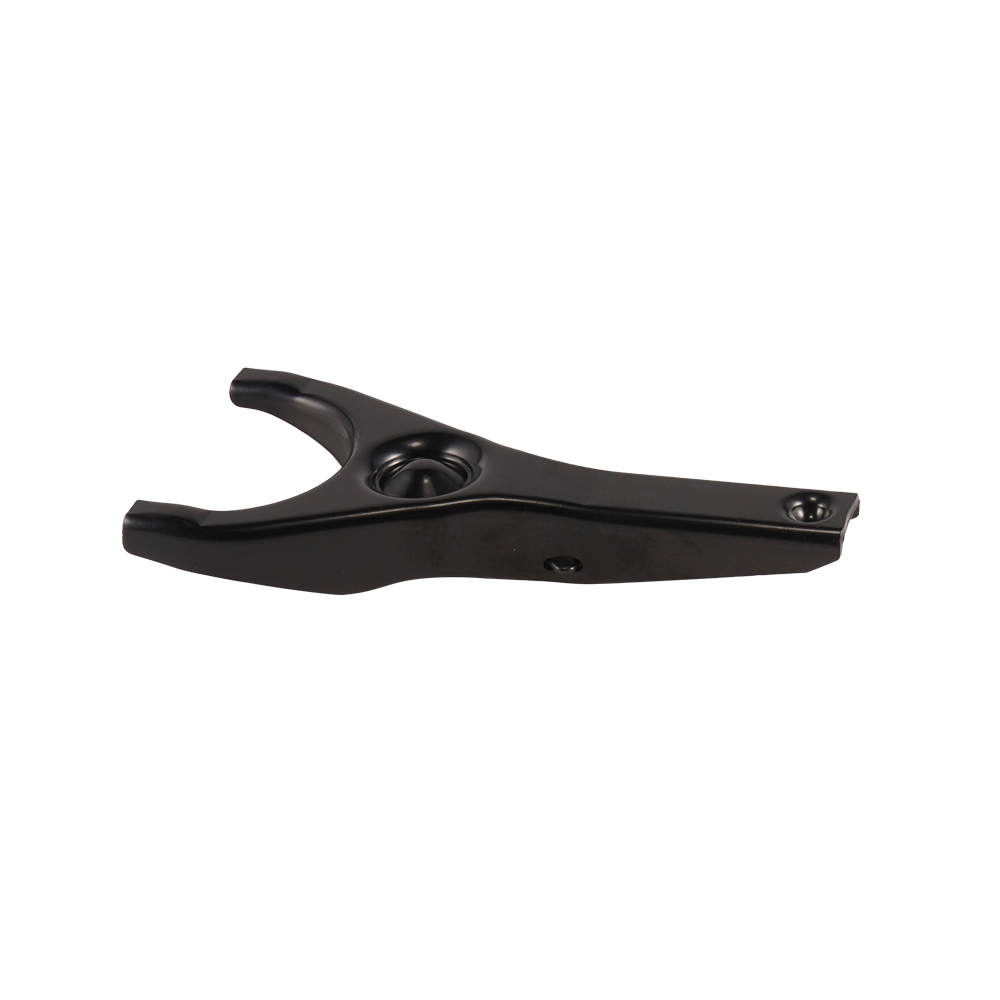

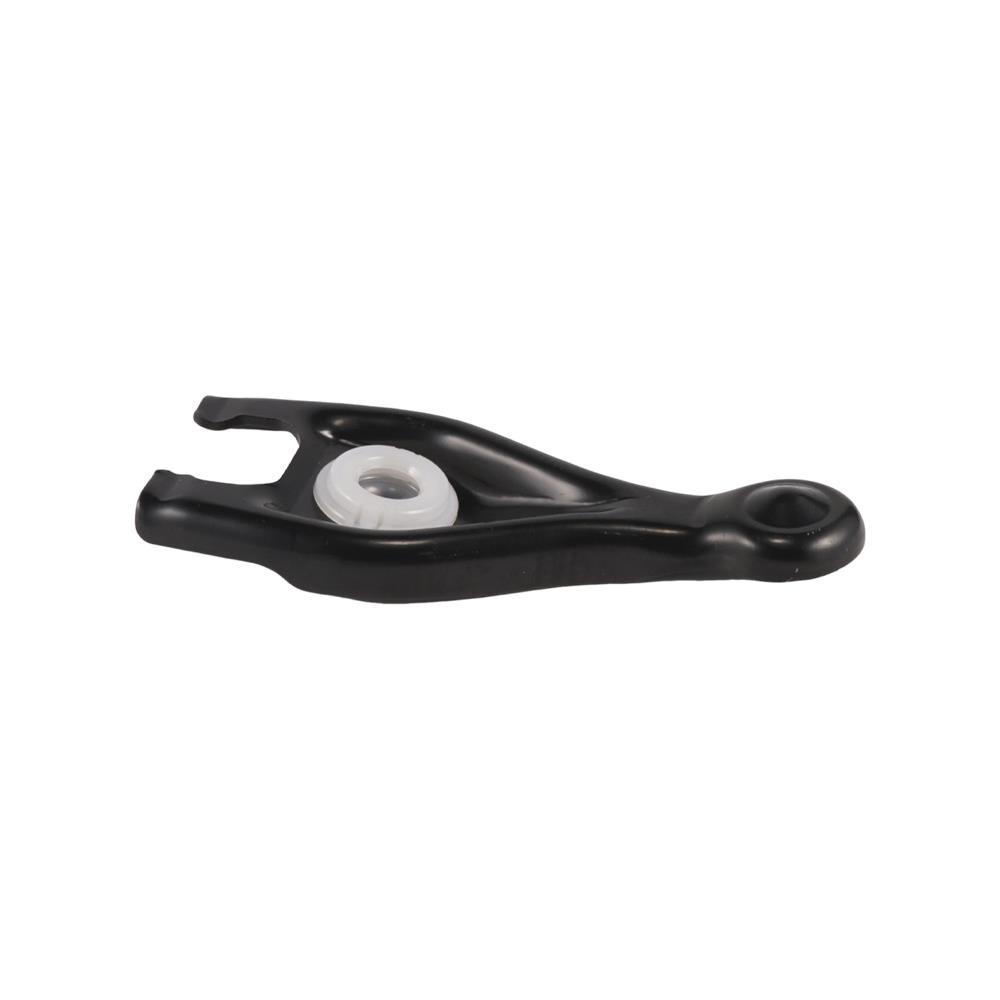

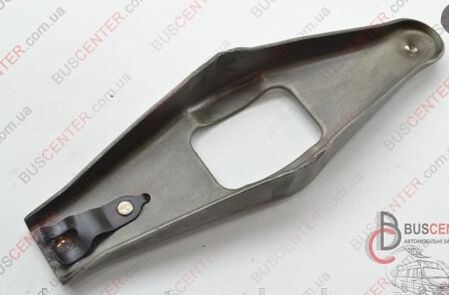

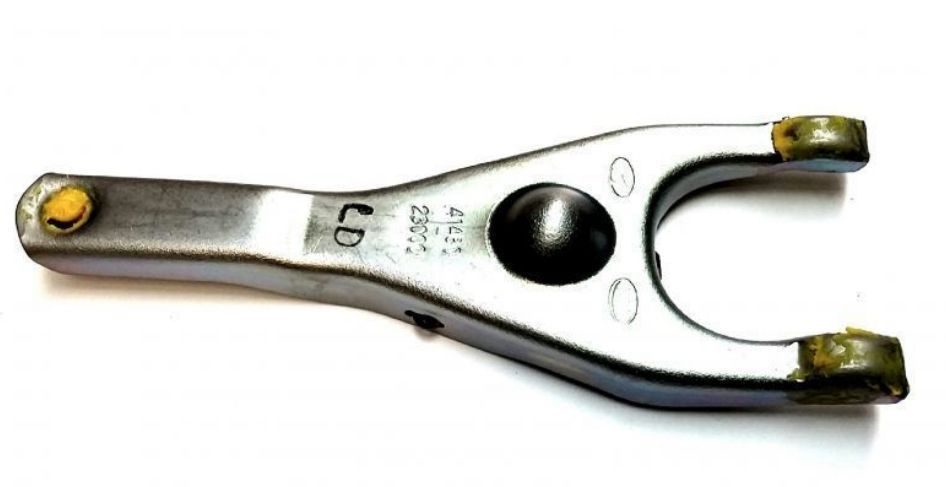

What is a Clutch Fork?
The clutch fork, also known as the clutch release fork, is likely a mechanical component in manual transmission vehicles. It connects the clutch pedal to the clutch assembly, helping to engage and disengage the clutch for smooth gear changes.
How Does It Work?
Research suggests that when you press the clutch pedal, the clutch fork moves the release bearing, which disengages the clutch disc from the flywheel. This interrupts the engine's power, allowing you to shift gears easily. When you release the pedal, it helps re-engage the clutch for power transmission.
Common Issues
Symptoms like difficulty shifting gears, strange noises (rattling, squeaking), clutch slippage, and vibrations during gear changes. These issues often indicate wear or damage, suggesting the need for replacement.

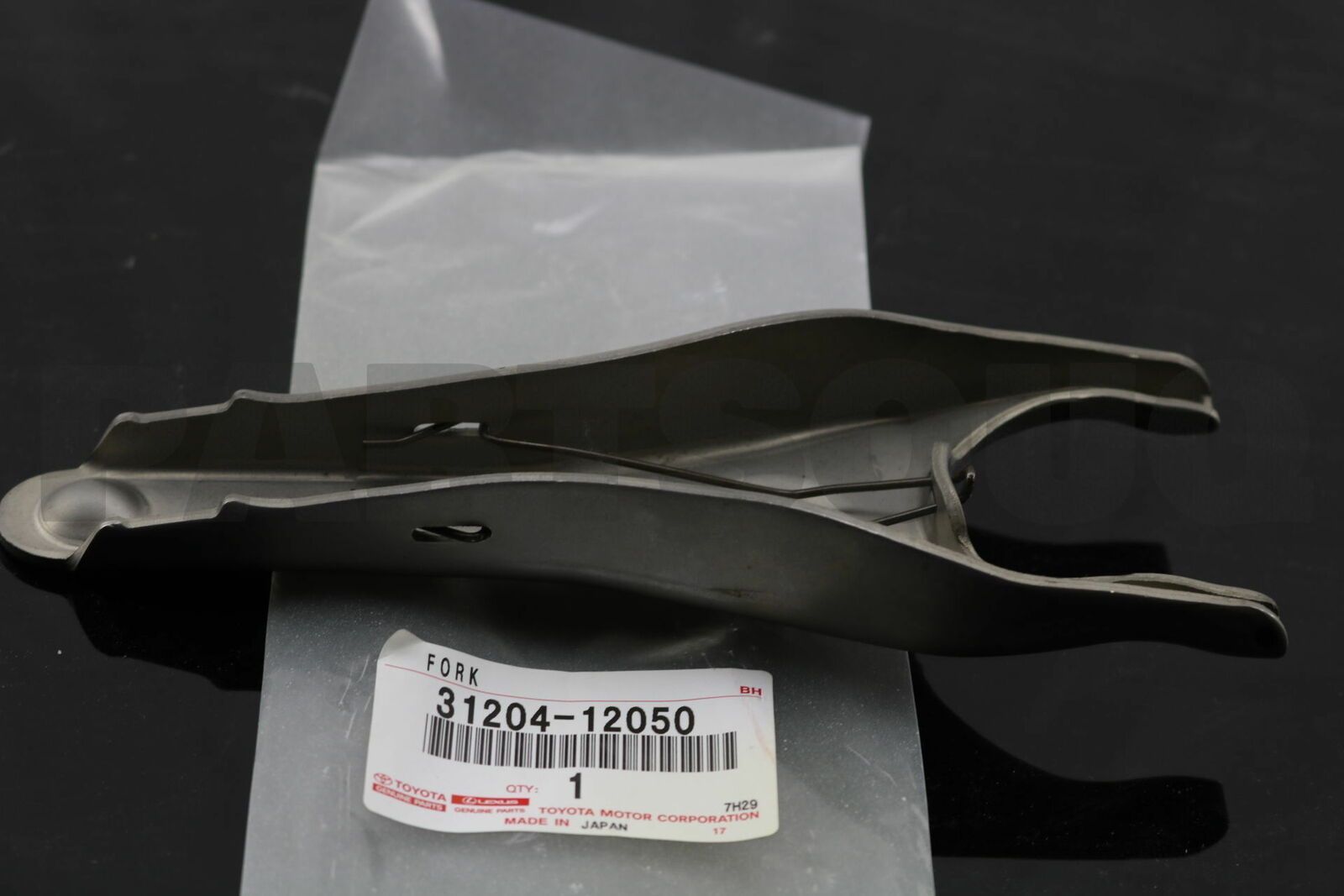

Introduction to Clutch Fork
The clutch fork, also known as the clutch release fork, is a critical component in the clutch system of vehicles equipped with manual transmissions. It serves as a mechanical linkage that connects the clutch pedal to the clutch assembly, facilitating the engagement and disengagement of the clutch. This hydraulic or mechanical system is essential for smooth gear shifting, with research indicating its importance in ensuring efficient power transfer from the engine to the transmission.

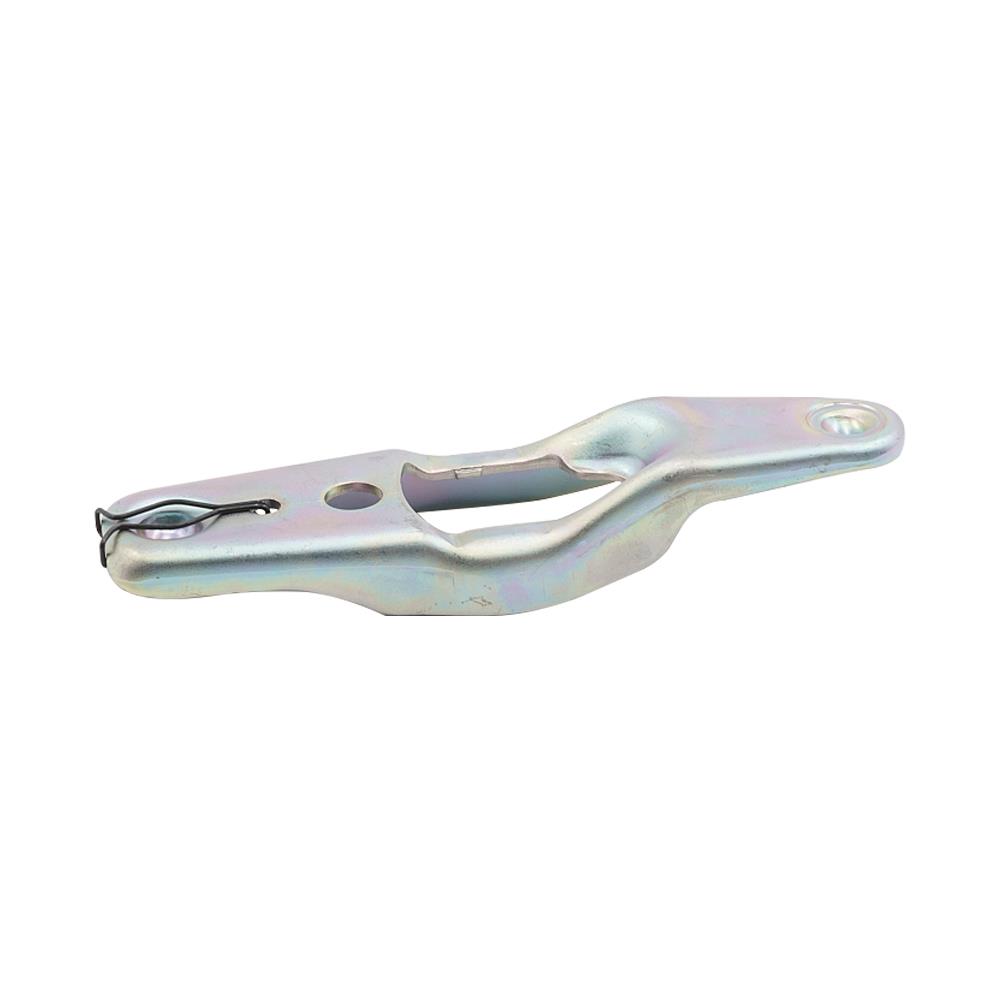

Detailed Function and Operation
The clutch fork plays a pivotal role in converting the movement of the clutch pedal into the actual disengagement of the clutch. When the driver presses the clutch pedal, the clutch fork moves the clutch release bearing, which in turn presses against the clutch cover diaphragm spring. This action disengages the clutch disc from the flywheel, interrupting the power flow and allowing the driver to shift gears. Upon releasing the pedal, the clutch fork facilitates re-engagement by allowing the clutch to reconnect, transmitting power back to the transmission input shaft.
The clutch fork is typically made of durable materials like steel, designed to withstand the forces involved in clutch operation. It operates in conjunction with other components, such as the hydraulic system (in hydraulic clutch setups), springs, and levers, to ensure smooth and precise clutch action. In traditional systems, it links the clutch release bearing to the clutch pressure plate, while in modern designs, it may work with concentric slave cylinders (CSCs) that integrate the release bearing, eliminating the need for a separate clutch fork in some cases.

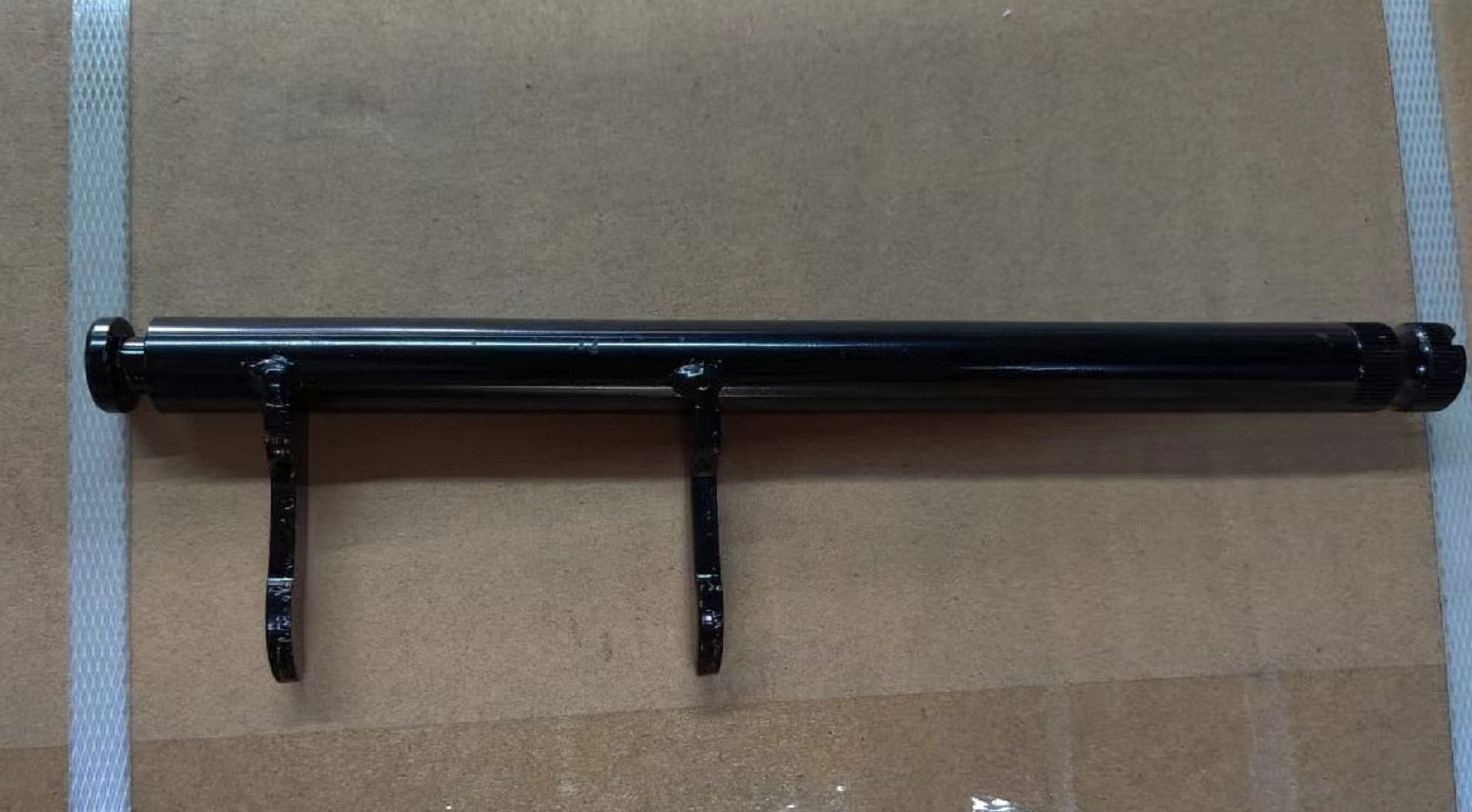

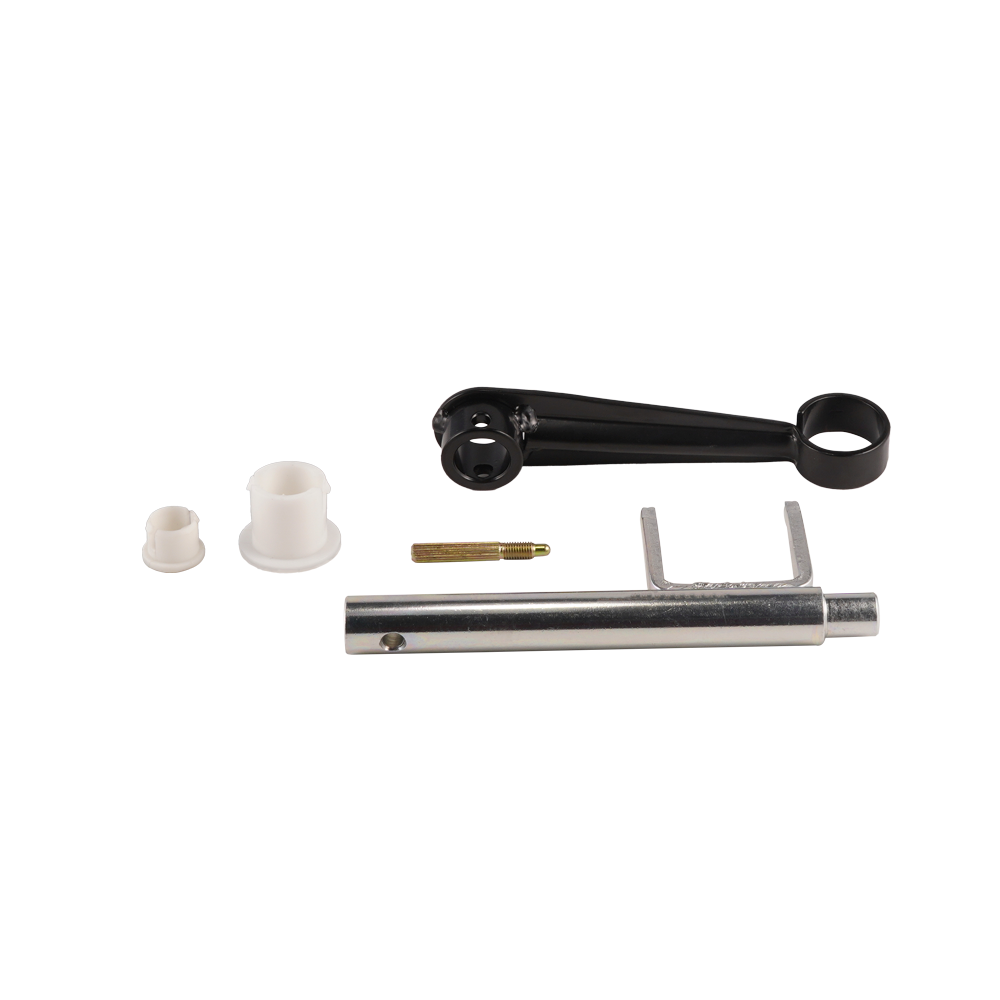

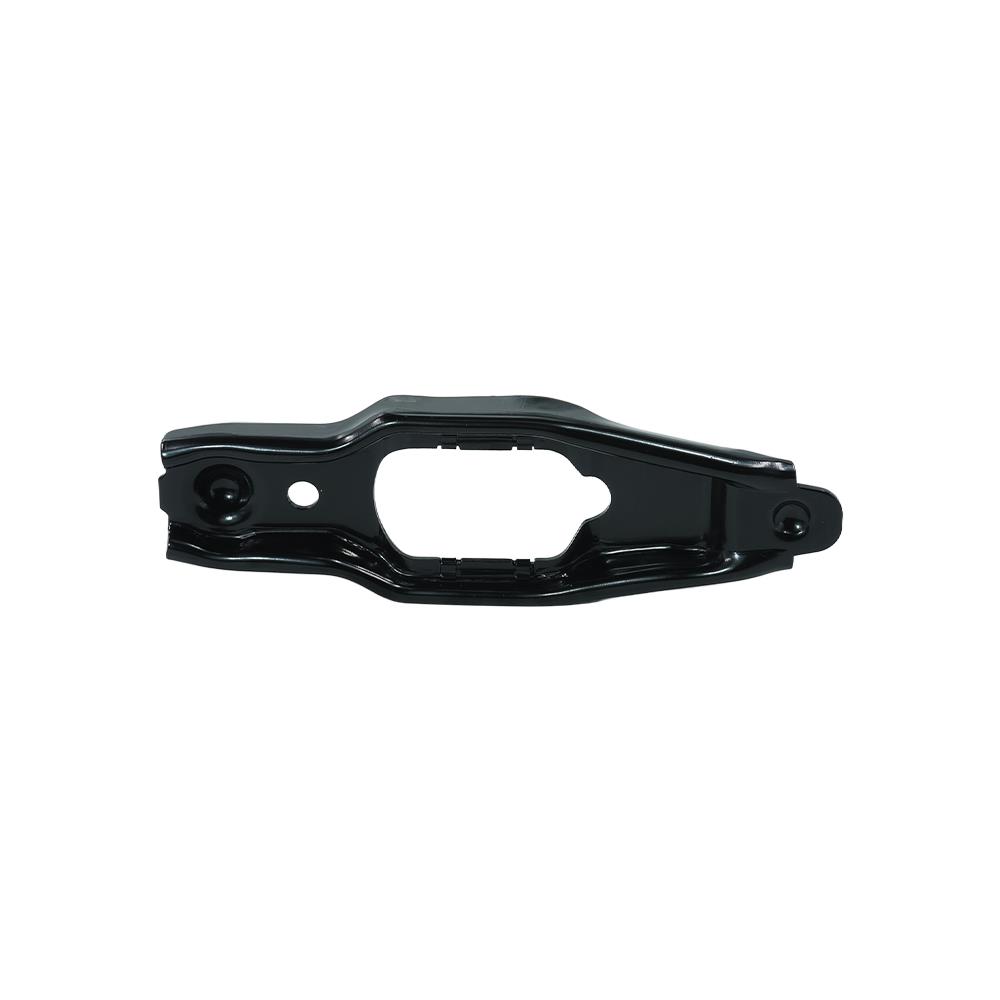

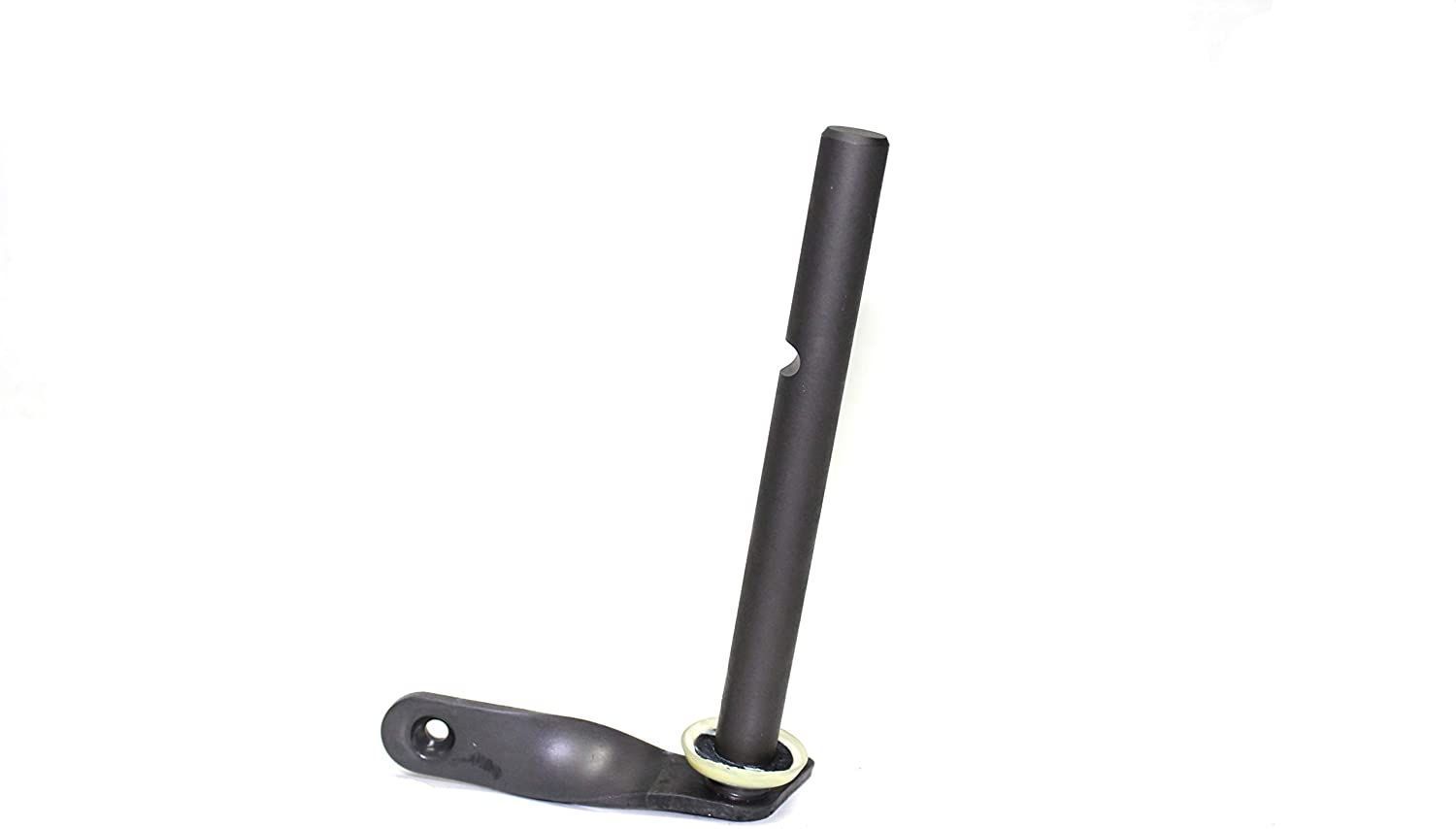

Technical Specifications and Variations

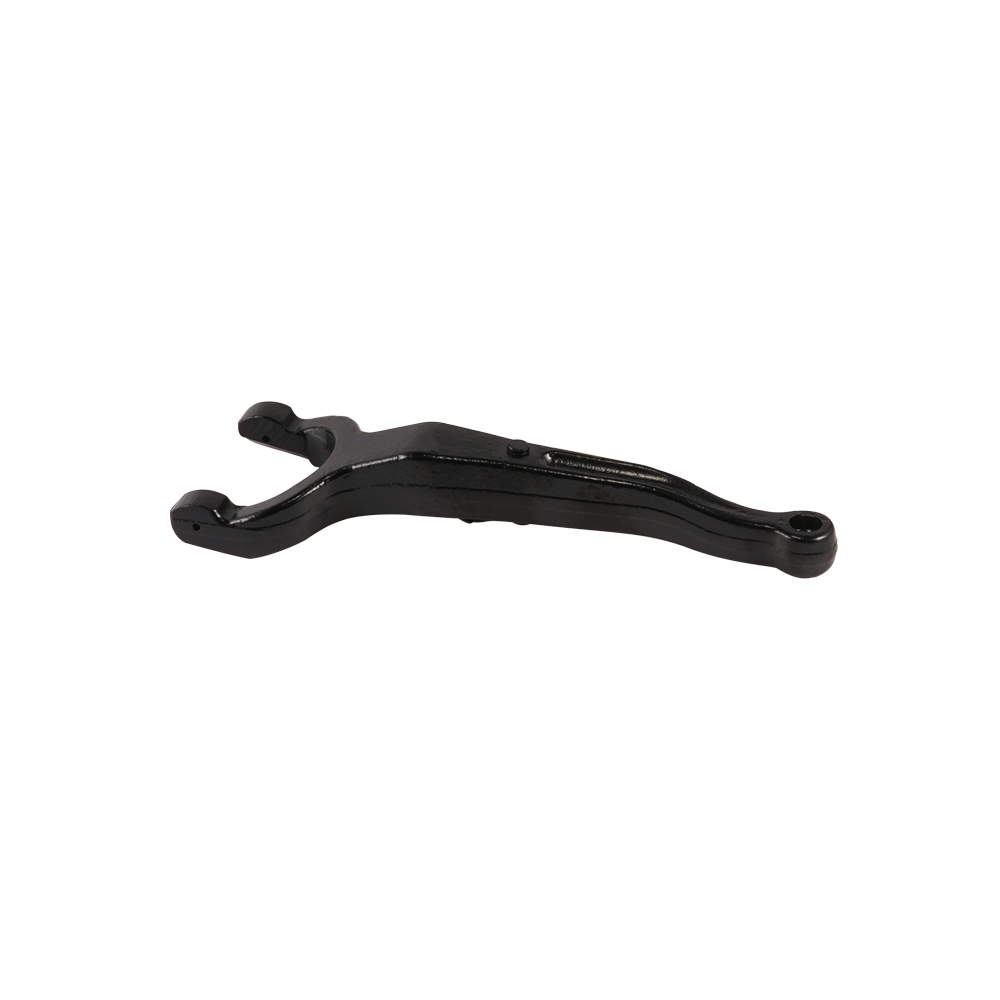

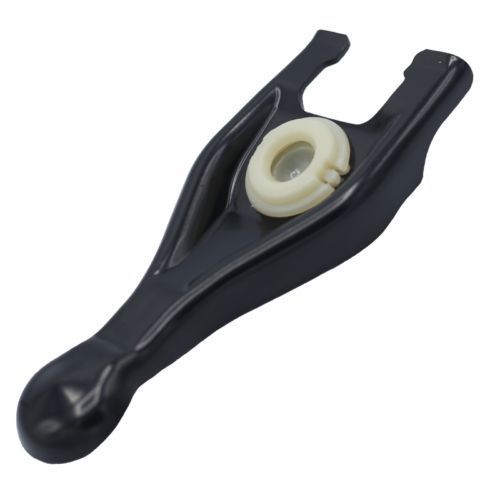

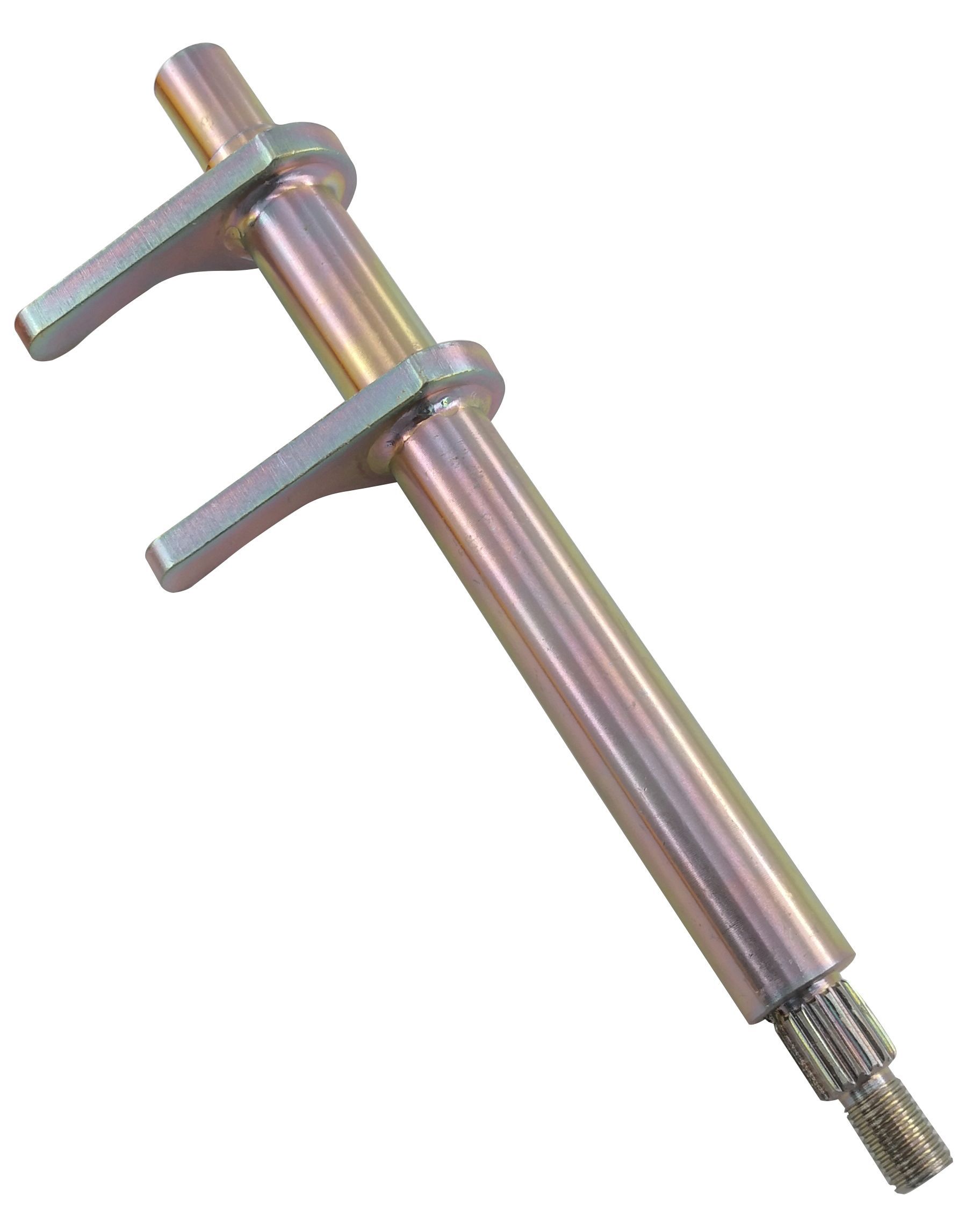

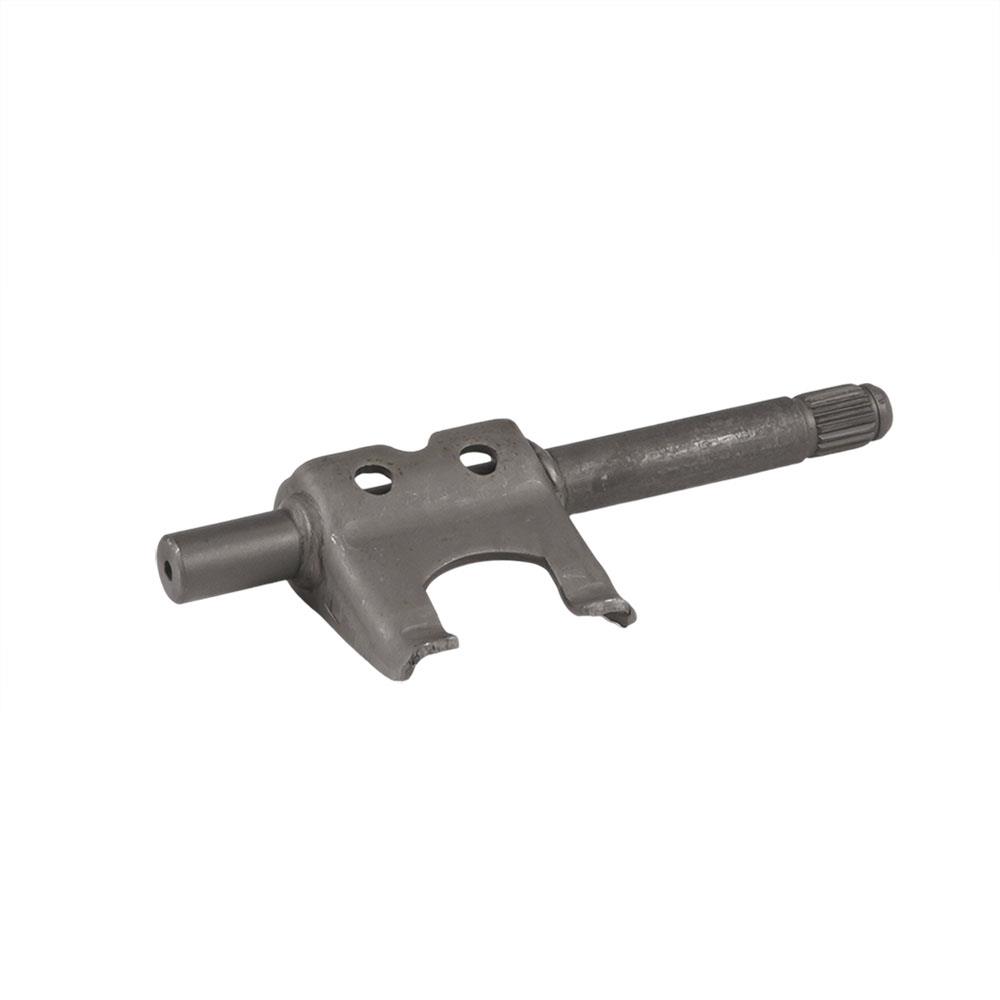

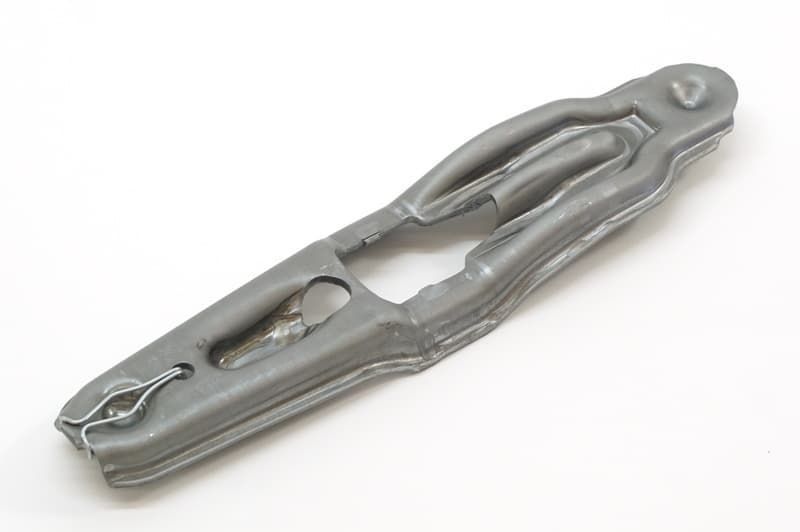

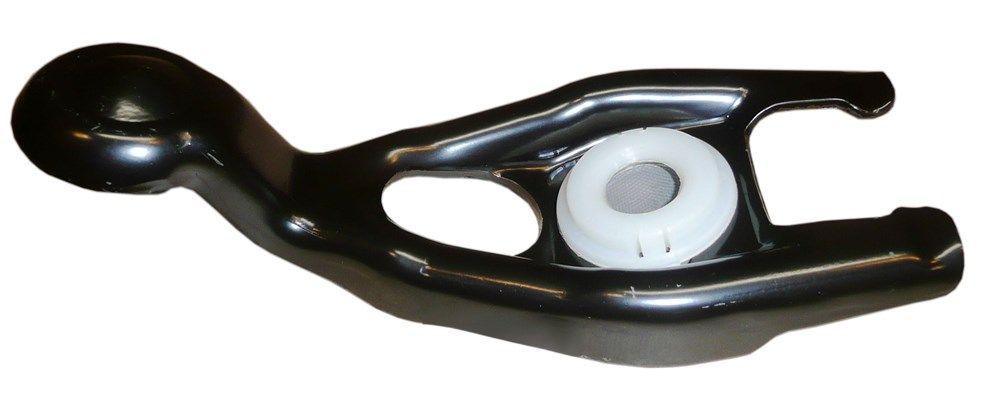

Clutch forks come in various designs, depending on the vehicle make and model. They can be found in both hydraulic and mechanical clutch systems, with hydraulic systems being more common in modern vehicles. For high-performance or racing applications, specialized clutch forks are available, such as those offered by Quarter-Max, which are cut down for shorter throws and quicker ratios, ensuring no flex and catering to enthusiasts and racers. These are often made from materials like 4140 steel, with zinc coatings for durability, and may include options for pivot ball locations or rod ends for custom setups.
Industry leaders like Pioneer Automotive Industries and Summit Racing provide a range of clutch forks, with options for different vehicle types, such as Buick, Chevy, Ford, Dodge, and GM trucks, ensuring compatibility and performance. The design may include features like built-in extensions or specific lengths (e.g., 9.250 inches), tailored to the transmission and clutch setup.

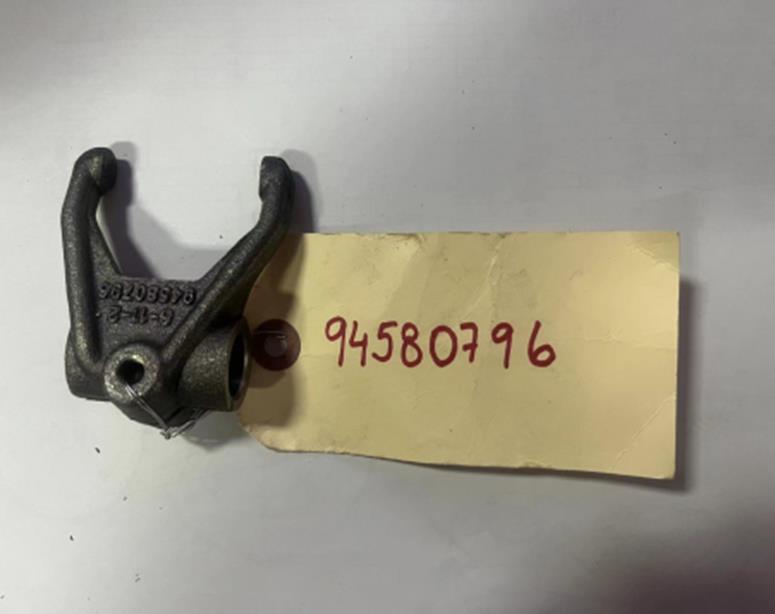

Common Issues and Symptoms
Research suggests that clutch forks can experience several common issues, which may affect vehicle performance and safety. Below is a detailed breakdown of symptoms and their potential causes, presented in a table for clarity:
| Symptom | Description | Potential Causes |
|---|
| Difficulty Engaging/Disengaging Clutch | Resistance when pressing pedal, firm pedal, jerky motions, grinding noises. | Wear, damage, or misalignment of the clutch fork. |
| Clutch Slippage | Loss of power, engine revving without speed increase. | Worn clutch fork, improper disengagement, or clutch wear. |
| Strange Noises | Rattling, squeaking, or clunking when pressing pedal or changing gears. | Worn pivot ball, poor lubrication, or damaged fork. |
| Inconsistent Clutch Engagement | Unpredictable "sweet spot" for gear shifts. | Misalignment, wear, or failure of the clutch fork. |
| Vibration or Shaking | Felt on clutch pedal or inside car during gear changes. | Worn or damaged clutch fork, affecting smooth operation. |
| Clutch Drag | Partial engagement with flywheel when pedal fully released, hindering shifts. | Improper disengagement due to fork wear or misalignment. |
Specific causes identified include:
- Wear and Tear: Repeated use can lead to bending, cracking, or wear, especially at the pivot point.
- Poor Lubrication: Lack of grease on the fork pivot can cause dysfunction, as noted in discussions on platforms like Reddit, where mechanics often neglect this during assembly.
- Misalignment: Improper installation or vehicle modifications can lead to misalignment, affecting clutch operation.
- Overuse: Frequent clutch slipping or riding the clutch can accelerate wear, particularly under high load or heat.
These issues, if unaddressed, can lead to clutch slippage, transmission damage, and serious safety concerns, necessitating timely maintenance or replacement.
Comparative Analysis of Function and Issues
To summarize the key aspects, the following table outlines the function and common issues, based on the research:
| Aspect | Details |
|---|
| Function | Links clutch release bearing to pressure plate, facilitates clutch engagement/disengagement; ensures smooth gear shifts and power transfer. |
| Common Symptoms | Difficulty shifting, unusual noises (rattling, squeaking), clutch slippage, inconsistent engagement, vibrations, clutch drag. |
| Causes of Failure | Wear and tear, poor lubrication, misalignment, overuse, manufacturing defects, pivot ball wear. |
| Specific Maintenance | Regular inspection, proper lubrication of pivot, timely replacement when worn, professional assistance for complex repairs. |
This table highlights the interplay between function and potential failure modes, emphasizing the importance of maintenance.
