What is a Clutch Disc?
A clutch disc is likely a friction disc between the engine and transmission in manual vehicles. It helps engage and disengage the transmission, allowing smooth gear changes by pressing against the flywheel when the clutch is engaged.
How Does It Work?
When you press the clutch pedal, the clutch disc disengages from the flywheel, interrupting power flow for gear shifts. When released, it reconnects, transmitting engine power to the gearbox via friction materials.
Common Issues
Symptoms like difficulty shifting gears, clutch slippage (engine revs without speed increase), and unusual noises, often due to wear, typically requiring replacement during clutch maintenance.
Introduction to Clutch Discs
A clutch disc is a critical component of a vehicle's clutch system, primarily used in manual transmission vehicles. It is a friction disc located between the engine and the transmission, responsible for engaging and disengaging the transmission from the engine to allow smooth gear changes. The clutch disc works by pressing against the flywheel (connected to the engine) and transmitting power to the gearbox. When the clutch pedal is depressed, the clutch disc disengages from the flywheel, enabling the driver to change gears without grinding.
Detailed Function and Operation
The clutch disc is sandwiched between the flywheel and the pressure plate. The flywheel is bolted to the engine's crankshaft, and the pressure plate applies force to hold the clutch disc against the flywheel when the clutch is engaged. This action transmits engine power to the transmission. When the clutch is disengaged (by pressing the clutch pedal), the pressure plate releases the clutch disc, allowing it to rotate freely and disconnecting the engine from the transmission.

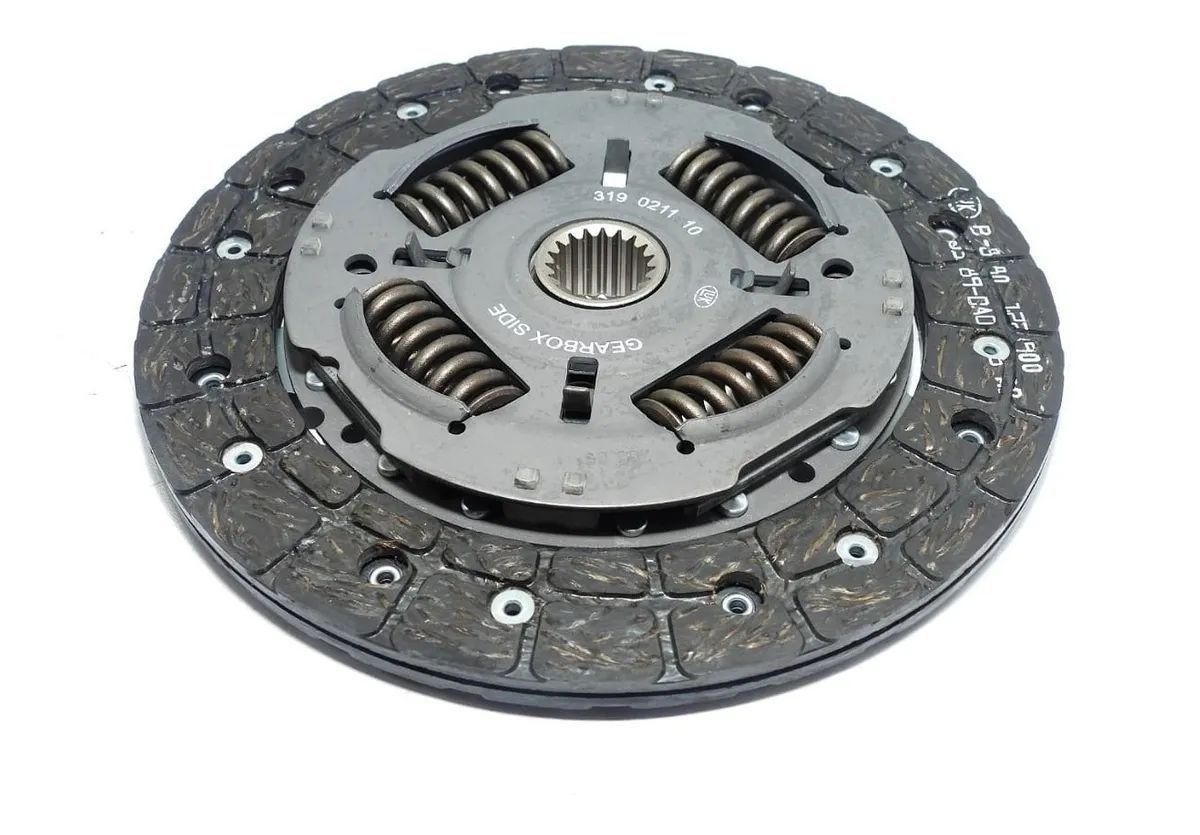

The clutch disc typically consists of:
- A steel plate with friction material on both sides, which contacts the flywheel and pressure plate.
- A hub in the center that fits over the splines of the transmission's input shaft, ensuring power transfer.
- Springs on the inner hub that act as torsional vibration dampers, absorbing fluctuations in engine power delivery for smoother operation.
The operating principle is straightforward but critical: the friction materials, often made of asbestos or carbon-based materials, withstand high temperatures and friction, ensuring efficient power transmission.
Types and Materials
Clutch discs are made from various materials, each offering different performance characteristics:
- Organic Clutch Discs: Common in standard vehicles, these use organic friction materials that provide good engagement feel and are quieter but may wear faster.
- Ceramic Clutch Discs: Offer higher heat resistance and longer life, suitable for performance applications, ideal for vehicles with frequent high-load conditions.
- Sintered Iron Clutch Discs: Used in high-performance and racing applications, these can handle extremely high temperatures and clamping forces but may be noisier and have a harsher engagement, as noted in the same source.
Some performance clutches use "puck" designs with gaps between clutch disc blocks to increase pressure on the friction material, potentially providing more grip at certain pressures. Larger clutch discs (above 11 inches) are gaining popularity for better holding capacity and heat dissipation, supporting greater clamp loads and reducing maintenance costs.
Common Issues and Symptoms
Clutch discs can experience wear and failure over time, leading to several symptoms:
| Symptom | Description | Potential Causes |
|---|
| Difficulty Shifting Gears | Grinding noises or notchy shifts, hard to engage gears. | Worn friction material, misalignment, or clutch slippage. |
| Clutch Slippage | Engine revs increase without corresponding vehicle speed increase. | Worn clutch disc, insufficient clamping force. |
| Soft or Spongy Clutch Pedal | Pedal feels less resistant, sinks to the floor, or resets slowly. | Air in hydraulic system, worn clutch components. |
| Unusual Noises | Rattling or squeaking when pressing the clutch pedal. | Internal damage, worn springs, or misalignment. |
| Vibration or Shaking | Felt through the clutch pedal or vehicle during gear changes. | Misaligned clutch disc, worn components, or imbalance. |
These issues can lead to power loss, transmission damage, and safety concerns, necessitating timely maintenance or replacement.
