Introduction to Clutch Cable

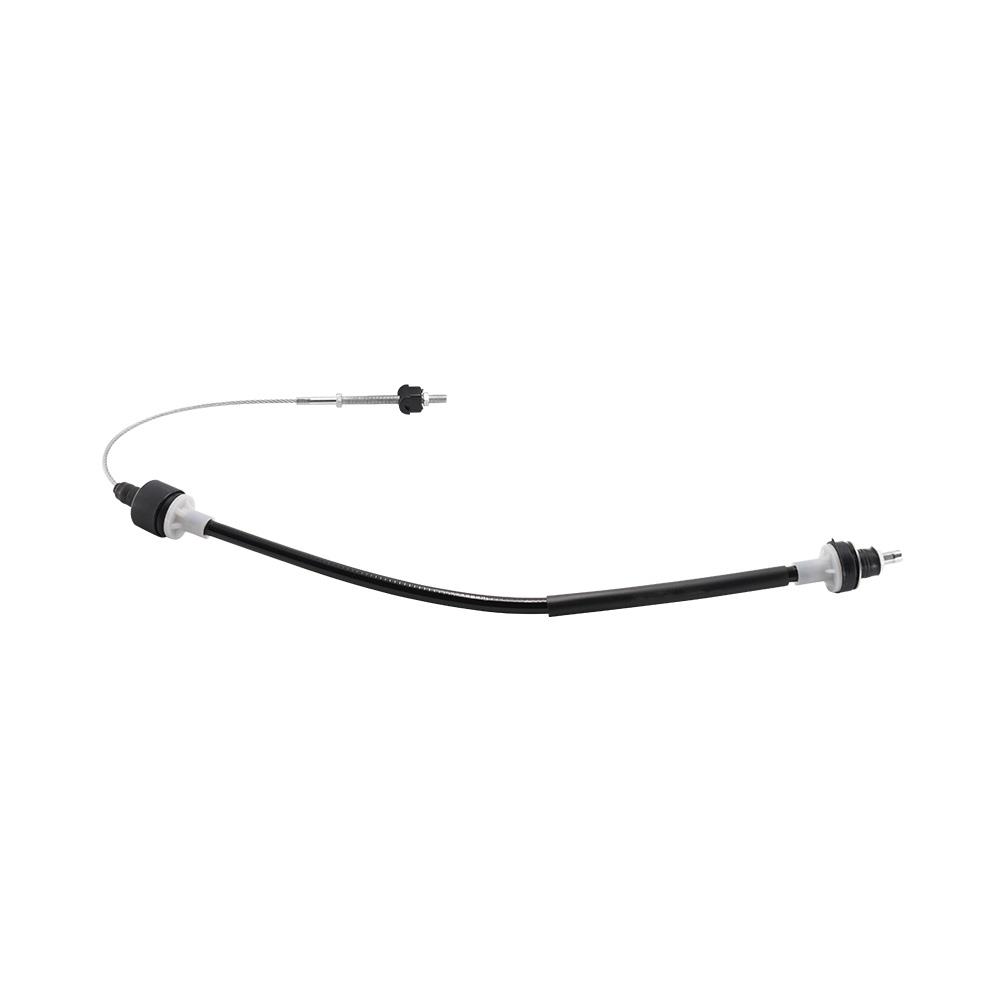

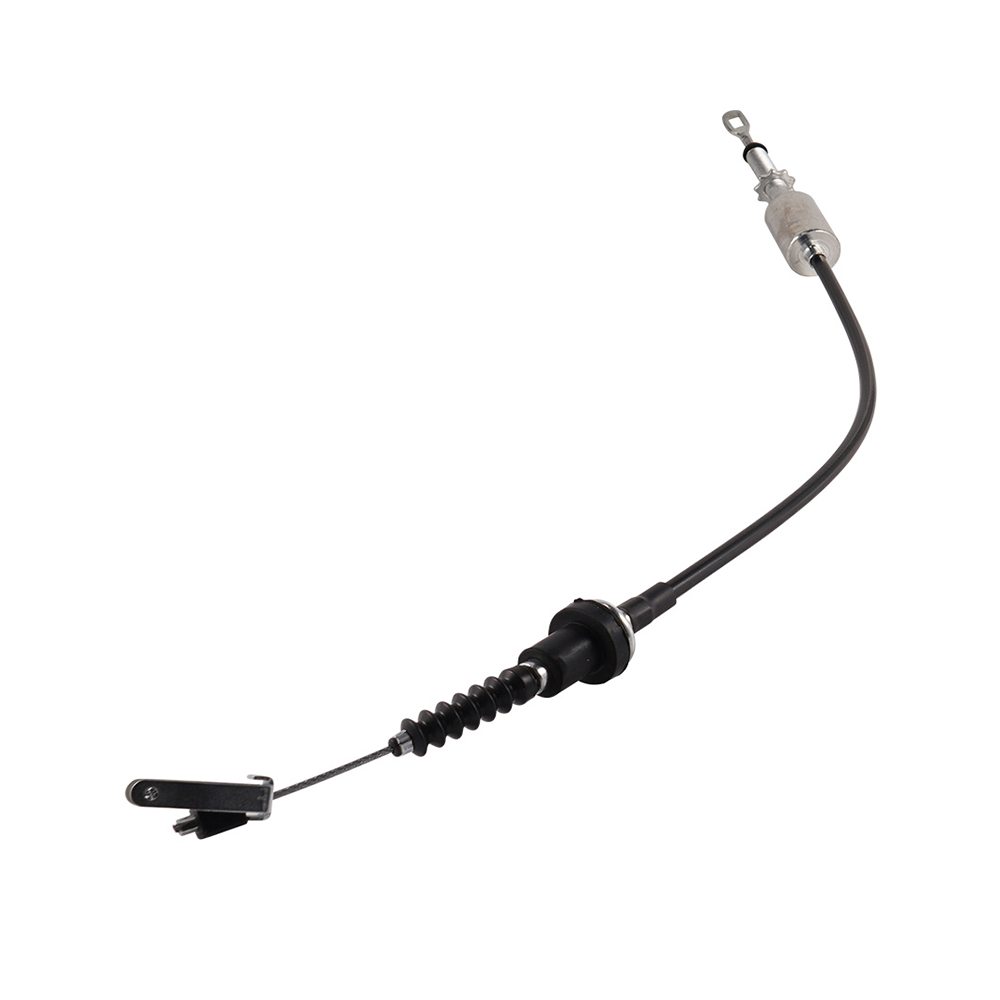

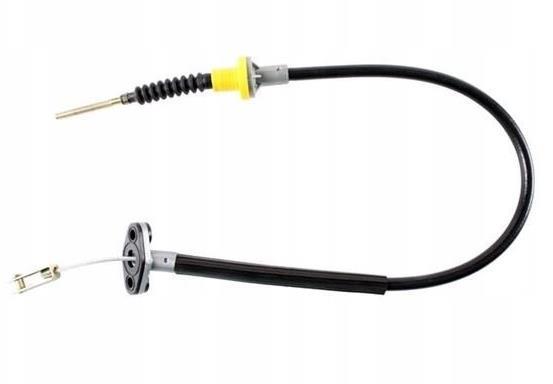

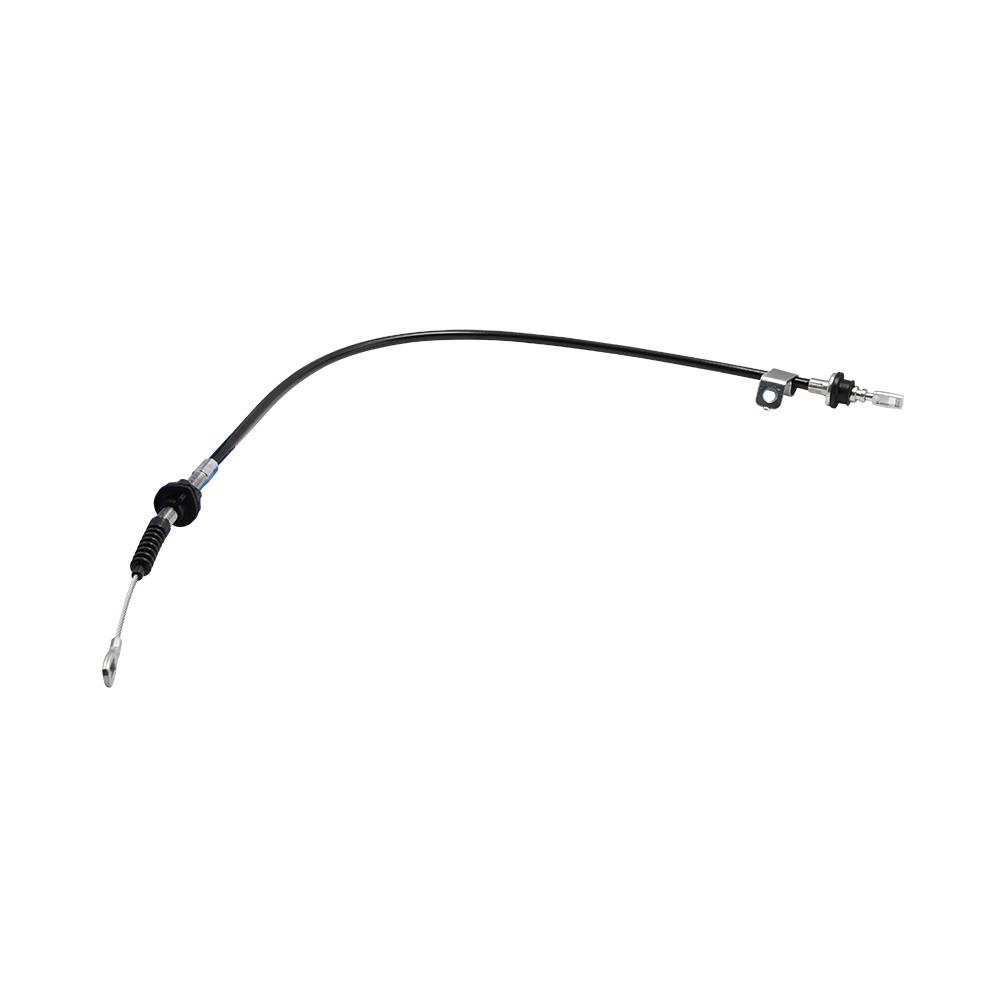

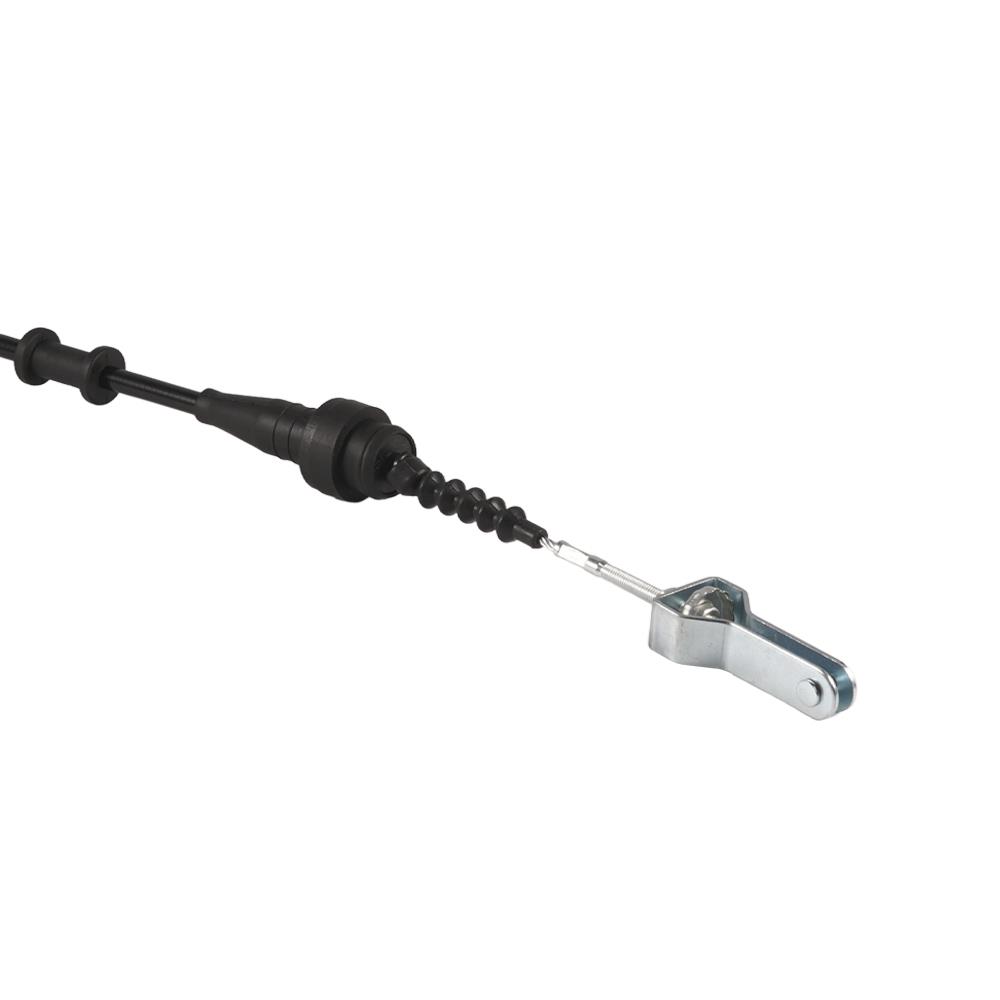

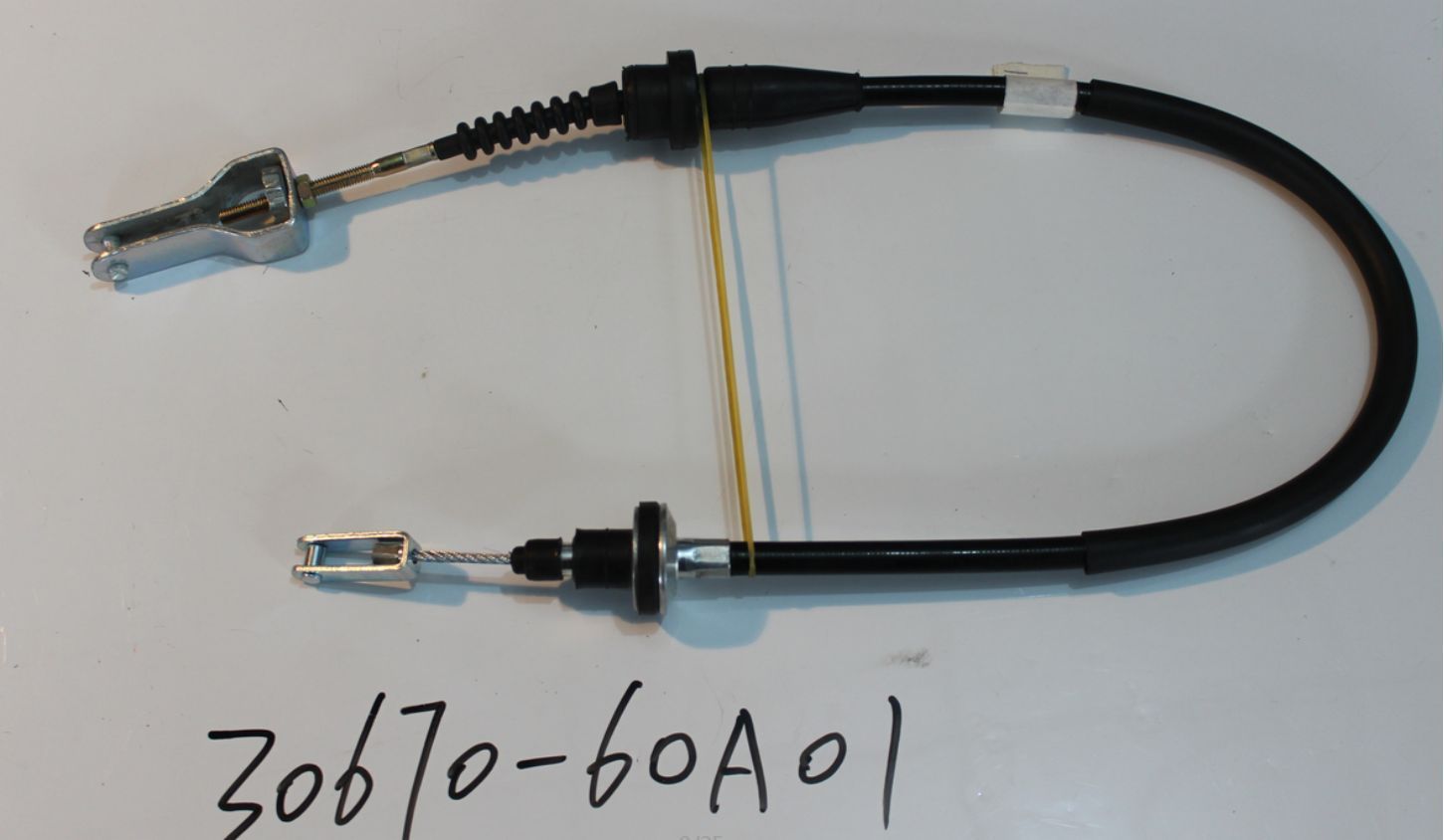

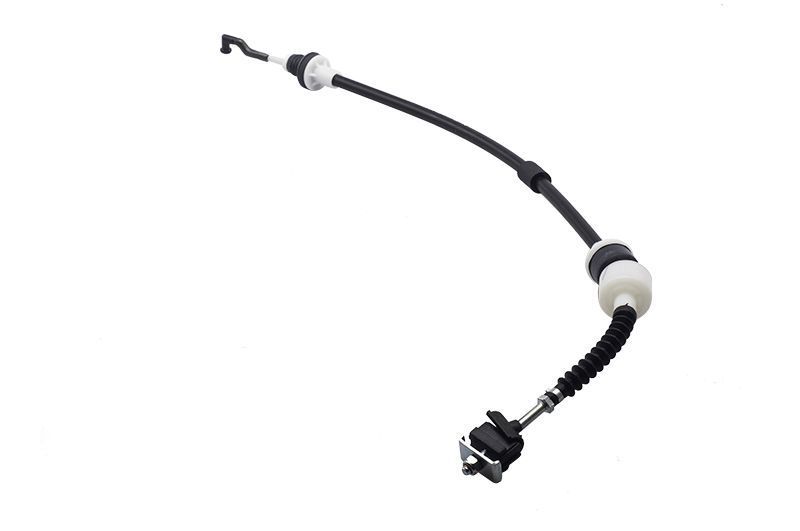

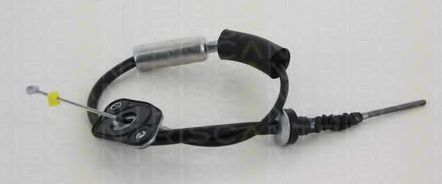

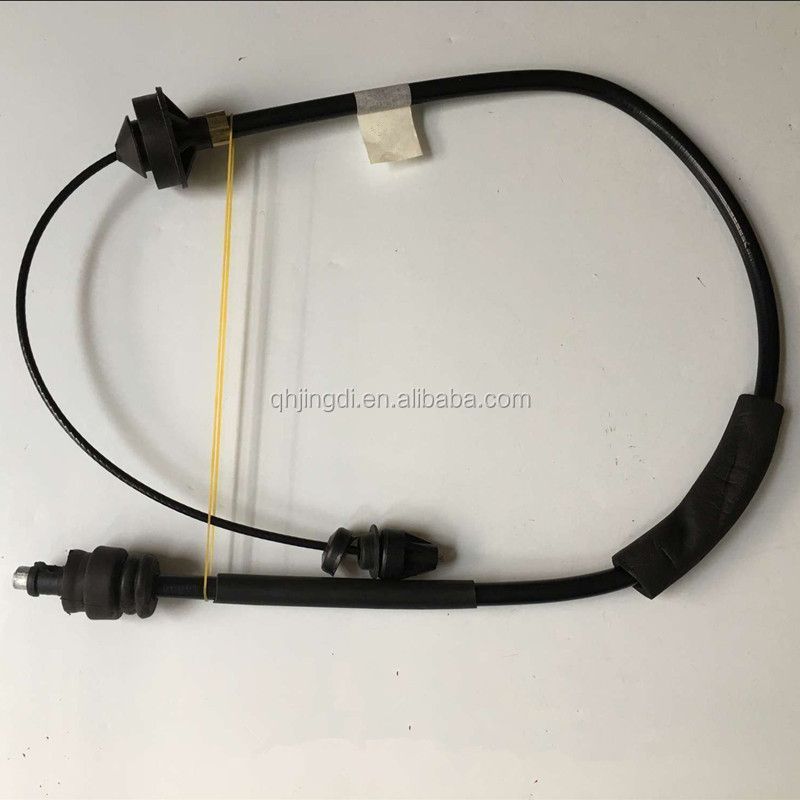

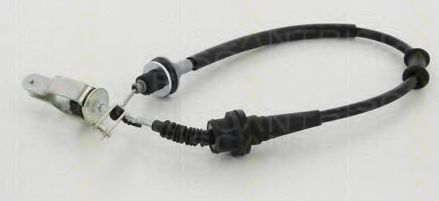

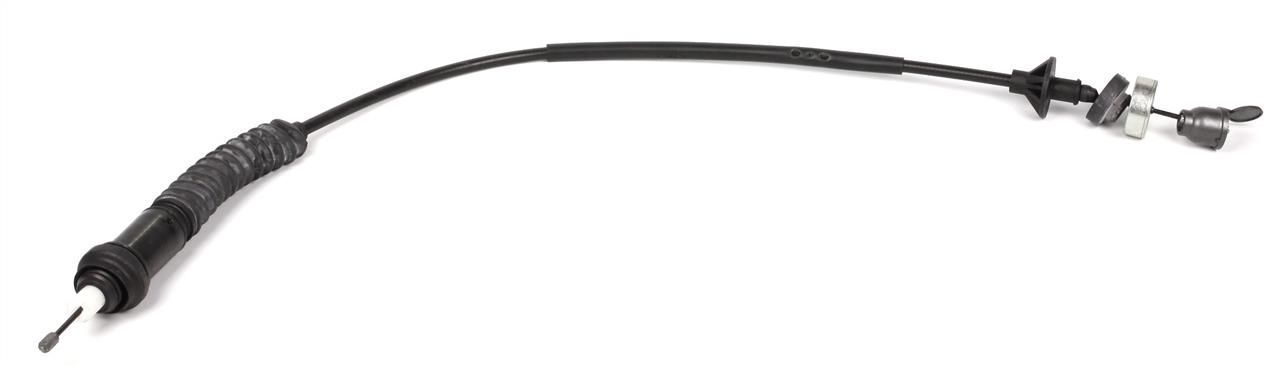

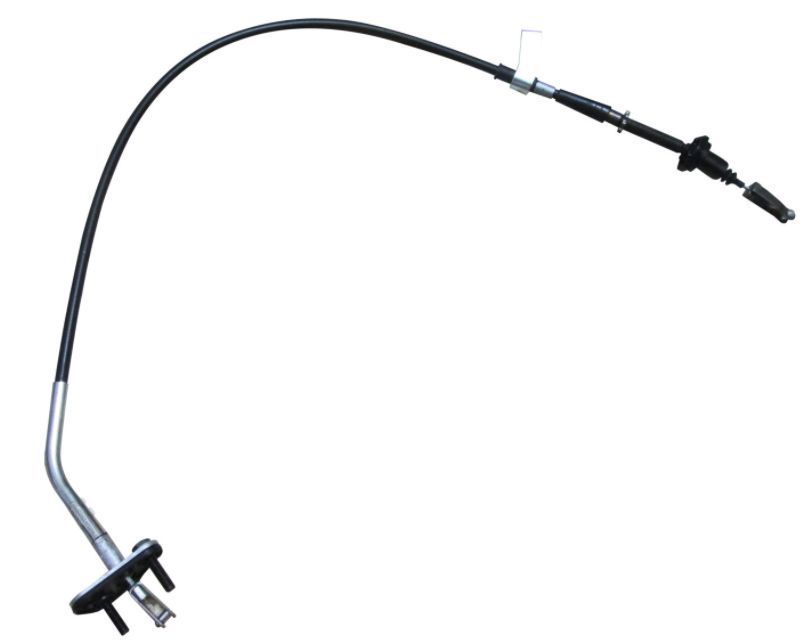

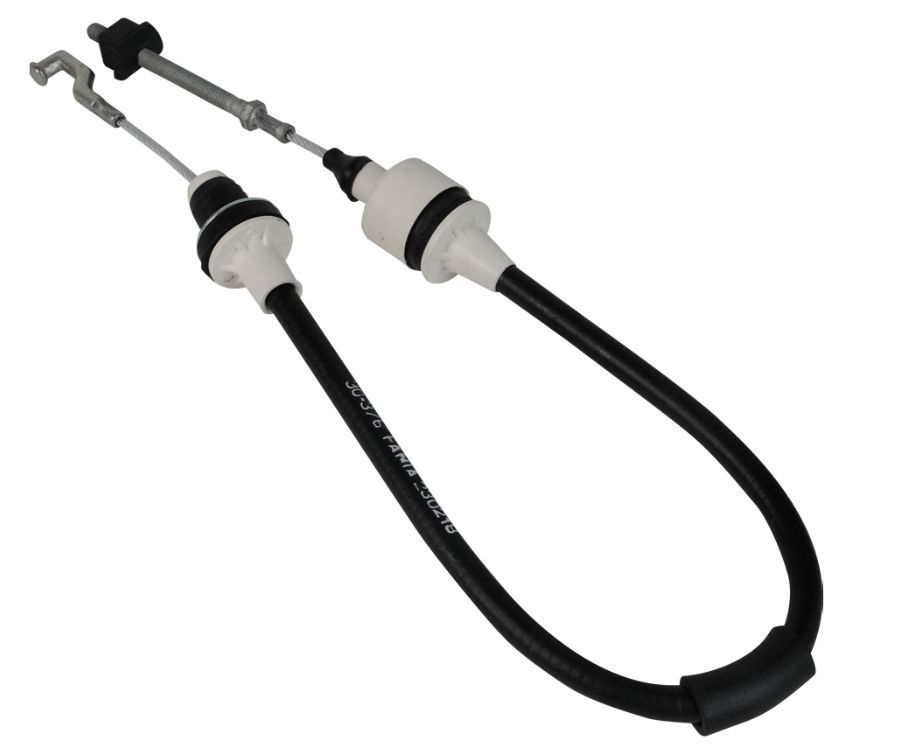

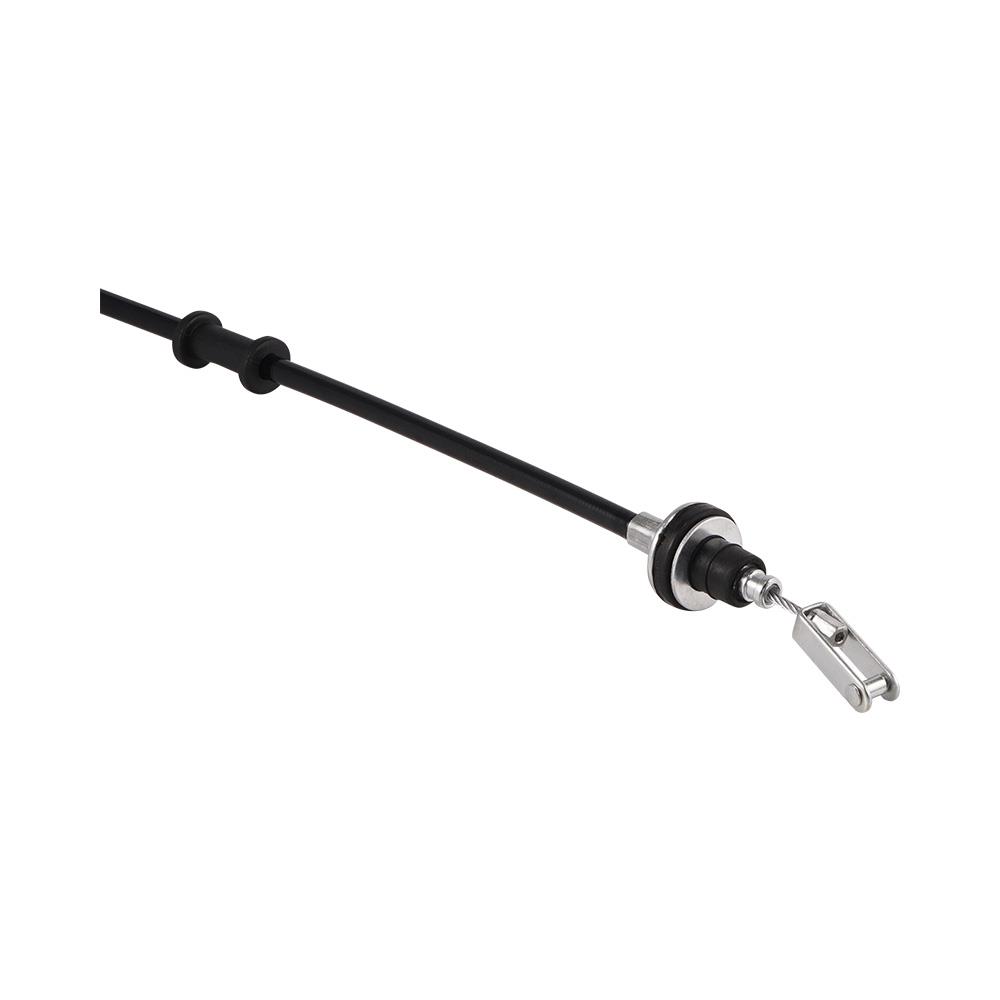

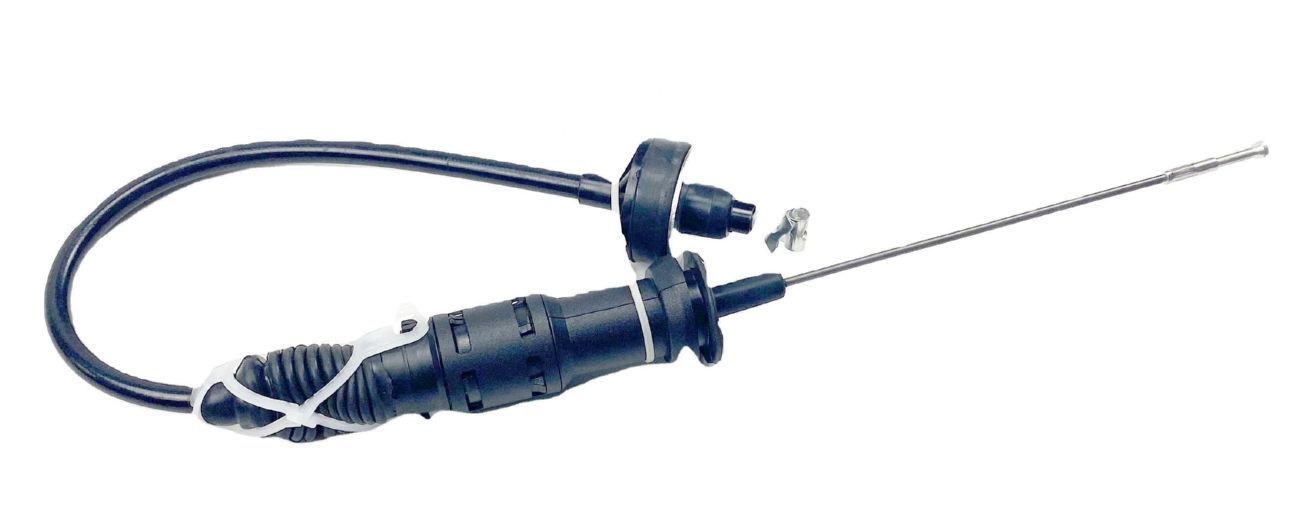

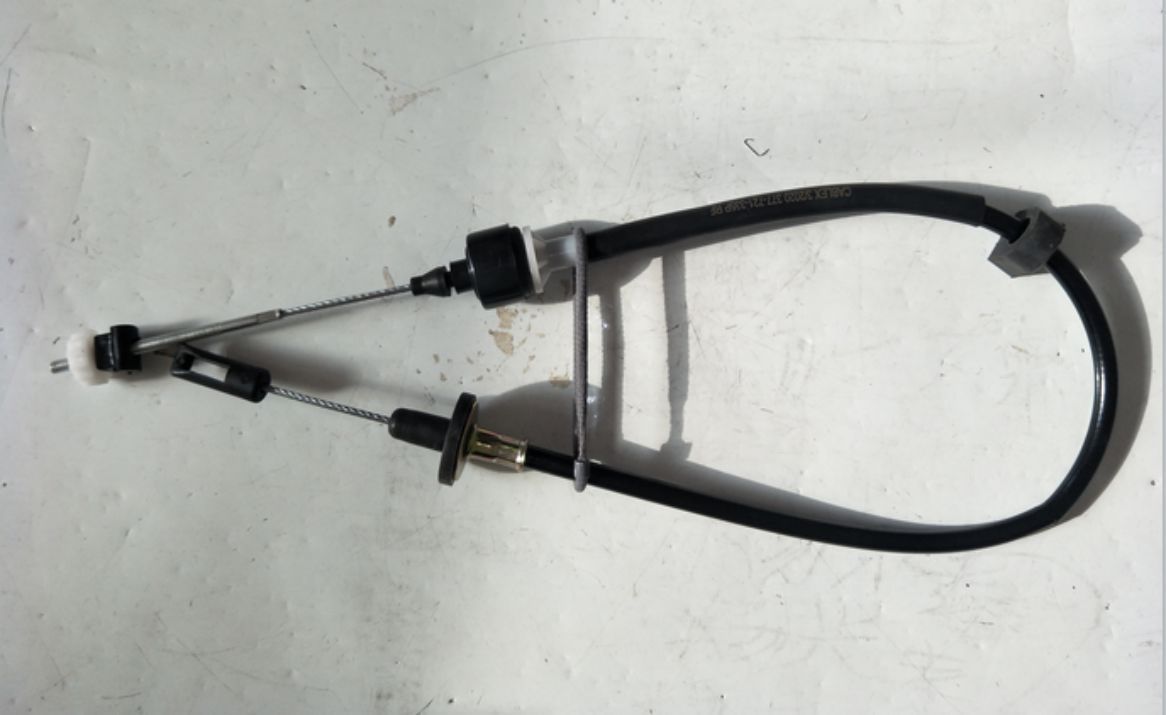

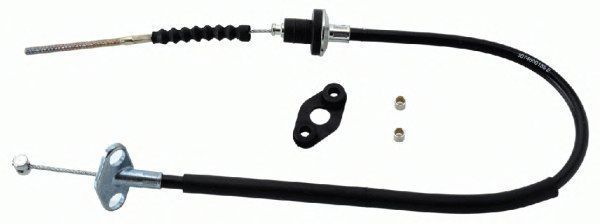

The clutch cable is a critical component in the clutch system of manual transmission vehicles, serving as the mechanical link between the driver's input (via the clutch pedal) and the clutch release mechanism. It is typically a steel braided cable that connects the clutch pedal to the clutch linkage, enabling the driver to disengage the clutch for gear changes. This mechanism is essential for smooth operation, particularly in conditions requiring frequent starts, stops, and shifts.
Function and Operation
The primary function of the clutch cable is to transmit the force from the driver's foot on the clutch pedal to the clutch release mechanism, allowing the clutch to disengage. When the pedal is depressed, the clutch cable pulls on the clutch release fork, which in turn disengages the clutch disc from the flywheel. This action interrupts the power flow from the engine to the transmission, enabling the driver to shift gears without grinding. When the pedal is released, the clutch engages, and power is transmitted, allowing the vehicle to move.
The operation involves a dynamic interaction with the clutch pedal and release mechanism:
- Engaged State: When the clutch pedal is released, the clutch cable is in a relaxed state, and the clutch is engaged, transmitting engine power to the transmission.
- Disengaged State: When the driver presses the clutch pedal, the clutch cable pulls on the release fork, disengaging the clutch. This allows for safe and smooth gear changes.
The clutch cable is part of a cable-operated clutch system, which is one of two common types (the other being hydraulic). In cable systems, the cable's movement directly influences the clutch's engagement and disengagement, making its condition crucial for vehicle drivability.
Common Issues and Symptoms
Clutch cables are subject to wear and tear due to constant use, exposure to heat, and mechanical stress. Common problems include:
- Transmission Slipping Out of Gear: This occurs when the clutch cable is worn, stretched, or damaged, leading to improper clutch engagement. It is particularly noticeable under heavy load, such as during acceleration, and can cause the transmission to pop out of gear, affecting drivability .
- Hard Clutch Pedal: A jammed, stuck, or frayed clutch cable can make the pedal difficult to depress. This stiffness can be caused by the inner cable snagging on the outer cable, needing lubrication, or being damaged by heat, such as proximity to the exhaust . If not addressed, this can lead to cable breakage.
- Clutch Pedal Sinking to the Floor: If the clutch cable snaps or breaks, the pedal will go all the way to the floor, rendering the vehicle undrivable. This is often preceded by warning signs like increasing stiffness in the pedal.
- Difficulty Shifting Gears: If the clutch doesn't disengage properly due to a faulty cable, shifting gears can become challenging, often accompanied by grinding noises. This can be caused by a stretched or broken cable, affecting the clutch's ability to fully disengage .
- Stiff or Sticking Clutch Pedal: This can also be caused by a seized pivot bush, restricting pedal movement, or damaged cable casings due to proximity to moving parts or exhaust heat .
- Clutch Pedal Getting Stuck: If the cable snaps while the pedal is depressed, the pedal might get stuck to the floor, making it impossible to shift gears, as the clutch system becomes inoperable .
These symptoms can arise from various causes, including normal wear, overheating due to proximity to the exhaust, improper use (e.g., "riding" the clutch), or mechanical failures in related parts. For example, a frayed inner cable can snag on the outer cable, leading to stiffness, while heat damage can cause the cable to bend and rust, resulting in sticking or breaking.
| Issue | Symptoms | Possible Causes |
|---|
| Transmission Slipping Out of Gear | Pops out of gear under load, power loss | Worn, stretched, or damaged clutch cable |
| Hard Clutch Pedal | Stiff or difficult to depress pedal | Frayed cable, needs lubrication, heat damage |
| Clutch Pedal Sinking to Floor | Pedal goes to floor, vehicle undrivable | Snapped or broken clutch cable |
| Difficulty Shifting Gears | Grinding noises, hard to shift | Stretched or broken cable, improper disengagement |
| Stiff or Sticking Clutch Pedal | Pedal sticks, restricted movement | Seized pivot bush, damaged cable casing |
| Clutch Pedal Getting Stuck | Pedal stuck to floor, can't shift gears | Cable snaps while depressed |
Maintenance and Replacement
Maintaining the clutch cable is crucial for extending its lifespan, which can vary depending on driving habits and conditions. Key maintenance tips include:
- Regular Inspection: Check the clutch cable monthly if it has a metal inner cable, and yearly if it's nylon-covered (self-lubricating). Look for signs of fraying, stretching, or damage, especially at the ends where stress is highest.
- Lubrication: Use light machine oil for plain metal strands and silicone lubricant for nylon-covered cables (never ordinary oil, as it can degrade nylon) . This helps reduce friction and prevent sticking.
- Avoid "Riding" the Clutch: Resting the foot on the clutch pedal without fully releasing it can accelerate wear on the cable and other clutch components, leading to premature failure.
- Check for Heat Damage: Ensure the cable is not routed too close to the exhaust or moving parts, as heat can cause bending, rusting, and eventual failure .
When replacement is needed, it is often recommended to replace the clutch cable as soon as symptoms like stiffness, slipping, or sinking are noticed. DIY replacement is possible for some vehicles, especially with accessible cable routing, but professional assistance may be required for complex installations. After replacement, a test drive is advisable to confirm proper operation .
Driving Habits and Lifespan
The rate of clutch cable wear depends significantly on driving habits and conditions. Individuals who frequently drive in stop-and-go traffic, requiring constant clutch engagement, may need to replace the cable sooner than those who primarily drive at highway speeds. Proper use, such as avoiding "riding" the clutch, can significantly extend the lifespan of the clutch cable and related components.
