What is a Clutch Actuator?

A clutch actuator is likely a component in a vehicle's clutch system that helps manage power transmission by controlling when the clutch engages or disengages. It seems to be positioned in the flywheel housing between the engine and gearbox, playing a key role in vehicle operation.

How Does It Work?

It appears the clutch actuator enables the driver to press or release the clutch pedal, temporarily separating or gradually engaging the engine and gearbox. This likely helps with smooth starts, easy gear changes, and protecting the drive system by allowing controlled slipping under heavy loads.

Types of Actuators

Research suggests clutch actuators can be mechanical, using physical linkages; hydraulic, using fluid pressure; or electronic, often found in advanced transmissions, each suited to different vehicle needs.

Introduction to Clutch Actuator

The clutch actuator is a critical component in the clutch system of vehicles, serving as the interface between the driver's input and the clutch mechanism. It is typically located in the flywheel housing, positioned between the engine and the gearbox, and is part of the clutch assembly fixed to the rear plane of the flywheel with screws. The output shaft of the clutch, which is the input shaft of the gearbox, ensures seamless power transmission when the clutch is engaged. This mechanism is essential for smooth vehicle operation, particularly in conditions requiring frequent starts, stops, and gear shifts.

Function and Operation

The primary function of the clutch actuator is to control the engagement and disengagement of the clutch, allowing the driver to manage the power flow between the engine and the transmission. This is achieved by the driver pressing or releasing the clutch pedal, which temporarily separates or gradually engages the engine and gearbox. The clutch actuator's operation is vital for several key aspects of vehicle performance:

  1. Smooth Vehicle Start: When starting the vehicle, the clutch actuator disengages the clutch, separating the engine from the gearbox. This allows the torque to build up gradually from zero through the friction between the active (flywheel) and driven (clutch disc) parts of the clutch. As the driver releases the clutch pedal, the actuator facilitates a smooth engagement, preventing sudden jolts and ensuring a seamless start. This is particularly important in manual transmission vehicles to avoid stalling or jerky movements.
  2. Facilitates Gear Shifting: During gear changes, the clutch actuator disengages the clutch, reducing the pressure between the meshing gears in the transmission. This disengagement makes it easier to separate and mesh gears without causing impacts, such as by equalizing the peripheral speeds of the gears. For example, when shifting from first to second gear, the clutch actuator ensures the engine and gearbox are temporarily disconnected, allowing the driver to select the new gear without grinding or damaging the transmission components.
  3. Prevents Overload and Protects the Drive System: The clutch actuator allows the clutch to slip if the load on the drive system exceeds the transmittable torque. This controlled slipping protects the system from damage, especially during sudden slowdowns of the wheels due to rotating inertia, such as when encountering obstacles or slippery surfaces. This feature is crucial for maintaining the longevity of the clutch and related components, preventing wear and tear under heavy loads or abrupt changes in vehicle speed.

The process involves dynamic interaction with the clutch pedal and the clutch mechanism. In manual transmission vehicles, the driver's foot movement on the pedal directly influences the actuator, while in automatic or advanced systems, electronic or hydraulic controls may automate this process.

Types of Clutch Actuators

Clutch actuators can vary depending on the vehicle's transmission system and design, each with specific characteristics and applications:

  1. Mechanical Actuators: These use physical linkages, such as cables or rods, to transmit force from the clutch pedal to the clutch mechanism. They are common in older manual transmission vehicles and are known for their simplicity and direct operation. For instance, a clutch cable, as discussed in previous queries, is a type of mechanical actuator that pulls on the release fork to disengage the clutch.
  2. Hydraulic Actuators: These use hydraulic pressure to engage and disengage the clutch, offering flexibility and reliability compared to mechanical systems. Hydraulic actuators are often found in modern vehicles and are part of systems that include a clutch master cylinder and slave cylinder. They are known for their smooth operation and ability to handle higher loads, as seen in hydraulic clutch actuation systems that prevent torque peaks and ensure vibration isolation.

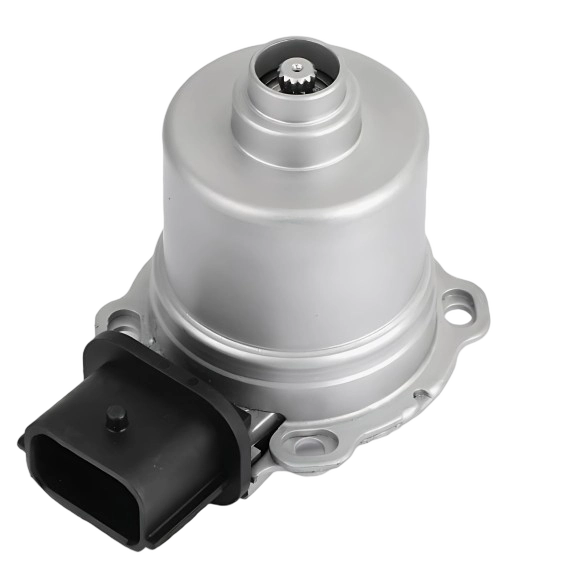

  3. Electronic Actuators: Found in advanced systems like automatic transmissions, dual-clutch transmissions (DCT), and clutch-by-wire applications, these use solenoids, electronic modules, and position sensors to control clutch operation. Electronic actuators are integral to vehicles with automated manual transmissions (AMT) and hybrid systems, providing precise control and integration with vehicle electronics. For example, an electronic clutch actuator may feature a mechanical module for physical movement and an electronic module for control, ensuring accurate gear shifts and clutch engagement.

Each type has its advantages, with mechanical systems being cost-effective and simple, hydraulic systems offering reliability, and electronic systems providing precision and automation, catering to different vehicle types and driving conditions.

Common Issues and Maintenance

While the user did not specifically ask about issues or maintenance, it's worth noting potential problems with clutch actuators to provide a comprehensive overview. Common issues may include:

  1. Improper Shifting: If the actuator fails to disengage the clutch fully, it can lead to difficulty shifting gears, often accompanied by grinding noises. This may be due to wear, hydraulic fluid leaks in hydraulic systems, or electronic failures in advanced systems.
  2. Clutch Slippage: The actuator may allow excessive slipping, resulting in power loss under load, particularly noticeable during acceleration. This can be caused by worn components, improper calibration, or hydraulic pressure issues.
  3. Difficulty Engaging or Disengaging: A stiff or unresponsive clutch pedal may indicate actuator problems, such as a seized mechanical linkage, low hydraulic fluid, or electronic sensor failure.

Maintenance tips include:

For example, in hydraulic systems, checking for fluid leaks and ensuring the clutch master cylinder is functioning correctly can prevent actuator-related issues. In electronic systems, diagnostic tools may be used to monitor sensor data and ensure proper operation.

Driving Habits and Lifespan

The rate of clutch actuator wear depends significantly on driving habits and conditions. Individuals who frequently drive in stop-and-go traffic, requiring constant clutch engagement, may experience faster wear compared to those who primarily drive at highway speeds. Proper use, such as avoiding "riding" the clutch (keeping the pedal partially depressed), can extend the lifespan of the actuator and related components.

Applications in Modern Vehicles

Clutch actuators are not limited to manual transmission vehicles. They are increasingly used in automatic transmissions, dual-clutch transmissions, and hybrid applications, where they provide precise control over clutch operation. For instance, in automated manual transmissions (AMT), the clutch actuator is electronically controlled to optimize gear shifts and improve fuel efficiency. This versatility highlights their importance in modern automotive engineering.
