Understanding the Clutch System
The clutch system connects the engine to the gearbox, transferring rotational motion to the transmission and ultimately to the wheels.
Engaged (Pedal Up): The engine and gearbox are connected, allowing power transfer.
Disengaged (Pedal Down): The engine and gearbox are separated, enabling the engine to run while stationary or allowing for smooth gear changes.
The clutch smoothens torque variations from the engine, ensuring seamless starts and shifts while protecting the transmission. Relying on friction and precise mechanics, it is a vital component in manual transmission vehicles.
How the Clutch Works
1. Engaged Clutch:
The clutch disc is pressed against the flywheel by the pressure plate.
The diaphragm spring in the pressure plate provides clamping force, creating the friction needed to transfer power from the engine to the transmission.
Disengaged Clutch (Pedal Pressed):
The release bearing pushes against the diaphragm spring, retracting the pressure plate.
This action frees the clutch disc, disconnecting the engine from the transmission and allowing for gear changes.
2. Power Transfer:
The clutch disc's splined hub connects with the gearbox input shaft, transferring rotational motion to the transmission when engaged.
Without this temporary disconnection, gear changes would be difficult, and starting from a stop would cause excessive stress on the drivetrain.

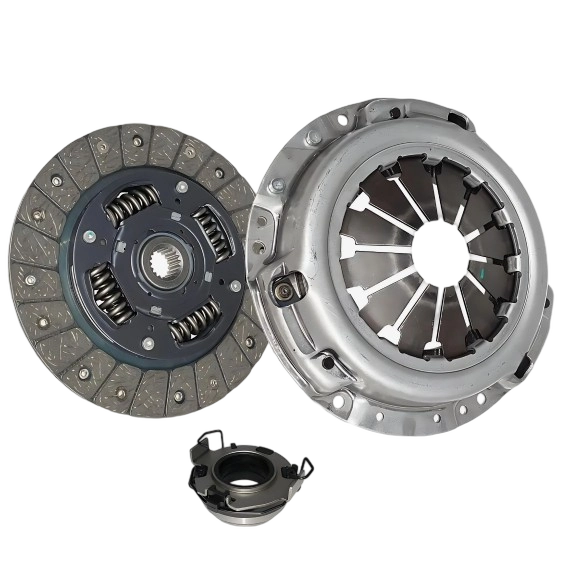

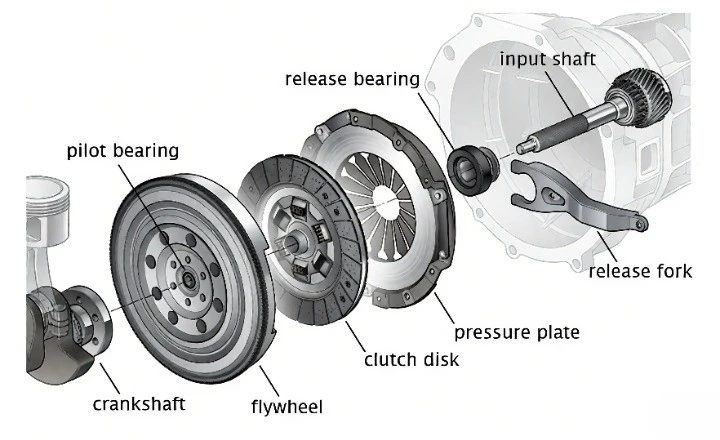

Components of a Clutch Kit
A clutch kit typically consists of several essential components that work together to enable smooth power transfer between the engine and transmission. Understanding these components is crucial for proper maintenance and replacement.
Clutch Disc (Driven Plate)
The clutch disc is a central component that transmits drive when clamped between the pressure plate and engine flywheel. It features:
1. Friction material on both sides that contacts the flywheel and pressure plate
2. A splined hub that connects to the gearbox input shaft
3. Shock-absorbing springs that dampen torque fluctuations
4. Steel segments that help distribute pressure evenly and prevent overheating
The friction material on the clutch disc is designed to wear gradually over time, similar to brake pads. This is typically the primary wear item in the clutch system that necessitates replacement.

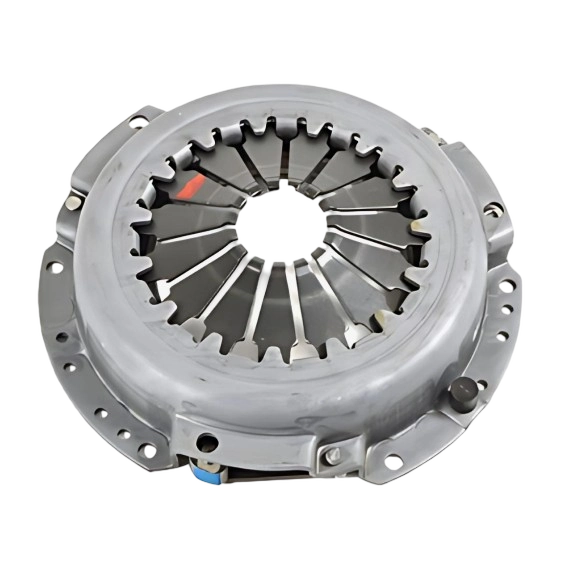

Pressure Plate (Clutch Cover)
The pressure plate holds the clutch disc against the flywheel while the clutch is in use. Its key features include:
1. A diaphragm spring that provides the necessary clamping force
2. A steel ring that mates with the driven side of the clutch plate
3. A mechanism that responds to the release bearing's action
4. Balanced construction to ensure vibration-free operation
The pressure plate is bolted to the flywheel and rotates with it. When the clutch pedal is depressed, the release bearing pushes against the diaphragm spring, causing the pressure plate to pull away from the clutch disc.

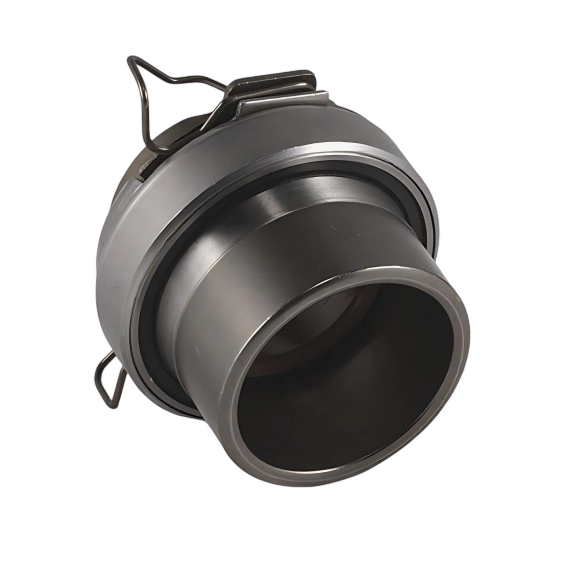

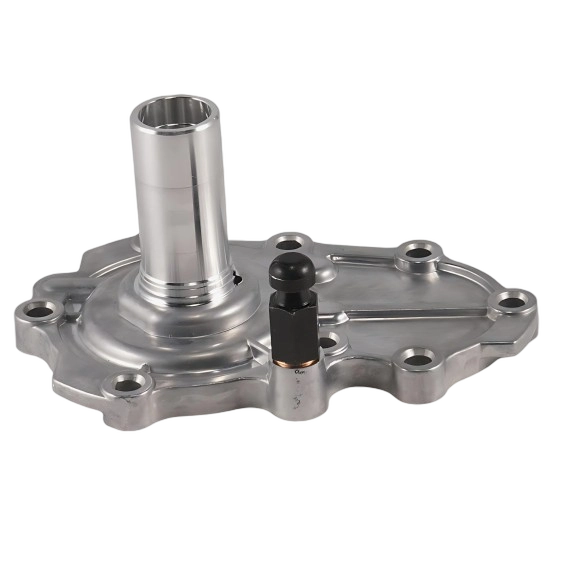

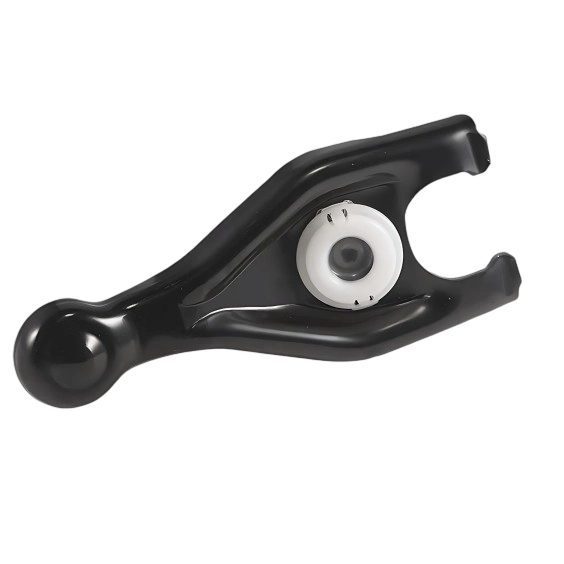

Release Bearing (Throw-out Bearing)
The release bearing works on the release face of the diaphragm spring to disengage the drive from engine to transmission. When the clutch pedal is pressed, the release bearing:
1. Pushes against the diaphragm spring
2. Causes the pressure plate to retract
3. Allows the clutch disc to spin freely between the pressure plate and flywheel
4. Enables the disconnection of power between engine and transmission
It's generally recommended to replace the release bearing whenever performing a clutch replacement, as this component experiences significant wear and is relatively inexpensive compared to the labor costs of repeating the job later.
Flywheel
The flywheel is a heavy disc connected to the engine's crankshaft that serves multiple purposes in the clutch system:
· Provides a smooth surface for the clutch disc to press against
· Stores rotational energy to help maintain engine momentum
· Contains teeth around its edge (gear ring) that engage with the starter motor
· Helps balance the engine and dampen vibrations
Flywheels come in two main types: single mass flywheel and dual mass flywheel (DMF). The dual mass design provides additional vibration damping but is typically more expensive and complex.

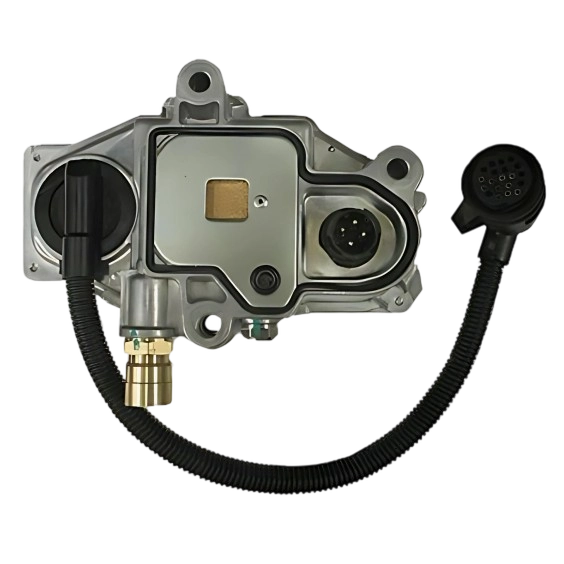

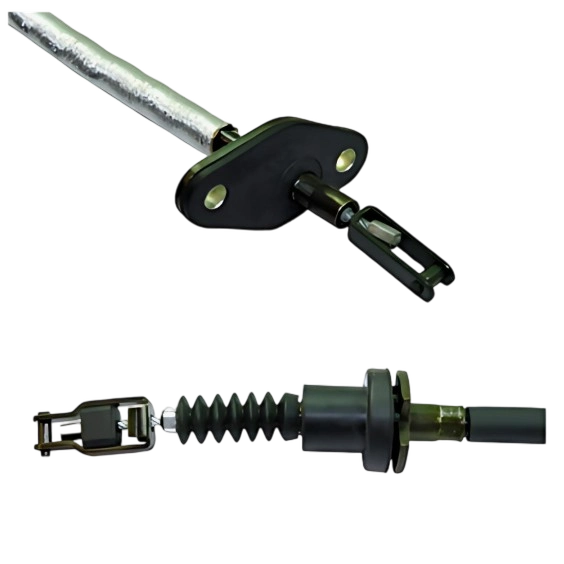

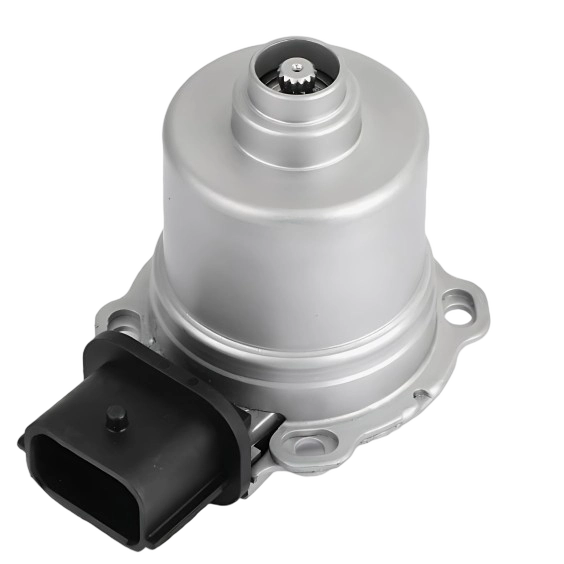

Additional Components
Depending on the specific clutch kit, additional components may include:

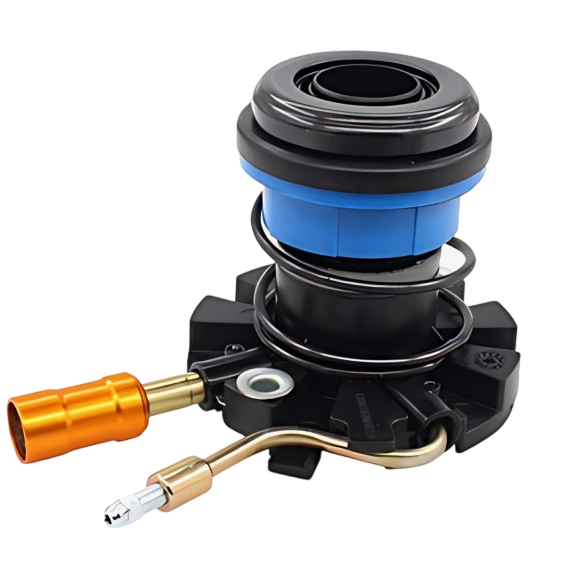

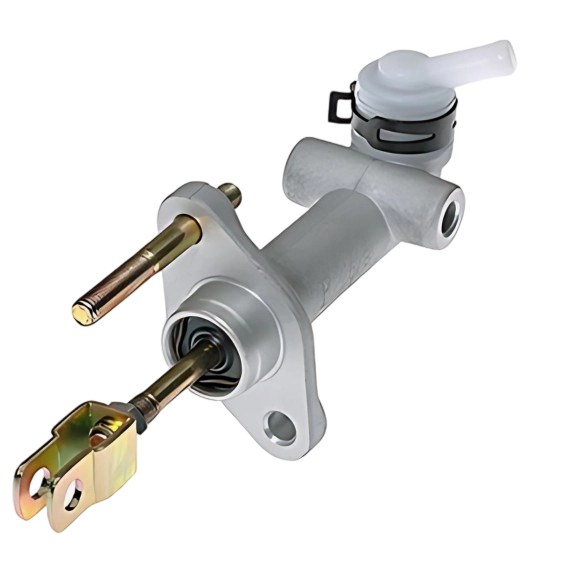

· Central Slave Cylinder (CSC): Works in conjunction with the release bearing in hydraulic clutch systems
· Alignment Tool: Helps ensure proper positioning during installation
· Pilot Bearing/Bushing: Supports the transmission input shaft in the center of the crankshaft
· Mounting Bolts: Special-grade fasteners designed for the high-stress environment of a clutch assembly
Selecting the Right Clutch Kit
Choosing the appropriate clutch kit for your vehicle requires consideration of several important factors to ensure proper fit and function.
1. Vehicle-Specific Factors
When selecting a clutch kit, consider these vehicle-specific details:
· Number of gears (5-speed, 6-speed, etc.)
· Manual or semi-automatic transmission type
· Transmission code or specific model
· Vehicle manufacture date (not registration date)
· Engine number sequence
· VIN (chassis number) sequence
Most auto parts retailers now offer online tools where you can enter your vehicle registration to find compatible parts, simplifying this selection process.
2. Performance Considerations
Different driving styles and conditions may warrant different types of clutch kits:
1. Standard kits are designed for everyday driving and offer a balance of durability and smooth engagement
2. Performance clutch kits provide enhanced power transfer capabilities for sports cars or heavily modified vehicles
3. Heavy-duty clutch kits are available for trucks and vehicles used for towing
Your driving habits and the vehicle's intended use should factor into selecting the appropriate clutch grade and design.
Signs of Clutch Wear and Replacement
Recognizing the symptoms of a worn clutch can help prevent more extensive damage to your vehicle's transmission system.
Common Symptoms
Look for these warning signs that indicate your clutch may need replacement:
1. Difficulty changing gears or grinding during gear changes
2. "Slipping" clutch causing brief loss of acceleration, especially under load
3. Vibration or spongy feeling when pressing the clutch pedal
4. Squeaking or other unusual noises when engaging the clutch
5. Clutch pedal feeling unusually stiff or having an abnormally high engagement point
6. Chattering or juddering from a stop
These symptoms typically indicate wear to one or more components in the clutch system and should be addressed promptly to prevent further damage.
Replacement Intervals
While clutch longevity varies based on driving conditions and habits, there are some general guidelines to consider:
1. A typical clutch lasts approximately 60,000 miles before requiring replacement
2. Urban driving with frequent stops and starts may reduce clutch lifespan
3. Highway driving typically extends clutch life
4. Aggressive driving habits, such as "riding" the clutch or rapid launches, significantly reduce clutch longevity
It's generally recommended to replace the entire clutch kit rather than individual components, as labor costs for clutch replacement are significant, and replacing all components at once prevents the need for repeat service.
Clutch Maintenance and Care
Proper driving techniques can significantly extend the life of your clutch system and improve overall driving experience.
Best Practices for Clutch Longevity
To maximize the lifespan of your clutch, follow these best practices:
· Don't "ride" the clutch – avoid keeping your foot on the clutch pedal when not actively changing gears
· Don't use the clutch to slow down – use your brakes for deceleration
· Take your time when pulling away from a stop – rapid, aggressive launches cause excessive wear
· Use the handbrake when starting on an incline rather than holding the car with the clutch
· Practice smooth, deliberate gear changes rather than rushed or forced shifts
These simple habits can add thousands of miles to your clutch's useful life and improve overall driving comfort.
Conclusion
The clutch system is a critical component in any manual transmission vehicle, serving as the link between engine power and forward motion. When selecting a clutch kit, consider your specific vehicle requirements and driving style to ensure you get the right components for your needs. Pay attention to the signs of clutch wear, and when replacement becomes necessary, consider replacing all components together for the most cost-effective repair strategy.
