The clutch, in its primary mechanical sense, is a fundamental component in vehicles and machinery that enables power transmission control between moving parts. At its core, a clutch is a device that allows an output shaft to be disconnected from a rotating input shaft. This seemingly simple function is crucial for various mechanical operations, particularly in automobiles.
Core Components and Mechanism of Clutch System

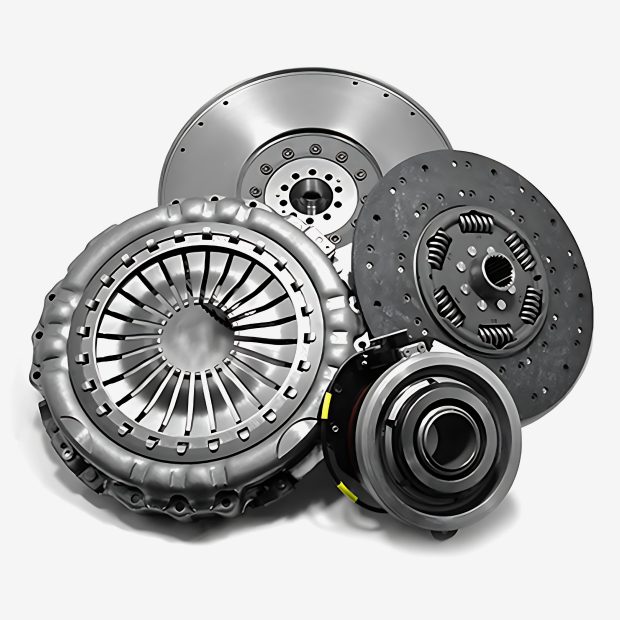

A typical car clutch system consists of several critical components working in harmony:
Clutch Disc: This friction-coated plate is positioned between the flywheel and the pressure plate. It engages with the flywheel to transmit engine power to the transmission when the clutch is engaged. Over time, the friction material on the disc wears down, which can lead to slipping or difficulty in gear shifts.
Pressure Plate: A spring-loaded metal plate that applies pressure to the clutch disc, holding it against the flywheel. When the clutch pedal is pressed, this plate moves away from the disc, allowing for disengagement and gear changes.
Flywheel: Connected to the engine crankshaft, the flywheel provides a friction surface for the clutch disc and helps maintain engine momentum.
Release Bearing: Also known as the throw-out bearing, this component facilitates the disengagement of the clutch when the pedal is pressed.
Clutch Pedal and Linkage: The physical interface through which the driver controls the clutch system, connected to the internal components via mechanical linkage, hydraulics, or a cable.
Types of Clutches
The engineering world has developed numerous clutch designs for specific applications:
1. Friction Clutches
Dry Clutch: The most common type in manual transmissions, it uses a single friction plate and does not require lubrication. It is efficient but can wear out faster than wet clutches.
Wet Clutch: Used in high-torque applications, it is bathed in oil for cooling and lubrication. This design is common in motorcycles and some high-performance vehicles.
2. Multiplate Clutches
These clutches use multiple friction plates stacked together, allowing them to handle higher torque without increasing size. They are often used in racing and high-performance vehicles.
3. Centrifugal Clutches
Automatically engage as the input shaft speed increases and disengage when speed decreases. Commonly used in small motorcycles and chainsaws.
4. Cone Clutches
Similar to dry friction clutches but with a conical shape that provides a wedging action during engagement. Often used in synchronizer rings of manual transmissions.
5. Dog Clutches
Non-slip design used in non-synchronous transmissions. They are typically used in applications requiring quick engagement without slippage.
6. Dual-Clutch Systems (DCT)
Use two separate clutches for odd and even gear sets, allowing for fast and seamless gear shifts. Common in modern vehicles for their efficiency and performance.
7. Electromagnetic Clutches
Engage through an electrical signal that creates a magnetic field. Often used in automatic transmissions for smooth engagement.
8. Hydraulic Clutches
Not commonly used in vehicles due to high fuel consumption and maintenance costs. They operate using hydraulic fluid to transmit power.
9. Double Dry Clutch Transmissions (DDC)
Similar to DCTs but use dry clutches, offering seamless gear shifting without the need for lubrication.
Each type of clutch is designed to meet specific needs, whether it's efficiency, performance, or ease of use. The choice of clutch depends on the vehicle's intended use, from everyday driving to high-performance racing.
Maintenance and Failure Analysis
Key Maintenance Practices
Hydraulic Systems: Replace fluid every 24,000 miles to prevent contamination.
DSG Servicing: Fluid and filter changes every 40,000–80,000 miles to prevent clutch slippage and mechatronic failures.
Driving Habits: Avoid “riding” the clutch and aggressive shifts to extend lifespan (5–10 years under normal use).
Common Failure Modes
| Symptom | Causes |
| Slipping Clutch | Worn friction disc, glazed surfaces, weak springs |
| Sticky Pedal | Hydraulic leaks, seized release bearing |
| Grinding Noises | Damaged pilot bearing, misaligned pressure plate |
Types of Clutch Materials
1. Organic Clutch Materials:
Characteristics: Smooth engagement, suitable for everyday driving, and relatively affordable. However, they wear faster under high-performance conditions and can overheat easily.
Applications: Ideal for lower torque applications and entry-level vehicles.
2. Kevlar Clutch Materials:
Characteristics: More aggressive than organic materials, offering smooth engagement but prone to glazing in traffic conditions. They are suitable for high-performance and racing applications.
Applications: Track, off-road, and towing.
3. Ceramic/Metallic/Cera-metallic/Carbon Composite Clutch Materials:
Characteristics: Provide a higher clamping force, suitable for high-performance vehicles, and more durable than organic materials. However, engagement can be abrupt, and they may wear flywheel surfaces faster.
Applications: Sports cars, racing, and heavy-duty applications.
4. Sintered Metal Clutch Materials:
Characteristics: Most aggressive, with an on/off engagement, high durability, and resistance to wear. They are ideal for extreme high-performance applications but require special flywheels.
Applications: Drag racing and other extreme performance scenarios.
5. Hybrid Organic Clutch Materials:
Characteristics: Offer smooth engagement and increased power handling, suitable for street, track, and off-road use.
Applications: Vehicles requiring both smooth engagement and high power output.
Each material type has its strengths and weaknesses, and the choice depends on the specific requirements of the vehicle and driver.
