Vacuum Pump

What is a Vacuum Pump?

A vacuum pump is likely a device that creates a partial vacuum by removing gas molecules from a sealed volume. In cars, it’s key for brake systems, providing the vacuum needed for power brake boosters to work effectively, making braking easier and safer.

How Does It Work in Brake Systems?

Research suggests it supplies vacuum to the brake booster, which uses this vacuum to amplify the force from your brake pedal. This is especially important in modern vehicles where the engine might not generate enough vacuum on its own, like in turbocharged cars.

Why is It Important?

It seems likely that without a working vacuum pump, you might experience a hard brake pedal or reduced braking power, which can be dangerous. It ensures consistent and reliable braking, particularly in vehicles with advanced engine technologies.

Introduction

A vacuum pump is a device engineered to remove gas molecules, primarily air, from a sealed volume to create a partial vacuum, where the pressure is lower than atmospheric pressure. In automotive applications, vacuum pumps are critical components, particularly for providing the necessary vacuum to operate power brake boosters, which enhance the braking force applied by the driver.

The primary function of a vacuum pump in a vehicle is to ensure that there is sufficient vacuum available for systems that rely on it, such as brake boosters, emission control devices, and other pneumatic actuators. In the context of brake systems, the vacuum pump is essential for power-assisted braking, making it easier for the driver to stop the vehicle with less effort, reducing leg fatigue, and improving safety, especially in emergency situations.

Role in Automotive Brake Systems

In automotive brake systems, the vacuum pump is integral to the operation of power brake boosters, which are standard in modern vehicles equipped with hydraulic brakes, particularly those with disc brakes. The brake booster uses vacuum to create a pressure difference that amplifies the force applied to the brake pedal, allowing for effective braking with minimal effort. This is particularly important in vehicles where the engine's natural vacuum, traditionally sourced from the intake manifold, may be insufficient.

Modern vehicles, especially those with turbocharged engines, high-performance cams, or advanced engine management systems, often require a dedicated vacuum pump. This is because factors like engine downsizing (e.g., 2.0L and 1.4L engines), variable valve timing, and turbocharging can reduce the available vacuum. Turbocharging, for instance, creates positive boost pressure, which is the opposite of vacuum, and only generates vacuum during deceleration with a closed throttle. This necessitates the use of a vacuum pump to ensure consistent brake performance under all conditions.

How Vacuum Pumps Work in Brake Systems

The vacuum pump works by removing air from the brake booster, creating a low-pressure environment. When the driver presses the brake pedal, the booster uses this vacuum to create a pressure difference across a diaphragm, which then pushes on the master cylinder's piston, amplifying the force applied to the brakes. The vacuum booster is typically a round, black canister located between the brake pedal and the master cylinder, utilizing engine vacuum or a dedicated pump.

There are two main types of vacuum pumps used in modern automotive brake systems:

1. Electric Vacuum Pumps: These are controlled by the engine control module (ECM) and are typically activated for 2-3 seconds during engine startup to provide initial vacuum. They use a pressure sensor mounted between the pump and the booster to monitor vacuum levels and activate as needed based on parameters like brake pedal position and engine load. Electric pumps often have multiple vanes and are quieter and more efficient. They are commonly used in hybrid and electric vehicles, where the combustion engine may be off, and in turbocharged vehicles for consistent vacuum supply.

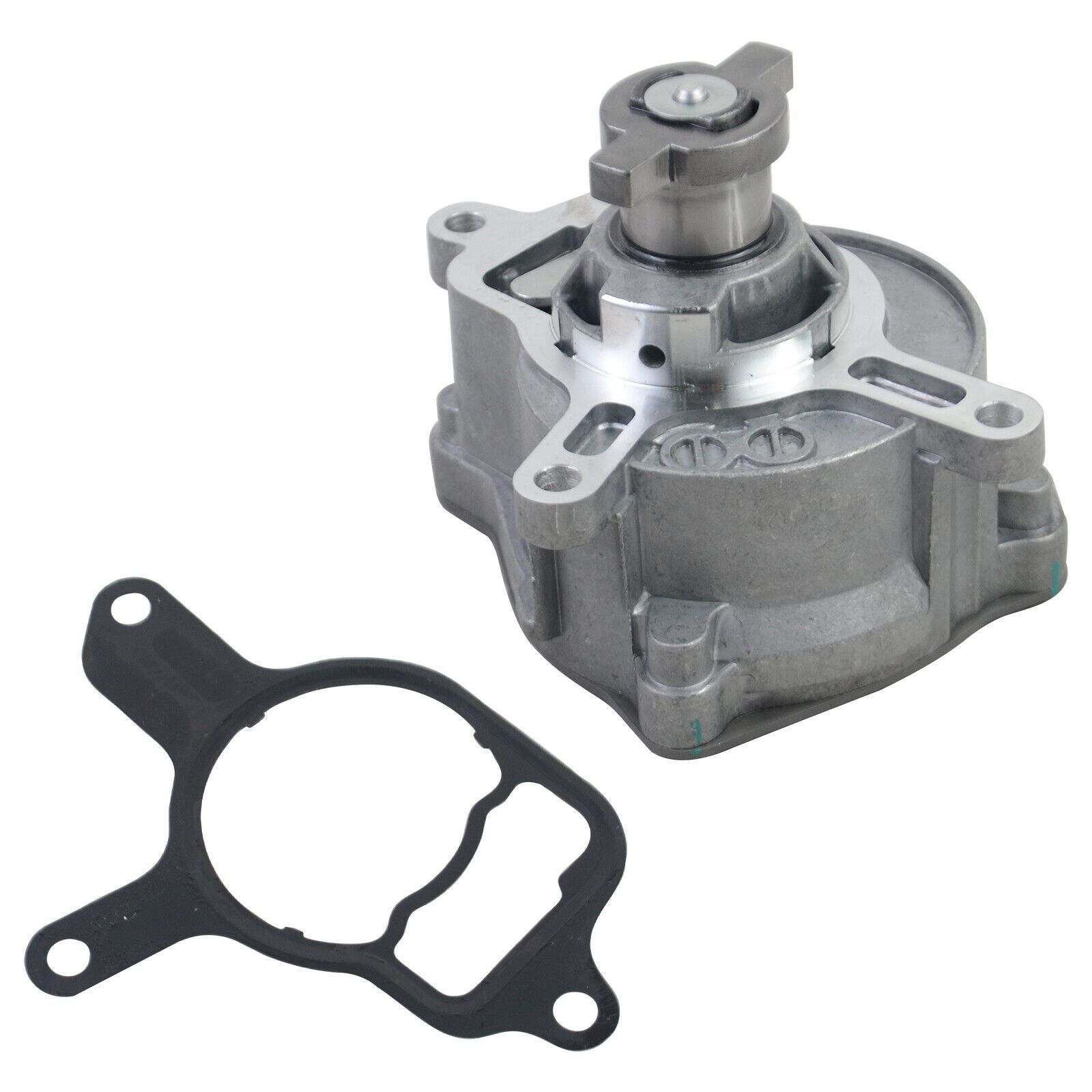

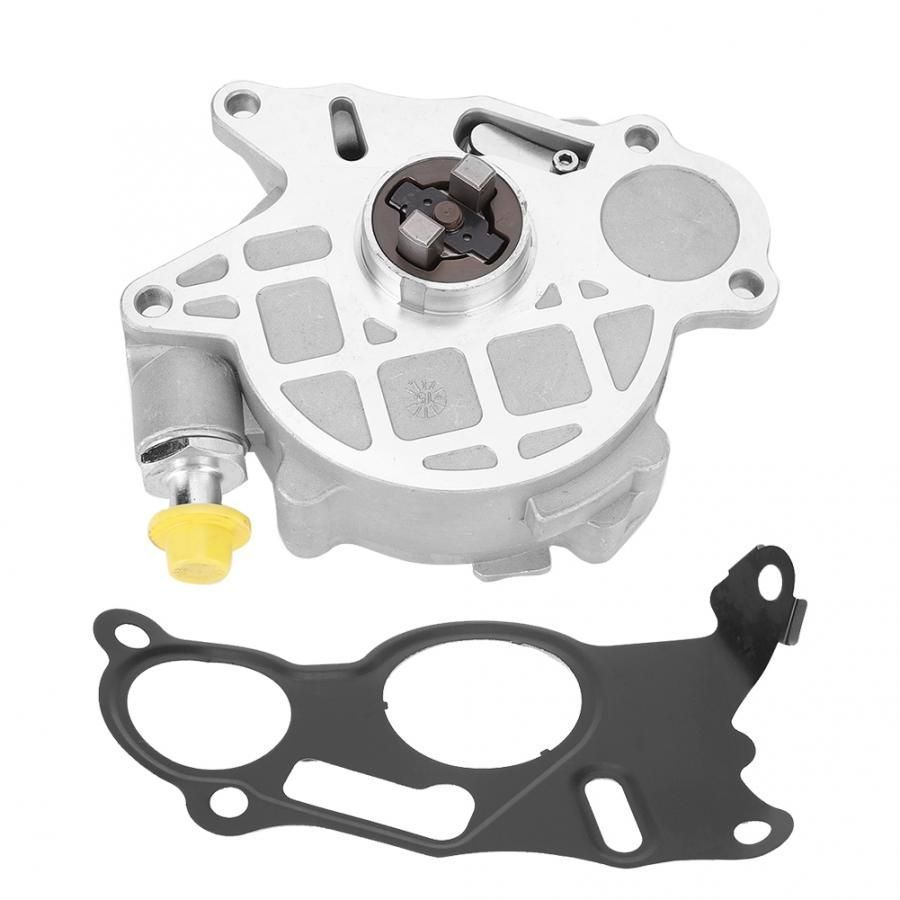

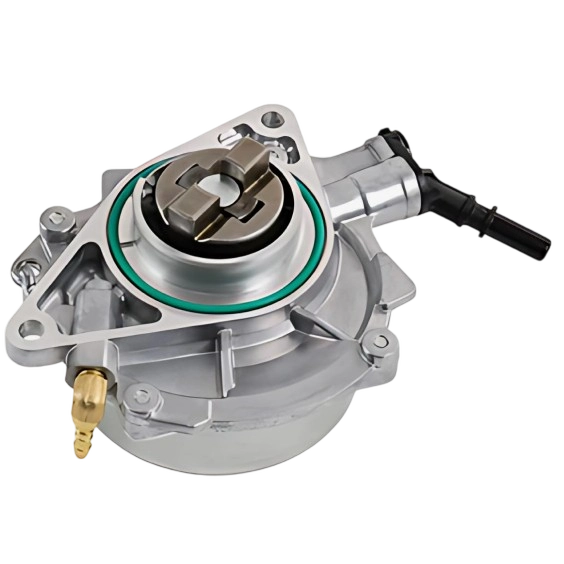

2. Timing Chain-Driven Vacuum Pumps: These are mechanically driven by the engine's timing chain and provide a continuous vacuum supply. They are lubricated by engine oil, with the oil inlet typically fed from the oil slung off the timing chain through a valve that controls oil levels. Timing chain-driven pumps use a single vane and are common in vehicles where electric pumps might not be suitable, such as older diesel engines.

Older vehicles, particularly diesel engines from over 40 years ago, used diaphragm pumps, which were less efficient and less reliable, but these have largely been replaced by the modern types in contemporary applications.

The vacuum pump generates a vacuum pressure of approximately 0.7 to 0.9 bar, sufficient for brake boosters and other pneumatic systems like exhaust-gas recirculation valves or turbocharger controls.

Importance and Safety Considerations

The importance of vacuum pumps in brake systems cannot be overstated, as they ensure consistent and reliable braking performance, which is critical for vehicle safety. Without a functioning vacuum pump, the driver may experience a hard brake pedal, requiring significantly more force to stop the vehicle, which can lead to fatigue and increased stopping distances, especially in emergency situations. This is particularly dangerous in modern vehicles with advanced engine technologies that rely on dedicated vacuum pumps.

For example, in vehicles with start-stop systems or electric vehicles, where the combustion engine may be off, electric vacuum pumps maintain brake boosting, ensuring safety during braking. This is crucial for maintaining brake assist when the engine is not running, such as in traffic or during regenerative braking in hybrids.

Common Issues and Symptoms of Failure

Vacuum pumps, like all components, can fail, though this is relatively rare. Common issues include:

• Vacuum Leaks: If the vacuum hose or connections are damaged, it can lead to a loss of vacuum, resulting in reduced brake assist. This can cause a hard pedal or increased stopping distance.
• Worn Vanes: In electric pumps, carbon and debris can enter and damage the vanes, leading to reduced vacuum capacity. Timing chain-driven pumps can also suffer from wear, though it's less common.
• Electrical Failures: In electric pumps, issues with the ECM, relay, or wiring can prevent the pump from activating, leading to insufficient vacuum.
• Oil Contamination: Timing chain-driven pumps rely on engine oil for lubrication, and contamination can affect performance, potentially causing seal failures.

Symptoms of a failing vacuum pump include a hard brake pedal, unusual noises like hissing or gurgling when braking, vehicle shuddering during braking (especially downhill), and increased stopping distances.

Comparison of Components and Issues

To organize the information, the following table summarizes the types of vacuum pumps, their mechanisms, and common issues:

This table encapsulates the key differences and potential problems, providing a quick reference for vehicle owners and mechanics.
