What is a Brake Wheel Cylinder?
A brake wheel cylinder is a component in the hydraulic drum brake system of vehicles, usually found in older cars or trucks. When you press the brake pedal, it generates hydraulic pressure that travels through the brake lines to the wheel cylinder. Inside, pistons push the brake shoes against the drum, creating friction to slow down or stop the vehicle.
Common Issues
Over time, the rubber seals in the wheel cylinder can degrade from heat and wear, leading to leaks. This might cause a spongy brake pedal or reduced braking efficiency, which can be dangerous. Modern wheel cylinders are often made of aluminum to reduce rust, but seal issues remain common.
Maintenance Tips
If you notice brake problems, it’s worth checking the wheel cylinders. They are generally inexpensive and easy to replace, especially for vehicles with drum brakes. Regular inspections can help catch issues early.
Function and Mechanism
A brake wheel cylinder is an integral part of a vehicle's hydraulic drum brake system, typically found in older vehicles or specific models with drum brakes. Its primary function is to convert hydraulic pressure, generated when the driver presses the brake pedal, into mechanical force. This pressure is transmitted through the brake lines to the wheel cylinder, located at each wheel, usually positioned at the top above the brake shoes. Inside the cylinder, the hydraulic pressure acts on pistons, which then exert mechanical pressure on the brake shoes, forcing them against the brake drum. This friction slows down or stops the vehicle.
Wheel cylinders are connected to the brake shoes via small bird-beak shaped rods and function similarly to a slave cylinder, internally consisting of a simple plunger mechanism. Some designs use two single-piston wheel cylinders, one at the top and one at the bottom of the drum, each connected to a brake shoe, enhancing the braking force distribution.
Components and Materials

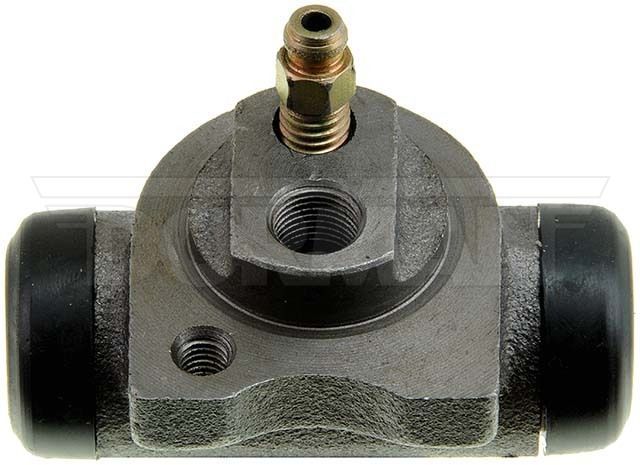

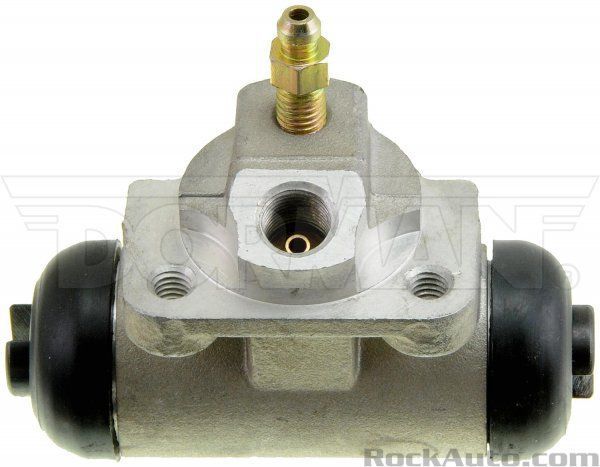

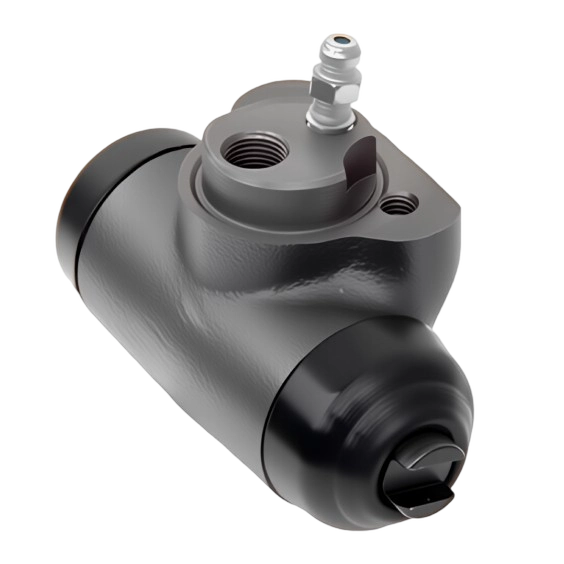

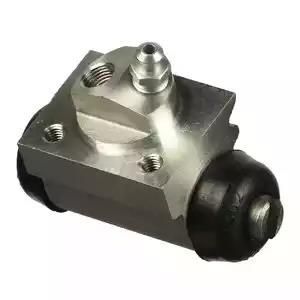

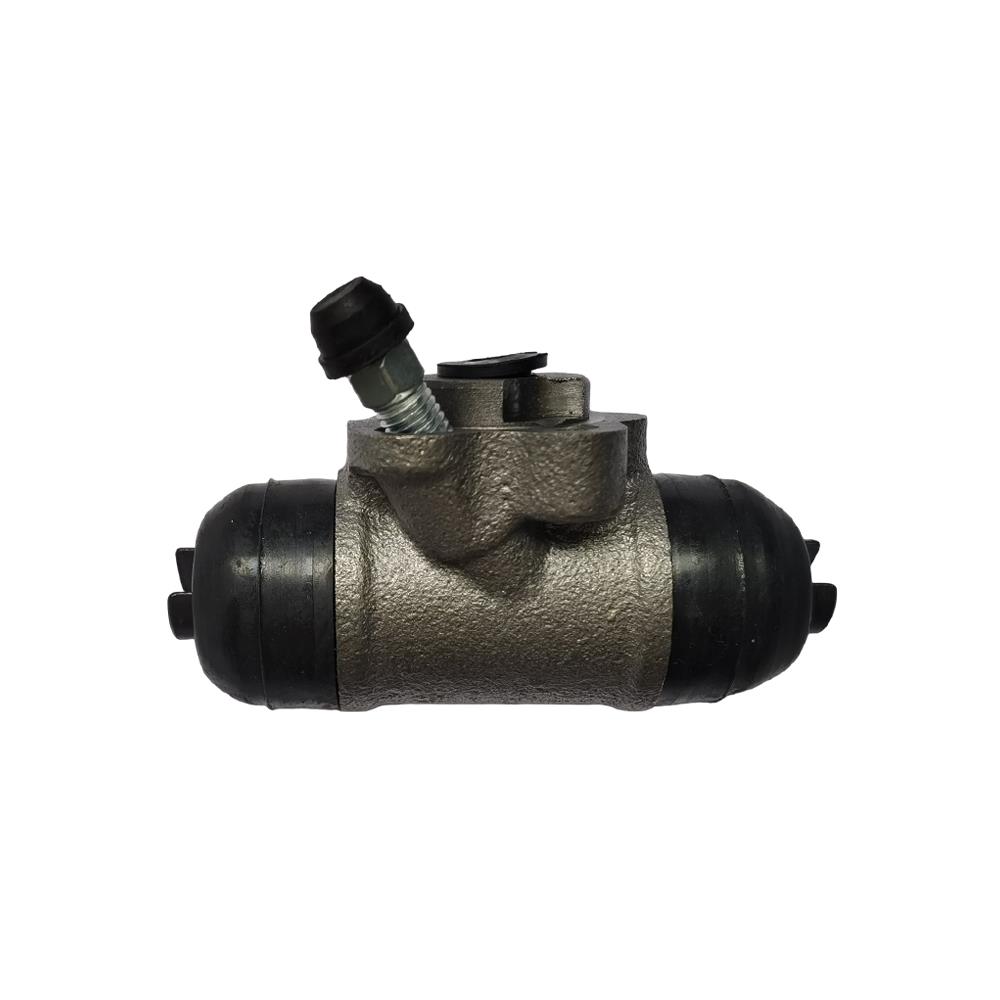

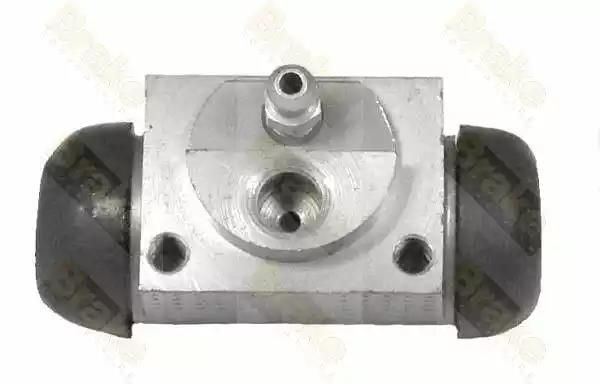

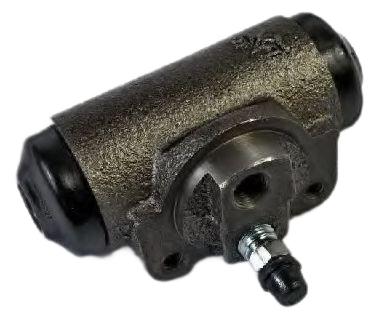

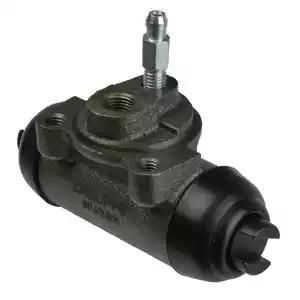

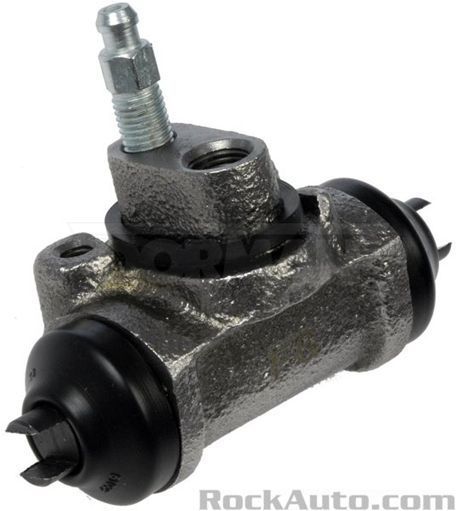

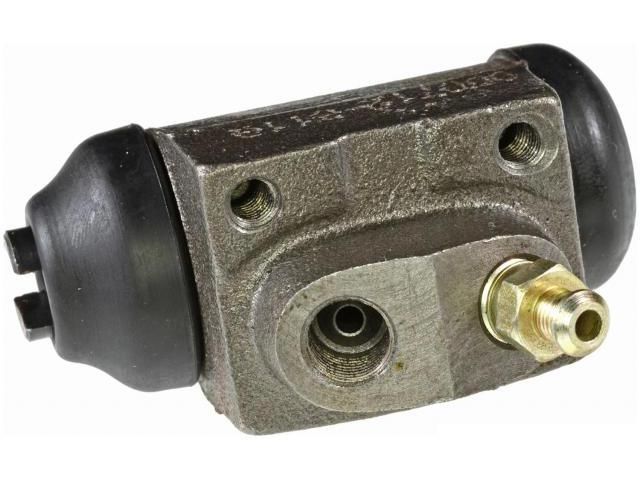

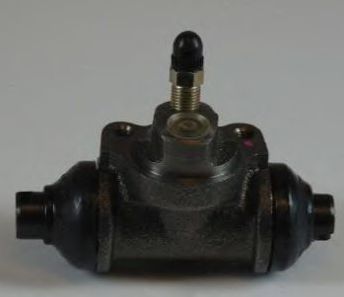

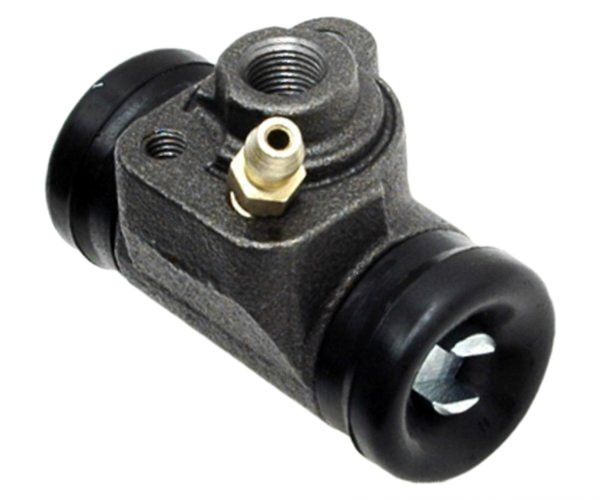

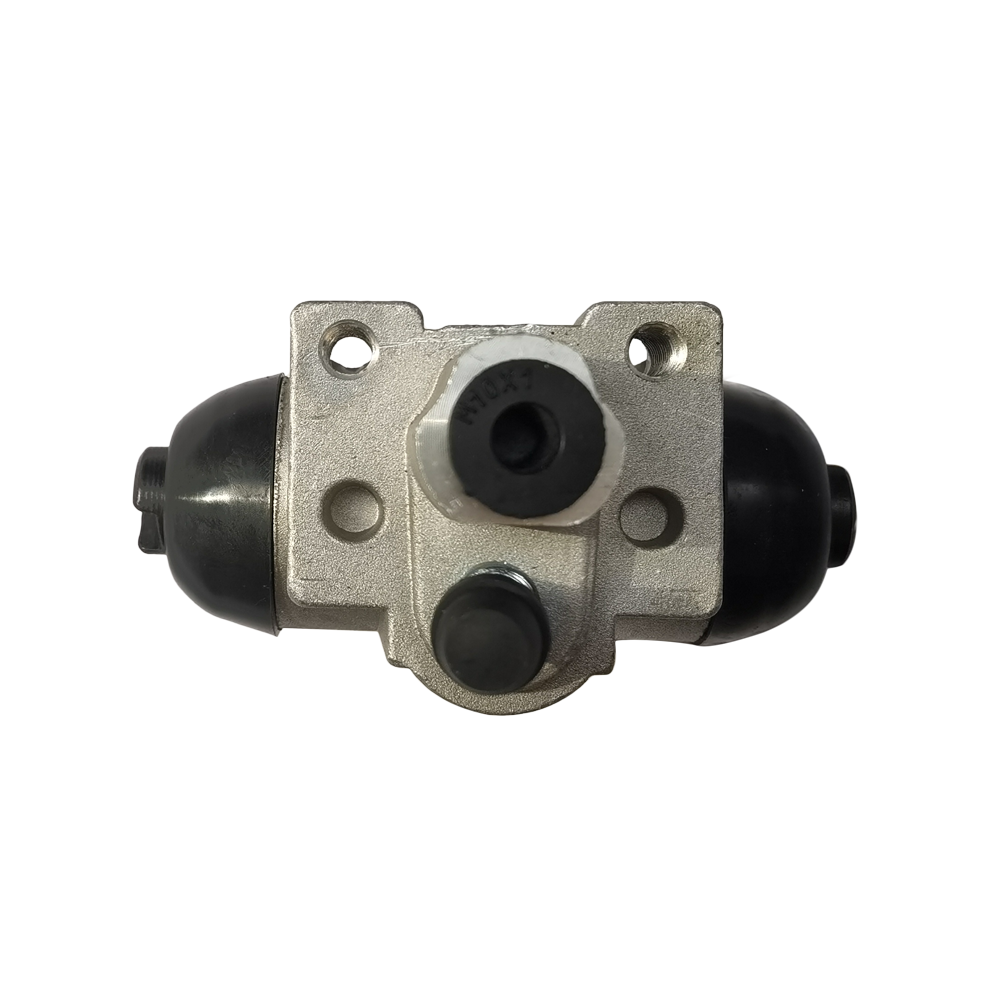

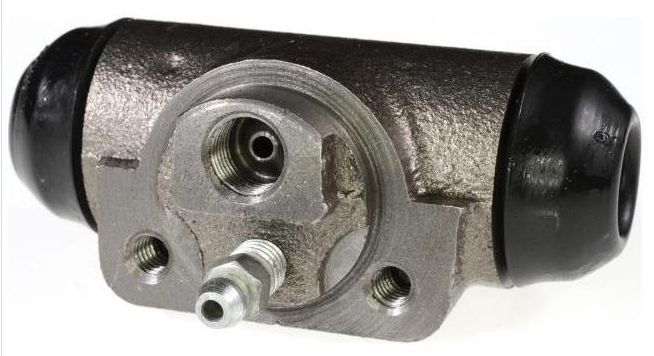

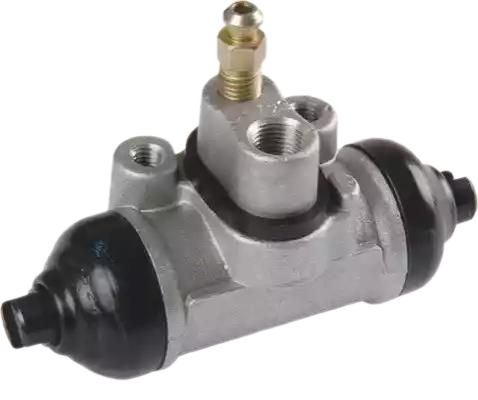

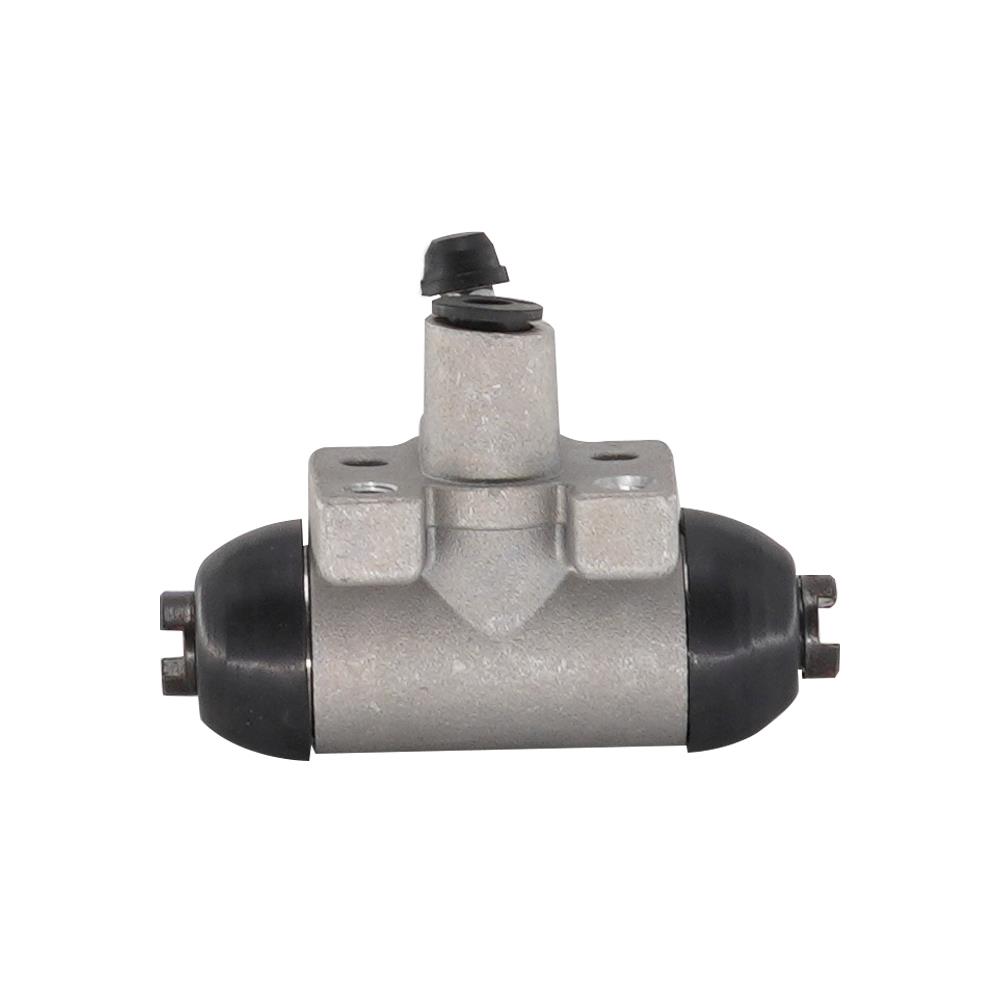

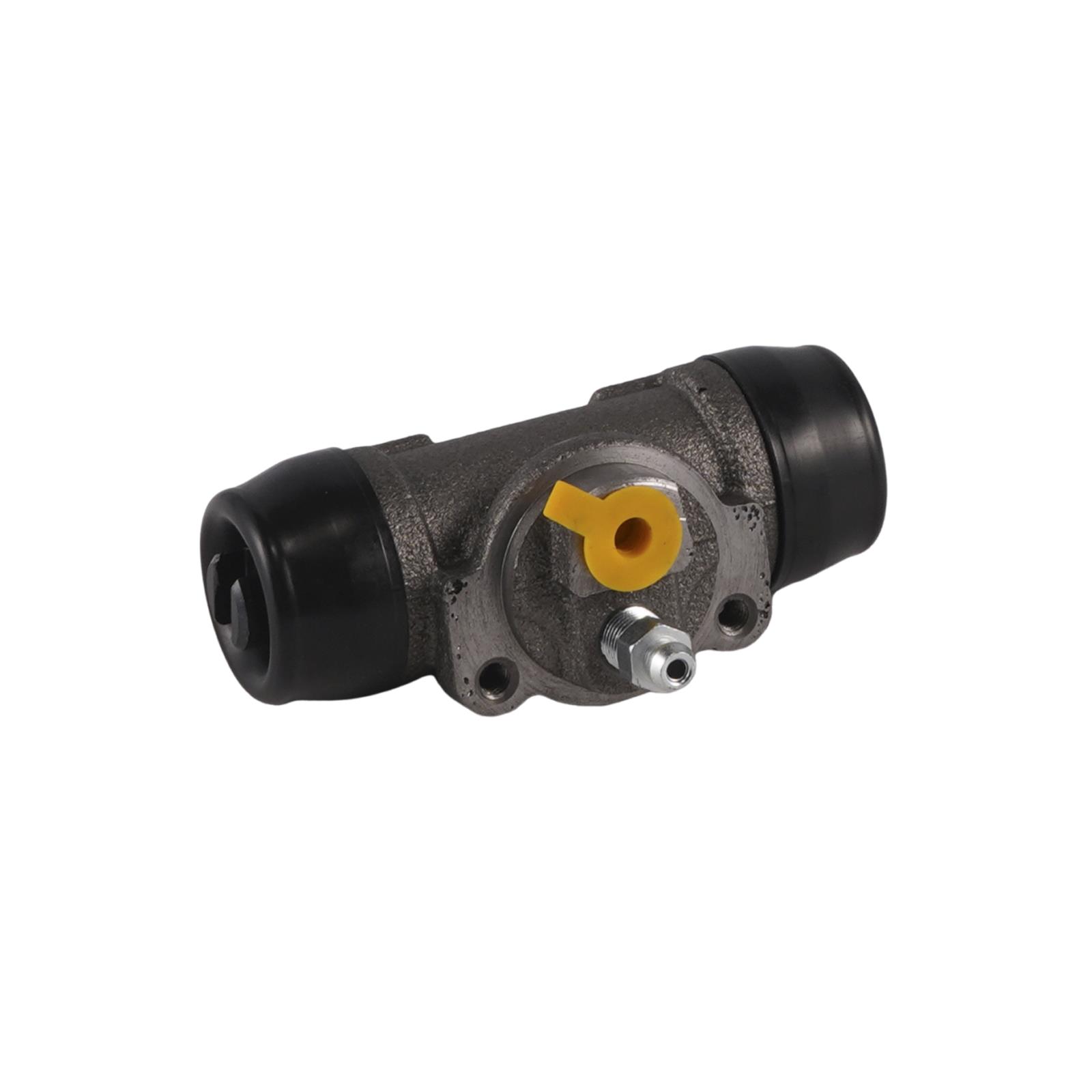

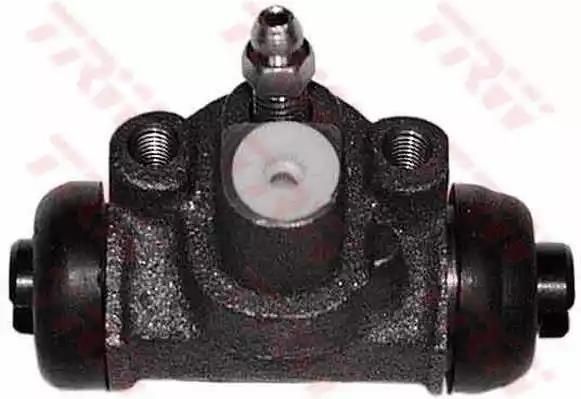

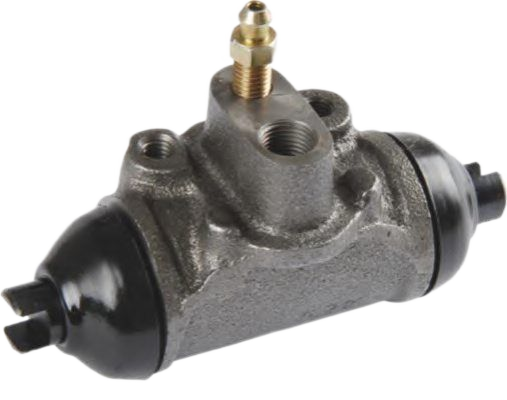

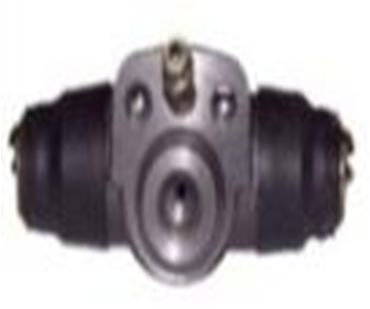

The wheel cylinder comprises several key components, including a cylinder housing, two pistons, two rubber cups, and a spring. Historically, these were made of cast iron, which was prone to rusting. However, modern wheel cylinders are typically constructed from aluminum, which is lighter and more resistant to corrosion, improving longevity and performance. The "My car dictionary" notes that newer models often use aluminum for its lightweight properties, while older models might still have cast iron housings.
Common Issues and Symptoms
One of the most frequent issues with brake wheel cylinders is leaking, often due to the degradation of the rubber seals. These seals can crack or wear out over time due to heat, age, and mechanical stress, Leaks can lead to a loss of hydraulic pressure, resulting in reduced braking efficiency. Common symptoms include a spongy or soft brake pedal, especially if it was firm previously, and visible brake fluid leaks near the wheels. The Wikipedia page confirms that leaking is a common problem in older vehicles, potentially hindering brake performance and necessitating replacement.
Detailed Comparison of Components and Issues
To organize the information, the following table summarizes the key aspects of brake wheel cylinders, including their function, components, common issues, and maintenance considerations:
| Aspect | Details |
|---|
| Function | Converts hydraulic pressure to mechanical force, pressing brake shoes against the drum for friction-based stopping. |
| Components | Cylinder, two pistons, two rubber cups, spring; some designs use dual single-piston cylinders. |
| Materials | Historically cast iron, now typically aluminum for reduced rust and weight. |
| Common Issues | Leaking due to worn seals, leading to reduced braking efficiency and spongy pedal. |
| Symptoms | Spongy/soft brake pedal, visible fluid leaks near wheels, uneven braking. |
| Maintenance | Inexpensive and easy to replace; regular inspections recommended for safety. |
| Historical Note | Invented by Bendix in 1958, evolved for better durability and performance.
|
