What is a Brake Master Cylinder?
The brake master cylinder is a key part of your car's braking system. When you press the brake pedal, it turns that force into hydraulic pressure, which helps stop the car by activating the brakes at each wheel. It’s usually near the brake pedal and connected to it via a push rod.
Common Issues
If the master cylinder fails, you might notice:
- Brakes feel weaker or less responsive.
- The brake pedal feels spongy or sinks to the floor.
- Brake fluid leaks, which can reduce braking power.
- Warning lights on the dashboard.
- Grinding noises when braking, possibly from pads not retracting properly.
These symptoms can also come from other brake problems, so it’s best to get a professional check.
Function and Mechanism
A brake master cylinder is a critical component in a vehicle's hydraulic braking system, responsible for converting the mechanical force applied to the brake pedal into hydraulic pressure. This pressure is transmitted through brake lines to the slave cylinders or calipers at each wheel, activating the brake pads or shoes to create friction against the rotors or drums, thereby slowing down or stopping the vehicle. The Wikipedia entry on master cylinders explains that this device controls slave cylinders located at the other end of the hydraulic brake system, and in some cases, the clutch system. As the piston(s) move along the bore of the master cylinder, this movement is transferred through the hydraulic fluid, resulting in the movement of the slave cylinder(s). The hydraulic pressure compresses the fluid evenly, and by varying the comparative surface area of the master cylinder and each slave cylinder, one can vary the amount of force and displacement applied to each slave cylinder relative to the amount applied to the master cylinder.
In modern light trucks and passenger cars, the master cylinder typically operates two brake circuits for safety, as noted by JD Power. One circuit usually controls the front left and right rear wheels, while the other manages the front right and left rear wheels, ensuring that if one circuit fails, the other can still provide braking, though with reduced effectiveness. This diagonally split system is designed to maintain some braking capability even in the event of a failure, enhancing vehicle safety.
Components and Materials

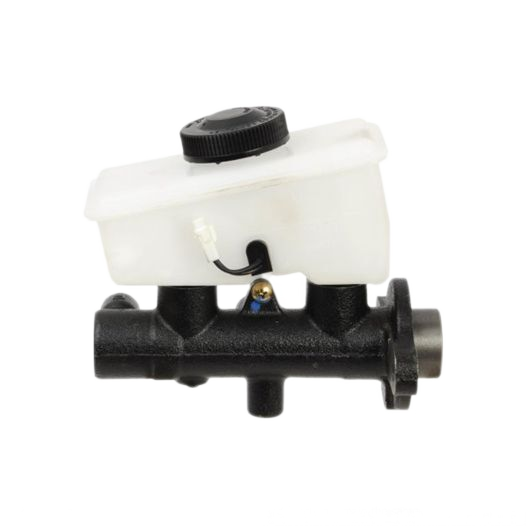

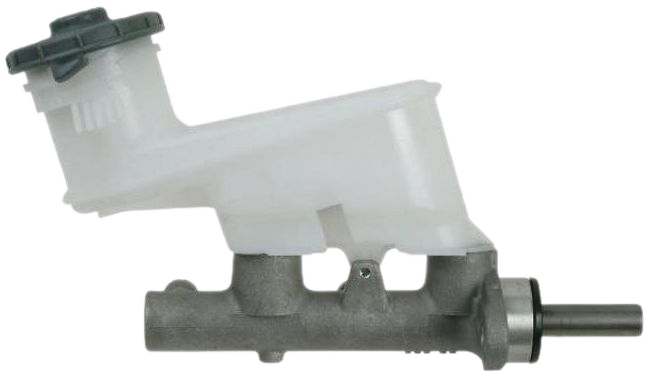

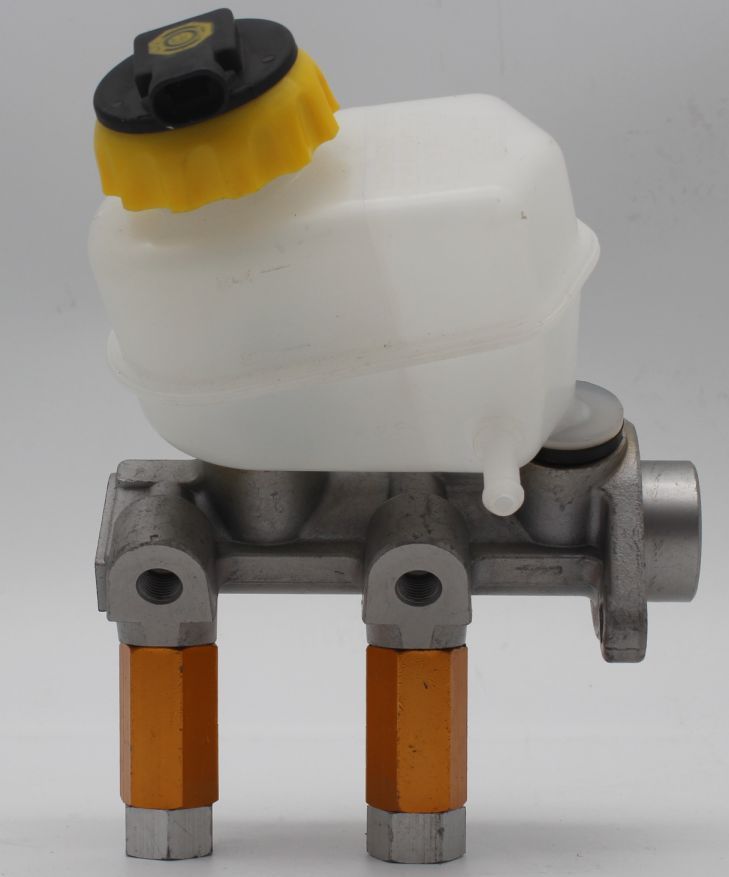

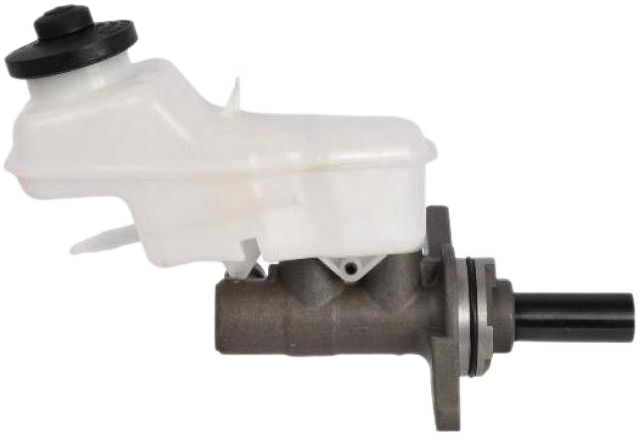

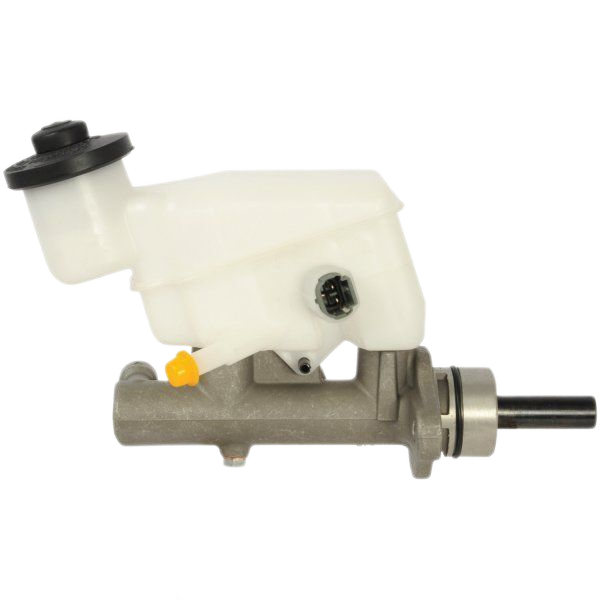

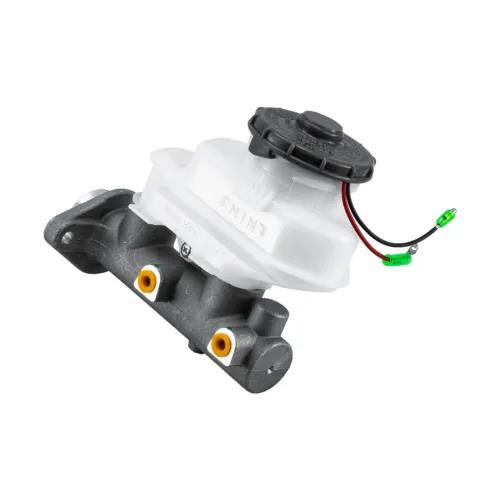

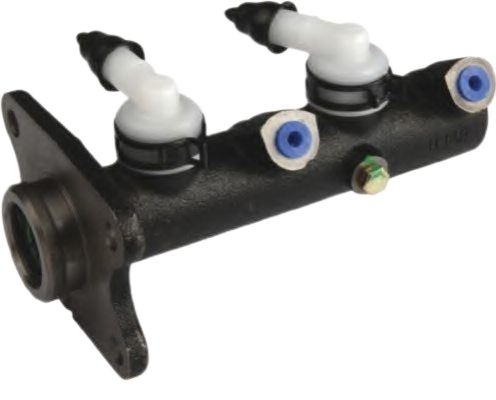

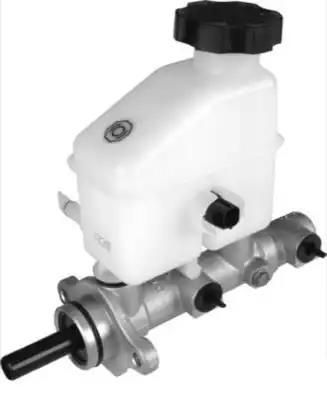

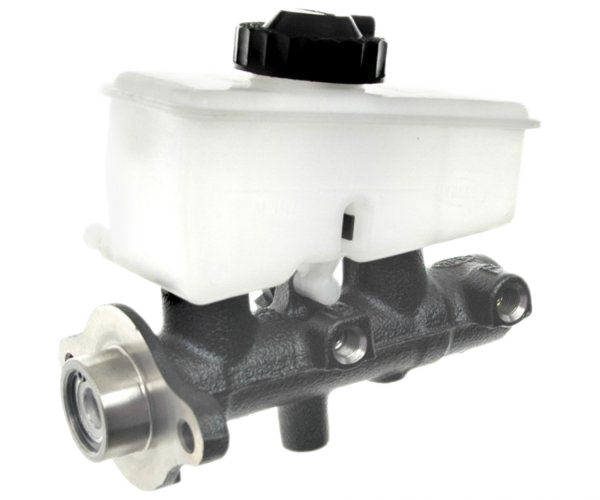

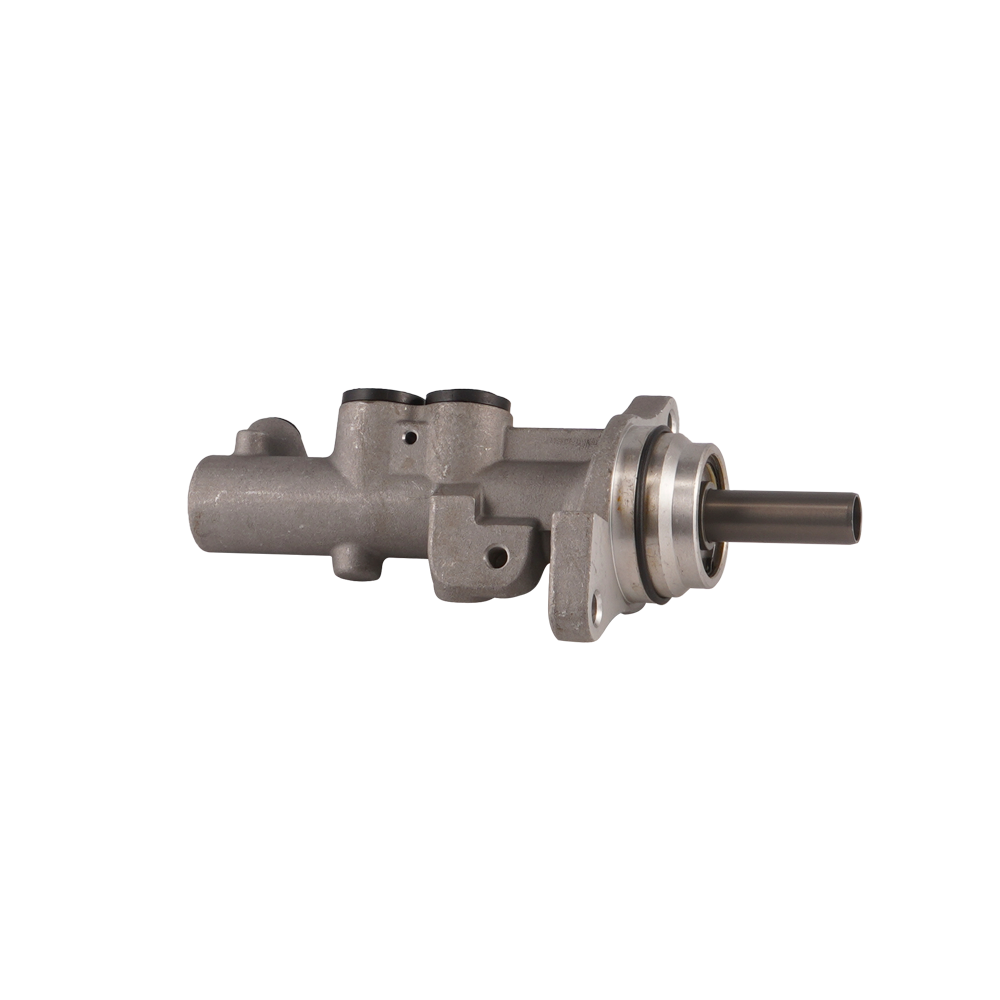

The brake master cylinder comprises several key components, including a cylinder housing, pistons, seals, and a reservoir for brake fluid. The housing is typically made of cast iron or aluminum, with modern designs often favoring aluminum for its lightweight properties and resistance to corrosion. The seals, usually made of rubber, are crucial for maintaining hydraulic pressure, and the reservoir ensures a constant supply of brake fluid to prevent air from entering the system, which can cause braking issues. These components work together to ensure consistent braking performance and overall vehicle safety.
Common Issues and Symptoms
A failing brake master cylinder can lead to serious safety concerns, and identifying the symptoms early is crucial. According to AutoNation Mobile Service, common symptoms include:
- Reduced braking power or responsiveness: If the brake calipers do not receive sufficient hydraulic pressure, braking becomes less effective, potentially leading to longer stopping distances.
- Spongy or mushy brake pedal: This can indicate air in the brake lines, often caused by a leaking master cylinder, as the hydraulic pressure cannot be maintained properly.
- Leaking brake fluid: A leak can result in low brake fluid levels, significantly reducing braking power and potentially causing brake failure. Leaky brake fluid is a real risk with a faulty master cylinder, and it may also trigger a lit-up check engine light.
- Warning lights or messages on the dashboard: Modern vehicles have sensors that can detect brake system malfunctions, triggering alerts to warn the driver.
- Grinding noise when braking: This may occur if the brake pads do not retract properly, causing them to grind against the rotor, which can be a sign of low pressure or circuit failure.
It’s important to note that these symptoms can also be caused by other issues in the brake system, such as worn brake pads or damaged brake lines. A failing master cylinder can lead to complete brake failure, which is extremely dangerous and must be addressed immediately.
Detailed Comparison of Components and Issues
To organize the information, the following table summarizes the key aspects of brake master cylinders, including their function, components, common issues, and maintenance considerations:
| Aspect | Details |
|---|
| Function | Converts brake pedal force into hydraulic pressure, activating brakes at wheels via slave cylinders. |
| Components | Cylinder housing, pistons, seals, reservoir; often dual-circuit for safety. |
| Materials | Typically cast iron or aluminum, with rubber seals for pressure maintenance. |
| Common Issues | Reduced braking power, spongy pedal, fluid leaks, warning lights, grinding noises. |
| Symptoms | Weak brakes, mushy pedal, fluid leaks, dashboard warnings, grinding during braking. |
| Maintenance | Check fluid levels, inspect for leaks, flush fluid every 2-3 years, regular inspections. |
| Replacement Cost | $440–$552 average, varies by vehicle (e.g., $513 for 2014 Kia Soul). |
| Lifespan | Typically 70,000–110,000 miles, depending on maintenance and usage. |
This table encapsulates the critical information, providing a quick reference for understanding brake master cylinders and their maintenance needs.
