Brake Master Cylinder Kit

What is a Brake Master Cylinder Kit?

A Brake Master Cylinder Kit is likely a set of components to repair or replace the brake master cylinder, which is key for your car’s braking system. It might include the master cylinder itself or parts like pistons, seals, and dust boots to fix the existing one, helping maintain safe braking.

Why is it Important?

This kit ensures the master cylinder can turn the force from your brake pedal into hydraulic pressure, activating the brakes at each wheel. It’s crucial for stopping your vehicle safely, especially if you notice issues like leaks or reduced braking power.

When to Use It?

You might need a kit if you see brake fluid leaks, a spongy brake pedal, or during routine brake maintenance. It’s often used for classic cars or upgrades, with prices typically ranging from $100 to over $200, depending on the vehicle.

What is a Brake Master Cylinder Kit?

A Brake Master Cylinder Kit is a set of components designed to repair, replace, or upgrade the brake master cylinder in a vehicle's hydraulic braking system. The master cylinder is a critical component that converts the mechanical force applied to the brake pedal into hydraulic pressure, which is then transmitted through brake lines to activate the brakes at each wheel, pressing the brake pads against the rotors (or shoes against drums) to slow or stop the vehicle. A kit may include:

• The master cylinder itself, often a complete replacement unit with mounting hardware and gaskets.

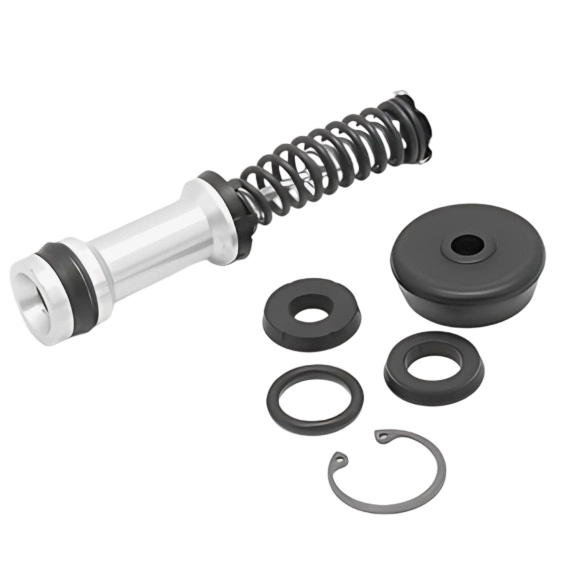

• Rebuild parts, such as pistons, seals, snap rings, dust boots, and springs, to restore the existing master cylinder without replacing the entire unit.
• Additional components like hoses, caps, cap gaskets, or proportioning valves, depending on the kit's scope and application.

These kits are essential for maintaining safe and effective braking, especially when the master cylinder shows signs of wear, such as leaks, reduced braking power, or a spongy pedal.

Function and Mechanism

The brake master cylinder is the heart of the hydraulic braking system. When you press the brake pedal, it pushes a piston inside the master cylinder, creating hydraulic pressure. This pressure is distributed through brake lines to the slave cylinders (or calipers) at each wheel, ensuring consistent braking force. In modern vehicles, the master cylinder often operates two brake circuits for safety, with one circuit typically controlling the front left and right rear wheels, and the other managing the front right and left rear wheels. This diagonally split system ensures that if one circuit fails, the other can still provide braking, though with reduced effectiveness.

The master cylinder's internal components, such as pistons and seals, are crucial for maintaining hydraulic pressure. Over time, these parts can wear out, leading to leaks or air in the system, which reduces braking efficiency. A Brake Master Cylinder Kit addresses these issues by providing replacement parts or a new unit to restore functionality.

Components of a Brake Master Cylinder Kit

A typical Brake Master Cylinder Kit includes:

1. Master Cylinder: The main component, often made of aluminum or cast iron, with a bore size (e.g., 1 inch) tailored to the vehicle's braking needs.
2. Pistons and Seals: Internal parts that move to create hydraulic pressure; seals prevent leaks and are often made of rubber to withstand high temperatures.
3. Dust Boots: Protect the internal components from dirt, moisture, and debris, ensuring longevity.
4. Springs and Snap Rings: Ensure proper piston movement and secure the assembly during operation.
5. Hoses and Caps: Sometimes included for complete system repair, such as replacing worn hoses or reservoir caps.
6. Proportioning Valves (in some kits): For vehicles with mixed disc and drum brakes, ensuring balanced braking force distribution.

To organize this information, the following table summarizes the typical components and their functions:

Types of Brake Master Cylinder Kits

Brake Master Cylinder Kits come in various forms to suit different needs:

1. Complete Replacement Kits: These include a new master cylinder, often with mounting hardware and gaskets, designed for direct installation.
2. Rebuild Kits: These contain internal components like pistons, seals, and springs, allowing you to repair the existing master cylinder without replacing the entire unit. Rebuild kits from brands like Wilwood, which include all parts needed for repair, offering a cost-effective solution.
3. Upgrade Kits: For classic or modified vehicles, kits may include upgrades like dual-bore master cylinders for better performance with disc brakes.

Common Issues and Symptoms

A Brake Master Cylinder Kit is typically needed when the following issues arise:

1. Leaking Brake Fluid: Worn seals allow brake fluid to escape, reducing hydraulic pressure and potentially causing brake failure. This can lead to visible fluid leaks around the master cylinder or low fluid levels in the reservoir.
2. Spongy or Mushy Brake Pedal: Air in the system or low fluid levels can cause the pedal to feel soft or sink to the floor, indicating a need for repair or replacement.
3. Reduced Braking Power: Insufficient hydraulic pressure leads to longer stopping distances, which is dangerous, especially at high speeds.
4. Dashboard Warnings: Modern vehicles may display error codes or warning lights, such as a lit-up check engine light, indicating brake system faults.
5. Dragging or Sticking Brakes: If the master cylinder fails to release pressure properly, it can cause the brakes to drag, overheating the system and reducing fuel efficiency.

These symptoms can also be caused by other brake system issues, such as worn brake pads or damaged lines, so professional diagnosis is recommended to ensure accuracy.

Comparison of Components and Issues

To further organize the information, the following table summarizes common issues and their impact, along with maintenance tips:

This table encapsulates critical maintenance considerations, providing a quick reference for vehicle owners and mechanics.
