What Are Brake Discs?
Brake discs, or rotors, are flat, circular components attached to a vehicle's wheels, rotating with them. They are part of the disc brake system, where brake pads press against the disc to create friction, slowing or stopping the vehicle by converting kinetic energy into heat.
How Do They Work?
When you press the brake pedal, hydraulic pressure forces the brake pads in the caliper to clamp onto the spinning brake disc. This friction generates heat, which must be dissipated to prevent brake fade, and slows down the wheel, helping the vehicle stop.
Why Are They Important?
Brake discs are crucial for safety, providing reliable stopping power and better performance in various conditions. They are preferred over drum brakes for their ability to dissipate heat and resist water fade, ensuring effective braking even in wet conditions.
Definition and Composition

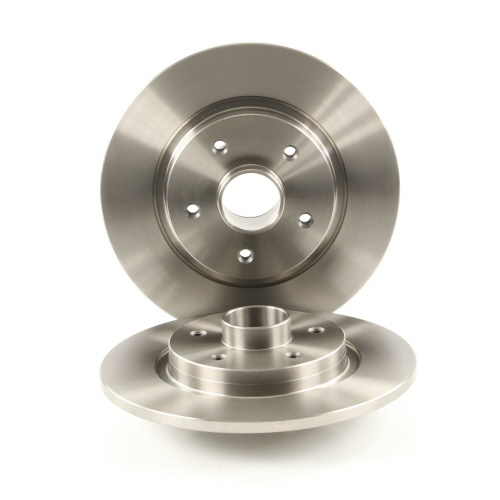

A brake disc, or brake rotor, is a flat, circular component attached to the wheel that rotates with it, forming the core of a vehicle's disc brake system. It is the surface against which brake pads are applied to create friction, converting the vehicle's kinetic energy into heat to slow down or stop the wheel. The disc is typically made of gray iron, a form of cast iron, due to its excellent heat dissipation, durability, and cost-effectiveness. However, in high-performance applications, such as sports cars and electric vehicles, advanced materials like carbon-ceramic composites or silicon carbide are used for their superior heat resistance, reduced weight, and longer lifespan.
Mechanism of Operation
Brake discs operate by creating friction with the brake pads, a process initiated when the driver presses the brake pedal. Hydraulic pressure is transmitted through the braking system, engaging the calipers, which house pistons that push the brake pads against both sides of the rotating disc. This friction converts the vehicle's kinetic energy into thermal energy, slowing the disc and, consequently, the wheel. The heat generated must be dissipated to prevent brake fade, a condition where overheating reduces braking effectiveness. Ventilated discs, with fins or vanes, are commonly used to enhance heat dissipation, especially on front wheels of heavier vehicles.
The process is based on Newton's law of action and reaction, where the force exerted by the pads counteracts the kinetic energy of the wheels. For vehicles with high braking demands, such as trucks or racing cars, the ability to dissipate heat is crucial to maintain consistent stopping power. Additionally, the disc's design helps resist water fade, as its rotation can fling water away, ensuring stable braking force in wet conditions.
Types and Design Variations
Brake discs come in several designs, each tailored to specific vehicle types and performance needs:
| Type | Description | Advantages | Best For |
|---|
| Solid Discs | Flat, smooth discs without ventilation. | Cost-effective, simple design. | Lighter vehicles, low braking demands. |
| Ventilated Discs | Feature fins or vanes between two sides for improved heat dissipation. | Better heat dissipation, reduces brake fade. | Heavier vehicles, front wheels. |
| Drilled Discs | Have holes drilled through the disc for heat and water dispersal. | Improved cooling, aesthetics, noise reduction. | Racing, high-performance vehicles. |
| Slotted Discs | Have slots cut into the surface for dust, gas, and water removal. | Enhanced performance in wet conditions, reduces pad wear. | Sports cars, wet environments. |
| Two-Piece Discs | Consist of a central alloy bell (hat) and outer friction ring. | Reduces unsprung weight, improves heat dissipation. | High-performance, luxury vehicles. |
These designs cater to different needs, such as heat management, weight reduction, and performance in adverse conditions. For example, drilled and slotted discs are popular in racing for their ability to remove dust and water, though they may wear brake pads faster on standard vehicles.
Importance and Safety Considerations
Brake discs are vital for vehicle safety and performance, offering several key benefits:
- Stopping Power: They provide the necessary friction to stop the vehicle quickly and reliably, especially under demanding conditions such as high speeds, heavy loads, or emergency braking. This is particularly important for heavy vehicles like trucks and high-performance cars, where stopping distances can be critical.
- Heat Dissipation: Disc brakes, especially ventilated ones, offer superior heat dissipation compared to drum brakes, reducing the risk of brake fade during extended braking, such as downhill driving or repeated stops in traffic.
- Water Fade Resistance: The rotating disc can fling water away, ensuring stable braking force in wet conditions, a significant advantage over drum brakes, which can suffer from reduced effectiveness when wet.
- Maintenance and Durability: Brake discs are designed to withstand high temperatures and pressures, but they wear over time due to friction with the brake pads. Regular inspection is necessary to check for issues like warping, cracking, or excessive thinning, which may require resurfacing or replacement to maintain safety and performance.
Common issues include:
- Scarring: Occurs if pads are worn out, with scoring deeper than 0.015 inches (0.38 mm) requiring replacement in some regions.
- Cracking: Limited to drilled discs, may fail catastrophically, with no repair possible.
- Warping: Can result from uneven pad transfer or rusting, often confused with thickness variation causing pedal pulsation.
- Rusting: Normal on cast iron, can reduce braking power if stored, may lead to warping upon reactivation.
Maintenance involves machining (skimming) discs to eliminate thickness variation and lateral run-out, maximizing mileage, but they must not be reduced below the manufacturer's minimum thickness. Proper bolt tightening with a torque wrench, not in a circle, is also essential to prevent distortion.
