What Are Brake Calipers?
Brake calipers are part of a vehicle's disc brake system, typically found on the front brakes. They house the brake pads and pistons, acting like a clamp to slow or stop the vehicle by pressing the pads against the spinning brake rotor.
How Do They Work?
When you press the brake pedal, hydraulic pressure from the master cylinder pushes the caliper's pistons, forcing the brake pads against the rotor. This friction generates heat, slowing the wheel and stopping the car.
Types and Importance
There are fixed calipers, used in high-performance vehicles for better braking, and floating calipers, common in standard cars for cost-effectiveness. They are essential for safety, requiring regular maintenance to prevent issues like reduced braking power.
Definition and Composition
A brake caliper is a vital part of a vehicle's disc brake system, typically found on the front brakes of most cars, trucks, and SUVs. It is bolted to the steering knuckle and serves as the housing for the brake pads and pistons. The caliper's primary role is to convert hydraulic pressure from the master cylinder into mechanical force, pressing the brake pads against the spinning brake rotor (or disc) to create friction, which slows or stops the vehicle. The caliper is typically made from materials like cast iron or aluminum, with the choice depending on the vehicle's weight, performance needs, and heat dissipation requirements.
The brake caliper contains a pair of metal plates, known as brake pads, made of friction material, and one or more pistons that move to apply pressure. The design ensures that the caliper fits like a clamp over the rotor, facilitating effective braking action.
Mechanism of Operation
Brake calipers operate by leveraging hydraulic principles and friction to decelerate the vehicle. The process is as follows:
- Brake Pedal Activation: When the driver presses the brake pedal, it activates the master cylinder, which pressurizes the brake fluid.
- Hydraulic Pressure Transmission: The pressurized brake fluid travels through brake lines to the caliper, connected via tubes, hoses, and valves.
- Piston Movement: Inside the caliper, the hydraulic pressure acts on one or more pistons, causing them to move outward. For fixed calipers, pistons on both sides push the pads; for floating calipers, the caliper slides on bushings or pins to apply pressure to both sides.
- Friction Generation: The pistons force the brake pads against the rotor, creating friction. This friction converts the vehicle's kinetic energy into thermal energy, slowing the rotor and, consequently, the wheel.
- Heat Dissipation: The heat generated is dissipated through the rotor and surrounding air to prevent overheating and brake fade, a condition where braking effectiveness is reduced due to excessive heat.
This process is based on Newton's law of action and reaction, where the force exerted by the pads counteracts the kinetic energy of the wheels. For vehicles with high braking demands, such as trucks or racing cars, the caliper's design must ensure efficient heat management and consistent stopping power.
Types of Brake Calipers
Brake calipers come in two main types, each tailored to specific vehicle types and performance needs:
| Type | Description | Advantages | Best For |
|---|
| Fixed Calipers | Have pistons on both sides of the rotor, mounted to a bracket with no sliding parts. | Better performance, balanced pressure distribution. | High-performance, luxury vehicles. |
| Floating (Sliding) Calipers | Have pistons on one side, slide back and forth on bushings or pins to apply pressure. | Cost-effective, simpler design. | Standard passenger vehicles. |

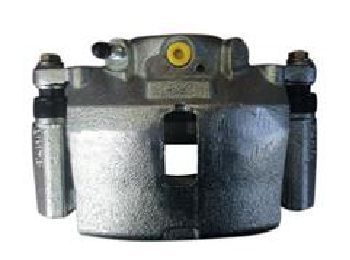

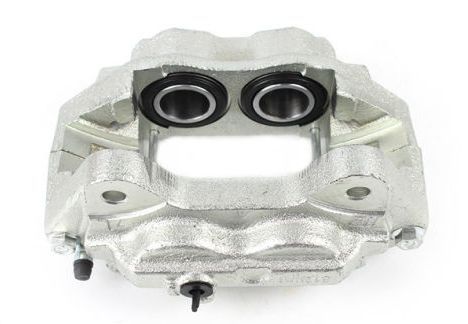

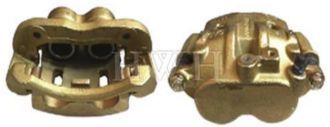

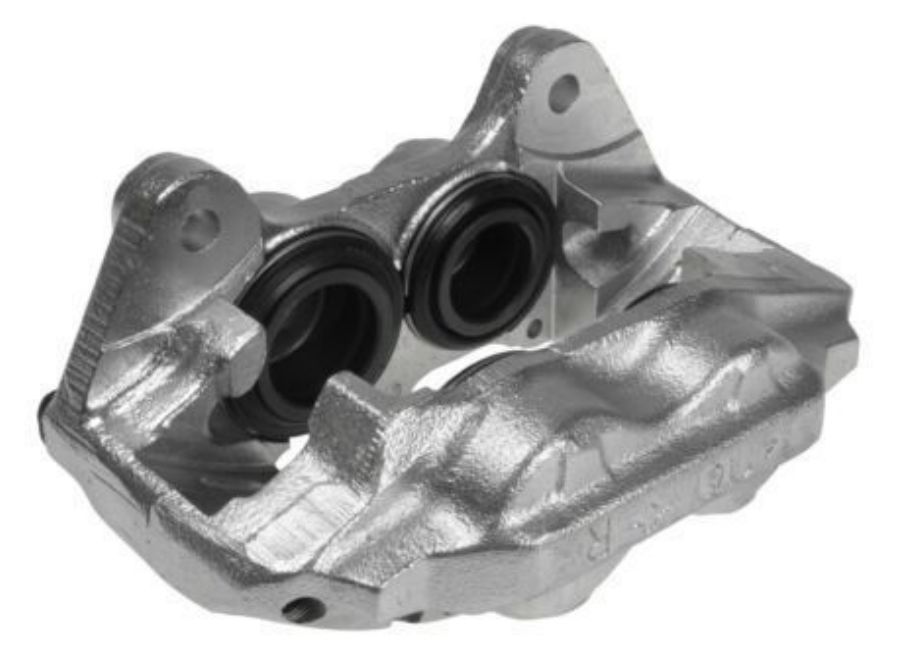

- Fixed Calipers: These consist of an equal number of pistons on both the inboard and outboard halves of the caliper, often two, four, six, or eight pistons. They are generally accepted to have better performance due to even pressure application, making them ideal for high-performance cars where stopping power is critical.

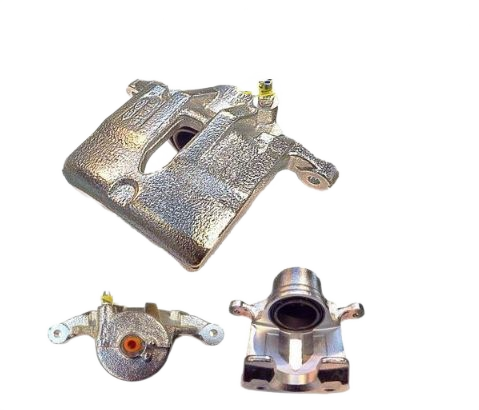

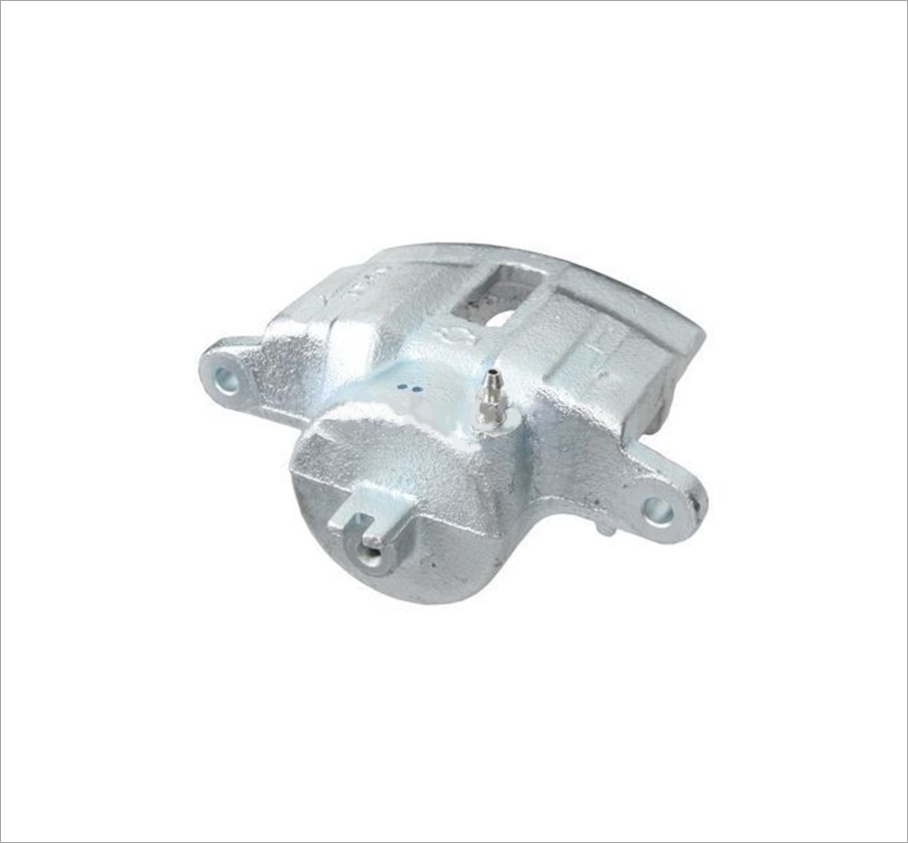

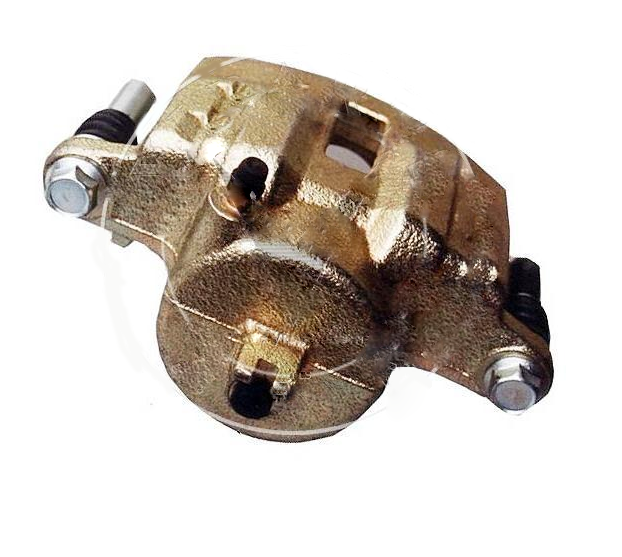

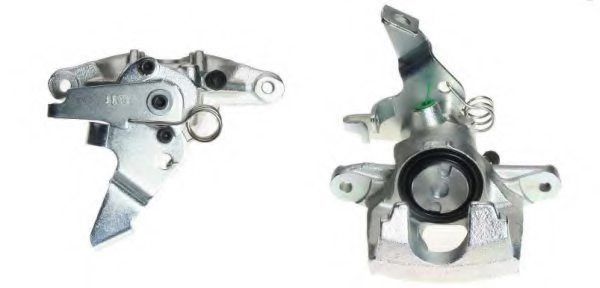

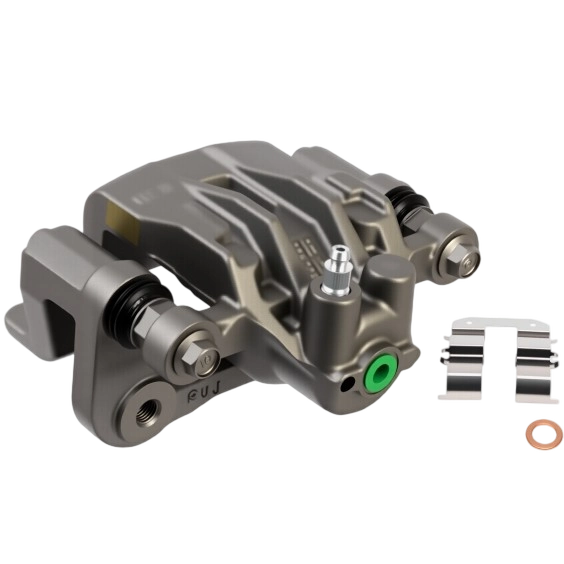

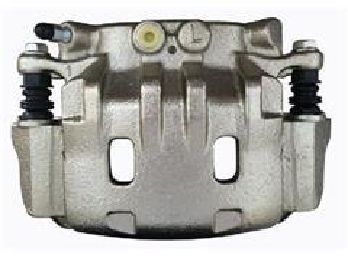

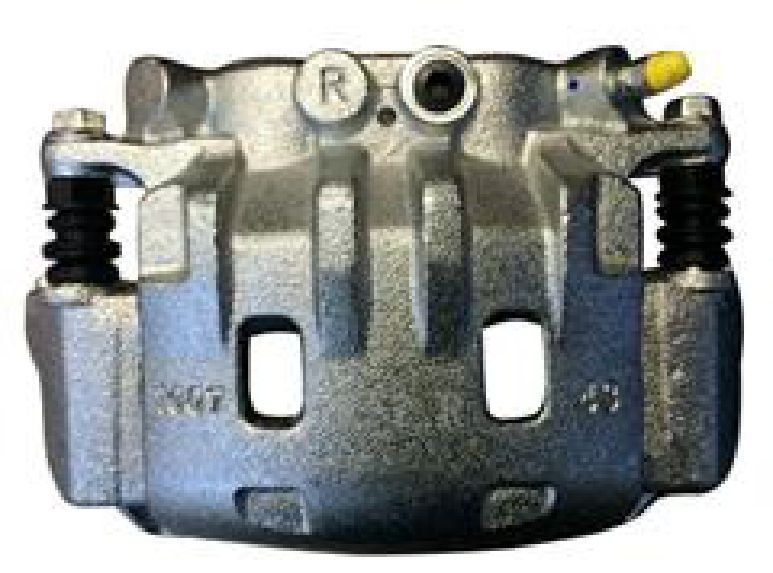

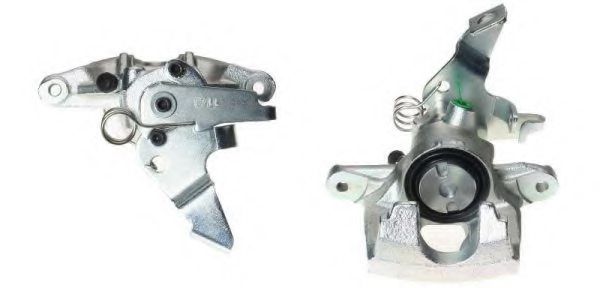

- Floating (or Sliding) Calipers: These have pistons on only one side, with the caliper sliding to apply pressure to the opposite side. They act as a clamp, squeezing the outboard pad against the disc. This type is more common in standard vehicles due to lower cost and simpler maintenance.
The choice between fixed and floating calipers depends on the vehicle's performance requirements, with fixed calipers offering superior braking in demanding conditions and floating calipers providing a cost-effective solution for everyday use.
Importance and Safety Considerations
Brake calipers are crucial for vehicle safety and performance, offering several key benefits:
- Stopping Power: They ensure the brake pads are applied firmly against the rotor, providing the necessary friction to stop the vehicle quickly and reliably, especially under demanding conditions such as high speeds, heavy loads, or emergency braking.
- Heat Management: By facilitating effective friction, calipers help manage heat buildup, reducing the risk of brake fade during extended braking, such as downhill driving or repeated stops in traffic.
- Safety: Properly functioning calipers are essential for maintaining control, especially in emergency situations or adverse weather conditions, preventing accidents due to reduced braking ability.
- Maintenance and Durability: Brake calipers can last as long as vehicle ownership, typically 75,000 to 100,000 miles in harsh conditions (e.g., salt belt, extreme climates, off-road, dusty, stop-and-go city driving). Regular inspection is necessary to check for issues like leaks, rust, corrosion, or sticking, which can lead to uneven braking or complete failure. Main failure causes include not flushing road salts, letting brake friction material wear below 4/32 inches (3 mm), hardware corrosion from lack of brake grease, and overtightening mounting bolts.
Symptoms of caliper failure include:
- The vehicle pulling to one side when braking.
- A sticking brake pedal or unusual noises like grinding or squealing.
- Brake/ABS warning light on, need to pump brakes, or pedal feels soft/spongy or hard.
- Brake fluid leaks around wheels or engine.
Maintenance involves inspecting caliper hardware (bushings, anti-rattle clips, retainers, insulation shims), mounting bolts, brake pads, and rubber components (brakes hoses, seals, O-rings, dust boots) for wear, tear, rust, and corrosion during oil changes or tire rotations. Flushing brake fluid regularly and applying brake caliper grease to contact points can increase caliper life. During brake jobs, replace all hardware, clean contact surfaces with a stiff wire brush and non-chlorinated brake cleaner, and use a torque wrench to tighten mounting bolts to prevent distortion.
