What Is a Brake Caliper Piston Kit?
A brake caliper piston kit is a set of replacement parts for the pistons in a vehicle's brake calipers, typically including the piston, seals, dust boots, and sometimes other hardware. It helps maintain the braking system's function by ensuring the pistons can effectively press the brake pads against the rotor.
How Does It Work?
When you press the brake pedal, hydraulic pressure pushes the pistons in the kit to force the brake pads against the rotor, creating friction to slow or stop the vehicle. The seals and boots protect against leaks and contamination.
Why Is It Important?
These kits are crucial for safety, as worn pistons can lead to reduced braking efficiency or failure. Regular replacement helps prevent issues like leaks or sticking pistons.
Definition and Composition

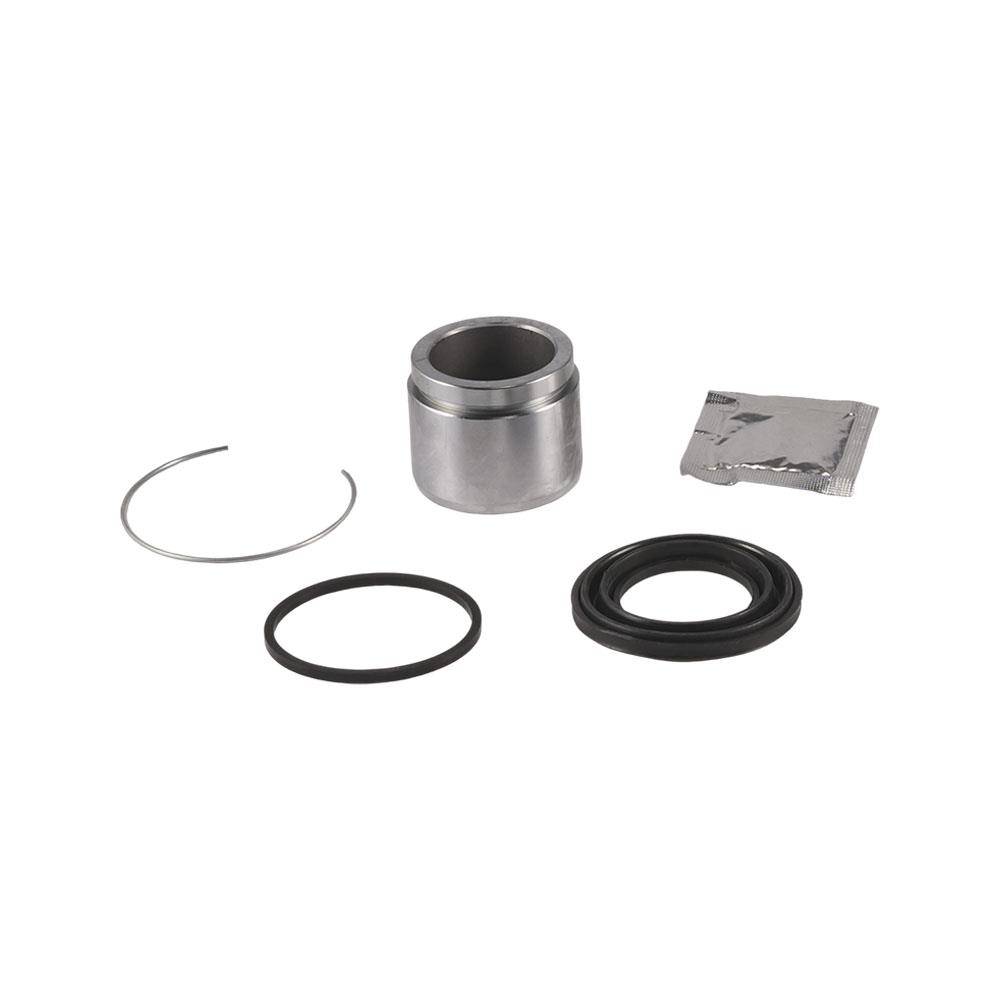

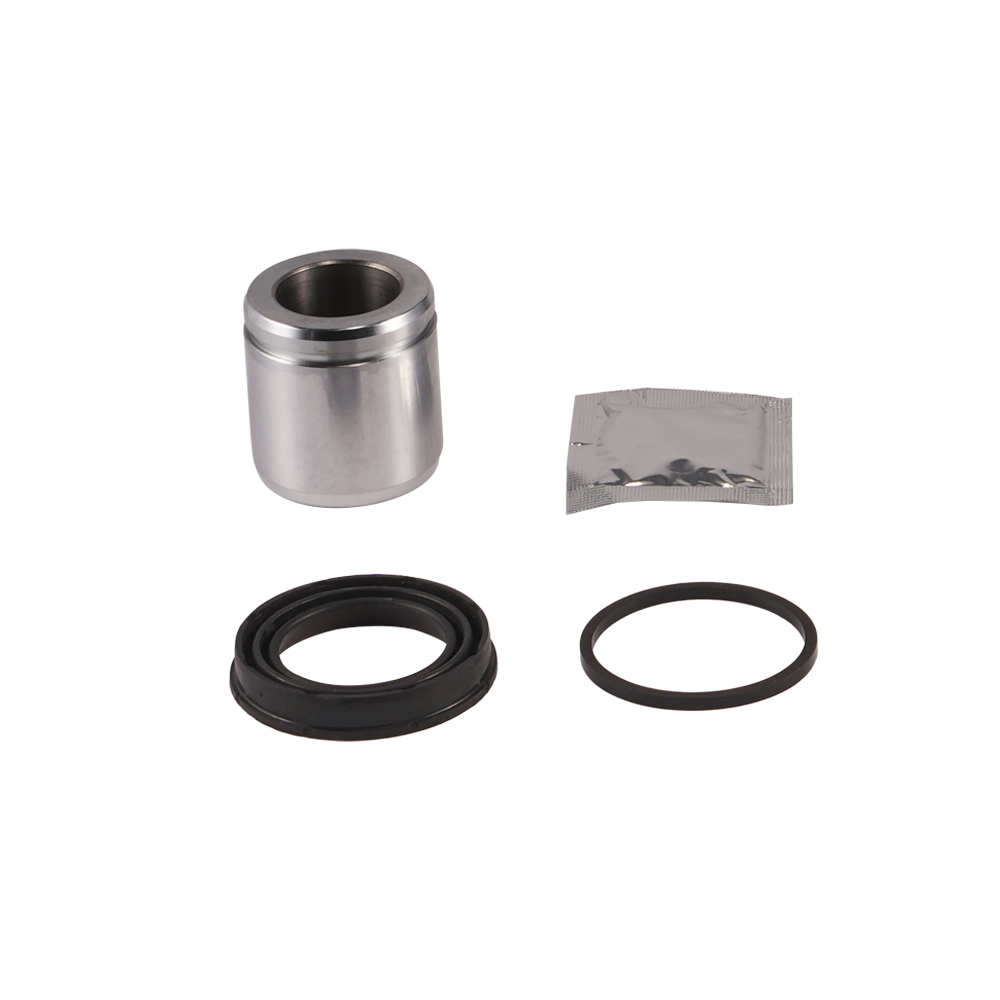

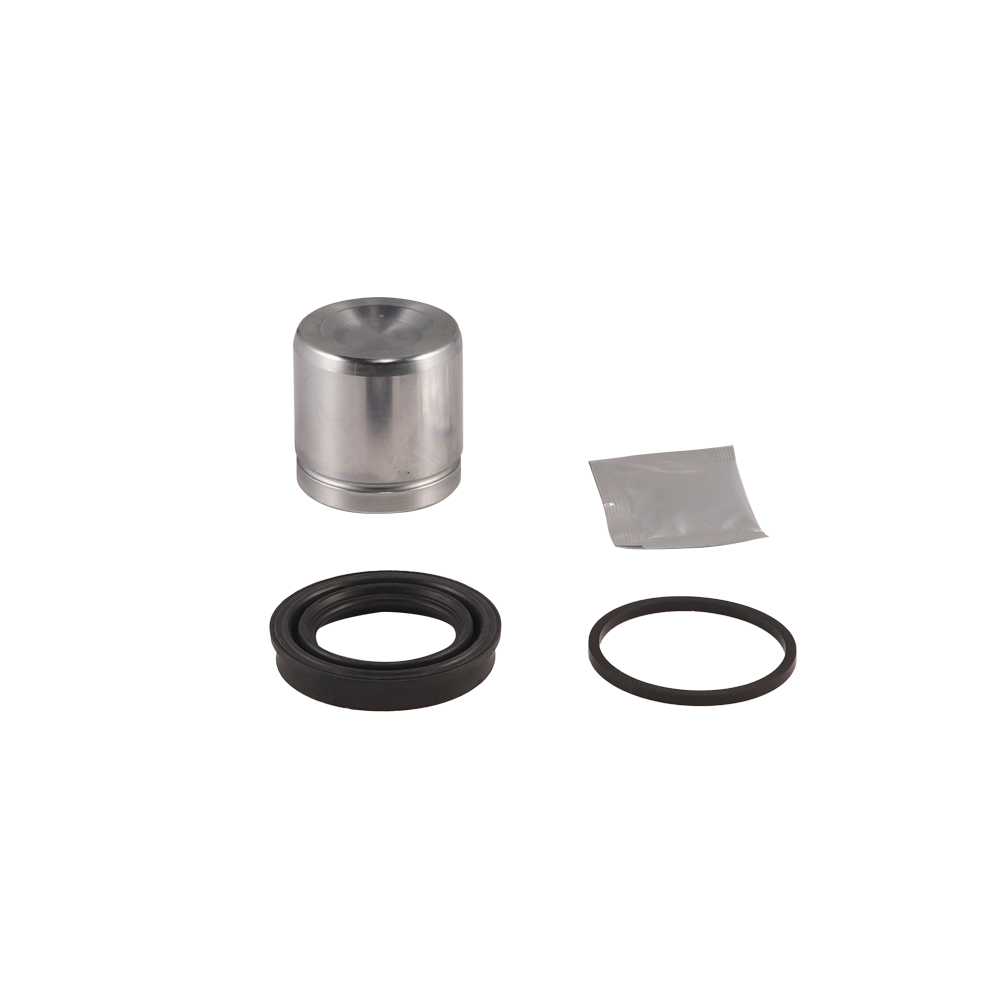

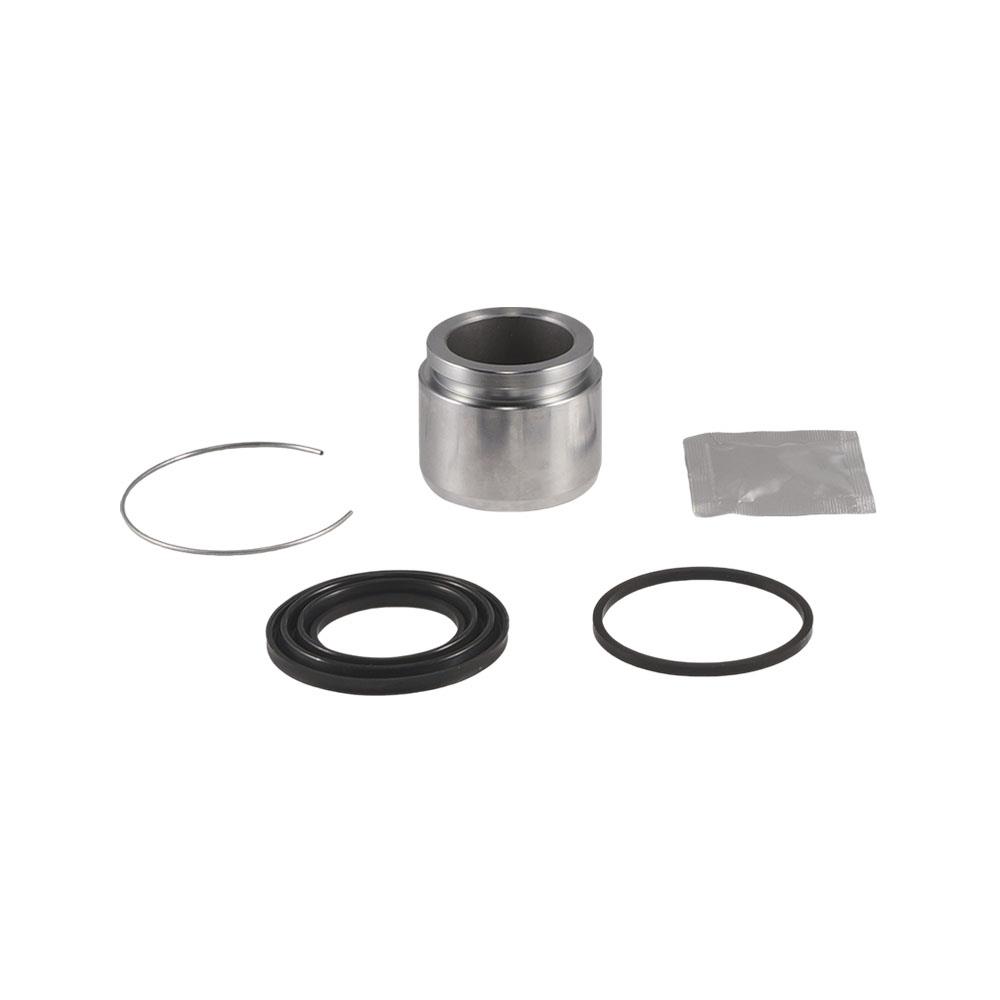

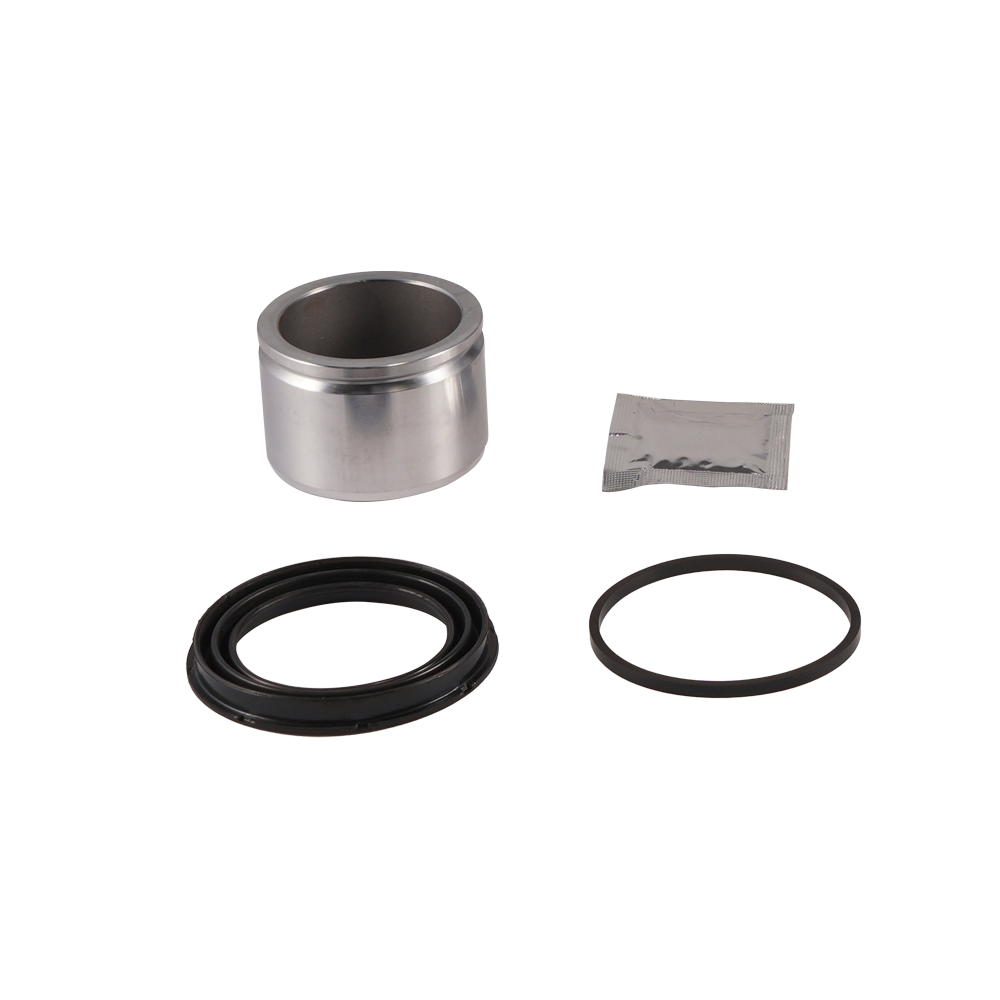

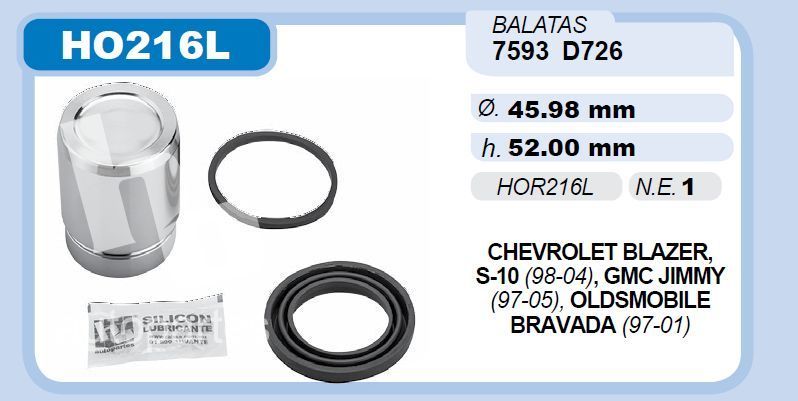

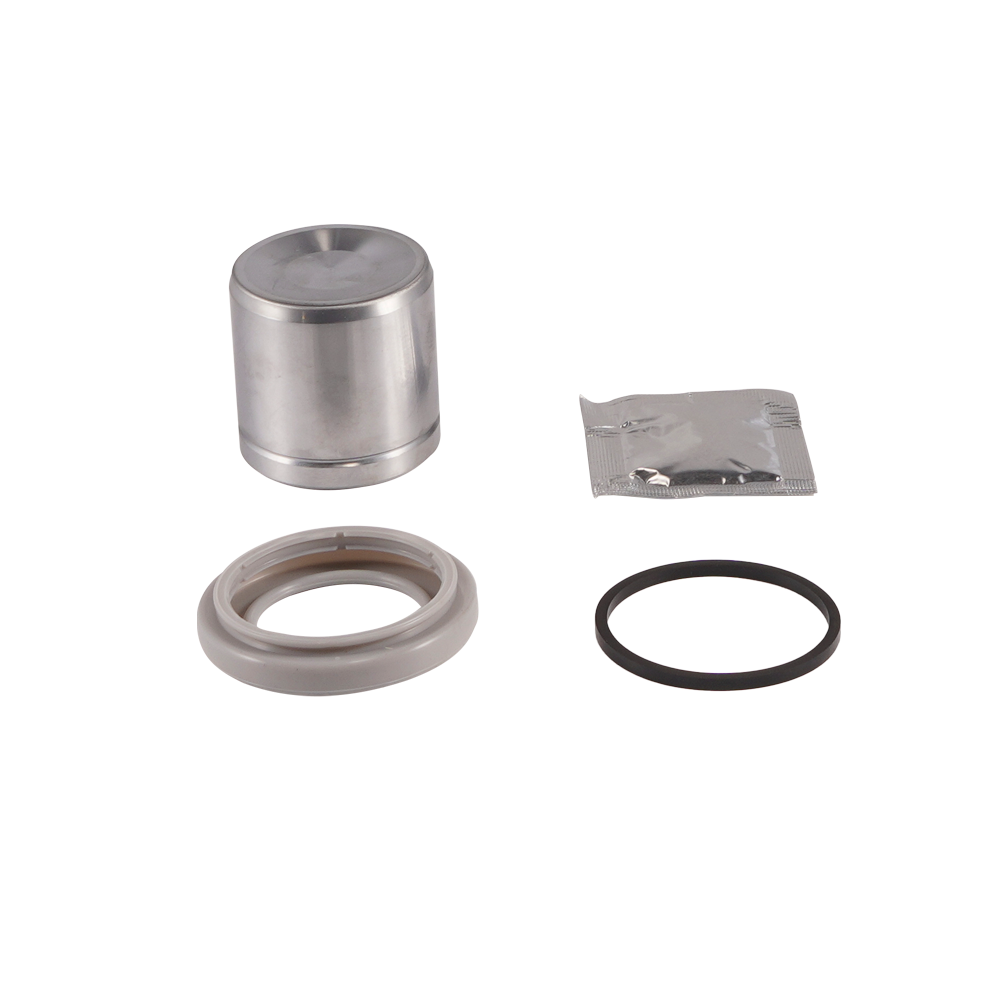

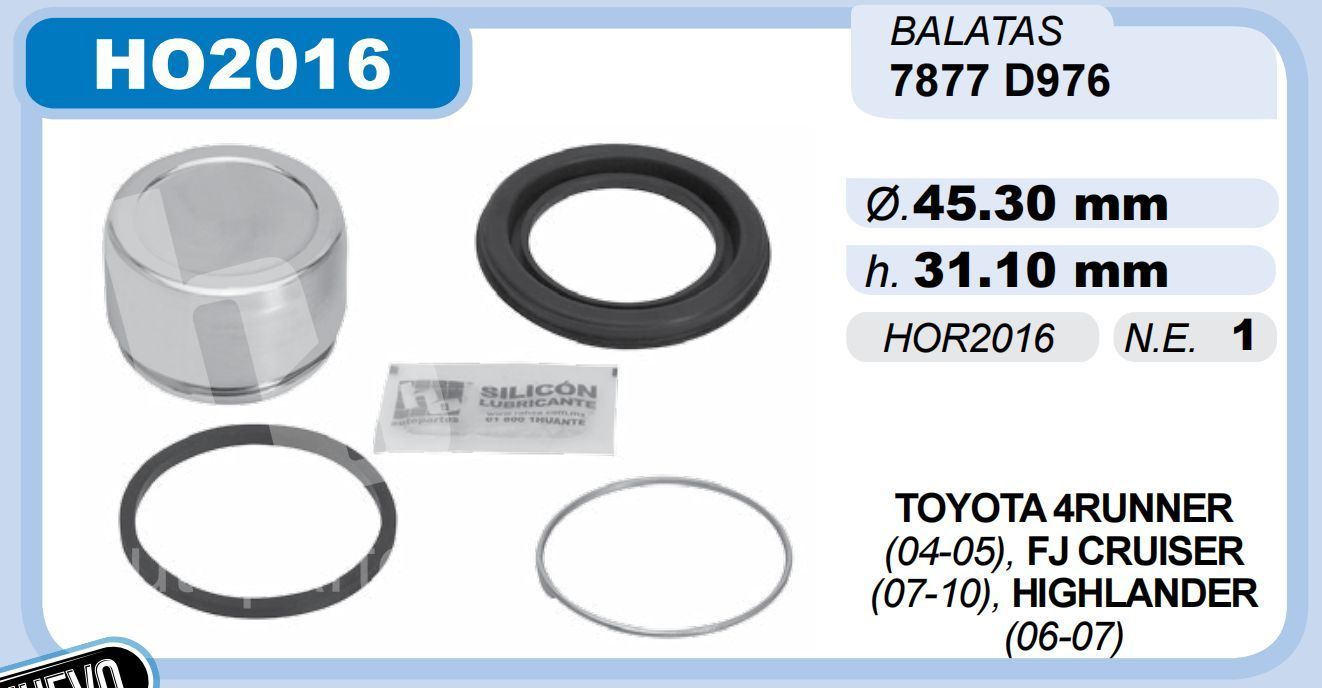

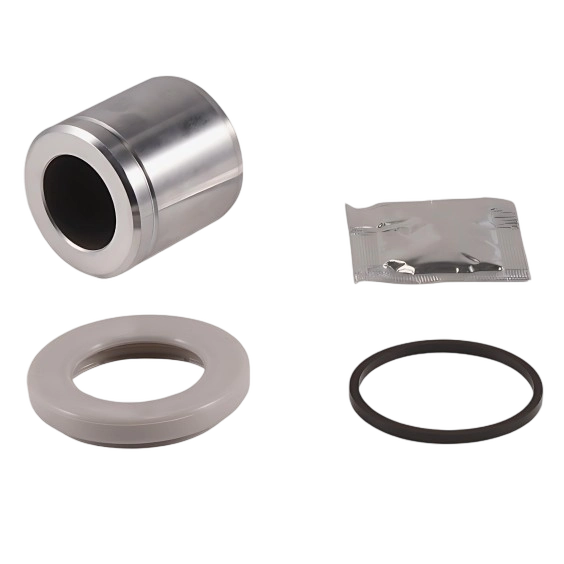

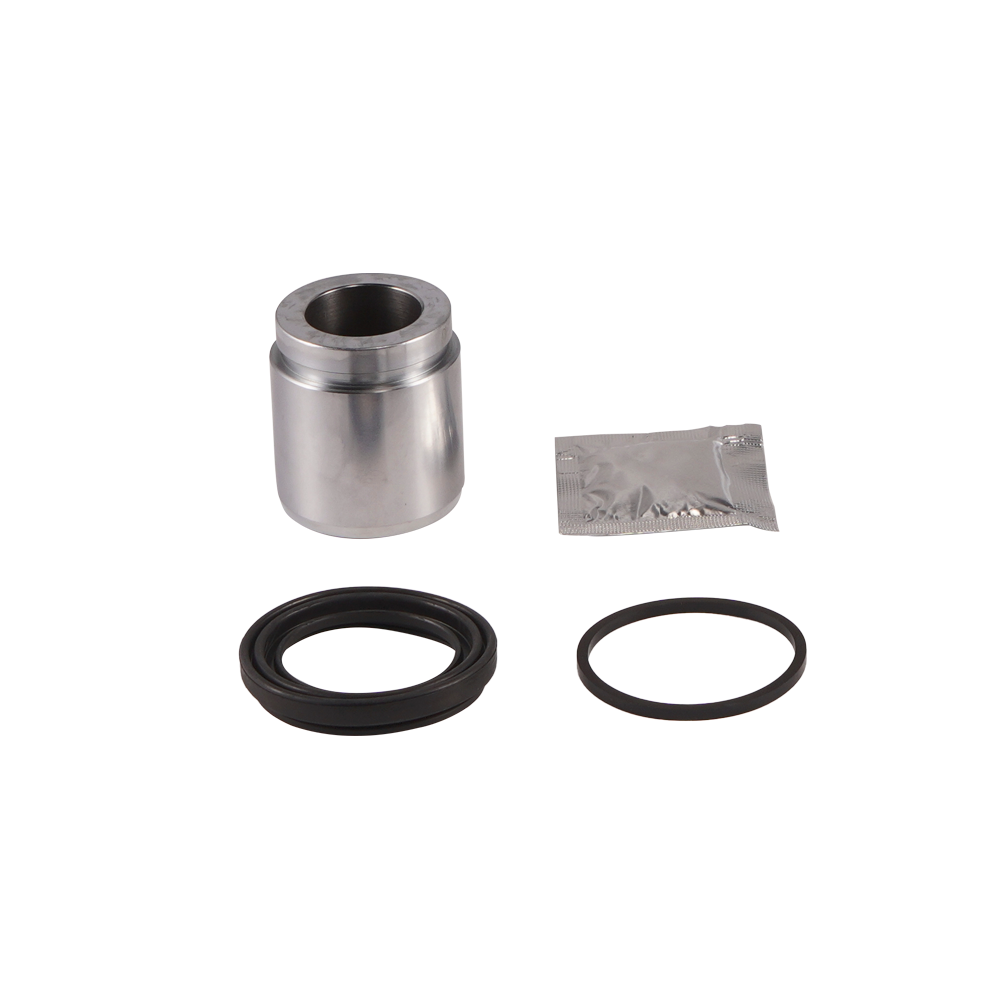

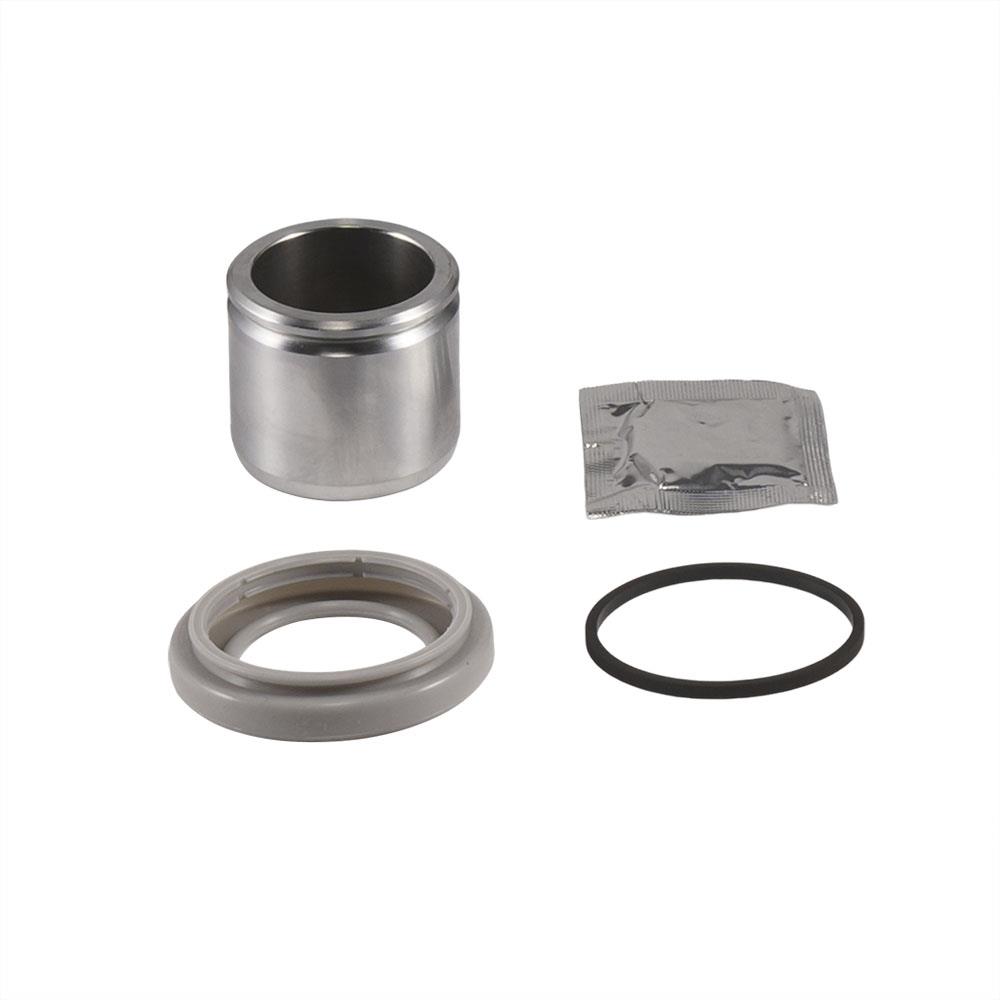

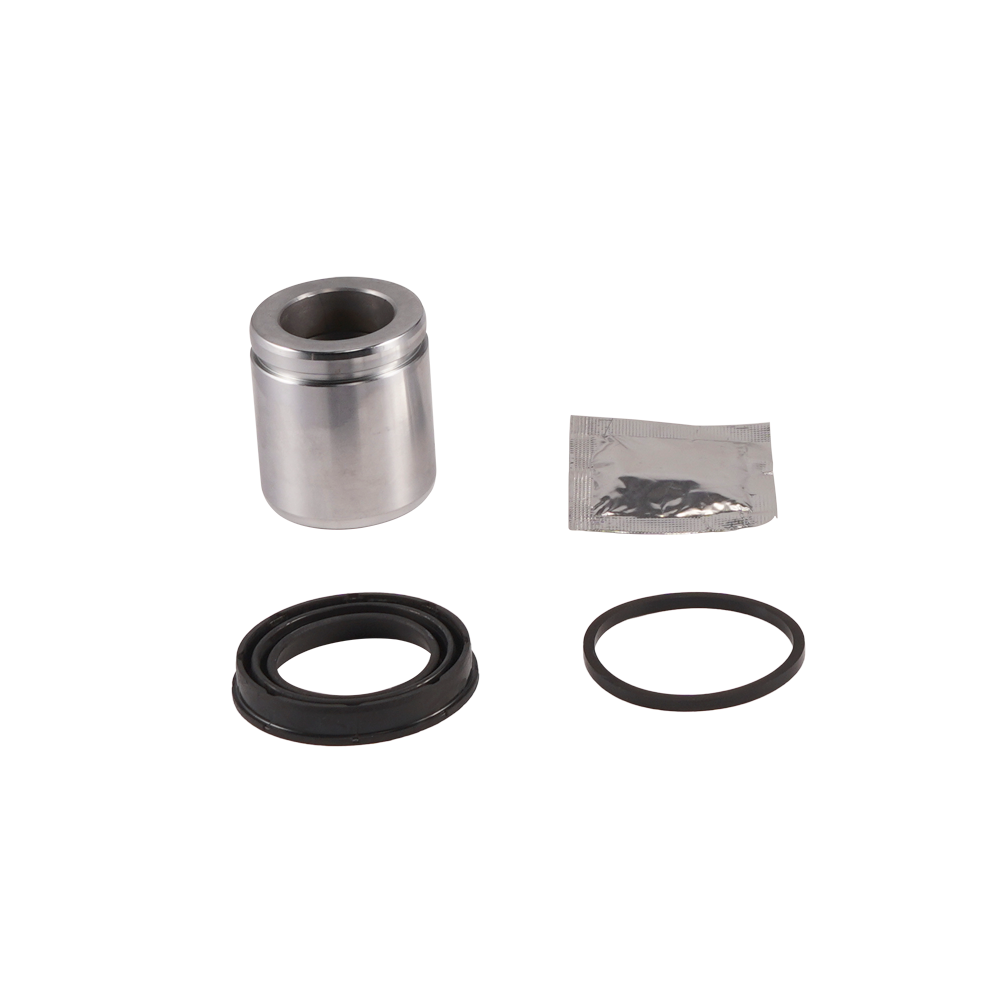

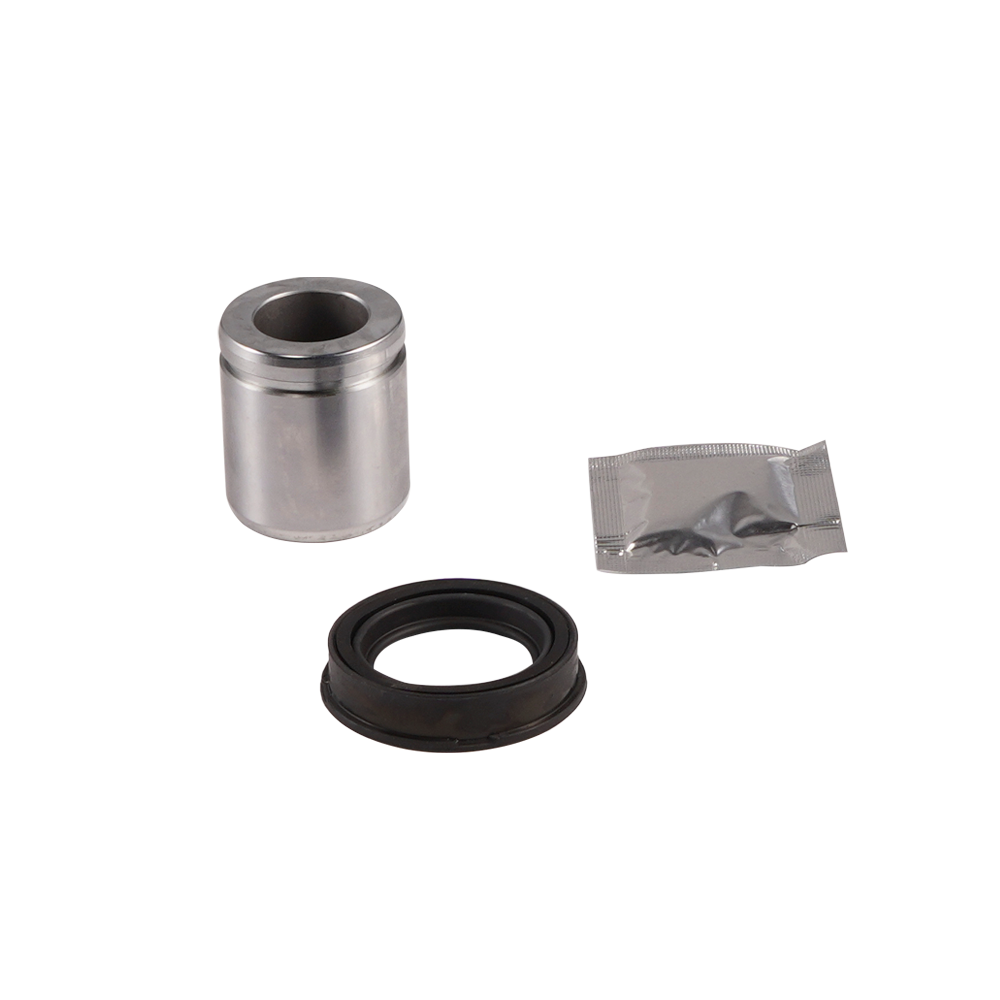

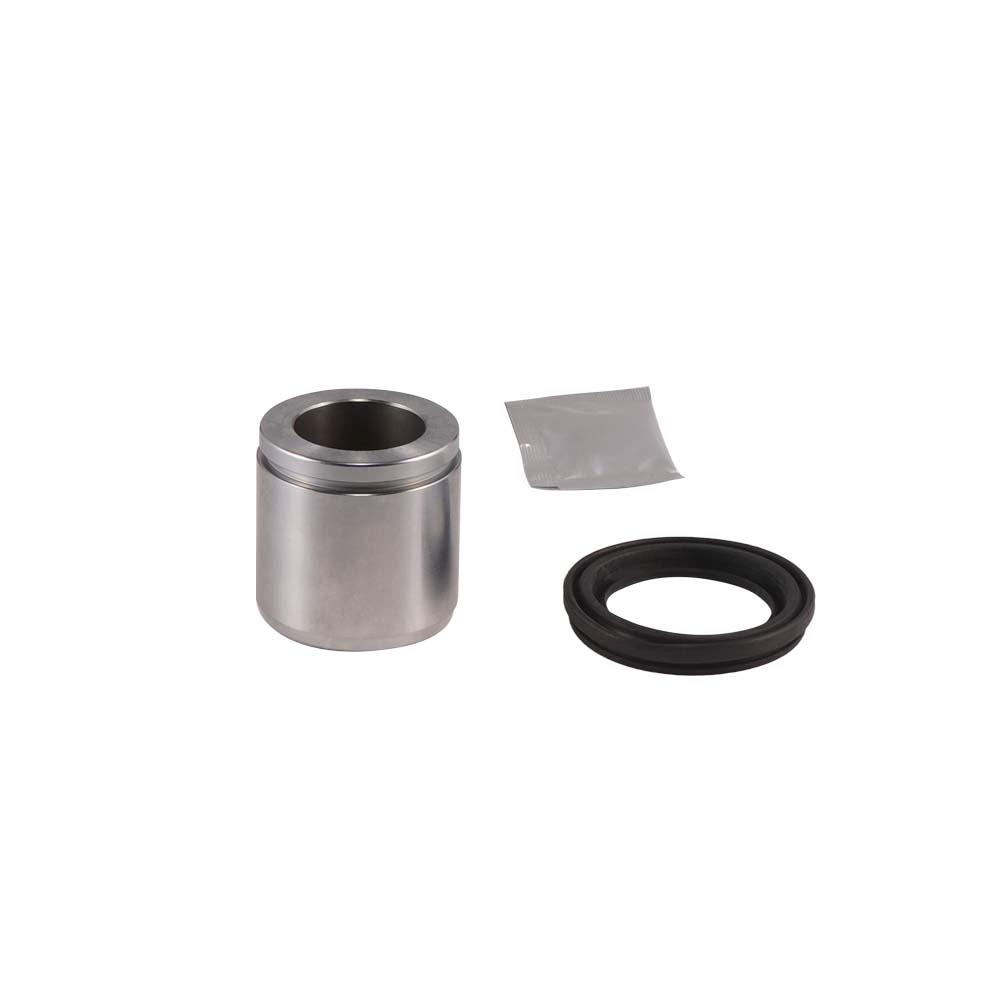

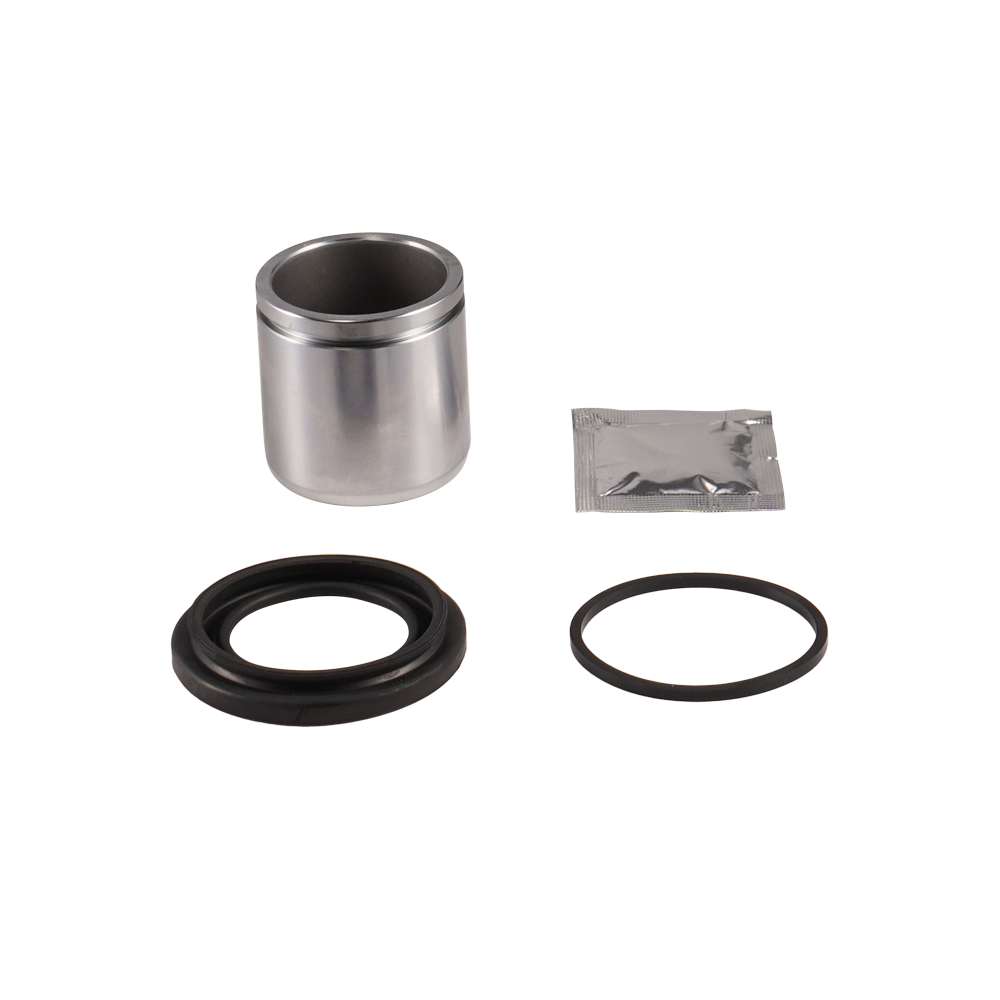

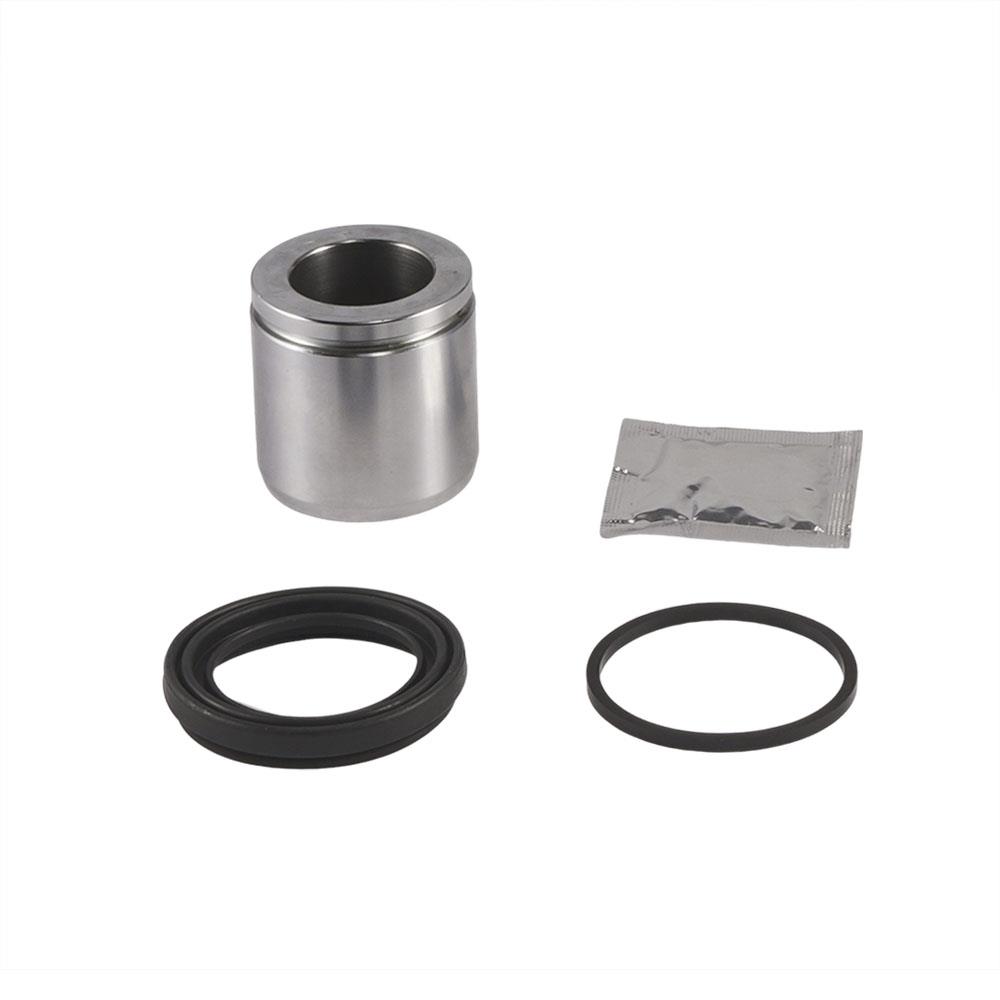

A brake caliper piston kit is a collection of components designed to replace or rebuild the pistons within a vehicle's brake calipers. These kits are crucial for maintaining the functionality and safety of the braking system, as the pistons play a key role in applying hydraulic pressure to the brake pads, forcing them against the rotor to slow or stop the vehicle. A typical kit includes:
- Pistons: The cylindrical components that move within the caliper to press the brake pads against the rotor. They are made from materials like steel, aluminum, or phenolic (plastic), depending on the application.

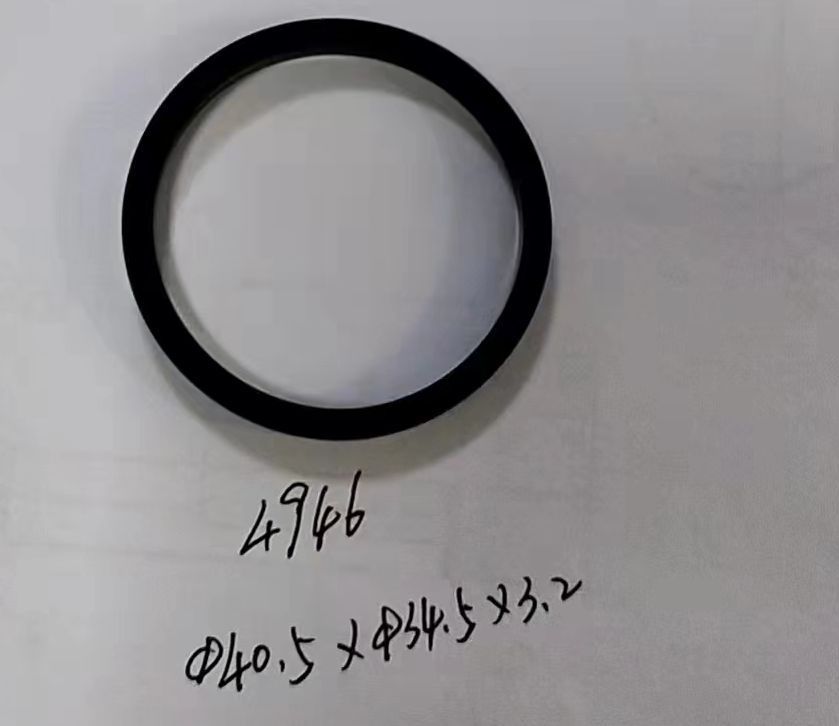

- Piston Seals: Rubber rings that seal the piston within the caliper bore, preventing brake fluid leaks and ensuring smooth movement. These seals are critical for maintaining hydraulic pressure.
- Dust Boots: Protective covers that keep contaminants like dirt, water, and debris out of the piston area, while also retaining brake fluid and protecting the seal.
- Additional Hardware: Depending on the kit, it may also include guide pins, slides, or other components specific to the caliper design, ensuring a complete rebuild.
These kits are designed for specific caliper models, ensuring compatibility with the vehicle's make, model, and year.
Mechanism of Operation
Brake caliper pistons operate by leveraging hydraulic principles and friction to decelerate the vehicle. The process is as follows:
- Brake Pedal Activation: When the driver presses the brake pedal, it activates the master cylinder, which pressurizes the brake fluid.
- Hydraulic Pressure Transmission: The pressurized brake fluid travels through brake lines to the caliper, where it acts on the pistons included in the piston kit.
- Piston Movement: The pistons move outward, forcing the brake pads against the rotor to create friction. This friction converts the vehicle's kinetic energy into thermal energy, slowing the rotor and, consequently, the wheel.
- Retraction: When the pedal is released, the pistons retract slightly due to the return of brake fluid pressure and the elasticity of the piston seals, allowing the pads to disengage from the rotor.
The seals and dust boots in the kit are essential for maintaining this process, preventing leaks and contamination that could impair piston movement. For example, a damaged seal can lead to brake fluid leaks, reducing hydraulic pressure and braking effectiveness, while a torn dust boot can allow contaminants to cause corrosion or sticking.
Types and Compatibility
Brake caliper piston kits are available for different types of calipers, each tailored to specific vehicle types and performance needs:
| Caliper Type | Piston Count | Description | Typical Vehicles |
|---|
| Floating (Sliding) | 1-2 | Pistons on the inboard side, caliper slides to apply pressure to both sides. | Standard passenger cars, light trucks. |
| Fixed | 4-6 | Pistons on both inboard and outboard sides, providing balanced pressure. | High-performance cars, luxury vehicles. |
- Floating Calipers: Typically have one or two large-diameter pistons on the inboard side, common in standard vehicles for cost-effectiveness. Piston kits for these calipers often include simpler designs with fewer components.
- Fixed Calipers: Have multiple small-diameter pistons (often 4 or 6) on both sides, offering superior performance for high-performance applications. Kits for fixed calipers may include multiple pistons of varying sizes, as seen in Alcon's CAR97 Mono6 kits with pistons of 27.0mm, 31.8mm, and 38.1mm.
Compatibility is critical, and kits must match the caliper's specifications, including piston diameter and length. For example, Wilwood offers piston kits with diameters ranging from 1.00 inch to 1.75 inch and lengths from 0.61 inch to 1.35 inch, made from materials like aluminum or stainless steel, ensuring fit for specialty applications.
Importance and Safety Considerations
Brake caliper piston kits are vital for vehicle safety and performance, offering several key benefits:
- Stopping Power: They ensure the brake pads are applied firmly against the rotor, providing the necessary friction to stop the vehicle quickly and reliably, especially under demanding conditions such as high speeds, heavy loads, or emergency braking.
- Leak Prevention: The seals in the kit prevent brake fluid leaks, which can cause a spongy brake pedal or reduced braking efficiency, potentially leading to accidents.
- Contamination Protection: Dust boots protect against corrosion and sticking, maintaining smooth piston movement and preventing uneven brake pad wear, which can cause the vehicle to pull to one side during braking.
- Maintenance and Durability: Piston kits can extend the life of the caliper by replacing worn or damaged components, avoiding the need for a complete caliper replacement, which is more costly and time-consuming.
Common issues that necessitate a piston kit include:
- Brake fluid leaks around the caliper, indicating worn seals.
- Spongy or soft brake pedal feel, suggesting hydraulic pressure loss.
- Uneven braking or pulling to one side, often due to a seized piston.
- Grinding or squealing noises, indicating pad wear or piston issues.
Regular inspection during routine maintenance (e.g., every 50,000 miles or during brake pad replacement) is recommended to check for these signs, ensuring timely replacement to maintain safety.
