What is a Brake Booster?
A brake booster is likely a device in your car's braking system that increases the force you apply to the brake pedal, helping you stop the car more easily. It’s what makes power brakes feel lighter compared to older manual systems.
How Does It Work?
Research suggests it works by using vacuum pressure, usually from the engine, to multiply the force from your foot. When you press the brake pedal, it opens a valve inside the booster, letting air pressure push a diaphragm that then pushes on the master cylinder, boosting the braking power. When you release the pedal, the system resets.
Why is It Important?
It seems likely the brake booster is crucial, especially for cars with disc brakes, as it prevents leg fatigue and ensures effective braking with less effort. If it fails, stopping might require more force, which can be dangerous.
Signs of Issues
You might notice a hard brake pedal, longer stopping distances, or unusual noises if it’s failing. It’s important to get it checked if you see these signs.
What is a Brake Booster?

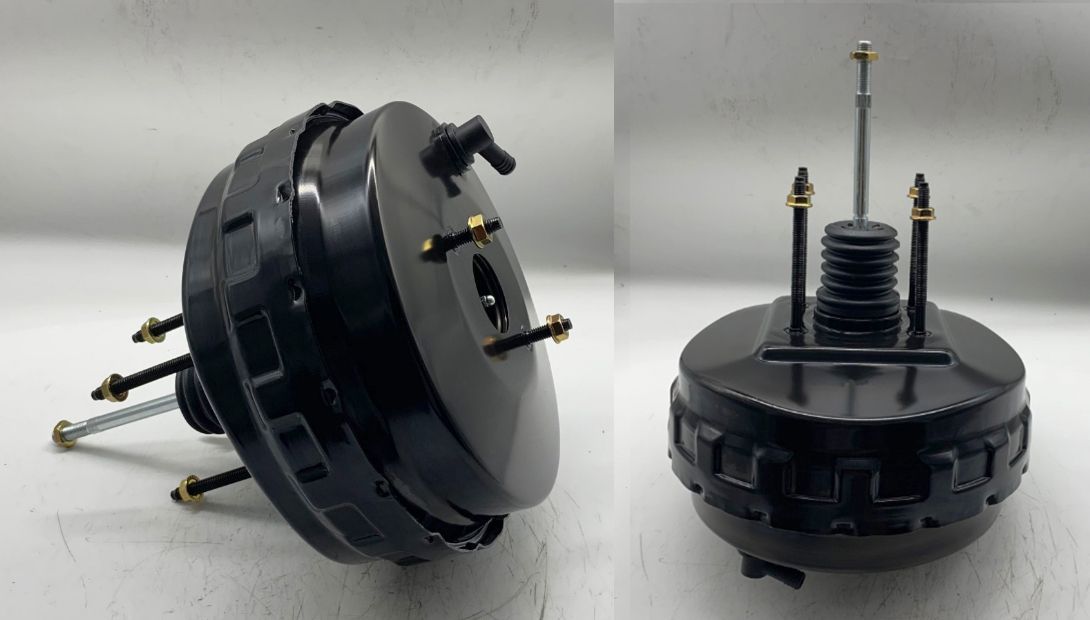

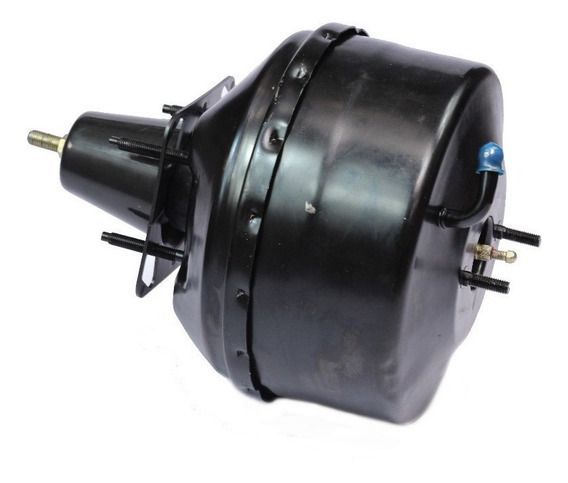

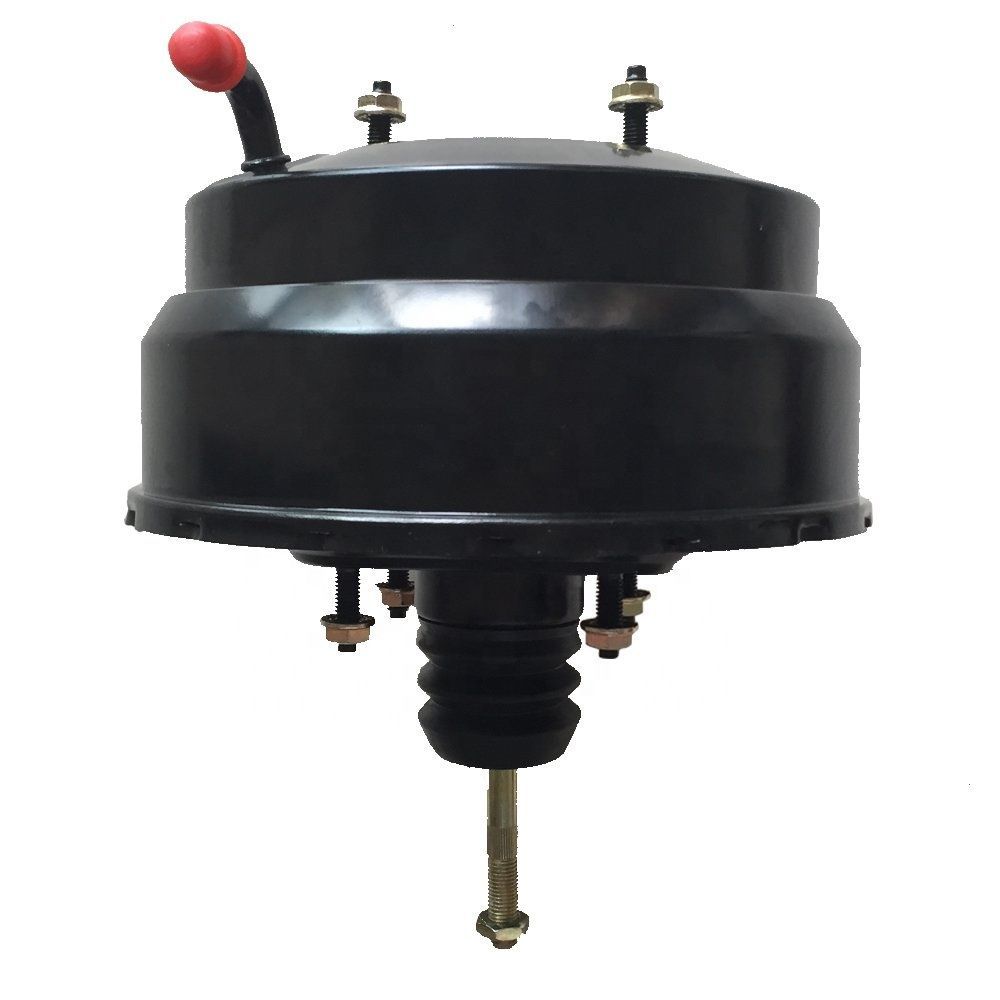

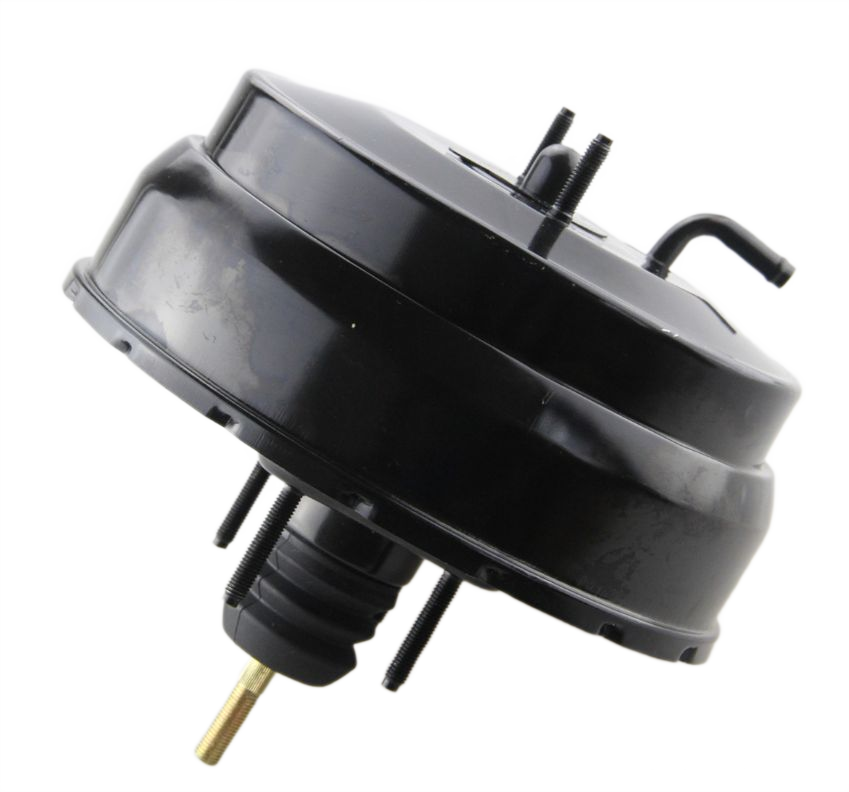

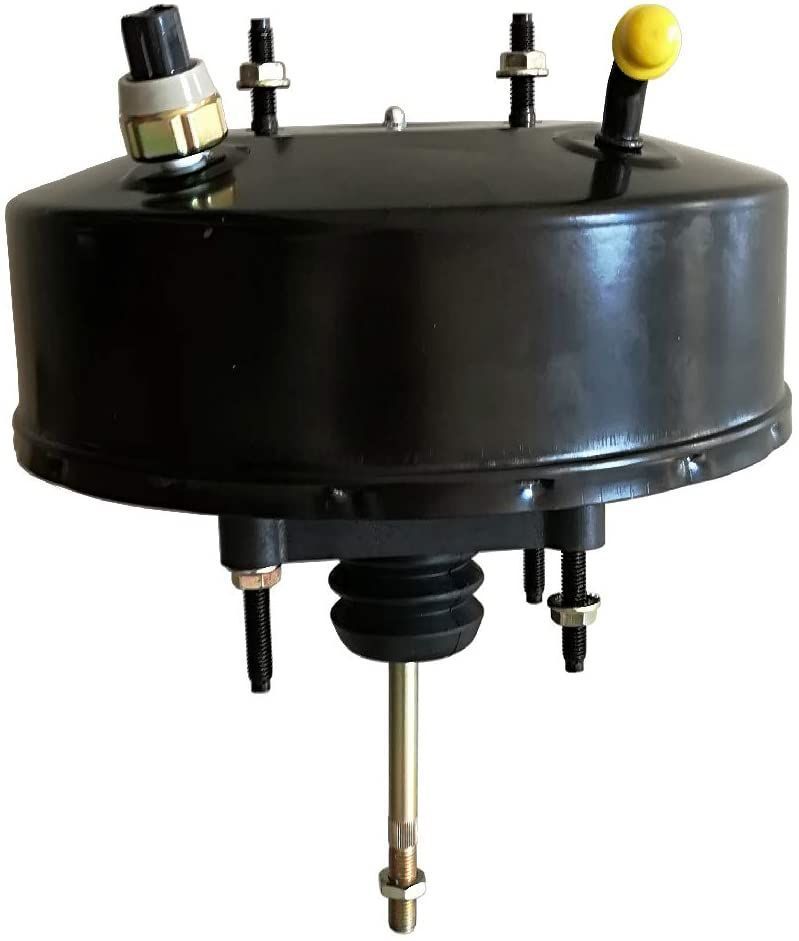

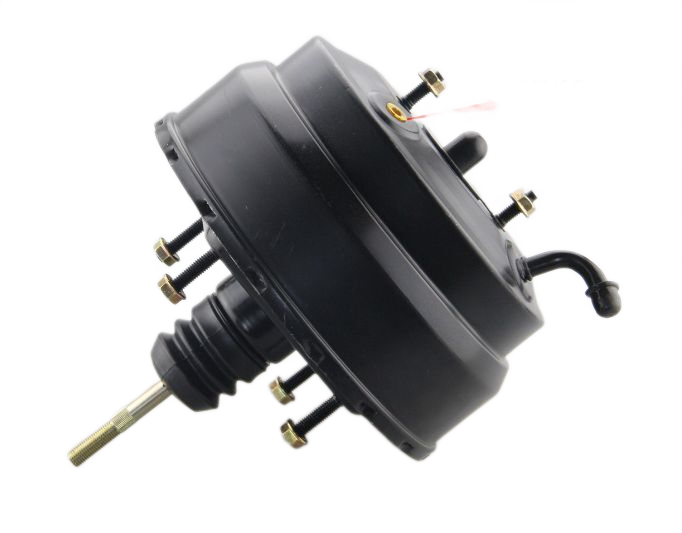

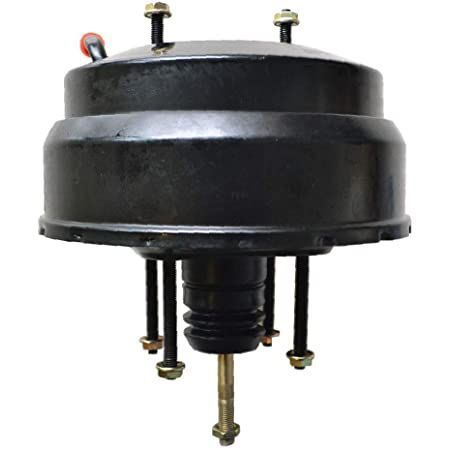

A brake booster, often referred to as a servo in some regions, is a critical component in a vehicle's braking system that amplifies the force applied to the brake pedal by the driver, making it easier to stop the vehicle. It is what separates power-assisted braking systems from manual ones, where the driver would need significantly more effort to achieve the same braking force. The brake booster is typically a round, black canister located at the back of the engine compartment on the driver's side, mounted on the firewall between the brake pedal and the master cylinder.
The brake booster is essential for vehicles equipped with hydraulic brakes, particularly those with disc brakes, which are common in modern cars. Unlike older vehicles with drum brakes that might rely on manual braking, the brake booster ensures that the driver can stop the car effectively with minimal effort, reducing leg fatigue and enhancing safety.
How Does It Work?
The most common type of brake booster is the vacuum brake booster, which uses engine vacuum to multiply the force exerted on the brake pedal. Here's a detailed breakdown of how it operates:
- Structure: The brake booster consists of a metal canister with a flexible diaphragm dividing it into two chambers. It also includes a rod that connects to the master cylinder's piston on one side and the brake pedal linkage on the other, along with a valve system for controlling air flow.
- Vacuum Supply: When the engine is running, it creates a partial vacuum, typically sourced from the intake manifold in gasoline engines. For diesel engines, which lack sufficient vacuum, a separate vacuum pump is often used. This vacuum is supplied to both sides of the diaphragm, creating a balanced state.
- Brake Application: When the driver presses the brake pedal, the pedal rod opens a valve inside the booster. This allows atmospheric pressure (higher than the vacuum) to enter one side of the diaphragm, creating a pressure difference. The atmospheric pressure pushes the diaphragm, which in turn pushes the rod connected to the master cylinder's piston, amplifying the force applied to the brakes. Vacuum boosters are typically 6-8 inches in diameter and 3-4 inches thick.
- Release: When the brake pedal is released, the valve closes, sealing off the atmospheric pressure and reopening the vacuum to both sides of the diaphragm. This restores the original position, readying the system for the next brake application.
- Check Valve: A key component is the check valve, a one-way valve that ensures air does not enter the vacuum booster if the engine is turned off or if there is a leak in a vacuum hose. This is crucial for safety, as it allows the driver to make several stops even without engine power, such as when running out of gas.
Other types of brake boosters include:
- Hydraulic Boosters: These use fluid pressure, typically from the power steering pump, to assist braking. They are less common but found in some vehicles.
- Electric Boosters: These use an electric motor to provide braking assistance, often seen in newer or hybrid vehicles.
Common Issues and Symptoms of Failure
Like all components, brake boosters can fail, though this is relatively rare. Common symptoms include:
- Hard Brake Pedal: The pedal becomes much harder to press, as the booster's ability to amplify force diminishes. This can make braking challenging, especially in emergencies.
- Increased Stopping Distance: Reduced braking power leads to longer stopping distances, which is dangerous, particularly at high speeds.
- Unusual Noises: You might hear hissing, gurgling, or other noises when braking, indicating a vacuum leak or internal failure.
- Spongy or Soft Pedal: In some cases, air in the system can cause the pedal to feel spongy, though this is less common and may indicate other issues.
- Vehicle Shuddering: Especially when braking downhill, the vehicle may shudder, due to inconsistent braking force.
These symptoms can also be caused by other brake system issues, such as worn brake pads or damaged lines, so professional diagnosis is recommended to ensure accuracy.
