Modern vehicle braking systems rely on interrelated parts to effectively convert kinetic energy into heat through friction, enabling controlled deceleration and stopping. Each component serves a specific function within this critical safety system, working together to ensure reliable braking under various driving conditions.
Disc Brake Components

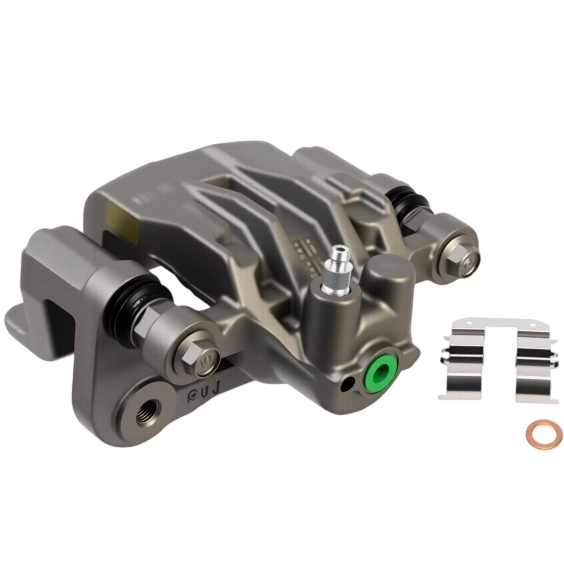

Brake Calipers
Brake calipers are a fundamental component of disc brake systems, functioning as clamps that grip the spinning rotor attached to the wheel. When hydraulic pressure is applied, the calipers press the brake pads against the brake disc to create the friction needed to slow or stop the vehicle.
Calipers come in two main types:
Fixed calipers: Feature pistons on both sides of the disc, applying pressure simultaneously from both directions
Floating calipers: Have pistons on only one side, with the caliper itself moving to press the opposite brake pad against the disc
Their proper functioning is essential for both stopping power and vehicle control, ensuring even pressure distribution across the brake pads for optimal performance.

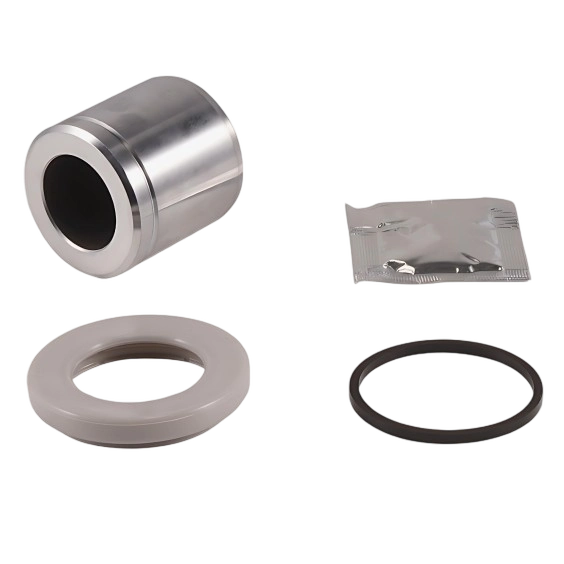

Brake Caliper Piston Kit
The brake caliper piston kit contains the necessary components to restore a caliper's performance. These kits typically include:
Seals and O-rings that prevent brake fluid leakage and ensure proper hydraulic pressure
Dust boots that protect the piston and moving parts from dirt and debris
Occasionally pistons and springs, which are responsible for pushing the brake pads
Rebuilding calipers with these kits can be more economical than replacing the entire caliper, saving both time and money while restoring optimal braking performance.

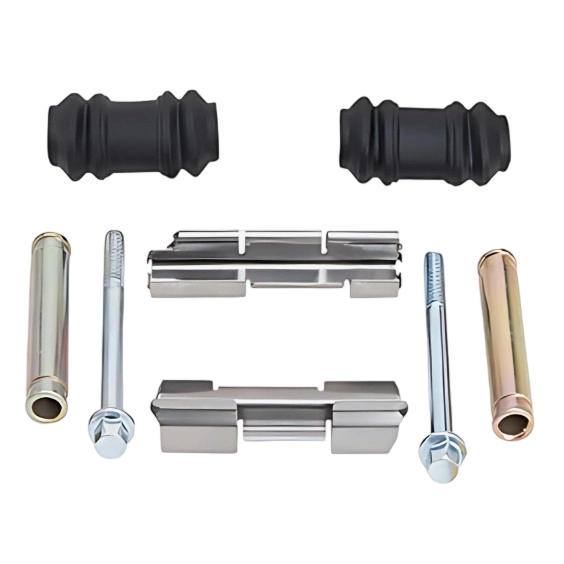

Brake Caliper Slide Pin Kit
Slide pins (also called guide pins) are crucial cylindrical metal rods that enable proper caliper movement. They serve several important functions:
Facilitating smooth caliper movement when the brake pedal is pressed
Ensuring even pressure application to both sides of the brake pads
Reducing uneven brake pad wear by minimizing friction
Maintaining system alignment between the caliper and brake rotor
Properly lubricated and functioning slide pins are essential for uniform brake pad wear and optimal braking performance.

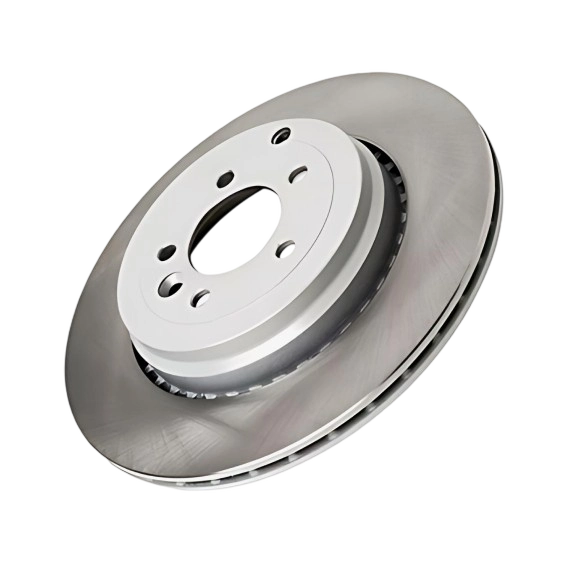

Brake Disc
The brake disc (or rotor) is the rotating component against which brake pads apply pressure. Typically made of gray iron, disc designs vary between solid and ventilated versions with fins or vanes connecting the contact surfaces. Ventilated discs are common for the front wheels of vehicles where approximately 70% of braking force occurs.
One significant concern with brake discs is uneven thickness variation (lateral runout), which can lead to uneven pad deposition, inconsistent heating, and in extreme cases, changes to the metal's crystal structure that permanently compromise the disc's integrity.

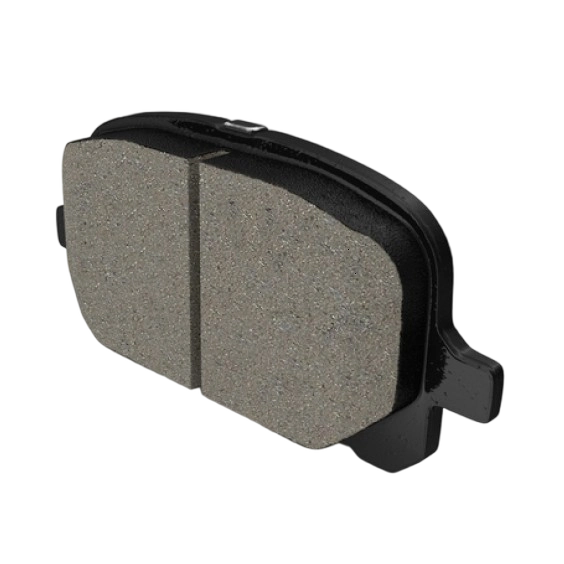

Brake Pads
Brake pads are the friction material components that press against the brake disc to create the stopping force. Modern brake pads are classified into four principal categories:
· Non-metallic (organic): Made from synthetic substances bonded into a composite; gentle on rotors but produce dust and have shorter life
· Semi-metallic: Synthetics mixed with flaked metals; more durable but increase rotor wear
· Fully metallic: Used primarily in racing applications; very long-lasting but wear rotors quickly
· Ceramic: Clay and porcelain bonded to copper flakes; good compromise between durability and performance
Key characteristics considered when selecting brake pad materials include fade resistance, moisture effects, recovery time, friction coefficient (typically 0.3-0.5), wear resistance, contact quality, and noise levels.
Hydraulic System Components

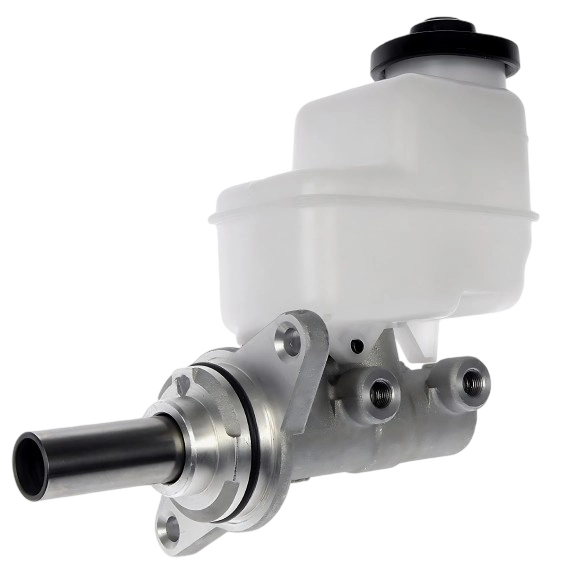

Brake Master Cylinder
The brake master cylinder converts the force applied to the brake pedal into hydraulic pressure that activates the brake calipers. Located near the brake pedal and connected via a push rod, it contains two separate chambers—one for the front brakes and one for the rear.
When the brake pedal is pressed:
· The push rod pushes the piston inside the master cylinder
· This forces brake fluid through the brake lines to the calipers
· The calipers then press the pads against the rotors to slow the vehicle
The master cylinder also includes a reservoir that holds brake fluid essential for system operation. Common symptoms of a failing master cylinder include reduced braking power, spongy brake pedal feel, and fluid leaks.

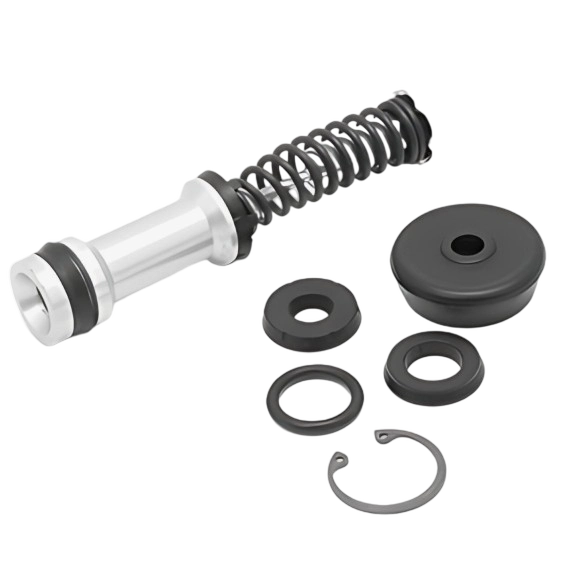

Brake Master Cylinder Repair Kit
Brake master cylinder repair kits contain all components needed to recondition the center bore of a master cylinder. These kits restore functionality without requiring complete replacement of the unit, making them an economical maintenance option for vehicle owners.
A quality repair kit includes seals, pistons, springs, and other components necessary to rebuild the master cylinder to proper working condition. Before beginning the refurbishment process, it's important to ensure all debris is removed from the master cylinder.
Drum Brake Components

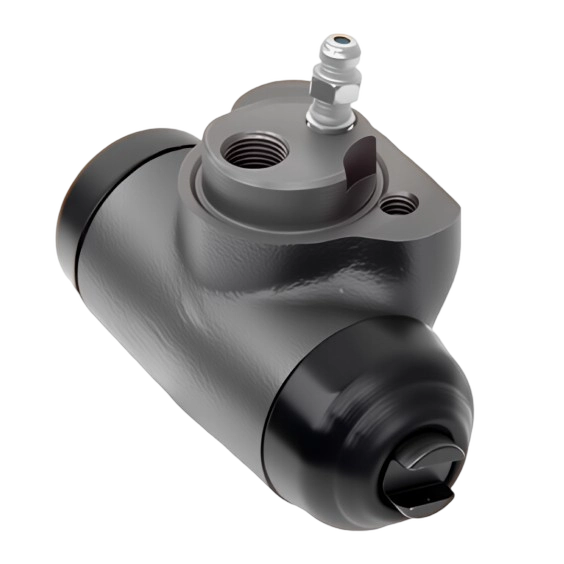

Brake Wheel Cylinder
The wheel cylinder is a critical component in drum brake systems, typically positioned at the top of the brake assembly. Its primary function is to convert hydraulic pressure into mechanical force to actuate the brake shoes against the drum.
The wheel cylinder consists of several key components:
A cylinder containing two pistons (one on each side)
Rubber seals/cups for each piston
A spring positioned between the pistons
When hydraulic pressure is applied, the pistons are forced outward, pushing the brake shoes into contact with the drum to create the friction necessary to stop the vehicle. Modern wheel cylinders are typically made from aluminum rather than the cast iron used previously, which was more prone to rusting.

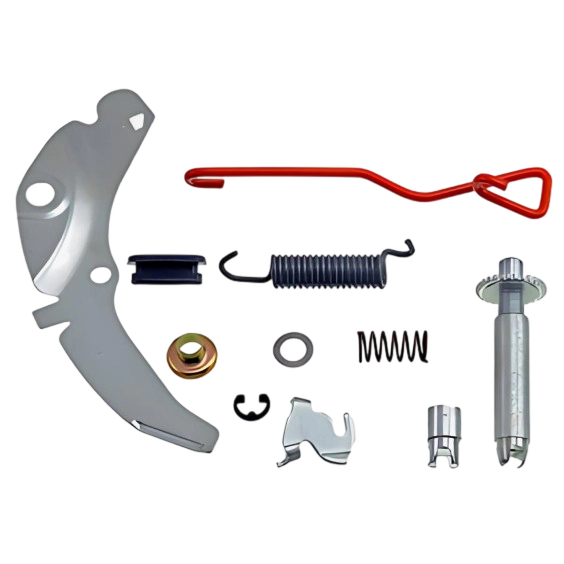

Drum Brake Self Adjuster Repair Kit
Drum brake self-adjuster repair kits contain high-quality replacement parts that restore the self-adjuster mechanism to proper performance. These kits include:
· Hardware components designed to match original specifications
· Corrosion-resistant materials for durability against harsh road conditions
· All necessary parts to repair the self-adjuster mechanism
The self-adjuster system ensures that adjustments occur at proper intervals, which helps improve the life and performance of the braking system by preventing uneven braking. These kits are essential for maintaining older vehicles or rear drum brake systems found on many modern vehicles.
Power Assistance Components

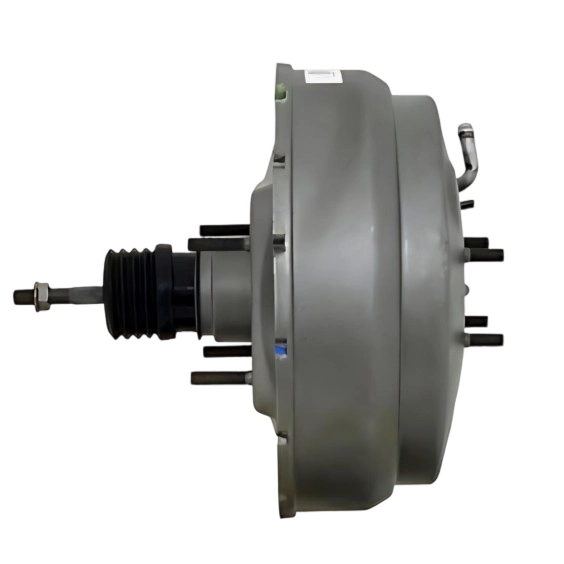

Brake Power Booster
The power brake booster multiplies the force exerted by the driver through the brake pedal, providing the necessary clamping power of the brake pads on the rotor. This amplification makes braking easier and more effective, requiring less pedal effort from the driver.
There are several types of power brake systems used in the automotive industry:
Vacuum brake boosters: Use engine vacuum for power assistance
Hydraulic brake boosters: Utilize pressure from the power steering system
Electro-hydraulic brake boosters: Combine electric pumps with hydraulic pressure
Modern power-assisted brake systems stop faster, require less effort, and are therefore safer than older manual brake systems. The booster is directly connected to the master cylinder, and the multiplied force allows the master cylinder piston to be depressed with minimal driver effort.

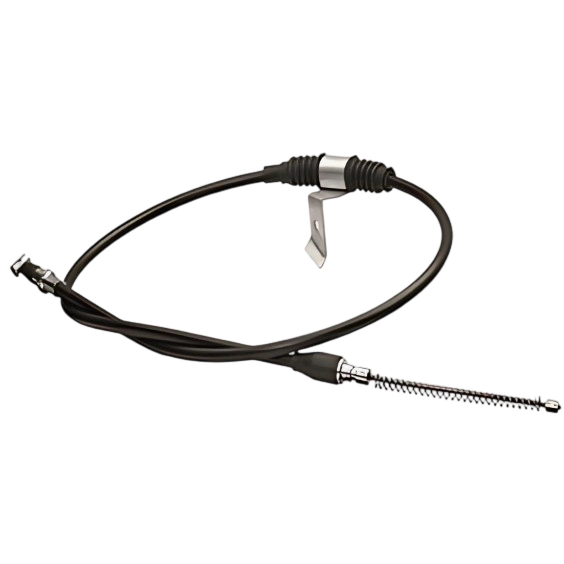

Brake Cable
The brake cable is primarily associated with the parking brake (also known as the handbrake or emergency brake) system. Its functions include:
1. Preventing vehicle movement when parked on an incline
2. Providing emergency brake functionality in case of primary system failure
3. Preventing rollaway accidents
The parking brake cable system includes:
1. A parking brake lever located inside the vehicle cabin
2. The cable assembly (flexible steel cable)
3. An equalizer mechanism
When activated, the cable applies mechanical force to the rear wheels, typically engaging either special parking brake components within the rear brake assemblies or the regular service brakes through a mechanical rather than hydraulic connection.
Integrated Brake System Operation
The entire braking system works through a carefully engineered sequence:
· The driver applies force to the brake pedal
· The brake booster amplifies this force
· The master cylinder converts this mechanical force into hydraulic pressure
· Brake fluid carries this pressure through brake lines to each wheel
· At disc brakes, calipers force the pads against rotors; at drum brakes, wheel cylinders push shoes against drums
· The resulting friction between these components converts kinetic energy to heat energy, slowing the vehicle
This integrated system requires all components to function properly to ensure safe, reliable vehicle stopping. Regular maintenance of these components is crucial, as failure in any one part can compromise the entire system.
Conclusion
The brake system represents one of the most critical safety systems in any vehicle. From the brake pedal to the friction components at each wheel, every element must function flawlessly to provide consistent, reliable stopping power. As automotive technology continues to advance, braking systems incorporate more electronic controls and sensor-based features. Proper selection of quality replacement parts when maintenance is required ensures continued brake system reliability and optimal safety performance.
