the critical technology that enables controlled deceleration and stopping. As vehicles have evolved, so too have their braking systems—advancing from simple mechanical designs to sophisticated electronic and hydraulic systems that enhance safety, performance, and efficiency.
Types of Vehicle Braking Systems
Modern vehicles utilize various braking systems to ensure safety and performance. Each system has distinct features and applications, catering to diverse vehicle requirements.
1. Disc vs. Drum Brakes:
Disc Brakes: Offer superior heat dissipation, better stopping power, and reduced fade. Common in front wheels of modern vehicles.
Drum Brakes: Cost-effective, durable, and protected from debris but less efficient at heat dissipation and stopping power. Often used in rear wheels.
Hybrid Approach: Combines disc brakes at the front and drum brakes at the rear for balanced performance and cost. Many modern vehicles use a hybrid approach, with disc brakes on the front wheels (where most of the braking force is applied) and drum brakes on the rear wheels to balance performance and cost considerations.
2. Hydraulic Braking Systems:
Operate through a closed hydraulic circuit, multiplying pedal force to generate braking pressure.
Configurations include positive, negative, and custom hydraulic disc brakes with accessories like electronic controls for adaptive braking.
3. Anti-lock Braking Systems (ABS):
Prevent wheel lockup during hard braking by rapidly modulating brake pressure.
Improve control and reduce accidents, mandated in all U.S. vehicles since 2012.
4. Regenerative Braking Systems:
Found in electric and hybrid vehicles, this system recovers kinetic energy during deceleration, storing it in the battery.
Reduces wear on conventional brakes and enhances energy efficiency.
5. Brake-by-Wire Systems:
Replace mechanical connections with electronic controls, providing precision and integration with advanced vehicle systems.
Types include:
Electro-hydraulic brakes - These systems use the hydraulic force from pressing the brake pedal only as an input to the computer. An electric pump provides the actual hydraulic pressure, and electronic valves control pressure to each wheel caliper. This design integrates with vehicle stability control and anti-lock braking while prioritizing regenerative braking when appropriate.
Electro-mechanical brakes - These systems eliminate hydraulics entirely, using electric actuators at each wheel controlled by an electronic control unit (ECU). The system architecture includes processors, memory, sensors, actuators, and communication networks that work together to provide precise braking control.
Each braking system contributes uniquely to modern vehicle performance, safety, and efficiency, from traditional designs to cutting-edge innovations like regenerative and brake-by-wire systems.
Brake Parts and Operation
Understanding the components that make up braking systems helps vehicle owners recognize potential issues and maintain their brakes properly.
1. Brake Pads and Shoes
Brake pads and brake shoes are the friction components in disc and drum brake systems, respectively. Though they serve the same fundamental purpose—creating friction to slow the vehicle—they differ significantly in design, application, and performance.
Brake pads are flat pieces of steel with high-friction material on both sides. They operate by pushing inward against a brake disc (rotor), providing greater braking power due to the mechanical advantage of the caliper design. These components are typically exposed to road debris and endure greater forces, particularly in front-wheel applications, resulting in faster wear rates compared to brake shoes.
In contrast, brake shoes are curved metal pieces covered with friction material on one side, housed inside drum brakes. They work by pushing outward against the brake drum when activated. Their enclosed design offers protection from dirt and debris, contributing to a longer lifespan, particularly in rear-wheel applications where less braking force is typically applied.
Historically, asbestos was a common material in brake shoes due to its heat resistance, but health concerns have led manufacturers to develop alternative materials. Today, both components utilize specialized heat-tolerant materials such as kevlar or sintered glass to withstand the extreme temperatures generated during braking.

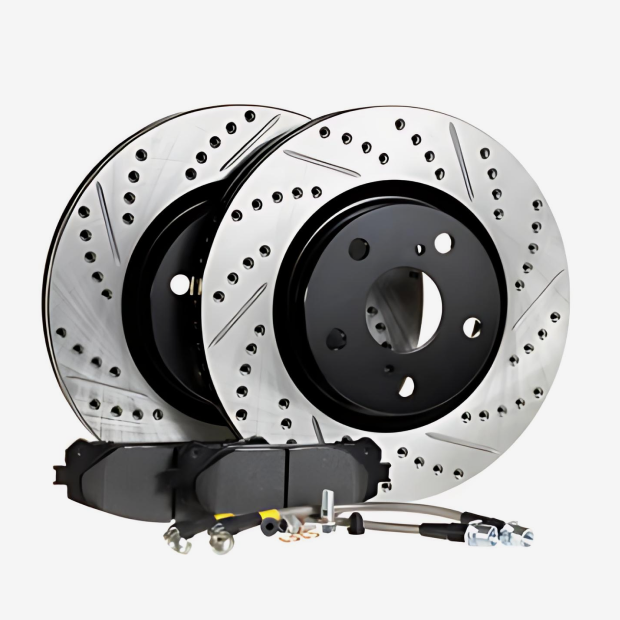

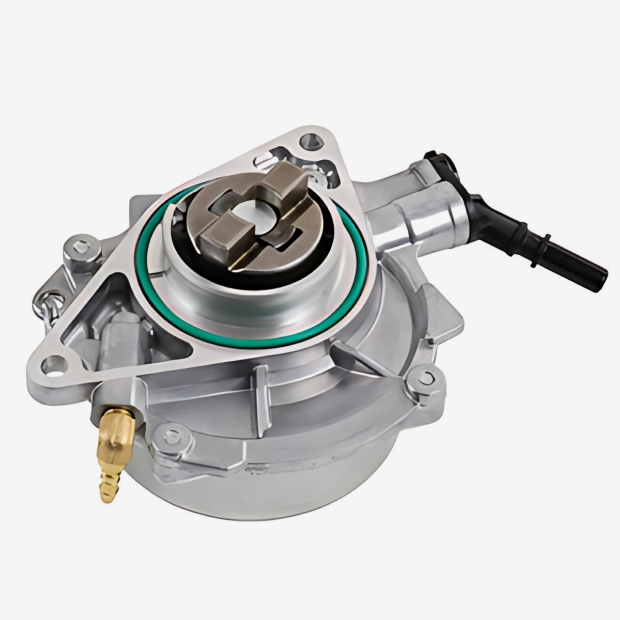

2. Rotors, Drums, and Hydraulic Components
Rotors (or discs) and drums are the metal components that rotate with the wheels and provide the surface against which brake pads or shoes press to create friction. Rotors in disc brake systems are exposed to allow better heat dissipation, while drums in drum brake systems enclose the brake shoes.
The hydraulic components in braking systems include the master cylinder, which converts pedal pressure into hydraulic pressure; brake lines that transmit this pressure; and calipers or wheel cylinders that apply force to the friction components. The system uses brake fluid—a specialized hydraulic fluid designed to withstand high temperatures without boiling—to transmit force from the pedal to the wheels.
Modern braking systems also include proportional valves and pressure sensors that help distribute braking force appropriately to each wheel based on load and traction conditions. .
3. Electronic Components in Modern Braking Systems
The integration of electronic components has revolutionized braking systems, enhancing safety, control, and performance. These components include wheel speed sensors, accelerometers, yaw sensors, and electronic control units (ECUs) that process data and control brake actuation.
In ABS systems, wheel speed sensors detect when a wheel is about to lock up, sending signals to the ECU which then modulates brake pressure accordingly. More advanced systems incorporate additional sensors to monitor vehicle motion, steering angle, and brake pedal pressure to provide comprehensive vehicle stability control.
Electronic Brake-force Distribution (EBD) uses these sensors to determine the optimal distribution of braking force between front and rear wheels, improving stability during braking. Traction control systems use the same sensors and actuators to prevent wheel spin during acceleration.
In the Electronic Braking System (EBS), sensors collect information about the vehicle's surroundings, status, and speed, sending it to the ECU which then controls the brake application through a CAN bus network. The brake pedal in these systems acts as an electronic switch that controls valves supplying air to the brake cylinders of each wheel.
Brake Maintenance
Proper maintenance of braking systems is crucial for vehicle safety and performance. Regular inspection and service can prevent costly repairs and ensure reliable braking when needed most.
Regular Inspection and Service Intervals
During a brake inspection, we should examine all aspects of the braking system for leaks, wear, and damaged components. This multi-point inspection typically includes checking brake fluid levels and condition, measuring brake pad and rotor thickness, inspecting hydraulic components for leaks, and testing brake performance.
The frequency of brake maintenance depends on various factors, including driving habits, environmental conditions, and vehicle type. For instance, brake fluid replacement intervals vary based on heat and humidity exposure, while brake pad replacement typically occurs every 50,000 miles but can be more frequent with aggressive driving or in vehicles that carry heavy loads.
Recognizing Signs of Brake Problems
Being aware of potential brake problems is crucial for vehicle safety. Several warning signs indicate when brake components need attention or replacement:
Unusual noises - Squealing, grinding, or scraping noises during braking often indicate worn brake pads or shoes that need replacement.
Vibrations during braking - Pulsation or vibration in the brake pedal typically suggests warped rotors that require machining or replacement.
Pedal feel changes - A spongy brake pedal or one that sinks to the floor may indicate air in the hydraulic system or a master cylinder issue.
Visual indicators - Brake pads should be at least a quarter-inch thick; anything less requires replacement. Similarly, brake fluid should be clear; dark fluid indicates contamination and the need for replacement.
Warning lights - Most modern vehicles have dashboard indicators for brake system issues, including ABS malfunction, low brake fluid, or worn brake pads.
Addressing these warning signs promptly can prevent more expensive repairs and maintain optimal braking performance and safety.
Cleaning and Servicing Brake Components
Regular cleaning of brake components is an important but often overlooked aspect of brake maintenance. Dirt and dust accumulation can impair brake performance and potentially cause permanent damage.
Using a dedicated brake cleaner is recommended to dissolve and remove grime from brake components without damaging sensitive parts. This cleaning should be part of regular brake service and can be especially important in areas with road salt, mud, or excessive dust.
When replacing brake components, always choose high-quality parts to ensure effectiveness and longevity. While some maintenance tasks can be performed by knowledgeable vehicle owners, complex brake system repairs and component replacements often require professional expertise and specialized tools.
